Konica Minolta PAGEPRO 5650EN User manual

pagepro 5650EN
bizhub 40P
Product Guide
Status: 02.07.2008 Version: 1.3

2
Product Basic
MODEL DEVELOPMENT CODE
OPAL-P-H
Product
Basic
PROPOSED MODEL NAME
pagepro 5650EN/ bizhub 40P
Product
Configuration
SUCCESSOR MODEL FOR
N/A
System
Specifications
ESTIMATED SALES START
pagepro 5650EN 12/07, bizhub 40P 02/08
Printer
Specifications
TYPE
desktop A4 b/w laser beam printer
Article Numbers
MAX. MONTHLY PRINT VOLUME
200k prints
Documentation
AVERAGE MONTHLY PRINT VOLUME
4.5k prints
Recommended
Media
MACHINE LIFE
1 Mill. prints or 5 years whichever comes first
Appendix
MPBF
(Mean Prints Between Failure)
300k prints
MTTR (Mean Time To Repair)
15 minutes or less
SAFETY & ENVIRONMENT
English Data Sheets
InfoHub / Business Solutions / Safety and Environment
ENVIRONMENTAL LABELS
Energy Star Program, Blue Angel Mark (planned)

3
Product Configuration
SYSTEM DIMENSION
Product
Basic
Product
Configuration
System
Specifications
Printer
Specifications
Consumables
Article
Numbers
Documentation
Recommended
Media
Appendix

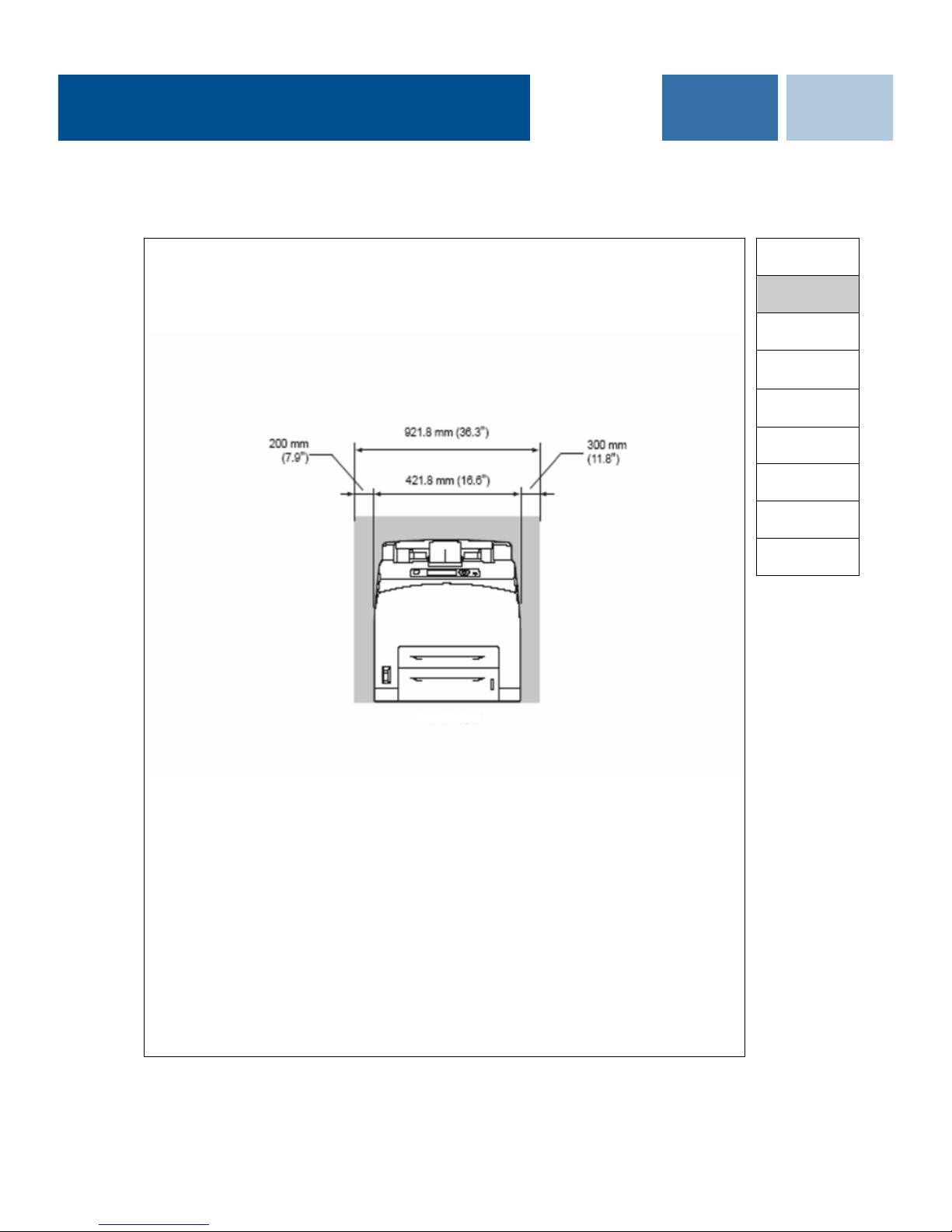

Front View

4
SYSTEM DIMENSION
Product
Basic
Product
Configuration
System
Specifications
Printer
Specifications
Consumables
Article
Numbers
Documentation
Recommended
Media
Appendix

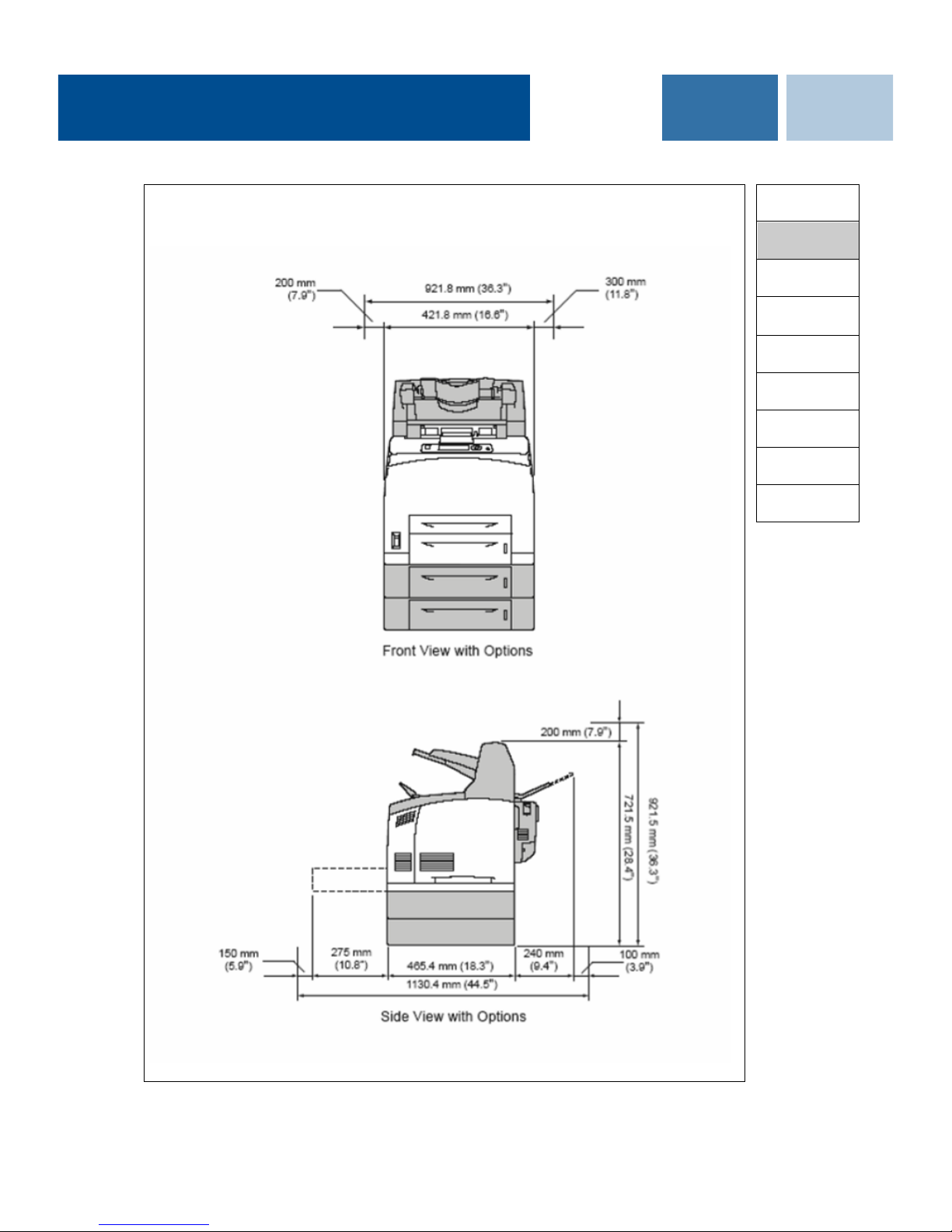

Front View
with Options
Front View
with Options

5

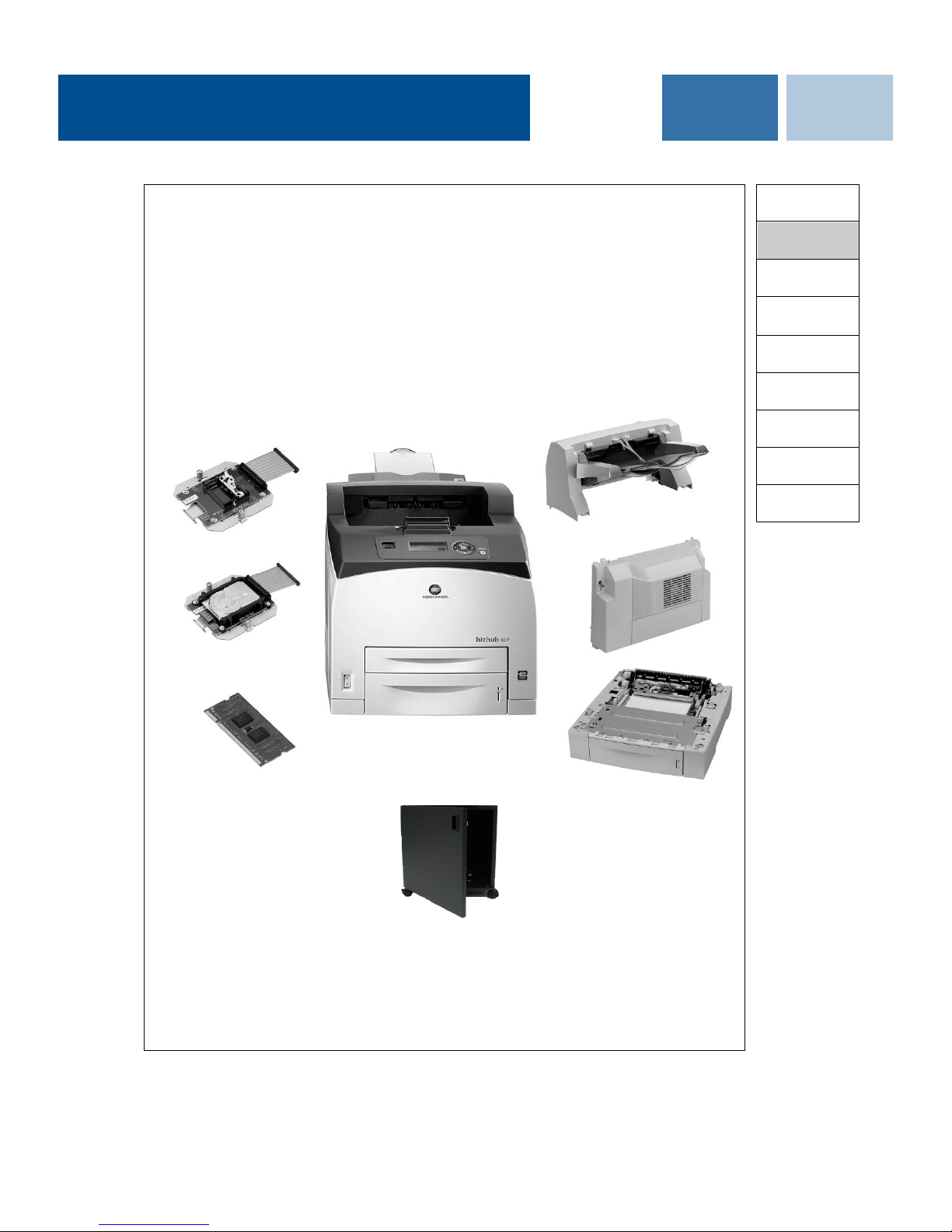

SYSTEM CONFIGURATION
Product
Basic
Product
Configuration
System
Specifications
Printer
Specifications
Consumables
Article
Numbers
Documentation
Recommended
Media
Appendix
128/256 MB Memory
Flash Card Adapter
Hard Disk Kit
Offset Stacker
Lower Paper Feeder
Duplex Unit
Simple Cabinet
(only for bizhub 40P)

6
System Specifications
FEED TRAY
Standard
Product
Basic
Paper Size
A4 lengthwise, A5 lengthwise, A6 lengthwise, Custom
Size (width: 76.2 – 215.9 mm, length: 127 – 355.6 mm) –
up to 900 mm,
Product
Configuration
Paper Weight
64 – 216 g/m²
System
Specifications
Tray Capacity
150 sheets (80 g/m²)
Printer
Specifications
Media Types
Plain paper, recycled paper, transparency, labels, thick
paper, envelopes
Consumables
CASSETTE
Standard
Article Numbers
Paper Size
A4 lengthwise, A5 lengthwise. A6 lengthwise,
Documentation
Paper Weight
64 – 216 g/m²
Recommended
Media
Capacity
550 sheets (80 g/m²)
Appendix
Media Types
Plain paper, recycled paper, transparency, labels, thick
paper, envelopes
LOWER PAPER FEEDER
Option
Paper Size
A4 lengthwise, A5 lengthwise. A6 lengthwise
Paper Weight
64 – 216 g/m²
Capacity
550 sheets (80 g/m²)
Media Types
Plain paper, recycled paper, transparency, labels, thick
paper, envelopes
Remark
up to 2 cassettes can be installed
DUPLEX UNIT
Option
Paper Size
A4 lengthwise, A5 lengthwise, A6 lengthwise
Paper Weight
64 – 216 g/m²
Media Types
Plain paper, recycled paper, thick paper
Remark
Additional 128 MB DIMM is required when the Duplex Unit
is installed.

7
System Specifications
SIMPLE CABINET
Option
Product
Basic
Remark
As storage for consumables and paper. Recommended, if
one or two additional cassettes are attached.
Dimension 500 (B) x 540 (T) x 520 (H) mm
System
Specifications
OFFSET STACKER
Option
Printer
Specifications
Modes
sort, group
Consumables
Number of Bins
1
Article
Numbers
Bin Capacity
500 sheets (80 g/m²)
Maintenance
Paper Size
Width: 89 to 216mm
Length: 140 to 356mm
Documentation
Remark
For sorting function hard disk or CF card is required
Recommended
Media
Hard disk kit
Option
Appendix
Capacity
40 GB
Remark
Hard Disk Kit enables Secure printing, Proof-then-Print &
Hold, Job Storing and XPS support in addition to all extra
functions with CF Flash card.
Either HDD kit or Flash Card adapter can be connected.
Compact Flash Card
Local Procurement
Capacity
512MB/1GB or more
Recommended Supplier
Kingston (same as for bizhub 30P)
Remark
Flash Card can be used instead of HDD Kit for PDF Direct
Printing, JPEG/TIFF Direct Print and sorting
MEMORY EXPANSION
Option
Capacity
128 MB
Remark
Required if Duplex Unit is installed.
MEMORY EXPANSION
Option
Capacity
256 MB
Remark
Either the 128MB or the 256MB memory expansion can
be connected. The memory capacity is 384MB max.

8
Printer Specifications
pagepro 5650EN, bizhub 40P
Product
Basic
WARM-UP TIME
20 sec. or less
Product
Configuration
FIRST PRINTING TIME
9.5 sec. or less (A4 or Letter from Tray 1)
System
Specifications
PRINT SPEED
43 ppm (A4 Simplex)
26 ppm (A4 Duplex)
Printer
Specifications
RESOLUTION
600 x 600dpi x 1 bit
1200 x 1200dpi x 1 bit
Consumables
MAX. PRINTABLE AREA
4 mm deletion on all edges, in case of Duplex printing
6 mm on leading edge
Article
Numbers
OUTPUT CAPACITY
Face down: 500 sheets
Face up: 70 sheets
Documentation
POWER REQUIREMENT
120V / 220 – 240 V, 50/60 Hz
Recommended
Media
POWER CONSUMPTION
1.3 kW or less
Printing: 910 W or less
Standby: 140 W or less
Appendix
PRINTER DIMENSIONS (W x D x H)
mm
421.8 x 465.4 x 404.5
PRINTER WEIGHT (kg)
25 (w/o consumables)
PROCESSOR
88F5281/500MHz
MEMORY
128 MB standard, max. 384 MB
HARD DISK
40 GB (optional)
INTERFACE
100Base-TX, 10Base-T, 1000Base-T, USB2.0 (Hi-Speed
support), IEEE 1284 (ECP support only) [1284.4 is not
supported], Host USB (USB Drive Printing)
EMULATION
PostScript3 (3016)
PCL6(XL3.0)
PCL5e/c
XPS (Version 1.0)
PDF Direct Printing (Version 1.6)
JPEG/TIFF Direct Print
NETWORK
Protocols
TCP/IP, EtherTalk, IPX/SPX, UDP
TCP/IP : IPv6
IPP1.1, SNMP, HTTP
HTTPS
WSD
IEEE 802.1x
Network Service

9
SUPPORT OS
Win 2000 (Service Pack 4 or later)
Win XP (Service Pack 2 or later)
Win XP for 64bit
Win 2003 Server
Win 2003 Server for 64bit
Vista
Vista for 64bit
Mac OSX (10.2, 10.3, 10.4)
Linux Redhat v.9.0
SUSE v.8.2
Netware 4 / 5 / 6
Product
Basic
Product
Configuration
System
Specifications
Printer
Specifications
Consumables
Article
Numbers
DRIVER
Documentation
Windows 2000/XP/Server 2003/Vista
PostScript Level 3
Recommended
Media
Windows XP/Server2003/Vista (64bit)
PCL XL Driver
Appendix
Mac OSX (10.2, 10.3, 10.4)
PostScript Driver
Linux Support PS3
PPD for CUPS
UTILITIES
Download Manager
Status Monitor
OWN NETWORK UTILITIES
PageScope NetCare
PageScope Web Connection
PageScope Network Setup
PageScope EMS Plug-in
PageScope Web Jet Admin Plug-in
PageScope Plug and Print
PageScope NDPS Gateway
PageScope Direct Print (HDD or Flash Card required)
PageScope VISUAL COUNT Server
PageScope Data Administrator
SAP R/3

10
Consumables
AIO IMAGING CARTRIDGE
Product
Basic
Concept
All-In-One Cartridge with Toner, Starter, Drum
Product
Configuration
Name
Toner cartridge
System
Specifications
Yield (according to ISO/IEC 19752)
11k (only for pagepro 5650EN) (continuous print)
19k (continuous print)
Printer
Specifications
Units per carton
1 cartridge
Consumables
Remark
User replaceable
19k continuous print suitable to 16k 3 pages per job
Article
Numbers
START-UP IMAGING CARTRIDGE
Documentation
Yield (according to ISO/IEC 19752)
6k for pagepro 5650EN
19k for bizhub 40P
Recommended
Media
Remark
User replaceable
Appendix
MAINTENANCE KIT
Yield
200k
Contents
Fuser Unit, Pick-up Rollers, Transfer Rollers
Remark
User replaceable
IMPORTANT: The values listed in the above table indicate the average life time of the AIO Imaging
Cartridge. The life time is very much depending on printing conditions (coverage, paper size, etc.),
differences in the printing method (continuous or one page printing) and type of media.

11
Article Numbers
Article Number
Product
Basic
MACHINE
Product
Configuration
pagepro 5650EN
A0DX022
System
Specifications
bizhub 40P
A0DX023
Printer
Specifications
ACCESSORIES
Consumables
Optional Cassette
A0FG0Y2
Article
Numbers
Duplex Unit
A0FH0Y2
Documentation
Offset Stacker
A0FJ0Y1
Recommended
Media
Simple Cabinet (only for bizhub 40P
available)
9960760000
Appendix
128 MB Memory
9J05152
256 MB Memory
9J05151
HDD Kit (40 GB)
A08D0Y1
Compact Flash Adapter
A08D0Y2
2 GB CF Flash Card
Local procurement (Supplier recommendation: Kingston)
CONSUMABLES
pagepro 5650EN
AIO Imaging Cartridge (11k)
A0FP021
AIO Imaging Cartridge (19k)
A0FP022
bizhub 40P
AIO Imaging Cartridge (19K)
A0FN023
Maintenance Kit
A0FM0Y2

12
Documentation
Language
Documentation
Installation Guide/
Safety Information
Guide
F/W (Message
display)
Driver
(DVD)
Product
Basic
GB (en)




Product
Configuration
D (de)




System
Specifications
F (fr)




Printer
Specifications
E (es)




Consumables
I (it)




Article
Numbers
P (pt)




Documentation
NL (nl)




Recommended
Media
DK (da)


---

Appendix
S (sv)


---

N (no)
---

---
---
FIN (fi)
---

---
---
GR (el)
---

---
---
TR (tr)
---

---
---
CZ (cs)




H(hu)
---

---
---
LV(lv)
---
---
---
---
LT (lt)
---
---
---
---
PL (pl)




RUS (rus)




SLO (slo)
---

---
---
Remark:
Driver and User Guide in the marked languages are on one DVD.
Reference Guide is included in the Installation Guide but just in English language.
All documentation is included in the machine box at factory side.

13
Recommended Media
PAPER
Manufacturer
Article Number
Product
Basic
Konica Minolta Color + A4/90 g/m²
Mondi Business Paper
9960 – 1310 - 00
Product
Configuration
Konica Minolta Original A4/80 g/m²
Mondi Business Paper
9960 – 6120 - 00
System
Specifications
Konica Minolta Profi A4/80 g/m²
Mondi Business Paper
9966 – 1380 - 00
Printer
Specifications
Mondi Color Copy
A4/100/120/160/200 g/m²
Mondi Business Paper
---
Consumables
Mondi IQ Selection Smooth
A4/120/160/200 g/m²
Mondi Business Paper
---
Article
Numbers
Berga Focus A4/80 g/m²
StoraEnso
---
Documentation
Multicopy Original White A4/100 g/m²
Nymöller/StoraEnso
---
Recommended
Media
Recycling Paper RCC 80 A4/80 g/m²
Steinbeis Temming
---
Appendix
LABELS
Address Labels 100 sheets, 14 labels
per sheet
Konica Minolta
1710632001
Address Labels 100 sheets, 24 labels
per sheet
Konica Minolta
1710632002
CD/DVD Labels 100 sheets, 2 labels
per sheet
Konica Minolta
1710632003
BUSINESS CARDS
50 sheets, 10 cards per sheet
Konica Minolta
1710632006
ENVELOPS
Distinction 100 white
Schneider & Söhne
(100 g/m², DL size [110 x 221
mm])
---
For more details please refer to the “Media Guide for Office Systems”

14
Appendix
Media Sizes
Product
Basic
Media Name
Size (mm)
150 sh.
Input Tray
550 sh.
Input Tray
Lower Paper
Feeder
Duplex
Product
Configuration
A6
105 x 148




System
Specifications
A5
148 x 210




Printer
Specifications
A4
210 x 297




Consumables
B5
182 x 257 (JIS)
176 x 250 (ISO)




Article
Numbers
B6
128 x 182




Documentation
Letter
215.9 x 279.4




Recommended
Media
Legal
215.9 x 355.6




Appendix
Statement
139.7 x 215.9




Executive
184.2 x 267




Folio
210 x 330




Foolscap
203 x 330




Envelope C6
114 x 162




Envelope
Monarch
98.4 x 190.5




Envelope DL
110 x 220




EnvelopeC5
162 x 229




Postcard
100 x 148




Custom Size
98.4 – 215.9 (w)
148 – 355.6 (l)




Custom Size
76.2 – 215.9 (w)
127 – 900 (l)




Custom Size
88.9 – 215.9 (w)
139.7 – 355.6 (l)





15
Media Weights
Product
Basic
Media
Weight (g/m²)
Input Tray
150 sh.
Input Tray
550 sh.
Lower Paper
Feeder
Product
Configuration
Plain Paper
68 ~ 105



System
Specifications
Recycling Paper
68 ~ 105



Printer
Specifications
Transparency
---



Consumables
Envelopes
---



Article
Numbers
Labels
---



Documentation
Thick Paper I
106 ~ 159



Recommended
Media
Thick Paper II
160 ~ 216



Appendix
Thick Paper III
106 ~ 216



Thin Paper
64 ~ 67



Cassette Capacity with different Media
Media
Weight (g/m²)
Input Tray
150 sh.
Input Tray
550 sh.
Lower Paper
Feeder
Plain/Recycled
Paper
68 ~ 105
150 sheets
550 sheets
550 sheets
Thick Paper
216
60 sheets
160 sheets
160 sheets
Transparency
---
100 sheets
100 sheets
100 sheets
Labels
---
100 sheets
290 sheets
290 sheets
Envelopes
---
15 envelopes
80 envelopes
80 envelopes
Long Length
Paper
---
1
---
---

16
Engine Speed (Media Size A4) ppm
Product
Basic
Simplex
[pages per min]
Duplex
[images per min]
Product
Configuration
Plain Paper
43
26.4
System
Specifications
Thick Paper I
33
24.2
Printer
Specifications
Thick Paper II
13.1
13.1
Consumables
Thick Paper III
21.5
---
Article
Numbers
OHP
21.5
---
Documentation
Recommended
Media
Appendix
USB Support, IEEE1284 Support
USB
IEEE1284
OS Support
Plug & Play
OS Support
Plug & Play
Windows 2000




Windows XP




Windows 2003
Server




Windows Vista




Mac OS X
Classic mode




Mac OS X
Native Mode




Mac OS X
Server




Linux





17
Features/Functions requiring HDD Kit/Flash Card
Product
Basic
HDD Kit
Flash Card
Product
Configuration
PostScript Download Functions
(Font, Profile, Overlay)
either
or
System
Specifications
Direct Print (PDF, JPEG, TIFF)
either
or
Printer
Specifications
PDF Direct Printing
either
or
Consumables
XPS
yes
---
Article
Numbers
Sorting Function
either
or
Remark: Either the HDD Kit or the Compact Flash Adapter can be connected.
Documentation
Recommended
Media
Appendix
What is delivered with the machine?
ITEMS
Packed at Factory
Added in Europe
Start-up AIO Imaging Cartridge
Yes
6k for pagepro 5650EN,
19k for bizhub 40P
---
Utility & Documentation CD
Yes (multilingual)
Copy Tray
N/A
---
Face Sheets
N/A
---
Labels
Pictograph labels stuck to
the machine at factory
---
Installation Guide
Printed (multilingual)
---
Safety Information Guide
Printed (English only)
---
Power Cable
Yes (European version)
---
Connection Cables (USB, Parallel)
no
no

18

19

Konica Minolta
Business Solutions Europe GmbH
International Marketing Division
Europaallee 17
30855 Langenhagen •Germany
Tel.: [phone]
Fax: [phone]
www.konicaminolta.eu
