USER’S GUIDE
IP-011
Before printing read this guide.

Thank you very much for your purchase of the IP-011.
This Guide deals with making prints, correct handling of the machine, and precaution for safety.
Please read before printing.
In order to maintain a satisfactory printing performance, please keep this Guide readily available
for reference.

Introduction
IP-011 Printer Controller i
Printed in Japan KONICA CORPORATION
Make sure to read before use
Thank you very much for purchasing the "Konica Printer Controller IP-011."
Konica Corp.("Konica") allows you to use the software attached to the IP-011 only when you agree to its
"Software License Agreement." If you do not agree to terms of this agreement, return the software to the
distributor from which you purchased it prior to use.
Software License Agreement
Carefully read all terms and conditions of the agreement which will be shown during the software instal-
lation.

Introduction
ii IP-011 Printer Controller
■ Contents
■ Contents..............................................................................................................................ii
■Introduction .........................................................................................................................v
■About Supplied Items..........................................................................................................v
■About Positioning of This Manual.......................................................................................vi
■About Composition of This Manual ....................................................................................vi
■System Requirements....................................................................................................... vii
●Windows.................................................................................................................................. vii
■Rules in This Manual........................................................................................................ viii
Chapter 1 Outline........................................................................................... 1-1
■Contents of This Chapter ................................................................................................. 1-2
■Outline of the Printer Controller ....................................................................................... 1-3
●IP-011 and Printer Engine .................................................................................................... 1-3
●IP-011 Hardware Configuration ............................................................................................ 1-4
●I/O Interface .......................................................................................................................... 1-4
●Data Flow.............................................................................................................................. 1-5
●How to Use Memory ............................................................................................................. 1-6
●General View......................................................................................................................... 1-7

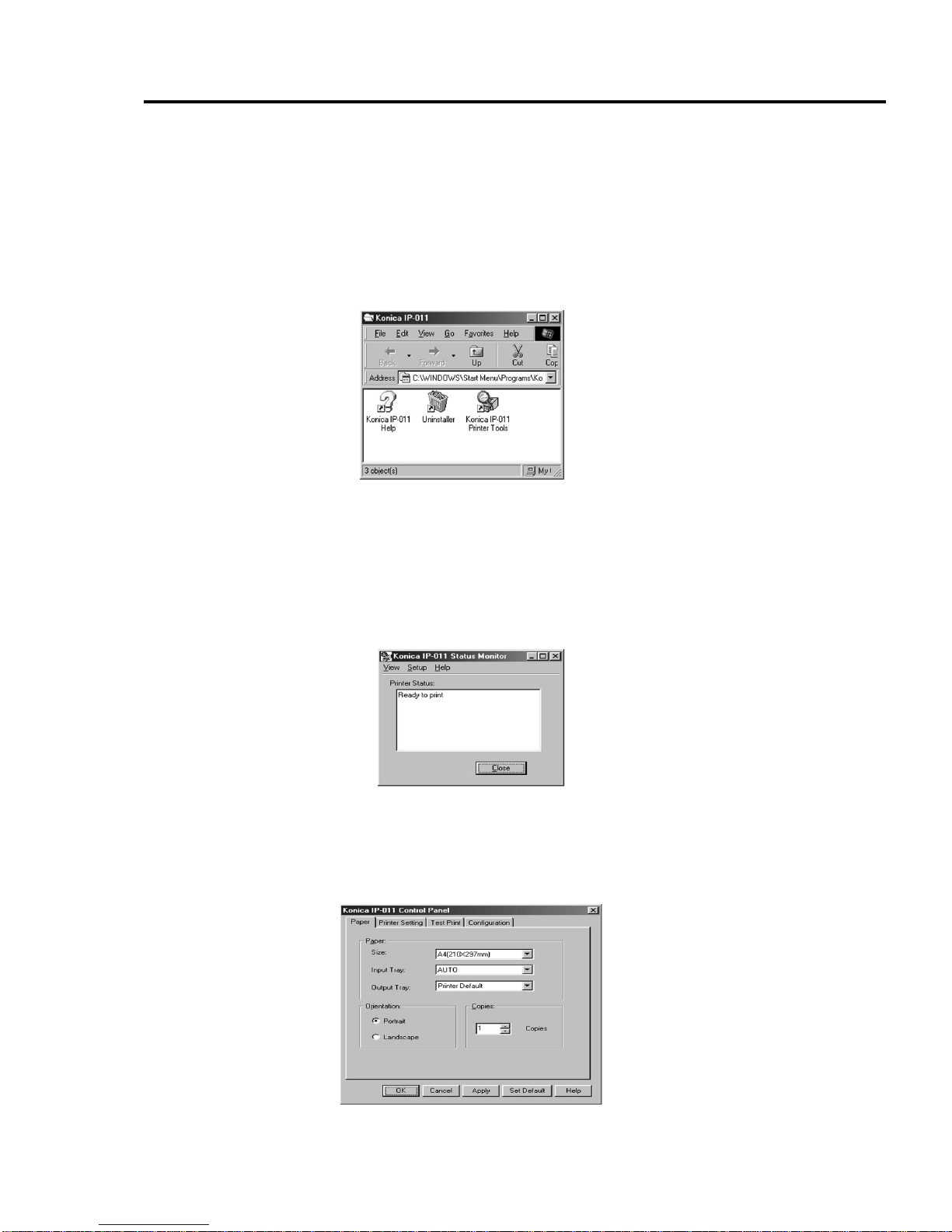

■About the Printer Tools..................................................................................................... 1-8
●About the Printer Tools.......................................................................................................... 1-8
●About the Status Monitor ...................................................................................................... 1-8
●About the Control Panel ........................................................................................................ 1-8
■About the Printer Driver ................................................................................................... 1-9
●Compliant OS........................................................................................................................ 1-9
Chapter 2 Setup ............................................................................................. 2-1
■Contents of This Chapter ................................................................................................. 2-2
■Installation of the Printer Driver........................................................................................ 2-3
●Before Installation ................................................................................................................. 2-3
●Files to be Installed ............................................................................................................... 2-3
●Installation to Windows95/98 ................................................................................................ 2-4
●Installation to WindowsNT4.0................................................................................................ 2-7
●Uninstallation of the Printer Driver ...................................................................................... 2-10
■Test Print ........................................................................................................................ 2-11
■Print from Applications ................................................................................................... 2-12
●Execution of Printing ........................................................................................................... 2-12
●Print Settings ...................................................................................................................... 2-12
Chapter 3 Printer Driver ................................................................................ 3-1
■Contents of This Chapter ................................................................................................ 3-2
■Working Environment ...................................................................................................... 3-3
●Compliant OS........................................................................................................................ 3-3
■Property of Printer Driver ................................................................................................ 3-3

Introduction
IP-011 Printer Controller iii
■Printer Driver Function List .............................................................................................. 3-5
■Description of Printer Driver Functions (in the alphabetic order) ..................................... 3-8
●Alphabetic Order ................................................................................................................... 3-8
Driver Function Combination List...................................................................................... 3-.23
Chapter 4 Operation Panel Setup................................................................ 4-1
■Contents of This Chapter ................................................................................................. 4-2
■About the LCD Panel ....................................................................................................... 4-3
●The LCD Panel of the Copier ................................................................................................ 4-3
●How to Enter Settings on the LCD Panel .............................................................................. 4-4
●Printer Mode Basic Screen ................................................................................................... 4-5
●Printer Menu Screen ............................................................................................................. 4-5
●Printer Setting screen ........................................................................................................... 4-6
●Procedures of the Printer Setting.......................................................................................... 4-7
■Configuration of Printer Setting Menu.............................................................................. 4-9
■Functions of the Printer Setting...................................................................................... 4-11
●Network Setup .................................................................................................................... 4-11
●Select Language ................................................................................................................. 4-11
●Print Quality ........................................................................................................................ 4-12
●I/O Timeout ......................................................................................................................... 4-12
●Test Print ............................................................................................................................. 4-13
●CMD Error Page ................................................................................................................. 4-13
●Error Page........................................................................................................................... 4-13
●Factory Default.................................................................................................................... 4-14
●Help..................................................................................................................................... 4-14
Chapter 5 Status Monitor and Control Panel ............................................. 5-1
■Contents of This Chapter ................................................................................................. 5-2
■Status Monitor and Control Panel .................................................................................... 5-3
●About the Status Monitor ...................................................................................................... 5-3
●About the Control Panel ........................................................................................................ 5-3
■Working Environment ....................................................................................................... 5-4
●Compliant OS........................................................................................................................ 5-4
●Interface ................................................................................................................................ 5-4
■How to Install.................................................................................................................... 5-4
■How to Operate the Status Monitor................................................................................. 5-5
●Starting the Status Monitor ................................................................................................... 5-5
●Finishing the Status Monitor ................................................................................................. 5-5
●Restarting the Status Monitor ............................................................................................... 5-5
●Show/Hide the Status Monitor .............................................................................................. 5-6
●Display Change..................................................................................................................... 5-7
●How to Operate the Control Panel ....................................................................................... 5-8
●Starting the Control Panel..................................................................................................... 5-8
●Finishing the Control Panel ................................................................................................... 5-8
●Buttons of the Control Panel ................................................................................................. 5-9
●Settings of Paper ................................................................................................................ 5-10
●Printer Setting ..................................................................................................................... 5-11
●Test Print ............................................................................................................................. 5-12
●Confirmation of Configurations ........................................................................................... 5-12

Introduction
iv IP-011 Printer Controller
Appendix A Troubleshooting .................................................... Appendix A-1
■ Error Message .................................................................................................Appendix A-2
■Basic Troubleshooting ......................................................................................Appendix A-3
■General Problems of Printing ...........................................................................Appendix A-3
●The “OHT Film” is not selectable. ......................................................................... Appendix A-3
●The Printer Controller does not respond to the “Print” command. ........................ Appendix A-3
●A message to demand a paper size which you do not use is displayed. .............. Appendix A-4
●You can not print the test print............................................................................... Appendix A-4
●The print setting of a job does not correspond to the result of printing. ................Appendix A-5
●The “Duplex” option is not displayed. .................................................................... Appendix A-5
●Memory Error / Memory Overflow / Overrun......................................................... Appendix A-5
Appendix B Product Specifications......................................... Appendix B-1
■Product Specifications .....................................................................................Appendix B-2
Index .......................................................................................................Index -2

Introduction
IP-011 Printer Controller v
■ Introduction
The IP-011 Printer Controller works as an interface between the Konica 7020 series Copier and a workstation,
and enables direct printing from a workstation environment.
The printer engine on the printer side and the optional network board include operating manuals (7020 series
operating manual/KN-304 operating manual (CD)) respectively.
For the detailed operations of Windows95/98 and Windows NT, refer to operating manuals of each operating
system.For operations of applications, refer to operating manuals which are attached to each application.
FCC Regulations
This equipment has been tested and found to comply with limits for a Class B digital device,
pursuant to part 15 of FCC rules.These limits are designed to provide reasonable protection
against harmful interference in a residential installation.This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from the circuit to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Canadian Department of Communications Regulations
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
This Class B digital apparatus complies with Canadian ICES-003.
About RegisteredTrademarks
Microsoft, MS and MS-DOS are registered trademarks of Microsoft Corporation in the United
States.
IBM is a registered trademark of International Business Machine, Inc. in the United States.
WindowTM is a trademark of Microsoft Corporation.
Destiny®is a registered trademark of Destiny Technology Corporation.
LaserAct®is a registered trademark of DestinyTechnology Corporation.
DPOS®is a registered trademark of Destiny Technology Corporation.
WinStyler®-Nozomi™ is a registered trademark of Destiny Technology Corporation.
WinPane®is a registered trademark of Destiny Technology Corporation.
Other company names and product names written in this manual are the registered trademarks or
trademarks of their respective companies.
Copyright
LaserAct® 6 CopyrightC1992-1999,Destiny Technology Corp.Ver.2.0.All Rights Reserved.
WinStyler®-NozomiTMCopyrightC1995-1999,DestinyTechnology Corp.Ver.2.0.All Rights Reserved.
WinPanel®CopyrightC1995-1999,Destiny Technology Corp.Ver.1.0.All Rights Reserved.

Introduction
vi IP-011 Printer Controller
●A part or all of this operating manual shall not be used or copied without permission.
●Konica shall have no liability for any influences caused by using the 7020 series copier +IP-011 system and this
manual.
●Information written in this operating manual is subject to change without notice.
●Konica Corp.shall have the copyright of this printer driver.
●This printer driver shall not be copied except for the purpose of backup.
●A part or all of this operating manual shall not be used or copied without permission.
●Konica shall have no liability for any influences caused by using this printer driver and the operating manual.
■ About Supplied Items
The following items are supplied to the IP-011 Printer Controller:
•User Software CD ( Including USER’S GUIDE (this manual))
•Release Note (The latest information and limits of the system and the user software are written.)

Introduction
IP-011 Printer Controller vii
■ About Positioning ofThis Manual
This manual describes how to operate the Printer Controller Konica IP-011 when the Konica 7020 series copier is
used as a printer by connecting it to computers or your network.
An optional network board (KN-304) is required so as to use the Konica 7020 series copier as a
printer by connecting it to your network.
Refer to the "7020 series operating manual" and the "KN-304 operating manual" which are
attached to the Printer Engine (7020 series) on the printer side and the optional Network Board
(KN-304) respectively for their operations.
■ About Composition ofThis Manual
This manual is composed of the following five chapters and Appendix:
Chapter 1: Outline
Chapter 1 describes the Printer Controller' hardware and the outline of its functions, and briefly
explains how to connect the parallel ports of computers to the Printer Controller and the Printer
(7020 series).
Chapter 2: Setup
Chapter 2 describes how to install the user software which is supplied in the user software CD to
the Windows*-compliant computers. Installing the user software enables printing from each
application of the Windows*-compliant computers to the Printer (7020 series) by way of a network/
parallel port.
Chapter 3: Printer Driver
Chapter 3 describes the corresponding environment and various functions of the Printer Driver
installed to the Windows*-compliant computers.
Chapter 4: Operation Panel Setup
Chapter 4 describes the layout of the operation panel of the Printer (7020 series) and how to
operate and set functions on the operation panel.
Chapter 5: Status Monitor/Control Panel
Chapter 5 describes the layout of the status monitor and the control panel shown on the Windows*-
compliant computers and how to operate and set functions on the status monitor or the control
panel.
Appendix
Appendix describes error messages and trouble-shootings inherent in the Printer Controller and
product specifications and functions.

Introduction
viii IP-011 Printer Controller
■ System Requirements
●Windows
The following are required to print from the Windows*-compliant computers to the Printer Controller.
•Computers on which Windows 95/98, WindowsNT 4.0 can run
•CD-ROM drive (necessary to install the user software)
In case of usingWindows 95/98
•Microsoft Windows 95/98
•32MB RAM or more
In case of usingWindows NT 4.0
•Microsoft Windows NT 4.0 and NT Service Pack 3
•32MB RAM or more
Parallel Port
The following are required to print to the Printer Controller by way of the parallel port.
•Windows-compliant computers
•Minimum RAM capacity suitable for computers (Refer to the section of each operation system
described above.)
•IEEE 1284 parallel cable
One end of the cable is required to have an amphenol 36 pin male connector (connected to the
Printer Controller).

Introduction
IP-011 Printer Controller ix
■ Rules inThis Manual
•Notation of a name of each section in this manual
It is written within [ ] (round brackets). (e.g. [Chapter 1: Outline ])
•Notation of names shown on the screen
They are written within [ ](braces). (e.g. Click the [OK] button.)
•Notation of cautions
In this manual, important items to be paid attention to are written with marks.
Each mark used in this manual has the following meaning.
Precautions and limits at the time of operating hardware or software are written.
Hints, advice, confirming items, etc. at the time of operating hardware or software are written.
•Notation of sub-folders
Sub-folders are written as “\route level folder\sub folder 1\sub folder 2.”
For example, at the time of double-clicking the [Setup.exe] icon in the [WIN_95] folder in the [PS_DRVR] folder
in the [INTALRS] folder of the User Software CD, it is written as
e.g.Double-click the [Setup.exe] icon in the “\INTALRS\PS_DRVR/WIN_95 ” folder of the User Software CD.

Chapter 1 Outline
IP-011 Printer Controller 1-1
Chapter 1 Outline
■Contents of This Chapter ............................................................1-2
■Outline of the Printer Controller ..................................................1-3
●IP-011 and Printer Engine ........................................................................... 1-3
●IP-011 Hardware Configuration ................................................................... 1-4
●I/O Interface ................................................................................................. 1-4
●Data Flow .................................................................................................... 1-5
●How to Use Memory .................................................................................... 1-6
●General View ............................................................................................... 1-7
■About the Printer Tools................................................................1-8
●About the Printer Tools ................................................................................ 1-8
●About the Status Monitor ............................................................................. 1-8
●About the Control Panel............................................................................... 1-8
■About the Printer Driver ..............................................................1-9
●Compliant OS .............................................................................................. 1-9

Chapter 1 Outline
1-2 IP-011 Printer Controller
■Contents ofThis Chapter
This chapter describes the outline of the Konica IP-011 Printer Controller. For the Copier, Konica 7020 series to
which the Konica IP-011 Printer Controller is attached, refer to the operating manual of the Copier.

Chapter 1 Outline
IP-011 Printer Controller 1-3
■ Outline of the Printer Controller
● IP-011 and Printer Engine
The Konica IP-011 is the Printer Controller (IP-011) which is used to connect the Copier, Konica
7020 series (Konica 7020 series) to computers or a network and to use the Konica 7020 series as
a printer from applications on Windows 95/98 or Windows NT (In order to connect to a network, the
optional Konica KN-304 network board is required.).
When the command for printing is executed from applications on Windows 95/98 or Windows NT,
print data is sent to the IP-011 by way of a parallel cable (IEEE 1284) or a network.Then, the IP-
011 rasterizes the print data to image data, which is sent to the Konica 7020 series Printer Engine
by way of the PCI bus.
The IP-011 can receive the command for printing from applications even while the Printer Engine is
printing the previous print jobs or receiving data.
The 7020+IP-011 system can continuously print A4-size paper at the print speed of 20 ppm.In
addition, this system supports the duplex function and the finisher function which enables using
four paper trays, alternate printing and stapling.
Conceptual Connection
E-RDH (Electronic Recirculating Document Hander)
The E-RDH is a system which temporarily saves print data in the memory of the Konica 7020
series to perform printing in accordance with the selected option. In order to print from the IP-011,
the E-RDH of the 7020 series is used.The E-RDH memory of the Konica 7020 is 32 MB (standard)
and can be extended to 288 MB at the maximum.
In the IP-011, the E-RDH is used in the 1 bit mode.Data of approximately 180 pages of A4-size
paper can be saved in the 32 MB (standard) E-RDH memory.
Copy Mode and Printer Mode
The operation panel of the Konica 7020 series can be used either in the copy mode or the printer mode.
Even while the Konica 7020 series is printing or copying, the IP-011 can receive the next job, and
while the IP-011 is receiving a print job, you can execute copying.
In case of using as a networked printer
In case of using as a local printer
*The Konica KN-304 is required.

Chapter 1 Outline
1-4 IP-011 Printer Controller
● IP-011 Hardware Configuration
Basic Configuration
Configuration of the IP-011 is as follows:
Control board
CPU: Power PC 401 GF
Program memory: FLASH ROM
System memory: 16MB SD-RAM
Memory
The IP-011 is equipped with 16 MB memory as standard and can be expanded to 80 MB at the
maximum.
● I/O Interface
Parallel
Centronics (IEEE1284)/ amphenol 36 pin male connector
PCI Bus
Card Edge Type/20MHz/32bit
Ethernet (option)
100Base-T and 10Base-T
The optional KN-304 card is used to connect to the Ethernet.The KN-304 is the internal print
server card which supports multiple protocols on the Ethernet.This card includes a CPU and a
flash memory with an upgradable program.
The KN-304 supports the following network protocol.
•IPX/SPX (NetWare)
•LPD/LPR (TCP/IP)
•Peer to peer (TCP/IP)
Refer to the corresponding operating manual for connection to the KN-304.

Chapter 1 Outline
IP-011 Printer Controller 1-5
● Data Flow
Status Monitor
Control Panel
Application
Printer Driver
IEEE1284
Browser
HTML
Network
(TCP/IP,IPX/SPX)
IP-011
IEEE1284
NIC
Printer Controller
Interface
Printer Tools
Computer
PCI Bus
E-RDH Memory
Printer Engine
Engine
Intermediate Language Interpreter
Memory
Spooler
IEEE1284
Network (TCP/IP,IPX/SPX)
Command for Printing
Image Data Engine Status

Chapter 1 Outline
1-6 IP-011 Printer Controller
● How to Use Memory
Most of memory of the IP-011 is used for rasterizing images and a part of it is used for the system operation. In
addition, E-RDH memory of the Konica 7020 series is used for print processing.
The basic memory settings of the IP-011 is 16MB, which allows 1 bit mode (600 dpi) printing for all sizes of paper.
The memory of the IP-011 can be expanded to 80MB at the maximum.In addition, the E-RDH memory of the
Konica 7020 can be expanded to 288MB at the maximum.
The more memory the IP-011 has, the more pages are rasterized during waiting the printing of the previous job.
When the A4-size paper is used, approximately 4,345 KB memory is used to print 1 bit data in 600dpi.
Memory Upgrading
In order to obtain the optimum printer performance, memory expansion is recommended.
Contact service providers for details.

Chapter 1 Outline
IP-011 Printer Controller 1-7
● GeneralView
The IP-011 is mounted to the Konica 7020 series.The following is the general view.
IP-011
Konica 7020
The IP-011 is attached to the
back side of the Konica 7020
series.
Parallel Port

Chapter 1 Outline
1-8 IP-011 Printer Controller
■ About the PrinterTools
● About the PrinterTools
When you install printer driver with “setup.exe” held in the CD-ROM to the computer connected to the system of
Konica 7020 series and IP-011, you can select simultaneous installation of the Printer Tools.The Printer Tools is
the generic name of two programs, “Status Monitor” and “Control Panel.”The Printer Tools enable you to monitor
the printer status from computers and to perform printer settings. Refer to “5 Status Monitor and Control Panel”
(5-1 page) for details of the PrinterTools.
● About the Status Monitor
If you set the Status Monitor to automatically start up at the time of installing the Printer Tools, when computers
connected to the 7020 series + IP-011 system are started up, the Status Monitor which is a program to monitor
the printer status automatically starts up.Refer to “2 Setup”(2-1 page) for installation of the printer driver. Refer to
“5 Status Monitor and Control Panel ” (5-1 page) for details of the Status Monitor.
● About the Control Panel
When [Printer Setting] on the [setup] menu of the Status Monitor is selected by clicking it, the Control Panel which
is a program to perform printer settings starts up.Refer to “5 Status Monitor and Control Panel” (5-1 page) for
details of Control Panel.

Chapter 1 Outline
IP-011 Printer Controller 1-9
■ About the Printer Driver
● Compliant OS
The printer driver can be used on the following OS.
Windows 95
Windows 98
Windows NT 4.0
Windows 2000 (to be supported)
Refer to “2 Setup” (2-1 page) for how to install the printer driver.
Refer to “3 Printer Driver” (3-1 page) for detailed functions of the printer driver.
