Konica Minolta REGIUS 190 User manual

REGIUS MODEL 190
(DD-941)
OPERATION MANUAL
No. 26-2, Nishishinjuku 1-chome, Shinjuku-ku, Tokyo 163-0512, Japan
DIRECT DIGITIZER
CODE NO. : 0676

REGIUS MODEL 190 OPERATION MANUAL Ver.1.03 2004.12
Table of Contents
Foreword ……………………………………………………………………… 1
About this Manual …………………………………………………………… 3
Ch.1 Safety Precautions & Warnings……………………………………… 7
Ch.2 Product Outline ……………………………………………………… 19
Name of Parts ……………………………………………………………… 20
Operation Flow ……………………………………………………………… 23
Ch.3 Operation ……………………………………………………………… 25
Handling the Cassette ……………………………………………………… 26
Power ON …………………………………………………………………… 31
Daily Start Up (When connected to CS-1 or CS-3) …………………………… 32
Daily Start Up (When connected to CS-2) …………………………………… 33
Inserting/Reading/Ejecting the Cassette ………………………………… 34
Erasing the REGIUS Plate ………………………………………………… 36
Daily Shut Down (Sleep) (When connected to CS-1 or CS-3) ……………… 39
Daily Shut Down (Sleep) (When connected to CS-2) ……………………… 40
Power OFF ………………………………………………………………… 41
Ch.4 Troubleshooting ……………………………………………………… 43
Error Messages and Remedies …………………………………………… 44
Handling Cassette Jams …………………………………………………… 48
Removal of Foreign Objects from Cassette Insertion Slot……………… 54
Troubleshooting for Cassette ……………………………………………… 56
Ch.5 Care & Maintenance ………………………………………………… 57
Specifications ………………………………………………………………… 61
Appendix ……………………………………………………………………… 63
LCD Display ………………………………………………………………… 64
Index ………………………………………………………………………… 65

1REGIUS MODEL 190 OPERATION MANUAL Ver.1.03 2004.12
We thank you for purchasing the "Direct Digitizer DD-941" (henceforth referred
to as REGIUS MODEL 190).
The REGIUS MODEL 190 is designed to read REGIUS Plates.
The basic operational procedures for the REGIUS MODEL 190 such as start
up/shut down, patient registration and parameter settings, are carried out using
a REGIUS CONSOLE CS-1/CS-2/CS-3 (henceforth referred to as CS-1/CS-
2/CS-3) available separately.
Before proceeding with usage of the REGIUS MODEL 190, time should be taken
to fully familiarize yourself with the contents of this operation manual as well as
the operation manual for the console (CS-1/CS-2/CS-3). Please note also that
since safety precautions regarding handling of and operational procedures for
the product are set out in this manual, the manual should at all times be kept in a
readily accessible place for easy reference.
Features
1 Realization of "Ultimate Resource Sharing Concept"
The reader and console may be separated, allowing maximum freedom of layout.
System architecture best suited to the number of examinations carried out or the room
space available may be realized.
2 Space-saving
The product is compact with a footprint of only 58 X 58 cm.
3 High-speed Processing
Throughput for 14" X 14" size is approximately 90 plates/hr.
4 Comfort Operability
Insertion and ejection slots are independent.
Next cassette can be set in the cassette insertion slot. (+1 stack)
Up to four processed cassettes can be stacked on the cassette stacker.
Foreword
REGIUS CONSOLE CS-1
REGIUS CONSOLE CS-3
This console (controller)
controls communication,
processing, and output of the
image data read by the
REGIUS MODEL 170, 190
and/or REGIUS MODEL 350,
550.
REGIUS CONSOLE CS-2
This console (controller)
controls communication,
processing, and output of the
image data read by the
REGIUS MODEL 190.

2
REGIUS MODEL 190 OPERATION MANUAL Ver.1.03 2004.12
Notes
(1) Unauthorized reproduction of this manual in whole or in part is prohibited.
(2) The content of this manual is subject to change without prior notice.
(3) Should any discrepancies, errors or omissions be discovered, KONICA MINOLTA should be contacted.
(4) Notwithstanding item(3) above, KONICA MINOLTA shall accept no responsibility of any claims made against loss or
loss of profits arising from use of the product.
Trademarks
Corporate names, brands, product names are the trademarks or registered trademarks of their respective owners.
Please that , or “TM”, representing these ownerships are omitted in the following pages.

3REGIUS MODEL 190 OPERATION MANUAL Ver.1.04 2004.12
Be sure to read this section before using this
manual.
About
this Manual

4
REGIUS MODEL 190 OPERATION MANUAL Ver.1.03 2004.12
How to use this manual
This manual consists of the chapters listed below.
Chapter1 Safety Precautions & Warnings
This chapter details warnings and cautions for operation of the REGIUS
MODEL 190.
Chapter2 Product Outline
This chapter gives an outline of the REGIUS MODEL 190.
Chapter3 Operation
This chapter details the procedures for operation of the REGIUS
MODEL 190.
Chapter4 Troubleshooting
This chapter details procedures to be followed upon occurrence of errors
in the REGIUS MODEL 190.
Chapter5 Care & Maintenance
This chapter details the procedures for care and maintenance of the
REGIUS MODEL 190.
Specification This chapter details the specification of the REGIUS MODEL 190.
Appendix The messages displayed on the LCD panel are described in this chapter
as an appendix.
Index The index to this REGIUS MODEL 190 Operation Manual is described in
this chapter.
Basic operation procedures are detailed in the chapters 2 and 3. Chapter 4 should be referred to
for details of errors such as cassette jams.
An example page layout is explained on the next page.

5REGIUS MODEL 190 OPERATION MANUAL Ver.1.03 2004.12
28
REGIUS MODEL 190 OPERATION MANUAL Ver. 1.00 2004/10
LCD Panel
"operation" button
"operation" Lamp
1Check if the power plug is
connected to the power outlet.
2Turn ON the power breaker of the
REGIUS MODEL 190.
•Ensure that the CS-1/CS-2/CS-3 is
running. If the system includes an
external JM-1, ensure that the JM-1 is
running.
4Initialization of the REGIUS
MODEL190 will be started.
•The LCD panel will show the message
"INITIALIZING" and the counter
"
■ ■ ■
• • •".
•When the counter "
■ ■ ■
• • •"
reaches the left end, "READY" will be
shown.
•The REGIUS MODEL 190 is ready for
operation.
Power Breaker
3Depress the "operation" button.
•The "operation" lamp will illuminate.
(Green)
•The LCD panel will show
"REGIUS MODEL 190".
:OFF
:ON
REGIUS MODEL 170
READY
INITIALIZING
Be careful not to push the
"erase" button by mistake
when pushing the "operation"
button.
JM-1
This is an application software
that controls the network
between REGIUS MODEL
190 and CS-1/CS-2/CS-3.
(There are two types of JM-1;
One is built-in, the other is
external.)
Contact your system
administrator to ensure which
of the two types is used.
p.29 Daily Start Up
p.35 Daily
Shut Down
(Sleep)
The power breaker of the
REGIUS MODEL 190 does
not have to be operated in a
daily usage.
Only when the power
breaker is turned OFF, for
instance, the unit is not
used for an extended
period, the power breaker
should be turned ON.
The following is a description of the procedure for switching on the REGIUS MODEL 190.
Start and shut down of the REGIUS MODEL 190 are carried out from the REGIUS Console CS-1/CS-
2/CS-3 that controls it. The power should always be left on. In the case of emergencies or power
failure, the power should be switched on, by following the procedure below.
Power ON
Hint
Points to be noted.
Technical Term
Technical terms are
explained.
Title
This title stands for the
general meanings for
the descriptions.
Display or Illustration
Display or Illustration with
the operational procedure
is shown.
Operation Procedure
Operation procedure is
explained in order.
Caution
Cautions for
operating the
machine.
Details should be
carefully noted.
Reference
Shows the reference
pages or sections.
See the page for
more details.

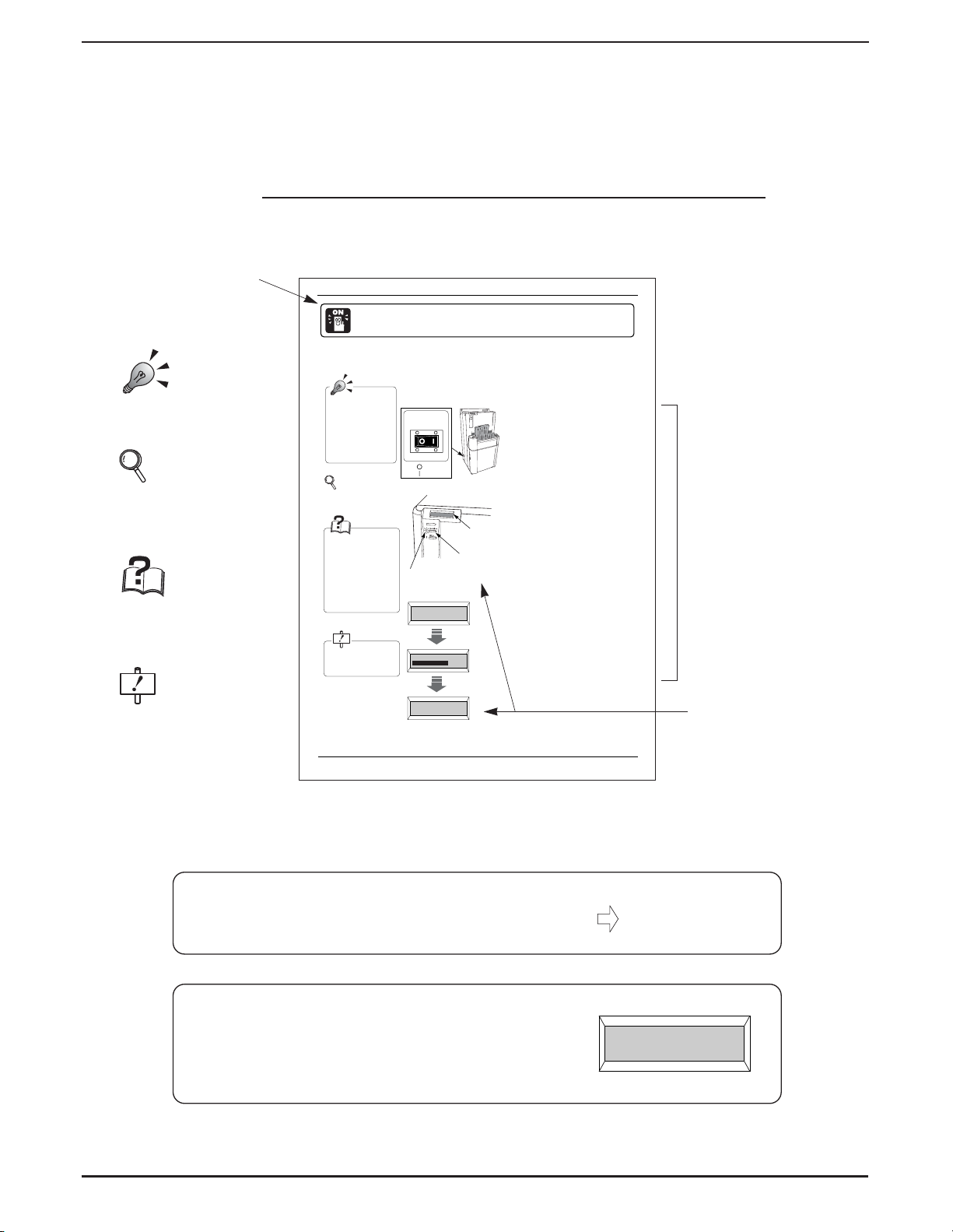

Page Layout
Quotation Marks, " ".
The word in quotes shows that it is displayed on the LCD panel
of REGIUS MODEL190.
Ex. "READY"
LCD display in procedures
When the LCD message as shown in the right is illustrated in the
procedure, it indicates that the message is actually shown on the
LCD of REGIUS MODEL190 at the time of implementing the
procedure.
Messages will be displayed
here.

6
REGIUS MODEL 190 OPERATION MANUAL Ver.1.03 2004.12

7REGIUS MODEL 190 OPERATION MANUAL Ver.1.03 2004.12
Safety
Precautions &
Warnings
1
When using the REGIUS MODEL 190, the
cautions detailed in this chapter must be strictly
followed in order to correctly use the device.

● Symbols indicating the need for caution (including danger and warnings)
● Symbols indicating prohibited acts
● Symbols indicating essential acts (compulsory or indicated acts)
● Other Symbols
8
REGIUS MODEL 190 OPERATION MANUAL Ver.1.03 2004.12
This is the safety alert symbol and is intended to draw the attention
of the user to potential dangers to the user him/herself or to others
that may arise during the use or operation of this system.
These messages must be read thoroughly and strictly observed.
All safety related precautions should be carefully read and fully
understood before proceeding with assembly or usage of this
system.
Safety Alert Symbol
NOTE : If the contents of this page are not legible, order a new manual.
Description of Graphic Symbols
Normal caution
Danger of fire Danger of electrocution
Prohibited
Main power supply OFF Main power supply ON
Power supply standby
Do not touch Do not disassemble Do not touch
with wet hand
Do not expose to
moisture
AC voltage
(power supply)
Alert and Symbol Marks
Ground Remove the plug from
the power outlet

9REGIUS MODEL 190 OPERATION MANUAL Ver.1.03 2004.12
There are three degrees of caution labels, and each is used depending on
the level of risk and damage caused by incorrect use and mishandling.
DANGER :Failure to observe the caution will produce high risk of serious or fatal
injury.
WARNING :Failure to observe the caution will produce moderate risk of serious or
fatal injury.
CAUTION :Failure to observe the caution will produce moderate risk of serious or
fatal injury or damage to property.
Risk of the damage
Bodily injury
(and damage to property)
Damage to property only
Loss of life or serious injury
(Damage is serious)

High Low
DANGER WARNING
WARNING or CAUTION CAUTION
CAUTION
Moderate damage or light injury
(Damage is light)
NOTE : If the contents of this page are not legible, order a new manual.
Warning Text (Signal Word)
Signal words indicate the degree of potential hazards in the product.

10
REGIUS MODEL 190 OPERATION MANUAL Ver.1.03 2004.12
CAUTION
LASER RADIATION WHEN OPEN.
AVOID DIRECT EXPOSURE TO BEAM.
CAUTION
NEVER shake or move the device.
Doing so may cause the monitor to
drop or result in monitor damage.

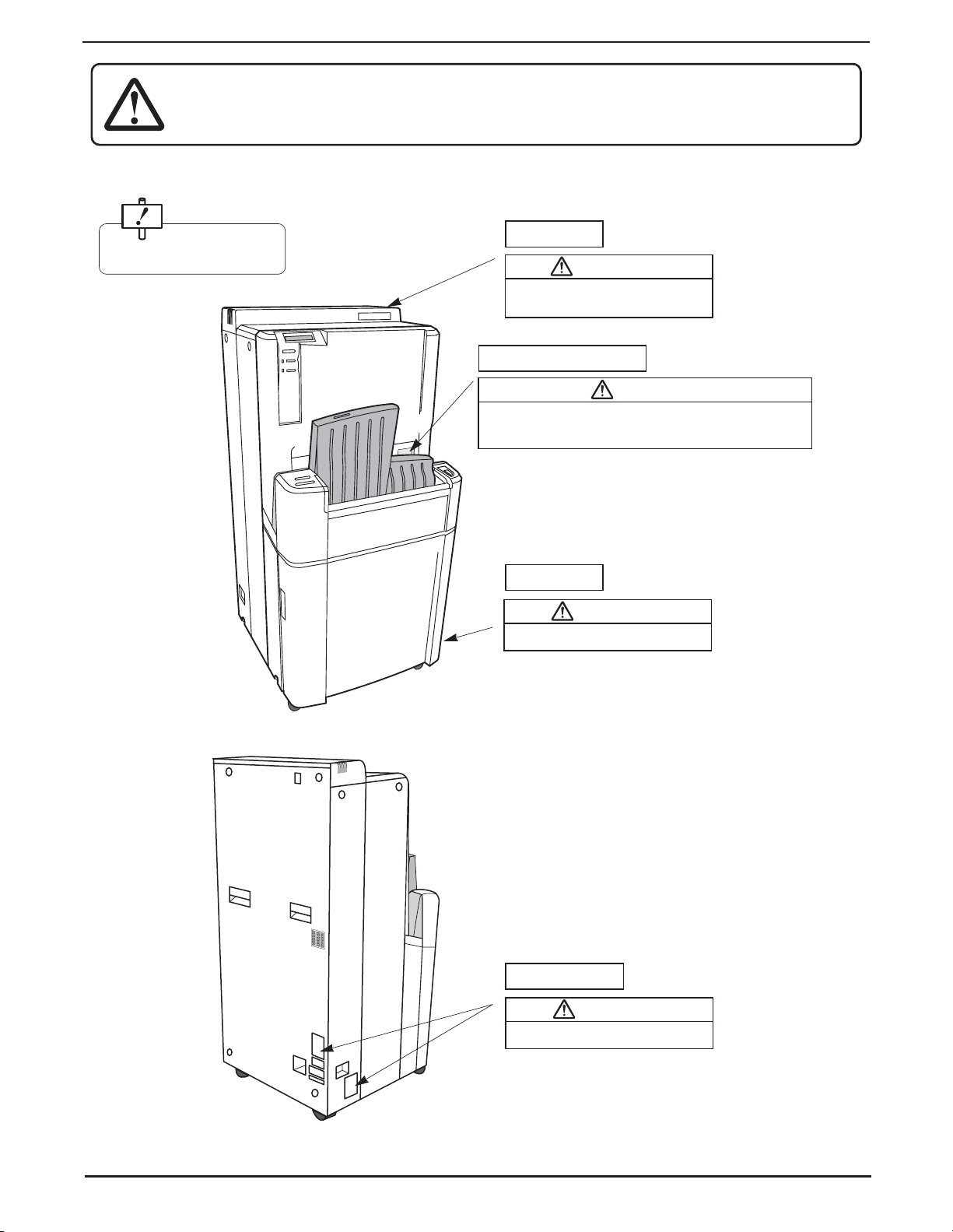

Warning labels on the REGIUS MODEL 190 are affixed at the locations shown below.
Right side
Left/Back side
Top side
Ejection Slot Shutter
CAUTION
LASER RADIATION WHEN OPEN.
AVOID DIRECT EXPOSURE TO BEAM.
NOTE : If the contents of this page are not legible, order a new manual.
CAUTION
NEVER insert any obstacles in the cassette eject area.
Doing so may result in physical injuries or mechanical malfunction.
NEVER touch the eject area until the cassette is fully ejected.
Types and Locations of
Warning Labels
Do not remove these warning
labels from the unit.

11 REGIUS MODEL 190 OPERATION MANUAL Ver.1.03 2004.12
The temperature of the erase unit may 
reach 170 . Do not touch hot surface.
Wait a minimum of 20 minutes, 
then perform service.
170 
HIGH
TEMPERATURE
CAUTION
Shelf on the inside of the front door
Interior of the Main Unit
Transport Unit
CAUTION
The temperature of the elevator section
may reach 60 . Do not touch hot surface.
60 
HIGHT
TEMPERATURE
Do not place any object on the shelf.
Figure illustrating unit with front door opened
NOTE : If the contents of this page are not legible, order a new manual.

12
REGIUS MODEL 190 OPERATION MANUAL Ver.1.03 2004.12
WARNING
Both lasers and high voltage are used in the REGIUS MODEL 190.
Under no circumstances should external panels be removed.
Removal of panels may result in exposure to lasers or electrocution.
Specification of laser unit in the REGIUS MODEL 190:
Class : IIIb
Medium : Semi-conductor laser
Wavelength : 660nm
Maximum Output : 80mW (CW)
● The unit must not be used if smoke, unusual odors or sounds are detected.
In the event of detection of smoke, unusual odors or sounds, the power
should be switched off immediately and the power plug disconnected from
the power outlet. Then contact your Technical Representative. Continued
use under such circumstances may result in fire.
●Do not insert wire or metal blades.
Do not insert wire, metal blades or other foreign objects into the exhaust
outlet; there is a danger of electrocution.
●Be certain to comply with any and all laws and government
regulations including electric codes and utility regulations, regarding
the installation and operation of this equipment.
CAUTION
CAUTION
●Do not introduce water or other foreign objects into the unit.
Do not introduce foreign objects such as water or other liquids, pins or
clips into the unit: fire, electrocution or damage may result. In the event of
accidental introduction of such foreign objects or substances into the unit,
the power should be switched off immediately and the power plug
disconnected from the power outlet. No attempts should be made to
disassemble the unit. Then contact your Technical Representative.
Cautions when disposing of the product
When disposing of the following used parts, accept the regulations of each local government.
1) REGIUS MODEL 190 main body and components
2) REGIUS MODEL 190 packing materials
3) REGIUS MODEL 190 accessories, and their packing materials.
4) REGIUS Cassette/Exposure-Only Cassette
5) Used photosensitive materials (dry film, etc.)
6) Special Note : Fluorescent medium is used on the REGIUS Plate. Lead foil is used on the
REGIUS Plate except for those used for mammography and examination of long object.
p.54 Procedure for Removal of
Foreign Objects from the
Cassette Insertion Slot
NOTE : If the contents of this page are not legible, order a new manual.
When using the REGIUS MODEL 190, the cautions detailed below must be strictly observed and correct
handling procedures followed at all times.
This operation manual should be read thoroughly in order to fully understand the REGIUS MODEL 190.
Overall Cautions

13 REGIUS MODEL 190 OPERATION MANUAL Ver.1.03 2004.12
CAUTION
● Do not use any power outlet other than the type specified.
Always use a wall outlet meeting the specified voltage and power supply
requirements. Usage of power outlets other than the type specified could
result in fire or electrical leak. Additionally, do not use the unit in a location
where an extension cable will be necessary.
● Do not use multiple outlet extension plugs.
Excessive current loaded on the power outlet could result in overheating and
consequent risk of fire.
● Do not use cables other than the power cable supplied with the unit.
Supply of current in excess of the ratings to the power cable could produce
the risk of fire. Additionally, in order to avoid the risk of electrocution or fire
due to damage to the power cable, the following cautions should be strictly
observed:
• Do not tug on the power cable.
• Do not twist the power cable.
• Do not bundle power cables.
• Do not fix the power cable in place using, for example, a stapler.
• Do not allow the power cable to become trapped between two
objects.
• Do not place objects on the power cable.
• Do not carry out modifications, repairs or other processes on the
power cable.
• Do not use a damaged power cable.
A damaged power cable should be immediately replaced by a power cable of
identical standard. For details of replacement, contact your Technical
Representative.
● The power cable should not be used near any heat generating devices.
● When the unit is to be left unoperated for extended periods of time, the
power plug should be disconnected from the power outlet.
WARNING
●Never hold the power plug with wet hands.
Never plug in or remove the power plug from the power socket with wet
hands: there is a risk of electrocution.
●Do not connect the ground to gas pipes.
Under no circumstances should the ground be connected to a gas pipe:
this could cause a gas explosion.
●The following points should be strictly observed in order to avoid the
risk of electrocution or fire.
Ensure that the unit is not exposed to water or other liquids. Make sure
also that clips, pins or other foreign objects are not accidentally introduced
into the main unit: this could lead to electrocution or fire.
• Always use the power cable provided with the unit.
• Always use a recommended power outlet as the power supply.
• Be careful to ensure that no dirt or dust accumulates on the
power plug or power plug pins.
• In the event that the power plug or power cable becomes hot, or if
the plug is loose when connected to the power outlet, usage
should be discontinued immediately and your Technical
Representative contacted.
Gas
NOTE : If the contents of this page are not legible, order a new manual.
p.20 Name of Parts
Cautions Relating to the Power Supply and
the Power Cable

14
REGIUS MODEL 190 OPERATION MANUAL Ver.1.03 2004.12
CAUTION
●The person in charge of the system installation has to ensure that all
connecting devices comply with IEC 60601-1 as part of a Medical
System.
●Cautions Relating to Installation of the Unit
When installing the REGIUS MODEL 190, be sure to fix the adjuster foot
firmly in place. Any vibration or shock that causes the main body of the
unit to move could cause damage to the unit itself or peripheral devices or
objects.
●Cautions Relating to Movement of the Unit
Should the necessity to move the unit arise, contact your Technical
Representative.
●Do not install the unit in any location other than the one specified.
The unit should not be set up or installed in any of the locations detailed
below, or in any location not specified in this manual.
• Locations where the unit will be exposed to excessive amounts of
dust.
•Locations where the unit will be exposed to direct sunlight.
• Locations, such as near a hot water outlet, where the unit will be
exposed to excessive levels of humidity.
• Locations that are not level.
• Locations with poor air circulation, or where sufficient ventilation
cannot be ensured.
• Locations where the unit will be exposed to soot or steam.
• Locations where the unit will be exposed to extreme contrasts
between light and darkness.
• Locations where the unit will be exposed to heat, such as near a
heater.
• Locations within the vicinity of the patient which encloses a
space within the room 1.83m beyond the perimeter of the bed.
●Do not use an Ethernet cable other than the one specified.
The ethernet cable supplied with the unit or, alternatively, an ethernet
cable specified by Konica Minolta Medical & Graphic, inc., should be
used; all devices and connectors used with the cable should be carefully
checked before proceeding with connection. Regarding handling and
connection of the ethernet cable, the following cautions should be strictly
observed.
• Do not use damaged cable connectors.
• Do not place objects on the cable.
• Do not use a damaged cable.
• Do not tread on the cable.
• Do not use the cable if the connection is loose.
● Do not move the unit with power cables or other cables still connected.
Cables will be pulled tight resulting in dropping or tilting of the unit and
consequent injury.
NOTE : If the contents of this page are not legible, order a new manual.
Be certain to comply with any and all laws and government regulations
including electric codes and utility regulations, regarding the installation
and operation of this equipment.
Cautions for Installation, Movement, Maintenance
and Connection of the Unit

15 REGIUS MODEL 190 OPERATION MANUAL Ver.1.03 2004.12
CAUTION
●Be careful to avoid fingers or hair being pulled into the unit.
Be sure to keep hands and hair a safe distance from the exhaust outlets
when the unit is in operation: there is risk of of hands or hair becoming
trapped or being pulled into the unit.
●Do not place any objects on top of the REGIUS MODEL190 other
than the CS-1/CS-2/CS-3 Operation Unit, keyboard and mouse.
There is a risk of any objects placed on top of the unit toppling and
causing damage.
●Do not use mobile phones or pocket pagers in the vicinity of the
REGIUS MODEL 190.
Use of mobile phones or pocket pagers near the REGIUS MODEL 190
can cause errors in operation due to electromagnetic wave interference:
such devices should be switched off in the vicinity of the unit.
●Do not use the unit if damaged.
If the REGIUS MODEL 190 is damaged, contact your Technical
Representative.
●Do not use the unit if the slits at back of the unit become blocked.
Do not use the unit if the exhaust outlets become blocked, or with the
cover on. Heat may accumulate inside the unit, which could cause
damage to the unit.
●Do not insert foreign objects into the cassette ejection unit.
There is the space between the eject roller and unit. Do not insert
cassettes or other foreign objects into this space.
●Do not use the unit on its back, tilted or upside down.
Doing so will result in overheating or fire.
WARNING
●Do not touch the unit when thunder is heard.
In the event of a thunderstorm, the power plug should be immediately
disconnected from the power outlet. Additionally, if thunder is heard while
the power cable is still connected, do not touch either the unit itself or any
of the cables: doing so may result in electrocution.
NOTE : If the contents of this page are not legible, order a new manual.
Cautions to be Observed
During Usage

16
REGIUS MODEL 190 OPERATION MANUAL Ver.1.03 2004.12
WARNING
●Do not attempt to disassemble or to carry out repairs or modification
to the unit.
Under no circumstances should the user attempt to disassemble or to carry out any
repairs or modifications to the unit. Any attempts to do so may result in
malfunctioning of the unit and produce the risk of electrocution or fire. Should
repairs become necessary,contact your Technical Representative.
● Do not remove the lithium batteries.
The REGIUS MODEL 190 incorporates a lithium battery which the user should not
attempt to remove. Lithium batteries may explode if exposed to fire or water.
Additionally, if the unit begins to malfunction due to expiry of the life of the lithium
battery, under no circumstances should the user attempt to disassemble, change or
recharge the battery him/herself: contact your Technical Representative.
● Do not handle the unit with the power plug connected to the power outlet.
Maintenance procedures should only be carried out after the power has been
switched off and the power plug disconnected from the power outlet. For example,
even with the power broken off, contact with internal components may still result in
electrocution if the power cable has not been disconnected from the power outlet.
Additionally, the power plug should be occasionally disconnected and any dust or
dirt removed using a dry cloth. If dust and dirt are allowed to accumulate on the
power plug, even a drop of water may result in overheating and consequent fire.
CAUTION
●Cables should be connected properly.
Be sure to connect the power and Ethernet cables properly. inappropriate
wiring may result in poor connection producing overheating and the
consequent risk of smoke or fire.
●Cleaning should be carried out in accordance with information set
out in sections on "Care & Maintenance".
• Cleaning must be carried out according to the procedures described in
this manual. Otherwise it may lead to injury or damage to the device.
• The REGIUS MODEL 190 must be checked periodically in order to
ensure safety during usage.
• The REGIUS MODEL 190 must be checked for malfunction when
operation is resumed after an extended period of idleness.
NOTE : If the contents of this page are not legible, order a new manual.
Cautions Regarding Care and Maintenance of
the Unit

17 REGIUS MODEL 190 OPERATION MANUAL Ver.1.03 2004.12
NOTE : If the contents of this page are not legible, order a new manual.
Cautions Relating to Handling and Storing
Cassettes
WARNING
Cautions relating to the fluorescent medium of the REGIUS Plate.
When the REGIUS Plate is damaged causing the fluorescent substance to
be exposed to the open air, following cautions should be noted.
●Do not attempt to disassemble the REGIUS plate.
Touching or swallowing the fluorescent medium is dangerous.
●If the eye is contaminated, avoid rubbing; quickly rinse the eye with
water.
Rubbing the eye may cause injury to the eye.
●Should the fluorescent medium is swallowed or contacted with the
eye, a doctor should be consulted after carrying out the emergency
measures.
●If the medium comes into contact with the skin, wash the affected
area thoroughly with water.
●Use and store in a location inaccessible to children.
CAUTION
Cautions relating to the storage of the Cassette.
●Cassettes should be stored in a location where the temperature is
10~30°C/ humidity 80%RH or less and where they will not be
exposed to high temperatures, high levels of humidity, direct
sunlight or any kind or radiation.
●Cassettes should always be stored in an upright position.
●Storing cassettes flat may lead to deforming.
●Do not apply force to the cassette.
●Back and front panels should not be stored separately.
●Whether cassettes are stored individually or in boxes, they should
not be stored flat on top of the other.
CAUTION
●Use of faulty products is prohibited.
Use of products from which fluorescent medium is leaking due to a fault,
or to peeling of part or the whole of the protective cover must be
immediately discontinued.

18
REGIUS MODEL 190 OPERATION MANUAL Ver.1.03 2004.12
NOTE : If the contents of this page are not legible, order a new manual.
CAUTION
Cautions relating to Usage of the Cassette
●To prevent possible injury, be careful not to drop the cassette during
usage. Dropping the cassette on the foot may cause injury.
●Be careful not to pinch your fingers when opening/closing the
cassette lid.
●Because the magnet is used for the back plate of the read-only
cassette, do not bring the read-only cassette close to the person
wearing a pacemaker or to the other electronic devices.
●Cassettes should not be used in a location where they will not be
exposed to high temperatures, high levels of humidity, direct
sunlight or radiation.
●Cassettes should be used under the conditions: 10~30:, 80%RH or
less.
●Use only those exposure-only cassettes, read-only cassettes and
REGIUS Plates that are specified by KonicaMinolta and do not use
them for other purpose than specified.
●To prevent possible injury, make sure that the exposure-only
cassette lid is locked when it is carried to the other place.
●Loading of the exposed REGIUS Plate in the read-only cassette
should always be carried out in a darkroom. Use a blue safelight
when it is necessary. Loading the exposed REGIUS Plate under
daylight leads to deterioration of image recorded on the REGIUS
Plate.
●Make sure that the lock is engaged when inserting the read-only
cassette into the REGIUS MODEL 190.
●Be careful to ensure that the iron foil on the back panel does not
become soiled. Also, do not affix any labels to the back panel: if it is
necessary to affix a label, the label should not be affixed to the iron
foil portion. Be sure to peel it off before inserting the cassette into
the reader.
●Peeling or curling of the sheet laminated on the cassette’s back plate
may lead to injury at the edge of the sheet depending on handling. If
peeling or curling of the sheet is observed, immediately stop using
the cassette and contact your technical representative for repair.
●Be careful that no foreign objects such as liquid (water, etc.), pins or
clips fall into cassette.
●Dropping, bending or applying a shock to the cassette or REGIUS
Plate may lead to deformation or breakage. Always handle them with
care.
●Do not leave the REGIUS Plate under the fluorescent lamp or
sunlight for an extended period of time.
●Be careful not to damage or soil the fluorescent surface of the
REGIUS Plate or inner parts of the exposure-only cassette.
●Never attempt to disassemble, repair or modify the cassette. This
may cause deterioration of the image quality as well as problems in
examination using the exposure-only cassette. Contact your
technical representative when a repair should be required.
●Anhydrous ethanol is a chemical agent. Be sure to comply with
safety regulations of the chemical manufacturer.
●Lead is used inner surface of the exposure-only cassette. Due care
should be taken when it is handled.
p.26 Handling the Cassette
