INSTALLATION MANUAL
AA1P-9601-00
Applied Machines: /
<Important>
Be sure to correctly follow the procedures in order as explained in this Installation Manual.
If you do not follow the procedure in order, the image trouble may occur.
1. Outline of installation procedures
When installing the machine and associated options as a system, follow the order shown on the upper.
Note:
• For the detailed installation procedures for each option, follow the instructions given in the corresponding
installation manual and perform the procedures correctly.
• Once the Power Switch is turned ON, do not turn OFF it until the installation work has been completed.
Caution:
• Lifting the machine in an awkward position or transporting it in a poorly balanced position could result in
personal injury. When transporting the machine, assign an adequate number of persons to the job and
ensure that each person can take a good position of not being excessively loaded (mass: approx. 24.4 kg
(53-13/16 lb))
Machine
FS-P02
PF-P15
PF-P16
KP-101
EK-P07*1
DK-P02*2
UK-216*2
EK-P06*1 EK-P05*1
UK-219*1
FK-517
AU-201S
AU-102
*1: No particular order in installation
procedures
*2: Varies depending on the applicable
marketing area

E-2

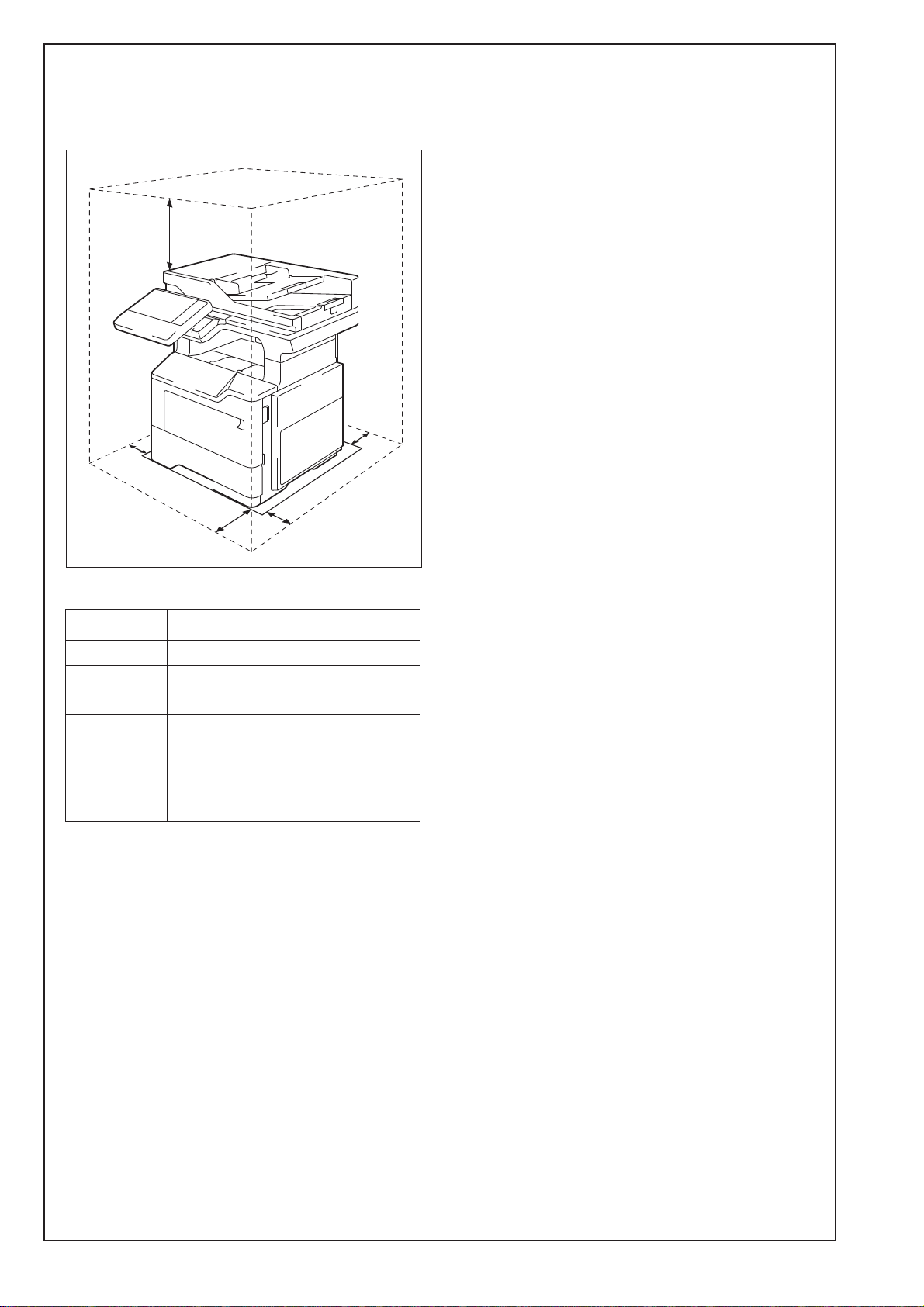

2. Installation space
To make it easier to control, replace the consum-
ables, inspect, and etc., maintain some space for
installation shown below.
3. Pre-installation check items
(1) Select a level and stable place for installing the
machine.
(2) Be sure to use a power source of the voltage and
frequency indicated in the product specifications.
Ensure that the current carrying capacity of the
power outlet is at least equal to the current listed
in the product specifications.
(3) Power the machine directly from a dedicated
power outlet. (Do not use an extension cord.)
(4) Do not plug or unplug the power cord with wet or
dirty hands, otherwise you may get an electric
shock.
(5) Avoid a hot and humid environment, or a place
exposed to direct sunlight.
(6) Avoid a dusty location, or a place near volatile
and flammable substances.
(7) Avoid a poorly ventilated place.
4. Notes on using touch panel
Be sure to instruct users on the following points.
• This machine uses a capacitive touch panel.
When you touch the touch panel, use your fin-
ger or the stylus pen for the capacitive touch
panel. If you touch the panel using your nail or a
pen tip instead of using your finger or the stylus
pen, the touch panel does not respond nor-
mally.
• Pressing the touch panel hard may cause dam-
age.
• Do not strongly press the panel or press it using
the sharp tip of mechanical pencils.
• The key is a finger tapping (quick light touch
using a finger) operation.
No. Direction Space to maintain
1 Right 110 mm (4-5/16 inches)
2 Front 304.8 mm (12 inches)
3 Left 65 mm (2-9/16 inches)
4 Rear 100 mm (3-15/16 inches)
When the optional Finisher
FS-P02 is mounted:
270 mm (10-5/8 inches)
5 Top 305 mm (12 inches)
5
4
1
2
3

E-3
5. Accessory parts
* Varies depending on the applicable marketing
area
* Power supply: 110-127V 8.2A, 220-240V 4.2A
Note:
This manual provides the illustrations of the acces-
sory parts and machine that may be slightly differ-
ent in shape from yours. In that case, instead of
the illustrations, use the appearance of your
machine to follow the installation procedure. This
does not cause any significant change or problem
with the procedure.

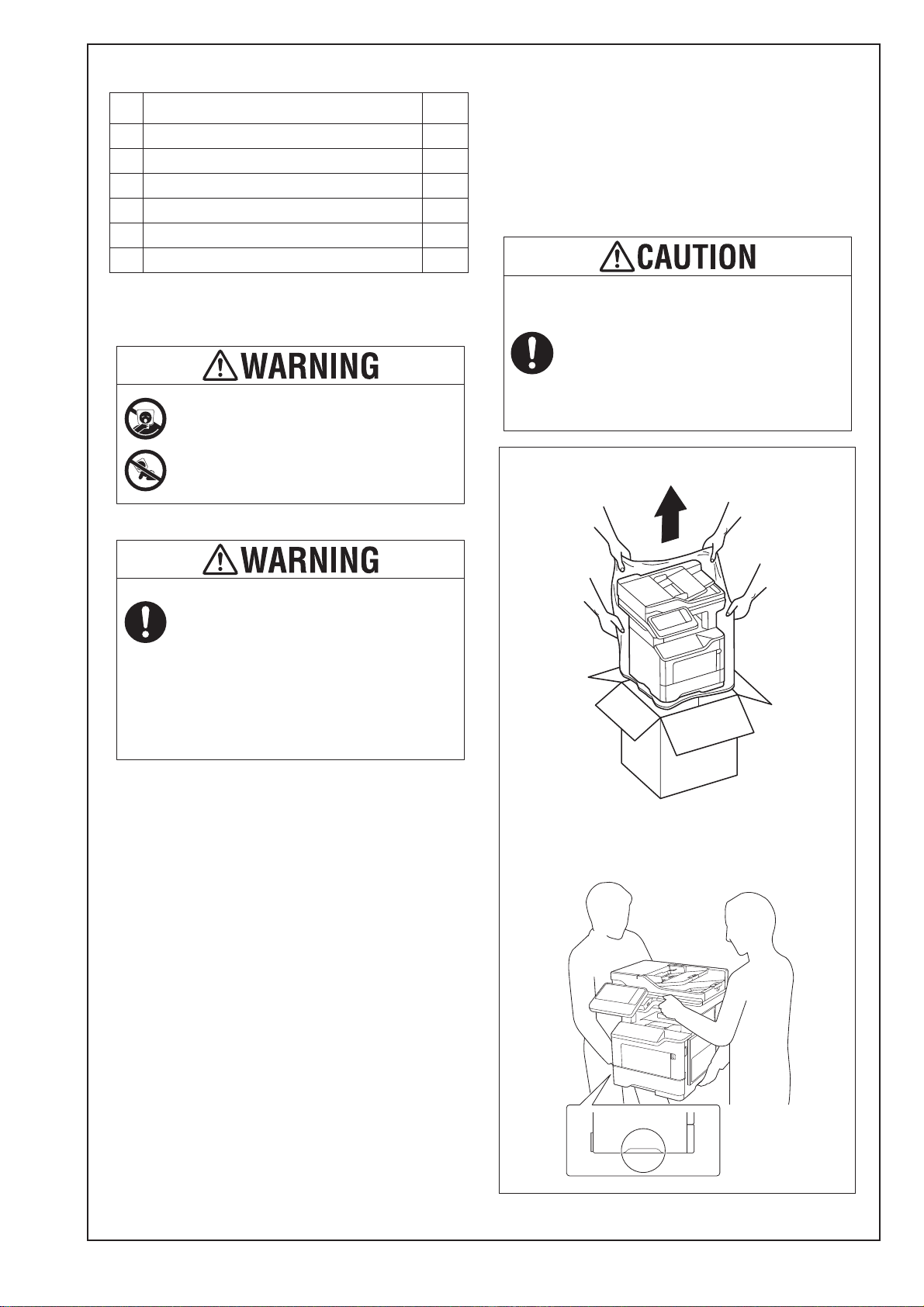

6. Unpacking the machine
(1) Open the packing carton and remove the acces-
sory parts and cushions.
(2) Raise and remove the packing carton.
(3) Assign two or more persons and put their hands
at the positions indicated in the illustration to
raise the machine from the box, and place the
machine on the horizontal and robust place.
No. Name Q’ty
1. Quick start guide 1
2. Installation manual 1 set
3. User’s guide CD 1
4. DVD 1
5. Panel sheet 1
6. Power cord * 1
Keep this bag away from babies and
children. Do not use in cribs, beds,
carriages, or playpens.
The thin film may cling to nose and
mouth and prevent breathing. This bag is
not a toy.
If a power cord is not supplied, use only
the power cord that meets the following
conditions.
Failure to do this could result in a fire or
electrical shock.
• The power cord has voltage and current rating
appropriate for the rating plate on this machine.
• The power cord meets regulatory requirements
for the area.
• The power cord is provided with grounding
pin/terminal.
Be sure to hold the place specified in the
User’s Guide or other manuals to transfer
the machine.
Holding other places than the specified in
transferring the machine could cause
personal injury due to the drop of the
machine or other reasons.
(Machine mass: approx. 24.4 kg
(53-13/16 lb))
< When taking the machine out of the carton >
<When transferring the machine
after being installed>

E-4
7. Removing protective tape, packing and
other shipping materials
(1) Remove tapes for protective sheet and get rid of
the protective sheet.
(2) Remove all protective tapes and protective mate-
rials used for fixing the machine housing.
(3) Open the automatic document feeder (ADF) and
remove the protective tape and protective mate-
rial.
(4) Press the front door button to open the front
door.
(5) Hold the handle and slowly pull out the toner car-
tridge.
(6) Hold the handle and slowly pull out the imaging
unit.

E-5

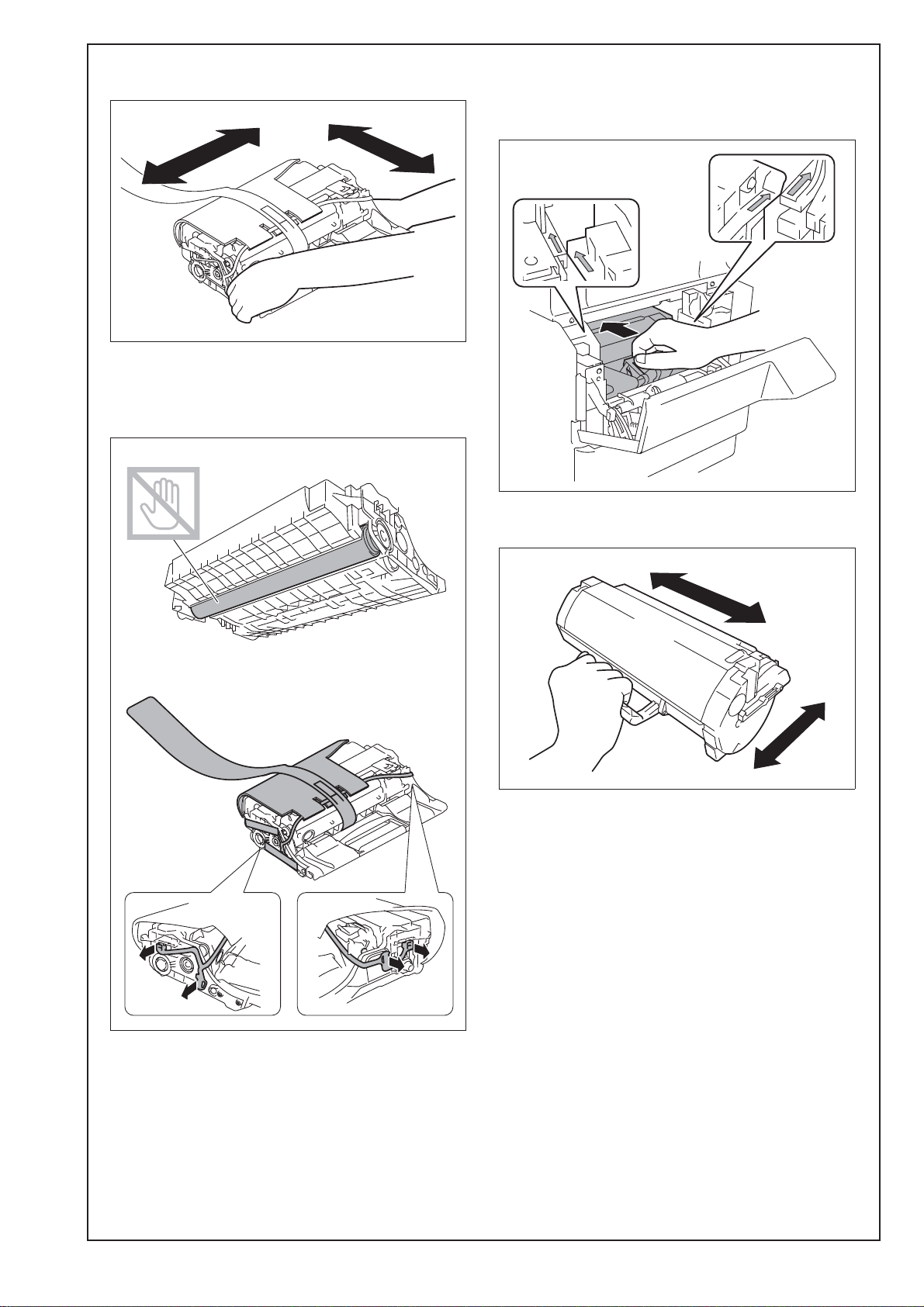

(7) Shake the imaging unit from front to back and
from side to side.
(8) Remove the protective materials from the imag-
ing unit.
Note:
Do not touch the photo conductor.
(9) Reinstall the imaging unit.
Note:
Align the arrows on the imaging unit with the
arrows on the machine.
(10) Hold the handle and shake the toner cartridge
from front to back and from side to side.

E-6
(11) Reinstall the toner cartridge.
Note:
Align the arrows on the toner cartridge with the
arrows on the machine
(12) Close the front door.
(13) Slide out the tray 1 and remove the protective
materials from the inside of the tray.
8. Loading the tray 1
(1) Slide the paper guides to the appropriate paper
size.
(2) Fix the paper guide.
(3) Set paper with the printing side downward.
(4) Reinstall the tray 1.
(5) Slide out the exit guide.

bizhub 4752/4052 H SERVICE MODE > 2. Starting procedure
H-2
2.Starting procedure
NOTE
▪ Ensure appropriate security for Service Mode function setting procedures. They should NEVER be shown to any unauthorized
person not involved with service jobs.
2.1Procedure
1. Touch Menu.
2. Touch [Counter].
3. Touch [Display Keypad].
4. Press the following keys in this order.
• Stop -> 0 -> 0 -> Stop -> 0 -> 1
5. Enter the CE password and touch [END]. (The CE password is initially set to “9272927292729272.”)
NOTE
▪ When [Administrator Settings] -> [Security Settings] -> [Enhanced Security Mode] is set to “ON”, CE password
authentication is necessary.
▪ If a wrong CE password is entered, re-enter the right password.
The machine will not enter Service Mode unless the CE password is entered correctly. To return to the basic screen, turn
OFF the main power switch and turn it ON again.
▪ When [Administrator Settings] -> [Security Settings] -> [Security Details] -> [Prohibited Functions When Authentication
Error] is set to “Mode 2”, operation will be prohibited since it indicates authentication failure by failing to enter the correct
CE password within the specified number of times.
If the access lock is activated, the lock release timer starts to operate by input the Stop -> 0 -> 9 -> 3 -> 1 -> 7 in Menu ->
[Counter] -> [Print List] -> [Display Keypad] after the main power switch is turned OFF and On.
When the timer reaches the time specified in this setting, the access lock is released.
▪ The service code entered is displayed as “ * ”

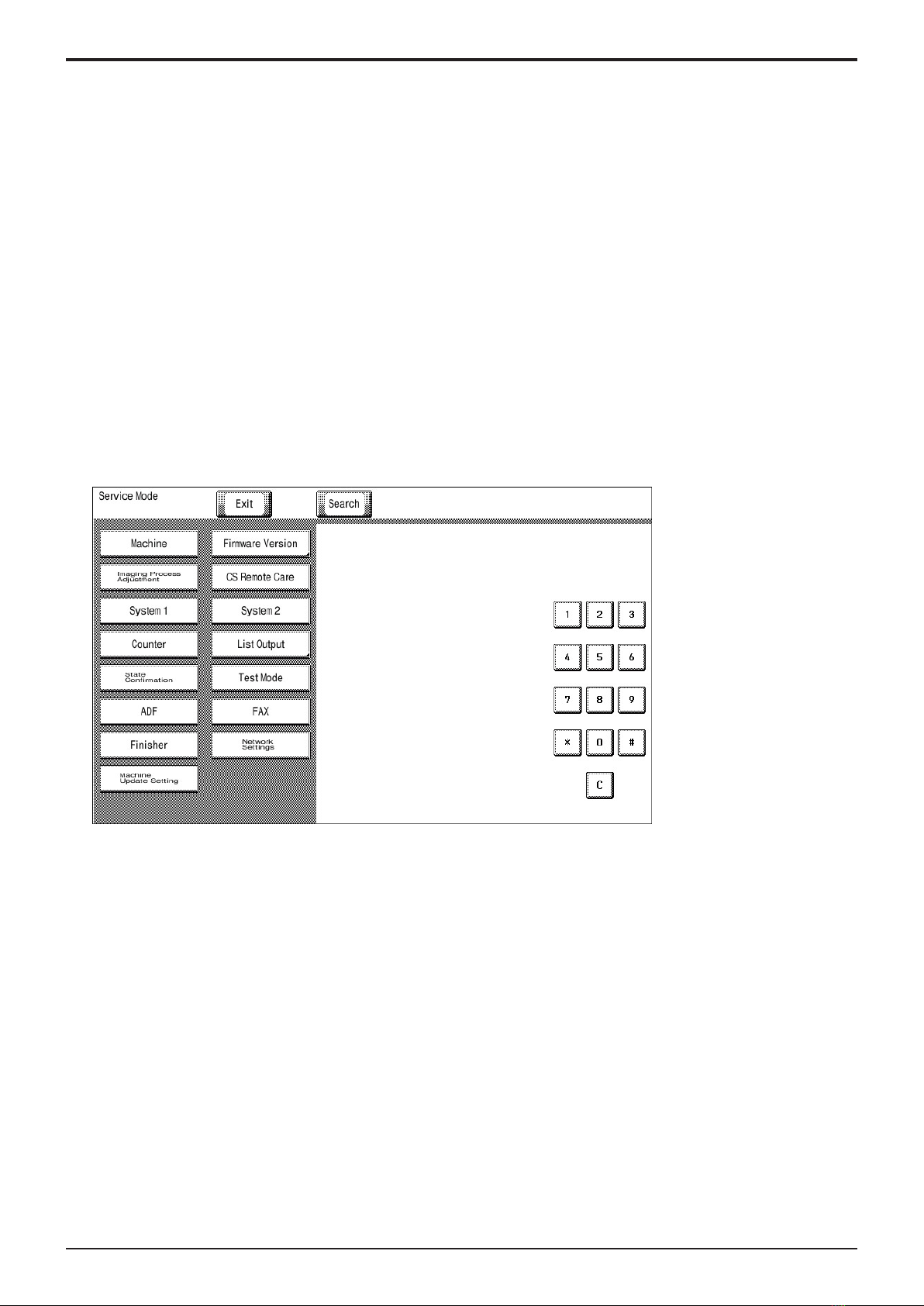

6. The Service Mode menu will appear.
NOTE
▪ Be sure to change the CE password from its default value.
▪ For the procedure to change the CE password, see the [Enhanced Security] -> [CE Password].
▪ NEVER forget the CE password.

bizhub 4752/4052 H SERVICE MODE > 3. Setting procedure
H-3
3.Setting procedure
1. Press the key corresponding to the function you would like to change the setting for. Keys or setting screens will appear for each function.
Ex.: System 1
1. Press the key for the item that you would like to change the setting for. Setting screens will appear for each item.
Ex.: Install Date
2. Press the key for the setting you would like to change. You can also input the numerical value using the 10-key pad. (the [+]/[-] keys can
also be used for settings. Follow the directions on the screen to input numerical values.)
NOTE
▪ For more details, see the description pages for each setting item.
3. Touch [END]. This closes the setting screen and returns to the Service Mode screen. (If deep within the hierarchy of the setting screen, it
may be necessary to touch [END] several times)
4. Touch [Exit]. This will close the Service Mode screen and exit the Service Mode.
5. Turn OFF the main power switch. After waiting 10 seconds, turn ON the main power switch again. Turning the main power switch OFF and
then ON again makes the changes to the Service Mode setting take effect.
NOTE
▪ Simply exiting the Service Mode will not make the changed settings take effect. You must turn the main power switch OFF
and then ON again.

bizhub 4752/4052 H SERVICE MODE > 4. Exiting procedure
H-4
4.Exiting procedure
1. Touch [Exit] on the Service Mode screen.
2. Turn OFF the main power switch. Wait 10 seconds, then turn ON the main power switch again.

E-7
9. Installing options
To install options, refer to the installation manual for
each option and follow the “Installation Procedures.”
10. Connecting the power cord
(1) Connect the plug of the power cord into the main
body.
(2) Plug the power cord into the power outlet.
11. Starting the machine
Turn ON the power switch on the rear of the main
body.
12. Date & Time Setting/Time Zone Setting
(Service Mode)
(1) Display the Service Mode screen.
(For details of how to display the Service Mode
screen, see the service manual.)
(2) Display the Date & Time Setting/Time Zone Set-
ting screen.
(To display the Date & Time Setting/Time Zone
Setting screen, press Stop o3 on the control
panel.)
(3) Do not input date and time but touch “Entry” of
the Date & Time Setting.
(4) Input the time zone using up/down keys or direct
keys.
(5) Touch “Entry” of the Time Zone Setting.
(6) Touch “Apply.”
(7) Touch “OK.”
(8) Touch “Next.”
13. Serial number input
Note:
Serial number input is, if necessary, needed only
for the optional devices installed in “9. Installing
options.”
(1) Touch the item you want to enter and input the
serial number.
(2) Touch “END.”
(3) For other devices, enter their serial number in
the same way.
(4) Touch “END.”
(5) Touch “Next.”
14. Unit change
Note:
This function allows the user to select the type of
message that will appear when the replacement
time arrives for each of the different units.
(1) Select the appropriate message type for each
unit.
(2) Touch “Service.”
Use the appropriate power cord.
Failure to do this could result in a fire or
electrical shock.

E-8
15. Performing Non-Image Area Erase
Check
Note:
Perform the below at the site where customer
uses the machine.
(1) Select the Non-Image Area Erase Check func-
tion as follows:
Machine oNon-Image Area Erase Check.

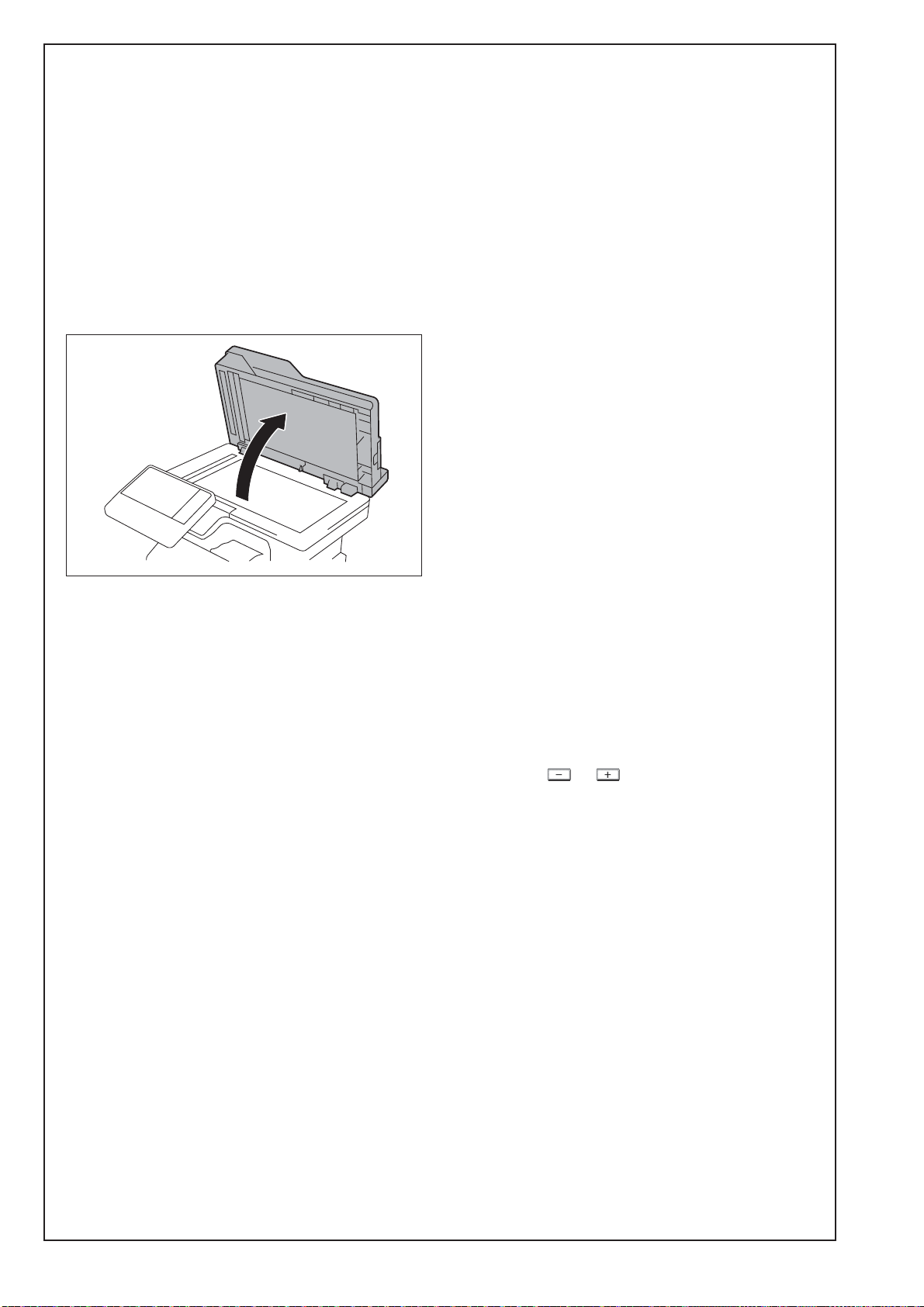

(2) Open fully the ADF.
Note:
• Do NOT place a document on the document
glass.
• Clean the document glass if dirty.
(3) Press the Start key.
(4) Make sure that “Result” is “OK.”
Note:
If “Result” is “NG1” or “NG2”, review the place and
direction of installation, or take measures to block
the light source (by covering it, etc.), then perform
installation checking again.
(If a fluorescent light or other bright light sources
exist right above the machine, the light source can
hinder installation checking and cause operation
errors in the Non-Image Area Erase Check. For
detailed information, see the service manual.)
(5) Touch “OK.”
16. Configuring options
(1) If any of the following options are installed, refer
to the “Configuration procedures” of the installa-
tion manual for each option and configure the
option(s).
• Authentication Unit AU-201S/AU-102
• Upgrade Kit UK-216
•FaxKitFK-517
• Local Interface Kit EK-P06
•NetworkFax
(2) Exit from the Service Mode and return to the ini-
tial screen.
17. Setting up wireless connection kit
(only for North America models)
(1) Display the Service Mode screen.
(For details of how to display the Service Mode
screen, see the service manual.)
(2) Touch “Network Settings.”
(3) Touch “2nd Network Setting.”
(4) Touch “Network Interface Settings.”
(5) Select the appropriate option according to the
user's network environment.
(6) Touch “Fix.”
(7) Turn OFF and ON the power switch.
Note:
When displayed the Service Mode screen, be sure
to turn off the power after exiting the Service Mode
screen and wait for 10 seconds or more before
turning on.
(8) Display the Service Mode screen.
(9) Touch “System 1.”
(10) Touch “Marketing Area.”
(11) Touch “Wireless LAN Destination.”
(12) Use the or key to select “US” and
touch “decision.”
18. Restarting the machine
Turn the power switch on the rear of the main body
OFF and ON again after 10 or more seconds have
passed.

E-9
19. Connecting the network cable
(1) Connect the main body and networking equip-
ment (HUB) using the network cable.
Note:
The following shows the recommended network
cables that correspond to each communication
speed.
• 10BaseT/100BaseTX: Category 5
• 1000BaseT: Category 5E, Category 6
(2) Check LEDs for lighting conditions.
LED1:
Should light up steadily if the link network con-
nection has been made.
LED2:
Should blink according to the communications
status of the ACT network.
20. Network setting
Make the TCP/IP address setting for the network.
Note:
Consult the network administrator for the setting
value to be entered and make settings as
required.
(1) Select the function to be used as follows:
Menu oUtility oAdministrator Settings oEnter
the Administrator Password oNetwork Settings
oTCP/IP Settings oIPv4 Settings.
(2) Touch “Manual Input” of IP Application Method
and make the following settings.
IP Address: IP address of the controller
Subnet Mask: Subnet mask of the network, to
which the machine is connected
Default Gateway: IP address of the default gate-
way
(3) Touch “OK.”
(4) Touch “OK” after the “TCP/IP Settings” screen is
displayed.
(5) Select the function to be used as follows:
Forward oDetail Settings oPING Confirma-
tion, and make the operation check of TCP/IP.
21. Confirming the copy sample
After completing all the steps, take a sample copy
and confirm the image. If image troubles occur, first
turn OFF and ON the Main Power Switch, and then
redo the steps from E-7 “12. Date & Time Setting/
Time Zone Setting (Service Mode)” to E-7 “14. Unit
change.”
22. Affixing the labels
Affix the supplied panel sheet to the surface of the
operation panel.
Note:
• The panel sheet is affixed on customer request.
• The panel sheet must be kept by the customer.
Networkport
LED2
LED1

E-10
UK-219 Upgrade Kit
INSTALLATION MANUAL
1. Accessory parts
Note:
• When installing the Fax Kit FK-517 together,
this product must be installed first.
• The memory is highly susceptible to static elec-
tricity. Before touching the memory be sure to
touch a metal object to discharge any static
electricity from your body and clothes.
• Never touch any pins or other parts of the cir-
cuit board when removing the memory from the
insulation bag or inserting it into the socket.
• Before starting to use the firmware updated
with this upgrade kit, make sure that the version
of the applications and printer driver installed in
the machine is compatible with the updated
firmware. Check the field support information
for version compatibility between the firmware,
application, and printer driver.
• When your customer bought i-Option LK-104
v3 (license kit for audio guide function), copy
audio guide data from the USB flash drive and
install it to the machine. For details on the
installation method, see service manual.
• This manual provides the illustrations of the
accessory parts and machine that may be
slightly different in shape from yours. In that
case, instead of the illustrations, use the
appearance of your machine to follow the
installation procedure. This does not cause any
significant change or problem with the proce-
dure.
2. Installation procedures
(1) Turn OFF the power switch and unplug the
power cord from the power outlet.
(2) Open the right door.
(3) Lift up the lever, and remove the plate.
(Two screws)
No. Name Shape Q’ty
1. Memory
1
Keep this bag away from babies and
children. Do not use in cribs, beds,
carriages, or playpens.
The thin film may cling to nose and
mouth and prevent breathing. This bag is
not a toy.

E-11
(4) Insert the memory into the slot shown in the illus-
tration in the MFP board at an angle while paying
attention to the insertion direction.
(5) Press the memory at the position shown in the
illustration to install it into the MFP board.
(6) Attach the plate removed in step (3).
(Two screws)
(7) Close the right door.
3. Configuration procedures
<Check after the memory has been Installed>
(1) Plug the power cord into the power outlet and
turn ON the power switch.
(2) Display the Service Mode screen.
(For details of how to display the Service Mode
screen, see the service manual.)
(3) Touch “State Confirmation.”
(4) Touch “Memory/Storage Status.”
(5) Make sure that the volume of memory was
increased.
(6) Touch “END.”
(7) Touch “Exit” on the Service Mode screen.
