INSTALLATION MANUAL
//
A02E-9951-00
<Important>
Be sure to correctly follow the procedures in order as explained in this installation manual.
If you do not follow the procedure in order, the image trouble may occur.
I. Outline of installation procedures
When installing the machine and associated options as a system, follow the order shown on the upper.
Note:
• For the detailed installation procedures for each option, follow the instructions given in the corresponding
installation manual and perform the procedures correctly.
• When placing the machine on the floor, make sure to use the paper feed cabinet or the desk to secure
the performance and the quality of the product.
• Once the Power Switch is turned ON, do not turn OFF it until the installation work has been completed.
• Lifting the machine in an awkward position or transporting it in a poorly balanced position could result in
personal injury. When transporting the machine, assign an adequate number of persons to the job and
ensure that each person can take a good position of not being excessively loaded.
(mass: approx. 99 kg (218-1/4 lb))

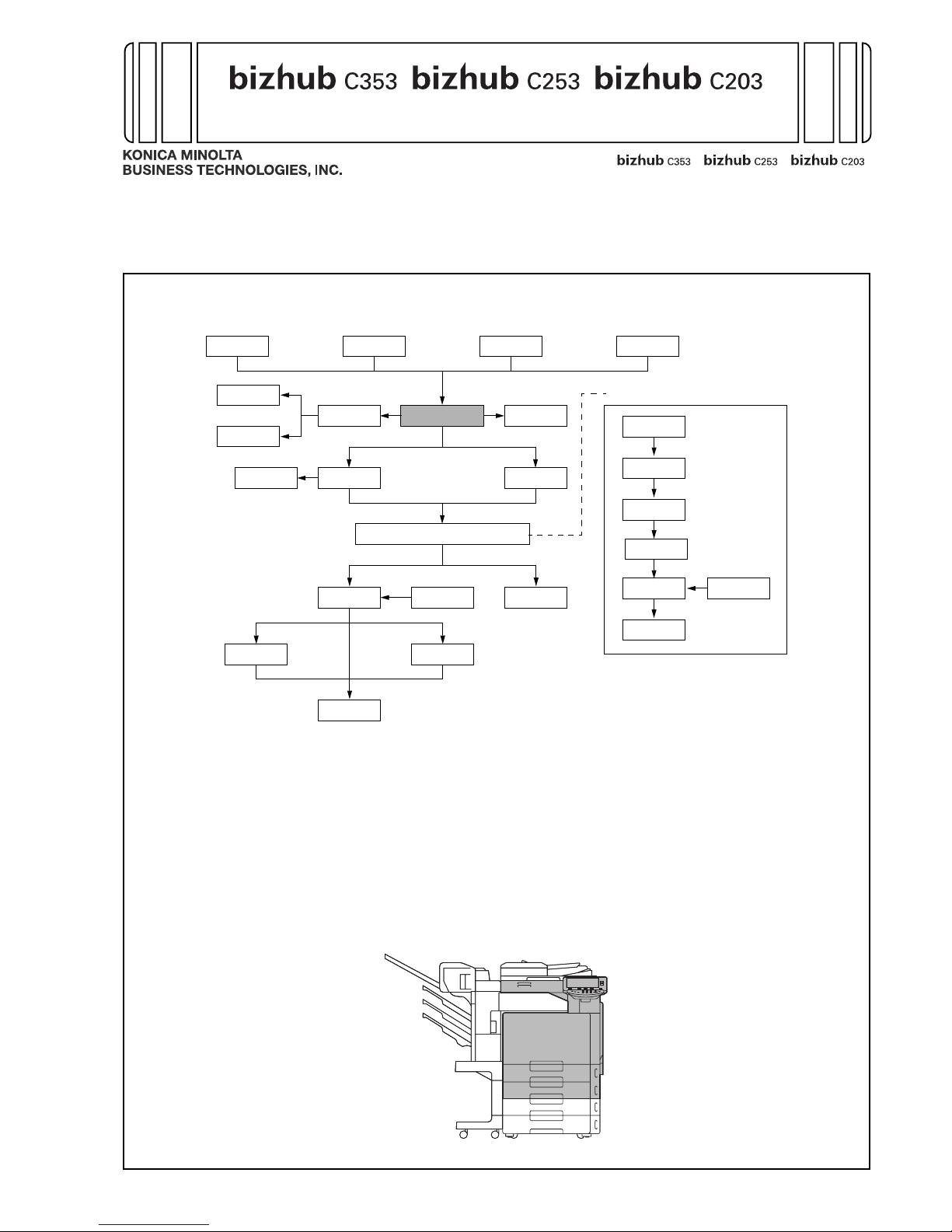

DF-611
✱Electron system options
PC-104 PC-204 DK-504PC-405
Electron system options
OC-507SP-501
AU-101
AU-201
WT-502 Machine
EK-603*
FK-502*
SA-501*
ML-501 FK-502
SC-503*
MK-711
FS-519
MT-502 SD-505
PK-515
OT-602
JS-505
MK-713
* : No particular order in installation procedures.
A02EIXC006DA
Applied Machines: / /

E-2
II. Installation space (unit: mm (inch))
bizhub C353 + FS-519 + SD-505 + DF-611
+ PC-405 + MK-713
III. Pre-installation check items
1. Select a level and stable place for installing the
machine.
2. Be sure to use a power source of the voltage and
frequency indicated in the product specifications.
Ensure that the current carrying capacity of the
power outlet is at least equal to the current listed
in the product specifications.
3. Power the machine directly from a dedicated
power outlet. (Do not use an extension cord.)
4. Do not plug or unplug the power cord with wet or
dirty hands, otherwise you may get an electric
shock.
5. Avoid a hot and humid environment, or a place
exposed to direct sunlight.
6. Avoid a dusty location, or a place near volatile
and flammable substances.
7. Avoid a poorly ventilated place.
IV. Accessory parts
* Varies depending on the applicable marketing
area.
A02EIXC007DA
991
(39)
190
(7-1/2)
2049
(80-11/16)
677
(26-5/8)
191
(7-1/2)
1429
(56-1/4)
246
(9-11/16)
852
(33-9/16)
281
(11-1/16)
1649
(64-15/16)
494
(19-7/16)
130
(5-1/8)
1025
(40-3/8)
No. Name Q’ty
1. Imaging unit (IU): Y,M,C,K 4
2. User’s guide holder 1
3. Quick guide
(Copy/Fax/Scan/Box operations) * 1
4. Installation manual 1 set
5. CD-ROM * 3
6. Paper size label 1
7. Label (Legal restrictions on copying) * 1
8. Cap A (round-head) 2
9. Cap B (square-head) 2
10. Power cord * 1
11. Power cord instruction * 1
12. Connector cover 1
13. Cord clamp * 1
14. Cover A
(Mounted under
the control
panel.) 1
15. Cover B
(Mounted when
neither the paper
feed cabinet nor
the desk is
mounted.)
1
16. Screw A
(3 × 6 mm) 3
17. Screw B
(3 × 8 mm) 1
18. Screw C *
(3 × 8 mm) 1
After unpacking, be sure to get rid of the
packaging materials and keep them out of
the reach of children.
Putting the head in the plastic bag
involves danger of suffocation.
A02EIXC066DA
A02EIXC065DA
4040IXC046DA
9J08IXC078DA
A090IXC001DA

E-3
V. Removing the machine

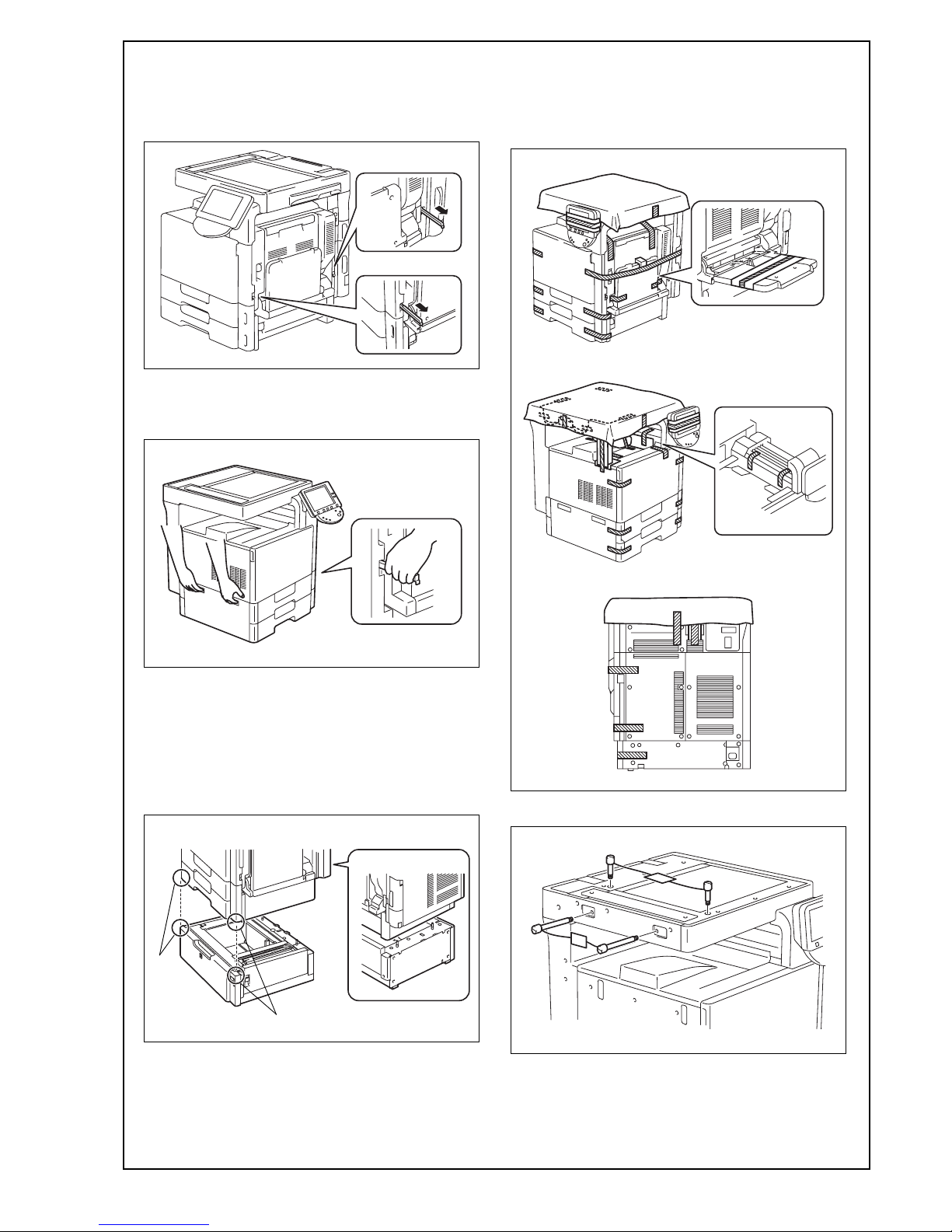

1. Open the shipping carton and remove the IU car-
ton and machine carton.
2. Pull out the handles.
3. Holding onto the portions shown in the illustra-
tion, remove the machine while maintaining a
level position.
Note:
Machine mass: 99 kg/218-1/4 lb
Make available collective manpower of an appro-
priate size for transporting the machine.
When attaching the machine, as the reference fit
the machine with the corner A and B of the paper
feed cabinet.
VI. Removing protective tape, packing and
other shipping materials
1. Remove protective tape from different parts of the
machine.
2. Remove the packing bracket.
A02EIXC008DA
A02EIXC009DA
A02EIXC010DB
A
B
A02EIXC011DC
A02EIXE093DB
A02EIXE094DB
A02EIXC014DA

E-4

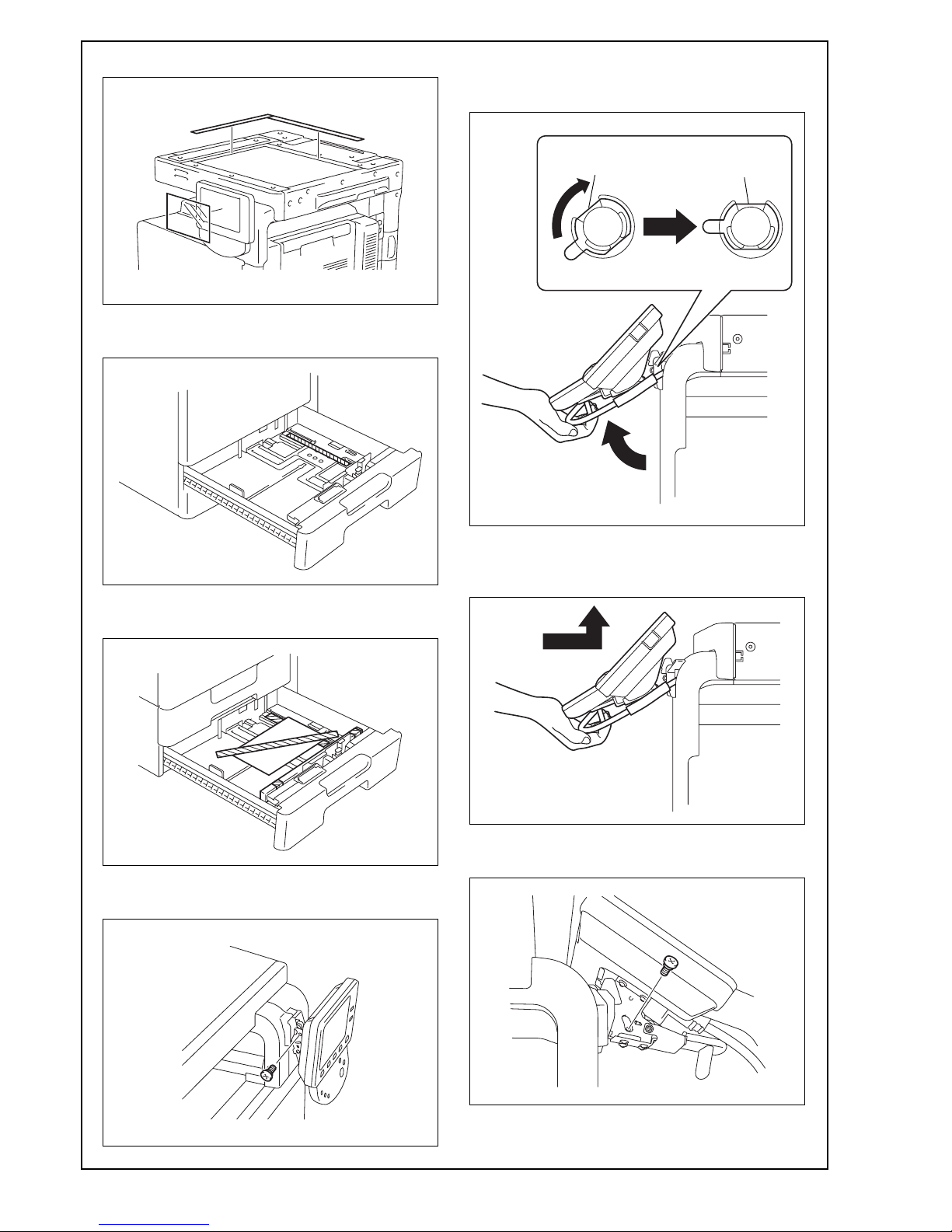

3. Remove the protective sheet.
4. Slide out the 1st drawer and remove protective
tape from the inside of the drawer.
5. Slide out the 2nd drawer and remove protective
tape from the inside of the drawer.
6. Remove the screw from the back of the control
panel.
7. Pull the lever and raise the control panel until the
indention shown in the illustration is placed in a
horizontal position.
8. After placing the indentation in a horizontal posi-
tion, push the control panel toward the machine
until it stops and raise it. Then release the lever.
9. Secure the control panel with the screw that has
been removed in step 6.
A02EIXC015DA
A02EIXC016DB
A02EIXC017DA
A02EIXC018DB
A02EIXC019DB
Indentation Horizontal
A02EIXC020DB
A02EIXC021DB

E-5

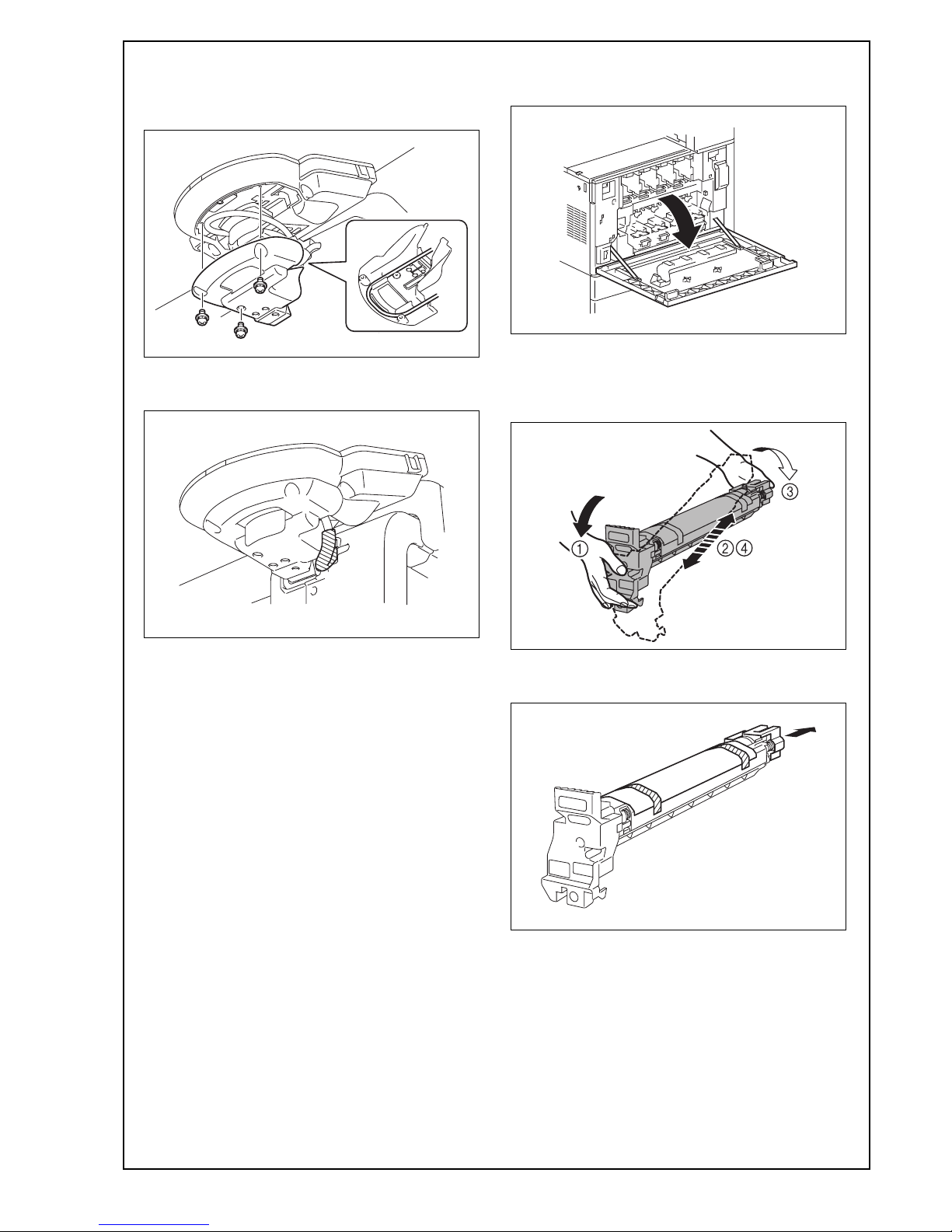

10. Place the control panel cable into the cover A
furnished with the machine. Secure the cover
with screws (three screw A’s furnished with the
machine).
11. Remove the protective material from the control
panel cable.
VII. Installing the IU
1. Open the front door.
2. Tilt the IU to the left and, in that condition, shake it
over a small stroke twice. Then, tilt the IU to the
right and, in that condition, shake it over a small
stroke twice.
3. Remove the top cap and protective sheet of the
IU.
A02EIXC022DB
A02EIXC095DA
A02EIXC023DA
A02EIXC024DB
A02EIXC025DA

E-6
4. Keeping the IU in the level position, insert it all
the way as far as it will go.
Note:
• Make sure that the color is same between
inserting port and the IU.
• Make sure that the blue label position of the IU
is matched with the one of the machine side.
5. Push the IU all the way in.
Note:
Make sure that the IU is pushed all the way in.
6. Using the same procedure, install all IUs.
VIII. Installing the toner cartridge
Note:
Since cartridge is not furnished with the machine,
purchase toner cartridge (of different colors) sepa-
rately.
1. Shake the toner cartridge right and left five to ten
times.
Note:
Shake the cartridge adequately. Otherwise, it may
cause trouble.
2. Insert the toner cartridge into the machine.
Note:
• Make sure that the color is same between
inserting port and the toner cartridge.
• Make sure that the blue label position of the
toner cartridge is matched with the one of the
machine side.
A02EIXC026DB
A02EIXC028DA
A02EIXC029DA
A02EIXC030DA

E-7
3. Push the toner cartridge all the way in.
Note:
Make sure that the toner cartridge is pushed all the
way in.
4. Using the same procedure, install the toner car-
tridges for other colors of toner.
5. Close the front door.
IX. Connecting the power cord and
mounting the accessory parts
1. Connect the power cord.
2. Fit the cord clamp furnished with the machine
over the power cord (one screw furnished with
the machine).
Note:
This step may not be performed depending on the
applicable marketing area.
3. Plug the power cord into the power outlet.
A02EIXC031DA
A02EIXC032DA
A02EIXE096DA
A02EIXE097DA
C4004U139CA

E-8
4. Attach the cap A and B furnished with the
machine.
5. Attach the connector cover furnished with the
machine.
6. Insert the cover B two projections into the holes
on the right side of the machine as shown in the
illustration. Secure the cover B with the screw
(one screw B’s furnished with the machine).
Note:
This operation should be performed only when the
paper feed cabinet and the desk are not mounted.
X. Installing the user’s guide holder
Install the user’s guide holder.
XI. Mounting the original cover
Install the original cover.
XII. Installing the set guide for banner
paper
Open the manual bypass tray and set the set guide
for banner paper.
A02EIXC033DA
A02EIXC034DA
A02EIXC035DA
A02EIXC036DA
A02EIXC037DA
A02EIXC038DA
A02EIXC039DA
A02EIXC040DB

E-9
XIII. Adjusting touch panel
1. Turn ON the Main Power Switch and then Sub
Power Switch.
2. Press the accessibility key.
3. Touch “Touch Panel Adjustment.”
4. Using a ballpoint or similar device, lightly touch
the center of the + markers at four places on the
touch panel.
(Any specific marker can be the first one.)
Note:
Pressing the touch panel hard may cause dam-
age.
* When all the markers at four places have been
touched, the start key turns blue and lights up
steadily blue.
5. Press the start key.
6. Touch “Close.”
XIV. Setting gradation adjust
1. Set that A3 or Ledger paper is loaded in
the tray.
2. Display the Service Mode screen.
(For details of how to display the Service Mode
screen, see the service manual.)
3. Touch “Imaging Process Adjustment.”
4. Touch “Gradation Adjust.”
5. Touch “Stabilizer” and press the start key.
* When the start key lights up blue, go to step 6.
Note:
When a maintenance call occurs, see the service
manual.
6. Touch “High Compression Mode” and press the
start key.
A test pattern will then be produced on the A3
or Ledger paper.
A02EIXE051DA
A00JIXE183DA
A00JIXE184DB
A00JIXE195DA
A00JIXE185DA

E-10

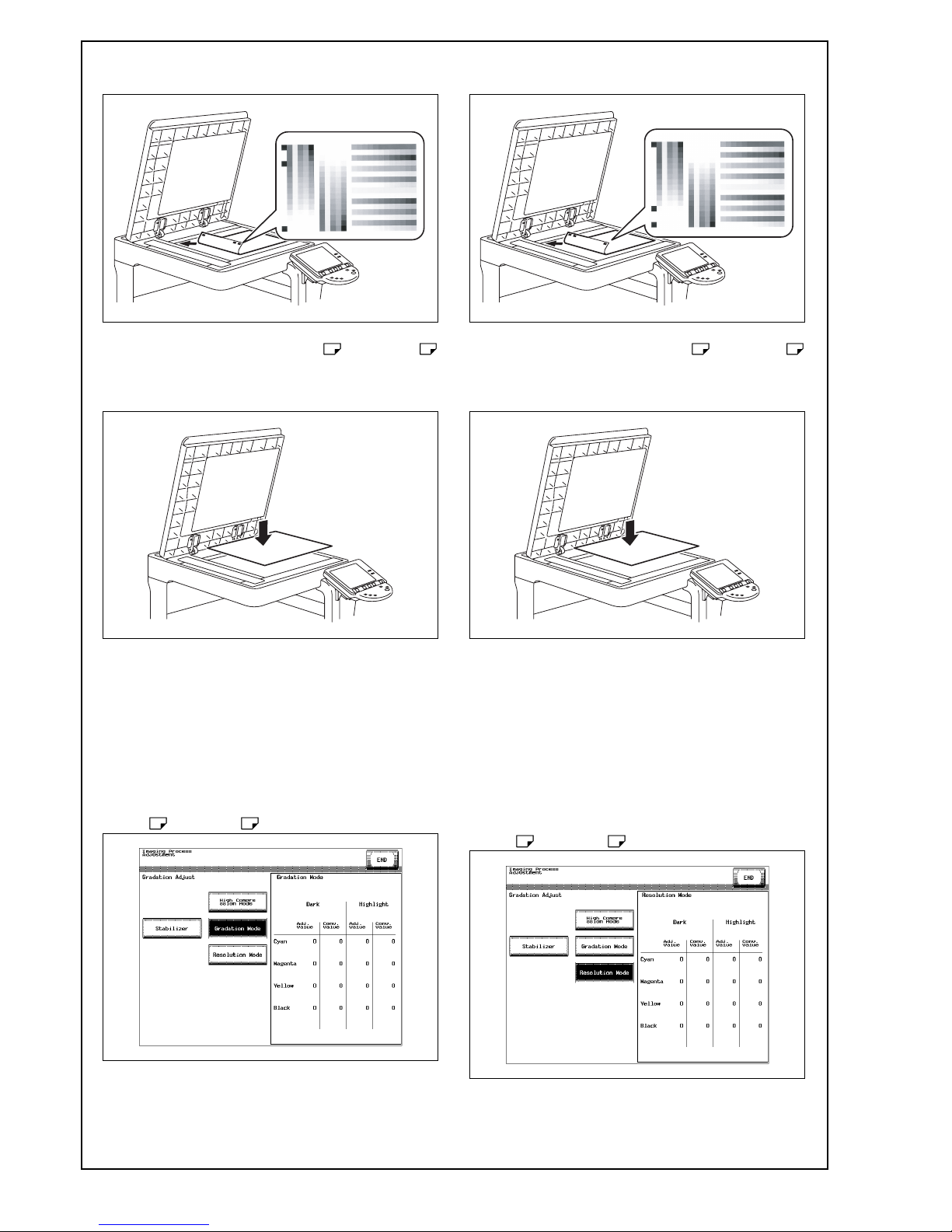

7. Place the test pattern face down on the original
glass.
8. Place about ten sheets of A3 or Ledger
paper on the test pattern placed on the original
glass.
Lower the cover.
9. Press the start key.
The machine will start reading the test pattern.
10. When the machine completes reading the test
pattern, the “Gradation Adjust” screen will reap-
pear.
11. Repeat steps from 6 through 9 to let the
machine read the test pattern two times.
12. Touch “Gradation Mode” and press the start key.
A test pattern will then be produced on the
A3 or Ledger paper.
13. Place the test pattern face down on the original
glass.
14. Place about ten sheets of A3 or Ledger
paper on the test pattern placed on the original
glass.
Lower the cover.
15. Press the start key.
The machine will start reading the test pattern.
16. When the machine completes reading the test
pattern, the “Gradation Adjust” screen will reap-
pear.
17. Repeat steps from 12 through 15 to let the
machine read the test pattern two times.
18. Touch “Resolution Mode” and press the start
key.
A test pattern will then be produced on the
A3 or Ledger paper.
A02EIXC041DA
A02EIXC042DA
A00JIXE186DA
A02EIXC043DA
A02EIXC042DA
A00JIXE187DA

E-11
19. Place the test pattern face down on the original
glass.
20. Place about ten sheets of A3 or Ledger
paper on the test pattern placed on the original
glass.
Lower the cover.
21. Press the start key.
The machine will start reading the test pattern.
22. When the machine completes reading the test
pattern, the “Gradation Adjust” screen will reap-
pear.
23. Repeat steps from 18 through 21 to let the
machine read the test pattern two times.
24. Touch “END.”

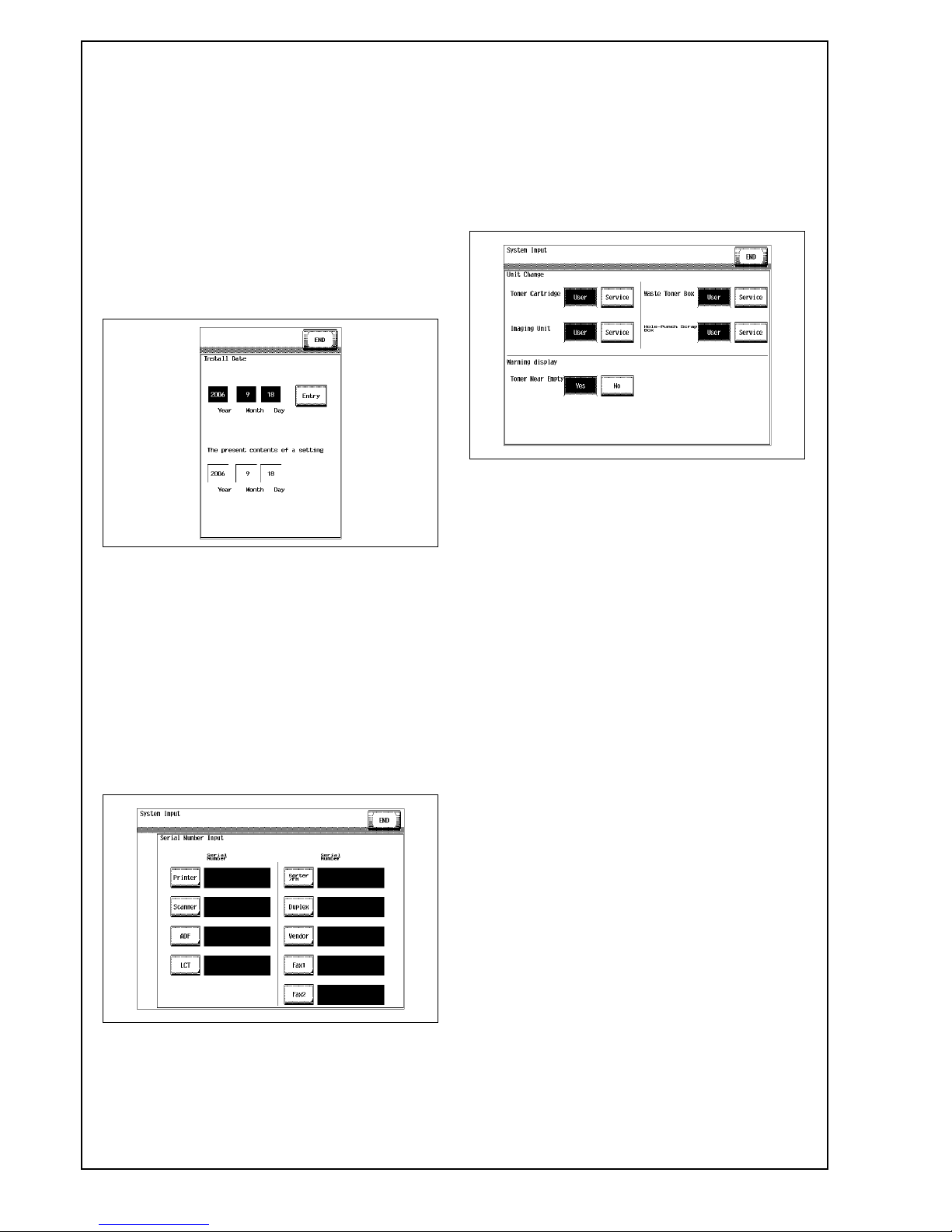

XV. Date/Time setting
1. Make sure that the Service Mode screen is dis-
played.
2. Display the Date & Time Setting screen.
(To display the Date & Time Setting screen, press
Stop →1 →1 →4 →4 →Clear on the control panel.)
3. Press the clear key.
4. Enter the data for the year, month, day, and time-
of-day from the 10-key pad.
5. Touch “Entry.”
Note:
Touching the Entry key returns the figures in the
Date & Time Setting screen to 0 and Date & Time
Setting has been completed.
6. Touch “END.”
7. Touch “Exit” on the Service Mode screen.
8. Select the Date/Time Setting function as follows:
Utility/Counter →Administrator Settings →Enter
the Administrator Password (Default setting:
12345678) →System Settings →Date/Time Set-
tings.
9. Select the item you want to set and press the
clear key.
10. Enter the data for the year, monthly, daily, and
time-of-day from the 10-key pad.
11. Touch “OK.”
12. Touch “Close” three times.
A02EIXC044DA
A02EIXC042DA
A00JIXE188DA
A02EIXE052DA

E-12
XVI. Install date
1. Display the Service Mode screen.
(For details of how to display the Service Mode
screen, see the service manual.)
2. Select the Install Date function as follows:
System 1 →Install Date.
3. Press the clear key.
4. Enter the data for the year, month, and day from
the 10-key pad.
5. Touch “Entry.”
Note:
Touching the Entry key returns the figures in the
Install Date screen to 0 and Install Date has been
completed.
6. Touch “END.”
XVII. Serial number input
Note:
Serial number input is needed only for optional
devices that will be installed later.
1. Select the Serial Number input function as fol-
lows: System 1 →Serial Number.
2. Touch the item you want to enter and input the
serial number.
3. Touch “END.”
4. For other devices, enter their serial number in the
same way.
5. Touch “END.”
XVIII. Unit change
Note:
This function allows the user to select the type of
message that will appear when the replacement
time arrives for each of the different units.
1. Select the Unit Change function as follows:
System 2 →Unit Change.
2. Select the appropriate message type for each
unit.
3. Touch “END.”
A00JIXE190DA
A02EIXE053DA
A02EIXE073DA

E-13

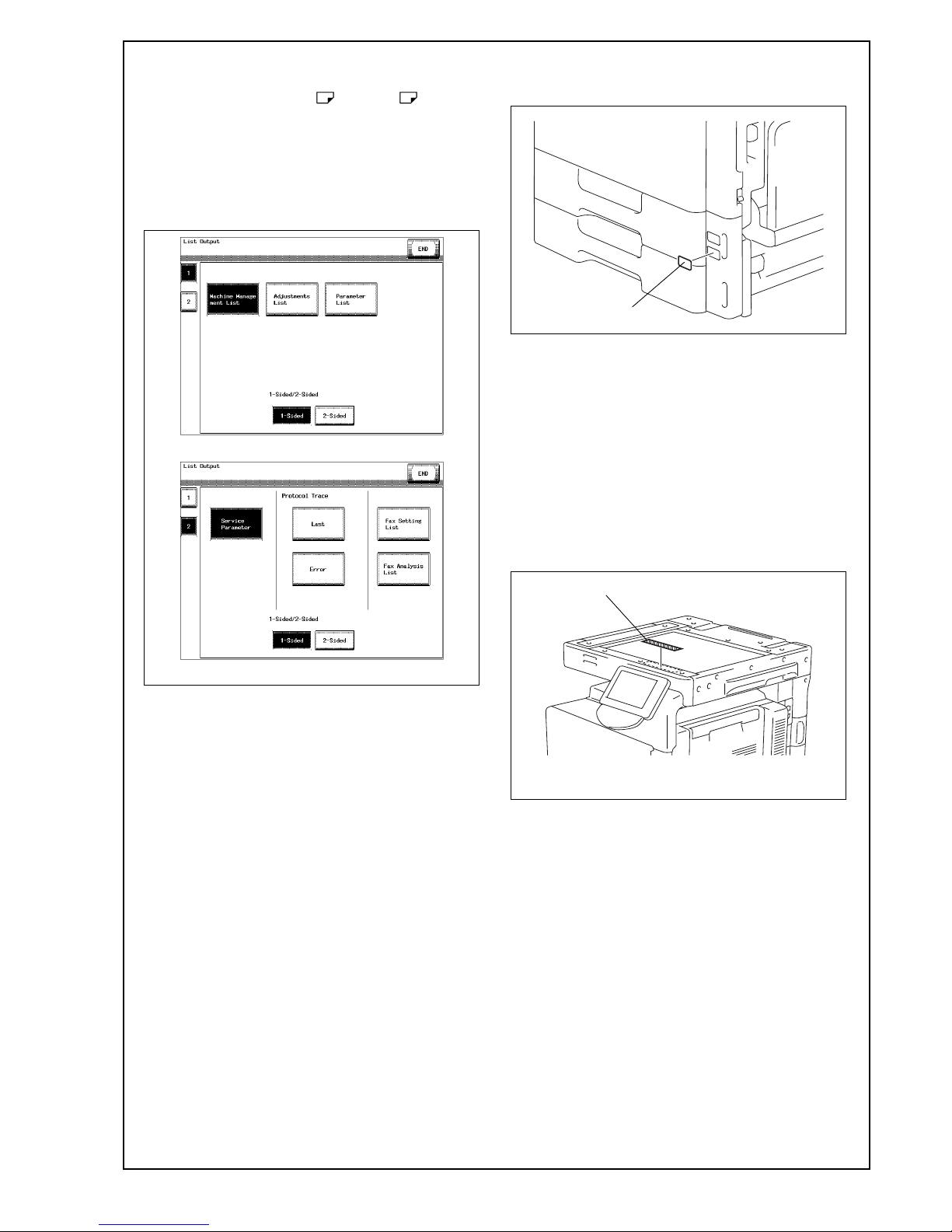

XIX. List Output
1. Load the tray 1 with A4 or Letter paper.
2. Touch “List Output.”
3. Touch the “Machine Management List” and press
the start key.
The list will be output.
4. Output “Adjustments List”, “Service Parameter”,
and “Fax Setting List” also by pressing the
respective display and pressing the start key.
5. Touch “END.”
6. Touch “Exit” on the Service Mode screen.
7. Turn OFF and ON the Main Power Switch.
Note:
When displayed the Service Mode screen, be sure
to turn off the main power after exiting the Service
Mode screen and wait for 10 seconds or more
before turning on.
XX. Affixing the paper size label
Affix the paper size label.
For loading the paper as well as setting the paper
type, refer to the user’s guide.
XXI. Affixing the label (Legal restrictions
on copying)
Affix the label (Legal restrictions on copying) to the
position shown below.
Note:
This step may not be performed depending on the
applicable marketing area.
A00JIXE193DA
A00JIXE194DA
A02EIXC045DB
Paper size label
A02EIXE098DA
Label

E-14

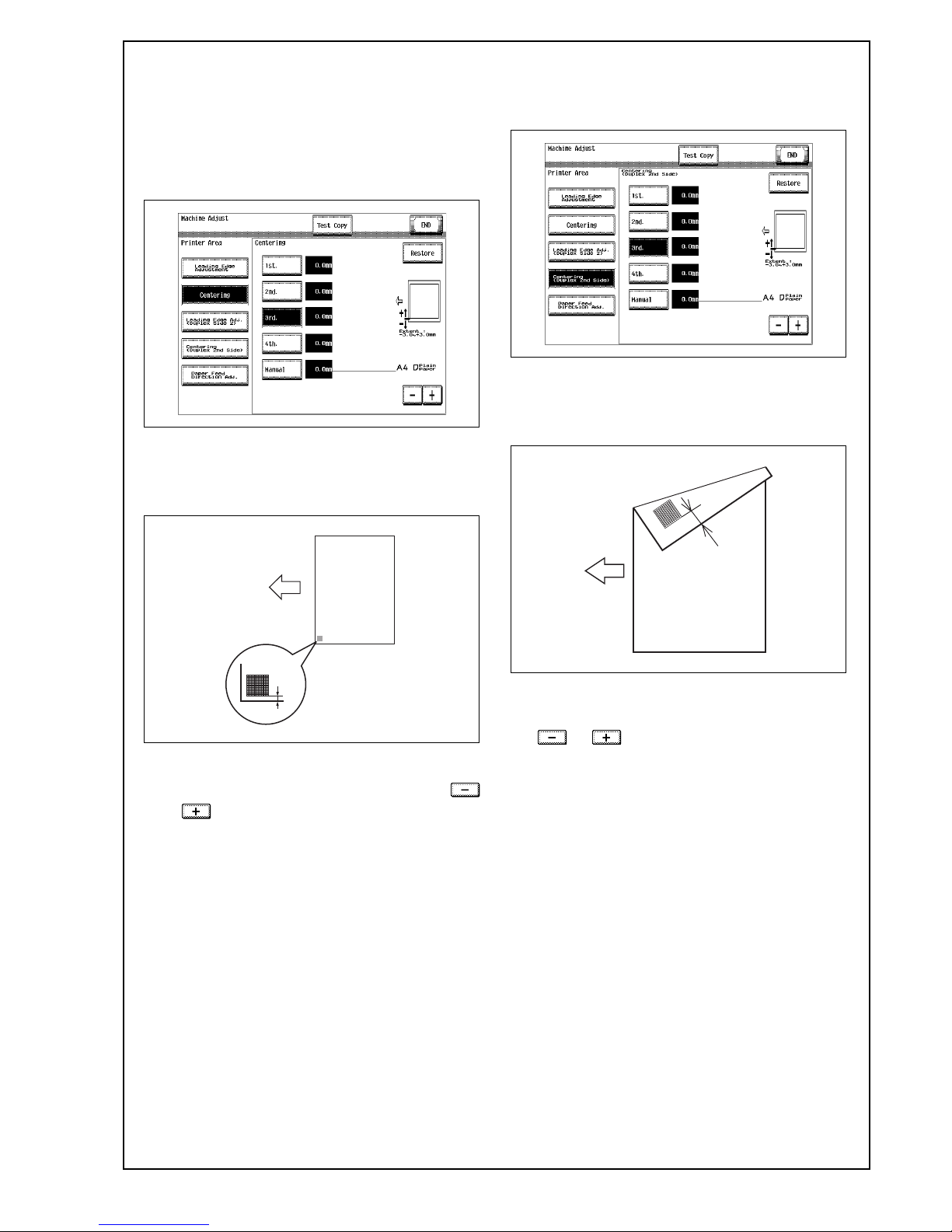

XXII. Adjusting registration of paper
source options
<1 way paper feed cabinet, large capacity cabinet>
1. Display the Service Mode screen.
(For details of how to display the Service Mode
screen, see the service manual.)
2. Select the function to be used as follows:
Machine →Printer Area →Centering →3rd.
3. Press the start key.
A test print will be produced.
4. Measure width A from the edge of the paper to
the pattern printed on the test print and check that
it falls within the specified range.
Specifications: 3.0 mm ± 1.0 mm
5. If the measured width A falls outside the specified
range, enter the correction value using the
or key.
6. Produce another test print and check to see if
width A falls within the specified range.
7. Select the function to be used as follows:
Centering (Duplex 2nd side) →3rd.
8. Press the start key.
A test print will be produced.
9. Measure width A of the test pattern on the back-
side of the test print produced and check that it
falls within the specified range.
Specifications: 3.0 mm ± 2.0 mm
10. If the measured width A falls outside the speci-
fied range, enter the correction value using the
or key.
11. Produce another test print and check to see if
width A falls within the specified range.
12. Touch “END.”
13. Touch “Exit” on the Service Mode screen.
14. Turn OFF and ON the Main Power Switch.
Note:
When displayed the Service Mode screen, be sure
to turn off the main power after exiting the Service
Mode screen and wait for 10 seconds or more
before turning on.
A02EIXE047DA
4061IXC147DA
A
Paper exit
direction
A02EIXE048DA
4061IXC152DA
A
Paper exit
direction

E-15
<2 way paper feed cabinet>
1. Display the Service Mode screen.
(For details of how to display the Service Mode
screen, see the service manual.)
2. Select the function to be used as follows:
Machine →Printer Area →Centering →3rd.
3. Press the start key.
A test print will be produced.
4. Measure width A from the edge of the paper to
the pattern printed on the test print and check that
it falls within the specified range.
Specifications: 3.0 mm ± 1.0 mm
5. If the measured width A falls outside the specified
range, enter the correction value using the
or key.
6. Produce another test print and check to see if
width A falls within the specified range.
7. Select the function to be used as follows:
Centering (Duplex 2nd side) →3rd.
8. Press the start key.
A test print will be produced.
9. Measure width A of the test pattern on the back-
side of the test print produced and check that it
falls within the specified range.
Specifications: 3.0 mm ± 2.0 mm
10. If the measured width A falls outside the speci-
fied range, enter the correction value using the
or key.
11. Produce another test print and check to see if
width A falls within the specified range.
* Perform the same adjustment procedure also for
the “4th.”
12. Touch “END.”
13. Touch “Exit” on the Service Mode screen.
14. Turn OFF and ON the Main Power Switch.
Note:
When displayed the Service Mode screen, be sure
to turn off the main power after exiting the Service
Mode screen and wait for 10 seconds or more
before turning on.
A02EIXE049DA
4061IXC147DA
A
Paper exit
direction
A02EIXE050DA
4061IXC152DA
A
Paper exit
direction

E-16
XXIII. Check through test print
Make operation checks using “Setting Information
Print.”
1. Select the function to be used as follows:
Utility/Counter →User Settings →Printer Settings
→Print Reports.
The types of the test prints that can be printed will
be displayed.
2. Touch “Configuration Page.”
3. Touch A4 size and press the start key.
Check that the machine produces the corre-
sponding printed page.
4. Touch “Cancel” and then touch “Close” four
times.
XXIV. Connecting cables
1. Connect the networking equipment (HUB) using
the network cable.
Note:
The following shows the recommended network
cables that correspond to each communication
speed.
• 10BaseT/100BaseTX: Category 5
• 1000BaseT: Category 5E, Category 6
2. Check LEDs for lighting conditions.
LED1:
Should light up steadily if the link network con-
nection has been made.
LED2:
Should blink according to the communications
status of the ACT network.
XXV. Network setting
Make the TCP/IP address setting for the network.
Note:
Consult the network administrator for the setting
value to be entered and make settings as
required.
1. Select the function to be used as follows:
Utility/Counter →Administrator Settings →Enter
the Administrator Password →Network Settings →
TCP/IP Settings →IP Settings.
2. Touch “Manual Input” of IP address setting
method and make the following settings.
IP Address: IP address of the controller
Subnet Mask: Subnet mask of the network, to
which the machine is connected
Default Gateway: IP address of the default gate-
way
3. Turn OFF and ON the Main Power Switch.
4. Select the function to be used as follows:
Utility/Counter →Administrator Settings →Enter
the Administrator Password →Network Settings →
Forward →Detail Settings →PING Confirmation,
and make the operation check of TCP/IP.
LED1
LED2
Networkport
A02EIXC046DA

E-17
INSTALLATION MANUAL
WT-502 Working Table
I. Accessory parts
Note:
Keep the cord clamp properly for use when mount-
ing the authentication unit.
II. Installing the working table
1. Using nippers, pull out the knockouts (at two
places) from the right side surface of the
machine.
2. Insert tabs (at two places) on the working table
into the holes in the machine and slide the work-
ing table in the direction of the arrow.
3. Secure the working table (three screws furnished
with the working table).
No. Name Shape Q’ty
1. Working table
1
2. Screw
(4 × 16 mm) 3
3. Cord clamp
1
After unpacking, be sure to get rid of the
packaging materials and keep them out of
the reach of children.
Putting the head in the plastic bag
involves danger of suffocation.
A07EIXC001DA
9J08IXC075DA
4048IXC003DA
A02EIXC047DA
A02EIXC048DA
A02EIXC049DB
