Konica Minolta AccurioPress 6136 User manual

AccurioPress 6136/6136P/6120 Contents-1
Contents
1 Introduction
1.1 Introduction ..................................................................................................................................... 1-2
1.2 Safety Precautions.......................................................................................................................... 1-3
1.2.1 Notices for Safety .............................................................................................................................. 1-3
1.2.2 Precautions When Replacing Units ................................................................................................... 1-4
1.2.3 Warning and Caution Labels.............................................................................................................. 1-6
2 Installing Fusing Unit EF-105
2.1 Replacement Parts ......................................................................................................................... 2-2
2.2 Installation Procedures .................................................................................................................. 2-3
2.2.1 Installing Fusing Unit EF-105 on the Main Body................................................................................ 2-3
2.2.2 Installing Parts in the Tray (when Paper Feeder Unit PF-710 is installed) ......................................... 2-6
3 Removing Fusing Unit EF-105
3.1 Removal Procedures ...................................................................................................................... 3-2
3.1.1 Removing Fusing Unit EF-105 from the Main Body .......................................................................... 3-2
3.1.2 Removing Parts from the Tray (when Paper Feeder Unit PF-710 is installed)................................... 3-2
4 Copy/Print Operation
4.1 Loading Envelopes in the Tray....................................................................................................... 4-2
4.1.1 Loading Envelopes in the Tray 4 of Paper Feeder Unit PF-710 ........................................................ 4-3
4.2 Copy Operation ............................................................................................................................... 4-4
4.3 Print Operation ................................................................................................................................ 4-9
5 Specifications
5.1 Specifications of Fusing Unit EF-105 ............................................................................................ 5-2

1Introduction

AccurioPress 6136/6136P/6120 1-2
1.1 Introduction 1
1 Introduction
1.1 Introduction
Notice to Users of Fusing Unit EF-105
When replacing the machine units, please follow the instructions described in the User's Guide.
To perform replacement tasks safely and reliably, keep this User's Guide and do not lose them. If you lose
the document, please contact your service representative.
Registered Trademarks
KONICA MINOLTA, the KONICA MINOLTA logo, and the symbol are registered trademarks or trademarks of
KONICA MINOLTA, INC.
AccurioPress/AccurioPrint are registered trademarks or trademarks of KONICA MINOLTA, INC.
Copyright © 2018 KONICA MINOLTA, INC.

AccurioPress 6136/6136P/6120 1-3
1.2 Safety Precautions 1
1.2 Safety Precautions
1.2.1 Notices for Safety
The followings are what you need to follow to safely replace the units. Please be sure to read the precautions
before replacing the units.
-Keep the User's Guide at hand for your future reference and be careful not to lose it.
-Make sure you follow the safety precautions listed in the User's Guide.
Warning and precaution symbols
Be sure to observe the safety precautions.
-This manual contains the instructions that should be strictly observed at all times to prevent injury to
yourself and other persons as well as damage to property.
Injuries and damage that might be caused by using the product improperly are classified according to the
following symbols.
These are some of major exemplary graphical symbols.
Pictorial indication Description
Improper handling can cause serious injury or death.
Improper handling can cause minor injury or damage to houses and
property.
Graphic
symbols
Description Graphic
symbols
Description Graphic
symbols
Description
General
Prohibited
Do not 
disassemble Do not touch
Instructions Ground/Earth Unplug from
outlet
General
precaution
High 
temperature
Electrical
shock hazard

AccurioPress 6136/6136P/6120 1-4
1.2 Safety Precautions 1
1.2.2 Precautions When Replacing Units
Preparation Tasks Before Replacing Units
Unit Replacement Tasks
When replacing the units, be sure to receive instructions from our
customer engineer, read the User' Guide in entirety and perform
tasks in the specified order with appropriate tools. Do not perform
any tasks that are not described in the User's Guide. Failure to fol-
low specified order or use appropriate tools could result in injury
or physical damage to the product.
Please be careful when handling the fusing unit since it can be
very hot. It could cause a burn.
Keep this bag away from babies and children. Do not use in cribs,
beds, carriages, or playpens. The thin film may cling to nose and
mouth and prevent breathing. This bag is not a toy.
Do not drop metal pieces such as clips, staples and screws inside
the product or into crevices in it.
They could cause a short-circuit in the product, resulting in an
electric shock or a fire.
Ensure cables are not pinched or damaged.
It could cause an electric shock or a fire due to electric leakage.
Do not place the unit removed in the replacement tasks on an un-
stable table or sloped surface, or in a location subject to excessive
shocks or vibrations. It could drop or fall and may cause personal
injury.
Please pay careful attention to the surroundings when placing the
unit removed in the replacement tasks.
Protruding portions, cords or wires of the unit may cause falling or
personal injury.

AccurioPress 6136/6136P/6120 1-5
1.2 Safety Precautions 1
Power Plug
Actions in Response to Troubles
Do not unplug or plug in the power cord with a wet hand, as you
could receive an electrical shock.
Plug the power cord all the way into the power outlet. Failure to do
this could result in a fire or an electrical shock.
Do not tug the power cord when unplugging. Tugging the cord to
do this could damage it, resulting in a fire, electrical shock, or
breakdown.
Do not place any objects around the power plug, as the power
plug may be difficult to pull out when an emergency occurs.
Remove the power plug from the outlet more than one time a year
and clean the area between the plug terminals. Dust that accumu-
lates between the plug terminals may cause a fire.
Do not keep using this product, if this product becomes inordi-
nately hot or emits smoke, or unusual odor or noise. Immediately
turn OFF the power switch, unplug the power cord from the power
outlet, and then call your Technical Representative or your autho-
rized service representative. If you keep on using it as is, a fire or
electrical shock could result.
Do not keep using this product, if this product has been dropped
or its cover damaged. Immediately turn OFF the power switch, un-
plug the power cord from the power outlet, and then call your
Technical Representative or your authorized service representa-
tive. If you keep on using it as is, a fire or electrical shock could
result.
The inside of this product has areas subject to high temperature,
which may cause burns. When checking the inside of the unit for
a unit replacement and others, do not touch the locations (around
the fusing unit, etc.) which are indicated by a "Caution HOT" cau-
tion label. A burn could result.

AccurioPress 6136/6136P/6120 1-6
1.2 Safety Precautions 1
1.2.3 Warning and Caution Labels
This machine has warning label, caution labels and indicators for safety precaution in the following location.
These labels and indicators advise you to pay special attention to avoid any dangerous situations or serious
injury when you replace the units.
7CAUTION
DO NOT remove warning or caution labels.
-Should any warning or caution label be removed, you may fail to check a specific part to be alert for
unexpected trouble or injury. If you find any warning or caution label removed or illegible due to soilage,
please contact your service representative.
Caution Labels on Fixing Conveyance Unit
CAUTION: High temperature! Burn
You may get burned.
DO NOT touch the left side part of the fixing unit when the side part or side cover of the
fixing unit are open for removal of jammed paper.
CAUTION: High temperature! Burn
You may get burned.
DO NOT touch the top surface of the dehumidifier heater when lifting the transfer belt of the
fixing conveyance unit for removal of jammed paper.
CAUTION: Injury
You may get injured.
DO NOT put your hands or arms in between the main body and the fixing conveyance unit.
Touching connecting terminals of electric parts may damage the machine or cause unex-
pected trouble.
Please do not try to work yourself, but contact your service representative.

AccurioPress 6136/6136P/6120 1-7
1.2 Safety Precautions 1

2Installing Fusing Unit EF-105

AccurioPress 6136/6136P/6120 2-2
2.1 Replacement Parts 2
2 Installing Fusing Unit EF-105
When replacing the fusing unit, follow the precautions below to perform the task.
NOTICE
When replacing the fusing unit, be sure to receive instructions from our customer engineer.
NOTICE
Please do not dispose of the packaging box of Fusing Unit EF-105. Keep the packaging box and reuse it to
store the replaced fusing unit.
NOTICE
With Paper Feeder Unit PF-710 installed, only tray 4 (the lower tray) can be used as a paper source. All the
other trays are unavailable.
7WARNING
-Keep this bag away from babies and children. Do not use in cribs, beds, carriages, or playpens. The
thin film may cling to nose and mouth and prevent breathing. This bag is not a toy.
2.1 Replacement Parts
*: Packaged together with the Paper Feeder Unit PF-710.
PN Name Shape Q’ty
1 Fusing Unit EF-105 1
2 Side auxiliary guide * 2
3 Positioning screw * 4

AccurioPress 6136/6136P/6120 2-3
2.2 Installation Procedures 2
2.2 Installation Procedures
2.2.1 Installing Fusing Unit EF-105 on the Main Body
1Turn off the machine's sub and main power switches, and then unplug the power cord from the outlet.
%Be sure to turn off the sub power switch first.
2Open the front door.
3Insert a screwdriver into the space under the lever M4. Push
to release the lock part of the lever [1] to the left, then turn
the lever M4 [2] to the right.
Pull out the ADU drawer [3].
%When the machine is not powered, the lever M4 cannot
be turned unless its lock is released.
4Open the reversal output part [1].

AccurioPress 6136/6136P/6120 2-4
2.2 Installation Procedures 2

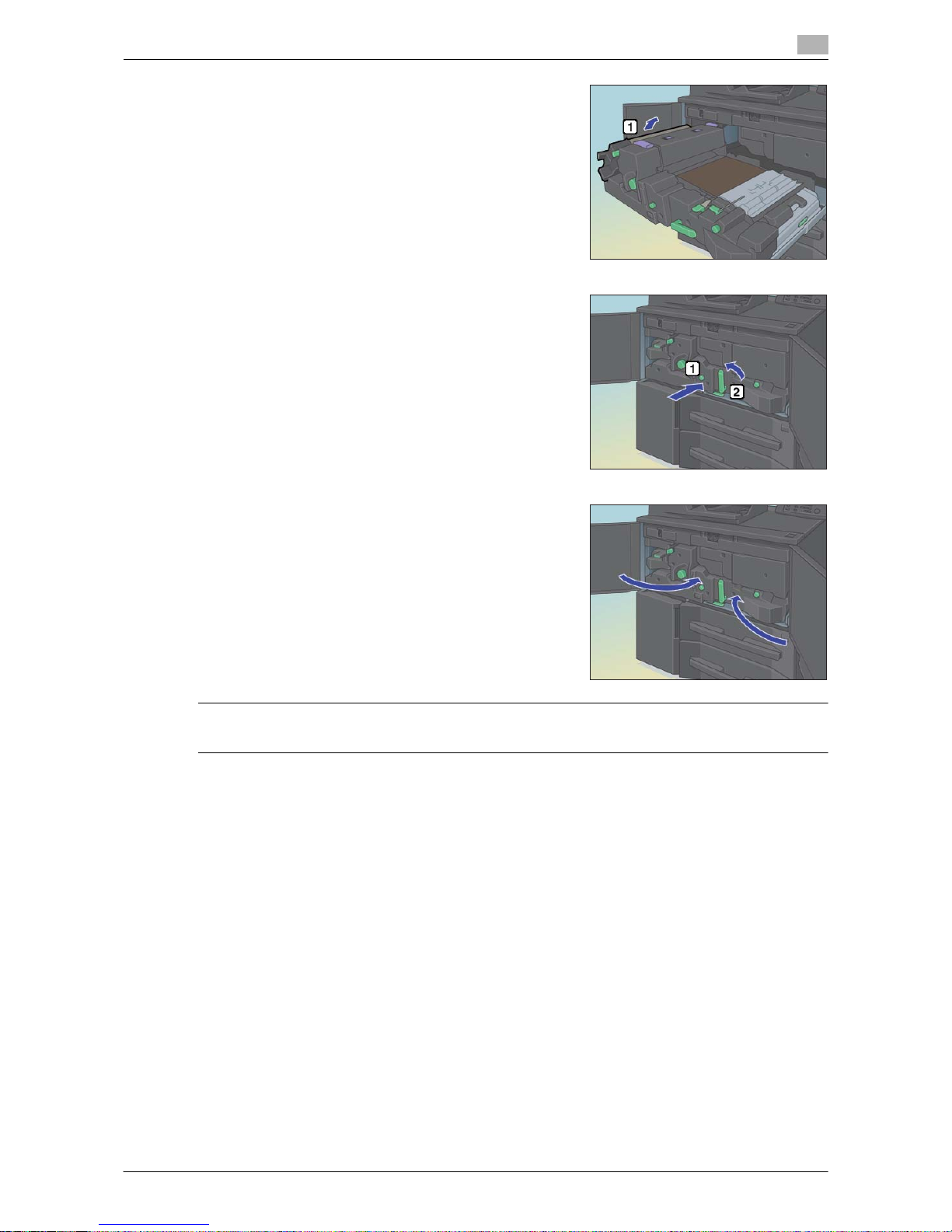

5Loosen the lock screw (purple) [1] by turning in the direction
of the arrow.
6Slide the fusing unit [3] in the direction indicated by the ar-
row while holding both the front side [1] and the rear side [2]
handles, then pull up and remove it.
7CAUTION
-Fusing unit would be very hot, please be careful when handling it.
7Holding the handle of the front side [1] and the rear side [2]
with both hands then set the Fusing Unit EF-105 [3] to the
correct position.
Slide the Fusing Unit EF-105 in the direction of the arrow un-
til it reaches to the rear end.
8Push the lock screw (purple) [1], then tighten by rotating in
the direction of the arrow.

AccurioPress 6136/6136P/6120 2-5
2.2 Installation Procedures 2

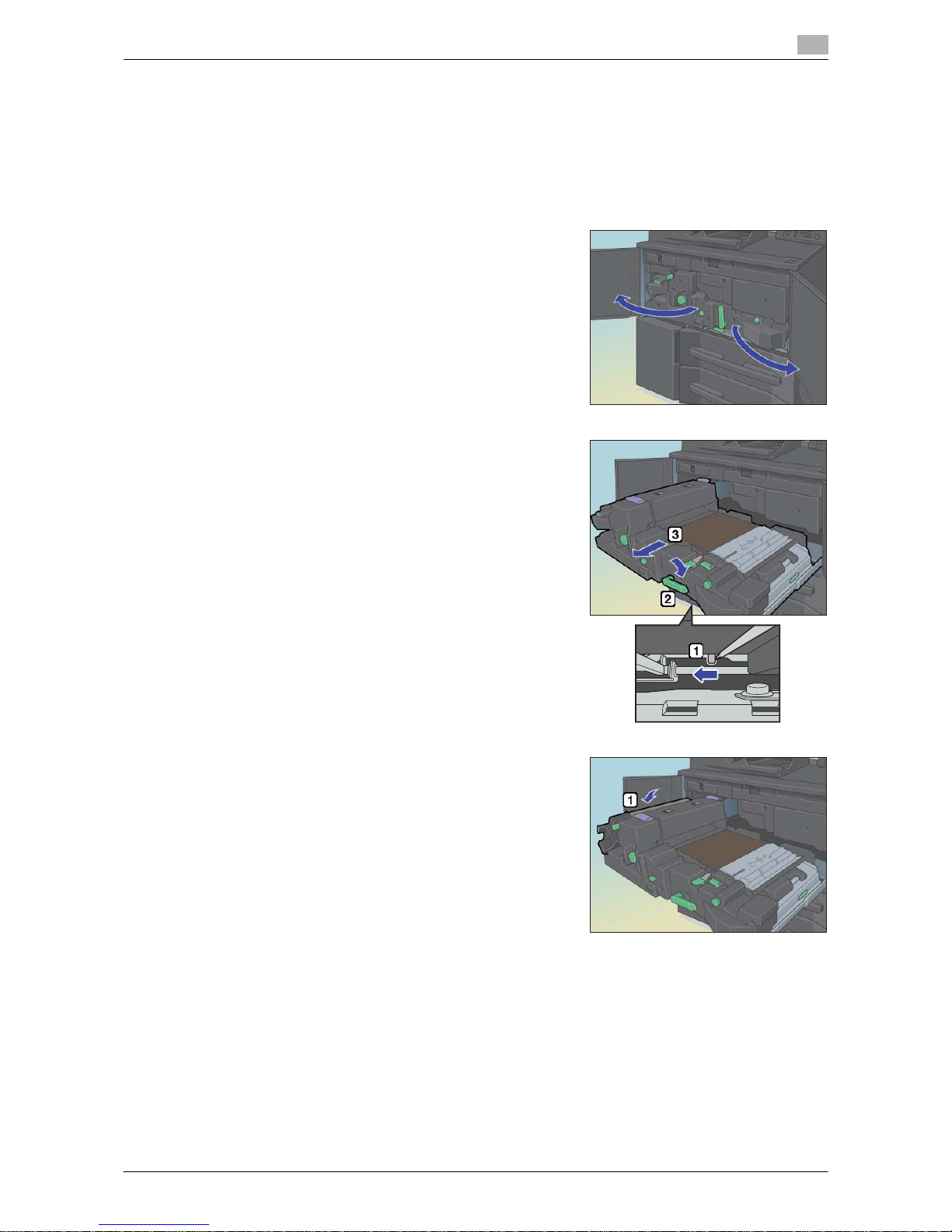

9Close the reversal output part [1].
10 Insert the ADU drawer [1] then lock it by pulling up the lever
M4 [2] in the direction of the arrow.
11 Close the front door.
12 Store the removed fusing unit in the empty packaging of
Fusing Unit EF-103.
7CAUTION
-Please wait until the fusing unit gets cold before storing it in the packaging.

AccurioPress 6136/6136P/6120 2-6
2.2 Installation Procedures 2
2.2.2 Installing Parts in the Tray (when Paper Feeder Unit PF-710 is installed)
Depending on the size of the envelope to be used, the attached auxiliary guides need to be installed on Paper
Feeder Unit PF-710.
For details on the envelope size, refer to page 5-2.
NOTICE
Trays cannot be withdrawn when the machine is not powered. Plug the power cord of the machine into the
outlet, turn on the main power switch, then the sub power switch before performing the installation.
Using Envelopes of 100 to 139.7 mm in Width
The following parts need to be installed when envelopes of the above size are used.
-Side auxiliary guide (2 pieces)
-Positioning screws (4 screws)
To use envelopes of 139 mm or smaller, use the side auxiliary guides and the small size guides of Paper
Feeder Unit PF-710.
1Pull out tray 4.
2Move the 2 small size guides (2 pieces) to the positions in
the picture and remove the 4 screws (2 screws for each
position).
3Install the positioning screws (2 screws for each posi-
tion).

AccurioPress 6136/6136P/6120 2-7
2.2 Installation Procedures 2
4Install the front and rear side auxiliary guides (2 pieces).
5Open the small size guides provided for each of the front
and rear side guide plates.
6Push in tray 4 until it locks into place.
Using Envelopes of 139.1 to 245 mm in Width
Follow the procedure below to use envelopes of the above size. Side auxiliary guides (2 pieces) are not need-
ed.
1Pull out tray 4.
2Move each of the small size guides (front/rear) toward the
outside the side guide plates.
%If the auxiliary guides are installed on the side guides,
pull them up to remove them. The positioning screws
(4 pieces) installed on the side guides are not required
to be removed.
3Push in tray 4 until it locks into place.

3Removing Fusing Unit EF-105

AccurioPress 6136/6136P/6120 3-2
3.1 Removal Procedures 3
3 Removing Fusing Unit EF-105
This section describes the procedures to remove Fusing Unit EF-105 and the feed auxiliary parts for enve-
lopes.
When using paper other than envelopes, follow the procedure below to replace the fusing unit and remove
the parts installed in the tray.
3.1 Removal Procedures
3.1.1 Removing Fusing Unit EF-105 from the Main Body
When you remove Fusing Unit EF-105 from the main body, follow the installation procedure in reverse. For
the installation procedure of Fusing Unit EF-105 to the main body, please refer to page 2-3.
3.1.2 Removing Parts from the Tray (when Paper Feeder Unit PF-710 is installed)
When you remove the auxiliary guides (2 pieces) installed on the side guide of tray 4, follow the installation
procedure in reverse. For the installation procedure of parts to the tray, please refer to page 2-6.
NOTICE
Trays cannot be withdrawn when the machine is not powered. Plug the power cord of the machine into the
outlet, turn on the main power switch, then the sub power switch before removing parts from the tray.

4Copy/Print Operation

AccurioPress 6136/6136P/6120 4-2
4.1 Loading Envelopes in the Tray 4
4 Copy/Print Operation
This section describes how to load envelopes in the tray with the parts for envelopes installed, and to
copy/print onto those envelopes.
4.1 Loading Envelopes in the Tray
Envelopes with the following specifications can be loaded in the tray.
NOTICE
It is recommended to use L-seam or side seam envelopes; the print results may be blurred if tabs overlap
with the print side.
dReference
For details on how to load paper in the tray, refer to the HTML user's guide.
Paper size Width: 100 to 245 mm (3.92" to 9.63"), Length: 135 to 375 mm (5.82" to
14.73")
-Use side auxiliary guides to load envelopes of 100 to 139 mm (3.92" to
5.50").
Paper weight 70 to 100 g/m2(19 to 27 lb Bond)
Tray capacity Paper tray: 150 sheets
Unsuitable envelopes Envelopes with a film window
Envelopes with a double-stick tape or release coated paper on the flap
