Konica Minolta PagePro 1400W Quick start guide

Technical
Guide

Copyright © 2006 KONICA MINOLTA PRINTING SOLUTIONS U.S.A, INC.
KONICA MINOLTA and the KONICA MINOLTA logo are trademarks or registered trademarks of KONICA MINOLTA
HOLDINGS, INC. PagePro is a trademark or registered trademark of KONICA MINOLTA BUSINESS SOLUTIONS, INC.
All other trademarks or registered trademarks are the property of their respective owners.
January 2006

i
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Specs at a Glance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Target Markets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Key Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Duty Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Print Speeds by Page Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
First-Page-Out Times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Operating Environment Conditions . . . . . . . . . . . . . . . . . . . . . . . . 7
Weights and Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Host Computer Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Printer Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Resolution. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Media Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Standard Media Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Print Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

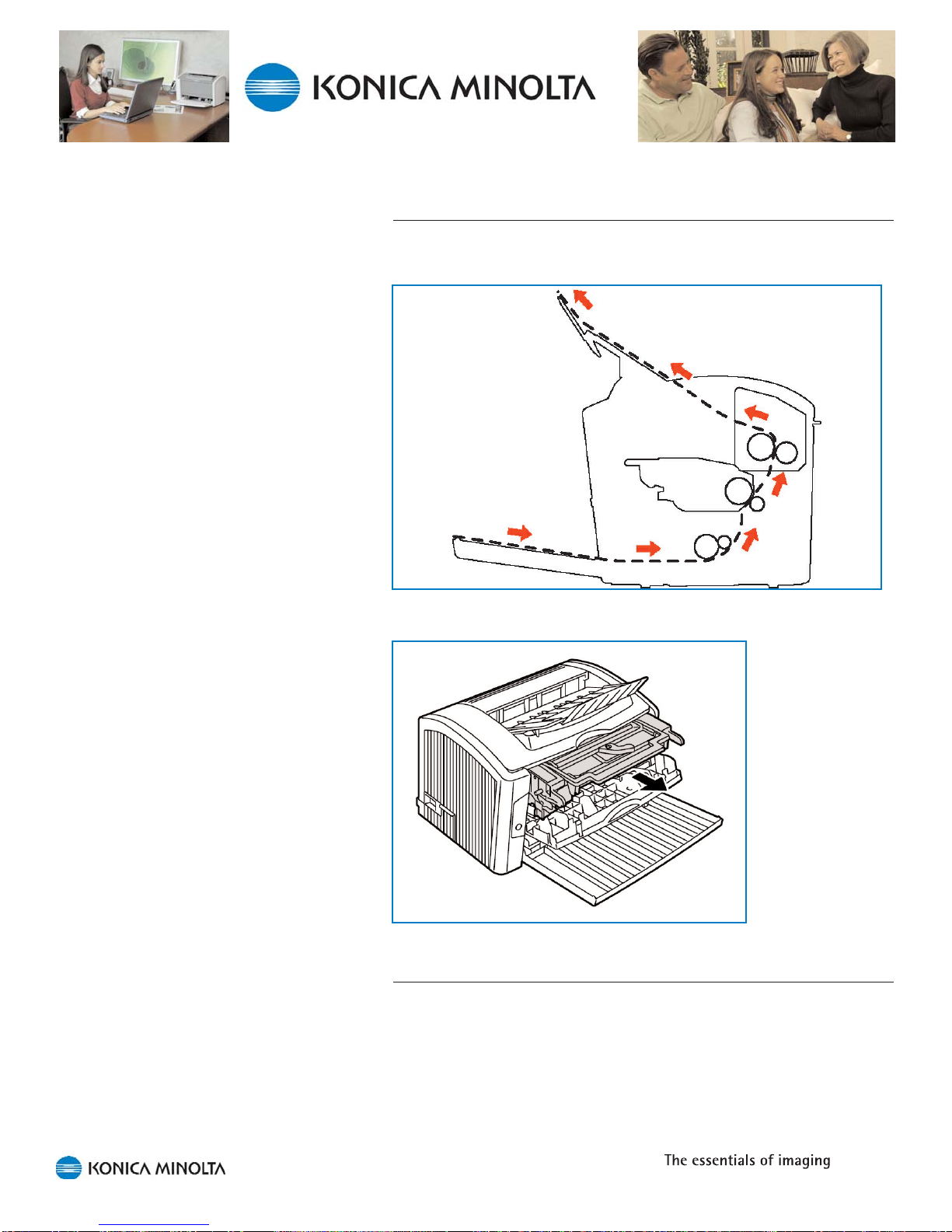

Media Path . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Imageable Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Supported Media Sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Advanced Document Processing. . . . . . . . . . . . . . . . . . . . . . . . . 14
Contents

ii
Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Toner Cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
OPC Drum Cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Supply Yields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Supply Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Printer Management . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Convenient Printer Management Tools . . . . . . . . . . . . . . . . . . . . 16
Printer Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Status Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Printer Control Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Electronic User Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Options
Extended Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

1
Introduction
The PagePro 1400W is small enough to sit on
the desktop but priced to fly off the shelf!
The PagePro™ 1400W features professional print quality in a compact,
affordably priced personal laser. This Windows®-compatible black &
white unit prints sharp 1200 x 600 dpi resolution pages at 17 ppm. And
it comes with 8 MB RAM and a Hi-Speed USB 2.0 interface for fast
processing of personal and business documents.
Proving that the best things really do come in small packages, the
PagePro™ 1400W is lightweight and compact, with a small price tag to
match. It weighs just 15.6 pounds, measures less than 14" x 11", and
produces high-quality prints for just pennies per page. It's designed for
a variety of media weights and sizes, so it can handle plain paper, thick
stock, transparencies, labels, and envelopes, from postcard (3.9" x 5.8")
up to legal (8.5" x 14") size.
Compact, affordable, and simple to use, the PagePro 1400W from
KONICA MINOLTA is a “must have” personal office accessory. The
PagePro 1400W is perfectly sized and perfectly equipped for the home
office or small business workspace.

2
Specs at a Glance
An overview of the features of the PagePro 1400W.
Compact, affordable and simple to use.
Print Method Electrophotographic monochrome laser
Print Speed Up to 17 monochrome ppm (letter)
Resolution Up to 1200 x 600 dpi
Duty Cycle Up to 9,000 letter prints/month
Memory 8 MB SDRAM
Standard Interfaces Hi-Speed USB 2.0
Media Sizes Up to legal (8.5" x 14" / 216 x 356 mm)
Media Weights Up to 90 lb. Index (163 g/m2)
Media Input 150-sheet multipurpose tray
Media Output 100-sheet face-down tray
Print Media Types Plain/recycled paper, thick stock,
transparencies, laser-quality labels,
envelopes
Software Utilities Drivers for Windows XP/2000/Me/98SE;
Status Display
Typefaces Compatible with Windows and
TrueType®fonts printed via Windows
GDI utilities; one resident typeface included
Warranty One-year exchange

3

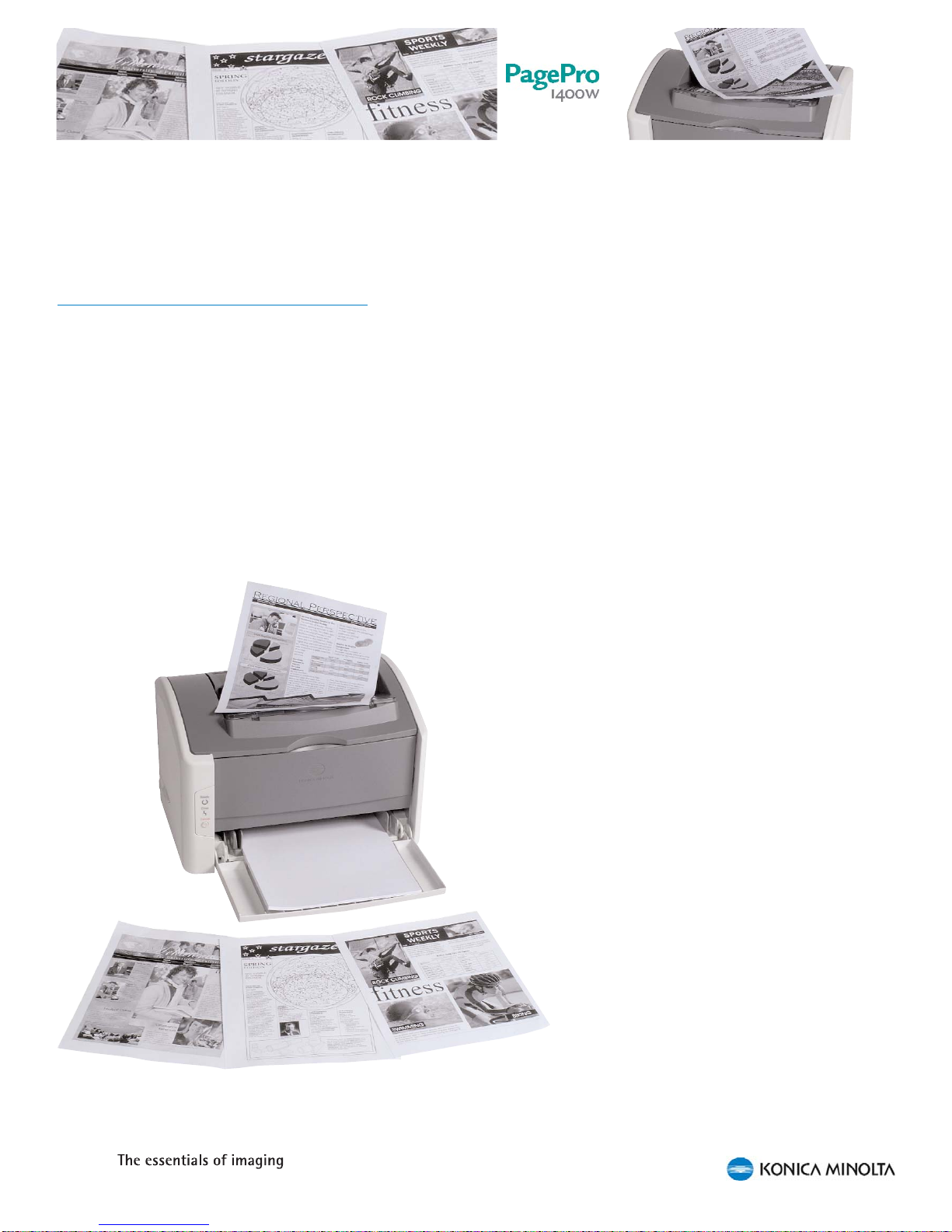

Specs at a Glance
An overview of the features of the PagePro 1400W.
100-sheet output tray
150-sheet multipurpose tray; folds
up to minimize space when not in
use
Desktop fit—Measures
just 13.93" x 16.14" x
9.55" (WxDxH) when
ready to print
Hi-Speed USB 2.0 interface
8 MB RAM
Compatible with Windows
XP, 2000, Me, 98SE
Easy-access cover for supplies replacement
Adjustable paper guides
allows user to insert
different sizes of paper
from postcard (3.9" x
5.8") to legal (8.5" x 14")

4
4
Target Markets
For the home office and small business.
The PagePro 1400W is ideal for both home office and small office
environments. Its small footprint, fast speed, high quality, and affordable
price make it the perfect printer for a variety of uses:
Home offices
Executive desks
Student (dormitory) use
Insurance offices
Attorney offices
Hotel front desks
Accounting offices
Schools
Libraries
Tax preparers
Travel agents
Use this versatile monochrome laser to create:
Brochures Flyers
Reports Spreadsheets
Invoices Sales sheets
Business correspondence CD & address labels
Legal documents Itineraries
Homework Policy updates
Student memos

Compact Size
The PagePro 1400W is perfectly sized and equipped for the home office
or small business workspace. It weighs only 15.6 pounds and measures
less than 11" x 14". In designing this model, the primary goal was to
develop a printer that would fit easily into the most streamlined of
workspaces—whether home office, dorm room, tabletop, cubicle, or
desktop.
Affordable Price
Besides its low purchase price, the PagePro 1400W boasts a cost per
page of only pennies per print, making it budget-friendly for the small
business and home office user. At this price, anyone can afford laser-
quality printing.
Fast Print Speed
The PagePro 1400W delivers its first page in 13 seconds or less and
boasts an impressive overall print speed of 17 ppm for letter-size prints.
This makes it one of the fastest contenders in its class.
Professional Print Quality
You will be amazed at the high-quality print resolution provided by this
low-priced little monochrome laser. At 1200 x 600 dpi, the PagePro
1400W delivers excellent output with fine image details, smooth
grayscale gradients, sharp text even at small font sizes, and crisp lines
in graphics and clip art. No special media is required to get the best
results from the PagePro 1400W—it produces the same professional
print quality even on recycled paper.
A low cost-per-page makes this compact
laser even more budget-friendly!
5
13.93" 16.14"
9.44"
3.3¢
Key Features
The PagePro 1400W is the perfect personal
black & white laser.

6
Ease of Use
A hallmark of KONICA MINOLTA printers is ease of use, and the
PagePro 1400W is no exception. Simple setup and operation make the
PagePro 1400W a breeze to use.
Pre-installed supplies: When the printer arrives, you will find the
supplies have been pre-installed at the factory to save valuable
time during setup.
Front-access to supplies: When supplies run low, replacement
is easy. The toner and drum are accessible from the front of the
printer, and the inside of the front panel displays supply
replacement guidelines.
Auto-install software: The Utilities & Documentation CD-ROM
features an auto-install interface that guides you, step-by-step,
through the installation of drivers and the Status Display
management utility.
Printer management with desktop convenience: A handy
desktop management tool included with the PagePro 1400W is
the Status Display. It resides on the screen for easy accessibility,
and shows detailed information about the printer including current
status, current consumable levels, and explanations of any errors
that may have occurred. This information is provided in a helpful,
graphical format.

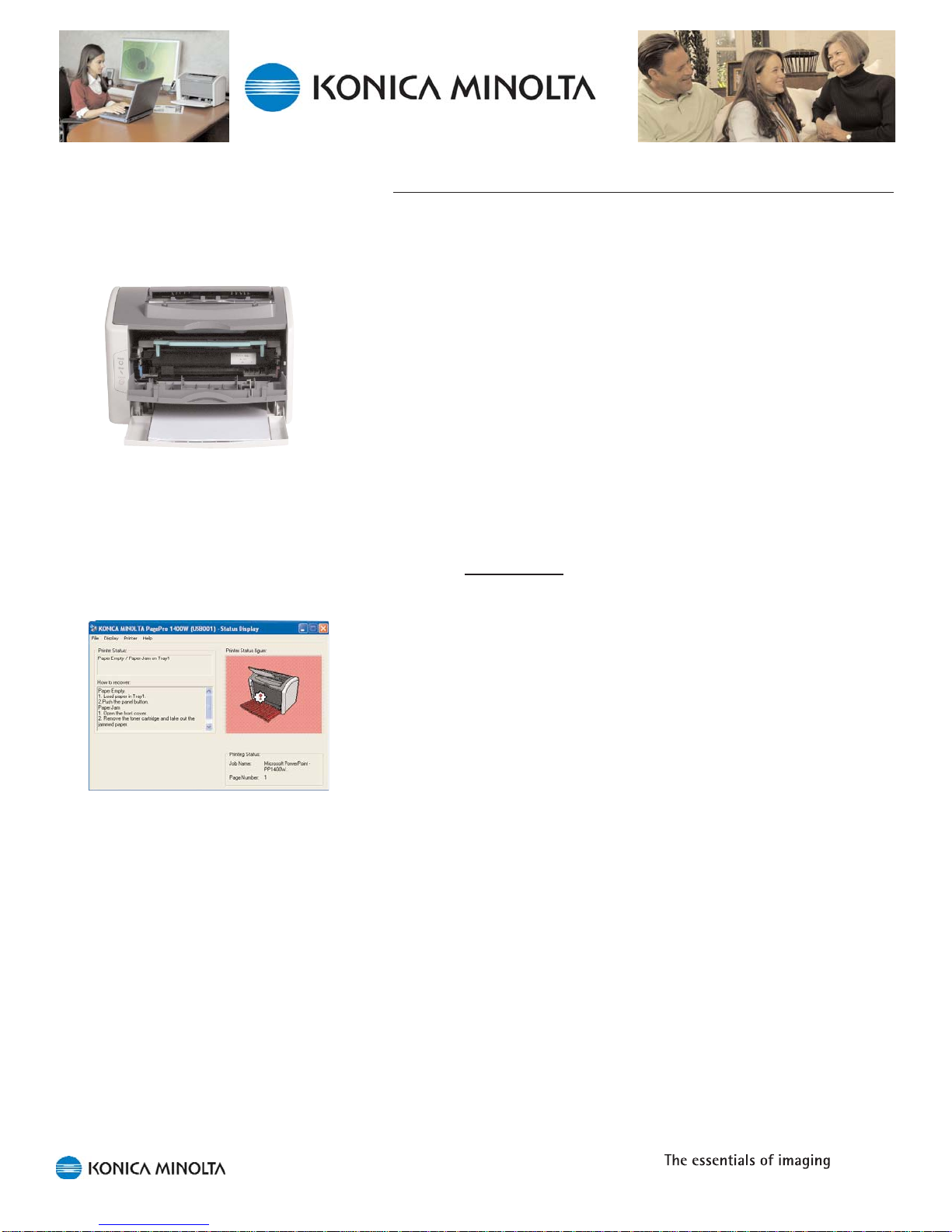

Front access makes replacing
supplies so simple.
The Status Display provides helpful
explanations of any errors that may
have occurred.

7
Engine
Excellent print quality and performance.
Type
The PagePro 1400W is based on a KONICA MINOLTA laser printer
engine. The engine features selectable resolutions of 600 x 600 dpi and
1200 x 600 dpi.
Duty Cycle
9,000 prints (letter size) per month maximum.
Print Speed by Page Size
Page Size* Resolution Print Speed
Letter 1200 x 600 dpi 17 ppm
A4 1200 x 600 dpi 16 ppm
* Normal paper
First-Page-Out Times*
Page Size** Resolution First Page Out
Letter/A4 1200 x 600 dpi 13 seconds or less
* From an idle, ready state
** Normal paper
Operating Environment Conditions
Power Supply 110–127 V, 50–60 Hz
Power Consumption 900 W maximum
390 W or less (average during printing)
8 W or less (Energy Saver)
Temperature (operating) 50°–95° F (10°–35° C)
Humidity (operating) 15–85% RH
Noise Less than 54 dB (printing)
Less than 30 dB (standby)
This reliable laser delivers high-quality prints
at 17 ppm.

8
This printer is designed to fit even in the
most space-compromised environments.
16.14"
9.44"
Weights and Dimensions
Packaging
Width Depth Height
19.4" (493 mm) 15.6" (396 mm) 14.4" (366 mm)
Printer (with multipurpose tray closed)
Width Depth Height
13.93" (354 mm) 10.59" (269 mm) 9.44" (240 mm)
Printer (when ready to print)
Width Depth Height
13.93" (354 mm) 16.14" (410 mm) 9.44" (240 mm)
Weight
Shipping (printer) 20.6 lbs (9.36 kg)
Printer only with consumables 15.6 lbs (7.09 kg)
Printer only without consumables 14 lbs (6.36 kg)
Clearance dimensions (front view)
Clearance dimensions (side view)

9
Controller
The printer’s 8 MB of RAM is sufficient for
printing all supported page sizes.
The PagePro 1400W supports the Graphical Display Interface (GDI) for
Windows and, as such, utilizes the power of the host computer’s CPU for
processing documents prior to printing. The printer’s controller features a
compression/decompression ASIC used for imaging the document.
Host Computer Requirements
PC Hardware 333 MHz Celeron-class CPU
Operating System Windows XP
Windows 2000
Windows Me
Windows 98SE
PC Memory 128 MB (XP)
64 MB (2000, Me, 98SE)
Hard Disk Space 128 MB
CD-ROM For installation of drivers and utilities
Interface Hi-Speed USB 2.0
Processor
The PagePro 1400W uses an Application Specific Integrated Circuit
(ASIC) for document imaging.
Printer Memory
The PagePro 1400W includes 8 MB of RAM on the controller. This
memory is sufficient for printing all supported page sizes at all supported
resolutions. There is no need to install additional memory in the printer.
However, increasing memory on the host computer may improve the
transmission speed and overall performance of the printer.

10
Resolution
1200 x 600 dpi (Default)
600 x 600 dpi
For printing draft prints and disposable documents, select 600 x 600 dpi
resolution.
Connectivity
The Hi-Speed USB 2.0 interface that is integrated into the controller
provides a 4-pin Series B connector. This “Plug and Play” interface
supports Windows XP, 2000, Me, and 98SE.
The recess behind the removable side
panel neatly holds the USB cable.

11
Media Handling
The PagePro 1400W supports a wide range of
media sizes and types to meet the needs of busy
homes and offices.

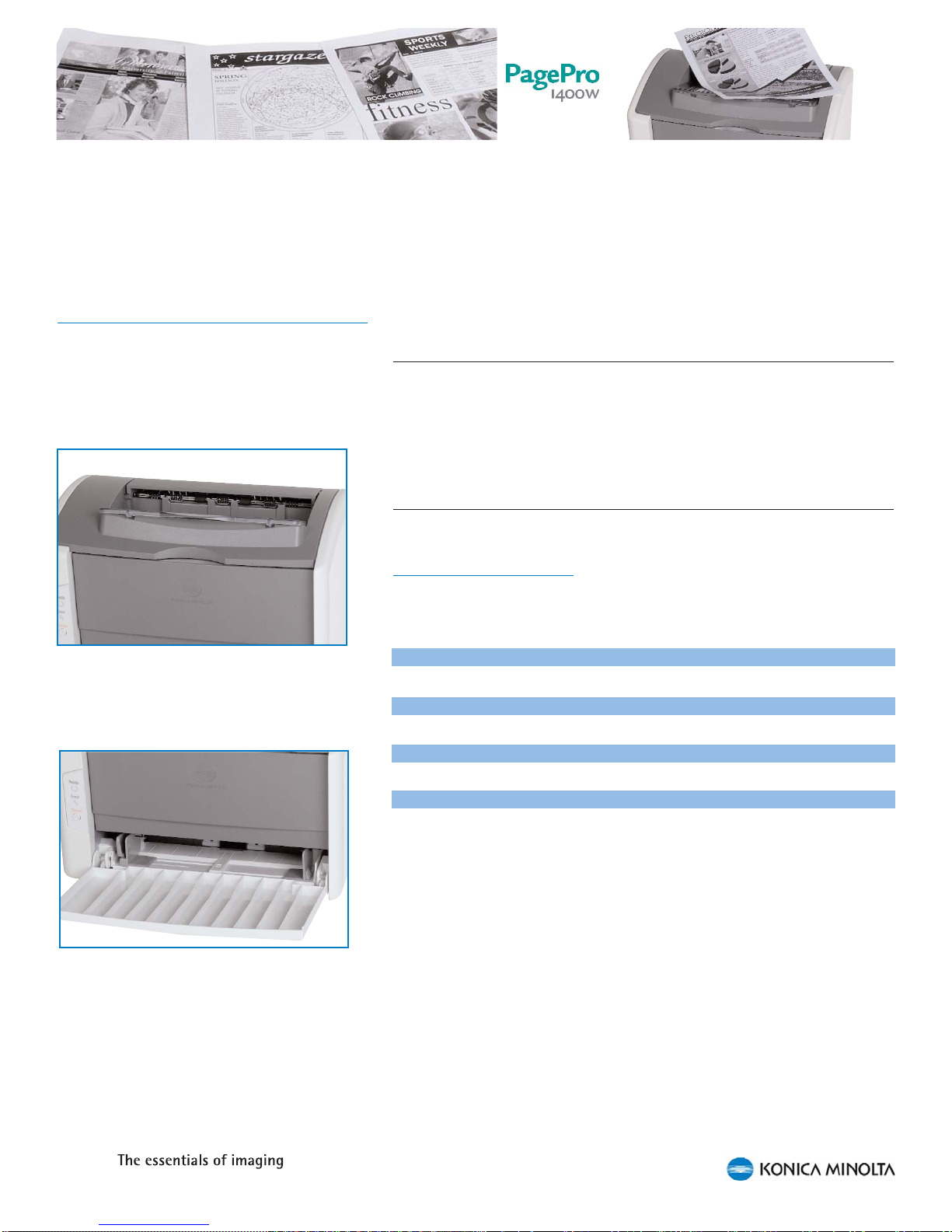

The adjustable multipurpose tray holds up to
150 sheets of paper.
The output tray must be opened before printing.
Standard Media Handling
The PagePro 1400W includes an adjustable 150-sheet multipurpose
tray that accommodates all supported page sizes. Printed pages are
delivered face down into the printer’s 100-sheet output tray. When
necessary, both trays can be closed to conserve space.
Print Media
The PagePro 1400W supports a range of print media to handle a
variety of applications. For a complete list of approved media, refer to
printer.konicaminolta.com.
Media Type Specifications Driver Setting
Normal paper 16–24 lb (60–90 g/m2) Plain Paper
Recycled paper 16–24 lb (60–90 g/m2) Plain Paper
Envelopes Supported* Envelope
Labels (sheet) Supported* Thick Paper
Postcards 16–43 lb (60–163 g/m2) Postcard
Thick paper 25–43 lb bond** Thick Paper
(91–163 g/m2)
Transparencies KONICA MINOLTA Q-Media Transparency
* Must be certified for laser printers and capable of withstanding
fusing temperature of 401° F (205° C)

12
Media Path
The printer’s media path follows a C-shaped curve, allowing it to
support thicker stock papers without problem.
Imageable Area
Guaranteed print width—Up to 8.31" (208 mm)
Guaranteed print length—up to 13.70” (348 mm)
Non-printable area—0.16" (4 mm) from all page edges
A C-shaped media path means you can print
heavier paper stocks and experience fewer
misfeeds.
Pull the handle of the cartridge toward you, and
then pull out the cartridge to clear a media jam.

“Y”
“X”

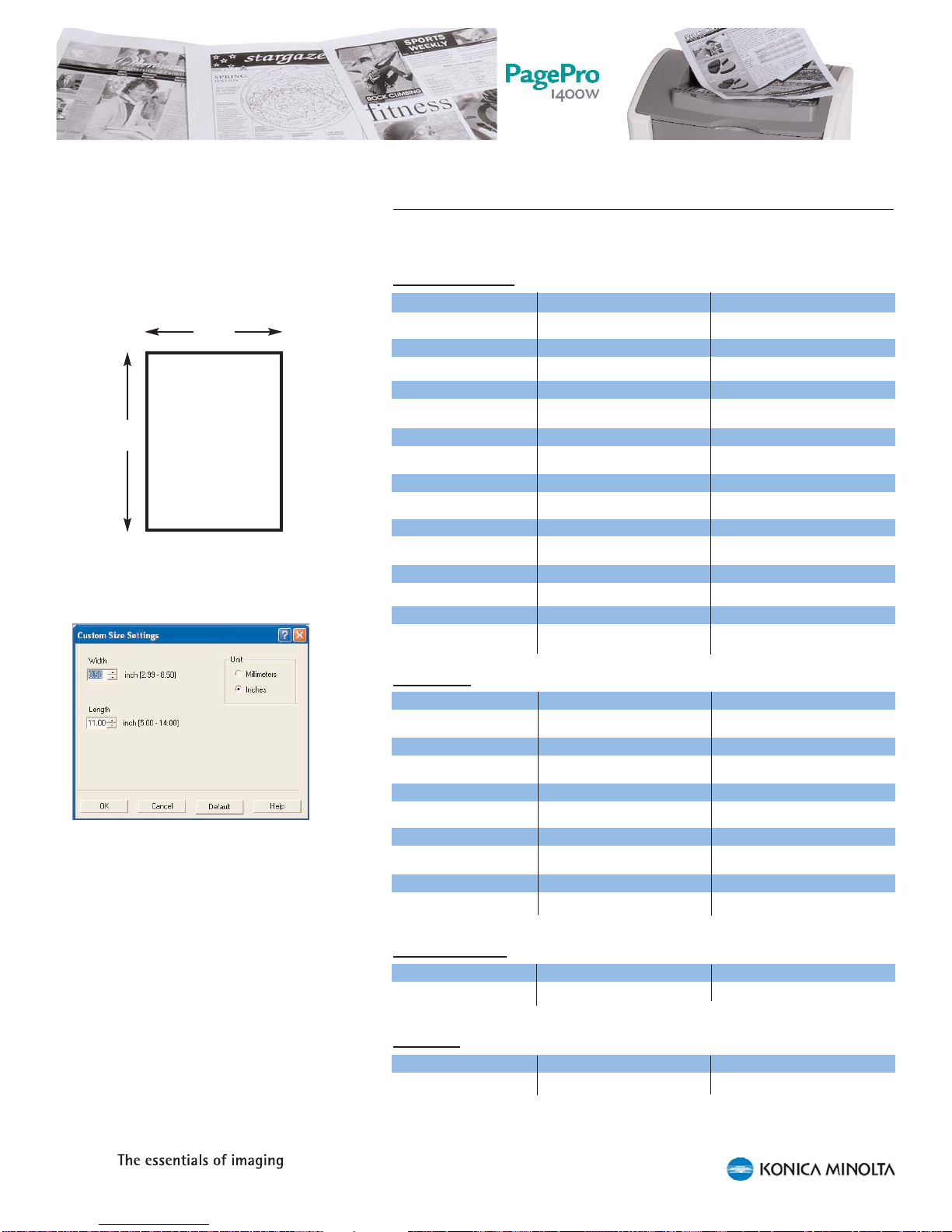

The table at the right refers
to X and Y dimensions of
the media as diagrammed
above.
Define custom page sizes from the
PagePro 1400W printer driver.
13
Supported Media Sizes
Media Type x-Dimension y-Dimension
Cut-Sheet Paper
A4 210 mm 297 mm
A5 148 mm 210 mm
B5 (JIS) 182 mm 257 mm
Executive 7.25" 10.5"
Folio 210 mm 330 mm
Foolscap 8" 13"
Government Letter 8.5” 10”
Government Legal 8.5" 13"
Kai 16 185 mm 260 mm
Kai 32 130 mm 185 mm
Legal 8.5" 14"
Letter 8.5" 11"
Letter Plus 8.5" 12.7"
Statement 5.5" 8.5"
UK Quarto 8
" 10"
Custom 2.99" - 8.5" 5" - 14"
Envelopes
Com 10 4.125" 9.5"
B5 (ISO) 176 mm 250 mm
C5 162 mm 229 mm
C6 114 mm 162 mm
DL 110 mm 220 mm
Monarch 3.875" 7.5"
Chou #3 120 mm 235 mm
Chou #4 90 mm 205 mm
You #4 105 mm 235 mm
16K 195 mm 270 mm
Transparencies
A4 210 mm 297 mm
Letter 8.5" 11"
Postcard
Double Postcard 148 mm 200 mm
Japanese Postcard 100 mm 148 mm

14
Advanced Document Processing
The PagePro 1400W printer driver provides several advanced
document processing functions:
N-up printing
Form overlays
Watermarks
Quality
N-up printing
The printer driver n-up option allows you to print a 2, 4, 6, 9, or 16
pages of a multi-page document on a single sheet of media. Add a
border line and select the flow of the pages across the sheet using
easy-to-understand settings.
Form overlays
A form overlay is a print file that is printed either on the first page or on
all pages of a document.
Watermarks
A watermark is a word or phrase that can be printed only on the first
page or repeated on each printed page. You can add common text
watermarks such as “CONFIDENTIAL” and “DRAFT” to a document—or
create a custom watermark. The printer driver also includes selections
for indicating the watermark’s font, style, size, placement, and angle.
The percentage of gray can be also be adjusted by selecting the
“Depth” option.
N-up printing
Watermarks

15
Supplies
PagePro 1400W supplies are easy to replace
and cost-effective.
Toner Cartridge
The PagePro 1400W includes an in-box starter cartridge that produces
an average of 1,000 prints (5% coverage, letter/A4 size, continuous
printing). Replacement cartridges are available in 2,000 page yields.
OPC Drum Cartridge
The printer includes one full-capacity OPC Drum Cartridge which yields
an average of 20,000 pages (5% coverage, letter/A4 size, continuous
printing). The drum cartridge includes both the OPC drum and waste
toner box. The waste toner box captures excess toner from the printing
process and prevents engine damage from loose toner particles.
Supply Yields
Supply yields are expressed as an average number of letter/A4 pages
at 5% coverage. However, actual consumable life depends on such
variables as page coverage, page size, media type, continuous or
intermittent printing, ambient temperature, and humidity.
Optimal supply life is achieved with continuous printing (three or more
pages per job). Intermittent printing (one page per job) reduces
consumable life.
Supplies Monitoring
You can easily monitor the status of printer supplies through the PagePro
1400’s convenient Status Display. By selecting “Supplies Status” from the
“Display” sub-menu, the amount of toner remaining in the cartridge can
be viewed in an easy-to-read “gas gauge” toner level indicator. The
Supplies Status display can be set to provide convenient pop-up
reminders about reordering toner, once toner use has been depleted to a
certain level. It also provides a handy link to the KONICA MINOLTA
website for easy online supply ordering.
Easy-to-read “gas gauge” toner level
indicator in the Status Display
A convenient “pop-up” in the Status
Display alerts you when toner has
been depleted to a certain level
PagePro 1400W Toner Cartridge and OPC Drum

16
Printer
Management
Complete printer control at your command.
Convenient Printer Management Tools
You can manage the printer through the convenient printer management
tools built into the printer and included on the printer’s auto-install
Utilities and Documentation CD-ROM.
Printer drivers for all supported versions of Windows
Status Display
Control panel
Electronic documentation
Printer Drivers
The PagePro 1400W ships with print drivers for Windows XP, 2000, Me
and 98SE. Printer drivers are available in 16 languages: English,
Chinese Simplified, Chinese Traditional, Russian, Korean, French,
Brazilian Portuguese, Spanish, German, Italian, Czech, Polish, Slovak,
Hungarian, Arabic, and Japanese.
Status Display
The Status Display provides detailed information about the printer,
including current status, current consumable levels, and explanations of
any errors that may have occurred. This helpful utility resides as an icon
in the system tray on the Windows taskbar and can be activated simply
by double-clicking the icon.
The PagePro 1400W Windows driver features a
tabbed layout that conforms to Microsoft
standards, making it very simple to use.
The PagePro 1400W Status Display
