Konka KW40 User manual

-1-
OVERVIEW

-2-

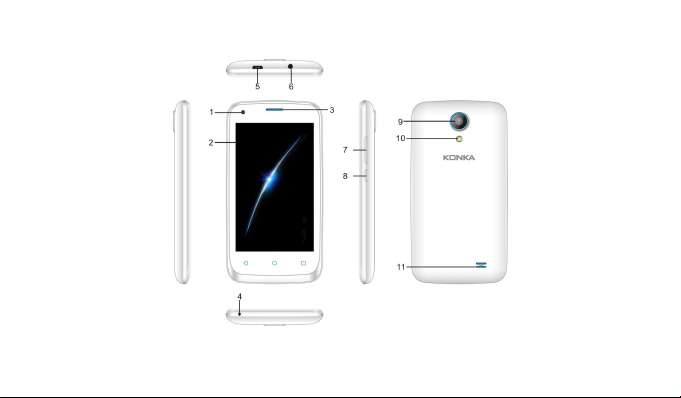

Functions Description
1. Front camera
2. Screen
3. Earpiece
4. MIC
5. USB jack
6. Audio jack
7. Volume keys
8. Power key
9. Rear camera
10. Flash
11. Speaker

-3-

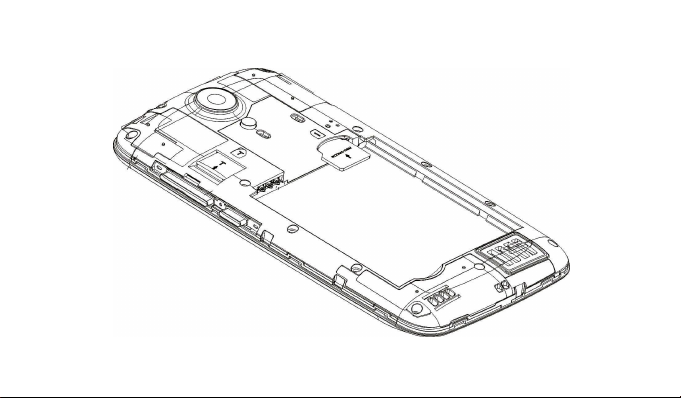

Install SIM Card and TF Card

-4-
Power on/off the Mobile Phone
1. Press and hold the power key for a few seconds to switch on the mobile phone. A power-on
animation appears on the display screen.
(1) If the phone needs to enter a password, please enter the password and confirm.
(2) If the phone needs to enter a PIN , please enter the PIN and confirm. For a New
USIM/SIM card, please contact the network operator for its PIN number.
(3) If the phone needs to enter a gesture password, draw into the correct pattern to
unlock.
2. Long press the power key, the phone standby interface will pop up a menu, please choose to
shutdown.
Connecting to a Wi-Fi Network
1. Swipe down from the status bar to open the notification panel.
2. Under Shortcuts , touch and hold to enter the Wi-Fi settings.
3. Turn on Wi-Fi , Your phone then scans for available Wi-Fi networks and lists them on the
screen.

-5-
4. Select the Wi-Fi network you want to connect to. If the Wi-Fi network is encrypted,
enter the password when prompted.
Turning on Mobile Data
1. Swipe down from the status bar to open the notification panel.
2. Under Shortcuts , touch to enable mobile data. When you don't need to access the
Internet, disable mobile data to save batterypower and reduce data usage.
Dialing Call
1. On the home screen, touch Phone .
2. Dialing: On the screen, touch Dialer , enter the phone number including the area code.
3.Touch to make a call. To end the call, touch .
Making a Call From Contacts
1. On the home screen, touch contacts.
2. Select a contact then touch to make a call. To end the call, touch .

-6-
Answering or Rejecting a Call
1. When a call comes in, you can press the volume button to mute the ringtone.
2. Hold down this icon and slide your finger to this icon to answer the phone.
3. Hold down this icon and slide your finger to this icon to reject calls.

-7-

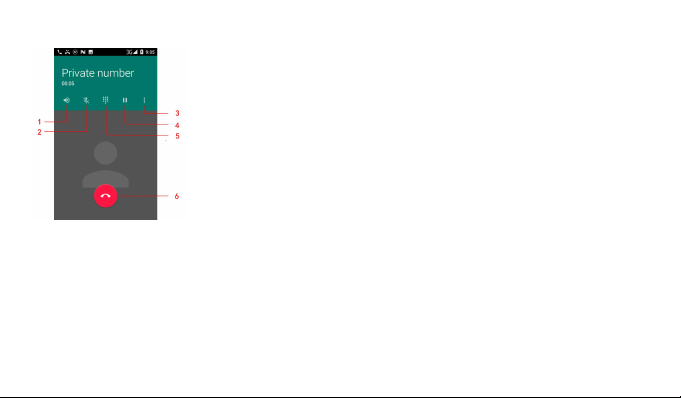

In-call Menu
1. Activate the speaker for a hands-free call.
2. Mute the call so that the other party can't hear you.
3. Choose to add a call (Make sure your carrier supports this feature)or recording.
4. Place the current call on hold. To resume the call, touch again. (Make sure your carrier
supports this feature).
5. Open the dialer.

-8-
6. End the current call.
Messaging
1. Send a text message: Touch new information icon . Enter the name or the receiver
number (also can be directly from the address book to choose number). Select the input and
the input text, symbols or design information. If you want to insert emoticons, click emoticons
icon to go.Send icon to send information. Select annex icon add pictures,add Capture
picture,add Videos,add Capture video,add Audio,add Record audio,add Slideshow, or add
Contact. You can then send the message as an MMS.
2. Delete messages: Long press Mark the current message or mark all, then delete them.
Charge the Battery
1. The lithium-ion battery delivered with the mobile phone can be put into use immediately.
Battery charge level:
(1) Your mobile phone can monitor and display the battery status.

-9-

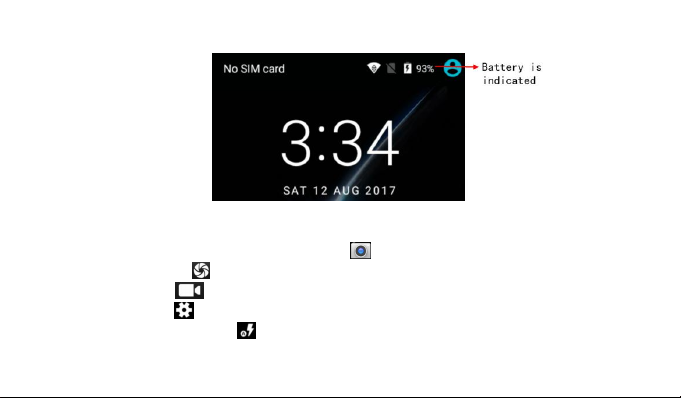

(2) Battery status will be indicated by the battery level icon at the top right of the
display screen.
Camera
1. In the main menu interface, select the camera .
2. Touch to take a photo .
3. Switch video mode .
4. View more options .
5. Switch between flash modes .

-10-
6. Switch between the rear and front cameras .
7. View captured photos or videos .
8. Panorama mode .
Clock
1. By tapping the alarm clock left clock icon to enter the alarm interface.
2. Add an alarm: Touch and set the alarm time, ringtone, repetitions, and more. Touch
to apply the settings.
3. Delete an alarm: Touch to button.
Contacts
1. New contacts: Touch to add a new contact, this mobile phone can save the contact name,
phone, email, address, nickname, website information, the other can also set the photo.
2. Search contacts: Touch to search for contacts, type the contact name to search
keywords.
3. Menu: Touch menu of options into the interface for Contacts to display, import/export,
Groups, Blocked numbers, Manage accounts, Settings, and so on.

-11-
KW40 User Manual
To get KW40 user manual go to
www.konkamobile.com.au
Environmental Conditions
Working Temperature -20 ~ 40℃
Working humidity 65+/-20%RH
Hereby, Shenzhen Konka Telecommunications Technology Co.,Ltd.,declares that this Smart
Phone / KW40, is in compliance with the essential Requirements and other relevant provisions
of Radio Equipment Directive 2014/53/EU.
Environment friendly disposal
You can help protect the environment!
Please remember to respect the local regulations: hand in the non-working electrical equipment
to an appropriate waste disposal centre.
A warning that batteries(battery pack or batteries installed) shall not be exposed to excessive

-12-
heat such as sunshine, fire or the like.
CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF
USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
Charge at constant current of 0.2C until voltage reaches 4.25V, then charge at constant voltage
4.25V till charge current reduce to 0.02C .
The following standards have been applied for the investigation of compliance:
Draft ETSI EN 301 489-1 V2.2.0 (2017-03)
Final draft ETSI EN 301 489-3 V2.1.1 (2017-03)
Draft ETSI EN 301 489-17 V3.2.0 (2017-03)
Draft ETSI EN 301 489-52 V1.1.0 (2016-11)
ETSI EN 301 511 V9.0.2 (2003-03)
ETSI EN 301 908-1 V11.1.1 (2016-07)
ETSI EN 301 908-2 V11.1.1 (2016-07)
ETSI EN 300 440 V2.1.1 (2017-03)

-13-
Final draft ETSI EN 303 345 V1.1.7 (2017-03)
ETSI EN 300 328 V2.1.1 (2016-11)
EN 62479: 2010
EN 50566: 2013
EN 50360: 2001+A1: 2012
EN 62209-1: 2006
EN 62209-2: 2010
IEC 62133: 2012
EN 62471: 2008
EN 60950-1: 2006 +A11: 2009 +A1: 2010+A12: 2011+A2: 2013
EN 50332-1: 2013
EN 50332-2: 2013
EN 55032: 2012+AC: 2013
EN 55020: 2007+A12: 2016
EN 55024: 2010
EN 61000-3-2: 2014

-14-
EN 61000-3-3: 2013
Use careful with the earphone maybe possible excessive sound pressure from earphones and
headphones can cause hearing loss.
The product shall only be connected to a USB interface of version USB2.0 or higher and that the
connection to a power USB is prohibited.
Adapter shall be installed near the equipment and shall be easily accessible.
The AC plug considered as disconnect device of adapter.
Only can use adapter as below: Shenzhen Kosun Industrial Co.,Ltd.
Adapter model: K05V100-14
I/P AC 100-240V, 50/60Hz, 0.15A; O/P 5.0V, 1.0A
The RF distance between body and mobile phone is 5mm.
Manufacture Name:
Shenzhen Konka Telecommunications Technology Co., Ltd.
Manufacture Address:
No.9008 Shennan Road, Overseas Chinese Town, ShenZhen,
Guangdong, China

-15-
Operation Frequency:
GSM/GPRS/EGPRS 900: Tx: 880-915MHz, Rx: 925-960MHz
GSM/GPRS/EGPRS 1800: Tx: 1710-1785MHz, Rx: 1805-1880MHz
GSM/GPRS/EDGE 850: 824~849MHz (Not used in Europe)
PCS/GPRS/EDGE 1900: 1850~1910MHz (Not used in Europe)
WCDMA Band I: Tx: 1920-1980MHz, Rx: 2110-2170MHz
WCDMA Band VIII: Tx: 880-915MHz, Rx: 925-960MHz
WCDMA Band V: 824~849MHz (Not used in Europe)
WiFi: 802.11b/g/n HT20: 2412-2472MHz
802.11n HT40: 2422-2462MHz
Bluetooth: 2402-2480MHz
GPS: 1.57GHz
FM: 88-108MHz
Max RF output power:
GSM900: 32.95dBm
GSM1800: 29.59dBm
WCDMA Band I: 22.74dBm
WCDMA Band VIII: 22.92dBm

-16-
WiFi(2.4G) : 9.51dBm
Bluetooth: 4.00dBm
The RF frequencies can be used in Europe without restriction.
Manufacturer:
Shenzhen Konka Telecommunications Technology Co., Ltd.
No.9008 Shennan Road, Overseas Chinese Town, ShenZhen, Guangdong, China.
Importer:
Roadhound Electronics Pty Ltd.
14 Pendlebury Road, PO Box 460, CARDIFF, NSW, 2285, Australia
This guide is for reference only. The actual product, including but not limited to the color, size,
and screen layout, may vary. All statements, information, and recommendations in this guide
do not constitute a warranty of any kind, express or implied.
