Konka KW40 User manual

-
1
-
KW40
User Manual

-
2
-
OVERVIEW

-
3
-

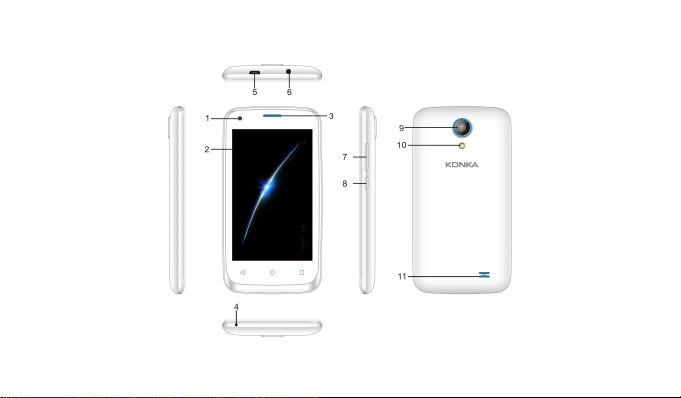

Functions Description
1. Front camera
2. Screen
3. Earpiece
4. MIC
5. USB jack
6. Earphone jack
7. Volume keys
8. Power key
9. Rear camera
10. Flash
11. Speaker

-
4
-

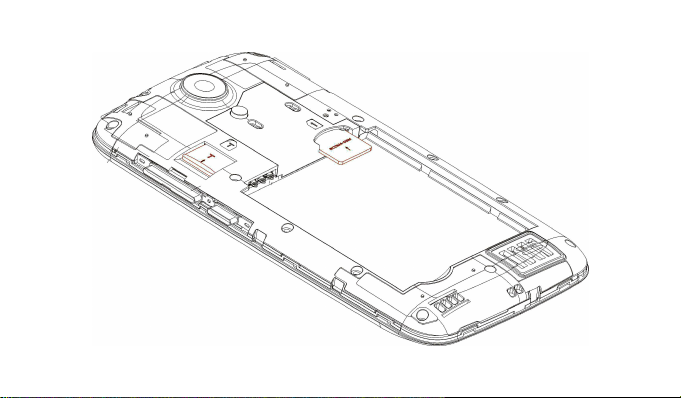

Install SIM Card and TF Card

-
5
-
Power on/off the Mobile Phone
Press and hold the power key for a few seconds to switch on the mobile phone. A power-on
animation appears on the display screen.
If the phone needs to enter a password, please enter the password and confirm.
If the phone needs to enter a PIN , please enter the PIN and confirm.For a New USIM/SIM
card, please contact the network operator for its PIN number.
If the phone needs to enter a gesture password, draw into the correct pattern to unlock.
Long press the power key, the phone standby interface will pop up a menu, please choose to
shutdown.
Dialing Call
On the home screen, touch Phone .
Dialing: On the screen, touch Dialer , enter the phone number including the area code,
Touch to make a call. To end the call, touch .

-
6
-
Making a Call From Contacts
On the home screen, touch Contacts .
Select a contact then touch to make a call. To end the call, touch .
Connecting to a Wi-Fi Network
Swipe down from the status bar to open the notification panel.
Under Shortcuts , touch and hold to enter the Wi-Fi settings.
Turn on Wi-Fi. Your phone then scans for available Wi-Fi networks and lists them on
the screen.
Select the Wi-Fi network you want to connect to. If the Wi-Fi network is encrypted,
enter the password when prompted.
Charge the Battery
The lithium-ion battery delivered with the mobile phone can be put into use immediately.
Battery charge level:

-
7
-

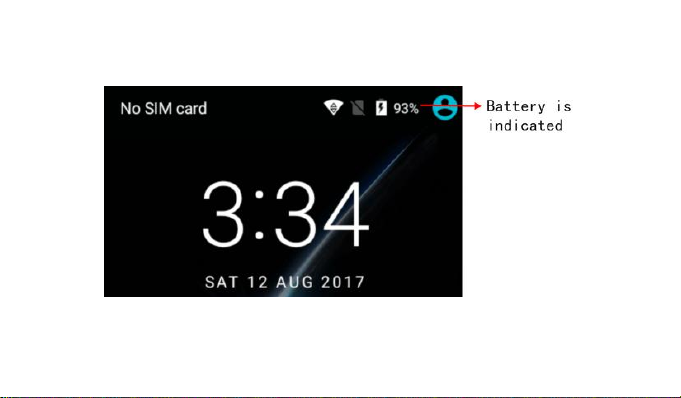

Your mobile phone can monitor and display the battery status.
Battery status will be indicated by the battery level icon at the top right of the display screen.

-
8
-
1 General Information................................................................................... 11
Profile......................................................................................................... 11
Safety Information......................................................................................11
Safety Warning and Attentions.................................................................. 11
2 Get started.................................................................................................. 14
Install the SIM Card and the Battery.......................................................... 14
Installing SD Card........................................................................................17
Charging the Battery.................................................................................. 18
3 APPS............................................................................................................ 21
Calculator................................................................................................... 21

-
9
-
Calendar..................................................................................................... 21
Camera....................................................................................................... 22
Chrome....................................................................................................... 22
Clock........................................................................................................... 23
Contacts......................................................................................................23
Download................................................................................................... 24
Facebook.................................................................................................... 24
File Manager...............................................................................................24
FM Radio.................................................................................................... 24
G-mail......................................................................................................... 25
Google........................................................................................................ 26
Hangouts.................................................................................................... 26
Maps...........................................................................................................26

-
10
-
Messaging...................................................................................................26
Phone......................................................................................................... 27
Photos.........................................................................................................27
Play Movies................................................................................................ 27
Play Music...................................................................................................28
Play Store....................................................................................................28
Setting........................................................................................................ 28
SIM Tool Kit.................................................................................................31
Sound Recorder.......................................................................................... 31
Voice Search............................................................................................... 32
YouTube...................................................................................................... 32

-
11
-
1 General Information
Profile
Please read this pamphlet carefully to keep your phone in perfect condition. Our company may
change this mobile phone without prior written notice and reserve the final right to interpret
the performance of this mobile phone. Due to different software and network operators,
display on your phone may be different.
Safety Information
If your phone has been lost or stolen, please notify your network service provider and invalidate
your SIM card (network support is required) to avoid the loss caused by unauthorized use.
Safety Warning and Attentions
Safety Warning
Avoid hand-held phone call while driving
Avoid using a hand-held phone while driving, use hands-free fittings instead. In some
countries, dialing or receiving calls while driving is illegal!

-
12
-
Switch off in aircraft
Wireless devices will cause interference in aircraft, please switched to Airplane mode or
power off.
Switch off before entering risk areas
Abide by the relevant laws, codes, and regulations strictly when using your mobile phones in
risk areas. Turn off your mobile phone before enter a place susceptible to explosion, such as
an oil station, oil tank, chemical plant or a place where a blasting process is in progress.
Observe all special regulations
Follow all special regulations in the area such as hospitals to switch off your phone because
it may cause interference or danger. Use your mobile phone carefully while close to medical
apparatuses, such as pacemakers, hearing aids and some other electronic medical devices,
as it may cause interference to such apparatuses.
Interference
The conversation quality may be interfered by radio interference. An antenna is built inside
the mobile phone and located near the microphone. Do not touch the antenna area during a
conversation, it will cause bad conversation quality.

-
13
-
Qualified service
Only qualified KONKA personnel or approved agent may install or repair phone equipment.
Installing or repairing the mobile phone yourself may be dangerous and may break the
warranty.
Accessories and batteries
Only use KONKA approved accessories and batteries.
Emergency calls
Make sure the phone is switched on and in service, enter the emergency number, e.g. 000,
then press the Call key. Provide your location and state your situation briefly. Do not end the
call until you are told to do so. The emergency number can be dialed with or without a SIM
card installed.
Attentions
Please exercise special care while using the mobile phone. The following suggestions will
help you to extend the phone’s service:
Keep the mobile phone and all its fittings away enough from small children's reach.
Keep the mobile phone dry. Keep away from rain, moisture, liquid or other substances
that may corrode electronic circuits.

-
14
-
Do not use or store the mobile phone in dusty places to avoid the damage of mobile
phone active parts.
Do not store the mobile phone in a high-temperature place. High temperature may
shorten the life of electronic circuits and damage the battery and some plastic parts.
Do not store the mobile phone in extreme cold places. This will form water inside the
mobile phone and may damage electronic circuits when the mobile phone is moved to
a constant temperature place.
Do not throw, knock or shock the mobile phone, as that may cause damage to the
internal circuits and high-precision components of the mobile phone.
2 Get Started
Install the SIM Card and the Battery
A SIM card carries useful information, including your mobile phone number, PIN (Personal
Identification Number), PIN2, PUK (PIN Unlocking Key), PUK2 (PIN2 Unlocking Key), IMSI
(International Mobile Subscriber Identity), network information, contacts data, and short
messages data.
Note: After power off your mobile phone, wait for a few seconds before removing or inserting a

-
15
-
SIM card.
Exercise carefully when operating a SIM card, as friction or bending will damage the SIM card.
Properly keep the mobile phone and its fittings such as the SIM card out of small children's
reach.
Installation
Press and hold the Power key for a few seconds to power off the mobile phone.
Lift the back cover from the bottom and remove it.
Pull the under battery up and remove it.
Insert the SIM card into the SIM card slot and make sure the gold plate of the card facing
downward.
Press the battery down and lock the battery in the slot, then install the back cover.
Using Code
To prevent from the unauthorized usage, the mobile phone and the SIM card support
passwords, type in codes and press the OK key. Press the Back key to clear and modify
codes.
Phone Lock Code
The phone lock code could be set to prevent your mobile phone from being misused. In

-
16
-
general, this code is provided along with the mobile phone by the manufacturer. The initial
phone lock code is set to 0000 by the manufacturer. Once the phone lock code is set, you
need to type in the phone lock code when power on the mobile phone.
PIN
The PIN (Personal Identification Number, 4 to 8 digits) code prevents your SIM card from
being used by unauthorized people. In general, the PIN is supplied with SIM card by the
network operator. If PIN check is enabled, you need to enter the PIN each time when you
power on your mobile phone. The SIM card will be locked if you enter wrong PIN code three
times.
Unlocking methods as follows:
-Enter the correct PUK according to the screen tips to unlock the SIM card.
-Then enter the new PIN confirm.
-Enter the new PIN again.
-If the PUK is correct, the SIM card will be unlocked and the PIN will be reset.
Note: The SIM card will be locked if you input wrong PIN code three times. To unlock the SIM
card, you need to enter the PUK. In general, the PUK can be obtained from the network

-
17
-
operator.
PUK
The PUK (Personal Unlocking Key) code is required to change a blocked PIN. It is supplied
with the SIM card. If not, contact your network operator. If you enter the wrong PUK code
for 10 times, SIM card will be invalid. Please contact the network operator to replace the SIM
card.
Barring Code
A barring code is required for setting the call barring function. You can obtain this code from
the network operator to set the call barring function.
Installing SD Card
The micro SD card is a pluggable mobile storage card for the mobile phone.
To install the micro SD card, insert the card into the card slot under the back cover. The
maximum support is 32G .
To remove the micro SD card, push down on the lock catch and slide the card out.
Note:
-The mobile phone cannot automatically identify the micro SD card being inserted when the

-
18
-
mobile phone is turn on. You must restart the mobile phone, so that the phone can identify
the micro SD card.
-The SD card is a miniature object. Keep it out of the reach of small children for fear that they
may swallow it.
Charging the Battery
The lithium-ion battery delivered with the mobile phone can be put into use immediately.
Battery charge level:
Your mobile phone can monitor and display the battery status.
The battery status is indicated by the battery level icon at the top right of the display
screen.
When the battery is insufficient, the mobile phone prompts "Battery low". An alert tone
will be given off when the battery level is too low once you set an alert.
A charging animation appears when the battery is being charged. When the charging is
completed, the animation disappears.
Using a travel adapter.
Install the battery into the mobile phone before charge the battery.

-
19
-
Connect the adapter of the travel charger with the charging port in the mobile phone.
Ensure that the adapter is fully inserted.
Insert the plug of the travel charger to an appropriate power outlet.
During the charging, the battery level grids in the battery icon keep flickering until the
battery charging finished.
The battery icon will no longer flicker when the charging process is completed.
Note: Ensure that the plug of the charger, the plug of the earphone, and the plug of the USB
cable are inserted correctly. Wrong insertion may cause charging failure or other problems.
Before charging, ensure that the standard voltage and frequency of the local mains supply
match the rated voltage and power of the travel charger.
Use the Battery
The performance of a battery is subject to multiple factors: radio network configuration,
signal strength, ambient temperature, chosen functions or settings, phone fittings, and the
voice, data or other application mode you choose to use.
To guarantee the optimal performance of your battery, please stick to the following rules:
Use only the battery provided by KONKA. Otherwise, damage or even injuries could be

-
20
-
caused during charging. You may also void the warranty.
Power off the mobile phone before removing the battery.
The charging process lasts a long time for a new battery or a long time no use battery. If
the battery voltage is too low to power on the mobile phone, charge the battery for a longer
time. In this case, the battery icon does not flicker until a long time after the battery enters
the charge status.
During charging, ensure the battery is placed in a room temperature environment or in
an environment close to room temperature.
Immediately stop the charging process if the battery produces odor, overheats, cracks,
distorts or has other damage, or if the electrolyte leaks.
Long time using battery will have capacity issue, the long battery use, the less capacity
have. Once the capacity cannot satisfy the normal usage, please purchase a standard KONKA
battery. Using any poor-quality fittings will cause harm to your mobile phone and may be
dangerous.
Note: To guarantee your personal safety and protect the environment, be careful when
disposing the battery. Return the old battery to KONKA or place it in specified battery
reclamation areas. Do not dispose the battery with normal household waste.
Warning: Short-circuits of the battery may cause explosion, fire, personal injury or other severe
