Notice regarding disposal (EU only)
When this “crossed-out wheeled bin”
symbol is displayed on the product,
owner’s manual, battery, or battery
package, it signifies that when you
wish to dispose of this product, manu-
al, package or battery you must do so
in an approved manner. Do not
discard this product, manual, package
or battery along with ordinary household
waste. Disposing in the correct manner will
prevent harm to human health and potential
damage to the environment. Since the correct
method of disposal will depend on the
applicable laws and regulations in your
locality, please contact your local
administrative body for details. If the battery
contains heavy metals in excess of the
regulated amount, a chemical symbol is
displayed below the “crossed-out wheeled
bin” symbol on the battery or battery
package.
IMPORTANT NOTICE TO CONSUMERS
This product has been manufactured accord-
ing to strict specifications and voltage require-
ments that are applicable in the country in
which it is intended that this product should
be used. If you have purchased this product
via the internet, through mail order, and/or
via a telephone sale, you must verify that this
product is intended to be used in the country
in which you reside.
WARNING: Use of this product in any country
other than that for which it is intended could
be dangerous and could invalidate the manu-
facturer’s or distributor’s warranty. Please
also retain your receipt as proof of purchase
otherwise your product may be disqualified
from the manufacturer’s or distributor’s war-
ranty.
All product names and company names are the
trademarks or registered trademarks of their
respective owners.

5
Table of Contents
Main Features ................................. 6
Installing batteries ......................... 6
Using the stand ............................... 7
Parts of the TM-50 and what they do ... 7
Turning the power on/off ............... 8
To turn the power on ...........................8
Turning the tuner off ............................9
Turning off the metronome ...............9
Connections .................................... 9
If you want to connect an instru-
ment or contact mic etc ......................9
Connecting headphones ....................9
Using the tuner ............................. 10
Tuning while watching the meter
(Meter mode) ....................................... 10
Tuning to a reference tone (Sound
Out mode) ............................................. 11
Tuning using the reference tone and
meter (Sound Back mode)............... 12
Using the metronome .................. 13
Setting the tempo and time signa-
ture (Beat mode) ................................. 13
Using tap tempo ................................. 14
Using the tuner and metronome
simultaneously ............................. 15
Using the tuner and metronome
simultaneously .................................... 15
Backlight ....................................... 17
Specifications ................................ 17

6
Thank you for purchasing the Korg Combo
Tuner Metronome TM-50.
Main Features
With the TM-50 you can tune instruments
using the internal mic or by connecting them
to the INPUT jack.
You can use the tuner and metronome indi-
vidually or simultaneously.
Installing batteries

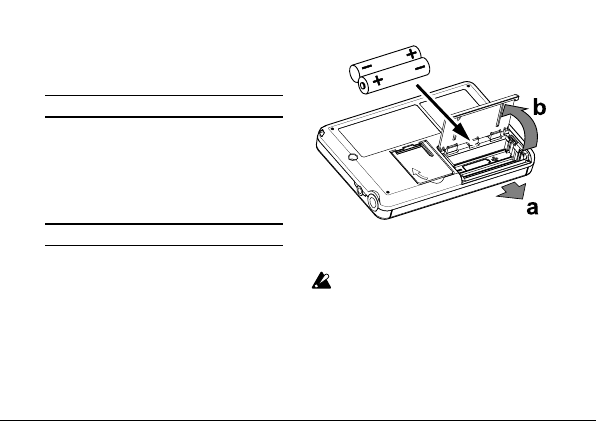

1. Slide the baery compartment cover on
the back of the TM-50 in direction “a” as
shown in the illustration and li up the
cover in direction “b.”
2. Insert the baeries, making sure to ob-
serve the correct polarity.
If the unit malfunctions try removing and
then reinstalling the baeries.
When the baeries become depleted, a
baery symbol will appear on the le
side of the display. When this occurs, it’s
time to replace the baeries.

7
Using the stand
You can use the stand provided on the back
of the TM-50 to tilt it back at an angle for easy
viewing.

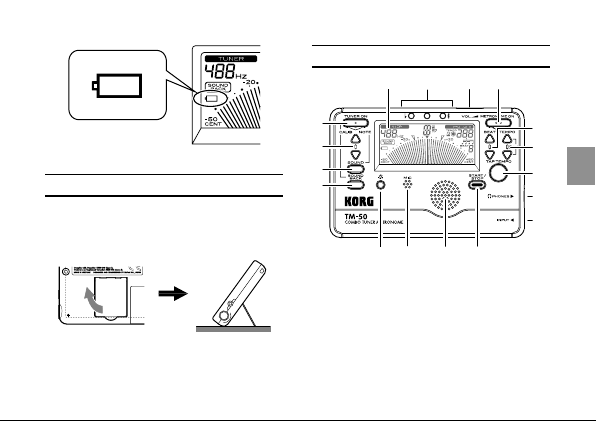

Parts of the TM-50 and what they do
9
1
2
3
4
5 6 7 8
10 11
12
13
14
15
16
17
1. TUNER ON button
2. CALIB/NOTE p, q buttons
3. SOUND button
4. SOUND BACK button
5. Backlight button
6. Mic

8
7. Speaker
8. START/STOP button
9. Tuning guide
10.
Volume
11.
METRONOME ON button
12.
BEAT p, q buttons
13.
TEMPO p, q buttons
14.
TAP TEMPO button
15.
PHONES jack
16.
INPUT jack
17.

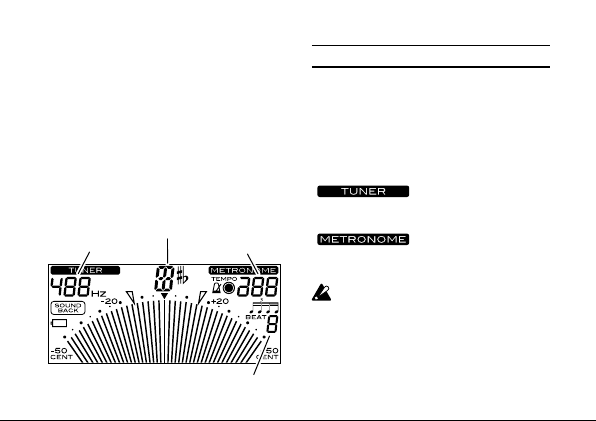

Display
Reference pitch display
Note display
Tempo display
Beat display
Turning the power on/off
To turn the power on
Press either the TUNER ON buon or the
METRONOME ON buon and the power
will turn on.
When the TUNER ON buon is pressed,
the tuner starts in the Meter mode and
“” will appear on the
display. When the METRONOME ON but-
ton is pressed, the metronome starts and
“” will appear on the display.
The TM-50 can use the tuner and metronome
simultaneously.
The TUNER ON buon and the MET-
RONOME ON buon is designed lower
than other buons so that the power is
not turned on involuntarily when the
TM-50 is placed in your pocket or in a

9
bag. To turn the device on or o, push in
the power buon.
Turning the tuner off
When the tuner is in use, press the TUNER
ON buon to turn o the power. The tuner
will also turn o automatically if it’s not in
use for twenty minutes.
Turning off the metronome
When the metronome is in use, press the
METRONOME ON buon to turn o the
power. The metronome will also turn o au-
tomatically if not in use for twenty minutes.
Connections
If you want to connect an
instrument or contact mic etc
If you want to tune an instrument with a
pickup, such as an electric guitar, connect a
cable to your instrument, and plug the cable
into the TM-50’s INPUT jack.
The INPUT jack is only for a 1/4" mono
cable. Stereo (TRS) cables cannot be used.
If you want to tune your instrument using a
Korg contact mic (separately sold), plug the
contact mic into the TM-50’s INPUT jack.
If a device is not connected to the INPUT
jack, tuning will be performed by the
internal mic.
Connecting headphones
You can connect headphones with a 1/8"
mini-plug to the PHONES jack.
When plugged in, no sound will be heard
from the speaker. Use the volume control to
adjust the volume of the headphones output.

10
Using the tuner
Tuning while watching the meter
(Meter mode)
1. Connect your instrument cable or contact
mic to the TM-50’s INPUT jack.
If a device is not connected to the
INPUT jack, tuning will be performed
by the internal mic.
2. Press the TUNER ON buon.
“” will appear at the top
of the display and the calibration (refer-
ence pitch) will be displayed below that.
3. To change the calibration, press the
CALIB/NOTE p or q buon.
The calibration value increases and
decreases in units of 1 Hz. By pressing and
holding these buons, you can increase or
decrease the value continuously. This set-
ting is stored even when the power is o.
4. Play a single note on your instrument.
The closest note to the input sound will
appear in the center of the display. Tune
your instrument to the correct pitch, so
that the desired note name appears.
If you’re using the internal mic, place
your instrument as close as possible
to the mic so that extraneous sound is
not picked up while tuning.
5. While playing a single note on your
instrument, tune your instrument so that
the tip of the meter indicates “q” and
the center indicator of the tuning guide
is lit up.
The le tuning guide indicator will light
up if the pitch of your instrument is at,
and the right indicator will light up if the
