kozy heat KOMFORT ZONE KIT User manual

HUSSONG MANUFACTURING CO., INC.
READ ALL THESE STEPS
BEFORE STARTING INSTALLATION.
LEAVE THESE INSTRUCTIONS WITH THE
APPLIANCE.
This kit must be installed by a qualied installer,
service agency, or gas supplier at the time of
the heater installation. These instructions must
be used in conjunction with the installation and
operation manual provided with the appliance.
Please read the appliance owner’s manual
completely before performing any procedures in
these instructions.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
KOMFORT ZONE KIT
#KZK-072
For use with the Callaway-72 #CLW-72
Direct Vent Gas Fireplace
This optional convection duct kit redistributes the
warm air ow away from the replace opening to
a more desirable location using natural convection
without the use of a fan. The warm air ow may be
relocated to a position higher up the wall, out the
sidewalls, or even to an adjacent room. The result
is much cooler wall temperatures above the re-
place opening for locating televisions, artwork, etc.
The use of this kit will permit lower mantel clear-
ances to be used. These lower mantel clear-
ances must be only used when the KZK Duct
system is installed.
English and French installation manuals are available through your
local dealer. Visit our website www.kozyheat.com.
Les manuels d’installation en français et en anglais sont disponibles
chez votre détaillant local. Visitez www.kozyheat.com .
Hussong Manufacturing Co., Inc.
P.O. Box 577, 204 Industrial Park Drive
Lakeeld, MN 56150-0577, USA Rev. 3, 4/20
1.0 INTRODUCTION.......................................................................3
1.1 Kit Contents.......................................................................................... 3
1.2 Suggested Congurations.............................................................. 4
1.3 Dimensions and Overview ............................................................. 5
1.4 Air Duct Run......................................................................................... 6
2.0 FRAMING AND CLEARANCES................................................7
2.1 Clearance to Sprinkler...................................................................... 7
2.2 Framing.................................................................................................. 8
3.0 FACING AND FINISHING.........................................................9
3.1 Non-combustible Requirements.................................................. 9
3.2 Combustible Finish..........................................................................10
3.3 Hearth and Mantel Clearances....................................................12
4.0 INSTALLATION .......................................................................13

Komfort Zone Kit #KZK-072 R.3 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces 3
1.1 Kit Contents
• (1) 72" plenum kit: KZK-072
• (1) plenum discharge trim: KZK-072DT
• (12) 6" collars - (6) to attach to the bottom of the plenum; (6) to
attach to the unit where the cover plates are removed
(1) KZK-610 is used for a 10' vent run. If installing beyond 10' vent run,
you will need to order (1) KZK-CPL6.
KZK-CPL6 is (6) 6" couplers that connect (2) KZK-610
1.0 INTRODUCTION
71⁄”
(1826mm)
4⁄”
(103mm)
#KZK-072
6 take o collars included
(6) - 10’x 6” (aluminum ex) listed to UL-181Class 0 Air Duct
#KZK-610
Figure 1.1, #KZK-072
Figure 1.2, #KZK-610

4Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces Komfort Zone Kit #KZK-072 R.3

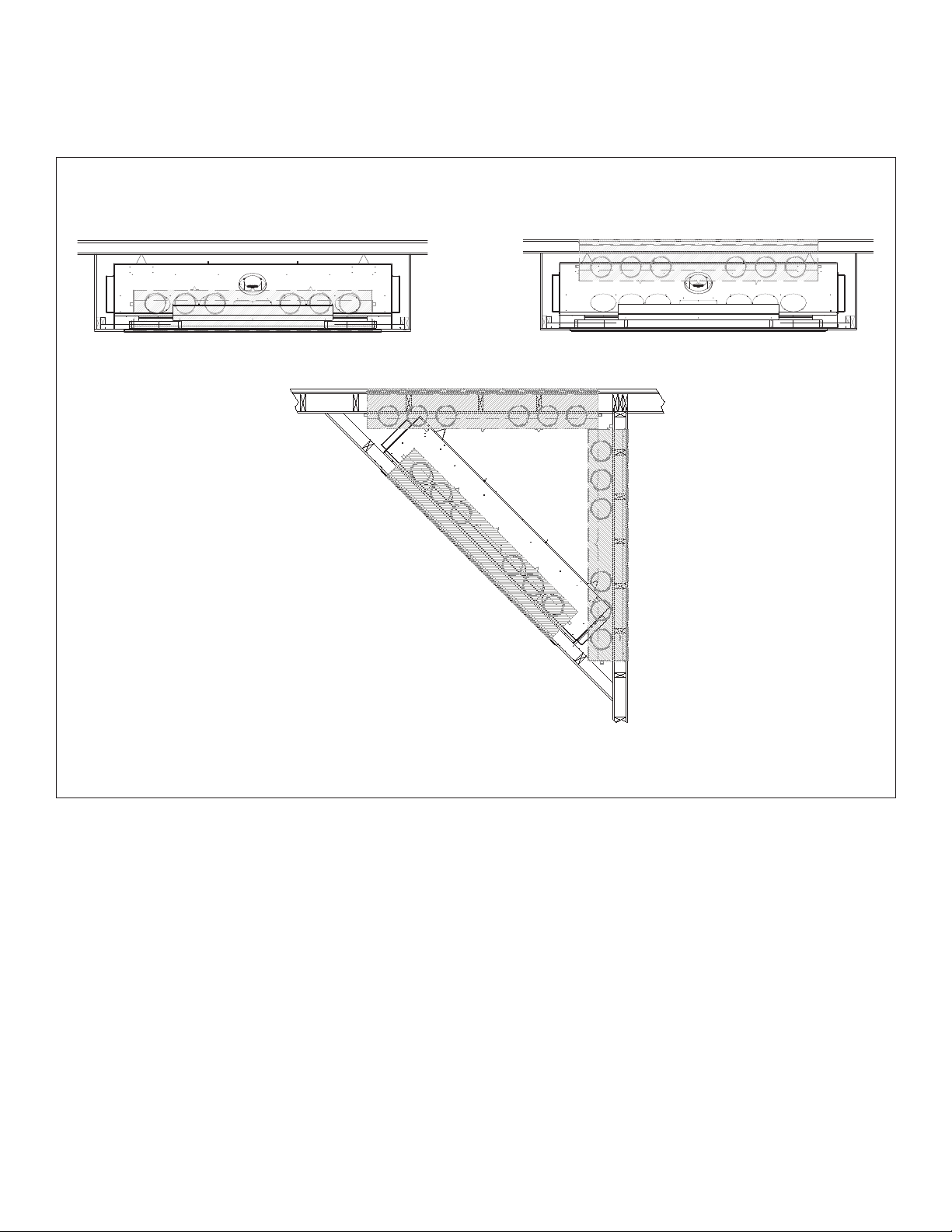

1.2 Suggested Congurations
Figure 1.3, #KZK-072 Suggested Congurations
#KZK-072 FRONT WALL OUTLET #KZK-072 REAR WALL OUTLET
#KZK-072 CORNER INSTALLATION

Komfort Zone Kit #KZK-072 R.3 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces 5
1.3 Dimensions and Overview
Minimum
½”(12mm)
clearance to
combustibles
around pipe
The tubing that connects the plenum to the replace must be UL181 Class 0 approved air duct.
If you are mounting the plenum above the replace 10’(3m) or less, use (1) #KZK-610 kit.
If you are mounting the plenum above the replace between 10’ (3m) to 20’(6m)
you will need (2) #KZK-610 kit and #KZK-CPL6 coupler kit.
Figure 1.4, KZK-072 Dimensions
Figure 1.5, KZK-072 Overview
70”
(1778mm)
8¾”
(222mm)
22”
(558mm)
3½”
(89mm)
2⁄”
(54mm)
6”
(152mm)
4”
(102mm)
8⁄” (220mm)
12½”
(317mm)
1”(25mm)
STANDOFF 1¼” (32mm)
STANDOFF
2”(50mm) STANDOFF
8¾”
(222mm) 8¾”
(222mm)
8¾”
(222mm)
1”(25mm)
STANDOFF
#KZK-072

6Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces Komfort Zone Kit #KZK-072 R.3
1.4 Air Duct Run
IMPORTANT: The air duct pipe cannot run horizontally without a
vertical rise.
IMPORTANT: The 1/2" clearance around the air duct pipes must be
maintained.
Use #KZK-610 UL181 Class 0 Air Duct piping to connect the plenum(s)
to the unit.
Hussong Mfg. requires pipes to be listed as UL181 Class 0 Air Duct to
connect the plenum(s) to the unit.
Figure 1.6, Minimum Vent Pipe Run
WHEN INSTALLING AIR DUCT PIPE MAINTAIN A MINIMUM 4" VERTICAL RISE FOR EVERY 12" HORIZONTAL RUN
12”
(304mm)
4”(102mm)
MINIMUM BEND RADIUS=6” (152mm)

Komfort Zone Kit #KZK-072 R.3 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces 7

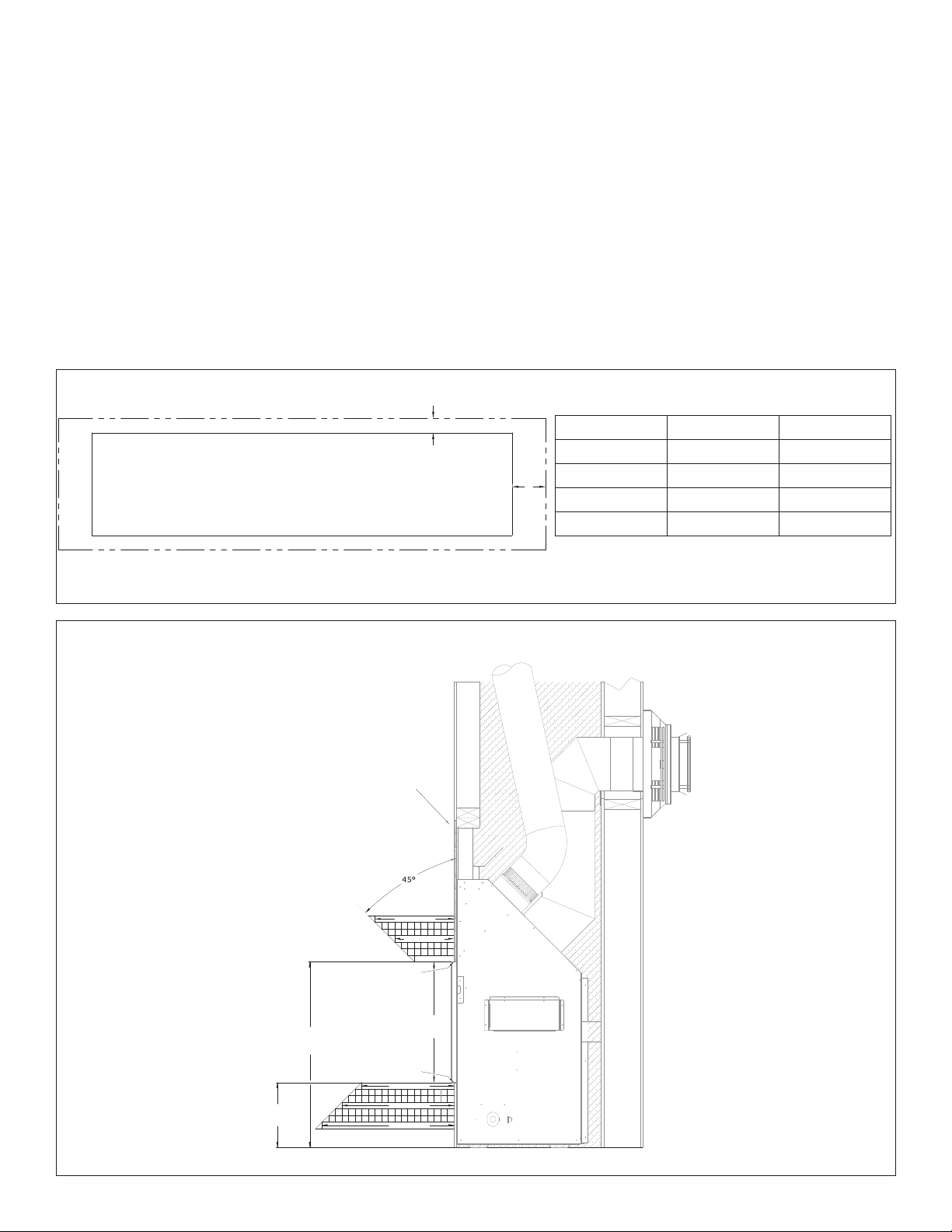

2.0 FRAMING AND CLEARANCES
Figure 2.1, KZK Clearance to Sprinkler
2.1 Clearance to Sprinkler
• In a situation where a sprinkler head is installed within the
proximity to a #KZK discharge opening, the diagram below
MUST be followed.
• The distance between a sprinkler head and discharge opening
cannot be less than 60" (1524mm) in length at every point from
the origin of the discharge opening. You must also verify the
sprinkler head sensor is set to the proper heat setting so it does
not activate when the room heats up from the replace being
operated normally.
• Please follow local building codes to determine what
temperature setting is relevant for your installation.
CEILING
SPRINKLER HEAD
60”
(1524mm) MIN
2½”
(63mm)
MIN

8Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces Komfort Zone Kit #KZK-072 R.3
72”
(1829mm)
5½”
(140mm)
86½”
(2197mm)
81½”
(2071mm)
40¾”
(1035mm) 48⁄”
(1235mm)
86”
(1235mm)
2½”
(63mm)
5½”
(139mm)
45¼” (1149mm) MIN
20’ (6m) MAX
49½”
(1257mm)
40¾”
(1035mm)
22”
(558mm)
2.2 Framing
Figure 2.2, Rough Opening Figure 2.3, Minimum Clearance from Air Discharge to Ceiling
Figure 2.4, Framing and Clearances
2½”
(63mm)
CEILING

Komfort Zone Kit #KZK-072 R.3 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces 9
3.0 FACING AND FINISHING
3.1 Non-combustible Requirements
COMBUSTIBLE MATERIAL ALLOWEDNON-COMBUSTIBLE MATERIAL ONLY COMBUSTIBLE MATERIAL ALLOWED
SEE IMAGE BELOW FOR ACCEPTABLE
SCREW LOCATIONS
COMBUSTIBLE MATERIAL ALLOWED
NON-COMBUSTIBLE MATERIAL ONLY
LOWER COVER PANEL
COMBUSTIBLE MATERIAL ALLOWED
(BOTTOM 3/4”[19mm])
¾”
(19mm)
39⁄”
(1006mm)
75⁄”
(1915mm)
18⁄”
(465mm)
10½”
(267mm)
6⁄”
(161mm)
21⁄”
(538mm)
¾”
(19mm)
13”
(330mm)
3¾”
(95mm)
9¾”
(248mm) 1½”
(38mm)
3¾”
(95mm)
13”
(330mm)
NON-COMBUSTIBLE MATERIAL ONLY
COMBUSTIBLE MATERIAL ALLOWED
NO SCREWS ALLOWED
NO SCREWS ALLOWED
NO SCREWS ALLOWED
SCREW PATTERN LOCATIONS

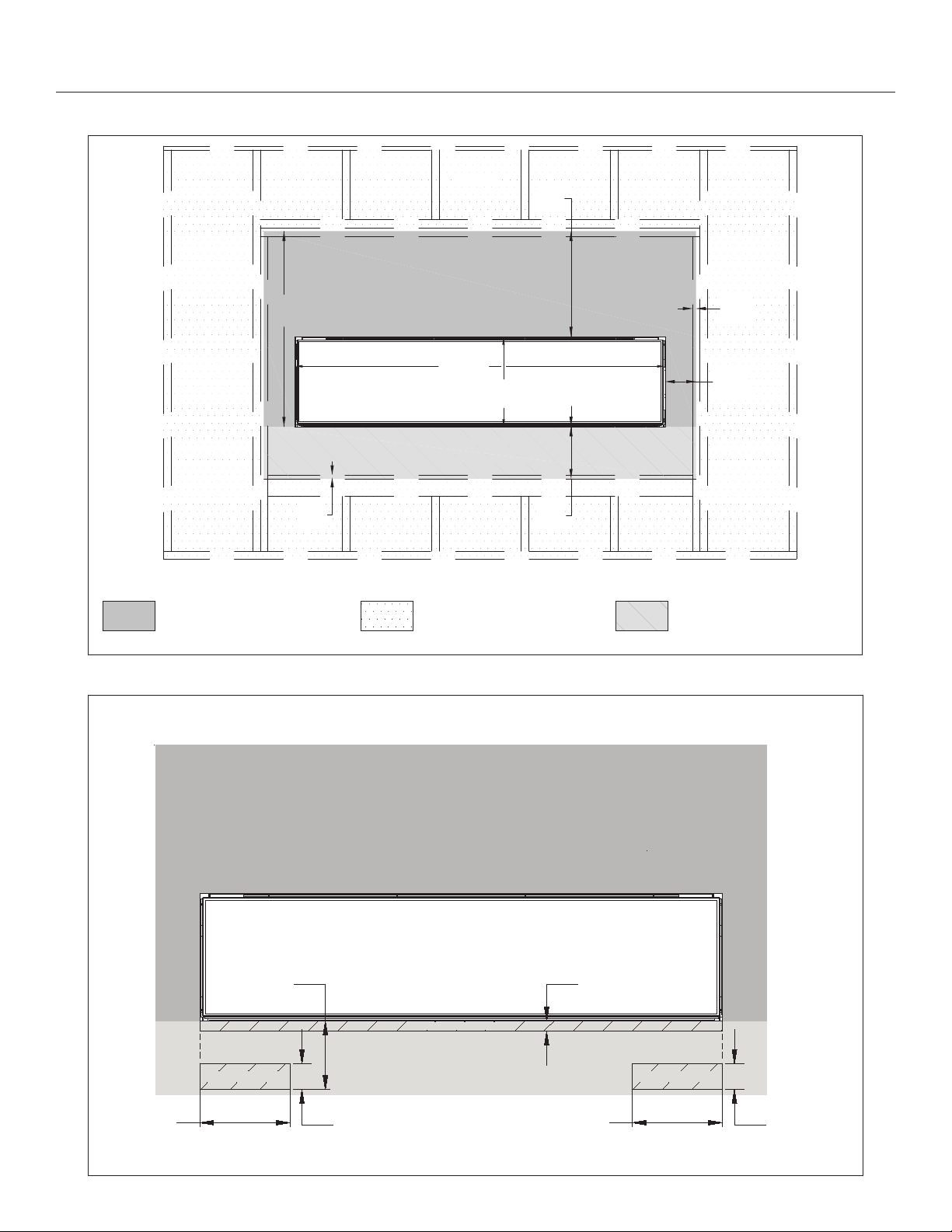

Figure 3.1, Minimum Non-combustible Finishing Dimensions
Figure 3.2, Minimum Non-combustible Finishing Dimensions Screw Locations

10 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces Komfort Zone Kit #KZK-072 R.3
3.2 Combustible Finish
3.2.1 Trim Installation
NOTE: It is not required to use the #KZK-072 discharge trim (KZK-
072DT) if desired to run nishing material up to the nishing material
stando. Finishing material must not block the opening and must be
run evenly along the plenum opening.
WARNING! RISK OF OVERHEATING AND FIRE! Ensure the KZK duct
system is installed in accordance to this manual AND the convection
bae is removed when using these combustible clearances.

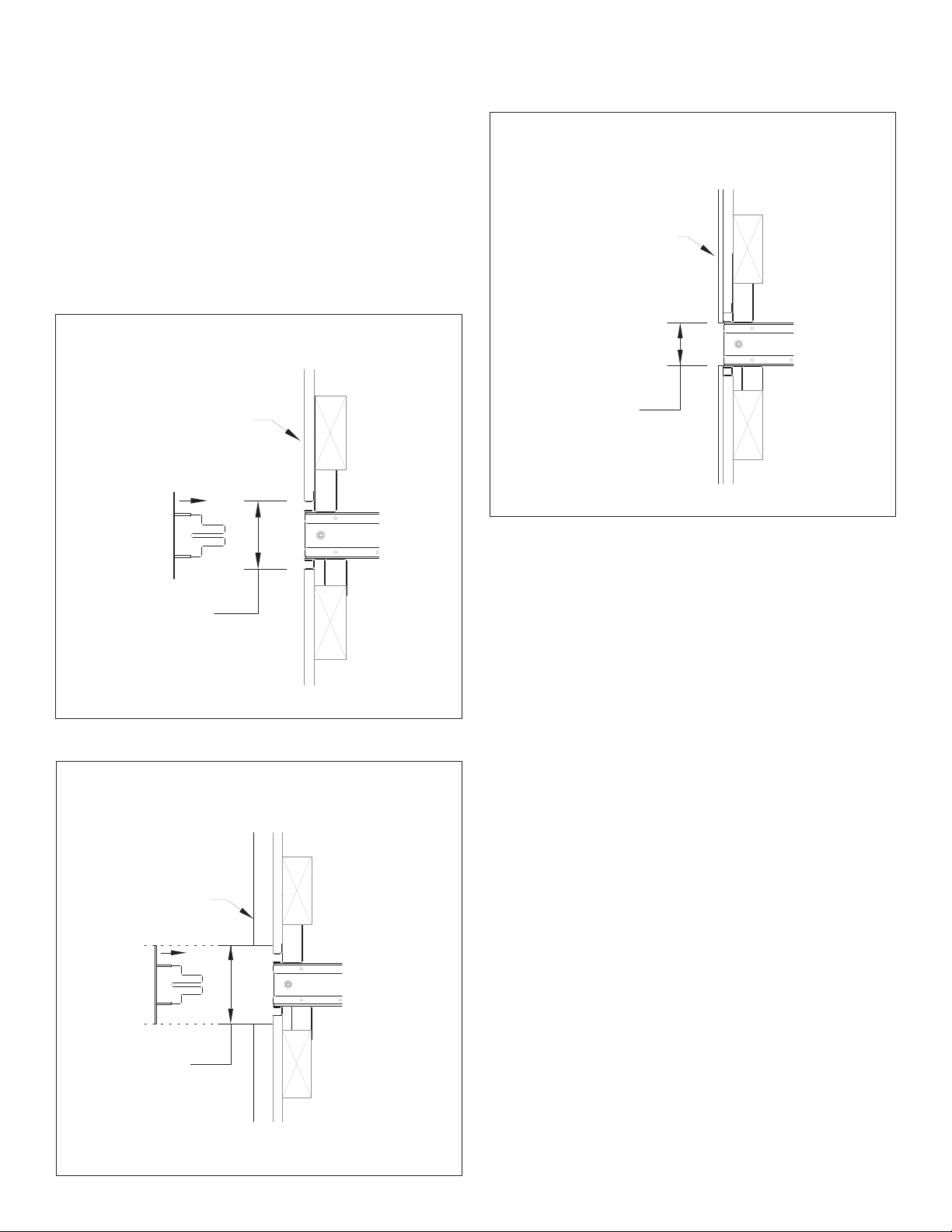

Figure 3.3, Drywall Finish
Figure 3.4, Combustible Finish Material up to 1" Thick
Figure 3.5, Non-combustible Material Trim Finish
3¼”
(83mm)
DISCHARGE TRIM
COMBUSTIBLE MATERIAL
DRYWALL STOPS AT FINISHING MATERIAL STAND OFFS
AROUND KZK DISCHARGE OPENING. DISCHARGE TRIM
COVERS THESE EDGES COMPLETELY.
4⁄”
(104mm)
COMBUSTIBLE MATERIAL
UP TO 1” (25mm) THICK
DISCHARGE TRIM
UP TO 1”(25mm) THICK COMBUSTIBLE MATERIAL UP TO EDGE
OF DISCHARGE TRIM. 1”(25mm) COMBUSTIBLE MATERIAL CANNOT GO
CLOSERTO DISCHARGE OPENING. 1” (25mm) COMBUSTIBLE MATERIAL
GOES ON TOP OF ANY REQUIRED NON-COMBUSTIBLE MATERIAL
REQUIRED ON THE FIREPLACE.
2¼”
(57mm)
NON-COMBUSTIBLE MATERIAL
UP TO DISCHARGE OPENING
NON-COMBUSTIBLE MATERIALS, SUCH AS TILE OR STONE,
UP TO THE AIR DISCHARGE OPENING. MINIMUM AIR
DISCHARGE OPENING MUST BE MAINTAINED THE ENTIRE
LENGTH OF AIR DISCHARGE OPENING.
DISCHARGE TRIM IS OPTIONAL FORTHIS INSTALLATION.

Komfort Zone Kit #KZK-072 R.3 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces 11
3.2.2 Combustible Wall Finish
• Figure 3.6 shows installation of combustible wall nish up to 1"
thick. This combustible material goes on any required non-
combustible materials as shown in Figure 3.1 on page 9.
• This 1" (25mm) combustible material is able to go down to the
replace nishing edge.
• See Figure 3.4 on page 10 for up to 1" (25mm) thick
combustible material installation around the discharge trim of
the KZK air discharge opening.

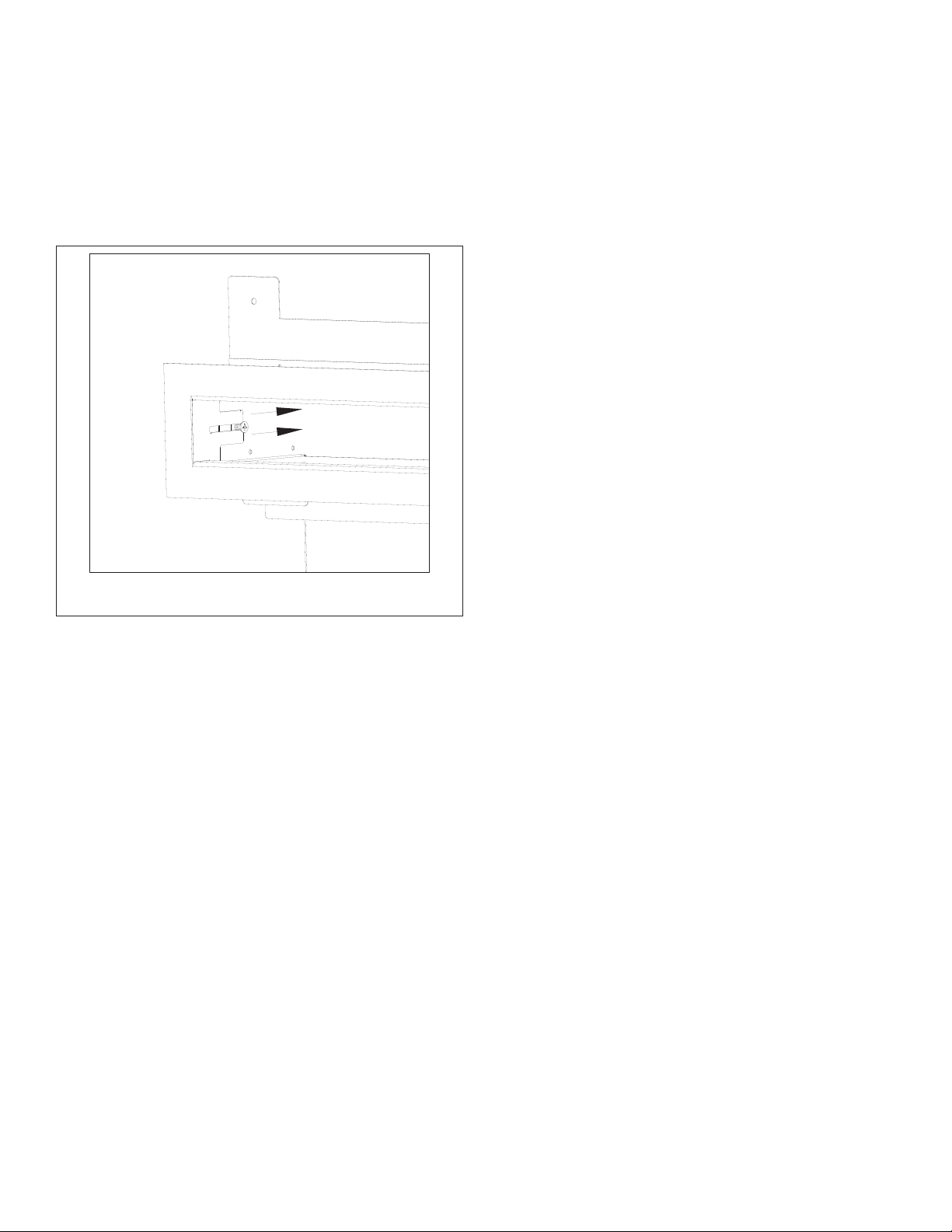

Figure 3.6, KZK-072 Combustible Wall Finish
COMBUSTIBLE WALL FINISH
UP TO 1”(25mm) THICK MAY BE
INSTALLED OVER CEMENT BOARD
FINISHING EDGE
FIREPLACE ENCLOSURE FLOOR

12 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces Komfort Zone Kit #KZK-072 R.3
3.3 Hearth and Mantel Clearances
The following drawings show the hearth and mantel clearances
allowed for the CLW-72 with no surround or optional surrounds
installed. Follow the drawings and the masonry guidelines below
for the minimum distance needed between the hearth, mantel, and
sidewall to allow for proper servicing clearances.
3.3.1 Masonry Finishing Guidelines
for Optional Surrounds
• Figure 3.7 shows where to end masonry nishing materials,
when measuring from the nishing edge, to allow installation of
any optional surround. Most masonry material will not t behind
the optional surround(s) when it is installed.
• Measurement 'A' shows the space to leave on each side.
• Measurement 'B' shows the space to leave on the top and the
bottom.
Figure 3.7, Masonry Guidelines for Optional Surrounds
9½”
(248mm)
28⁄”
(715mm)
18⁄”
(467mm)
12”(305mm)
9”(229mm)
6”(152mm)
14”(356mm)
17”(432mm)
20”(508mm)
COMBUSTIBLE WALL FINISH
MAY BE INSTALLED OVER CEMENT
BOARD AND BUTT UP TO THE
FINISHING EDGE AROUND THE OPENING
EACH SQUARE REPRESENTS 1”
(25mm) OF MANTEL PROJECTION
FINISHING EDGE
FINISHING EDGE
NO SURROUND
Figure 3.8, Hearth and Mantel Clearances for No Surround
B
A
FINISHING TRIM EDGE
SURROUND EDGE
Surround A B
CW72-RS 3/4" (19mm) 1-1/2" (38mm)
CW72-RS4 2-5/8" (66mm) 2-5/8" (66mm)
CW72-GS 6" (152mm) 2-1/2" (64mm)
CW72-FS 3-1/8" (79mm) 3-1/8" (79mm)

Komfort Zone Kit #KZK-072 R.3 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces 13

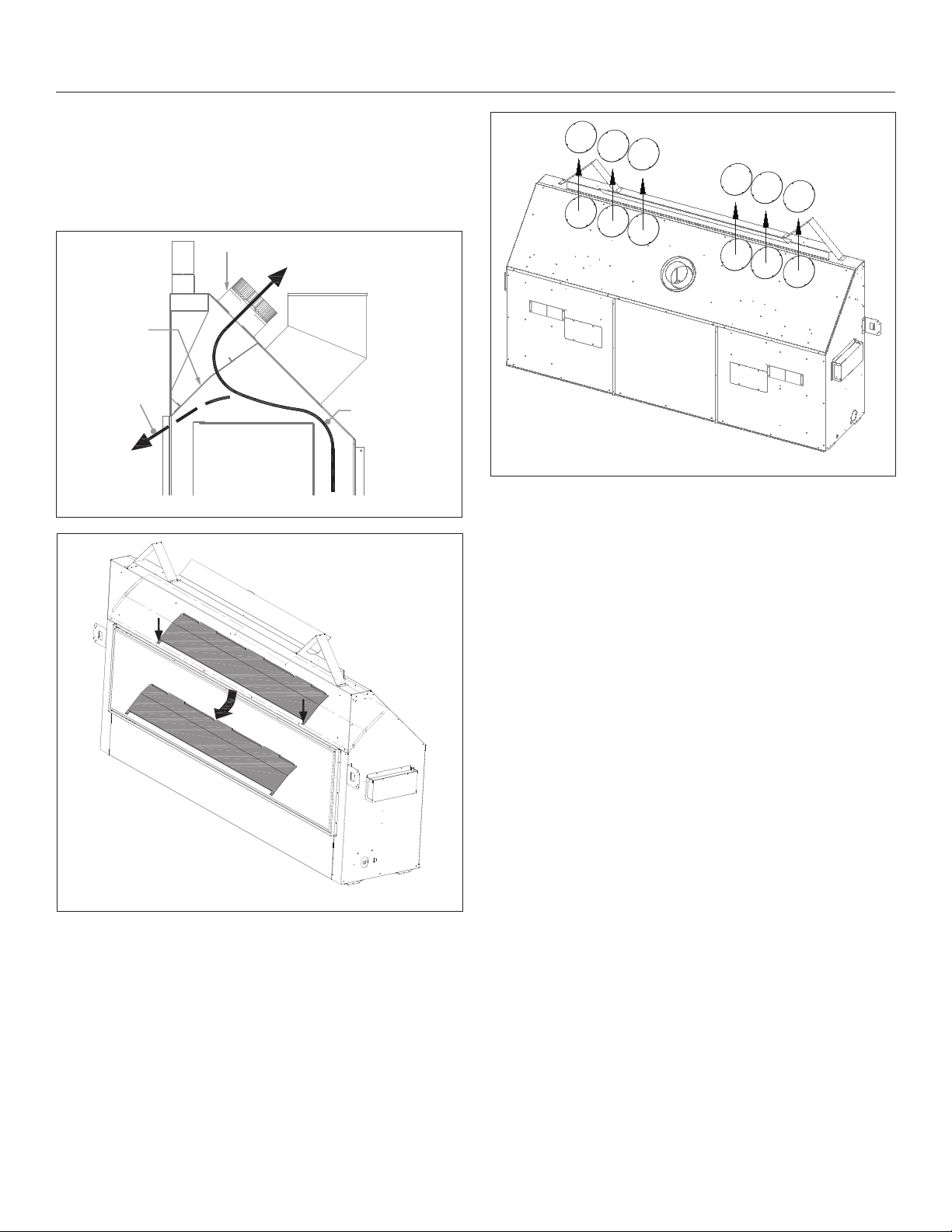

4.0 INSTALLATION
The Kozy Zone Kit requires that the convection bae, located above
the rebox inside the appliance metal cabinet, to be removed to
allow the hot airow to convect upwards into the air ducts installed
on the replace.
1. Remove the convection bae from the appliance. The bae
is secured by (2) screws right behind the upper edge of the
replace opening. Recycle this panel if it is no longer needed.
2. Remove (6) cover plates on top of the appliance (4 screws each).
3. Align the take o collars to the corresponding holes on top of
the appliance. Secure with screws previously removed. Install
the take o collars to the corresponding opening(s) on the
plenum(s). Use supplied screws.
4. Frame a rough opening at the desired location. See previous
pages of this manual for allowable plenum positions and rough
frame opening sizes.
5. Install the plenum(s) into the rough frame opening maintaining
minimum clearances to combustibles as listed (see previous
pages). Fix the plenum to the framing using nails or screw
through the top mounting bracket.
Take-o collar
Convection airow
with bae removed
Convection
bae to be
removed
Convection airow
with bae in place
NOTE: Mounting brackets are not intended to carry the weight
of the plenum and pipes. Provide support to the underside of
the plenum and ensure the plenum is level and its outlet is not
distorted.
6. Use metal strapping (all-around, not supplied) as required to
further secure the plenum to framing.
7. Attach the piping from all (6) plenum take o collars to all (6)
take o collars on the replace. If you are mounting the plenum
10' or less above the replace, use (1) #KZK-610 kit or UL-181
Class 0 approved air duct. If you are mounting the plenum
between 10' to 20' above the replace then you will need (2)
#KZK-610 kits and #KZK-CPL6 or UL-181 Class 0 approved air
duct.
8. An upward slope must be maintained in horizontal sections of
pipes for proper convection. Support horizontal sections every
24 inches.
Figure 4.1, Air Flow with Convection Bae Removed
Figure 4.2, Convection Bae Removed
Figure 4.3, Cover Plate Removal

14 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces Komfort Zone Kit #KZK-072 R.3
9. Install the #KZK-072DT discharge trim to the plenum after the
wall nish is completed using (2) screws, if using the #KZK-072
plenum. Finishing material must not block and should run
evenly along plenum opening. The #KZK-072DT discharge trim is
optional depending on nishing material choice.
10. Continue with replace installation.
Figure 4.4,Trim Installation

HUSSONG MANUFACTURING CO., INC.
LISEZ TOUTES CES ÉTAPES
AVANT DE COMMENCER L’INSTALLATION.
LAISSEZ CE MANUEL AVEC L’ APPAREIL.
Ce kit doit être installé par un centre de service
ou un installateur qualié, ou par le fournisseur
de gaz, au moment d’installer l’appareil de
chauffage. Ces instructions doivent être utilisées
conjointement avec le manuel d’installation
et d’utilisation fourni avec l’appareil. Veuillez
lire complètement le manuel d’installation de
l’appareil avant de commencer les procédures
de ce manuel d’instructions.
INSTALLATEUR : Laissez ce manuel avec l’appareil.
PROPRIÉTAIRE : Conservez ce manuel pour le consulter.
KIT KOMFORT ZONE
nº KZK-072
Pour utiliser avec le foyer au gaz à évacuation
directe Callaway-72 nº CLW-72
Ce kit optionnel de conduits d’air de convection re-
distribue l’air chaud du foyer vers le (ou les) lieux
de votre choix grâce à la convection naturelle,
sans besoin de ventilateur. La sortie d’air chaud
peut être dirigée plus haut sur le mur, à travers les
murs adjacents, ou même vers la pièce adjacente.
Cela permet de réduire beaucoup la température
des murs au-dessus du foyer, pour pouvoir y in-
staller une télévision, des objets d’art ou autres.
L’utilisation de ce kit permet de réduire les dé-
gagements au manteau. Cette réduction de dé-
gagements au manteau est possible seulement
lorsque ce système de conduits KZK est in-
stallé.
English and French installation manuals are available through your
local dealer. Visit our website www.kozyheat.com.
Les manuels d’installation en français et en anglais sont disponibles
chez votre détaillant local. Visitez www.kozyheat.com .
Hussong Manufacturing Co., Inc.
P.O. Box 577, 204 Industrial Park Drive
Lakeeld, MN 56150-0577, USA Rev. 3, 4/20
1.0 INTRODUCTION.......................................................................3
1.1 Contenu du Kit.................................................................................... 3
1.2 Congurations suggérées............................................................... 4
1.3 Dimensions et vue d'ensemble.....................................................5
1.4 Installation des conduit d'air ......................................................... 6
2.0 ENCADREMENT ET DÉGAGEMENTS.....................................7
2.1 Dégagement aux gicleurs............................................................... 7
2.2 Encadrement ....................................................................................... 8
3.0 FAÇADE ET FINITION ..............................................................9
3.1 Exigences de matériaux incombustibles................................... 9
3.2 Matériaux de nition combustibles ..........................................10
3.3 Dégagements de l’âtre et du manteau ....................................12
4.0 INSTALLATION .......................................................................13

Kit Komfort Zone nº KZK-072 R.3 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces 3
1.1 Contenu du Kit
• (1) plénum de 72 po du kit KZK-072
• (1) garniture de sortie d'air du plénum KZK-072DT
• (12) collets de 6 po - (6) collets à xer au bas du plénum; (6)
collets à xer au foyer, à l'endroit où les couvercles sont retirés
(1) KZK-610 est utilisé pour conduits d’air de 10 pieds (3,05 m). Pour
installer des conduits de plus de 10 pieds (3,05 m), il faut commander
(1) KZK-CPL6.
KZK-CPL6 inclut (6) coupleurs de 6 po qui raccordent (2) KZK-610
1.0 INTRODUCTION
71⁄”
(1826mm)
4⁄”
(103mm)
KZK-072
6 collets de xation
(fournis)
(6) - section de 10 pieds x 6 po conduit exible (aluminium)
homolgué UL-181, Conduit d’air De Classe 0
KZK-610
Figure 1.1, Plénum, collets et garniture de sortie du kit n KZK-072
Figure 1.2, Item n KZK-610

4Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces Kit Komfort Zone nº KZK-072 R.3
1.2 Congurations suggérées
Figure 1.3, Congurations suggérées du KZK-072
KZK-072 - SORTIE MURALE AVANT KZK-072 - SORTIE MURALE ARRIÈRE
KZK-072 - INSTALLATION DANS UN COIN

Kit Komfort Zone nº KZK-072 R.3 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces 5
1.3 Dimensions et vue d'ensemble
Dégagement minimal de
1/2 po (13mm) aux
matériaux combustibles,
autour des conduits
Les conduits qui raccordent le plénum au foyer doivent être homologués UL-181, Conduits d’air de Classe 0.
Si vous installez le plénum à moins de 10 pieds (3 m) au-dessus du foyer, utilisez un (1) kit nº KZK-610.
Si vous installez le plénum à plus de 10 pieds (3 m) et moins de 20 pieds (6 m) au-dessus du foyer,
vous aurez besoin de deux (2) kits nº KZK-610 et du kit de coupleurs nº KZK-CPL6.
Figure 1.4, Dimensions du KZK-072
Figure 1.5, Vue d'ensemble du kit KZK-072
70”
(1778mm)
8¾”
(222mm)
22”
(558mm)
3½”
(89mm)
2⁄”
(54mm)
6”
(152mm)
4”
(102mm)
8⁄” (220mm)
12½”
(317mm)
1”(25mm)
ESPACEUR DE
DÉGAGEMENT 1¼”(32mm)
ESPACEUR DE
DÉGAGEMENT
2”(50mm) ESPACEUR DE
DÉGAGEMENT
8¾”
(222mm) 8¾”
(222mm)
8¾”
(222mm)
1”(25mm)
ESPACEUR DE
DÉGAGEMENT
KZK-072
