kozy heat KPV User manual

Kozy Power Vent Approved Fireplaces:
#CLW-72
HUSSONG MANUFACTURING CO., INC.
READ ALL THESE STEPS
BEFORE STARTING INSTALLATION.
LEAVE THESE INSTRUCTIONS WITH THE
APPLIANCE.
This kit must be installed by a qualied installer,
service agency, or gas supplier at the time of
the heater installation. These instructions must
be used in conjunction with the installation and
operation manual provided with the appliance.
Please read the appliance owner’s manual
completely before performing any procedures in
these instructions.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
KOZY POWER VENT
#KPV
English and French installation manuals are available through your
local dealer. Visit our website www.kozyheat.com.
Les manuels d’installation en français et en anglais sont disponibles
chez votre détaillant local. Visitez www.kozyheat.com .
Hussong Manufacturing Co., Inc.
P.O. Box 577, 204 Industrial Park Drive
Lakeeld, MN 56150-0577, USA
Kozy Power Vent #KPV
Rev. 1, 4/19
IMPORTANT: Failure to read and follow these
instructions may create a possible hazard and
will void the replace warranty.
1.0 INTRODUCTION.......................................................................3
1.1 Introduction.........................................................................................3
1.2 Components and Service Parts List............................................. 3
1.3 Installation............................................................................................ 3
2.0 VENTING ...................................................................................4
2.1 Venting Requirements .....................................................................4
2.2 Horizontal Terminations ..................................................................5
2.3 Draft Bypass Adjustment ...............................................................7
3.0 FRAMING AND CLEARANCES................................................8
3.1 Framing and Clearances..................................................................8
3.2 Clearances to Combustibles ..........................................................9
3.3 Rooftop Termination......................................................................... 9
3.4 Termination Cap Clearances ........................................................10
3.5 Installing Vent Cap...........................................................................11

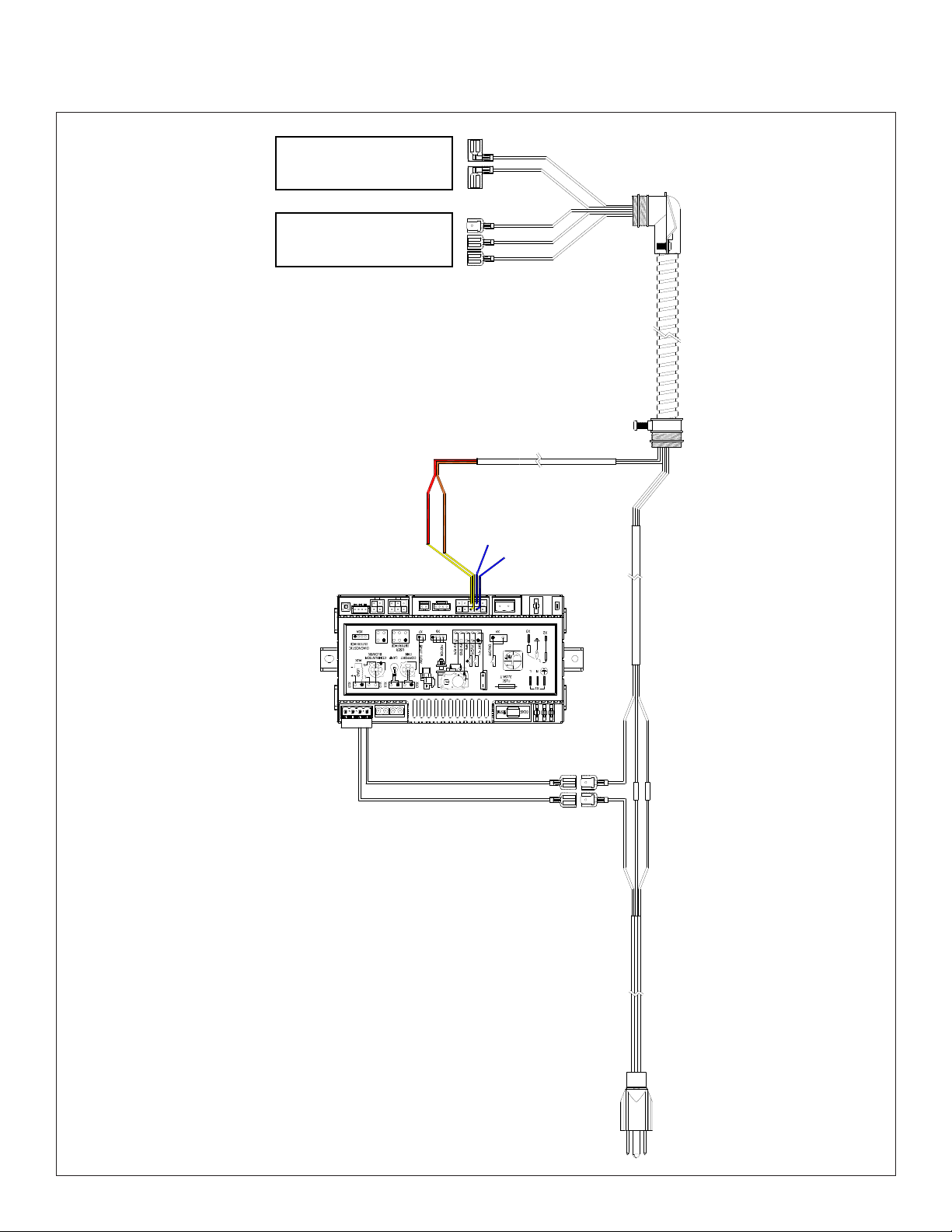

4.0 ELECTRICAL INFORMATION ................................................15
4.1 Wiring to the Appliance.................................................................15
5.0 MAINTENANCE .....................................................................19
5.1 Replace Fan Assembly/Vacuum Switch ...................................19
6.0 TROUBLESHOOTING.............................................................21

Kozy Power Vent #KPV Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces 3
1.1 Introduction
The #KPV is certied for use as a horizontal termination cap only for
use with the Callaway-72 direct vent replace.
Control system congurations:
• The battery-backup feature cannot be used with #KPV
• The wired wall switch feature cannot be used with #KPV
• An appliance with #KPV installed cannot be operated with
battery back-up or a wired wall switch
The #KPV operates on 120VAC, 60Hz electrical service which is
supplied at the replace junction box. The current draw of this device
is 0.85 amperes.
The following vent pipe manufacturers are approved for use with
the Kozy Power Vent: American Metal Products (Ameri-Vent), BDM,
ICC, Metal Fab, Olympia Chimney Supply, Inc., Selkirk, and Simpson
DuraVent.
IMPORTANT OPERATIONAL NOTE: When the control being used to run
the replace is activated, there will be up to a 120 second delay before
pilot ignition will begin. This is to allow a pre-ignition purge by the
#KPV. If after 135 seconds the pilot and burner do not light, refer to
Section 6.0 on page 21 of this manual. There will be also 120 second
post-operation purge in which #KPV will continue to run after the
appliance is turned o.
NOTE: The fan motors present in this power vent will generate sound
during operation. The eects of the increased sound level can be
minimized with careful planning during installation of the system.
1.2 Components and Service Parts List
1.2.1 Service Parts List
Replacement Parts can be obtained from your local dealer. Repair of
the #KPV should only be done by a qualied service technician.
• #KPV-101 Fan Assembly
• #KPV-102 Vacuum Switch
• #KPV-103 Vacuum Tube
• #KPV-104 Cover Assembly
1.2.2 Power Vent Wire Harness - Required
The wire harness connecting the #KPV to the appliance is sold
separately. The length of the wire harness needed varies by
installation.
• 10 ft pv wire harness
• 20 ft pv wire harness
• 40 ft pv wire harness
• 60 ft pv wire harness
• 80 ft pv wire harness
• 100 ft pv wire harness
1.2.3 Optional Components
• Power Vent Finishing Extension Kit: #KPV-FEK
1.3 Installation
1.3.1 Installation Precautions
• This device must be installed by a qualied installer in
accordance with these instructions.
• Safety inspection of the venting system should be performed
before and after installation of this power vent. Installation of
the Kozy Power Vent must comply with local, regional, provincial,
state, and national codes and regulations.
• DO NOT INSTALL DAMAGED EQUIPMENT OR VENT COMPONENTS
• Disconnect electrical power supply before making wiring
connections.
• Venting of more than one appliance in a common vent system is
prohibited.
• Clearances between the vent pipe and combustible materials
must be maintained.
• WARNING: Failure to install, operate, and maintain the power
venting system in accordance with manufacturer's instructions
will result in conditions which may produce bodily injury and/or
property damage.
1.3.2 Installation Guidelines
• The exit termination of mechanical draft systems shall not be less
than seven feet above grade when located adjacent to public
walkways.
• A mechanical drafting venting system shall terminate at least
three feet above any forced air inlet located within 10 feet.
1.3.3 Painting Requirements
The #KPV may be painted to a desired color, as long as the paint
selected has sucient temperature and environmental ratings.
• Thoroughly sand the existing coating prior to painting with
sandpaper or steel wool.
• The front of the cap cover may be eld-painted and cured up to
400 degrees Fahrenheit (204° C). All remaining parts of the cap
may be painted but they may not be cured beyond 190°F (88°C)
due to gaskets and components overheating.
• Certain areas of the cap surface may reach up to 600° F (316°C).
Paints selected should have sucient temperature ratings.
• Cap contains silicone sealant which could aect adherence of
paint. Please advise local painter of silicone content.
1.0 INTRODUCTION

4Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces Kozy Power Vent #KPV
2.0 VENTING
2.1 Venting Requirements
• For information on standard procedures for venting the
appliance, refer to the venting section of your specic appliance
installation manual.
• The #KPV is for use 4" x 6-5/8" coaxial rigid direct vent pipe. A 5"
x 8" to a 4" x 6-5/8" vent reducer for DuraVent and Selkirk vent
systems must be used. See appliance installation manual for
approved venting.
• A minimum of 1 in (25 mm) clearance on all sides of the
vertical vent pipe must be maintained. Attic insulation shields
may be insulated using unfaced insulation products listed as
noncombustible per ASTM E 136.
• A minimum of 1 in (25 mm) clearance on all sides of the
horizontal vent pipe at the wall pass-through must be
maintained. Wall thimble products that comply with the required
1 in (25 mm) clearance to combustibles must be installed for all
horizontal vent runs that pass through interior or exterior walls.
These wall thimble products may be insulated using unfaced
insulation products listed as noncombustible per ASTM E 136.
• For every 1 ft of vertical drop, the total allowable length must be
reduced by 2 ft.
• If a pipe conguration includes a vertical component that goes
downward, a vertical component going back upward is not
allowed.
• Before installation, apply a bead of the provided sealant around
the inner exhaust pipe connection on the replace and the
power vent assembly. See Figures 2.1 and 2.2. Each individual
pipe manufacturer may require or recommend additional sealant
in between each vent pipe connection. After completing the
vent pipe installation, ensure all of the vent pipe connections are
sealed properly before replace operation.
2.1.1 Unit Specic Venting Requirements
• The Callaway-72 starts with a 5" x 8" 45° elbow o the back of
the appliance. Use a required 4" x 6-5/8" reducer o the elbow to
keep venting inside the minimum chamber requirements.

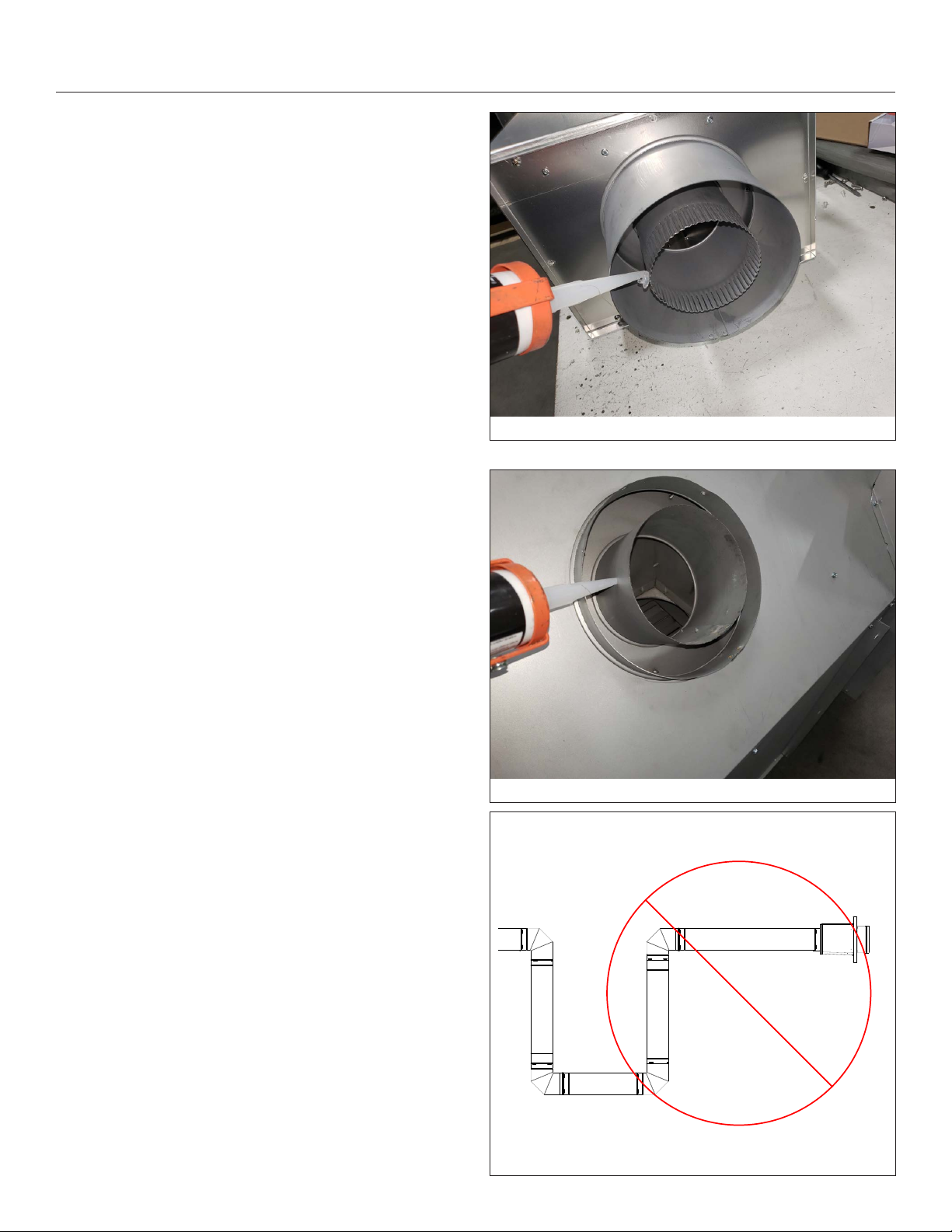

Figure 2.1, Silicone Inner Exhaust on Power Vent Assembly
Figure 2.2, Silicone Inner Exhaust on Fireplace
Figure 2.3, Prohibited Vertical Drop Venting Conguration

Kozy Power Vent #KPV Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces 5
2.2 Horizontal Terminations
• Use Table 2.1 for venting guidelines. Figures 2.2 and 2.3 provide a
guide to calculate total vent run.
• No vertical rise is required with #KPV. The venting can run
horizontal directly o the appliance.

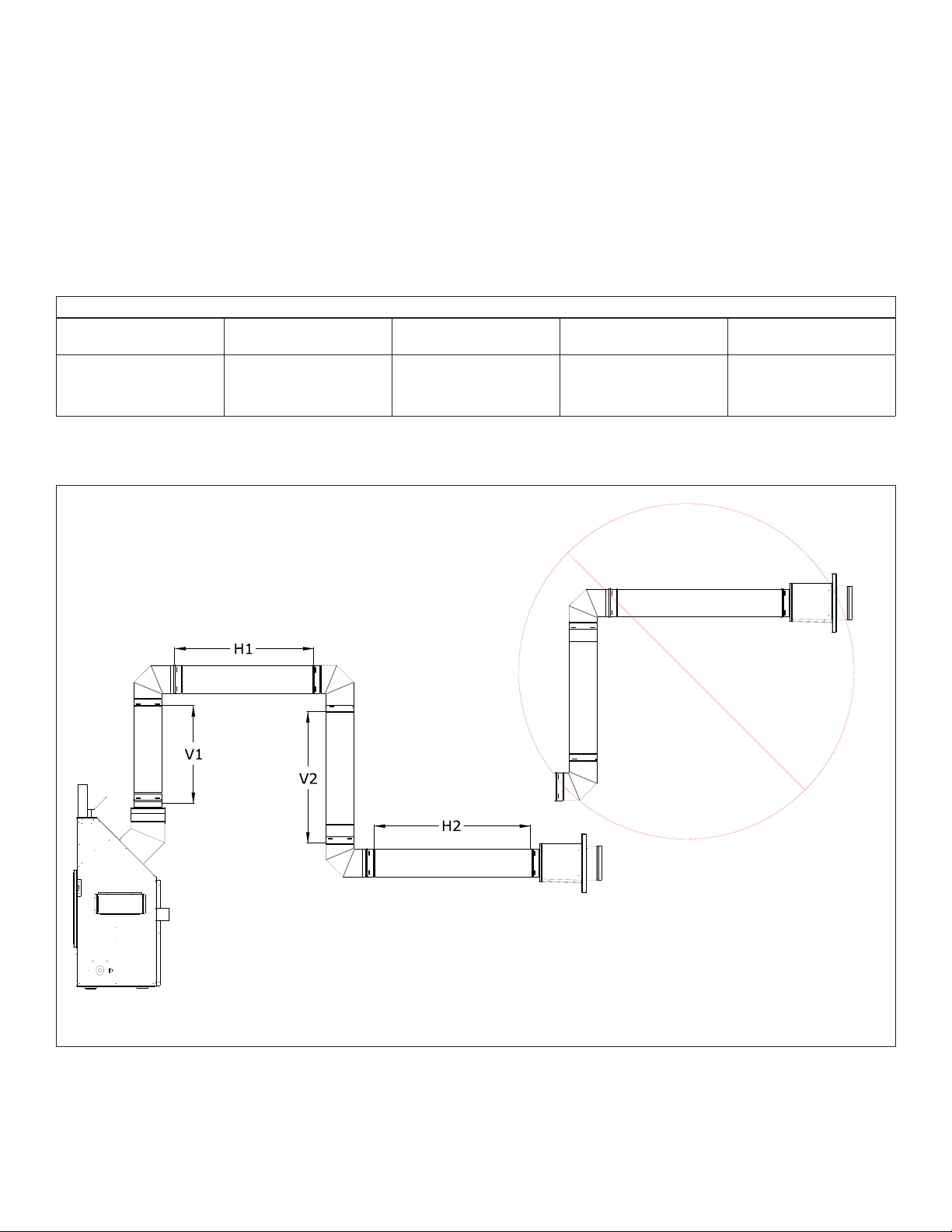

Table 2.1, KPV Venting Guidelines
Maximum Elbows Maximum Total Horizontal
Vent Run
Maximum Vertical Vent Run Maximum Vertical Drop
Allowed
Maximum Total Vent Run
(8) 90° or (16) 45° 60' (18.3 m) 60' (18.3 m) 8' (2.4 m)
For every 1' (30 cm) of vertical
drop the maximum total vent
run is reduced by 2' (61 cm)
100' (30 m)
Figure 2.4, Horizontal Termination Guide 1

6Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces Kozy Power Vent #KPV
Figure 2.5, Horizontal Termination Guide 2

Kozy Power Vent #KPV Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces 7
2.3 Draft Bypass Adjustment
NOTE: All Kozy Power Vent systems will be shipped with the draft
bypass in setting 5. Adjustment of the draft bypass setting would only
occur during troubleshooting or ame appearance adjustments.
The draft bypass system is factory set to setting 5; for certain vent
runs the draft bypass system will need to be adjusted. To adjust the
draft bypass, loosen the locking screw. Adjust clock wise or counter
clockwise depending on your specic installation. See Figures 2.4,
2.5, and 2.6.

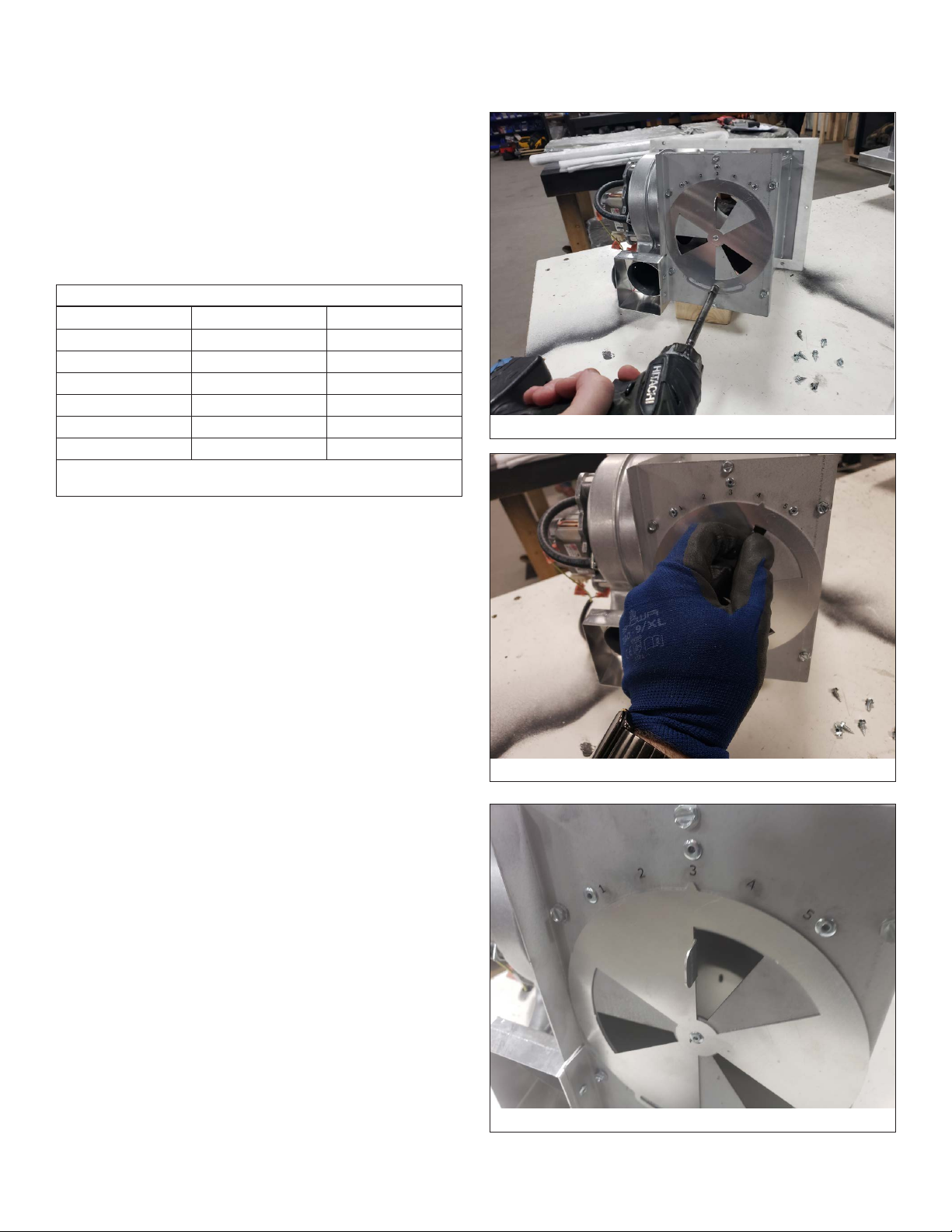

Table 2.2, Callaway 72 - Draft Bypass Setting Chart
Natural Gas Propane
Draft Setting
#1 Not Allowed Allowed*
#2 Not Allowed Allowed*
#3 Allowed Allowed
#4 Allowed Allowed
#5 Allowed Allowed
* This draft setting is allowed on all vent congurations except a vent
conguration with a vertical drop
Figure 2.6, Loosen Locking Screw
Figure 2.7, Adjust the Draft Bypass
Figure 2.8, Shown in Position 3

8Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces Kozy Power Vent #KPV
3.0 FRAMING AND CLEARANCES
3.1 Framing and Clearances

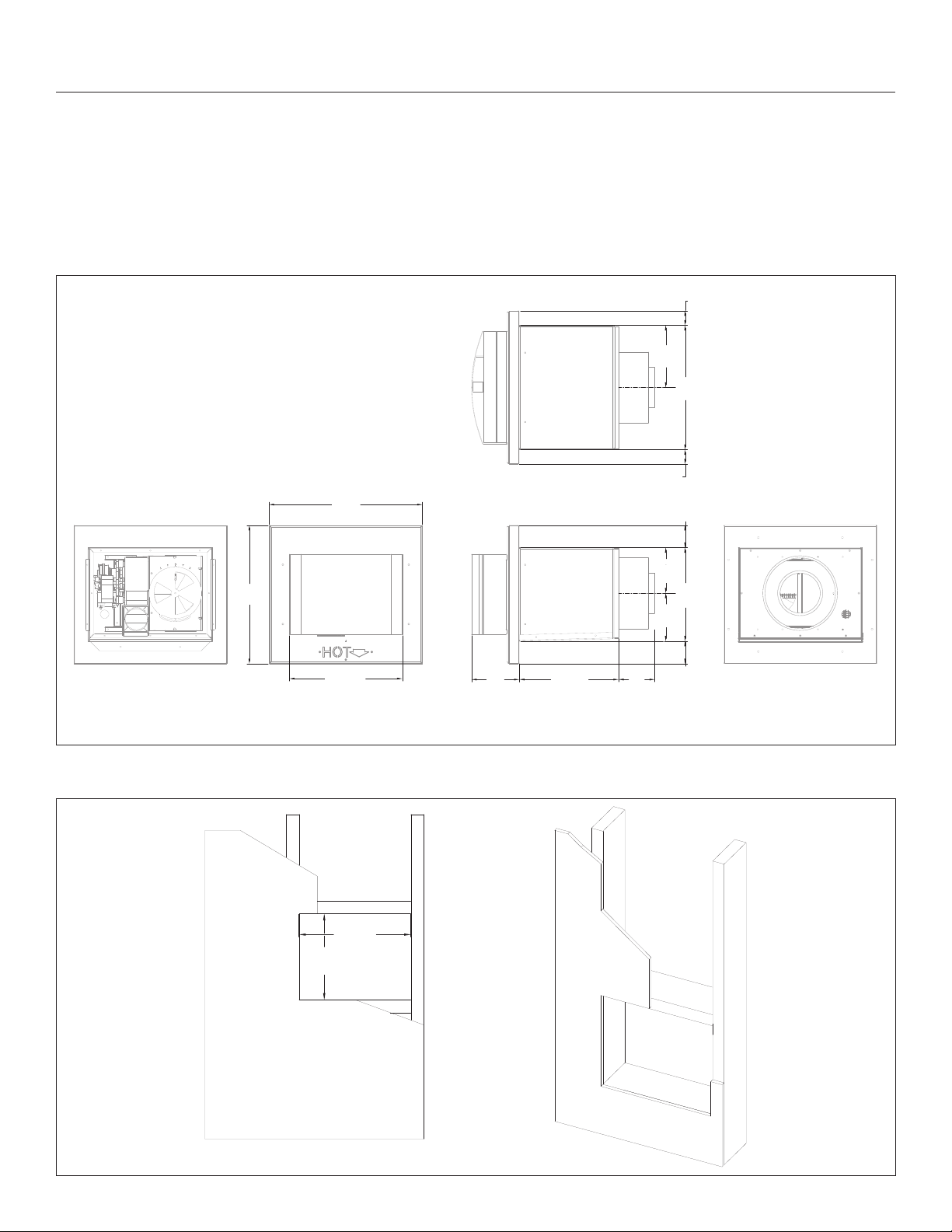

Chassis dimensions are shown in Figure 3.1.
3.1.1 Framing Dimensions
Construct a framework as shown in Figure 3.2. Framework material
should be the same dimensions as the material used for the wall
framing.
IMPORTANT: Framework for #KPV MUST be level to ensure precipitation
does not build up inside the power vent unit.
15½”
(394mm)
14”
(356mm)
11⁄”
(289mm) 4⁄”
(123mm)
10”
(254mm) 3⁄”
(93mm)
2¼”
(57mm)
9½”
(241mm)
4⁄”
(117mm)
6¼”
(159mm)
12½”
(318mm)
4⁄”
(123mm)
2¼”
(57mm)
1½”
(38mm)
1½”
(38mm)
SIDE VIEW
BACK VIEW
FRONT VIEW WITH COVER
FRONT VIEW WITHOUT COVER
TOP VIEW
Figure 3.1, #KPV Dimensions
10”
(254mm)
13”
(330mm)
Figure 3.2, Framing Dimensions

Kozy Power Vent #KPV Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces 9
3.2 Clearances to Combustibles
Figure 3.3, Minimum Clearances to Combustibles
0”
(0mm)
0”
(0mm)
1”
(25mm) to sides of pipe
2½”
(64mm) to back of cap
1”
(25mm) to top and bottom of pipe
0”
(0mm)
0”
(0mm)
TOP VIEW SIDE VIEW

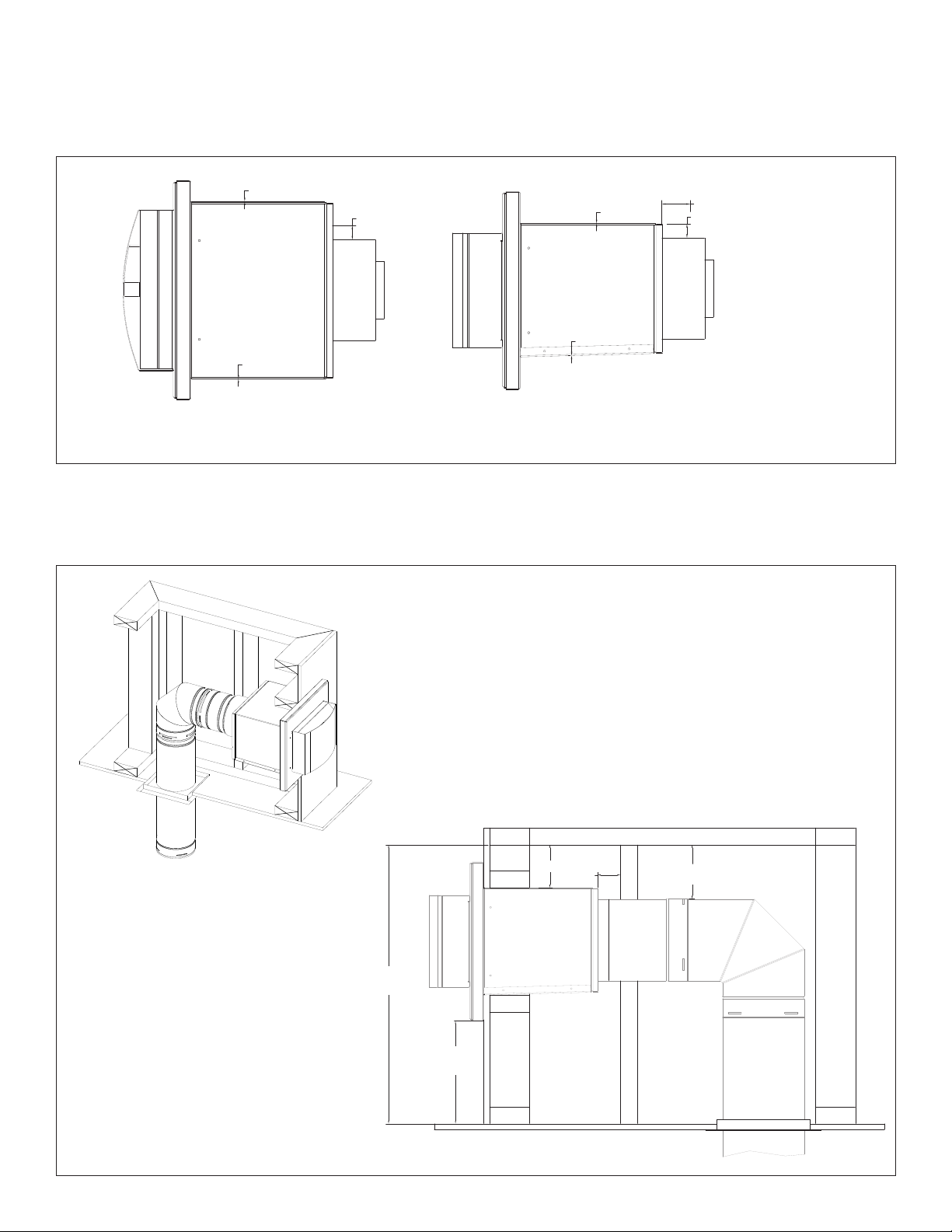

3.3 Rooftop Termination
If the #KPV is going to terminate on a at roof, an enclosure similar to
the one shown in Figure 3.4 needs to be constructed.
Figure 3.4, Minimum Clearances for Rooftop Termination
20¾”
(527mm)
12”
(305mm)
02½”
(64mm)
1”
(25mm)

10 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces Kozy Power Vent #KPV
O
Figure 3.5, Minimum Termination Cap Clearances
3.4 Termination Cap Clearances
MEASURE VERTICAL CLEARANCES FROM THIS SURFACE
MEASURE HORIZONTAL CLEARANCES FROM THIS SURFACE
36”
(914mm)
Canadian installations US installations
AClearance above grade, veranda, porch, deck, or balcony 12 in (30 cm) 12 in (30 cm)
BClearance to window or door that may be opened 12 in (30 cm) 9 in (23 cm)
CClearance to permanently closed window (recommended to prevent condensation on
window)
12 in (30 cm)* 12 in (30 cm)*
DVertical clearance to ventilated sot located above the terminal within a horizontal
distance of 2 feet (61 cm) from the center line of the terminal
0 in (0 cm)* 0 in (0 cm)*
EClearance to unventilated sot 0 in (0 cm)* 0 in (0 cm)*
FClearance to outside corner 0 in (0 cm)* 0 in (0 cm)*
GClearance to inside corner 12 in (30 cm)* 12 in (30 cm)
HClearance to each side of center line extended above meter/regulator assembly 3 ft (91 cm) within a height
15 ft (4.5 m) above the meter/
regulator assembly
*
IClearance to service regulator vent outlet 3 ft (91 cm) *
JClearance to non mechanical air supply inlet to building or the combustion air inlet to
any other appliance
12 in (30 cm) 9 in (23 cm)
KClearance to mechanical air supply inlet 6 ft (1.83 m) 3 ft (91 cm) above if within 10 ft
(3 m) horizontally
Massachusetts: 10 ft (3 m)
LClearance above paved sidewalk or paved driveway located on public property 7 ft (2.13 m)† *
MClearance under veranda, porch deck, or balcony 0 in (0 cm)‡ 0 in (0 cm)
NClearance between two horizontal terminations 12 in (30 cm) 12 in (30 cm)
OAbove furnace exhaust or inlet 12 in (30 cm) 12 in (30 cm)
* Clearance in accordance with local installation codes and the requirements of the gas supplier.
† A vent shall not terminate directly above a sidewalk or paved driveway that is located between two single family dwellings and serves both dwellings.
‡ Permitted only if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the oor.
VINYL SOFFIT, VINYL CEILING, AND VINYL OVERHANG DISCLAIMER: Clearances to heat resistant material (i.e. wood, metal). This does not include vinyl. Hussong
Manufacturing Co., Inc. will not be held responsible for heat damage caused from terminating under vinyl overhangs, vinyl ceilings, or vinyl ventilated/unventi-
lated sots.

Kozy Power Vent #KPV Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces 11

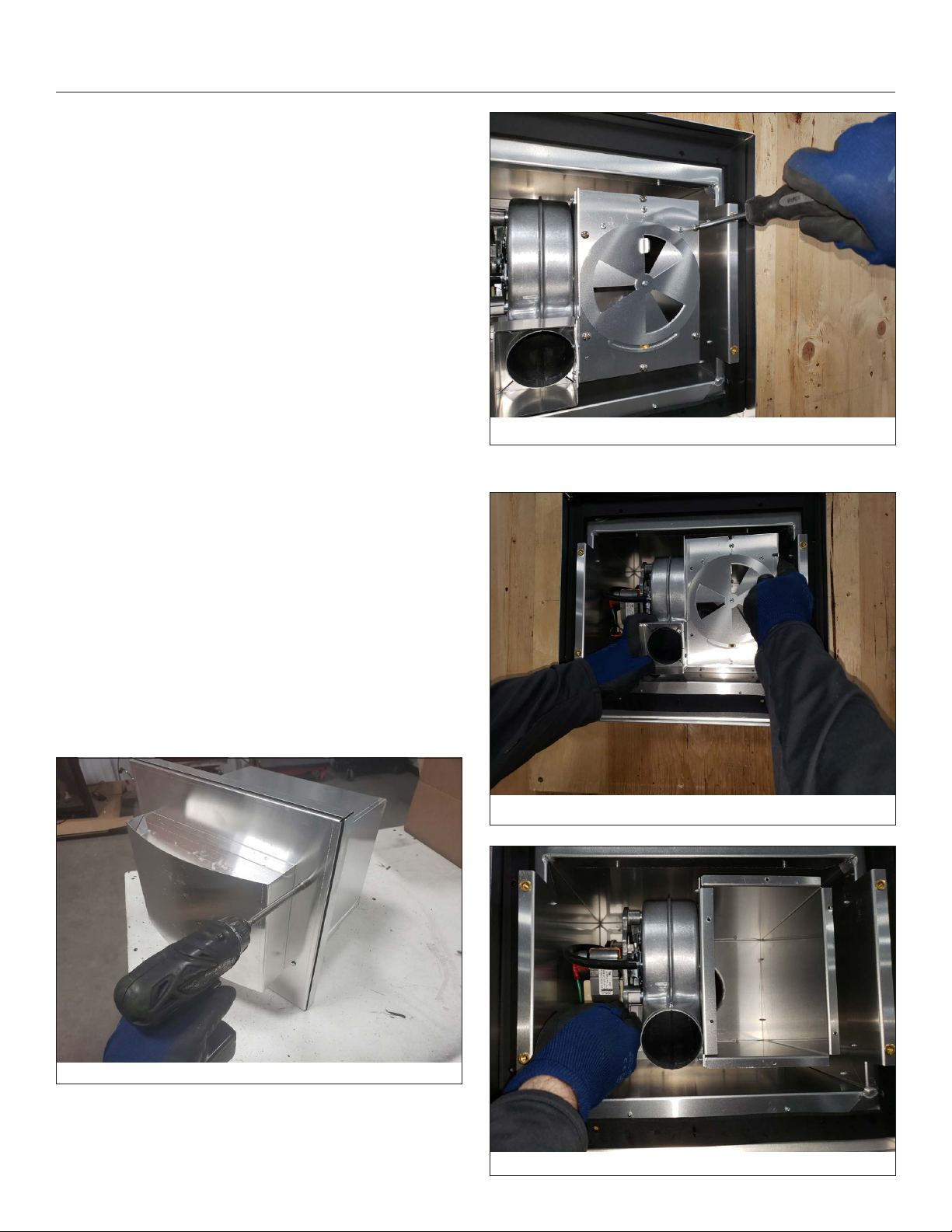

3.5 Installing Vent Cap
1. Remove the eight screws securing the back assembly to the cap.
See Figure 3.6.
2. Slide the exhaust assembly out of the back of the cap. See Figure
3.7 and Figure 3.8.
3. Remove the two corrugated shipping pads. See Figure 3.9.
4. Install #KPV wiring harness through the electrical access hole in
the back cover cap. See Figure 3.10. Instructions continue on the
next page.
Figure 3.6, Remove Back Assembly
Figure 3.7, Removing Exhaust Assembly
Figure 3.8, Exhaust Assembly Removed
Figure 3.9, Remove Corrugated Shipping Pads
Figure 3.10, #KPV Wiring Harness

12 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces Kozy Power Vent #KPV

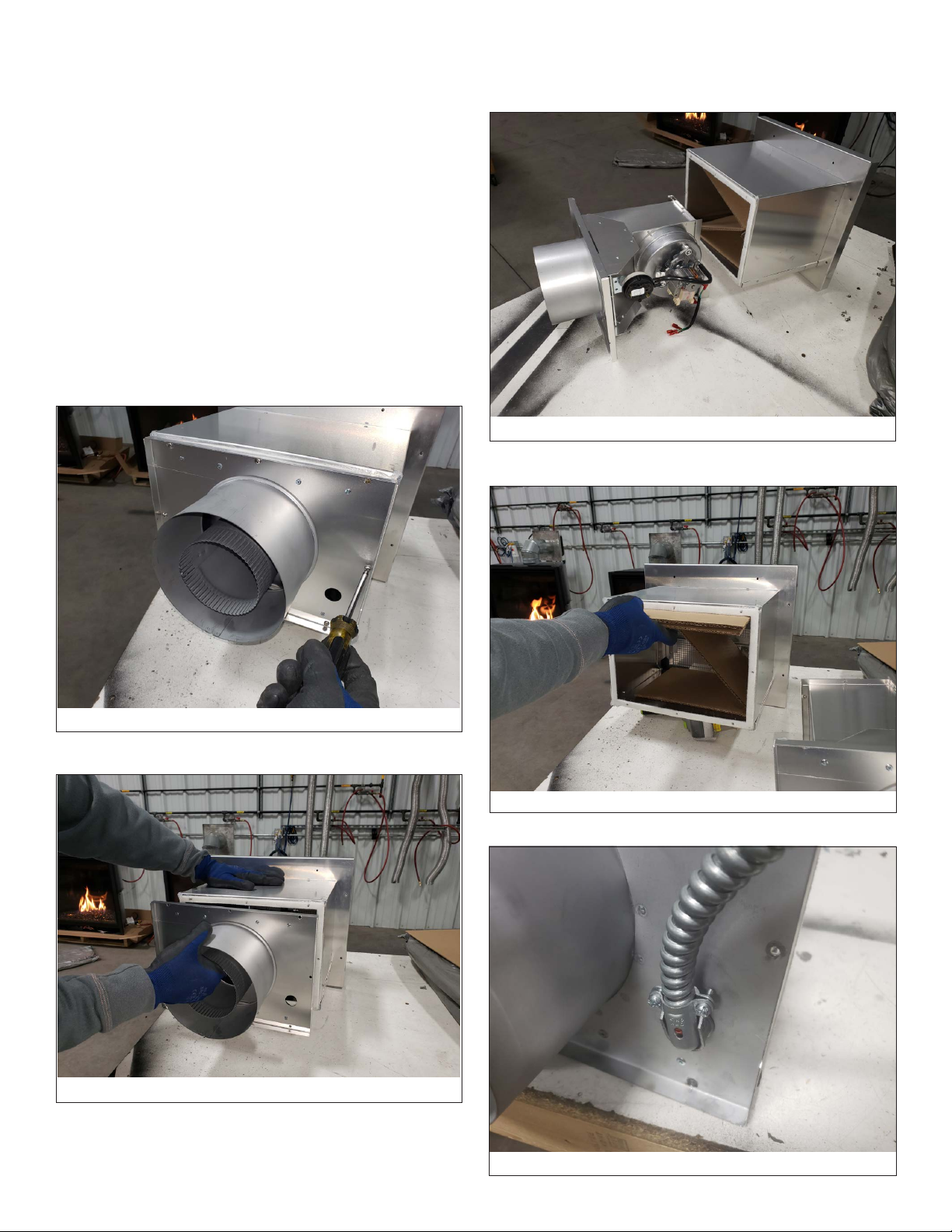

Figure 3.11, Tape Measure Wire
Figure 3.12, Vacuum Switch
Figure 3.13, Wires Connected
NOTE: Make sure there is no more than 6 inches of wire extending
through the back cap cover. See Figure 3.11.
5. Attach the red and brown wires to the vacuum switch as shown
in Figure 3.12.
6. Attach the white and black wires from the #KPV harness to the
black wires coming from the blower. Attach the green wire from
the #KPV harness to the green/yellow wire coming from the fab.
7. NOTE: After all wires are connected, the wire should look like the
picture in Figure 3.13.
8. Proceed to Section 3.5.1 Finishing Materials on page 13.

Kozy Power Vent #KPV Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces 13
3.5.1 Finishing Materials
NOTE: A #KPV-FEK Finishing Extension Kit will be needed for
installations with exterior nishing materials greater than 1" thick.
Order with the appliance and venting system. It will be used to ensure
that the nishing is done to appropriate size for the #KPV-FEK to be
installed properly.
IMPORTANT: IT IS IMPERATIVE THAT #KPV-FEK IS LEVEL TO ENSURE THE
POWER VENT IS LEVEL. THIS IS REQUIRED TO ENSURE PRECIPITATION
DOES NOT BUILD UP INSIDE THE CAP. Care should be taken to ensure
#KPV-FEK is secured at to the wall.
NOTE: Sealant used must have a minimum of 300°F continuous
exposure rating.
If installing nishing material less than 1 inch thick, skip to Step 10 on
the next page.
1. Place assembled box over the framed opening in the wall with
outside anges oriented vertically and held tight to the building
exterior.
2. Drive two of the supplied wood screws through opposite ends
of the two outer anges. This will secure #KPV-FEK extension
box to the building and allow for squaring of the #KPV-FEK. See
Figure 3.14. Seal all corners, joints, and bend lines with silicone
caulk. Ensure all gaps and holes are lled so a sealed envelope is
formed.
3. The wall is now ready to be nished. Finishing materials such as
stone, marble, or brick can then be applied up to the anges of
the #KPV-FEK that protrude perpendicular to the wall. This will
ensure that the cap will t into the opening after nishing has
been completed.
NOTE: Outside anges of the #KPV-FEK must not have any pressure on
them from the nishing materials. This could cause the opening left
after nishing to be too small.
4. After the #KPV-FEK has been installed and the nishing of the
wall is completed, apply a bead of silicone to the #KPV-FEK
around the entire metal ange.
5. Apply a bead of silicone along the backside of the entire metal
ange of #KPV. Align with #KPV-FEK as shown in Figure 3.15.
Ensure cap is level and square, then secure #KPV to #KPV-FEK
with (8) screws.
6. Reinstall the #KPV back assembly that was removed in Step 1 of
Section 3.5. See Figure 3.16
7. After the #KPV has been secured to the #KPV-FEK, silicone should
be applied around the outer edge of #KPV-FEK where it meets
the building exterior. Silicone should also be applied where #KPV
and #KPV-FEK meet, as shown in Figure 3.17 on the following
page.
8. Place decorative cover onto cap and fasten. Once cover has been
secured, installation is complete.
9. Place a bead of silicone on the back side of the mounting ange
for the cap. See Figure 3.18 on the next page. Instructions
continue on the next page.
Figure 3.16, Attaching KPV to KPV-FEK
Figure 3.15, FEK Attached to Wall
OUTSIDE FLANGE
(SECURE FIRST)
APPLY SILICONE (with a min. of 300°F
continuous exposure rating)TO
PERFORATED HOLES
APPLY SILICONE (with a min. of 300°F
continuous exposure rating)TO
TOP CORNERS
APPLY SILICONE (with a min. of 300°F
continuous exposure rating)TO
FLANGE
Figure 3.14, Level Installed
FEK
SECURE TO BUILDING EXTERIOR
USING TOP (2) AND BOTTOM (2)
MOUNTING HOLES

14 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces Kozy Power Vent #KPV
Figure 3.17, Silicone Weather Sealing
Figure 3.18, Silicone Backside
10. Install cap into the wall and attach the cap to the wall using the
eight screws provided. See Figure 3.19.
NOTE: Be careful not to tear the gasket on the mounting ange on the
#KPV back assembly during re-assembly in Step 12.
11. Reinstall the #KPV back assembly that was removed in Step 1 of
Section 3.5.
12. Once the cap is fastened to the wall, apply a bead of silicone
(with a minimum of 300°F continuous exposure rating) around
the cap base. See Figure 3.20.
13. Reinstall cap cover using four screws removed earlier.
SILICONE (with a min. of 300°F
continuous exposure rating)
ALL (4) SIDES
Figure 3.19, Install Cap into Wall
Figure 3.20, Silicone around the Cap Base

Kozy Power Vent #KPV Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces 15
4.0 ELECTRICAL INFORMATION
4.1 Wiring to the Appliance
NOTE: Electrical wiring must be done in accordance with national,
provincial, and/or local electrical codes.
WARNING: Disconnect electrical power from replace/power vent
before performing any maintenance, repair, or electrical wiring.
NOTE: Electrical service of 120 VAC-60Hz must be supplied to the
junction box of the replace in order for the power vent to operate
correctly. The current draw of this device is 0.85 amperes.
Ensure that the proper clearances are maintained for wiring and
conduit. When installing the wiring, it must never run above the vent
run and it must be a minimum 1" from all venting.
The battery back up will not run with power venting installed.

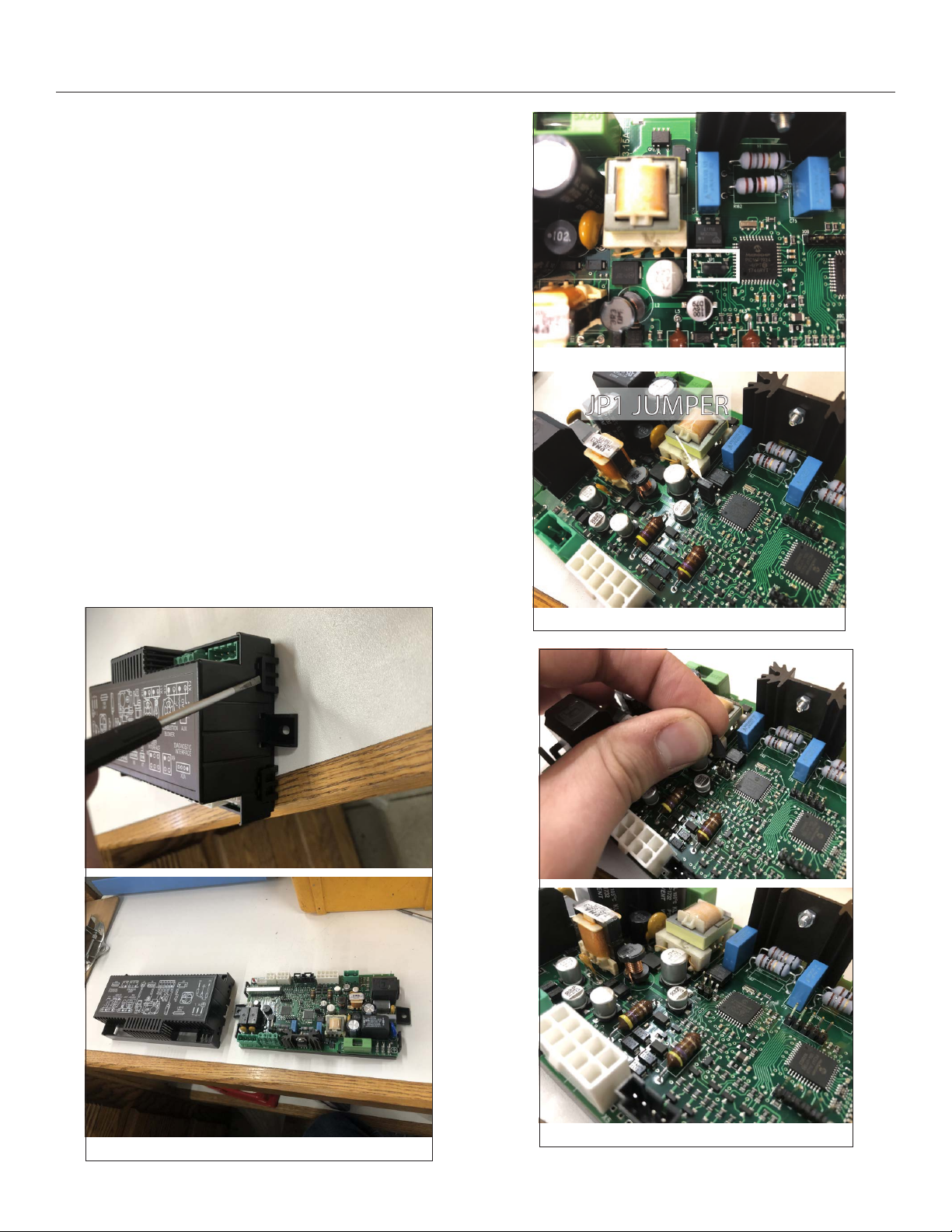

4.1.1 Prepare Control Board
1. Use a at blade screwdriver to pry the tabs of the top cover of
the control module to release.
2. Locate the JP1 jumper. It is a small plastic jumper that connects
two pins as shown in Figure 4.2.
3. Pull the plastic jumper straight up to expose the two individuals
pins underneath it. This changes the control module function
from a natural draft system to a power vent system. See Figure
4.3.
4. Reinstall control module top cover. Plug in all components
previously unplugged.
Figure 4.1, Remove Control Board Cover
Figure 4.2, JP1 Jumper
Figure 4.3, Plastic Jumper Removed

16 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces Kozy Power Vent #KPV
4.1.2 Wiring the KPV to the Appliance
NOTE: Use Figure 4.7 and Figure 4.8 as wiring schematic references
when following the individual instructions below.
1. Find the hole in either side of the replace for access to Power
Vent wiring. See the top picture of Figure 4.4. The power vent
wire harness hole is located on a removable plate. Remove
screws that attach this plate to the outer shell for easier access.
Reattach the plate when nished. Run the loose wiring through
the larger section of the opening until you reach the start of the
exible conduit. Unscrew the nut from the conduit end and slide
the conduit end into the smaller section of this opening. Screw
the locking nut back on the threads of the conduit securing it to
the replace. See the bottom picture of Figure 4.4
2. The power vent wire harness has the black hot wire split with
two female quick connections on either end. Plugs these into the
black leads that have quick connections coming o the control
module in the X12 combustion blower location. See Figure 4.5.
3. Locate the blue looped wire on the control module wire harness
that connects to the IPI/CPI location on the control module. Cut
this looped wires so you have two individual blue wires.
4. Locate the yellow looped "APS" wire on the control module wire
harness. Cut this looped wire for two individual yellow wires.
Strip back approximately 1/2" of the end of each wire. Using the
(2) provided blue wire nuts, twist one of the yellow APS wires
into the black wire coming from the vacuum switch in the power
vent assembly. Use the second blue wire nut to twist the second
yellow APS wire to the red wire coming from the vacuum switch
as shown in Figure 4.6.
5. Run the other end of the power vent wiring to the power vent
termination assembly. For attaching the wire harness to the fan
and vacuum switch, refer to Section 3.5 on page 11.
Figure 4.4, CLW-72 Power Vent Wire Harness Hole Location
Figure 4.5, Quick Connections to Black Leads
Figure 4.6, APS Wire Nuts
POWER VENT WIRE HARNESS HOLE LOCATION

Kozy Power Vent #KPV Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces 17
GREEN
BLACK
WHITE
RED
BROWN
Figure 4.7, Power Vent Internal Wiring

18 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces Kozy Power Vent #KPV
VACUUM SWITCH
FAN
BROWN
RED
WHITE
BLACK
GREEN
BLUE
BROWN RED
YELLOW
BLACK BLACK
Figure 4.8, Fireplace Internal Wiring

Kozy Power Vent #KPV Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces 19
5.0 MAINTENANCE
WARNING: Before performing any maintenance or repair to the power
vent assembly, make sure electrical power is disconnected to the
replace.
Vent System: Inspect all components and connections annually.
Replace, seal, or tighten pipe connections if necessary.
Motor: the fan motor bearings are sealed and no further lubrication
is necessary. To access the motor, vacuum switch, or pressure sense
tube, refer to Section 5.1.
5.1 Replace Fan Assembly/Vacuum Switch
WARNING: Before performing any maintenance or repair to the power
vent assembly, make sure electrical power is disconnected to the
replace.
1. Remove (4) screws securing the front cover assembly and set
aside. See Figure 5.1.
2. Remove (6) screws securing the exhaust housing cover and set
aside. See Figure 5.2 and Figure 5.3.
3. Remove the hot, neutral, and ground wire from the front of the
fan assembly. See Figure 5.4.
4. Remove the vacuum tube from fan assembly. See Figure 5.5 on
the following page.
5. Remove the three screws securing the fan assembly. See Figure
5.6 on the next page.
6. Remove fan assembly from housing. See Figure 5.7 on the next
page
7. Remove the two screws holding the vacuum switch bracket to
the exhaust housing. See Figure 5.8 on the following page.
8. Remove the vacuum switch. See Figure 5.9 on the following
page.
9. After replacing the components, reinstall all the previously
removed components in reverse order.
Figure 5.1, Front Cover Assembly Removal
Figure 5.2, Exhaust Assembly Screws
Figure 5.3, Exhaust Assembly Removal
Figure 5.4, Remove Hot, Neutral and Ground wire

20 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces Kozy Power Vent #KPV
Figure 5.5, Remove Vacuum Tube
Figure 5.6, Remove (3) Screws Securing Fan Assembly
Figure 5.7, Fan Assembly Removal
Figure 5.8, Screws Securing Vacuum Switch Bracket
Figure 5.9, Vacuum Switch Removal
