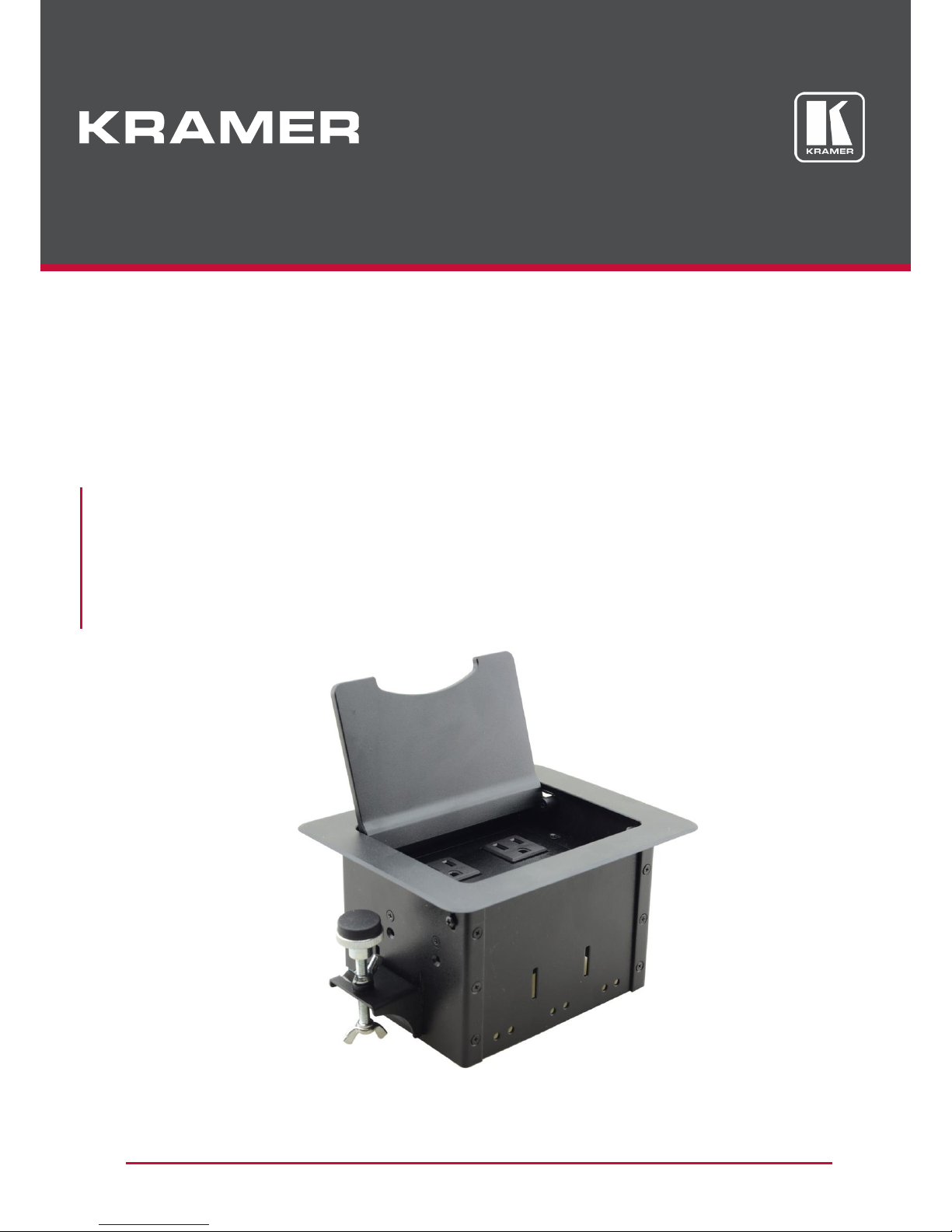

USER MANUAL

MODEL:

TBUS-3US-22

Table Connection Bus

TBUS-3US-22 –Introduction

Contents

Introduction 1

Getting Started 1

Overview 2

Typical Applications 2

Defining the TBUS-3US-22 Table Connection Bus 3

Installing the TBUS-3US-22 5

Cutting an Opening in the Table 5

Inserting the TBUS-3US-22 through the Cut-out Opening 6

Replacing the Blank Insert 7

Inserting the Pass-through Cables 7

Connecting to the TBUS-3US-22 8

Technical Specifications 9

Kramer Electronics Ltd.

TBUS-3US-22 –Introduction

Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of

unique, creative, and affordable solutions to the vast range of problems that confront the video,

audio, presentation, and broadcasting professional on a daily basis. In recent years, we have

redesigned and upgraded most of our line, making the best even better!

Our 1,000-plus different models now appear in 15 groups that are clearly defined by function:

GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers; GROUP 3: Control

Systems; GROUP 4: Format & Standards Converters; GROUP 5: Range Extenders &

Repeaters; GROUP 6: Specialty AV Products; GROUP 7: Scalers; GROUP 8: Cables and

Connectors; GROUP 9: Room Connectivity; GROUP 10: Mounting and Rack Adapters;

GROUP 11: Sierra Video; GROUP 12: Digital Signage; GROUP 13: Audio; and GROUP 14:

Collaboration; GROUP 15: KM & KVM Switches.

Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging materials for

possible future shipment.

Review the contents of this user manual.

Go to www.kramerav.com/downloads/TBUS-3US-22 to check for up-to-date user manuals,

application programs, and to check if firmware upgrades are available (where appropriate).

Achieving the Best Performance

Use only good quality connection cables (we recommend Kramer high-performance,

high-resolution cables) to avoid interference, deterioration in signal quality due to poor

matching, and elevated noise levels (often associated with low quality cables).

Do not secure the cables in tight bundles or roll the slack into tight coils.

Avoid interference from neighbouring electrical appliances that may adversely influence

signal quality.

Position your Kramer TBUS-3US-22 away from moisture, excessive sunlight and dust.

This equipment is to be used only inside a building. It may only be connected to other

equipment that is installed inside a building.

Kramer Electronics Ltd.

TBUS-3US-22 –Introduction

Safety Instructions

Caution:

There are no operator serviceable parts inside the unit.

Warning:

Use only the power cord that is supplied with the unit.

Warning:

Do not open the unit. High voltages can cause electrical shock! Servicing by

qualified personnel only.

Warning:

Disconnect the power and unplug the unit from the wall before installing.

Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce

the amount of WEEE sent for disposal to landfill or incineration by requiring it to be collected

and recycled. To comply with the WEEE Directive, Kramer Electronics has made

arrangements with the European Advanced Recycling Network (EARN) and will cover any

costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on

arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular

country go to our recycling pages at www.kramerav.com/support/recycling.

Overview

The Kramer TBUS-3US-22 is a high-quality, anodized aluminum, table-mounted connection

bus enclosure for boardrooms and conference rooms. Its attractive enclosure is designed to

provide maximum connectivity in the smallest possible footprint. TBUS-3US-22 includes two

US power sockets and two inserts (one pass-through and one blank, both which can be

replaced by any other Kramer inserts).

The unit is sturdy, cost-effective, and easy to install.

Typical Applications

The TBUS-3US-22 is ideal for:

Boardrooms.

Conference rooms.

Training rooms.

Hotel lobbies.

Cafes and restaurants.

Kramer Electronics Ltd.

TBUS-3US-22 –Defining the TBUS-3US-22 Table Connection Bus

Defining the TBUS-3US-22 Table

Connection Bus

This section defines the TBUS-3US-22.

Figure 1: Defining the Parts of the TBUS-3US-22 Table Connection Bus

Feature

Function

Black/Clear Anodized

Sandblast Textured Lid

Includes an opening for cable pass-through; covers the inner frame,

leaving the table surface neat and tidy.

Outer Rim

Fits over the table surface.

A protective rubber guard protects the outer rim during shipping.

Remove it before installing the unit.

Connecting Surface

See Figure 2.

Enclosure

Inserted into the table cut out.

Mounting Clamp Slits (4 sets

on each of the sides)

Insert the mounting clamps to the slits when installing TBUS-3US-22.

Kramer Electronics Ltd.

TBUS-3US-22 –Defining the TBUS-3US-22 Table Connection Bus

Feature

Function

Tie Holes

Insert the self-locking tie through the holes to fix the pass-through cables

to the inside walls of the unit.

Mounting Screws with

Rubber Protectors (x2)

Protect the table surface when mounting the unit and ensure soft

tightening to the table underside (one for each clamp).

Locking Butterfly Nuts(x2)

Tighten to lock the mounting butterfly screw (one for each clamp).

Mounting Butterfly Nuts(x2)

Tighten to secure the unit to the table surface (one for each clamp).

Mounting Clamp (x2 units)

Place in the clamp slits after inserting the enclosure into the table –for

securing the unit to the table surface.

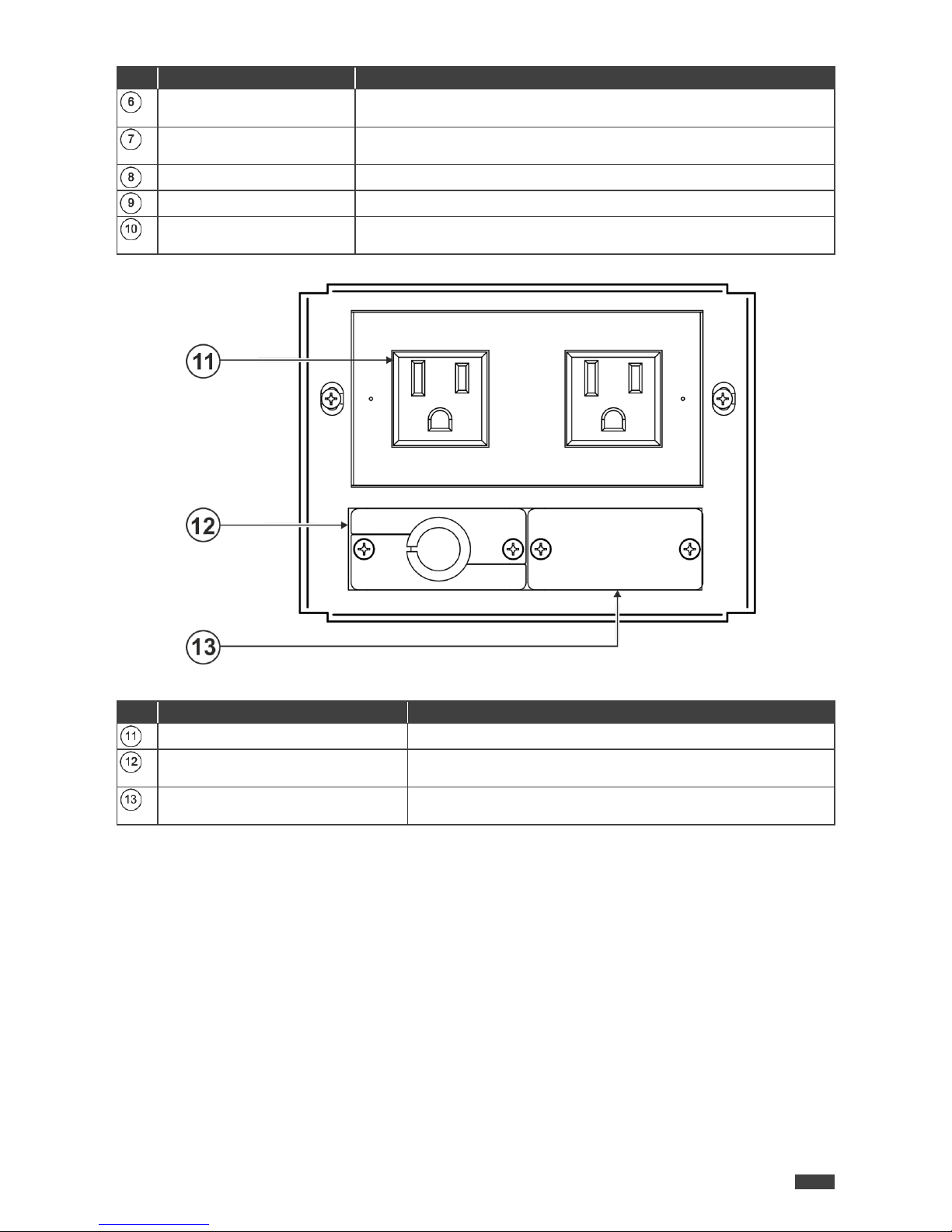

Figure 2: TBUS-3US-22 Connecting Surface

Feature

Function

5A/125V Power Connector (x2)

Connect to a US power consuming device.

Split Pass-through Bracket with

Grommet

Use for passing through cables.

Blank Single Insert

Can be replaced with Kramer passive wall plates or connector

modules for interfacing A/V type signals.

Kramer Electronics Ltd.

TBUS-3US-22 –Installing the TBUS-3US-22

Installing the TBUS-3US-22

TBUS-3US-22 Installation includes the following steps:

Cutting an Opening in the Table on page 5.

Inserting the TBUS-3US-22 through the Cut-out Opening on page 6.

Replacing the Blank Insert on page 7.

Inserting the Pass-through Cables on page 7.

Connecting to the TBUS-3US-22 on page 8.

Cutting an Opening in the Table

The cut-out template defines the surface you have to cut out to install your TBUS-3US-22.

The thickness of the table should be 76mm (3”) or less.

To cut an opening in a table:

1. Download the latest cut-out dimensions from the Kramer website at

www.kramerav.com/downloads/TBUS-3US-22 and print it.

2. Place the cut-out template on the surface of the table exactly where you want to install

the TBUS-3US-22.

3. Mark the size of the opening according to the template.

4. Cut a hole in the table surface with a sabre, keyhole or jig saw according to the cut out

dimensions.

Figure 3: Cut-out Dimensions (not to scale)

5. Clean the table surface.

Take care not to damage the table. Kramer Electronics is not responsible for any damage

caused to the table.

Kramer Electronics Ltd.

TBUS-3US-22 –Installing the TBUS-3US-22

Inserting the TBUS-3US-22 through the Cut-out Opening

To insert and secure the TBUS-3US-22:

1. Remove the protective rubber guard from around the outer rim of the

TBUS-3US-22 housing. Beware of the sharp edge!

2. Carefully insert the unit into the prepared opening.

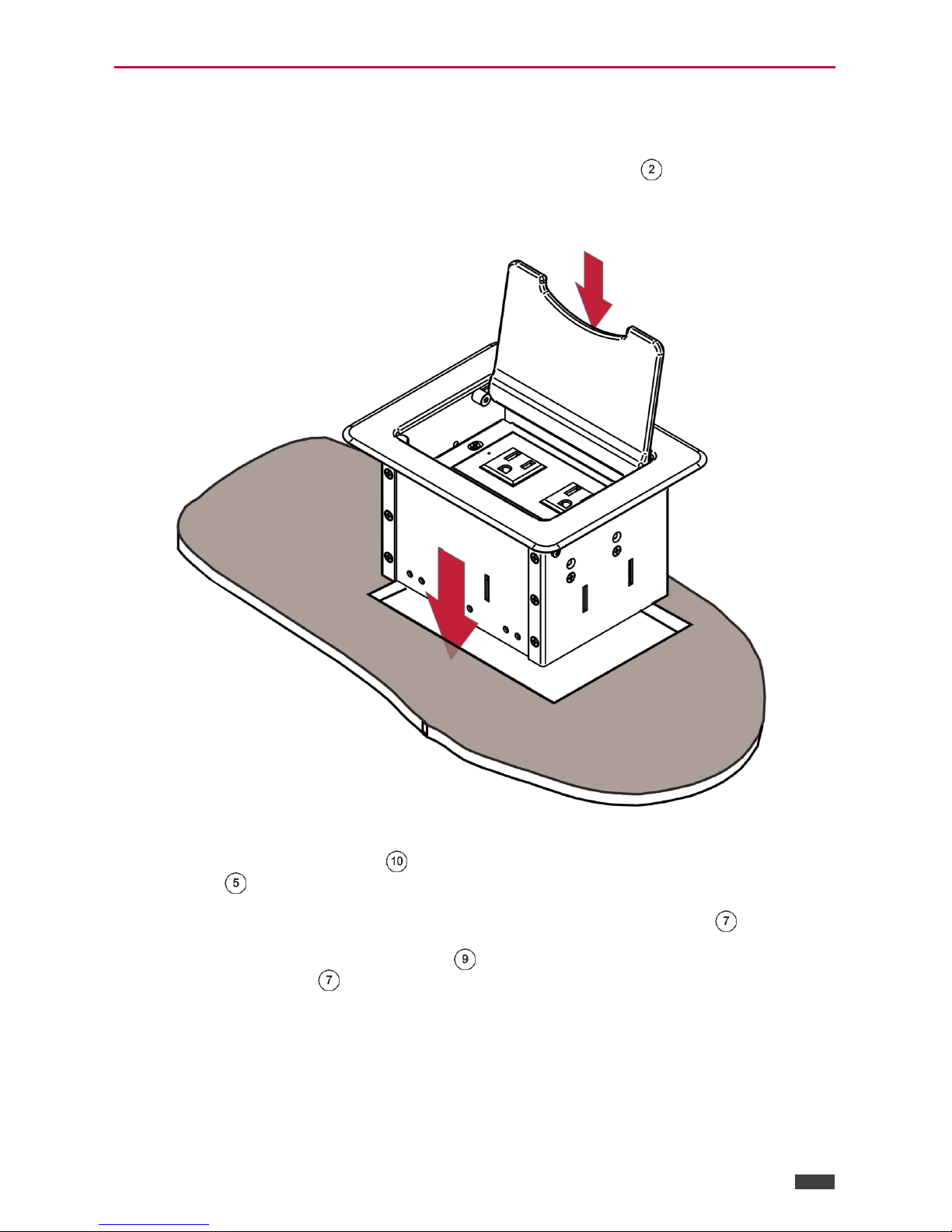

Figure 4: Inserting TBUS-3US-22 into the Table Opening

3. Take the mounting clamps under the table and place them into the support clamp

slits on both sides of the unit.

4. Verify proper alignment of the unit before tightening the mounting screws .

5. Tighten both mounting butterfly nuts upward until the rubber protectors on the

mounting screws reach the table surface (from underneath). Tighten firmly.

Kramer Electronics Ltd.

TBUS-3US-22 –Installing the TBUS-3US-22

6. Tighten the locking butterfly screws downward until they are tight against the

mounting clamp.

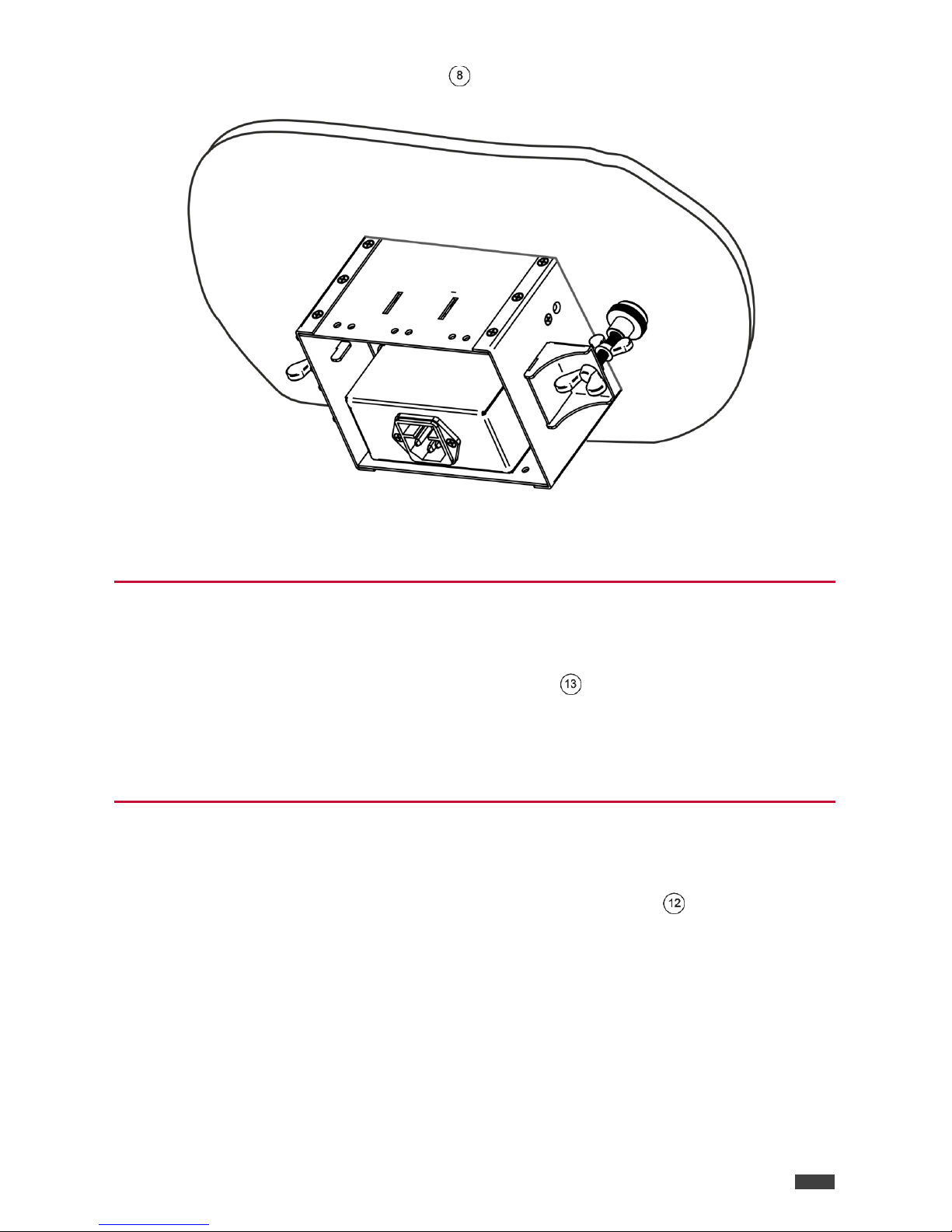

Figure 5: Locking TBUS-3US-22 under the Table

7. Connect the power cable from underneath the TBUS-3US-22.

Replacing the Blank Insert

To mount a Kramer insert or connector module:

1. Unscrew the two screws that fasten the blank plate to the inner frame and remove

the blank plate.

2. Place the required Kramer insert over the opening, insert the two screws to fix the

Kramer insert in place, and tighten them.

Inserting the Pass-through Cables

To insert the pass through cables (for example, to connect to a laptop):

1. Remove the two screws that fasten the split pass-through bracket .

2. Remove the split grommet.

3. Insert the cable through the rectangular opening.

4. Open the split grommet slightly and insert the required cables.

5. Replace the split pass-through bracket.

Kramer Electronics Ltd.

TBUS-3US-22 –Installing the TBUS-3US-22

Connecting to the TBUS-3US-22

You can connect the following devices to the TBUS-3US-22.

Figure 6: Connecting TBUS-3US-22

Kramer Electronics Ltd.

TBUS-3US-22 –Technical Specifications

Technical Specifications

Ports

2 US Power Sockets

For powering devices

Inserts

1 Single Blank

For replacing with Kramer inserts

1 Pass-through Single

For passing cables from beneath the

table

Power

Consumption

125V AC, 50/60Hz, 5A max

Fuse Rating

T 6.3A 250V

Environmental

Conditions

Operating Temperature

0° to +40°C (32° to 104°F)

Storage Temperature

-40° to +70°C (-40° to 158°F)

Humidity

10% to 90%, RHL non-condensing

Regulatory

Compliance

Safety

CE, UL

Environmental

RoHs, WEEE

Enclosure

Type

Aluminum

General

Net Dimensions with Clamps (W, D, H)

21.2cm x 11cm x 14cm

(8.4" x 4.3" x 5.5")

Shipping Dimensions (W, D, H)

26.5cm x 30cm x 21.5cm

(10.4" x 11.8" x 8.5")

Net Weight with Clamps

1.5kg (3.3lbs) approx.

Net Weight without Clamps

1.4kg (3.1lbs) approx.

Shipping Weight

2.3kg (5.1lbs) approx.

Accessories

Included

Clamp set, metal cut-out template,

6 self-locking ties

Specifications are subject to change without notice at www.kramerav.com

The warranty obligations of Kramer Electronics Inc. (“Kramer Electronics”) for this product are limited to the terms set forth below:

What is Covered

This limited warranty covers defects in materials and workmanship in this product.

What is Not Covered

This limited warranty does not cover any damage, deterioration or malfunction resulting from any alteration, modification, improper or unreasonable use

or maintenance, misuse, abuse, accident, neglect, exposure to excess moisture, fire, improper packing and shipping (such claims must be presented to

the carrier), lightning, power surges, or other acts of nature. This limited warranty does not cover any damage, deterioration or malfunction resulting from

the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone

unauthorized by Kramer Electronics to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship

of this product. This limited warranty does not cover cartons, equipment enclosures, cables or accessories used in conjunction with this product.

Without limiting any other exclusion herein, Kramer Electronics does not warrant that the product covered hereby, including, without limitation, the

technology and/or integrated circuit(s) included in the product, will not become obsolete or that such items are or will remain compatible with any other

product or technology with which the product may be used.

How Long this Coverage Lasts

The standard limited warranty for Kramer products is seven (7) years from the date of original purchase, with the following exceptions:

1. All Kramer VIA products are covered by a standard three (3) year warranty for VIA hardware and a standard one (1) year warranty for

firmware and software updates. (An extended software warranty plan for an additional 2 years can be purchased separately).

2. All Kramer fiber optic cables and adapters, active cables, cable retractors, all Kramer speakers and Kramer touch panels are covered by a

standard one (1) year warranty.

3. All Kramer Cobra products, all Kramer Calibre products, all Kramer Minicom digital signage products, all HighSecLabs products, all

streaming, and all wireless products are covered by a standard three (3) year warranty.

4. All Sierra Video MultiViewers are covered by a standard five (5) year warranty.

5. Sierra switchers & control panels are covered by a standard seven (7) year warranty (excluding power supplies and fans that are covered for

three (3) years).

6. K-Touch software is covered by a standard one (1) year warranty for software updates.

7. All Kramer passive cables are covered by a ten (10) year warranty.

Who is Covered

Only the original purchaser of this product is covered under this limited warranty. This limited warranty is not transferable to subsequent purchasers or

owners of this product.

What Kramer Electronics Will Do

Kramer Electronics will, at its sole option, provide one of the following three remedies to whatever extent it shall deem necessary to satisfy a proper claim

under this limited warranty:

1. Elect to repair or facilitate the repair of any defective parts within a reasonable period of time, free of any charge for the necessary parts and

labor to complete the repair and restore this product to its proper operating condition. Kramer Electronics will also pay the shipping costs

necessary to return this product once the repair is complete.

2. Replace this product with a direct replacement or with a similar product deemed by Kramer Electronics to perform substantially the same

function as the original product.

3. Issue a refund of the original purchase price less depreciation to be determined based on the age of the product at the time remedy is sought

under this limited warranty.

What Kramer Electronics Will Not Do Under This Limited Warranty

If this product is returned to Kramer Electronics or the authorized dealer from which it was purchased or any other party authorized to repair Kramer

Electronics products, this product must be insured during shipment, with the insurance and shipping charges prepaid by you. If this product is returned

uninsured, you assume all risks of loss or damage during shipment. Kramer Electronics will not be responsible for any costs related to the removal or re-

installation of this product from or into any installation. Kramer Electronics will not be responsible for any costs related to any setting up this product, any

adjustment of user controls or any programming required for a specific installation of this product.

How to Obtain a Remedy Under This Limited Warranty

To obtain a remedy under this limited warranty, you must contact either the authorized Kramer Electronics reseller from whom you purchased this

product or the Kramer Electronics office nearest you. For a list of authorized Kramer Electronics resellers and/or Kramer Electronics authorized service

providers, visit our web site at www.kramerav.com or contact the Kramer Electronics office nearest you.

In order to pursue any remedy under this limited warranty, you must possess an original, dated receipt as proof of purchase from an authorized Kramer

Electronics reseller. If this product is returned under this limited warranty, a return authorization number, obtained from Kramer Electronics, will be

required (RMA number). You may also be directed to an authorized reseller or a person authorized by Kramer Electronics to repair the product.

If it is decided that this product should be returned directly to Kramer Electronics, this product should be properly packed, preferably in the original carton,

for shipping. Cartons not bearing a return authorization number will be refused.

Limitation of Liability

THE MAXIMUM LIABILITY OF KRAMER ELECTRONICS UNDER THIS LIMITED WARRANTY SHALL NOT EXCEED THE ACTUAL PURCHASE PRICE PAID

FOR THE PRODUCT. TO THE MAXIMUM EXTENT PERMITTED BY LAW, KRAMER ELECTRONICS IS NOT RESPONSIBLE FOR DIRECT, SPECIAL,

INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION, OR UNDER ANY OTHER LEGAL

THEORY. Some countries, districts or states do not allow the exclusion or limitation of relief, special, incidental, consequential or indirect damages, or the

limitation of liability to specified amounts, so the above limitations or exclusions may not apply to you.

Exclusive Remedy

TO THE MAXIMUM EXTENT PERMITTED BY LAW, THIS LIMITED WARRANTY AND THE REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF

ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN, EXPRESS OR IMPLIED. TO THE MAXIMUM EXTENT

PERMITTED BY LAW, KRAMER ELECTRONICS SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION,

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IF KRAMER ELECTRONICS CANNOT LAWFULLY DISCLAIM OR

EXCLUDE IMPLIED WARRANTIES UNDER APPLICABLE LAW, THEN ALL IMPLIED WARRANTIES COVERING THIS PRODUCT, INCLUDING WARRANTIES

OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY TO THIS PRODUCT AS PROVIDED UNDER APPICABLE LAW.

IF ANY PRODUCT TO WHICH THIS LIMITED WARRANTY APPLIES IS A “CONSUMER PRODUCT” UNDER THE MAGNUSON-MOSS WARRANTY ACT (15

U.S.C.A. §2301, ET SEQ.) OR OTHER APPICABLE LAW, THE FOREGOING DISCLAIMER OF IMPLIED WARRANTIES SHALL NOT APPLY TO YOU, AND ALL

IMPLIED WARRANTIES ON THIS PRODUCT, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR THE PARTICULAR PURPOSE, SHALL

APPLY AS PROVIDED UNDER APPLICABLE LAW.

Other Conditions

This limited warranty gives you specific legal rights, and you may have other rights which vary from country to country or state to state.

This limited warranty is void if (i) the label bearing the serial number of this product has been removed or defaced, (ii) the product is not distributed by

Kramer Electronics or (iii) this product is not purchased from an authorized Kramer Electronics reseller. If you are unsure whether a reseller is an

authorized Kramer Electronics reseller, visit our web site at www.kramerav.com or contact a Kramer Electronics office from the list at the end of this

document.
