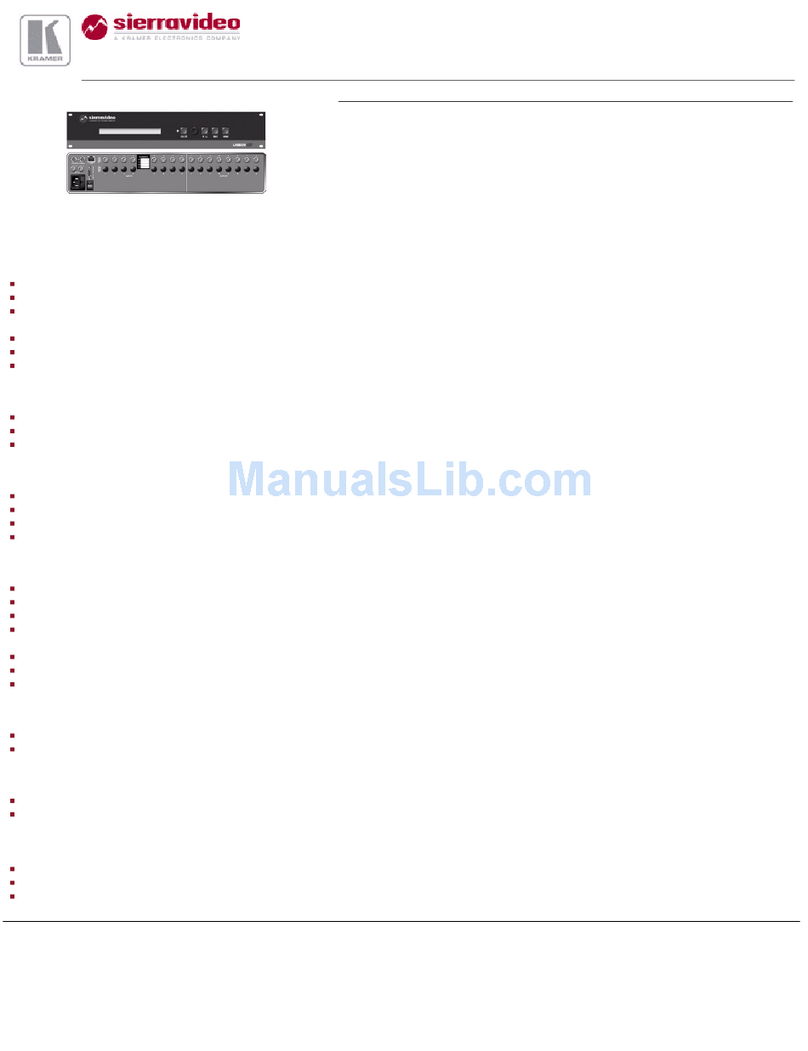

Kramer Sierra Video 1208V5 User manual

© www.kramerelectronics.com 2008
1208V5 12x8
SIERRA PRO™ 12 SERIES ROUTING SWITCHERS
SIERRA PRO 1208 SERIES SERIES
12X8 RGBHV MATRIX SWITCHER
DESCRIPTION
The Sierra PRO 12 series are high bandwidth routing switchers for RGBHV, RGBS, RGB
and s - Video (Y/C) signals. These units come in a compact 3U (5.25” ) frame and can route
any or all inputs to any or all outputs. They can be ordered in 5 - channel (RGBHV), 4 -
channel (RGBS), 3 - channel (RGB/YUV) or 2 - channel (Y/C) configurations, each with or
without balanced stereo audio.
Video Features - R/G/B Video Boards
High Bandwidth - 400MHz ( - 3dB) fully loaded.
Very Low Crosstalk - 80dB @ 1MHz, - 47dB @ 100MHz, - 30dB @150MHz.
Matrix Mapping™ Universal Breakaway Switching - A unique and valuable benefit of Sierra Pro routing switchers. This feature allows the switching of
every level of every input of the routing switcher independently. Switch a single level or any combination of levels of the R, G, B, H, V, left audio and right
audio levels of any input. For example, input a composite video signal on the R level of input one and an s - Video (Y/C) signal on the G and B levels of
input one and switch only the composite video signal on the R level, switch only the s - Video Y and C signals on the G and B levels, or switch all three
levels together.
Room Grouping Capability - Several inputs may be grouped and operated independently of other input groups on the routing switchers. This allows one
routing switcher to be used for multiple “rooms”where the control system for each room will address only the inputs and outputs assigned to that room.
Video Follow Sync™ Switching - The H and V channels of an RGBHV signal are switched in advance of the RGB video channels of the signal to provide
clean, glitch - free switching between most non - synchronous sources.
Qwik Adjust Knob™ Rotary Control Interface - This user intuitive knob along with the 80 character LCD display provides quick and convenient setup,
adjustment and signal switching.
Video Mute Capability. -
Output Disconnect Feature. -
Sync Features - H/V Sync Boards
Sync Reporting - Through the G.R.I.P.TM control software, RS - 232, or the front panel, the routing switcher can capture and report the input sync rates for
each input signal.
Input Detection - 200mv. Re - shapes and re - squares sync to output correct TTL level.
Selectable Termination - 510 or 75 Ohm (each input).
Genlock Input - Looping internal sync input for vertical interval switching.
Audio Features -
Audio Type - Balanced or un - balanced stereo on terminal blocks.
Input (Level) Adjustment Capability ( - 10dB to +15dB) - Each input via RS - 232, front panel, and G.R.I.P software.
Output (Volume) Adjustment Capability (Mute, - 59.5dB to +15dB) - Each input via RS - 232, front panel, and G.R.I.P software.
No Zipper Effect - Sierra Pro XL routing switchers employ zero crossover chip technology which eliminates the annoying “zipper sound effect”associated
with digital volume controls.
Audio Mute Capability. -
Crosstalk - Series 8 & 12: 80dB @ 1kHz, Series 16 & 32: 80dB @ 15kHz.
S/N Ratio (20 to 20kHz) - Series 8 & 12: 90dB, Series 16 & 32: 110dB.
Other Features -
Firmware Updates - Downloadable.
Control - Local front panel control with 80 character LCD readout.
RS - 232/422.
RS - 485 for optional control panels.
G.R.I.P: Windows ® - based routing switcher setup/diagnostic software.
Redundant Power Supplies - Optional (standard on all 32 x 32 and 32 x 16 models).
Approvals - UL & CE.
Control Panels (Optional) - Programmable, Single Bus and XY.

© www.kramerelectronics.com 2008
1208V5 12x8
SIERRA PRO™ 12 SERIES ROUTING SWITCHERS
SIERRA PRO 1208 SERIES
12X8 RGBHV MATRIX SWITCHER
SPECIFICATIONS
VIDEO
AUDIO
INPUT IMPEDANCE
75Ω1%
INPUT CONNECTOR TYPE
BNC
VIDEO INPUT LEVEL
300mV to 2.5V P - P
PULSE INPUT LEVEL
0.2V to 5V P - P
VIDEO BANDWIDTH
400MHz @ - 3dB
PULSE RATE
up to 200kHz
CROSSTALK
- 80dB @ 1MHz
- 47dB @ 100MHz
- 30dB @ 150MHz
1 INPUT TO MANY OUTPUTS
All electrical specifications remain the same
VIDEO GAIN
Unity
VIDEO OUTPUT LEVEL
200mV to 2.5V P - P
PULSE OUTPUT LEVEL
> 2V P - P into 75 Ω
OUTPUT IMPEDANCE
75 Ω
OUTPUT CONNECTOR TYPE
BNC
STORAGE TEMPERATURE RANGE
- 10 to + 60 deg. C
PERFORMANCE TEMPERATURE RANGE
10 to 30 deg. C
HUMIDITY
0 to 100% RH non - condensing
PASSBAND RESPONSE
+/ - 1dB DC - 300MHz
PULSE RISE TIME
1 - 10 nanoseconds
MAXIMUM SOURCE OUTPUT LEVEL
+ 24dBu balanced; 18dBu un - balanced
INPUT IMPEDANCE
> 20k Ω
OUTPUT IMPEDANCE - SERIES 8 AND 12
50 Ω unbalanced, 100 Ω balanced
OUTPUT IMPEDANCE - SERIES 16 AND 32
150 Ω , balanced
VOLTAGE GAIN SERIES 8 AND 12
Unity +/ - 0.5 dB (driving high - Z balanced output)
VOLTAGE GAIN SERIES 16 AND 32
Unity +/ - 0.1dB (driving high - Z balanced output)
FREQUENCY RESPONSE
20 to 20kHz +/ - 0.1 dB, - 3dB @ 100kHz
S/N RATIO (20 TO 20KHZ) SERIES 8 AND 12
> 90dB, output 21dBu, balanced
S/N RATIO (20 TO 20KHZ) SERIES 16 AND 32
110dB ref. to + 24dBm
CROSSTALK (ALL INPUTS HOSTILE) SERIES 8 AND 12
> 80dB @ 1kHz
CROSSTALK (ALL INPUTS HOSTILE) SERIES 16 AND 32
80dB @ 15kHz
IM & THD (20 TO 20KHZ)
0.05% to + 24dBm
AUDIO CONNECTORS
Removable captive screw terminals
