USER MANUAL
Model:
FC-331
SD/HD-SDI to HDMI Converter

Contents
i
Contents
1Introduction 1
2Getting Started 1
2.1 Quick Start 1
3Overview 2
3.1 About HDMI 3
3.2 Recommendations for Best Performance 4
3.3 Accessory to Medical Equipment (IEC 60601-1) 4
4Your FC-331 SD/HD-SDI to HDMI Converter 5
5Connecting the FC-331 SD/HD-SDI to HDMI Converter 6
6Technical Specifications 7
Figures
Figure 1: FC-331 SD/HD-SDI to HDMI Converter 5
Figure 2: Connecting the FC-331 SD/HD-SDI to HDMI Converter 7
Tables
Table 1: FC-331 SD/HD-SDI to HDMI Converter Features 5
Table 2: Technical Specifications of the FC-331 SD/HD-SDI to HDMI Converter 7

Introduction
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast
range of problems that confront the video, audio, presentation, and
broadcasting professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
1,000-plus different models now appear in 11 groups1
Thank you for purchasing the Kramer DigiTOOLS®FC-331 SD/HD-SDI to
HDMI Converter, which is ideal for:
that are clearly
defined by function.
•Home theater, presentation and multimedia applications
•Rental and staging
•SD/HD-SDI to HDMI Converter for medical equipment
The package includes the following items:
•FC-331
•Power supply (5V DC input)
•This user manual2
2 Getting Started
We recommend that you:
•Unpack the equipment carefully and save the original box and
packaging materials for possible future shipment
•Review the contents of this user manual
•Use Kramer high-performance high-resolution cables3
2.1 Quick Start
This quick start chart summarizes the basic setup and operation steps.
1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers; GROUP 3: Control Systems;
GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products;
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity;
GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products
2 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com
3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Overview
2
3 Overview
The FC-331 SD/HD-SDI to HDMI Converter is a high-performance format
converter for SDI (SMPTE 259M), HD-SDI (SMPTE 292M), and 3G
HD-SDI (SMPTE 424M) signals. It converts an SDI audio and video signal
to an HDMI output signal with the same resolution and frame rate1
The FC-331 features:
.
•An SD/HD-SDI/3G HD-SDI input on a BNC connector
•An SDI loop on a BNC connector and an HDMI output
•HDTV compatibility
•Automatic active input LED indicators on the front panel. Green
indicates a standard definition (SDI) input signal and blue indicates a
high-definition (HD-SDI) input signal
•5V DC power
•Medical equipment compliance
1 No scaling is performed

Overview
3
3.1 About HDMI
High-Definition Multimedia Interface (HDMI) is an uncompressed
all-digital1audio/video interface, widely supported in the entertainment and
home cinema industry. It delivers the highest high-definition image and
sound quality. Note that Kramer Electronics Limited is an HDMI Adopter
and an HDCP Licensee. In particular, HDMI2
•Provides a simple
:
3interface between any audio/video source, such
as a set-top box, DVD player, or A/V receiver and video monitor,
such as a digital flat LCD / plasma television (DTV), over a
single4
•Supports standard, enhanced, high-definition video, and multi-
channel digital audio
cable
5
•Transmits all ATSC HDTV standards and supports 8-channel
digital audio, with bandwidth to spare to accommodate future
enhancements and requirements
on a single cable
•Benefits consumers by providing superior, uncompressed High
Definition digital video via a single cable6
•Is backward-compatible with DVI (Digital Visual Interface)
, and user-friendly
connector
•Supports two-way communication between the video source (such
as a DVD player) and the digital television, enabling new
functionality such as automatic configuration and one-button play
HDMI has the capacity to support existing high-definition video formats (720p,
1080i, and 1080p/60), as well as standard definition formats such as NTSC or PAL.
1 Ensuring an all-digital rendering of video without the losses associated with analog interfaces and their unnecessary digital-
to-analog conversions
2 HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI
licensing LLC
3 With video and multi-channel audio combined into a single cable, the cost, complexity, and confusion of multiple cables
currently used in A/V systems is reduced
4 HDMI technology has been designed to use standard copper cable construction at up to 15m
5 HDMI supports multiple audio formats, from standard stereo to multi-channel surround-sound. HDMI has the capacity to
support Dolby 5.1 audio and high-resolution audio formats
6 HDMI provides the quality and functionality of a digital interface while also supporting uncompressed video formats in a
simple, cost-effective manner

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Overview
4

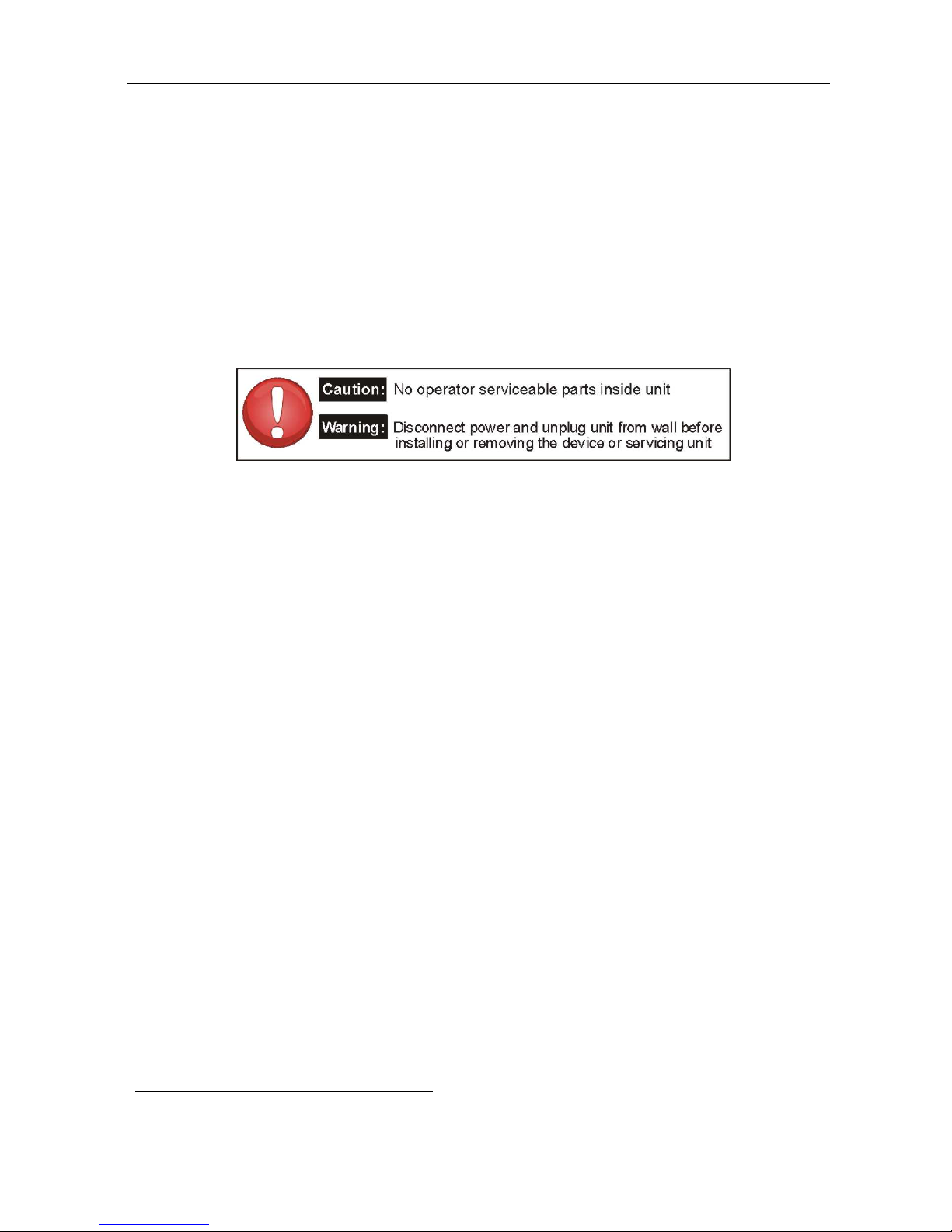

3.2 Recommendations for Best Performance
To achieve the best performance:
•Use only good quality connection cables1
•Do not secure the cables in tight bundles or roll the slack into tight coils
to avoid interference,
deterioration in signal quality due to poor matching, and elevated
noise levels (often associated with low quality cables)
•Avoid interference from neighboring electrical appliances that
may adversely influence signal quality and position your Kramer
FC-331 away from moisture, excessive sunlight and dust
3.3 Accessory to Medical Equipment (IEC 60601-1)
In the modern medical environment remote access is essential, for example,
to transfer clinical data between doctors and to train to medical students.
The FC-331 is certified according to the IEC 60601-1-2, Clause 2.1.3,
Medical Electrical Equipment, Part 1: General Requirements for Emc
standard which is required when accessory devices are used at locations
where medical personnel and patients are present.
The FC-331 constitutes an optional component that can be considered
necessary and suitable as part of medical equipment or for use as part of a
medical system to provide real time simultaneous video feeds to those
present at the local medical environment and at remote locations. In this
environment, the FC-331 can be added to the system ONLY if the
connecting equipment has been evaluated and meets the IEC 60601-1-2
Emc standards. Note, that when attaching accessory devices to a digital or
analog interface, they must comply with the IEC standard for which they
are used: for medical equipment (IEC 60601-1-2), data processing
equipment (IEC 60950) and electromagnetic compatibility (IEC 61000-1).
1 Available from Kramer Electronics on our Web site at http://www.kramerelectronics.com

Your FC-331 SD/HD-SDI to HDMI Converter
5
4 Your FC-331 SD/HD-SDI to HDMI Converter
Figure 1and Table 1define the FC-331 SD/HD-SDI to HDMI Converter:
Figure 1: FC-331 SD/HD-SDI to HDMI Converter
Table 1: FC-331 SD/HD-SDI to HDMI Converter Features
#
Feature
Function
1 SD/HD-SDI IN BNC Connector Connects to an SD or HD-SDI source
2 SD/HD-SDI LOOP BNC Connector Connects to an SD or HD-SDI acceptor
3 SDI AUDIO GROUP SELECT Turn to select the SDI input stereo channel (0 to 7)
4 HDMI OUT Connector Connects to an HDMI acceptor
5 5V DC +5V DC connector for powering the unit

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the FC-331 SD/HD-SDI to HDMI Converter
6
6 SD/HD LED Illuminates green for an SD input signal and blue for an
HD-SDI input signal
7 OUT LED Illuminates green to indicate that a display is connected
8 ON LED Illuminates green when receiving power
5 Connecting the FC-331 SD/HD-SDI to HDMI Converter
To connect the FC-331, as the example in Figure 2illustrates, do the
following1
1. Connect the SD/HD-SDI IN connector to a digital video source (for
example, a digital video player).
:
2. Connect the SD/HD-SDI LOOP connector to a digital acceptor (for
example, a digital display).
3. Connect the HDMI connector to an HDMI acceptor (for example, a
plasma display).
4. Using a small screwdriver, turn the SDI AUDIO GROUP SELECT rotary
switch to select an SDI stereo channel2
5. Connect the 5V DC power adapter to the power socket and connect the
adapter to the mains electricity (not illustrated in
from 0 to 7.
Figure 2).
1 Switch OFF the power on each device before connecting it to your FC-331. After connecting your FC-331, switch on its
power and then switch on the power on each device
2 SDI audio is made up of 16 channels of audio information or 8 stereo pairs. Whereas most other devices access a group of
2-pairs, the FC-331 accesses a single pair out of a group for higher discrimination

Technical Specifications
7
Figure 2: Connecting the FC-331 SD/HD-SDI to HDMI Converter
6 Technical Specifications
The FC-331 technical specifications are shown in Table 2:
Table 2: Technical Specifications1
INPUT:
of the FC-331 SD/HD-SDI to HDMI Converter
1 SD/HD-SDI, 3G HD-SDI on a BNC connector
OUTPUTS: 1 SD/HD-SDI, 3G HD-SDI loop on a BNC connector, 1 HDMI connector
MAX DATA RATE: Up to 3Gbps
STANDARD COMPLIANCE: HDMI
INDICATOR LEDS: SD/HD, OUT, ON
POWER SOURCE: 5V DC, 400mA
DIMENSIONS 12cm x 7.2cm x 2.4cm (4.7" x 2.8" x 1.0") W, D, H
WEIGHT: 0.3kg (0.7lbs)
ACCESSORIES: Power supply
OPTIONS: 19” rack mount adapter
1 Specifications are subject to change without notice
