Kramer VP-475UX User manual

P/N: 2900-301235 Rev 1 www.kramerAV.com
USER MANUAL
MODEL:
VP-475UX
12G SDI to HDMI Scaler/Converter

Kramer Electronics Ltd.
VP-475UX –Contents
i
Contents
Introduction 1
Getting Started 1
Overview 2
Defining VP-475UX 12G SDI to HDMI Scaler/Converter 4
Mounting VP-475UX 5
Connecting VP-475UX 6
Using the Embedded Web Pages 7
Browsing VP-475UX Web Pages 8
Configuring Output Settings 9
Changing Device Name 12
Enabling/Disabling Web Page Password Security 13
Configuring Network Settings 15
Resetting Device 16
Upgrading Firmware 17
Technical Specifications 18
Default Communication Parameters 20
Protocol 3000 21
Understanding Protocol 3000 21
Protocol 3000 Commands 22
Result and Error Codes 28

Kramer Electronics Ltd.
VP-475UX –Introduction
1
Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world
of unique, creative, and affordable solutions to the vast range of problems that confront the
video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we
have redesigned and upgraded most of our line, making the best even better!
Getting Started
We recommend that you:
•Unpack the equipment carefully and save the original box and packaging materials for
possible future shipment.
•Review the contents of this user manual.
Go to www.kramerav.com/downloads/VP-475UX to check for up-to-date user manuals,
application programs, and to check if firmware upgrades are available (where appropriate).
Achieving Best Performance
•Use only good quality connection cables (we recommend Kramer high-performance,
high-resolution cables) to avoid interference, deterioration in signal quality due to poor
matching, and elevated noise levels (often associated with low quality cables).
•Do not secure the cables in tight bundles or roll the slack into tight coils.
•Avoid interference from neighboring electrical appliances that may adversely influence
signal quality.
•Position your Kramer VP-475UX away from moisture, excessive sunlight and dust.
Safety Instructions
Caution:
•This equipment is to be used only inside a building. It may only be connected to other
equipment that is installed inside a building.
•For products with relay terminals and GPI\O ports, please refer to the permitted rating
for an external connection, located next to the terminal or in the User Manual.
•There are no operator serviceable parts inside the device.
Warning:
•Use only the power cord that is supplied with the device.
•Disconnect the power and unplug the device from the wall before installing.
•Do not open the device. High voltages can cause electrical shock! Servicing by
qualified personnel only.
•To ensure continuous risk protection, replace fuses only according to the rating
specified on the product label which located on the bottom of the device.

Kramer Electronics Ltd.
VP-475UX –Introduction
2
Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce
the amount of WEEE sent for disposal to landfill or incineration by requiring it to be collected
and recycled. To comply with the WEEE Directive, Kramer Electronics has made
arrangements with the European Advanced Recycling Network (EARN) and will cover any
costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on
arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular
country go to our recycling pages at www.kramerav.com/support/recycling.
Overview
Congratulations on purchasing your Kramer VP-475UX 12G SDI to HDMI Scaler/Converter.
VP-475UX is a high-performance, dual channel scaler and format converter for SDI video
signals of up to 12G data rate. With its integrated dual scaler, it converts the 12G SDI video
signals from its two input channels (with embedded audio) to two 4K@60Hz (4:4:4) HDMI™
outputs, along with de-embedding the audio signals and sending them to the analog audio
output ports.
Exceptional Quality
•High Performance, Scaled Video Conversion –A high performance, low latency video
processing SDI to HDMI converter, with integrated signal resolution scaler, that converts
up to 12G multi-rate SDI signals to HDMI signals, flexibly scaling to a maximum
resolution of 4K@60 (4:4:4) 18G data rate signals, independent per each channel.
•SDI Multi Rate Signals –Auto-adapts from 270Mbps to 12Gbps data rates, accepts SDI,
HD-SDI, 3G HD-SDI, 6G and 12G SDI compliant input signals with video resolutions of
up to 4K@60Hz (4:2:2) 30bpp. Complying with SMPTE 259M (SD-SDI), 292M (HD-SDI),
344M (ED-SDI), 424M (3G HD-SDI), ST-2081 (6G-SDI) and ST-2082 (12G-SDI)
standards, it supports pass-through of standard embedded audio channels with ancillary
ID and metadata information.
•Adaptable HDMI Data Rates –Flexibly scales to a wide variety of HDMI data rates, from
low 480p to as high as 4K@60Hz (4:4:4) video resolution, adapting to any market-
available AV acceptor device, such as displays and projectors.
•Flexible Audio De-embedding –The user selects to de-embed 2 or 4 of the 16 audio
channels embedded within each SDI input signal. The de-embedded audio is then
embedded in the corresponding converted HDMI output signal, and, in parallel, is de-
embedded and sent to a corresponding device audio output port, either as 2-channel
balanced analog or 4-channel AES/EBU-compliant stereo audio signal. This enables
high-quality audio playback by routing the audio to external speakers in parallel to
routing the audio to the local speakers found on the connected AV acceptor device (such
as a TV or laptop).
•Extended-Reach Input Extension –Input signal equalization and output signals reclocking
to gain extended-reach signal extension. Using high-quality coaxial SDI cables, supports
extension of up to 500m (1640ft) for SD signals; 260m (850ft) for 1.5G HD signals; 220m
(720ft) for 3G; 100m (330ft) for 6G HD signals; 70m (230ft) for 12G 4K signals.

Kramer Electronics Ltd.
VP-475UX –Introduction
3
For optimal performance, Kramer recommends using Kramer high-performance cables.
Reach extension performance may vary while using coaxial cables that are not high-quality.
Advanced and User-friendly Operation
•Cost-Effective Maintenance –Indicators for SDI input signals status and data rate, and
power status, for easy local maintenance and troubleshooting. Remote device
management via built-in web UI. Local and remote firmware upgrade via mini-USB or
Ethernet connection ensure lasting, field-proven deployment.
Flexible Connectivity
•Reliable Wire Connectivity –Coaxial broadcast-grade cables are reliably connected via
lockable BNC connectors, preventing unintentional wire disconnections, to gain fast and
highly professional uncompressed SDI signals distribution deployments.
•Easy Installation –19” enclosure for rack mounting a device in a 1U rack space with
included rack ears and universal 100-240V AC power connection.
Typical Applications
VP-475UX is ideal for the following typical applications:
•SDI video production studios.
•Broadcast studio and field SDI video production events.
•Easy integration of SDI cameras and sources to HDMI-based system in any Pro-AV
application.
•Staging and rental deployments.
•Medical facilities with highly reliable video deployments.
Controlling your VP-475UX
Control your VP-475UX via:
•Embedded web pages via a browsing device that is connected to LAN (see Using the
Embedded Web Pages on page 7).
•USB serial port, by Protocol 3000 serial commands transmitted by a computer
(see Protocol 3000 on page 21).

Kramer Electronics Ltd.
VP-475UX –Defining VP-475UX 12G SDI to HDMI Scaler/Converter
4
Defining VP-475UX 12G SDI to
HDMI Scaler/Converter
This section defines VP-475UX.

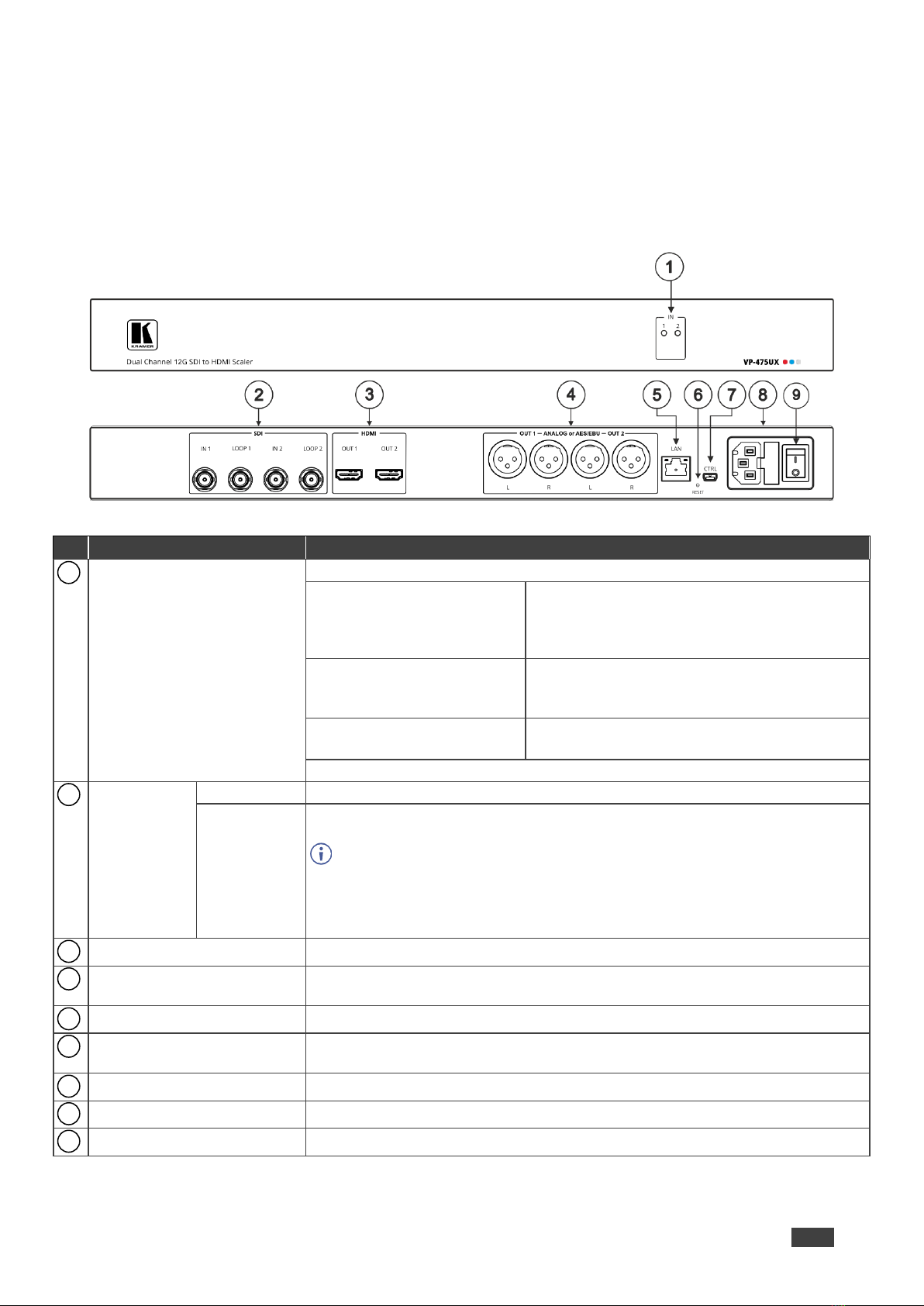

Figure 1: VP-475UX 12G SDI to HDMI Scaler/Converter
#
Feature
Function
IN LEDs
Illuminate to indicate the input resolutions (1 and 2):
Red –SDI input signal is SD:
NTSC –480i or 480p Interlaced or progressive
video formats.
PAL –576i or 576p Interlaced or progressive
video formats.
Yellow –SDI input signal is
HD:
1.5G –720p progressive or 1080i interlaced
video format.
3G –1080p progressive video format.
Blue –SDI input signal is
UHD:
6G –2160p30 progressive video format.
12G –2160p60 progressive video format
Off –no input signal.
SDI BNC
Connectors
IN
Connect to SDI sources (1 and 2).
LOOP
Connect to the IN connector of the next device in the daisy chain or connect to a
local display (1 and 2).
For best results, when an input is connected and it’s corresponding LOOP
is not used, connect a 75Ω terminator (supplied) to the unused LOOP
connector.
For example, if IN 1 is connected and LOOP 1 is not in use, connect a
terminator plug to LOOP 1.
HDMI OUT Connectors
Connect to HDMI acceptors (1 and 2).
ANALOG OR AES/EBU XLR
(L, R) Connectors
Connect to a balanced stereo audio acceptor or to a digital AES/EBU receiver
(OUT 1 and OUT 2).
LAN RJ-45 Connector
Connect to a browser device via LAN and also use for firmware upgrade.
RESET Button
Press for ≥10 seconds to reset to factory default values.
The device power cycles and loads the factory default values.
CTRL Mini USB Connector
Connect to a computer for device control and firmware upgrade.
Power Socket
AC connector enabling power supply to the VP-475UX.
Power Switch
Switch to turn the device ON and OFF.
1
2
3
4
5
6
7
8
9

Kramer Electronics Ltd.
VP-475UX –Mounting VP-475UX
5
Mounting VP-475UX
This section provides instructions for mounting VP-475UX. Before installing, verify that the
environment is within the recommended range:
•Operation temperature –0to 40C (32 to 104F).
•Storage temperature –-40to +70C (-40 to +158F).
•Humidity –10% to 90%, RHL non-condensing.
•VP-475UX must be placed upright in the correct horizontal position.
Caution:
•Mount VP-475UX before connecting any cables or power.
Warning:
•Ensure that the environment (e.g., maximum ambient temperature & air flow) is
compatible for the device.
•Avoid uneven mechanical loading.
•Appropriate consideration of equipment nameplate ratings should be used for avoiding
overloading of the circuits.
•Reliable earthing of rack-mounted equipment should be maintained.
To mount the VP-475UX on a rack
Attach both ear brackets by removing the screws from each side of
the machine and replacing those screws through the ear brackets or
place the machine on a table.
For more information go to www.kramerav.com/downloads/VP-475UX

Kramer Electronics Ltd.
VP-475UX –Connecting VP-475UX
6
Connecting VP-475UX
Always switch off the power to each device before connecting it to your VP-475UX. After
connecting your VP-475UX, connect its power and then switch on the power to each device.

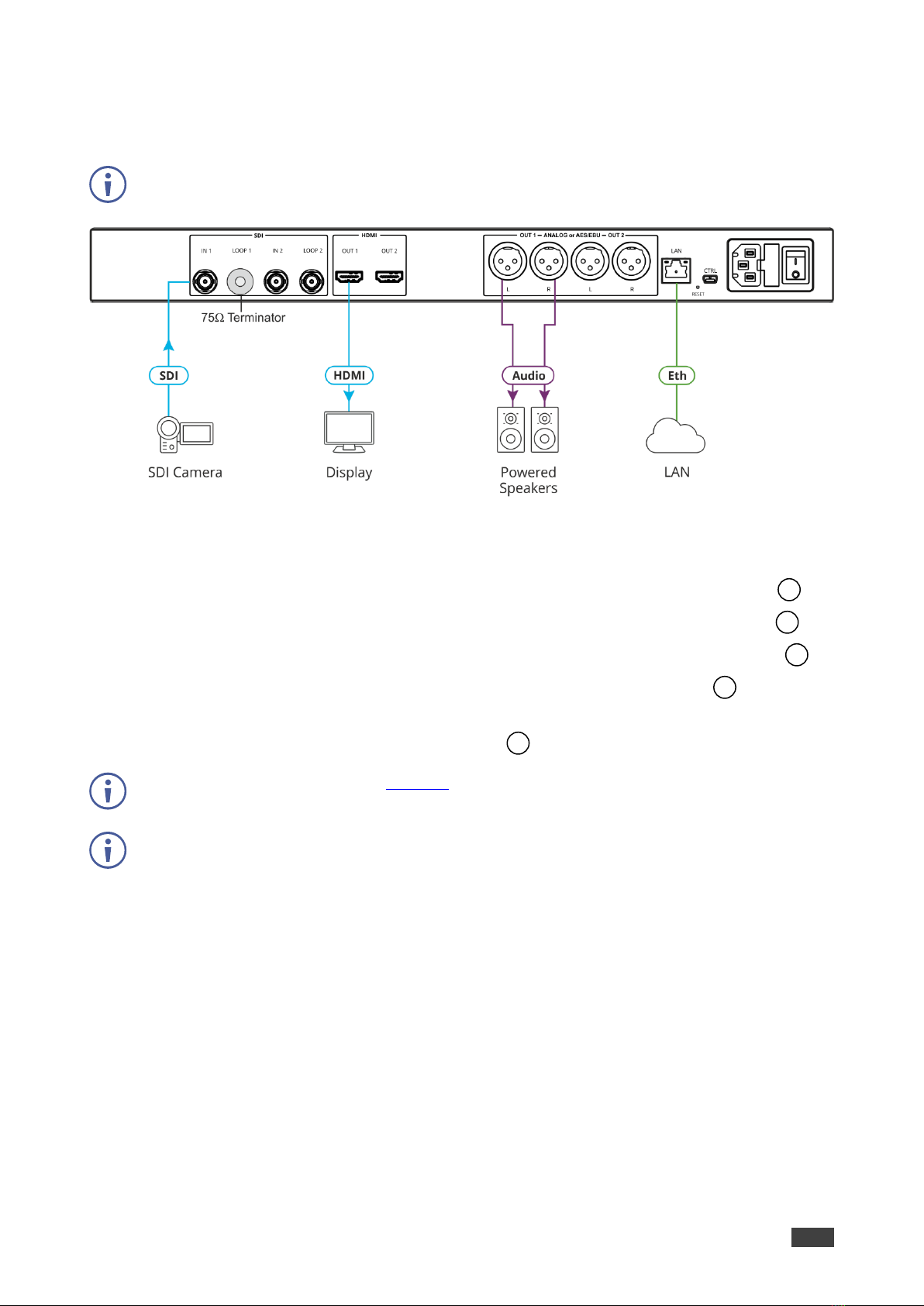

Figure 2: Connecting to the VP-475UX Rear Panel
To connect the VP-475UX as illustrated in the example in Figure 2:
1. Connect an SDI source (for example, an SDI camera) to the SDI BNC Connector .
2. Connect an HDMI acceptor (for example, a display) to the HDMI OUT Connector .
3. Connect powered speakers to the ANALOG OR AES/EBU XLR (L, R) Connectors .
4. Connect a Local Area Network (LAN) cable to the LAN RJ-45 Connector for
connection to your network.
5. Connect the power cord to the Power Socket and to the mains electricity.
The power cord is not shown in Figure 2.
You can daisy-chain the VP-475UX by looping the LOOP source to the next machine.
2
3
4
5
8

Kramer Electronics Ltd.
VP-475UX –Using the Embedded Web Pages
7
Using the Embedded Web Pages
VP-475UX enables you to configure settings via Ethernet using built-in, user-friendly web
pages.
You can also configure VP-475UX via Protocol 3000 commands (see Protocol 3000
Commands on page 22).
VP-475UX web pages enable performing the following:
•Configuring Output Settings on page 9.
•Changing Device Name on page 12.
•Enabling/Disabling Web Page Password Security on page 13.
•Configuring Network Settings on page 15.
•Resetting Device on page 16.
•Upgrading Firmware on page 17.

Kramer Electronics Ltd.
VP-475UX –Using the Embedded Web Pages
8
Browsing VP-475UX Web Pages
If a web page does not update correctly, clear your Web browser’s cache.
1. Type the IP address of the device in the address bar of your internet browser (default =
192.168.1.39).
If security is enabled, the Login window appears.
Figure 3: Embedded Web Pages Login Window
2. Enter the Username (default = Admin) and Password (default = Admin) and click
Sign in.
The default web page appears.
Figure 4: Default Web Page
3. Click the Navigation Pane on the left side of the screen to access the relevant web page.
Click the arrow next to the navigation pane to hide/show the names of the pages.

Kramer Electronics Ltd.
VP-475UX –Using the Embedded Web Pages
9
Configuring Output Settings
VP-475UX enables you to configure video and audio settings for each of the two HDMI
Outputs.
To restore all factory settings and discard your manual configurations, perform a factory reset
(see Resetting Device on page 16).
Configuring Video Settings
To configure image settings:
1. Click AV Configuration from the Navigation Pane.
The AV Configuration page appears.
Figure 5: Embedded Web Pages –AV Configuration Page
2. Click HDMI Output 1 tab or HDMI Output 2 tab.
3. Select the desired resolution. For a complete list of supported resolutions, see Technical
Specifications, on page 18).
When choosing a resolution, make sure the output video resolution frame rate
matches the input video resolution frame rate.
4. Adjust the percentages of Brightness, Contrast and Saturation by dragging the arrow or
by entering a new value in the box.
Changes are reflected immediately in the image on the display.

Kramer Electronics Ltd.
VP-475UX –Using the Embedded Web Pages
10
Generating Test Signal
VP-475UX automatically routes SDI Input 1 to HDMI Output 1 and SDI Input 2 to HDMI
Output 2. VP-475UX enables you to generate a test signal for each of the HDMI outputs that
replaces the input signal, in order to test the output quality.
To generate a test signal:
1. Click AV Configuration from the Navigation Pane.
The AV Configuration page appears (see Figure 5).
2. Click HDMI Output 1 tab or HDMI Output 2 tab.
3. Click Signal Generator.
4. Select the type of test signal from the drop-down:
Black
White
Checkerboard
Crosshatch
Horizontal Ramp
Vertical Ramp
Diagonal Ramp
Vertical Lines
Blue
Green
Red
Color Sweep
Test Pattern
TV Snow
Tartan
Color Ramp
Colored Squares
The test signal appears immediately on the connected display.
Muting Audio
VP-475UX enables you to mute each audio output individually.
To mute the audio on an output:
1. Click AV Configuration from the Navigation Pane.
The AV Configuration page appears.
2. Click HDMI Output 1 tab or HDMI Output 2 tab.
3. Click the speaker icon .
A red X appears on the speaker and the audio on the selected output is muted.

Kramer Electronics Ltd.
VP-475UX –Using the Embedded Web Pages
11
Configuring Audio
VP-475UX enables you to configure how the SDI audio is handled by the system. You can
select which of the SDI audio channels to de-embed for output to the HDMI and XLR audio
outputs and define the output format for the XLR connectors. One selected pair of SDI
channels is output through the HDMI output and, when configured as analog, through the XLR
outputs. When the XLR outputs are configured as AES/EBU, both pairs of the selected group
are output.
To configure the audio:
1. Click AV Configuration from the Navigation Pane.
The AV Configuration page appears.
2. Click HDMI Output 1 tab or HDMI Output 2 tab.
3. Under Audio - Source, select 1 of the 8 pairs of audio signals by selecting the Group
number (1-4) and Pair number (1, 2).
4. Under Audio - Output Format, Click Analog or AES.
The audio is configured.

Kramer Electronics Ltd.
VP-475UX –Using the Embedded Web Pages
12
Changing Device Name
Customizing device name can help identify where the device is located in your installation.
To change the device name:
1. Click Device Settings from the Navigation Pane.
The Device Settings page appears.

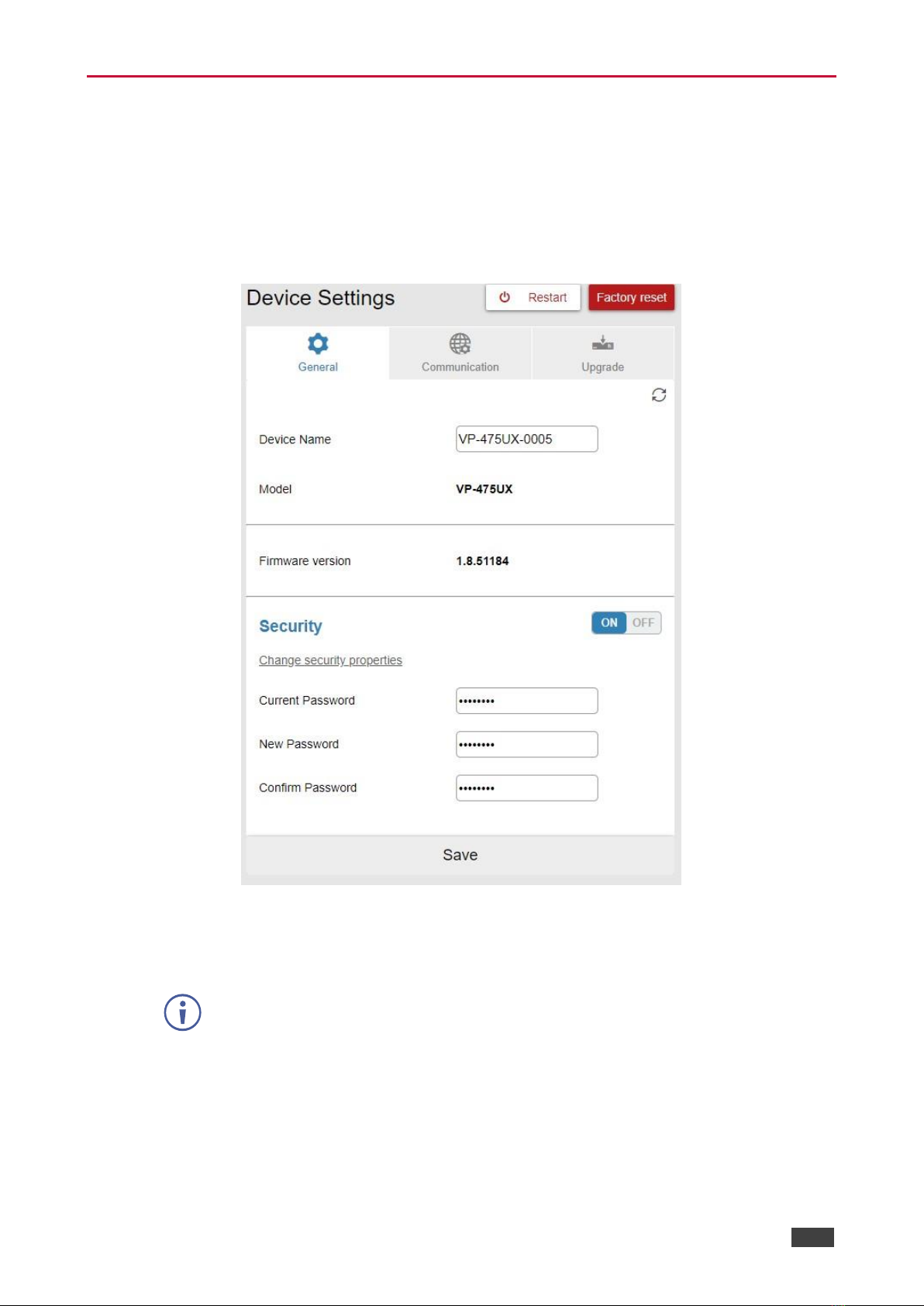

Figure 6: Device Settings Page –General Tab
2. Click the General tab.
3. Enter the new name of the device in the Device Name text box.
The device name cannot include any spaces, can be up to 63 characters and can
include only letters, digits, hyphens and underscores.
4. Click Save.
The device name is changed.

Kramer Electronics Ltd.
VP-475UX –Using the Embedded Web Pages
13
Enabling/Disabling Web Page Password Security
VP-475UX enables you to require a password for logging into the web pages or to disable this
feature and allow login without a password.
To enable web page security:
1. Click Device Settings from the Navigation Pane.
The Device Settings page appears (Figure 6).
2. Click the General tab.
3. Click ON.
A confirmation message appears.
Figure 7: Enable Security Confirmation
4. Click OK.
5. Under Security, enter the current password (or leave blank if there is no current
password), new password, and retype the new password.
A password must contain 5 to 15 alphanumeric characters and no spaces.
6. Click Save.
The device reboots and web page security is enabled with the new username and
password.
To disable security:
1. Click Device Settings from the Navigation Pane.
The Device Settings page appears (Figure 6).
2. Click the General tab.

Kramer Electronics Ltd.
VP-475UX –Using the Embedded Web Pages
14
3. Click OFF.
A confirmation message appears.
Figure 8: Disable Security Confirmation
4. Click OK.
Web page security is disabled.

Kramer Electronics Ltd.
VP-475UX –Using the Embedded Web Pages
15
Configuring Network Settings
VP-475UX enables you to configure network settings for your device.
For proper settings and before changing to DHCP, consult your network administrator.
To configure network settings:
1. Click Device Settings from the Navigation Pane.
The Device Settings page appears (Figure 6).
2. Click the Communication tab.
The Communication tab appears.
Figure 9: Device Settings Page –Communication Tab
3. Change the network settings as required.
–OR–
If you want the device to obtain an IP address via DHCP server, click DHCP ON.
4. Verify that the TCP port is correct.
5. Click Save.
The web page logs out and the browser reloads with the new network information.

Kramer Electronics Ltd.
VP-475UX –Using the Embedded Web Pages
16
Resetting Device
Two types of reset can be performed:
•Restart –Reboots your device and keeps all your device settings, including the IP
address and password.
•Factory reset –Reboots your device and restores all factory settings including
input/output definitions, switching configuration, IP address and password.
Resetting the device can be accomplished by using:
•Back panel RESET button.
•Protocol 3000 FACTORY command (see Protocol 3000 Commands on page 22).
•Web pages.
To perform a factory reset on the device using the back panel:
•Press and hold the RESET Button on power up.
The device automatically resets, loading factory default values.
To reset a device using the web pages:
1. Click Device Settings from the Navigation Pane.
The Device Settings page appears (Figure 6).
2. Click Restart to reboot the device and keep all your settings.
-OR-
Click Factory reset to reset the device to factory settings.
6

Kramer Electronics Ltd.
VP-475UX –Using the Embedded Web Pages
17
Upgrading Firmware
Perform a power cycle to the VP-475UX before upgrading the firmware.
To upgrade the device firmware:
1. Click Device Settings from the Navigation Pane.
The Device Settings page appears (Figure 6).
2. Click the Upgrade tab.
The Upgrade tab appears.

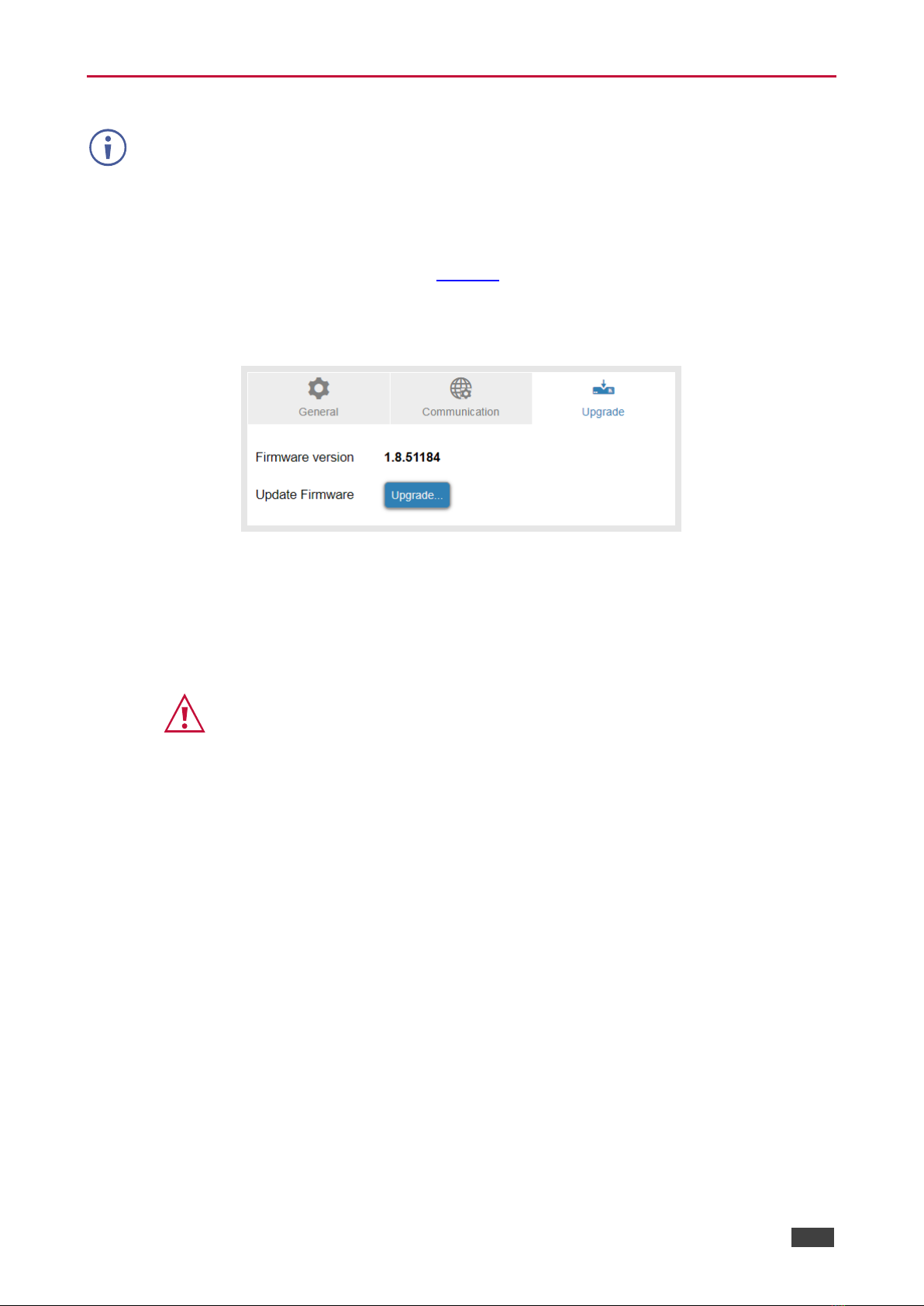

Figure 10: Device Settings –Upgrade Tab
3. Click Upgrade.
A file browser appears.
4. Open the relevant firmware file.
The firmware uploads to the device.
Caution: Do not power cycle or operate the device during firmware upgrade.

Kramer Electronics Ltd.
VP-475UX –Technical Specifications
18
Technical Specifications
Inputs
2 SDI Auto−sensing
12G/6G/HD−SDI/HD−SDI/SDI
Video Signal
On 75Ω BNC connectors
Outputs
2 HDMI
On female HDMI connectors
2 SDI (Input Loop)
On 75Ω female BNC connectors
2 XLR Balanced Stereo Audio or
AES/EBU Digital Audio
On XLR connectors
Ports
1 Ethernet
On an RJ-45 female connector
1 USB
On a female mini USB connector
Video
Standards
12G-SDI –SMPTE ST-2082-1, 3G HD-SDI –
SMPTE 424M, 6G –SMPTE ST-2081, HD-SDI –
SMPTE 292M/344M, SDI –SMPTE 259M
Max SDI Input Resolution
4K@60Hz (4:2:2)
SDI Input Data Rate
259Mbps up to 12Gbps
Max HDMI Resolution
4K@60Hz (4:4:4)
HDMI Output Resolutions
Progressive, Native, 640x480@60Hz,
720x480@60Hz, 720x576@50Hz, 800x600@60Hz,
1024x768@60Hz, 1280x720@50/60Hz,
1280x720@50/60Hz, 1280x768@60Hz,
1280x1024@60Hz, 1600x1200@60Hz,
1680x1050@60Hz, 1920x1080@24/25/30/50/60Hz,
1920x1200@60Hz, 3840x2160@24/25/30/50/60Hz
Conversion Latency
2 frames, i.e. 35ms@60Hz and 70ms@30Hz
(approx.)
Max SDI Input
Reach
12G-SDI Signals
70m (230ft)
6G HD-SDI Signals
100m (330ft)
3G HD-SDI Signals
220m (720ft)
HD-SDI Signals
260m (850ft)
SD Signals
500m (1640ft)
User Interface
Indicators
IN LEDs
Controls
Mini USB, LAN, web UI
Power
Source
100-240V AC
Consumption
58VA max
Environmental
Conditions
Operating Temperature
0° to +40°C (32° to 104°F)
Storage Temperature
-40° to +70°C (-40° to 158°F)
Humidity
10% to 90%, RH non-condensing
