Kramer FC-32 User manual

KRAMER ELECTRONICS LTD.
USER MANUAL
MODEL:
FC-32
DVI to PC/Component
Converter
P/N: 2900-000487 Rev 5

FC-32 – Contents
i
Contents
1Introduction 1
2Getting Started 2
2.1 Achieving the Best Performance 2
2.2 Safety Instructions 3
2.3 Recycling Kramer Products 3
3Overview 4
3.1 Defining the FC-32 DVI to PC/Component Converter 4
4Connecting the FC-32 5
5Technical Specifications 6
6EDID Factory Default Data 7
Figures
Figure 1: FC-32 DVI to PC/Component Converter 4
Figure 2: Connecting the FC-32 DVI to PC/Component Converter 5

FC-32 - Introduction
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast range of
problems that confront video, audio, presentation, and broadcasting professionals
on a daily basis. In recent years, we have redesigned and upgraded most of our
line, making the best even better!
Our 1,000-plus different models now appear in 11 groups that are clearly defined
by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;
GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:
Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:
Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:
Sierra Products.
Congratulations on purchasing your Kramer FC-32 DVI to PC/Component
Converter, which is ideal for the following typical applications:
Home theater, presentation and multimedia applications
Rental and staging

2
FC-32 - Getting Started
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
2.1 Achieving the Best Performance
To achieve the best performance:
Use only good quality connection cables (we recommend Kramer high-
performance, high-resolution cables) to avoid interference, deterioration in
signal quality due to poor matching, and elevated noise levels (often
associated with low quality cables)
Do not secure the cables in tight bundles or roll the slack into tight coils
Avoid interference from neighboring electrical appliances that may adversely
influence signal quality
Position your Kramer FC-32 away from moisture, excessive sunlight and
dust
This equipment is to be used only inside a building. It may only be
connected to other equipment that is installed inside a building.
i
!

FC-32 - Getting Started
3
2.2 Safety Instructions
Caution:
There are no operator serviceable parts inside the unit
Warning:
Use only the Kramer Electronics input power wall
adapter that is provided with the unit
Warning:
Disconnect the power and unplug the unit from the wall
before installing
2.3 Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC
aims to reduce the amount of WEEE sent for disposal to landfill or incineration by
requiring it to be collected and recycled. To comply with the WEEE Directive,
Kramer Electronics has made arrangements with the European Advanced
Recycling Network (EARN) and will cover any costs of treatment, recycling and
recovery of waste Kramer Electronics branded equipment on arrival at the EARN
facility. For details of Kramer’s recycling arrangements in your particular country
go to our recycling pages
!

4
FC-32 - Overview
3 Overview
The FC-32 is a high-performance format converter for digital DVI-D signals. It
converts a DVI-D input to a computer graphics or component video output on a
15-pin HD connection.
The FC-32 features:
One DVI input on a 24-pin Molex connector
One PC (RGBHV) /component (YPbPr with bi-level syncs) output on a
15-pin HD connector
A Y/PB/PR–RGB selector switch (YPbPr signal is with a bi-level sync)
5V DC power
3.1 Defining the FC-32 DVI to PC/Component Converter
This section defines the FC-32.

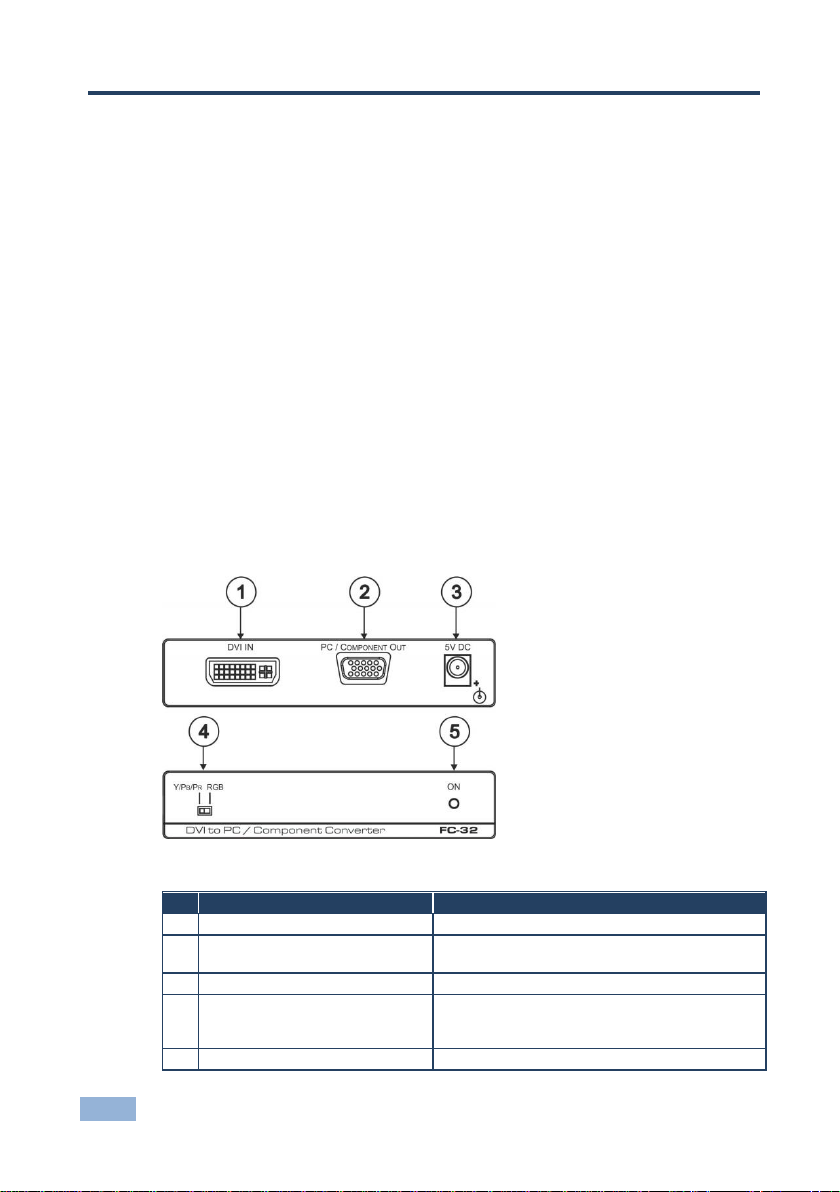

Figure 1: FC-32 DVI to PC/Component Converter
#
Feature
Function
1
DVI IN 24-pin Molex Connector
Connect to digital source
2
PC/COMPONENT OUT 15-pin HD
Connector
Connect to PC or component acceptor
3
5V DC Connector
+5V DC for powering the unit
4
Y/PB/PR RGB Switch
Slide the switch to the left for a component acceptor
(with bi-level sync); slide the switch to the right for
a computer graphics acceptor
5
ON LED
Illuminates green when receiving power

FC-32 - Connecting the FC-32
5
4 Connecting the FC-32
Always switch off the power to each device before connecting it to your
FC-32. After connecting your FC-32, connect its power and then switch
on the power to each device.
To connect the FC-32 as illustrated in the example in Figure 2:
1. Connect the digital input source (such as, a computer graphics source) to
the 24-pin Molex INPUT connector.
2. Connect an output acceptor (such as, a computer graphics VGA display or
component display) to the PC/COMPONENT OUT 15-pin HD connector.
3. Set the front panel switch (see Figure 1) to Y/PB/PRfor a component
acceptor or to RGB for a computer graphics acceptor.
4. Connect the 5V DC power adapter to the power socket and connect the
adapter to the mains electricity.
Figure 2: Connecting the FC-32 DVI to PC/Component Converter
Note: The FC-32 is shipped with a fixed, factory default EDID (see Section 6).
i

6
FC-32 - Technical Specifications
5 Technical Specifications
INPUTS:
1 DVI-D, 1.2Vpp on a Molex 24-pin (F) connector; DDC
signal 5Vpp (TTL)
OUTPUTS:
1 VGA or YPbPr on a 15-pin HD (F) connector; YPbPr is
with bi-level sync
RESOLUTION:
Up to WUXGA, 1080p
VESA standard timing is supported. When the input timing
does not comply to this standard, the FC-32 may not display
correctly (for example, the pixel clock from a GeForce 6600
graphics card operating at 1600x1200 resolution is at 140MHz
instead of at 162MHz)
CONTROL:
Switch for RGB/YPbPr selection
POWER CONSUMPTION:
5V DC, 570mA
OPERATING TEMPERATURE:
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE:
-40° to +70°C (-40° to 158°F)
HUMIDITY:
10% to 90%, RHL non-condensing
DIMENSIONS:
12cm x 7.2cm x 2.4cm (4.7" x 2.8" x 1.0") W, D, H
WEIGHT:
0.3kg (0.7lbs)
SHIPPING DIMENSIONS:
23.2cm x 12cm x 8.9cm (9.1" x 4.7" x 3.5") W, D, H
SHIPPING WEIGHT:
0.7kg (1.5lbs)
OPTIONS:
RK-3T 19” rack mount
Specifications are subject to change without notice

FC-32 - EDID Factory Default Data
7
6 EDID Factory Default Data
Time: 8:56:25 AM
Date: 07 December, 2010
EDID Manager Version: 1.0.0.14
___________________________________________________________________
Block 0 (EDID Base Block), Bytes 0 - 127, 128 BYTES OF EDID CODE:
0 1 2 3 4 5 6 7 8 9
000 | 00 FF FF FF FF FF FF 00 2E 4D
010 | 02 00 9C 03 00 00 27 14 01 03
020 | 78 58 32 78 EF EE 91 A3 54 4C
030 | 99 26 0F 50 54 A5 6F 00 D1 C0
040 | B3 00 95 00 90 40 A9 40 81 00
050 | 81 40 81 C0 02 3A 80 18 71 38
060 | 2D 40 58 2C 45 00 12 2C 21 00
070 | 00 1E 66 21 50 B0 51 00 1B 30
080 | 40 70 36 00 12 2C 21 00 00 1E
090 | 28 3C 80 A0 70 B0 23 40 30 20
100 | 36 00 12 2C 21 00 00 1E 48 3F
110 | 40 30 62 B0 32 40 40 C0 13 00
120 | 12 2C 21 00 00 1E 00 1A
(8-9) ID Manufacture Name : KRM
(10-11) ID Product Code : 0002
(12-15) ID Serial Number :
(16) Week of Manufacture : 39
(17) Year of Manufacture : 2010
(18) EDID Version Number : 1
(19) EDID Revision Number: 3
(20) Video Input Definition: Analog
0.700, 0.000 (0.700 V p-p)
Separate Syncs
(21) Maximum Horizontal Image Size: 88 cm
(22) Maximum Vertical Image Size : 50 cm
(23) Display Gamma : 2.20
(24) Power Management and Supported Feature(s):
Standby, Suspend, Active Off/Very Low Power, RGB Color, sRGB, Preferred Timing Mode,
Default GTF Supported
(25-34) Color Characteristics
Red Chromaticity : Rx = 0.636 Ry = 0.330
Green Chromaticity : Gx = 0.300 Gy = 0.596
Blue Chromaticity : Bx = 0.150 By = 0.056
Default White Point: Wx = 0.312 Wy = 0.329
(35) Established Timings I
720 x 400 @ 70Hz (IBM, VGA)
640 x 480 @ 60Hz (IBM, VGA)
640 x 480 @ 75Hz (VESA)
800 x 600 @ 60Hz (VESA)
(36) Established Timings II
800 x 600 @ 75Hz (VESA)
832 x 624 @ 75Hz (Apple, Mac II)
1024 x 768 @ 60Hz (VESA)
1024 x 768 @ 70Hz(VESA)
1024 x 768 @ 75Hz (VESA)
1280 x 1024 @ 75Hz (VESA)
(37) Manufacturer's Timings (Not Used)
(38-53) Standard Timings
1920x1080 @ 60 Hz (16:9 Aspect Ratio)
1680x1050 @ 60 Hz (16:10 Aspect Ratio)
1440x900 @ 60 Hz (16:10 Aspect Ratio)

8
FC-32 - EDID Factory Default Data
1400x1050 @ 60 Hz (4:3 Aspect Ratio)
1600x1200 @ 60 Hz (4:3 Aspect Ratio)
1280x800 @ 60 Hz (16:10 Aspect Ratio)
1280x960 @ 60 Hz (4:3 Aspect Ratio)
1280x720 @ 60 Hz (16:9 Aspect Ratio)
(54-71) Detailed Descriptor #1: Preferred Detailed Timing (1920x1080 @ 60Hz)
Pixel Clock : 148.5 MHz
Horizontal Image Size : 530 mm
Vertical Image Size : 300 mm
Refresh Mode : Non-interlaced
Normal Display, No Stereo
Horizontal:
Active Time : 1920 Pixels
Blanking Time : 280 Pixels
Sync Offset : 88 Pixels
Sync Pulse Width: 44 Pixels
Border : 0 Pixels
Frequency : 67 kHz
Vertical:
Active Time : 1080 Lines
Blanking Time : 45 Lines
Sync Offset : 4 Lines
Sync Pulse Width: 5 Lines
Border : 0 Lines
Digital Separate, Horizontal Polarity (+), Vertical Polarity (+)
Modeline: "1920x1080" 148.500 1920 2008 2052 2200 1080 1084 1089 1125
+hsync +vsync
(72-89) Detailed Descriptor #2: Detailed Timing (1360x768 @ 60Hz)
Pixel Clock : 85.5 MHz
Horizontal Image Size : 530 mm
Vertical Image Size : 300 mm
Refresh Mode : Non-interlaced
Normal Display, No Stereo
Horizontal:
Active Time : 1360 Pixels
Blanking Time : 432 Pixels
Sync Offset : 64 Pixels
Sync Pulse Width: 112 Pixels
Border : 0 Pixels
Frequency : 47 kHz
Vertical:
Active Time : 768 Lines
Blanking Time : 27 Lines
Sync Offset : 3 Lines
Sync Pulse Width: 6 Lines
Border : 0 Lines
Digital Separate, Horizontal Polarity (+), Vertical Polarity (+)
Modeline: "1360x768" 85.500 1360 1424 1536 1792 768 771 777 795 +hsync
+vsync
(90-107) Detailed Descriptor #3: Detailed Timing (1920x1200 @ 60Hz)
Pixel Clock : 154 MHz
Horizontal Image Size : 530 mm
Vertical Image Size : 300 mm
Refresh Mode : Non-interlaced
Normal Display, No Stereo
Horizontal:
Active Time : 1920 Pixels
Blanking Time : 160 Pixels
Sync Offset : 48 Pixels
Sync Pulse Width: 32 Pixels
Border : 0 Pixels
Frequency : 74 kHz
Vertical:
Active Time : 1200 Lines
Blanking Time : 35 Lines
Sync Offset : 3 Lines
Sync Pulse Width: 6 Lines
Border : 0 Lines
Digital Separate, Horizontal Polarity (+), Vertical Polarity (+)

FC-32 - EDID Factory Default Data
9
Modeline: "1920x1200" 154.000 1920 1968 2000 2080 1200 1203 1209 1235
+hsync +vsync
(108-125) Detailed Descriptor #4: Detailed Timing (1600x1200 @ 60Hz)
Pixel Clock : 162 MHz
Horizontal Image Size : 530 mm
Vertical Image Size : 300 mm
Refresh Mode : Non-interlaced
Normal Display, No Stereo
Horizontal:
Active Time : 1600 Pixels
Blanking Time : 560 Pixels
Sync Offset : 64 Pixels
Sync Pulse Width: 192 Pixels
Border : 0 Pixels
Frequency : 75 kHz
Vertical:
Active Time : 1200 Lines
Blanking Time : 50 Lines
Sync Offset : 1 Lines
Sync Pulse Width: 3 Lines
Border : 0 Lines
Digital Separate, Horizontal Polarity (+), Vertical Polarity (+)
Modeline: "1600x1200" 162.000 1600 1664 1856 2160 1200 1201 1204 1250
+hsync +vsync
(126-127) Extension Flag and Checksum
Extension Block(s) : 0
Checksum Value : 26

For the latest information on our products and a list of Kramer distributors,
visit our Web site where updates to this user manual may be found.
We welcome your questions, comments, and feedback.
P/N:
2900-000487
Rev:
5
!
SAFETY WARNING
Disconnect the unit from the power
supply before opening and servicing
