USER MANUAL
Model:
VS-21H-IR
2x1 HDMI Switcher

Contents
i
Contents
1Introduction 1
2Getting Started 1
2.1 Quick Start 2
2.2 Achieving the Best Performance 3
2.3 Safety Instructions 3
2.4 Recycling Kramer Products 3
3Overview 4
4Your VS-21H-IR 2x1 HDMI Switcher 5
5Connecting the VS-21H-IR 2x1 HDMI Switcher 6
5.1 Using the Remote Control Transmitter 7
6Operating the VS-21H-IR 2x1 HDMI Switcher 7
6.1 Working in the PC Mode 7
6.1.1 Acquiring / Changing the EDID 7
6.1.2 Resetting to the Default EDID 8
6.2 Working in the DVD Mode 8
6.2.1 Toggling from the DVD mode to the PC mode 8
6.2.2 Toggling from the PC mode to the DVD mode 8
6.3 VS-21H-IR Factory Reset Procedure 9
7Technical Specifications 9
Figures
UFigure 1: VS-21H-IR 2x1 HDMI SwitcherU5
UFigure 2: Connecting a VS-21H-IR 2x1 HDMI SwitcherU6
Tables
UTable 1: VS-21H-IR 2x1 HDMI Switcher (Top Side Panel) FeaturesU5
UTable 2: Technical Specifications of the VS-21H-IR 2x1 HDMIU9

Introduction
1
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast
range of problems that confront the video, audio, presentation, and
broadcasting professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
1,000-plus different models now appear in 11 groups1
Congratulations on purchasing your Kramer DigiTOOLS®VS-21H-IR 2x1
HDMI
that are clearly
defined by function.
2
•Home theater, presentation and multimedia applications
Switcher!The VS-21H-IR is ideal for:
•Rental and staging
The package includes the following items:
•VS-21H-IR 2x1 HDMI Switcher
•Power adapter (12V DC)
•Infrared remote control transmitter (including the required batteries and
a separate user manual3
•This user manual
)
3
2 Getting Started
We recommend that you:
•Unpack the equipment carefully and save the original box and
packaging materials for possible future shipment
•Review the contents of this user manual
Go to http://www.kramerelectronics.com to check for up-to-date
user manuals, application programs, and to check if
firmware upgrades are available (where appropriate).
1 GROUP 1: Distribution Amplifiers, GROUP 2: Switchers and Routers, GROUP 3: Control Systems, GROUP 4:
Format/Standards Converters, GROUP 5: Range Extenders and Repeaters, GROUP 6: Specialty AV Products, GROUP 7:
Scan Converters and Scalers, GROUP 8: Cables and Connectors, GROUP 9: Room Connectivity, GROUP 10: Accessories
and Rack Adapters and GROUP 11: Sierra Products
2 High-Definition Multimedia Interface
3 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com
i

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Getting Started
2

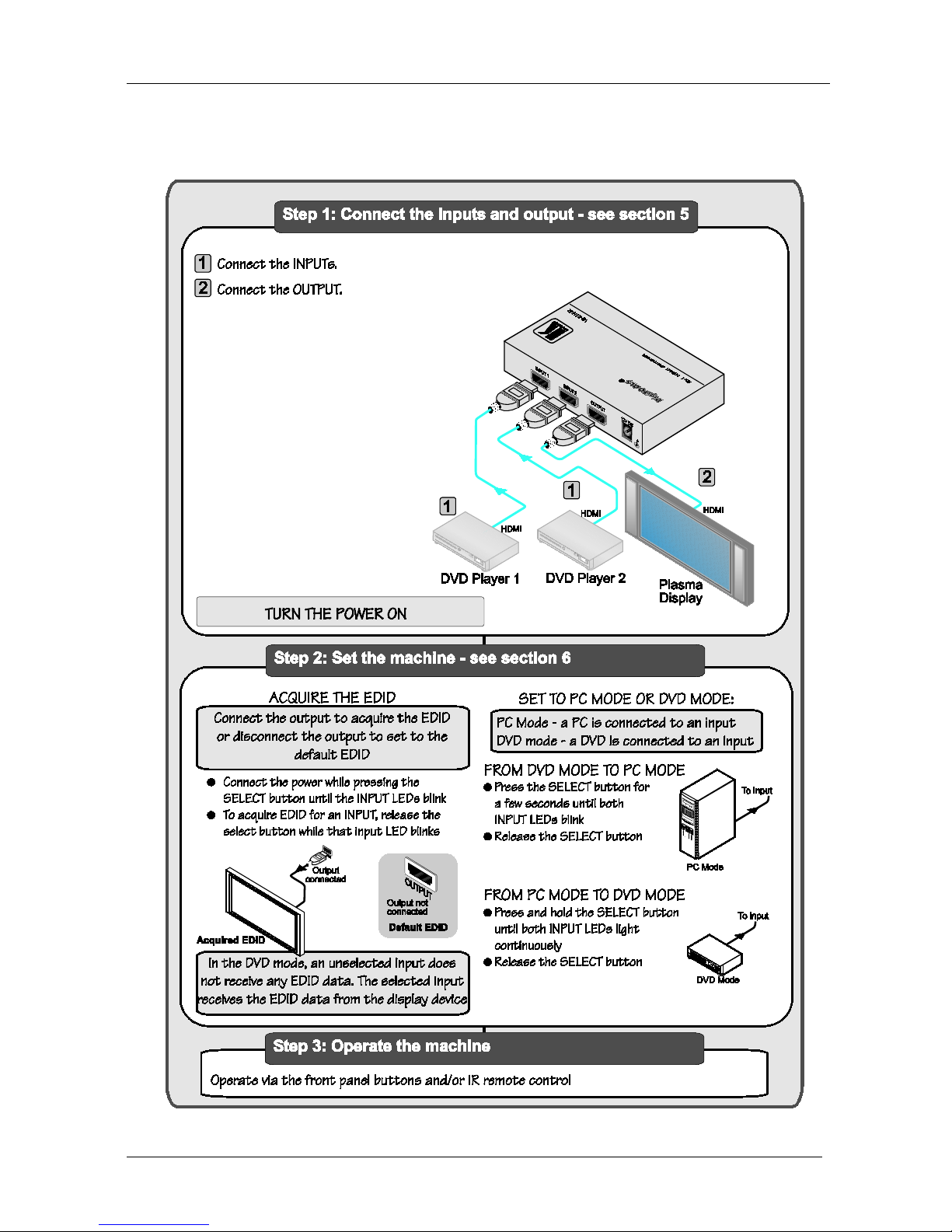

2.1 Quick Start
This quick start chart summarizes the basic setup and operation steps.

Getting Started
3
3
2.2 Achieving the Best Performance
To achieve the best performance:
•Use only good quality connection cables (we recommend Kramer high-
performance, high-resolution cables) to avoid interference,
deterioration in signal quality due to poor matching, and elevated noise
levels (often associated with low quality cables)
•Do not secure the cables in tight bundles or roll the slack into tight coils
•Avoid interference from neighboring electrical appliances
•Position your VS-21H-IR away from moisture, excessive sunlight and
dust
This equipment is to be used only inside a building. It may
only be connected to other equipment that is installed inside
a building.
2.3 Safety Instructions
Caution: There are no operator serviceable parts inside the unit
Warning: Use only the Kramer Electronics input power wall
adapter that is provided with the unit
Warning: Disconnect the power and unplug the unit from the wall
before installing
2.4 Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive
2002/96/EC aims to reduce the amount of WEEE sent for disposal to landfill
or incineration by requiring it to be collected and recycled. To comply with
the WEEE Directive, Kramer Electronics has made arrangements with the
European Advanced Recycling Network (EARN) and will cover any costs of
treatment, recycling and recovery of waste Kramer Electronics branded
equipment on arrival at the EARN facility. For details of Kramer’s recycling
arrangements in your particular country go to our recycling pages at
http://www.kramerelectronics.com/support/recycling/.
!
!

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Overview
4
3 Overview
The VS-21H-IR is a high quality switcher for HDMI signals that accepts
two HDMI inputs—letting you select either HDMI input using a switch
located on the panel—and routes the selected HDMI input signal to the
HDMI output.
In particular, the VS-21H-IR features:
•Support of up to 2.25Gbps bandwidth per graphic channel1
•HDMI Support - Deep Color, x.v.Color™, up to 7.1 Uncompressed
Audio Channels
•EDID PassThru that passes EDID/HDCP signals from source to display
•12V DC power
•IR remote control capability
1 Suitable for resolutions up to UXGA at 60Hz, and for all HD resolutions

Your VS-21H-IR 2x1 HDMI Switcher
5
5
4 Your VS-21H-IR 2x1 HDMI Switcher
Figure 1 and Table 1 define the VS-21H-IR 2x1 HDMI Switcher:

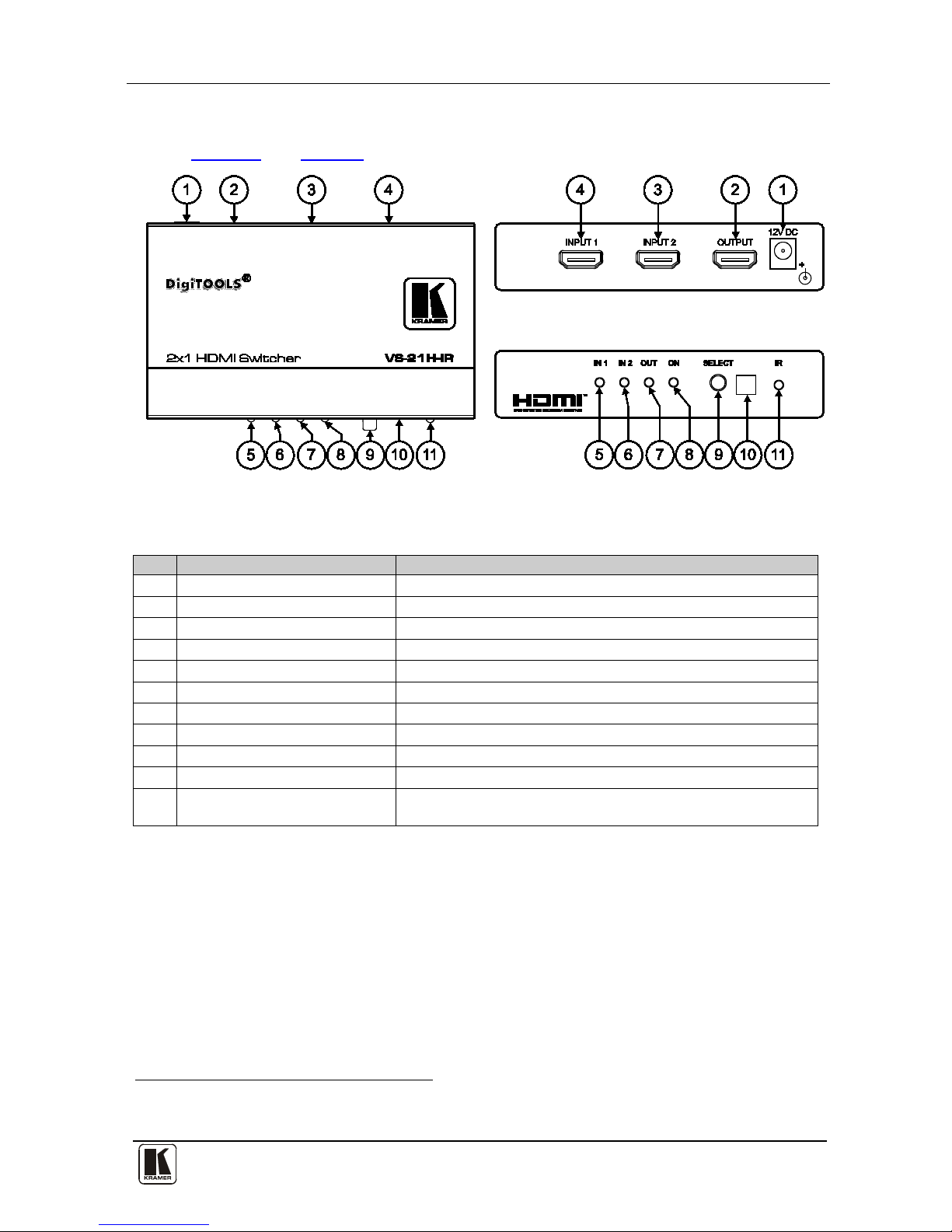

Figure 1: VS-21H-IR 2x1 HDMI Switcher
Table 1: VS-21H-IR 2x1 HDMI Switcher (Top Side Panel) Features
#
Feature
Function
1 12V DC +12V DC connector for powering the unit
2 OUTPUT HDMI Connector Connects to the HDMI acceptor
3 INPUT 2 HDMI Connector Connects to the HDMI source 2
4 INPUT 1 HDMI Connector Connects to the HDMI source 1
5 IN 1 LED Lights when source 1 is selected4F
1
6 IN 2 LED Lights when source 2 is selected
1
7 OUT LED Lights when the output is connected
8 ON LED Lights when receiving power
9 SELECT Button Toggles5F
2
between IN 1 and IN 2
10 IR Receiver Window Receives signals from the infrared remote control transmitter
11 IR LED The red LED lights when receiving signals from the Infrared remote
control transmitter
1 Blinks when selected but no input is connected
2 IN 1 LED lights when INPUT 1 is selected, or the IN 2 LED lights when IN 2 is selected

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the VS-21H-IR 2x1 HDMI Switcher
6
5 Connecting the VS-21H-IR 2x1 HDMI Switcher
To connect the VS-21H-IR, as the example in Figure 2 shows, do the
following1
1. Connect up to two HDMI sources to the INPUT connectors, using the
Kramer HDMI cables: INPUT 1 connector to HDMI source 1 (for
example, DVD Player 1) and INPUT 2 connector to HDMI source 2
(for example, DVD Player 2).
:
2. Connect the OUTPUT connector to the HDMI acceptor (for example,
a plasma display), using the Kramer HDMI cable.
3. Connect the 12V DC power adapter to the power socket and connect
the adapter to the mains electricity.
4. Press the SELECT button2
to choose which HDMI input to route to
the output. The SELECT button toggles between INPUT 1 and INPUT
2, lighting the IN 1 LED when INPUT 1 is selected, or the IN 2 LED
when IN 2 is selected.
Figure 2: Connecting a VS-21H-IR 2x1 HDMI Switcher
1 Switch OFF the power on each device before connecting it to your VS-21H-IR. After connecting your VS-21H-IR, switch
on its power and then switch on the power on each device
2 Or press key 1 or 2 on the remote transmitter, once setup (see Section 5.1)

Operating the VS-21H-IR 2x1 HDMI Switcher
7
7
5.1 Using the Remote Control Transmitter
You can use the remote control transmitter1
To assign the GROUP number on the remote control transmitter, do the
following:
to switch INPUT 1 or 2 to the
output. Before doing so, set it to work with the VS-21H-IR by assigning a
GROUP number.
1. Point the remote control transmitter at the remote receiver (item 10 in
Figure 1 / Table 1) and press the GROUP key.
2. Press key 11.
This sets and saves the group number.
To switch INPUT 1 or 2 to the output via the remote control transmitter,
press key 1 or 2.
6 Operating the VS-21H-IR 2x1 HDMI Switcher
This section describes how to operate the VS-21H-IR, using the SELECT
button. The VS-21H-IR functions in two modes: the PC mode2(see Section
6.1) and the DVD mode (see Section 6.2
6.1 Working in the PC Mode
).
This section describes how to acquire / change the EDID (see Section 6.1.1)
and how to reset the default EDID (see 6.1.2Section
Note that if a PC is connected to the input, and the EDID is acquired while
running video on-screen, the video will stop running and then will either restart
automatically or will need to be restarted via the graphics card display
definitions, depending on the type of graphics card installed in the PC.
) when working in the
PC mode.
6.1.1 Acquiring / Changing the EDID
You can work with the default EDID or acquire / change the EDID.
To acquire or change the EDID:
1. Connect the new output display device.
If no output display device is connected to the output, the default
EDID is stored in the non-volatile memory.
1 The setup parameters for the remote control transmitter are as follows: router number = 1 (default); group number = 11,
single digit mode (default), video (default). For further details, see the RC-IR2 user manual
2 The default

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Operating the VS-21H-IR 2x1 HDMI Switcher
8
2. Connect the power while keeping the SELECT button pressed until
the LEDs start to flash.
3. Release the SELECT button while the IN 1, IN 2 and OUT LEDs
flash.
The EDID of both INPUT 1 and 2 is altered and stored in the
non-volatile memory.
When a certain input—INPUT 1 or INPUT 2—is selected, the EDID
information comes directly from the display. When the input is not selected,
the VS-21H-IR uses the virtual EDID stored in the non-volatile memory.
6.1.2 Resetting to the Default EDID
To reset the default EDID, do the following:
1. Disconnect the power.
2. Disconnect the output cable.
3. Connect the power while keeping the SELECT button pressed until
the IN 1, IN 2 and OUT LEDs flash.
6.2 Working in the DVD Mode
In the DVD mode, an unselected input will not receive any EDID data. The
selected input will receive the EDID data directly from the display device.
6.2.1 Toggling from the DVD mode to the PC mode
To toggle from the DVD mode to the PC mode:
1. Press and hold the SELECT button for a few seconds until both
INPUT LEDs flash, while the device is powered on.
2. Release the SELECT button.
The VS-21H-IR switches to the PC mode.
6.2.2 Toggling from the PC mode to the DVD mode
To toggle from the PC mode to the DVD mode:
1. Press and hold the SELECT button until both INPUT LEDs light
continuously without flashing, while the device is powered on.
2. Release the SELECT button.
The VS-21HDMI-IR switches to DVD mode.

Technical Specifications
9
9
6.3 VS-21H-IR Factory Reset Procedure
To reset the VS-21H-IR to its factory default values:
1. Connect the power to the VS-21H-IR while pressing the SELECT
button.
2. Wait until LEDs IN 1 and IN 2 blink and OUT LED lights and then
release the SELECT button.
3. Disconnect the power.
4. Reconnect the power while pressing the SELECT button.
5. Wait until LEDs IN 1, IN 2 and OUT blink and then release the
SELECT button.
7 Technical Specifications
Table 2 includes the technical specifications1
Table 2: Technical Specifications of the VS-21H-IR 2x1 HDMI
of the VS-21H-IR:
INPUTS: 2 HDMI connectors
OUTPUT: HDMI connector
BANDWIDTH: Supports up to 2.25Gbps bandwidth per channel
COMPLIANCE WITH HDMI STANDARD: Supports HDMI and HDCP
CONTROLS: Input Select button, IR remote control
INDICATOR LEDs: IN 1, IN 2, OUT, and ON LEDs
POWER SOURCE: 12V DC, 180mA
OPERATING TEMPERATURE: 0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE: –40° to +70°C (–40° to 158°F)
HUMIDITY: 10% to 90%, RHL non-condensing
DIMENSIONS: 12cm x 7.15cm x 2.76cm (4.7" x 2.8" x 1.08") W, D, H
WEIGHT: 0.3kg (0.67lbs) approx.
ACCESSORIES: Power supply, bracket installation kit, IR remote control
OPTIONS: HDMI/HDMI male-to-male cables
1 Specifications are subject to change without notice

KRAMER: SIMPLE CREATIVE TECHNOLOGY
10

Kramer Electronics, Ltd.
Web site: www.kramerelectronics.com
E-mail: [e-mail]
P/N: 2900-000671 REV 5
For the latest information on our products and a list of Kramer
distributors, visit our Web site: www.kramerelectronics.com,
where updates to this user manual may be found.
We welcome your questions, comments and feedback.
Caution
Safety Warning:
Disconnect the unit from the power supply before
opening/servicing.
P/N:
2900- 000671
Rev:
5
