Kraus Indy KSB-10001 User manual

INSTALLATION MANUAL
Indy™ Hands-Free Bath
Faucet with Sensor
KSB-10001
www.kraususa.com I Toll Free: 1.800.775.0703 I © 2023 Kraus USA Plumbing LLC
I Rev. March 29, 2023

2
Congratulations on the purchase of your new
R
Kraus plumbing fixture!
Please keep the box and packaging materials until your product is
completely installed. If you have any questions, require technical
assistance or have any problems with your product:
Please contact our Customer Service Team
1-800-775-0703 / [email protected]
Have the model number available and retain a copy of your
receipt with purchase date for reference.
If for any reason this product does not meet your expectations,
please be sure to repack this product in the original box and
packaging material to avoid damage during transit.
DO NOT RETURN TO STORE
STOP

13
3
Prior to Installation:
·Make sure you have all necessary parts by checking the diagram and
parts list. If any part is missing or damaged, please contact Kraus
Customer Service at 800-775-0703 for a replacement.
·Read all instructions and safety warnings and ensure you have all tools,
parts, and equipment necessary for a safe installation.
·Turn off the hot and cold water supply at the angle stops and turn on
the old faucet to release any built up pressure. Remove existing faucet.
·Pre-drilled hole size requirement: 1 3/8" (min)
·Max countertop thickness: 2 7/8”
Care & Maintenance
* To keep the product clean & shining, follow the steps below:
1. Rinse with clean water & dry with a soft cloth
2. Do not clean with soaps, acid, polish, abrasives or harsh cleaners
3. Do not use cloth with a coarse surface
4. Unscrew the aerator and clean when necessary
* This installation manual is subject to change without further notice.
ACID
R
STOP
For technical assistance or replacement parts, please contact Kraus Customer
Service and one of our representatives will be happy to help:
Toll-Free: 800-775-0703 or [email protected]
Tools Required
Wrench Phillips Screwdriver Silicone Sealant Safety Goggles Pipe Tape

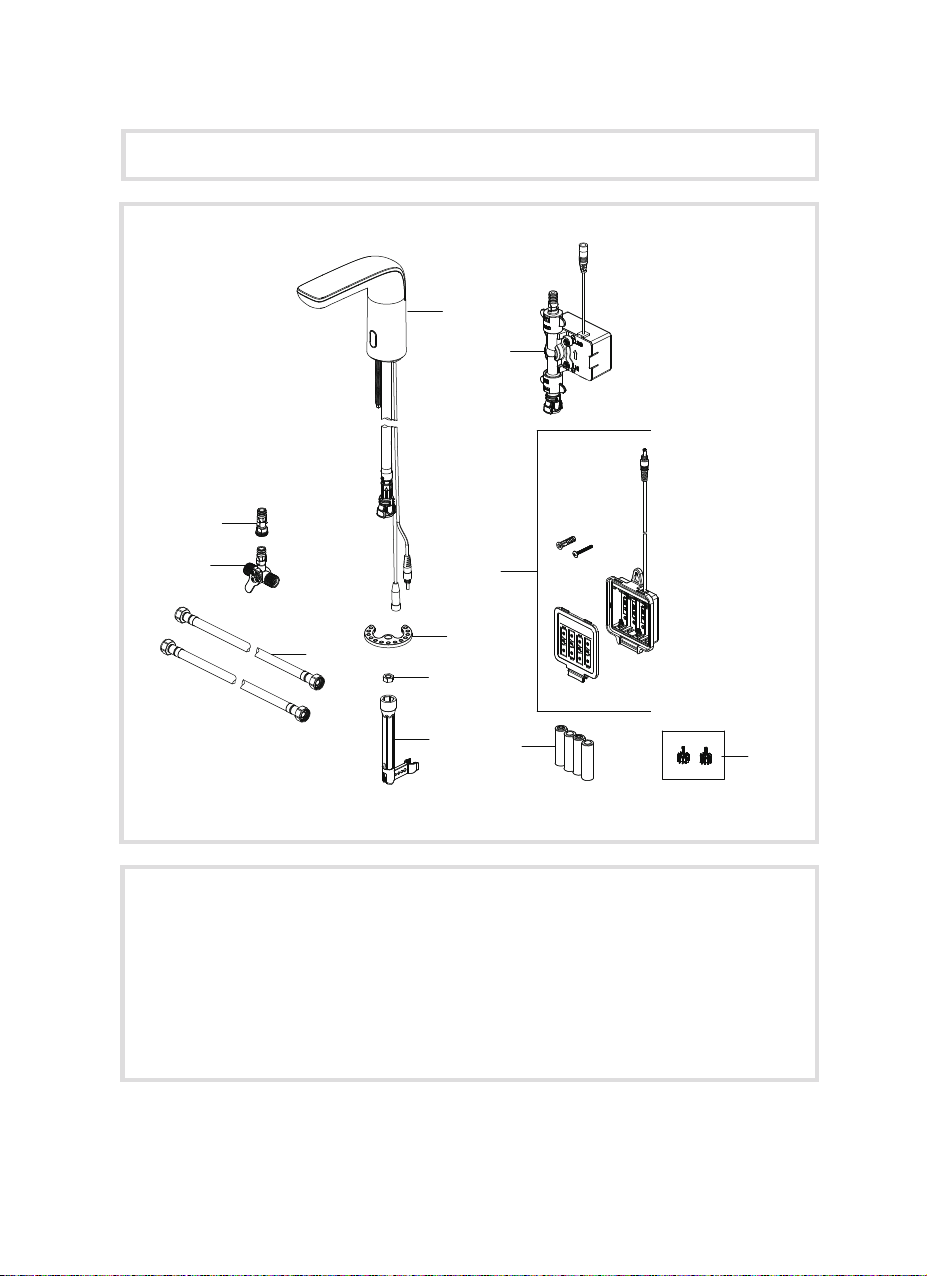

Diagram and Parts List
A. Faucet Body
B. Washer
C. Nut
D. Spanner Key
E. Quick Connector
A
B
C
D
E
F
G
H
I
J
+
-
-
+
+
-
-
+
K
4
F. Mixing Valve
G. Hose
H. Sensor Control Box
I. Battery Pack
J. "AA" Battery
K. Filter Washer

Faucet Dimensions
3/8" compression
3/8" compression
16"
[406.4mm]
2 1/4"
[58.3mm]
1 3/4"
[46.0mm]
5 1/2"
[138.9mm]
1 7/8"
[48.1mm]
1 7/8"
[48.1mm]
4 1/2"
[114.4mm]
4 5/8"
[119.0mm]
6 3/8"
[162.7mm]
3/8" compression
2 7/8"
[73mm]
Installer Tip:
Shut off main water supply before installing new faucet.
5

B
C
A
2
1
Step 1: Remove washer and nut
Shut off the water supply. Remove the
old faucet. Before installation, remove
the washer (B) and the nut (C) from the
faucet by unscrewing the nut (C) in a
counterclockwise direction.
Step 2: Installing the faucet
Install the faucet body (A), supply
hoses (1) and sensor cable (2) through
the hole in the sink or countertop.
6

CAUTION: If the connections are not made
properly, the sensor feature will not work.
Red
Red
Blue
Blue
D
C
H
2
1
B
7
Step 3: Securing the faucet assembly
Install the sensor cable (1) to the control box
connection (2). Ensure they are tightly
connected by firmly pushing together.
Connect the hose with the blue tag to the hose
on the sensor control box (H) with a matching
blue tag. Push firmly together until they snap
into place.
3.1. Install the washer (B) onto the threaded bolt. 3.2. Thread the lock nut (C) onto the bolt
using the spanner key (D) provided to
tighten firmly. Do not overtighten.
Step 4: Installing the sensor control box

1
1
2
2
3
Hot and cold water adjustable mode (optional): Thread
the nuts (1) on the inlet hose (G) onto the mixing valve
(F) and tighten with a wrench. Do not overtighten.
Connect the mixing valve (F) with the red tag to the
quick connector on the sensor control box (H) with a
matching red tag. Push firmly together until they snap
into place.
G
G
F
11
G
G
H
8

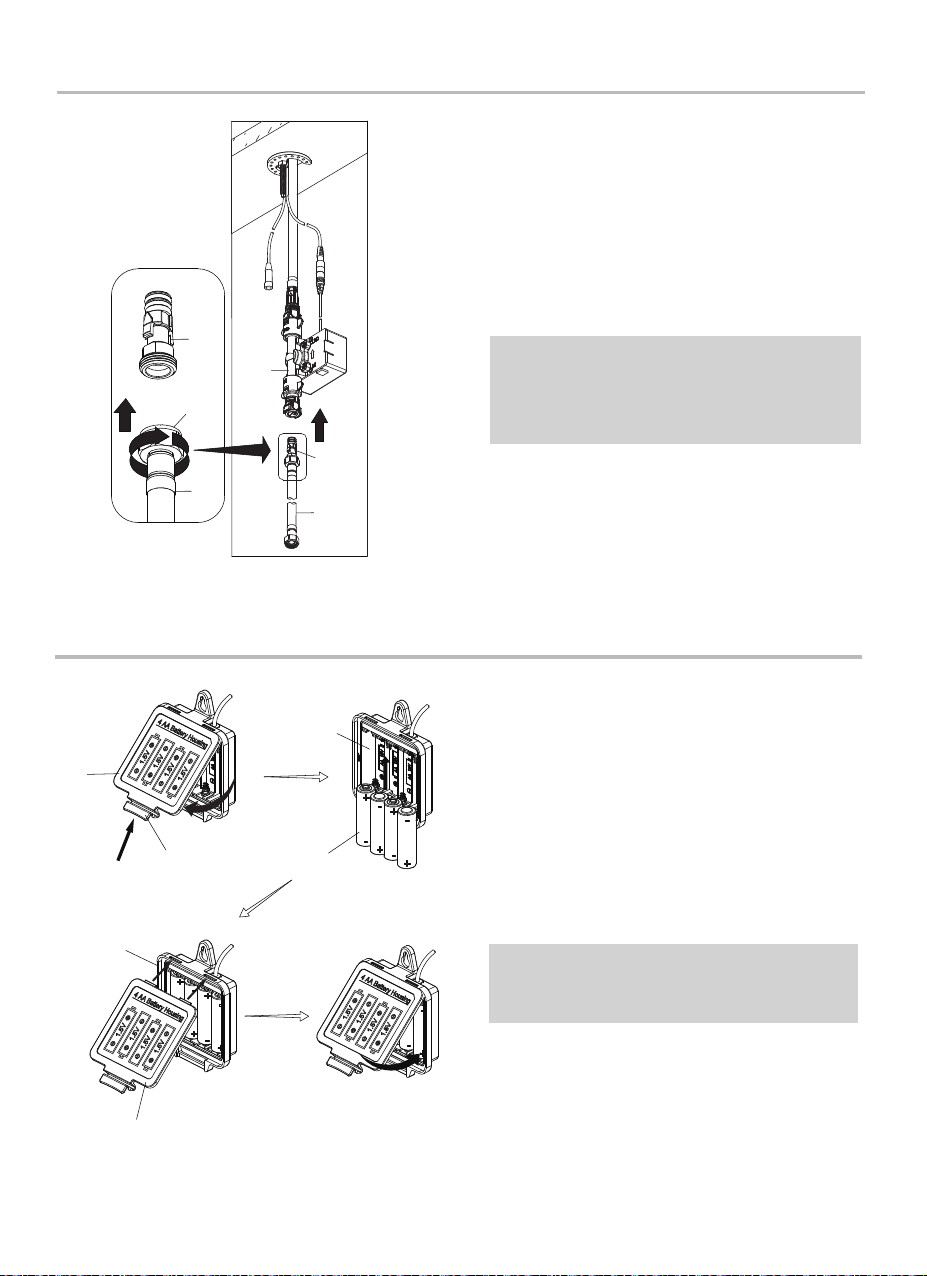

Step 5: Hose installation - Hot and Cold water
NOTE: This step is for hose installation using dual
hot and cold water mode. If using the single cold
water mode, begin with step 6.

To open the battery housing, squeeze the
tabs (1) on the cover (2), then remove the
cover (2). Install the four AA batteries (3)
included by matching the positive (+) and
negative (-) ends on the battery (3) to the (+)
and (-) markings in the battery pack (4). The
negative ends of the battery (3) should
always connect to the spring end of the
battery slots in the battery pack (4). Reinstall
the battery pack cover (2) by pushing up and
snapping into place.
2
1
2
3
4
4
NOTE: When the sensor flashes 10 times
continuously and slowly, the batteries have
lost their charge. Replace the batteries (3).
NOTE: This step is for hose installation using
single cold water mode. If using dual hot
and cold water mode, install as instructed in
step 5.
1
E
G
H
E
J
Step 6: Hose installation - Cold water only
Single cold water mode (optional): Thread the
nut (1) on the hose (G) onto the quick
connector (E) and tighten with a wrench. Do
not overtighten.
Connect the quick connector (E) with the red
tag to the hose on the sensor control box (H)
with a matching red tab. Push firmly together
until they snap into place.
Step 7: Installing the battery pack
9

NOTE: After installing the battery pack, the
light on the sensor will flash and the faucet
control box will make a "click" sound when
you move your hand in the sensor area. If
not, check to ensure the batteries are
installed correctly.
4 AA Battery Housing
4 AA Logement de la pile
4 AA Battery Housing
4 AA Logement de la pile
6mm
(15/64") dia.
Black
Black
1
2
3
4
I
Thread the nut (1) on the supply line onto the
outlet of the water supply valve (2) and
tighten with a wrench. Do not overtighten.
Perform this step on the hot and cold sides.
H
C
1
2
10

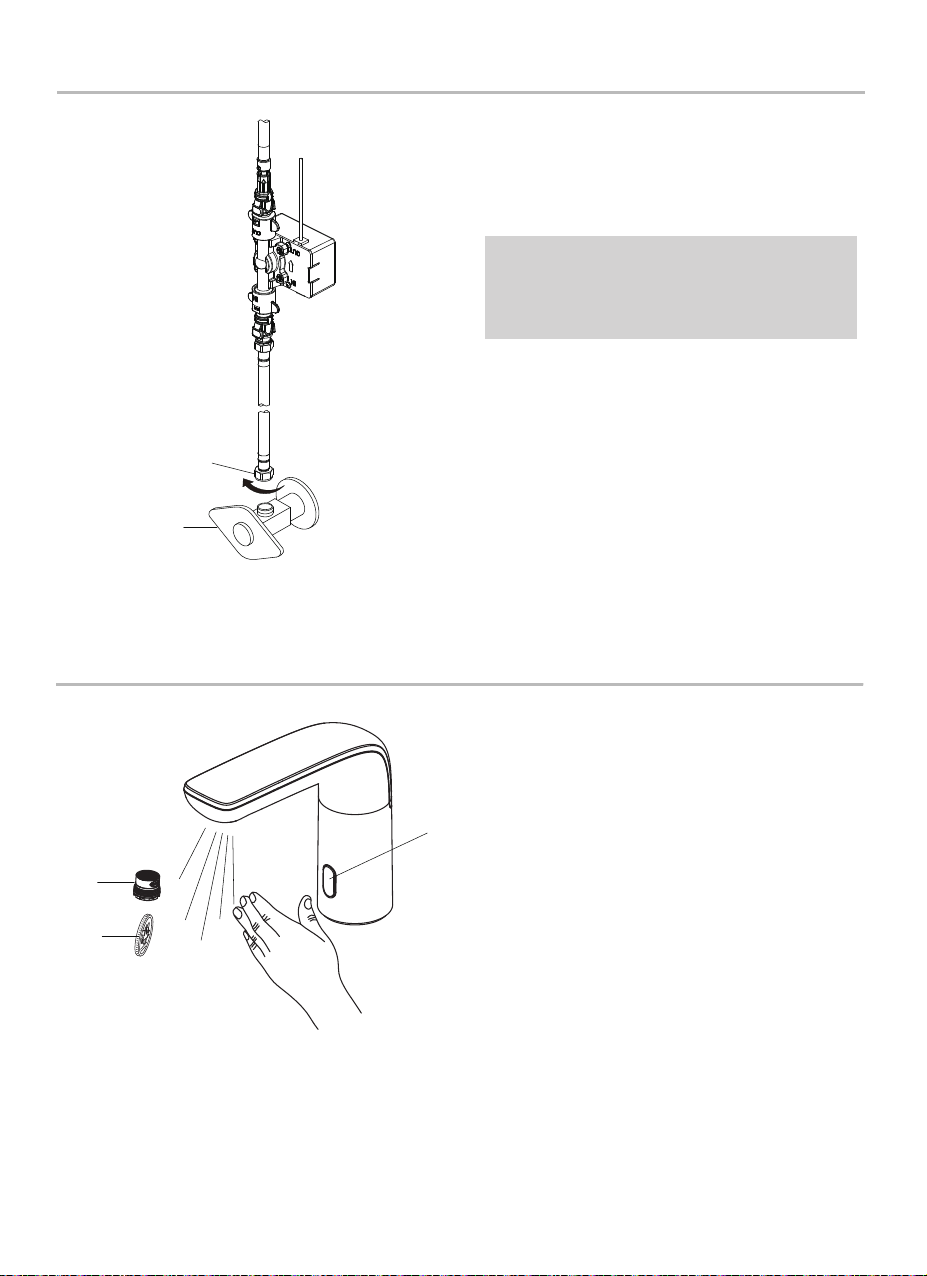

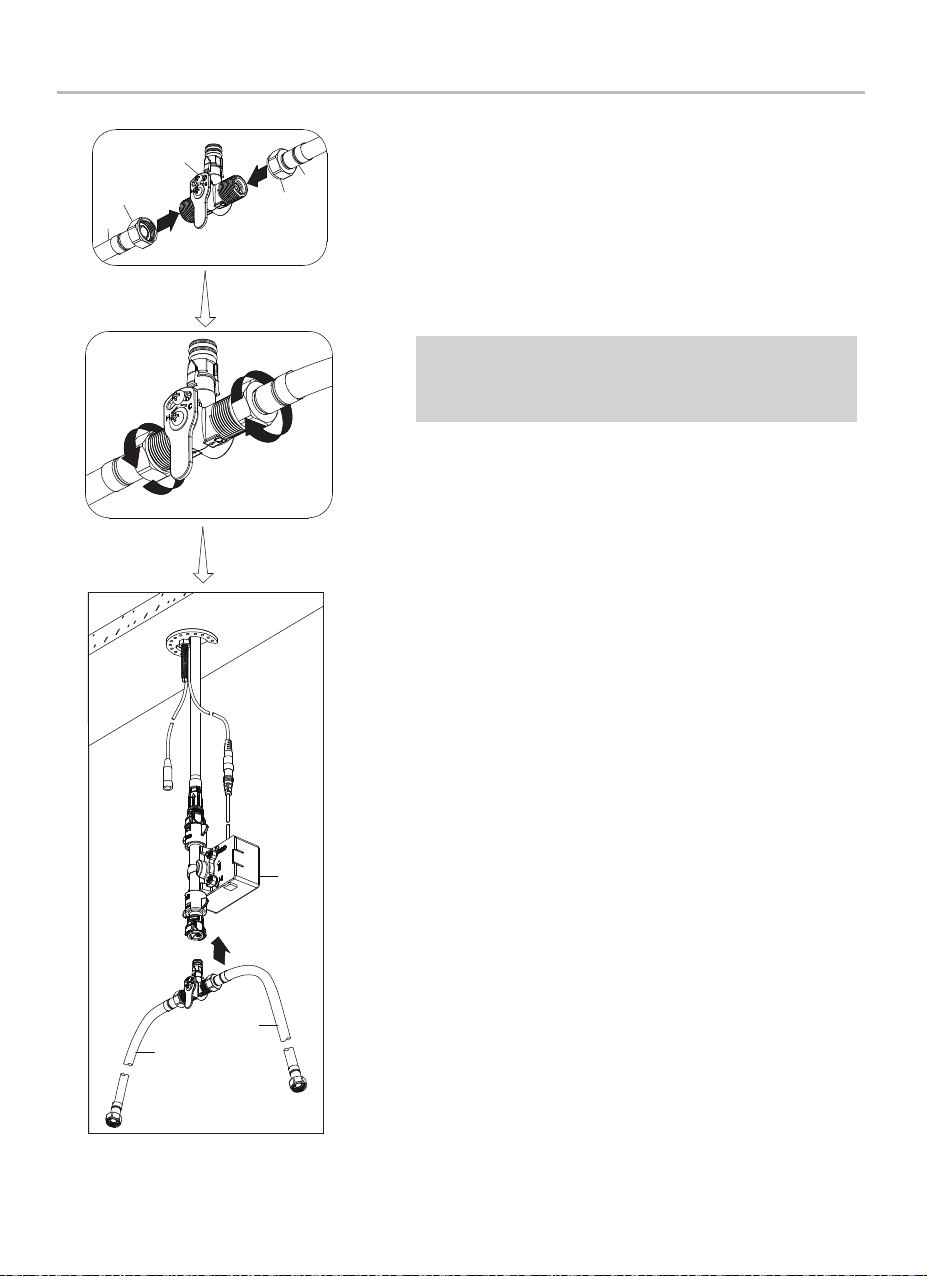

Step 8: Connect waterlines to main valve - Hot and Cold water
Step 7: Installing the battery pack - continued
Drill a hole in the wall using a 6 mm (15/64 in.)
diameter drill bit. Install the battery pack (I)
using the molly anchor (1) and screw (2)
provided. Insert the battery pack cable (3) into
the control box connection (4).
NOTE: This step is for the water supply
connections using dual hot and cold water
mode. If using the single cold water mode,
install as instructed in step 9.
