INSTALLATION MANUAL
Zero-Radius Handmade Stainless
Steel Kitchen Sinks
(Pax™ and R0 PRO™ Series)
KHU15 & KHU15C / KHU19 & KHU19C / KHU23 &
KHU23C / KHU24L & KHU24CL / KHU29 & KHU29C
KHU32 & KHU32C / KHU322 & KHU322C
www.kraususa.com I toll free: 1.800.775.0703 I © 2014-2015 Kraus USA Inc. I REV. August 17, 2016

1
Thank you for your purchase
We would like to take this opportunity to thank you for choosing Kraus.
We hope that you are completely satised with your purchase, and enjoy it for years
to come. If you have any questions, or require technical assistance, please contact
us at 800.775.0703 and one of our representatives will be happy to help.
For more information about Kraus products, please visit:
www.kraususa.com
In order to activate your warranty and get faster access to customer support, please
register your new Kraus product at:
www.kraususa.com/registration
Sincerely,
Kraus USA Customer Service

2
Prior to Installation:
• Make sure that you have all necessary parts by checking the parts list. If any part is
missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a
replacement
• Inspect the sink prior to installation to make sure that it has not been damaged or
during shipping
• Use the cut-out template provided by Kraus
• Observe all plumbing and building codes according to your state requirements
• Not recommended to be installed with laminate countertop
For technical assistance or replacement parts, please contact Kraus
Customer Service and one of our representatives will be happy to help:
Toll-Free: 800-775-0703 or [email protected]
The step-by-step guidelines in the installation instructions are a general reference for installing a
Kraus Sink. Should there be any discrepancies, Kraus cannot be held liable. It is recommended to
install all Kraus products by hiring a licensed professional.

3
Parts List
• Cut-Out Template • Mounting Hardware • Bottom Grids • Drain
NOTE: Bottom grids and drains are not included with C-series sinks
NOTE: Specialized tools may be necessary to install Kraus Stainless Steel Undermount
sinks with countertop materials other than wood, marble, or granite
Tools you will need:
Scissors Screwdriver
Safety Goggles
Putty KnifePhillips Screwdriver
Drill
Tape Measure
Silicone Adhesive Jig Saw
Pencil
Adjustable wrench Phillips screwdriver
Tools You Will Need
Hex wrenchSilicone Sealant
A
I
D
J
F
B
G
C
H
E
Adjustable wrench Phillips screwdriver
Tools You Will Need
Hex wrench
Silicone Sealant
A
I
D
J
F
B
G
C
H
E
• Compatible with Kraus Exclusive garbage disposal adapter GDA-1
(not included with purchase)

4
Dimensions
13"
14-1/2"
17"
18-1/2"
10"
95°
17"
18-1/2"
95°
12"
22-1/2"
24"
17"
18-1/2"
10"
95°
17"
18-1/2"
17"
18-1/2"
95°
10"
21"
22-1/2"
KHU15 & KHU15C
14.5” x 18.5” x 10”
Min Cabinet Size: 18”
Drain Model #: ST-3
Optional Drain#: GDA-1
KHU23 & KHU23C
22.5” x 18.5” 10”
Min Cabinet Size: 27”
Matching Grid: KBG-H23
Drain Model #: ST-3
Optional Drain#: GDA-1
KHU19 & KHU19C
18.5” x 18.5” x 10”
Min Cabinet Size: 24”
Drain Model #: ST-3
Optional Drain#: GDA-1
KHU24L & KHU24CL
24” x 18.5” x 12”
Min Cabinet Size: 27”
Drain Model #: ST-3
Optional Drain#: GDA-1

5
14-1/2" 14-1/2"
31-1/2"
17"
18-1/2"
10"
95° 95°
17"
18-1/2"
95°
10"
27"
28-1/2"
30"
31-1/2"
17"
18-1/2"
10"
95°
KHU29 & KHU29C
28.5” x 18.5” x 10”
Min Cabinet Size: 33”
Matching Grid: KBG-H29
Drain Model #: ST-3
Optional Drain#: GDA-1
KHU322 & KHU322C
31.5” x 18.5” x 10”
Min Cabinet Size: 36”
Matching Grid: KBG-H322-1 & KBG-H322-2
Drain Model #: ST-3
Optional Drain#: GDA-1
KHU32 & KHU32C
31.5” x 18.5” x 10”
Min Cabinet Size: 36”
Matching Grid: KBG-H32
Drain Model #: ST-3
Optional Drain#: GDA-1

6

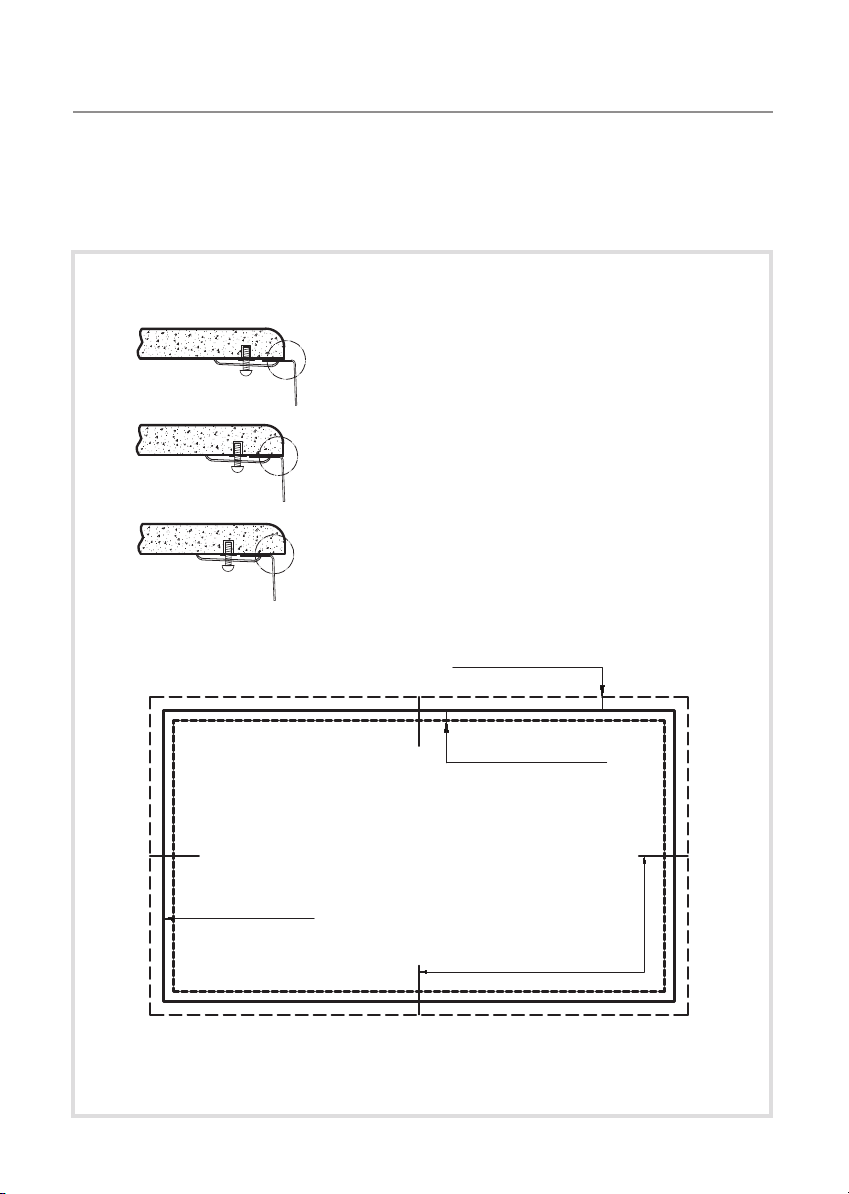

1. Determine Reveal Type
Use scissors to cut along the line of the paper template for your desired
reveal type (Negative, Positive, or Flushed Reveal)
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO
KRAUS Recommended Installation Type

7

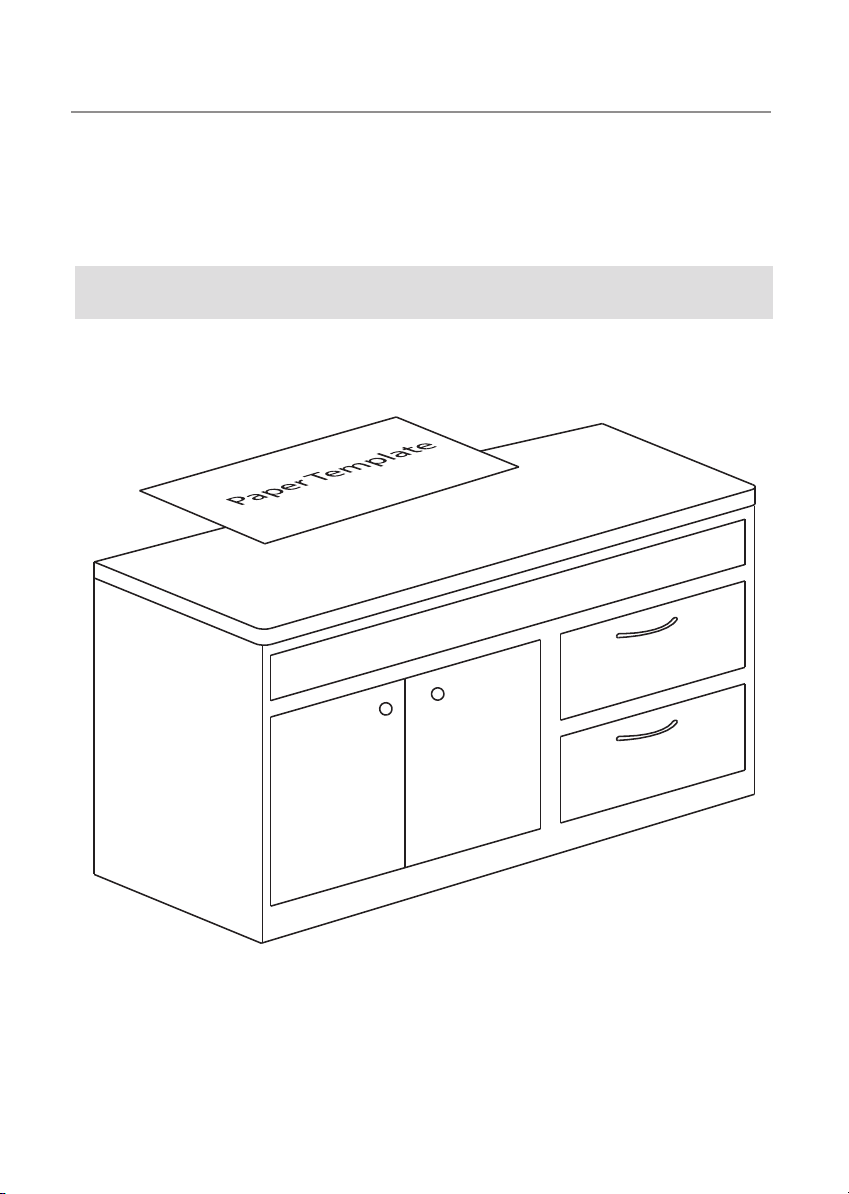

2. Position Template
• Check the cut-out template against the actual sink to ensure a proper
sized cut-out
• Place the cut-out template in the desired location on the countertop
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO
NOTE: Make sure clearance is suitable for backsplash, faucet, and plumbing for the sink

8
3. Trace Template
• Trace template on countertop with a pencil
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO

9
4. Cut Countertop
• Cut the opening in the countertop by carefully following the traced line
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO
NOTE: Please use the appropriate saw that best ts your countertop
material
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO

10
6. Drill Hole in Countertop
5. Set up Mounting Brackets
• Drill 3/8” diameter x 1/2” deep hole in the countertop
• Turn countertop over and align sink with countertop. Decide location for
mounting brackets
• Mounting holes should be ½” from edge of sink
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO

11
7. Install Anchors
• Insert anchors into drilled holes and lightly tap with a hammer until ush
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO
8. Secure Sink to Countertop
• Use a bead of silicone (or preferred adhesive) around the rim of the sink.
Check the alignment of the sink to the cutout in the countertop. Place sink
over cutout hole and press rmly
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO

12
• Use a bead of silicone (or preferred adhesive) around the rim of the sink.
Check the alignment of the sink to the cutout in the countertop. Place sink
over cutout hole and press rmly

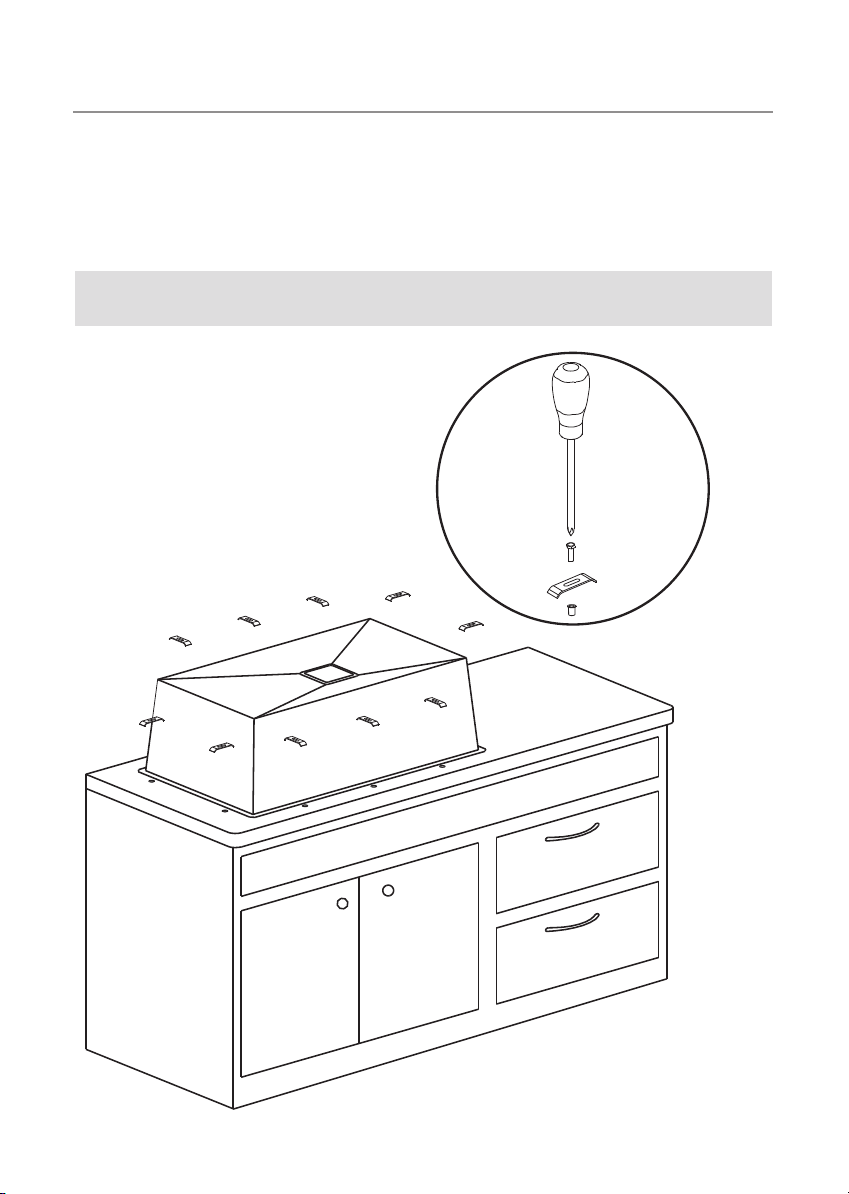

9. Attach Mounting Hardware
• Attach mounting hardware to secure bowl. Remove excess sealant
from inside lip
• Allow sealant to set for 30 – 60 minutes
NOTE: Use acetone or rubbing alcohol to remove any excess sealant
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO

13
10. Install Plumbing Fixtures
• Connect drain to sink. Connect trap to drain. Connect water supply
connections to faucet according to manufacturer’s instructions
• Run water into sink and check for leaks
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO

14
• Connect drain to sink. Connect trap to drain. Connect water supply
connections to faucet according to manufacturer’s instructions
• Run water into sink and check for leaks
Codes/Standards Applicable:
HELP LINE
Our customer service hours are Monday – Friday, 9am – 8pm EST.
Be sure to visit our website at www.kraususa.com
If you are a HOMEOWNER please contact a Kraus Customer Service Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
Toll-free 800-775-0703
[email protected]
If you are a PLUMBING CONTRACTOR OR TRADE PROFESSIONAL please contact a Kraus
Pro Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
516-801-8955
[email protected]
If you are an AUTHORIZED PARTNER please contact a Partner Support Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
516-801-8954
[e-mail]
In requesting warranty service, please be ready to provide:
1. Proof of purchase.
2. A description of the problem.

www.kraususa.com
Receive Proof of Ownership
Access Customer Care & Installation Help
Get Exclusive Kraus Oers & Promotions
Scan to Register Online
or visit http://www.kraususa.com/registration
Please take a moment to share your experience.
Visit http://www.kraususa.com/review to let us know what you think
about your new Kraus product.
Contact Us to Learn More
1.800.775.0703 / www.kraususa.com / [email protected]
Like & Follow KrausUSA
Download the Kraus Care & Maintenance Guide at:
http://www.kraususa.com/maintenance
REGISTER YOUR PRODUCT TODAY
We’re always looking for ways to improve.

INSTALLATION MANUAL
Oletto™Single Handle
Commercial Style Kitchen Faucet
KPF-2631
www.kraususa.com I Toll Free: 1.800.775.0703 I © 2017 Kraus USA Inc. I REV. November 20, 2017

1
Congratulations on the purchase of your new
Kraus plumbing xture!
Please keep the box and packaging materials until your product is
completely installed. If you have any questions, require technical
assistance, or have any problems with your product:
Please contact our Customer Service Team
1-800-775-0703 / [e-mail]
Have the model number available, and retain a copy of your receipt
with purchase date for reference.
If for any reason this product does not meet your expectations,
please be sure to repack this product in the original box and
packaging material to avoid damage during transit.
DO NOT RETURN TO STORE

2
Prior to Installation:
• Make sure you have all necessary parts by checking the diagram and parts list. If
any part is missing or damaged, please contact Kraus Customer Service at 800-
775-0703 for a replacement
• Turn off the hot and cold water supply at the angle stops and turn on the old
faucet to release any built up pressure. Remove existing faucet. Clean sink or
countertop to remove any debris, plumber’s putty, or silicone
• Place bucket under angle stops. Turn on to ush any debris prior to installing new
plumbing. Shut off angle stops
• Pre-drilled hole size requirement: 1-3/8” (min) – 1-1/2” (max)
• Max countertop thickness without deck plate: 1-1/2”
• Max countertop thickness with deck plate: 1”
• 1, 2, or 3 hole installation
Without deck plate:
With deck plate:
1/16” (1mm) min.
1-1/2” (38 mm) max.
Ø 1-3/8” (35 mm) min.
Ø 1-1/2” (38 mm) max.
1/16” (1mm) min.
1” (25.4 mm) max.
Ø 1-3/8” (35 mm) min.
Ø 1-1/2” (38 mm) max.
1
2
Designated Mark
Hot
Upward
Black
Cold
1A 1B
234
567
G
G
EEF
G
G
G
G
F
F
F
E
E
H
E
E
A
A
I
B
J
D
D
CD
G
Half Moon Locking Nuts Half Moon Locking Nuts
Rubber Caps
G
Tools you will need:
Adjustable Wrench Safety Goggles Bucket Silicone Sealant
6 5/8”
5 4/5”
3/8”
(10mm)
7/8”
19.7
º
(22mm)
8 5/16”
1 1/4-18UNF-2A
(21mm)
10 1/8”
(257mm)
1 3/8”
(35mm)
3 3/4”
(168mm)
(147.3mm)
(96mm)
∅ 1 3/4”
(∅ 45mm)
∅ 1 15/16”
(∅ 50mm)
9/16”-18UNEF
27mm ~ 41.3mm 1 1/16” ~ 1 5/8”
∅ 1 15/16”
(∅ 50mm)
12 7/16”
(316mm)
1 5/8”
(42.5 mm Max)
7A
8B
8C
8D
8A
7A
8B
8C
8D
8A
Adjustable wrench Phillips screwdriver
Tools You Will Need
Hex wrenchSilicone Sealant
A
I
D
J
F
B
G
C
H
E

3

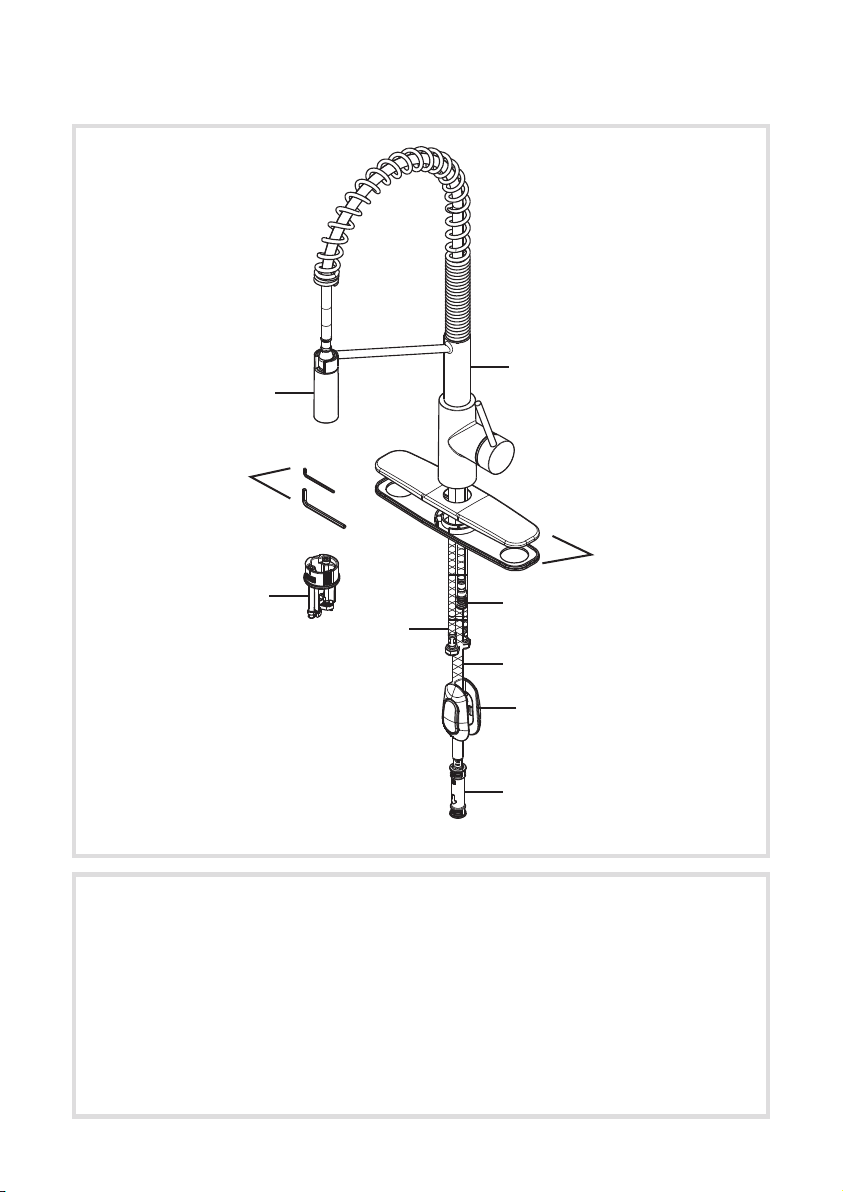

Diagram and Parts List
A. Spray Head
B. Faucet Body
C. Deck & Putty Plate
D. Supply Hose
E. Hot & Cold Waterlines
F. Spray Hose
G. Weight
H. Quick Connect
I. Hex Wrench
i1. 2.5mm
i2. 4mm
J. Base
A
I
J
B
D
F
G
H
E
C
