Kraus KHF200-30 User manual

INSTALLATION MANUAL
Farmhouse Stainless Steel Sink
KHF200-30 / KHF200-33 / KHF200-36
KHF203-33 / KHF203-36
KHF204-33
www.kraususa.com I toll free: 1.800.775.0703 I © 2016 Kraus USA Inc.

1
Thank you for your purchase
We would like to take this opportunity to thank you for choosing Kraus.
We hope that you are completely satised with your purchase, and enjoy it for years
to come. If you have any questions, or require technical assistance, please contact
us at 800.775.0703 and one of our representatives will be happy to help.
For more information about Kraus products, please visit:
www.kraususa.com
In order to activate your warranty and get faster access to customer support, please
register your new Kraus product at:
www.kraususa.com/registration
Sincerely,
Kraus USA Customer Service

2
Prior to Installation:
• Inspect the sink prior to installation to make sure the sink has not been damaged
during shipping
• Use the cut-out template provided by Kraus
• Observe all plumbing and building codes according to your state requirement
• Additional oor and wall preparation may be required to avoid damaging the
product
• Make sure to purchase the correct cabinet for your farmhouse sink. Farmhouse
base cabinets should be 3” larger than the actual size of the sink
• Not recommended to be installed with laminate countertop
For technical assistance or replacement parts, please contact Kraus
Customer Service and one of our representatives will be happy to help:
Toll-Free: 800-775-0703 or [e-mail]
The step-by-step guidelines in the installation instructions are a general reference for installing a
Kraus Sink. Should there be any discrepancies, Kraus cannot be held liable. It is recommended to
install all Kraus products by hiring a licensed professional.

3
Parts List
• Cut-Out Template
• Bottom Grids
• 1 Drain - BST-1 for Single Bowl
• 2 Drains – BST-1 & ST-1 for Double Bowls
NOTE: Specialized tools may be necessary to install Kraus Stainless Steel Undermount
sinks with countertop materials other than wood, marble, or granite
Tools you will need:
Acetone
Screwdriver
Safety Goggles
Phillips Screwdriver
Drill
Tape Measure
Silicone Adhesive Jig Saw
Pencil
Adjustable wrench Phillips screwdriver
Tools You Will Need
Hex wrenchSilicone Sealant
A
I
D
J
F
B
G
C
H
E
Adjustable wrench Phillips screwdriver
Tools You Will Need
Hex wrench
Silicone Sealant
A
I
D
J
F
B
G
C
H
E

4

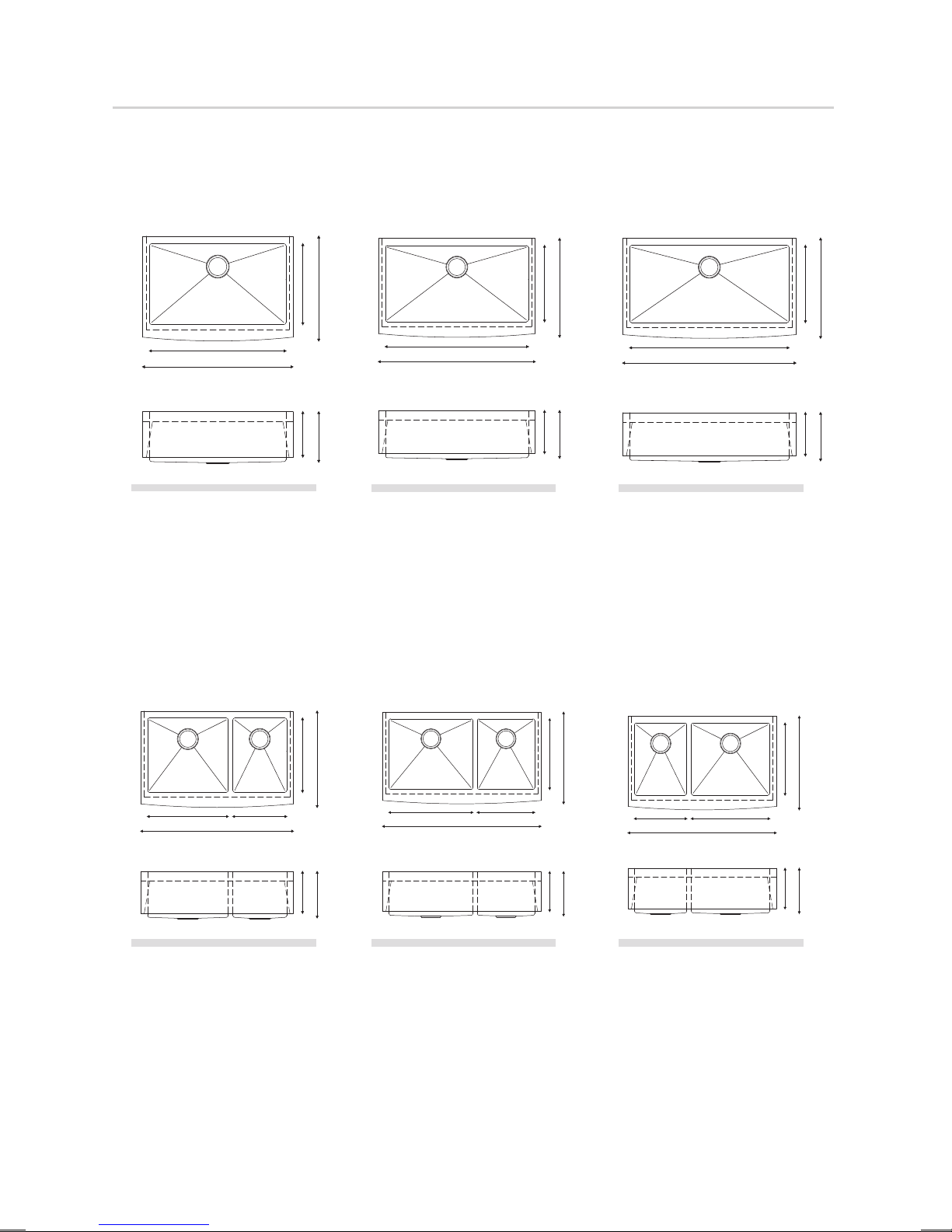

Dimensions
KHF200-30
20-3/4”
527mm
16”
406mm
27”
686mm
29-3/4”
756mm
10”
254mm
9”
229mm
KHF200-30
20-3/4”
527mm
16”
406mm
27”
686mm
29-3/4”
756mm
10”
254mm
9”
229mm
KHF200-33
16”
406mm
30”
762mm
32-7/8”
835mm
20-3/4”
527mm
9”
229mm
10”
254mm
KHF200-36
20-3/4”
527mm
16”
406mm
33”
838mm
35-7/8”
911mm
9”
229mm
10”
254mm
KHF204-33
9”
229mm
10”
254mm
20-3/4”
527mm
16”
406mm
17-3/8”
442mm
11-5/8”
295mm
32-7/8”
855mm
KHF203-33
9”
229mm
10”
254mm
20-3/4”
527mm
16”
406mm
11-5/8”
295mm
17-3/8”
442mm
32-7/8”
835mm
KHF203-33
9”
229mm
10”
254mm
20-3/4”
527mm
16”
406mm
11-5/8”
295mm
17-3/8”
442mm
32-7/8”
835mm
KHF203-36
9”
229mm
20-3/4”
527mm
16”
406mm
13”
330mm
19”
483mm
35-7/8”
911mm
10”
254mm
KHF200-30
29 3/4” x 20 3/4”x 10”
Min Cabinet Size: 33”
Matching Grid: KBG-200-30
Drain Model #: BST-1
KHF203-33
32 7/8” x 20 3/4” x 10”
Min Cabinet Size: 36”
Matching Grid: KBG-200-33-1
and KBG-200-33-2
Drain Model #: BST-1 & ST-1
KHF200-33
32 7/8” x 20 3/4” x 10”
Min Cabinet Size: 36”
Matching Grid: KBG-200-33
Drain Model #: BST-1
KHF203-36
35 7/8” x 20 3/4” x 10”
Min Cabinet Size: 39”
Matching Grid: KBG-200-36-1
and KBG-200-36-2
Drain Model #: BST-1 & ST-1
KHF200-36
35 7/8” x 20 3/4” x 10”
Min Cabinet Size: 39”
Matching Grid: KBG-200-36
Drain Model #: BST-1
KHF204-33
32 7/8” x 20 3/4” x 10”
Min Cabinet Size: 36”
Matching Grid: KBG-204-33-1
and KBG-204-33-2
Drain Model #: BST-1 & ST-1

5

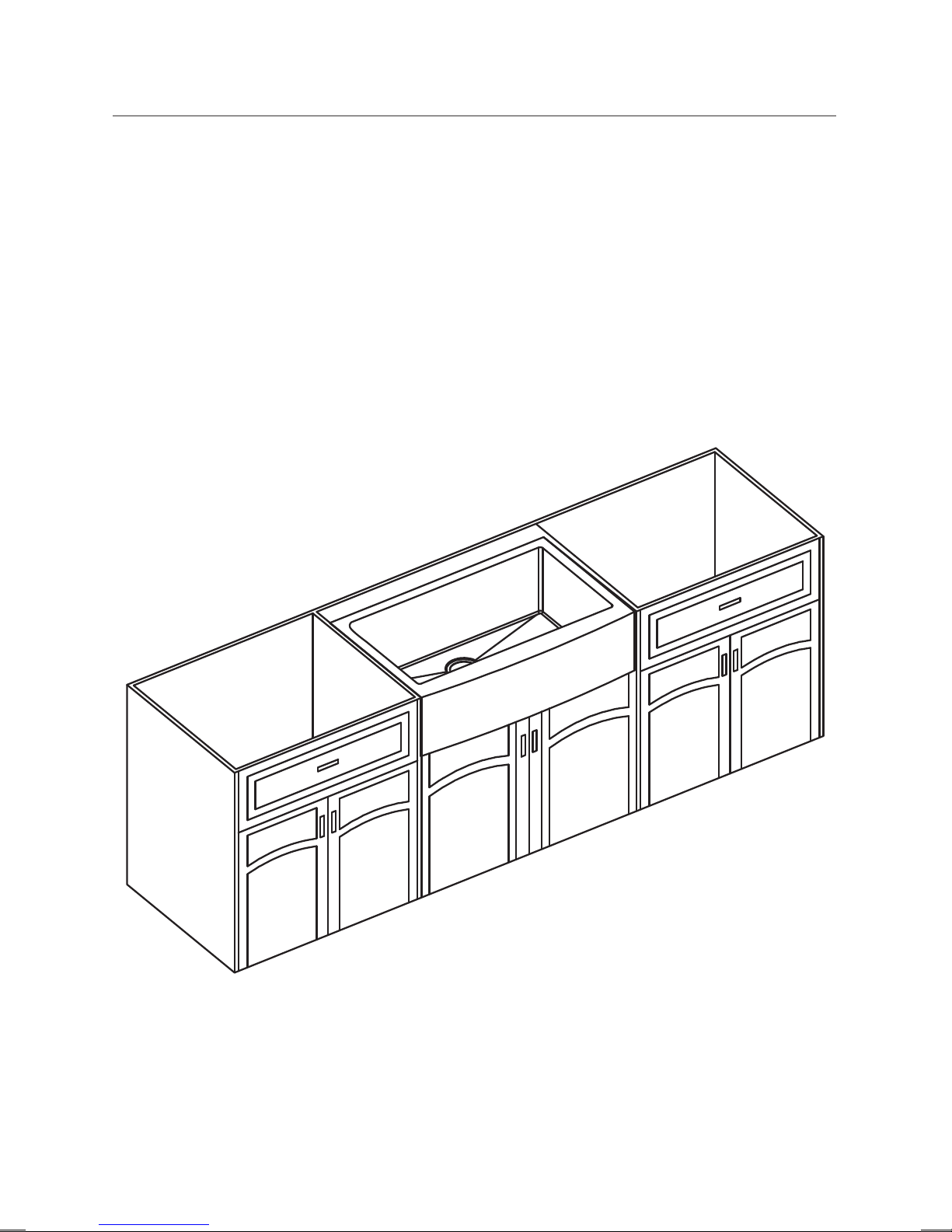

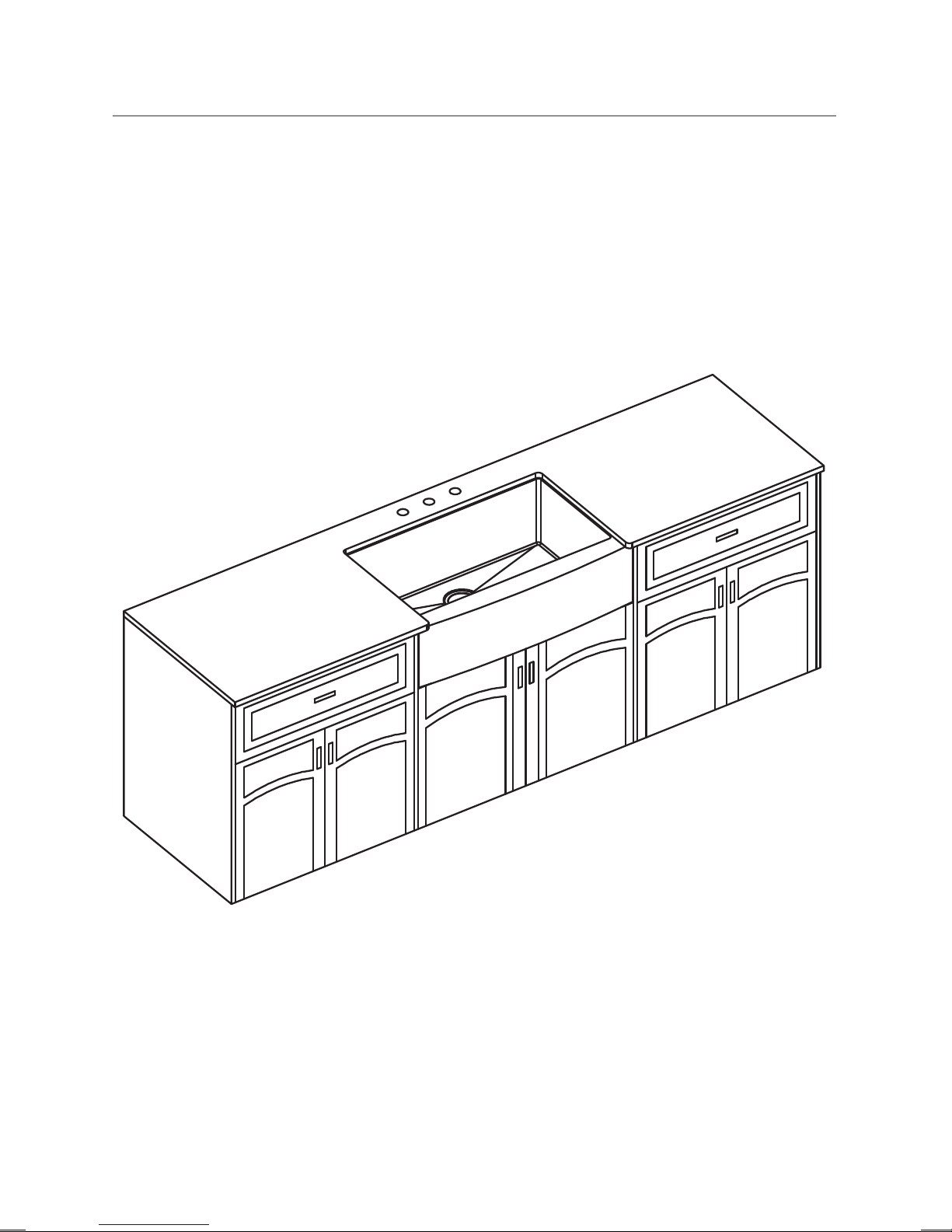

1. Measure & Build Supports
• Measure the actual height of apron
• Build supports on inside of cabinet based on sink measurements
Installer Tip: Support Options
• 1 ¼” Angle Irons
• (2) 2”x 4’
• 3/4” Plywood
SUPPORTS
Silicone Adhesive

6
2. Cut Cabinet Front
• Measure height of apron front. Add 1/16” to the dimension when you
mark base cabinet front cutout. Use jigsaw to cut
SUPPORTS
Silicone Adhesive

7
3. Install Sink
• Place sink in opening. The weight of sink should be sustained
by the built supports
• Make sure sink is leveled from front to back and side to side
• Uses silicone to ll in gaps where necessary
SUPPORTS
Silicone Adhesive

8

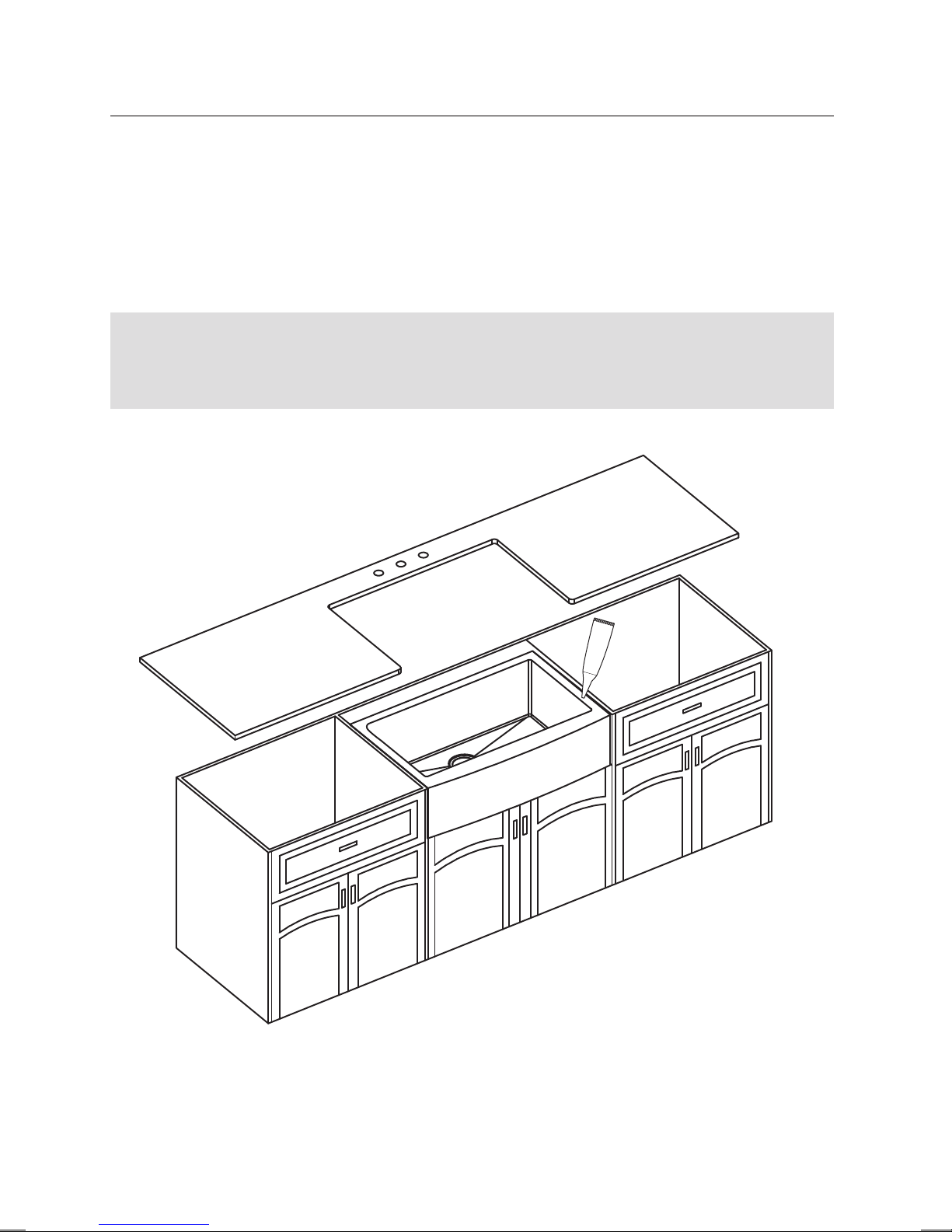

4. Cut Countertop
• Use a bead of silicone (or preferred adhesive) around the rim of the
sink. Check the alignment of the sink to the cutout in the countertop.
Place countertop cutout hole over sink and press rmly
Installer Tip: Use acetone or rubbing alcohol to remove any excess
sealant
SUPPORTS
Silicone Adhesive

9
5. Installing Plumbing Fixtures
• Connect drain, trap to drain and water supply connections to the
faucet according to manufacturer’s instruction.
• Run water into sink and check for leaks
SUPPORTS
Silicone Adhesive

10
Codes/Standards Applicable:
If you are a HOMEOWNER please contact a Kraus Customer Service Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
Toll-free 800-775-0703
[email protected]
If you are a PLUMBING CONTRACTOR OR TRADE PROFESSIONAL please contact a Kraus
Pro Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
516-801-8955
Proser[email protected]
If you are an AUTHORIZED PARTNER please contact a Partner Support Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
516-801-8954
Partnersuppor[email protected]
In requesting warranty service, please be ready to provide:
1. Proof of purchase.
2. A description of the problem.
HELP LINE
Our customer service hours are Monday – Friday, 9am – 8pm EST.
Be sure to visit our website at www.kraususa.com

www.kraususa.com
Receive Proof of Ownership
Access Customer Care & Installation Help
Get Exclusive Kraus Oers & Promotions
Scan to Register Online
or visit http://www.kraususa.com/registration
Please take a moment to share your experience.
Visit http://www.kraususa.com/review to let us know what you think
about your new Kraus product.
Contact Us to Learn More
1.800.775.0703 / www.kraususa.com / [e-mail]
Like & Follow KrausUSA
Download the Kraus Care & Maintenance Guide at:
http://www.kraususa.com/maintenance
REGISTER YOUR PRODUCT TODAY
We’re always looking for ways to improve.

INSTALLATION MANUAL
KPF-2720
Crespo™ Single Lever Pull Down
Kitchen Faucet
www.kraususa.com I toll free: 1.800.775.0703 I © 2014-2015 Kraus USA Inc. I REV. March 30, 2017

1
For technical assistance or replacement parts, please contact Kraus
Customer Service and one of our representatives will be happy to help:
Toll-Free: 800-775-0703 or [e-mail]
Thank you for your purchase
We would like to take this opportunity to thank you for choosing Kraus.
We hope that you are completely satised with your purchase, and enjoy it for years
to come. If you have any questions, or require technical assistance, please contact
us at 800.775.0703 and one of our representatives will be happy to help.
For more information about Kraus products, please visit:
www.kraususa.com
In order to activate your warranty and get faster access to customer support, please
register your new Kraus product at:
www.kraususa.com/registration
Sincerely,
Kraus USA Customer Service

2
Prior to Installation:
• Make sure you have all necessary parts by checking the diagram and parts list.
If any part is missing or damaged, please contact Kraus Customer Service at
800-775-0703 for a replacement
• Turn o the hot and cold water supply at the angle stops and turn on the old
faucet to release any built up pressure. Remove existing faucet. Clean sink or
countertop to remove any debris, plumber’s putty, or silicone
• Place bucket under angle stops. Turn on to ush any debris prior to installing new
plumbing. Shut o angle stops
• Pre-drilled hole size requirement: 1-3/8” (min) – 1-1/2” (max)
• Max countertop thickness without deck plate: 1-1/2”
• Max countertop thickness with deck plate: 1”
• 1, 2, or 3 hole installation
Without deck plate:
With deck plate:
1/16” (1mm) min.
1-1/2” (38 mm) max.
Ø 1-3/8” (35 mm) min.
Ø 1-1/2” (38 mm) max.
1/16” (1mm) min.
1” (25.4 mm) max.
Ø 1-3/8” (35 mm) min.
Ø 1-1/2” (38 mm) max.
1
2
Designated Mark
Hot
Upward
Black
Cold
1A 1B
234
567
G
G
EEF
G
G
G
G
F
F
F
E
E
H
E
E
A
A
I
B
J
D
D
CD
G
Half Moon Locking Nuts Half Moon Locking Nuts
Rubber Caps
G
Tools you will need:
Adjustable Wrench Safety Goggles Bucket Silicone Sealant
6 5/8”
5 4/5”
3/8”
(10mm)
7/8”
19.7
º
(22mm)
8 5/16”
1 1/4-18UNF-2A
(21mm)
10 1/8”
(257mm)
1 3/8”
(35mm)
3 3/4”
(168mm)
(147.3mm)
(96mm)
∅ 1 3/4”
(∅ 45mm)
∅ 1 15/16”
(∅ 50mm)
9/16”-18UNEF
27mm ~ 41.3mm 1 1/16” ~ 1 5/8”
∅ 1 15/16”
(∅ 50mm)
12 7/16”
(316mm)
1 5/8”
(42.5 mm Max)
7A
8B
8C
8D
8A
7A
8B
8C
8D
8A
Adjustable wrench Phillips screwdriver
Tools You Will Need
Hex wrenchSilicone Sealant
A
I
D
J
F
B
G
C
H
E

3
A
C
B
D
J
EF
G
H
I

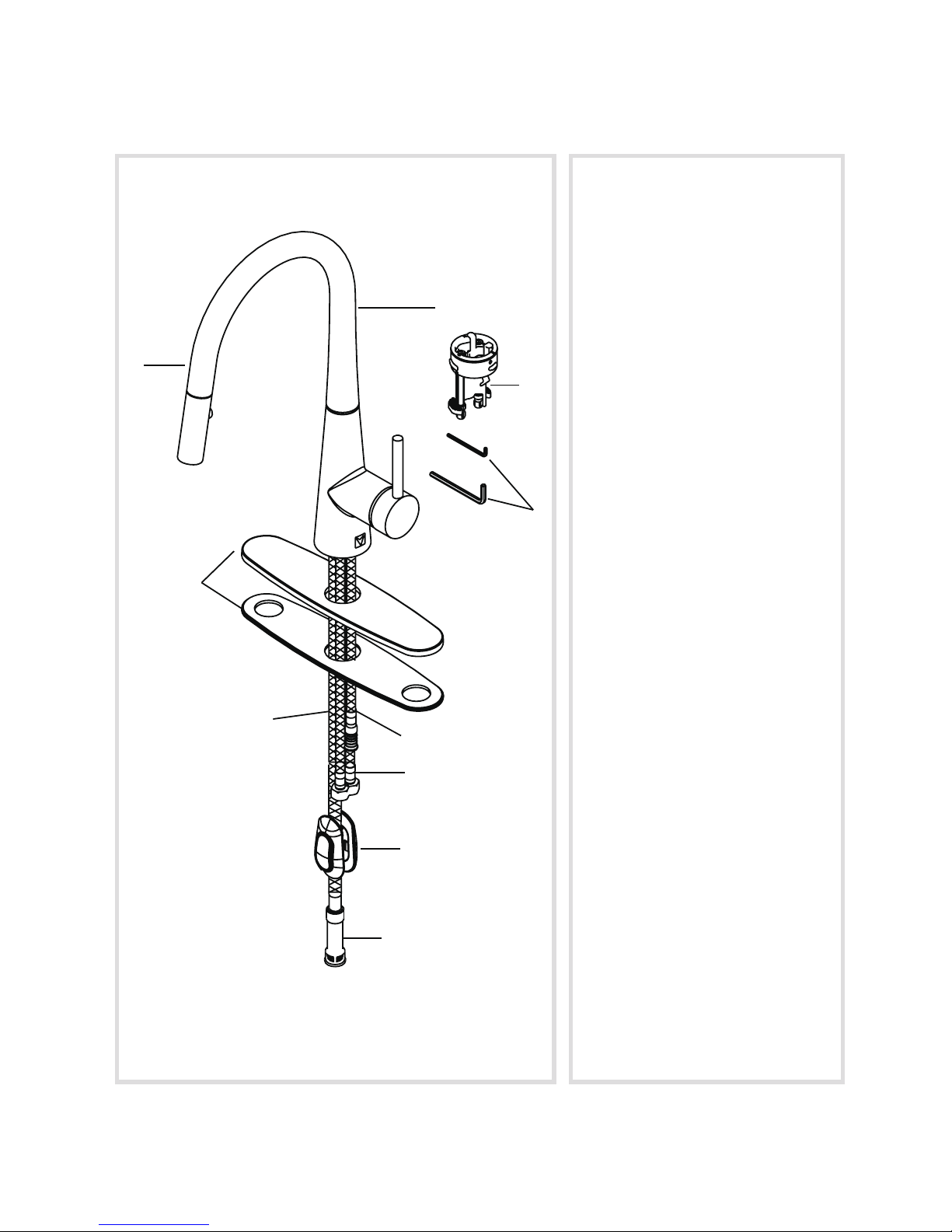

Diagram and Parts List
A. Spray Head
B. Faucet Body
C. Deck & Putty Plate
D. Base
E. Spray Hose
F. Supply Hose
G. Hot & Cold Waterlines
H. Weight
I. Quick Connect
J. Hex Wrench Set
J1. 2.5mm
J2. 4mm

4
9/16-24 UNEF
(3/8” Compression)
Check Value
1/16”~1-1/8”
(1mm~30mm)
1-5/8”
(40mm)
2-1/2”
(63mm)
10-1/8”
(257mm)
8-3/8”
(213.5mm)
10-1/8”
(258mm)
4-3/8”
(110mm)
8-1/4”
(209mm)
6-5/8
(169.5mm)
10
º
24-1/2”
(622.7mm)
16-1/4”
(413mm)
Faucet Dimensions

5

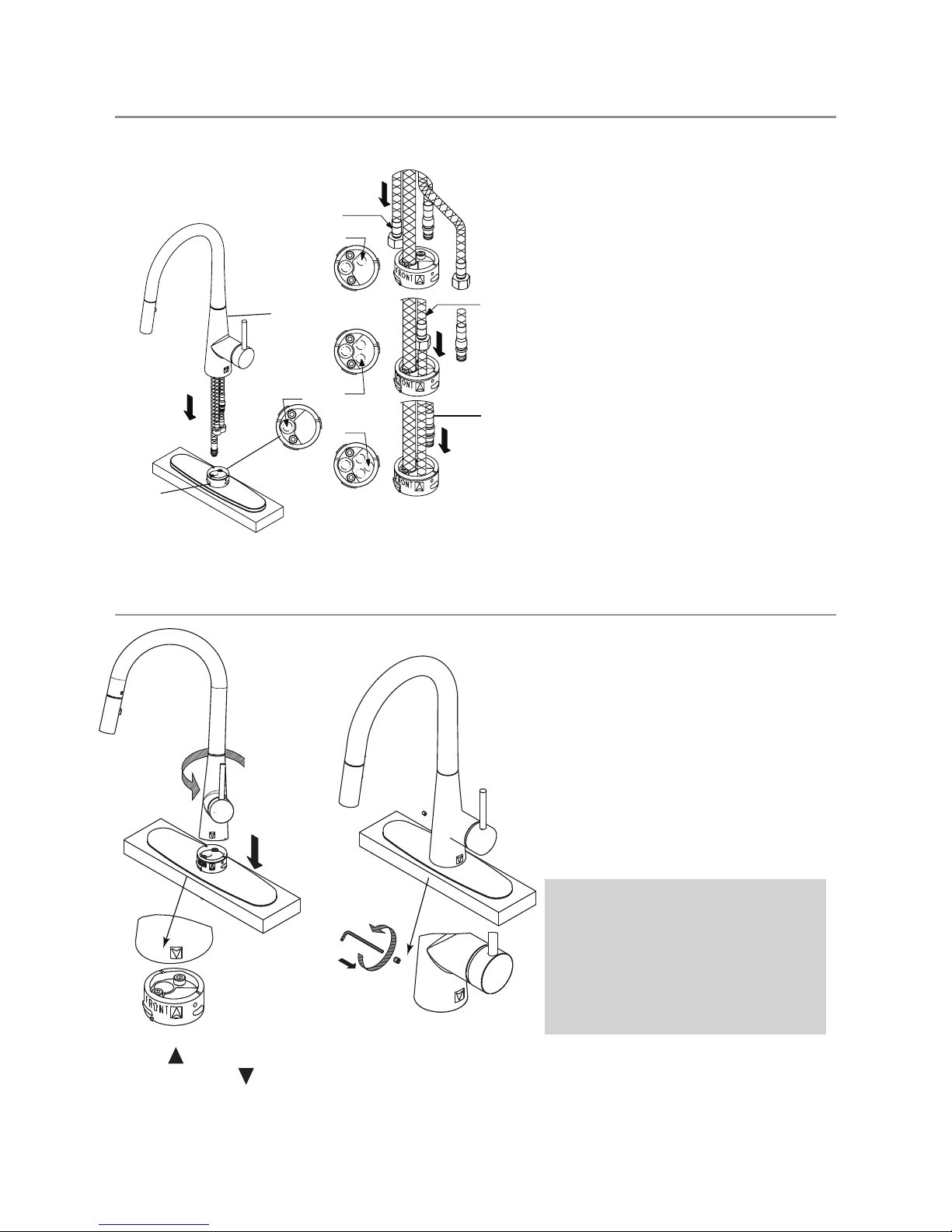

Step 1A: Install base without deck & putty plate
Insert base (D) into sink or
countertop with “FR↑NT” facing
forward. Tighten screws on base
(D) with 4mm hex wrench (J)
until base is secure on sink or
countertop
Without deck plate:
With deck plate:
1/16” (1mm) min.
1-1/2” (38 mm) max.
Ø 1-3/8” (35 mm) min.
Ø 1-1/2” (38 mm) max.
1/16” (1mm) min.
1” (25.4 mm) max.
Ø 1-3/8” (35 mm) min.
Ø 1-1/2” (38 mm) max.
1
2
Designated Mark
Hot
Upward
Black
Cold
1A 1B
234
567
G
G
EEF
G
G
G
G
F
F
F
E
E
H
E
E
A
A
I
B
J
D
D
CD
G
Half Moon Locking Nuts
Half Moon Locking Nuts
Rubber Caps
G

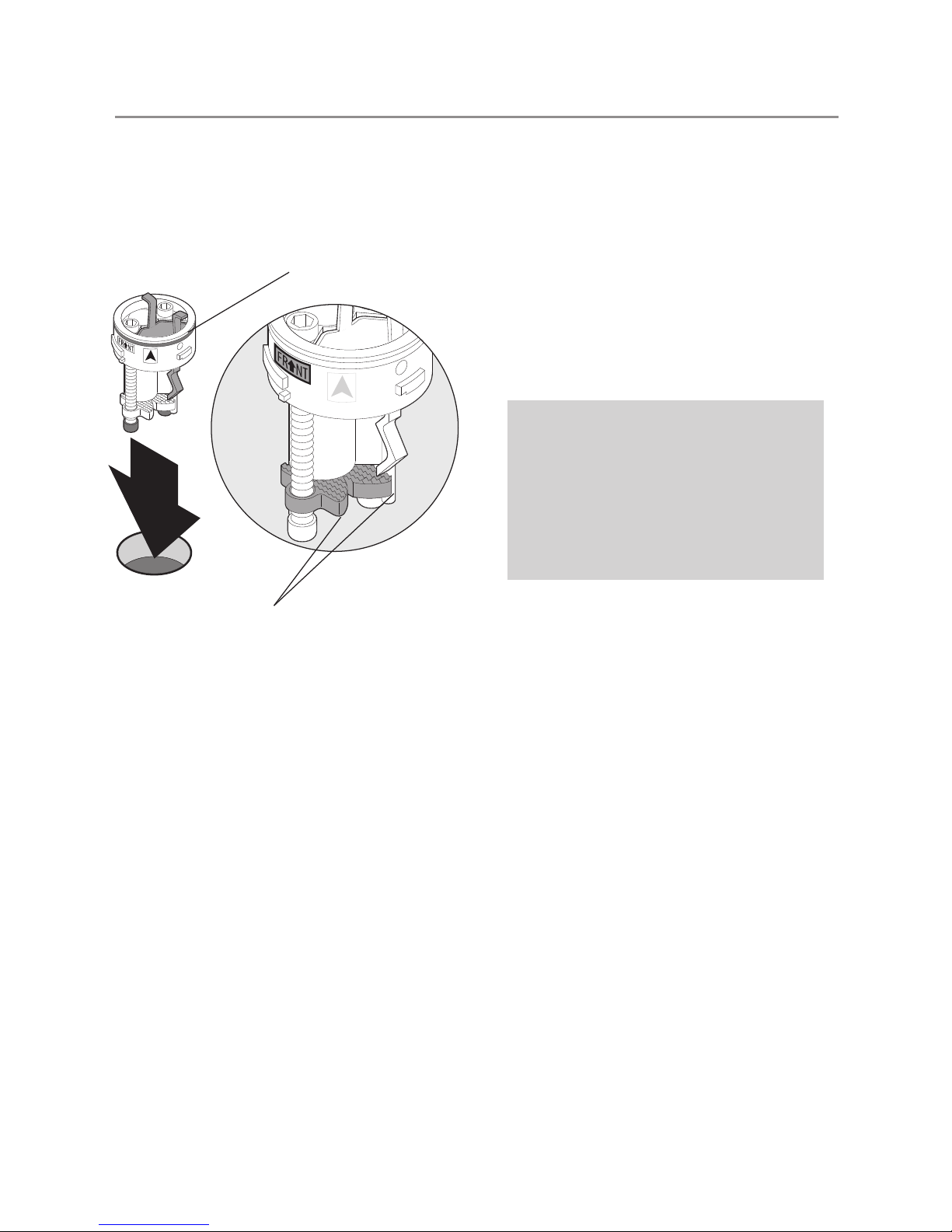

Installer Tip: Rotate the
two half-moon shaped
locking nuts inward before
inserting base (D) into sink or
countertop

6
Step 1B: Install base with deck & putty plate
Place a bead of clear silicone
sealant (not included) around the
edge of the putty plate (C). Secure
deck & putty plate (C) on sink or
countertop. Insert base (D) into
hole of deck & putty plate (C) with
“FR↑NT” facing forward. Tighten
screws on base (D) with 4mm hex
wrench (J) until base is secure on
deck & putty plate (C)
Without deck plate:
With deck plate:
1/16” (1mm) min.
1-1/2” (38 mm) max.
Ø 1-3/8” (35 mm) min.
Ø 1-1/2” (38 mm) max.
1/16” (1mm) min.
1” (25.4 mm) max.
Ø 1-3/8” (35 mm) min.
Ø 1-1/2” (38 mm) max.
1
2
Designated Mark
Hot
Upward
Black
Cold
1A 1B
234
567
G
G
EEF
G
G
G
G
F
F
F
E
E
H
E
E
A
A
I
B
J
D
D
CD
G
Half Moon Locking Nuts
Half Moon Locking Nuts
Rubber Caps
G
Installer Tip: Rotate the two
half-moon shaped locking
nuts inward before inserting
base (D) into deck plate (C)
Please Note: After base (D) is
secure, remove clip

7
Step 2: Install faucet
Step 3: Secure faucet
Remove Quick Connect (I)
from spray hose (E). Insert
spray hose (E) into small hole
of base (D). Insert hot & cold
waterlines (G) and supply hose
(F), one by one, in large hole
of base
Align arrow on faucet body (B)
with arrow on base (D). Attach
faucet body (B) to base (D) and
turn counter-clockwise. Secure
faucet body (B) by tightening
the set screw with 2.5mm hex
wrench (J)
G
G
G
G
F
F
B
D
E
F
F
E
I
I
I
J
B
D
Hot Cold
G
G
Designated Mark
H
E
A
E
A
E
Rubber Cap
Installer Tip: Please
loosen set screw from
faucet body (B) prior to
securing to base (D)
Note: “ “ on base should be in
alignment with “ “ on faucet body.
Rotate faucet counterclockwise
to secure on base.
