Kraus KHU100-30 User manual

INSTALLATION MANUAL
Handmade Stainless Steel
Undermount Sink
KHU100-30 / KHU100-32 / KHU101-23 / KHU102-33 /
KHU103-33 / KHU104-33 / KHU105-32 / KHU121-23 /
KHU122-23 / KHU123-32
www.kraususa.com I toll free: 1.800.775.0703 I © 2016 Kraus USA Inc.

1
Thank you for your purchase
We would like to take this opportunity to thank you for choosing Kraus.
We hope that you are completely satised with your purchase, and enjoy it for years
to come. If you have any questions, or require technical assistance, please contact
us at 800.775.0703 and one of our representatives will be happy to help.
For more information about Kraus products, please visit:
www.kraususa.com
In order to activate your warranty and get faster access to customer support, please
register your new Kraus product at:
www.kraususa.com/registration
Sincerely,
Kraus USA Customer Service

2
Prior to Installation:
• Make sure that you have all necessary parts by checking the parts list. If any part is
missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a
replacement
• Inspect the sink prior to installation to make sure that it has not been damaged or
during shipping
• Use the cut-out template provided by Kraus
• Observe all plumbing and building codes according to your state requirements
• Not recommended to be installed with laminate countertop
For technical assistance or replacement parts, please contact Kraus
Customer Service and one of our representatives will be happy to help:
Toll-Free: 800-775-0703 or [e-mail]
The step-by-step guidelines in the installation instructions are a general reference for installing a
Kraus Sink. Should there be any discrepancies, Kraus cannot be held liable. It is recommended to
install all Kraus products by hiring a licensed professional.

3
Parts List
• Cut-Out Template • Mounting Hardware • Bottom Grids • Drain
NOTE: Specialized tools may be necessary to install Kraus Stainless Steel Undermount
sinks with countertop materials other than wood, marble, or granite

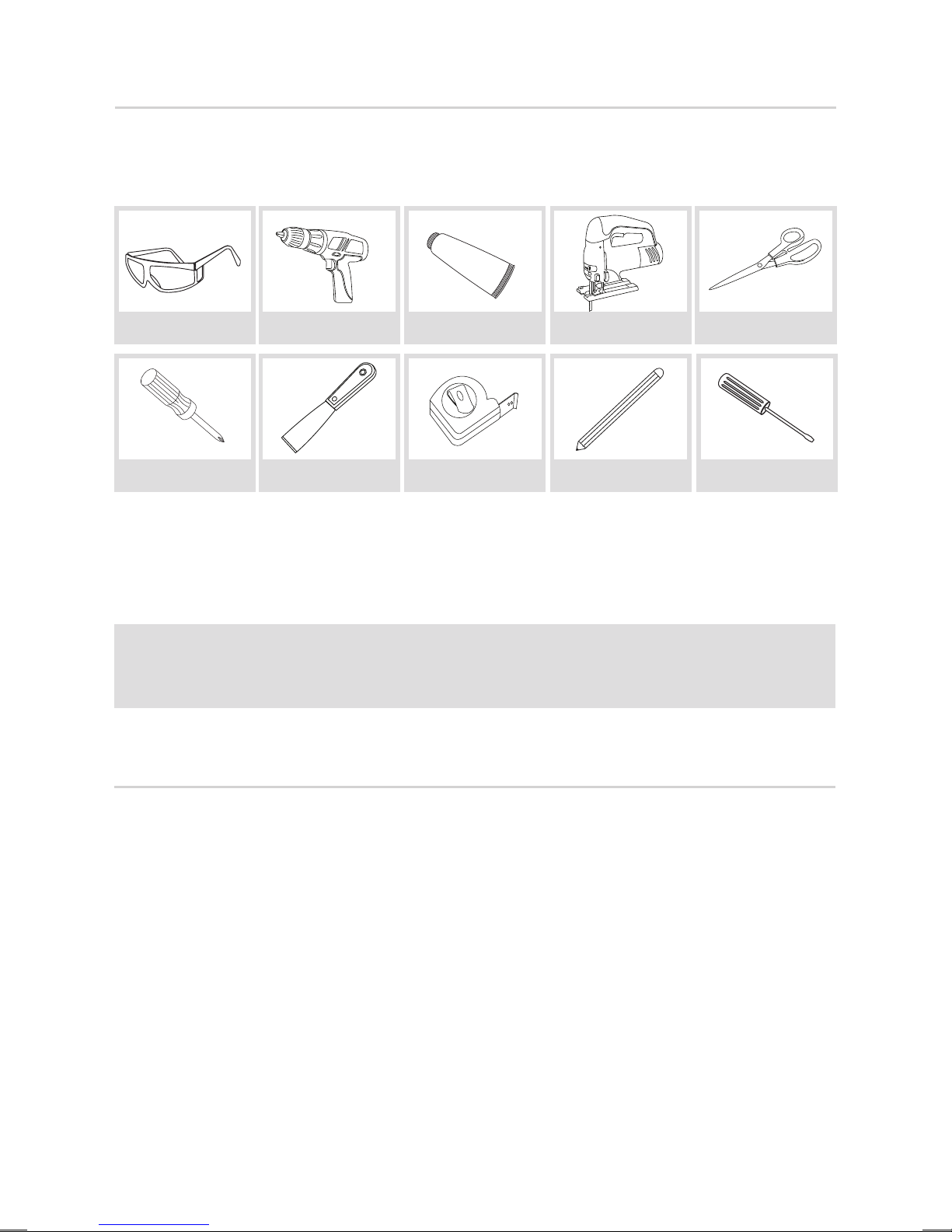

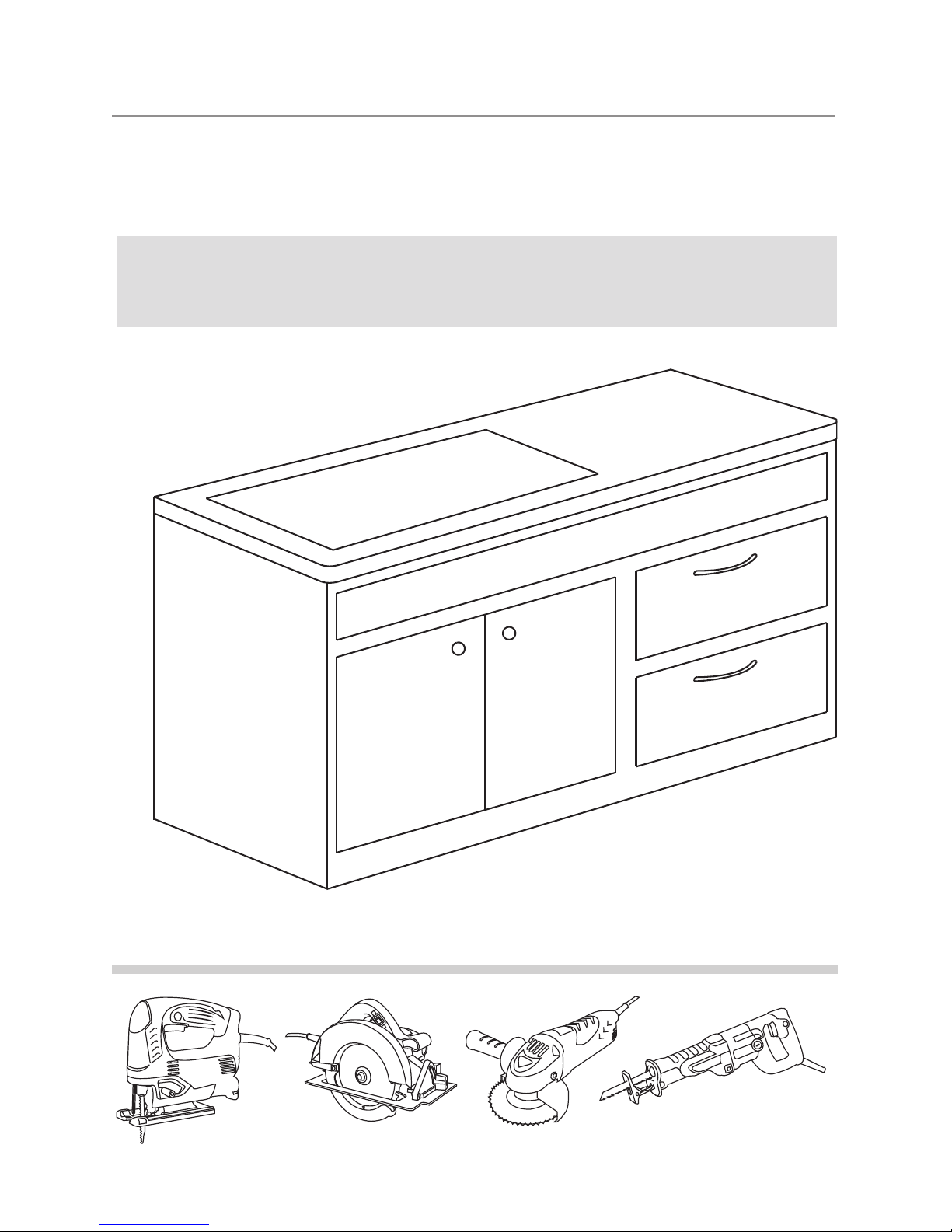

Tools you will need:
Scissors
Screwdriver
Safety Goggles
Putty KnifePhillips Screwdriver
Drill
Tape Measure
Silicone Adhesive Jig Saw
Pencil
Adjustable wrench Phillips screwdriver
Tools You Will Need
Hex wrenchSilicone Sealant
A
I
D
J
F
B
G
C
H
E
Adjustable wrench Phillips screwdriver
Tools You Will Need
Hex wrench
Silicone Sealant
A
I
D
J
F
B
G
C
H
E

4

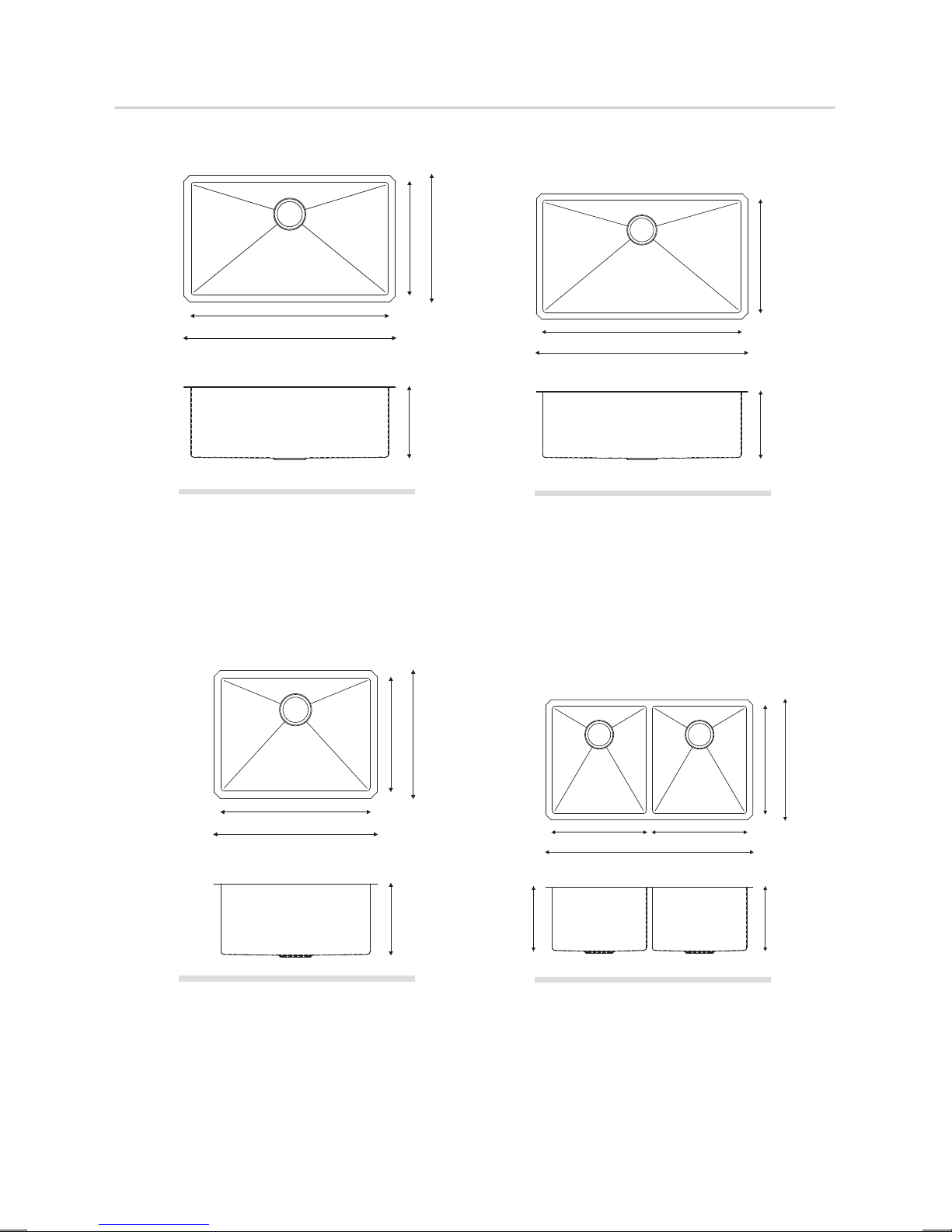

Dimensions
18”
457mm
16”
406mm
28”
711mm
30”
762mm
10”
254mm
18”
457mm
16”
406mm
21”
533mm
23”
584mm
10”
254mm
17”
432mm
10”
254mm
19”
483mm
32”
813mm
30”
762mm
KHU102-33
10”
254mm
32-3/4”
832mm
14-7/8”
378mm
14-7/8”
378mm
10”
254mm
19”
483mm
17”
432mm
KHU100-30
30” x 18” x 10”
Min Cabinet Size: 33”
Matching Grid: KBG-100-30
Drain Model #: BST-1
KHU101-23
23” x 18” x 10”
Min Cabinet Size: 27”
Matching Grid: KBG-101-23
Drain Model #: BST-1
KHU100-32
32” x 17” x 10”
Min Cabinet Size: 36”
Matching Grid: KBG-100-32
Drain Model #: BST-1
KHU102-33
32 3/4” x 19” x 10”
Min Cabinet Size: 36”
Matching Grid: KBG-102-33-1
and KBG-102-33-2
Drain Model #: BST-1 & ST-1

5
10”
254mm
18-3/4”
476mm
16-3/4”
426mm
21”
533mm
23”
584mm
10”
254mm
18-3/4”
476mm
16-3/4"
426mm
21-3/4”
552mm
23-3/4”
603mm
KHU123-32
10”
254mm
8”
203mm
17”
432mm
15”
381mm
20”
508mm
18”
457mm
18”
457mm
11”
279mm
32”
813mm
KHU123-32
10”
254mm
8”
203mm
17”
432mm
15”
381mm
20”
508mm
18”
457mm
18”
457mm
11”
279mm
32”
813mm
KHU105-32
10”
254mm
18”
457mm
16”
406mm
13-1/2”
343mm
14”
356mm
30-1/2”
775mm
18”
457mm
20”
508mm
10”
254mm
KHU104-33
10”
254mm
19”
483mm
17”
432mm
32-3/4”
832mm
16-7/8”
429mm
12-7/8”
327mm
10”
254mm
KHU103-33
10”
254mm
19”
483mm
17”
432mm
32-3/4”
832mm
12-7/8”
327mm
16-7/8”
429mm
10”
254mm

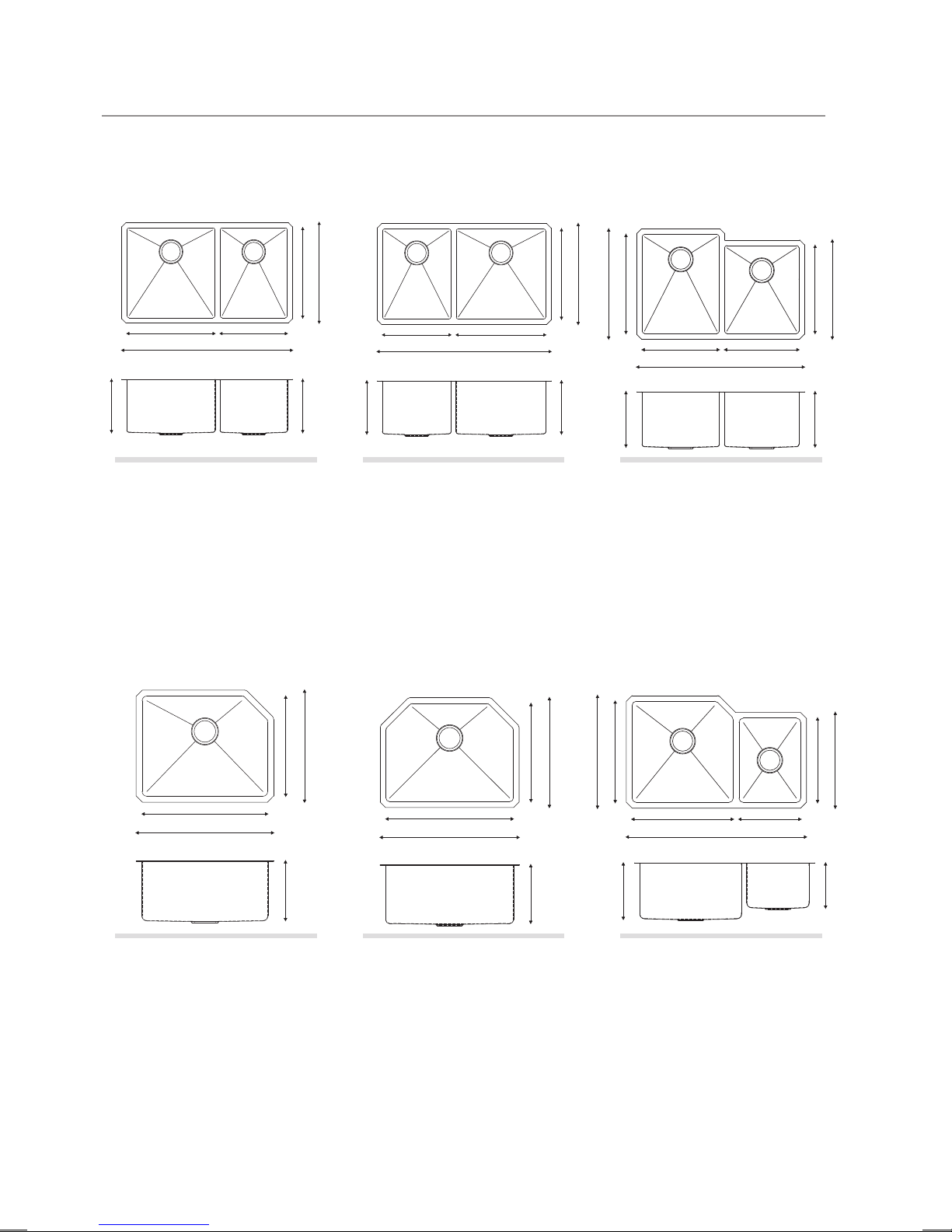

Dimensions
KHU103-33
32 3/4” x 19” x 10”
Min Cabinet Size: 36”
Matching Grid: KBG-103-33-1
and KBG-103-33-2
Drain Model #: BST-1 & ST-1
KHU121-23
23” x 18 3/4” x 10”
Min Cabinet Size: 27”
Matching Grid: KBG-121-23
Drain Model #: BST-1
KHU104-33
32 3/4” x 19” x 10”
Min Cabinet Size: 36”
Matching Grid: KBG-104-33-1
and KBG-104-33-2
Drain Model #: BST-1 & ST-1
KHU122-23
23 3/4” x 18 3/4” x 10”
Min Cabinet Size: 27”
Matching Grid: KBG-122-23
Drain Model #: BST-1
KHU105-32
30 1/2” x 18” x 10”
Min Cabinet Size: 36”
Matching Grid: KBG-105-32-1 and
KBG-105-32-2
Drain Model #: BST-1 & ST-1
KHU123-32
32” x 17” x 10”
Min Cabinet Size: 36”
Matching Grid: KBG-123-32-1
and KBG-123-32-2
Drain Model #: BST-1 & ST-1

6

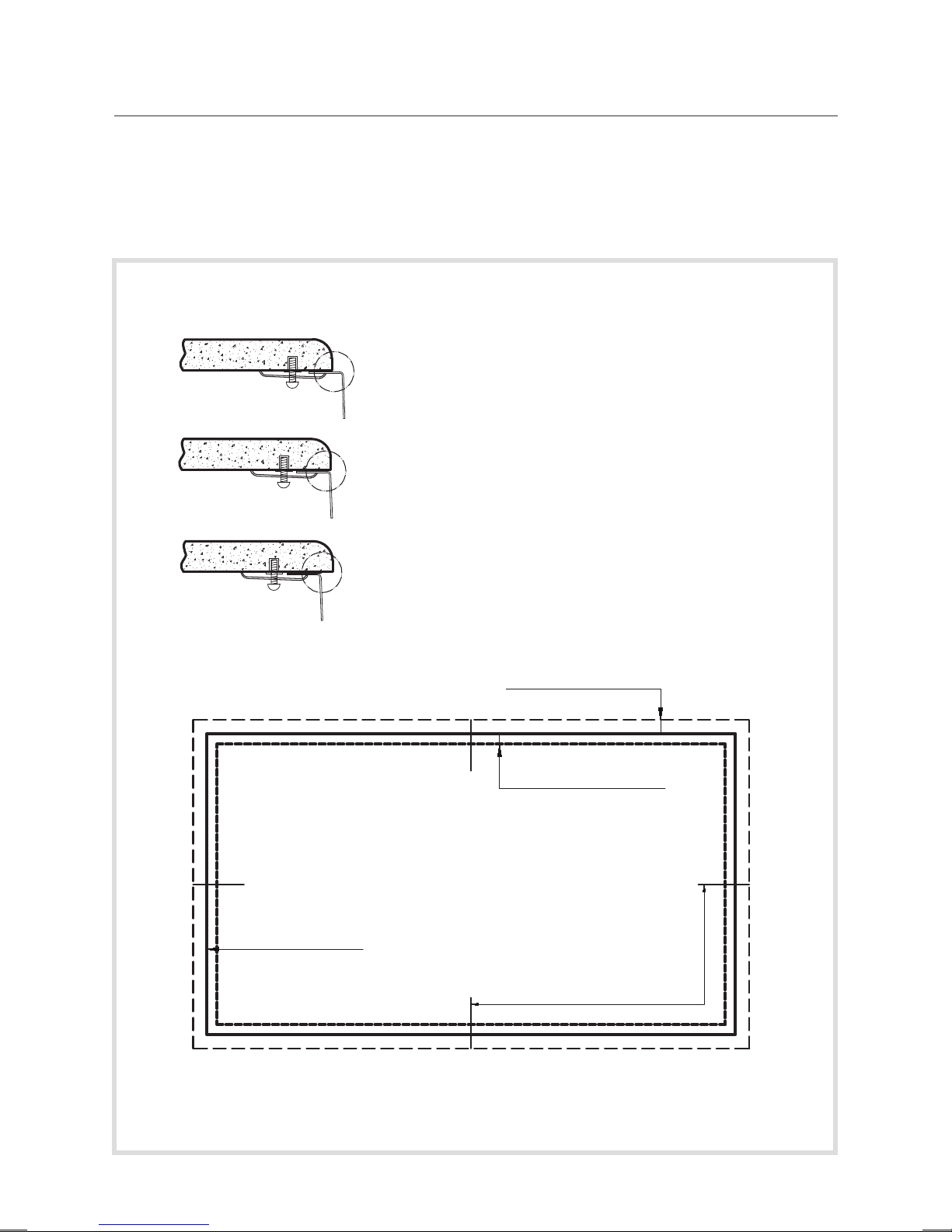

1. Determine Reveal Type
Use scissors to cut along the line of the paper template for your desired
reveal type (Negative, Positive, or Flushed Reveal)
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO
KRAUS Recommended Installation Type

7

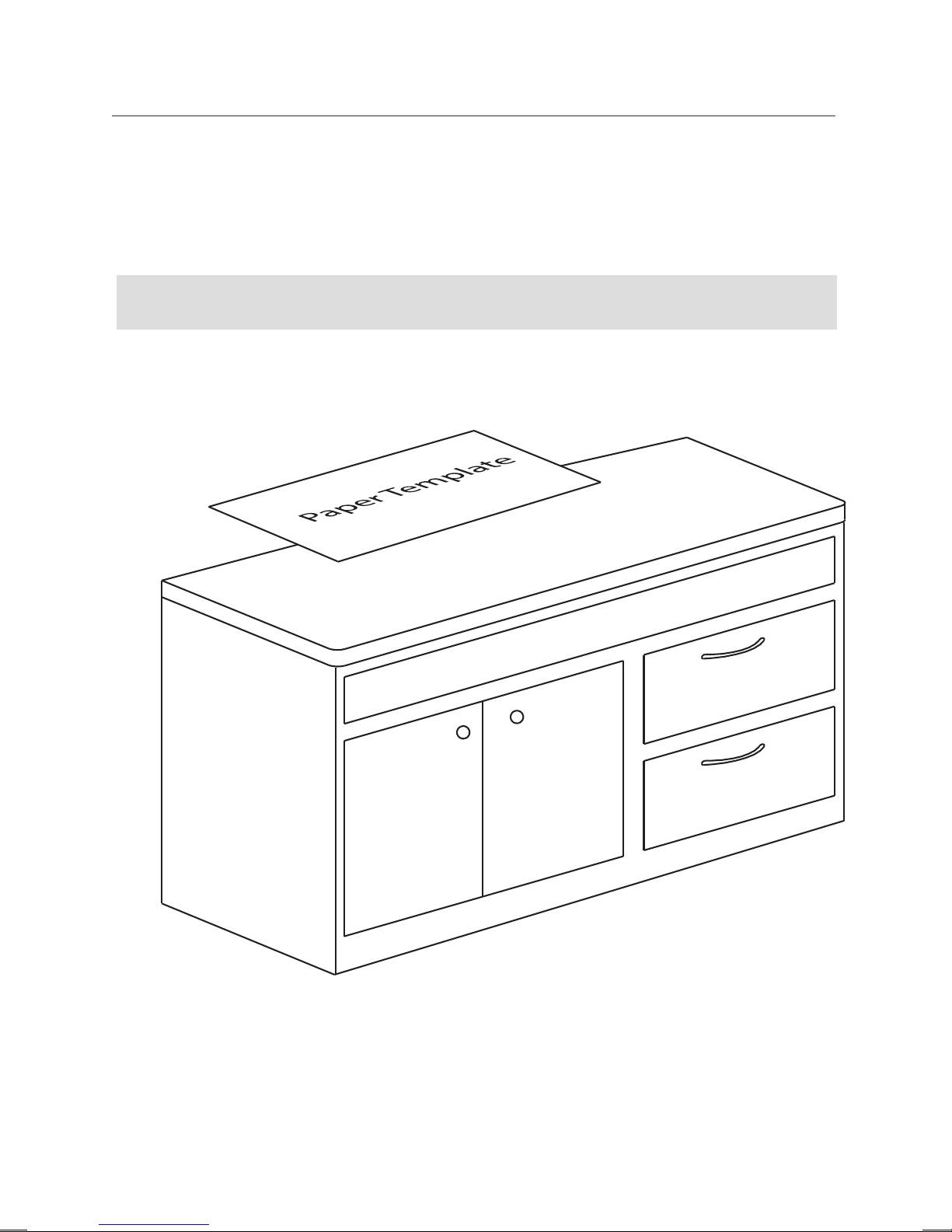

2. Position Template
• Check the cut-out template against the actual sink to ensure a proper
sized cut-out
• Place the cut-out template in the desired location on the countertop
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO
NOTE: Make sure clearance is suitable for backsplash, faucet, and plumbing for the sink

8

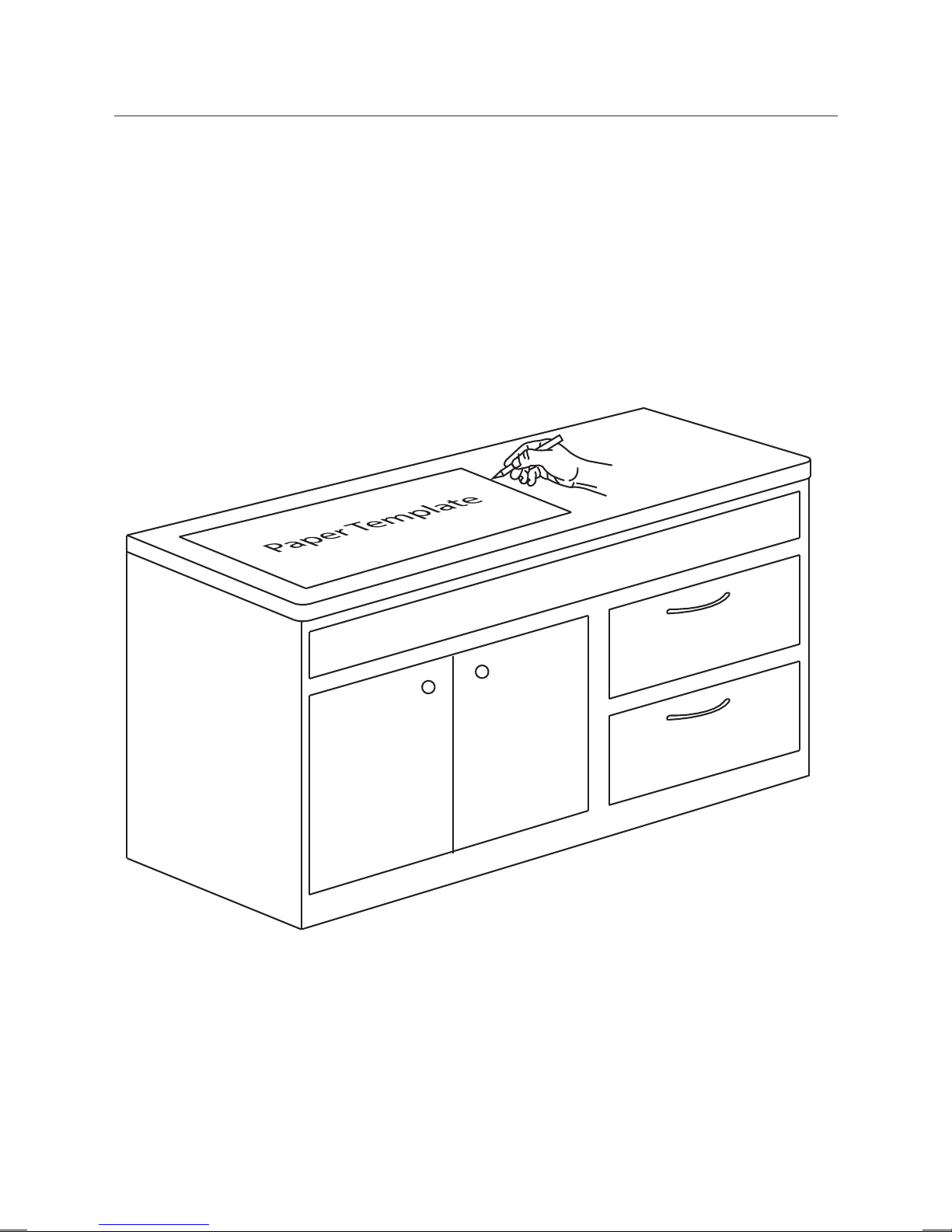

3. Trace Template
• Trace template on countertop with a pencil
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO

9
4. Cut Countertop
• Cut the opening in the countertop by carefully following the traced line
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO
NOTE: Please use the appropriate saw that best ts your countertop
material

10

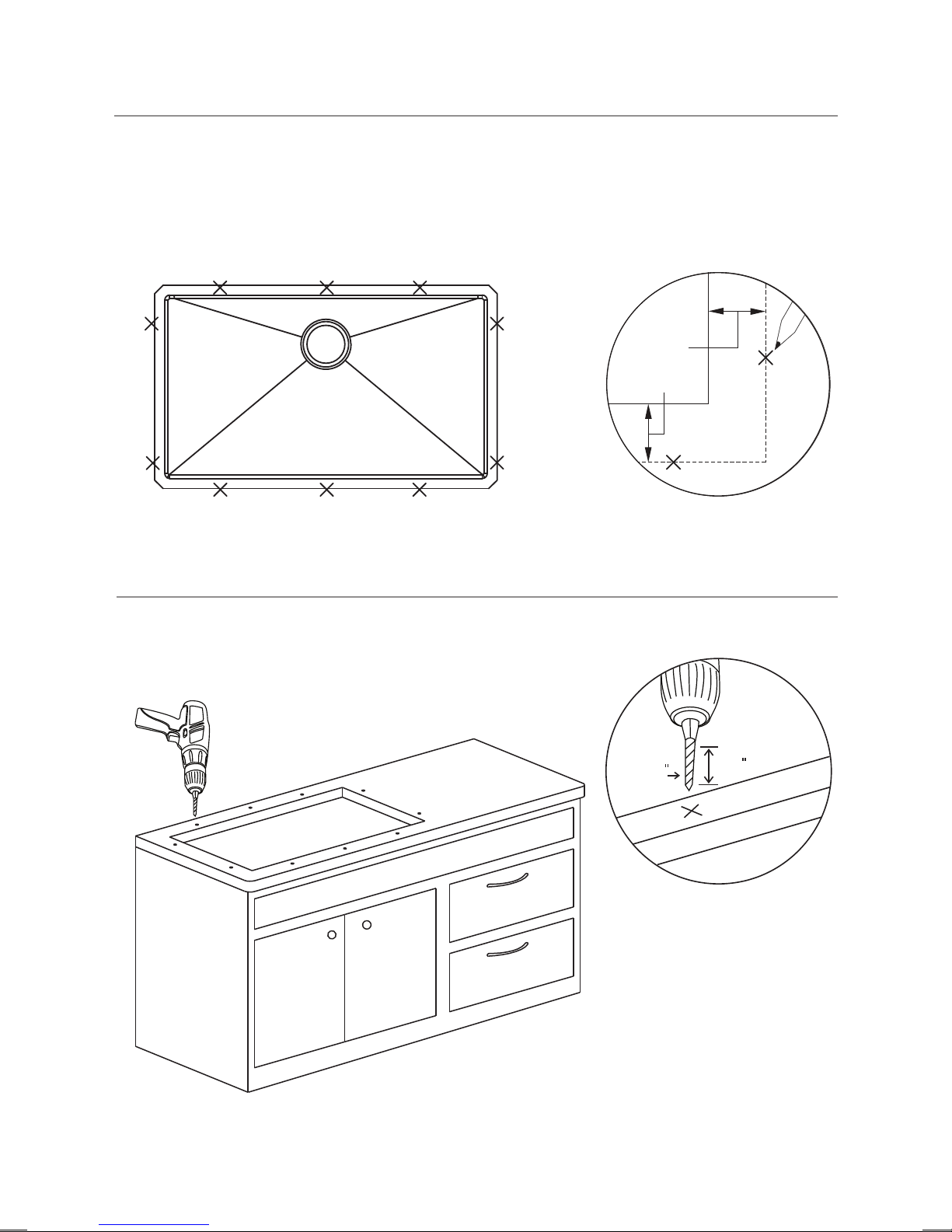

6. Drill Hole in Countertop
5. Set up Mounting Brackets
• Drill 3/8” diameter x 1/2” deep hole in the countertop
• Turn countertop over and align sink with countertop. Decide location for
mounting brackets
• Mounting holes should be ½” from edge of sink
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO

11

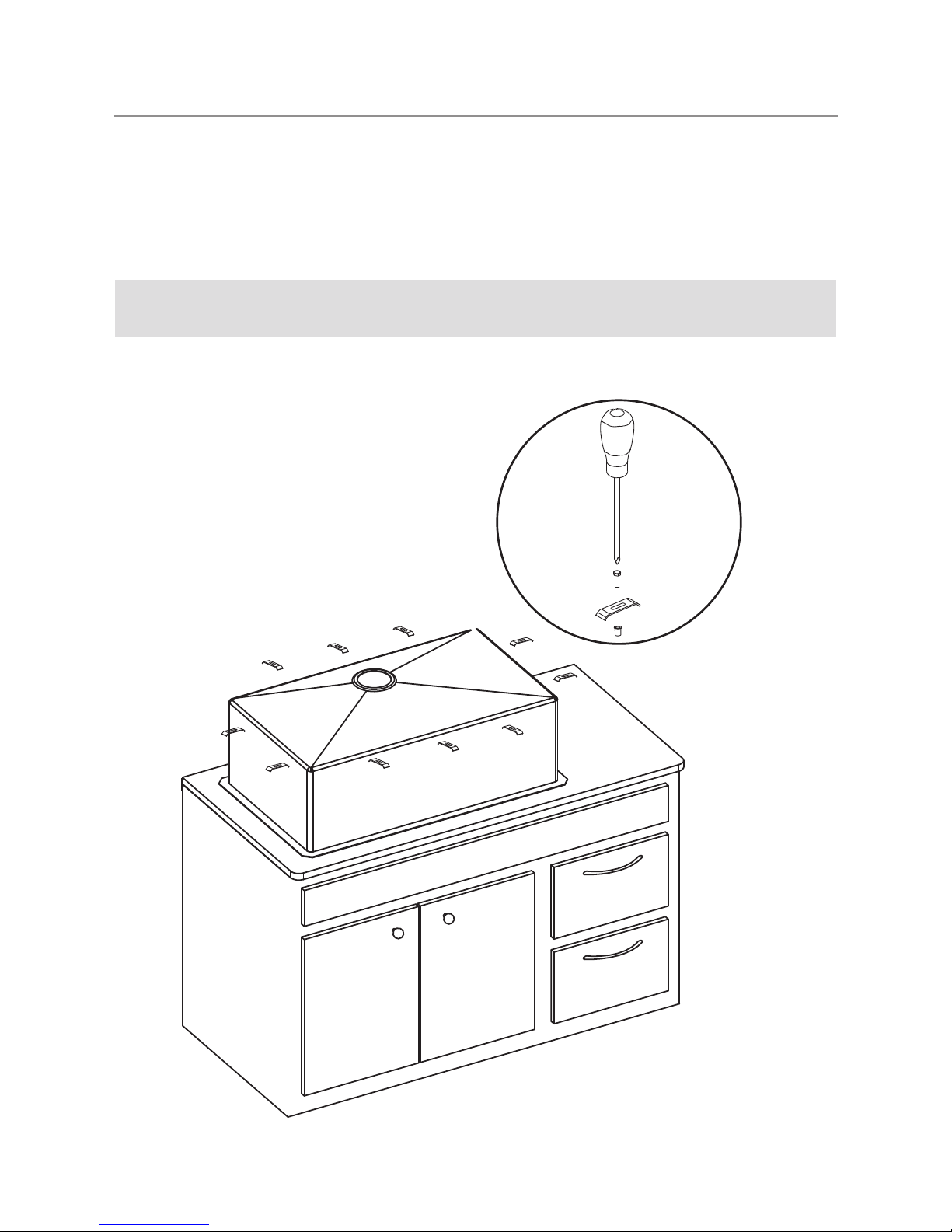

7. Install Anchors
• Insert anchors into drilled holes and lightly tap with a hammer until ush
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO
8. Secure Sink to Countertop
• Use a bead of silicone (or preferred adhesive) around the rim of the sink.
Check the alignment of the sink to the cutout in the countertop. Place sink
over cutout hole and press rmly
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO

12
• Use a bead of silicone (or preferred adhesive) around the rim of the sink.
Check the alignment of the sink to the cutout in the countertop. Place sink
over cutout hole and press rmly
9. Attach Mounting Hardware
• Attach mounting hardware to secure bowl. Remove excess sealant
from inside lip
• Allow sealant to set for 30 – 60 minutes
NOTE: Use acetone or rubbing alcohol to remove any excess sealant
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO

13
10. Install Plumbing Fixtures
• Connect drain to sink. Connect trap to drain. Connect water supply
connections to faucet according to manufacturer’s instructions
• Run water into sink and check for leaks
Flushed/Zero Reveal
3/8“ Positive Reveal
1/8“ Negative Reveal
DETERMINE REVEAL TYPE
Step1 Step2 Step3
Step4 Step6
Step5
Step7 Step8 Step9
Determine location for mounting brackets; space
1/2"
(13mm)
3/8 1/2
Centerline
3/8”POSITIVE
1/8”NEGATIVE
FLUSHED/ZERO

14
Codes/Standards Applicable:
HELP LINE
Our customer service hours are Monday – Friday, 9am – 8pm EST.
Be sure to visit our website at www.kraususa.com
If you are a HOMEOWNER please contact a Kraus Customer Service Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
Toll-free 800-775-0703
[email protected]
If you are a PLUMBING CONTRACTOR OR TRADE PROFESSIONAL please contact a Kraus
Pro Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
516-801-8955
Proser[email protected]
If you are an AUTHORIZED PARTNER please contact a Partner Support Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
516-801-8954
[e-mail]
In requesting warranty service, please be ready to provide:
1. Proof of purchase.
2. A description of the problem.

www.kraususa.com
Receive Proof of Ownership
Access Customer Care & Installation Help
Get Exclusive Kraus Oers & Promotions
Scan to Register Online
or visit http://www.kraususa.com/registration
Please take a moment to share your experience.
Visit http://www.kraususa.com/review to let us know what you think
about your new Kraus product.
Contact Us to Learn More
1.800.775.0703 / www.kraususa.com / [e-mail]
Like & Follow KrausUSA
Download the Kraus Care & Maintenance Guide at:
http://www.kraususa.com/maintenance
REGISTER YOUR PRODUCT TODAY
We’re always looking for ways to improve.
