Kraus Oletto KPF-2620 User manual

INSTALLATION MANUAL
KPF-2620
Oletto™Single Lever Pull Down
Kitchen Faucet
www.kraususa.com I toll free: 1.800.775.0703 I © 2014-2015 Kraus USA Inc. I REV. March 30, 2017

1
Thank you for your purchase
We would like to take this opportunity to thank you for choosing Kraus.
We hope that you are completely satised with your purchase, and enjoy it for years
to come. If you have any questions, or require technical assistance, please contact
us at 800.775.0703 and one of our representatives will be happy to help.
For more information about Kraus products, please visit:
www.kraususa.com
In order to activate your warranty and get faster access to customer support, please
register your new Kraus product at:
www.kraususa.com/registration
Sincerely,
Kraus USA Customer Service

2

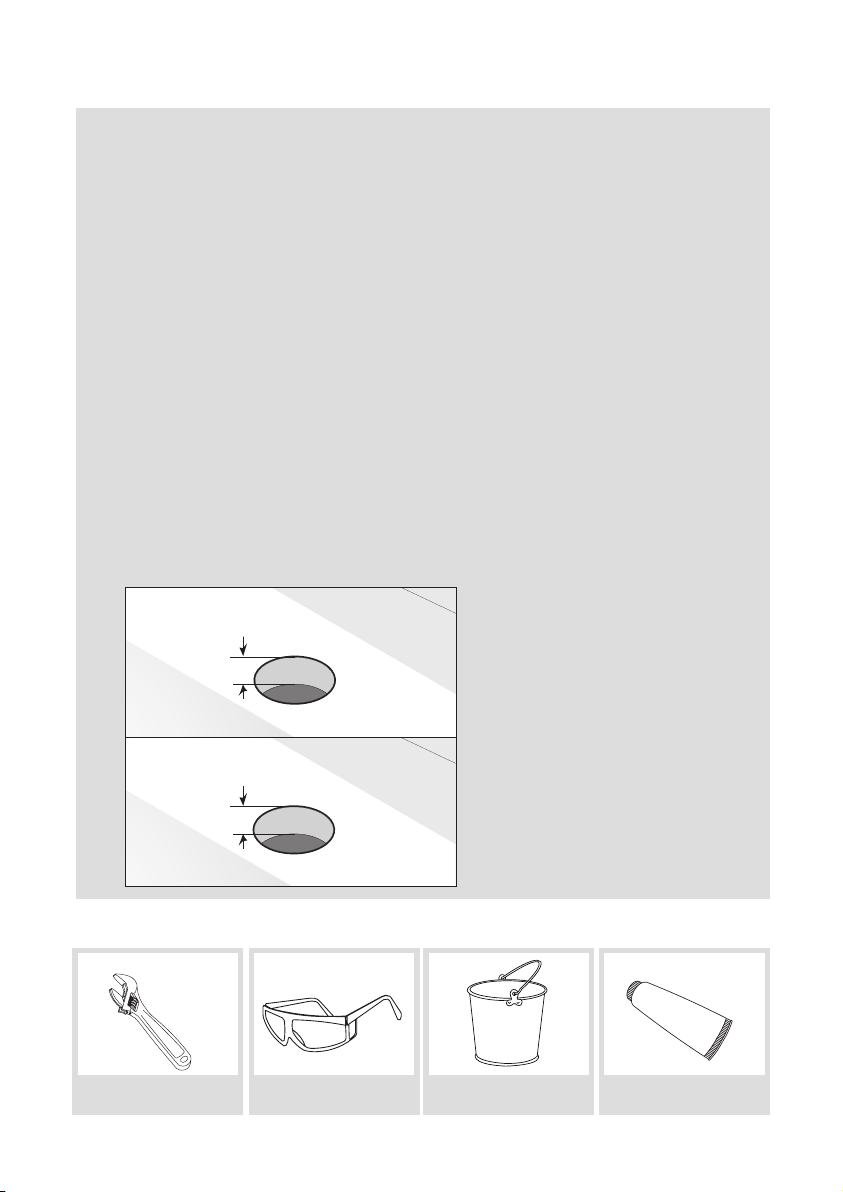

Prior to Installation:
• Make sure you have all necessary parts by checking the diagram and parts list. If
any part is missing or damaged, please contact Kraus Customer Service at 800-
775-0703 for a replacement
• Turn o the hot and cold water supply at the angle stops and turn on the old
faucet to release any built up pressure. Remove existing faucet. Clean sink or
countertop to remove any debris, plumber’s putty, or silicone
• Place bucket under angle stops. Turn on to ush any debris prior to installing new
plumbing. Shut o angle stops
• Pre-drilled hole size requirement: 1-3/8” (min) – 1-1/2” (max)
• Max countertop thickness without deck plate: 1-1/2”
• Max countertop thickness with deck plate: 1”
• 1, 2, or 3 hole installation
Without deck plate:
With deck plate:
1/16” (1mm) min.
1-1/2” (38 mm) max.
Ø 1-3/8” (35 mm) min.
Ø 1-1/2” (38 mm) max.
1/16” (1mm) min.
1” (25.4 mm) max.
Ø 1-3/8” (35 mm) min.
Ø 1-1/2” (38 mm) max.
1
2
Designated Mark
Hot
Upward
Black
Cold
1A 1B
234
567
G
G
EEF
G
G
G
G
F
F
F
E
E
H
E
E
A
A
I
B
J
D
D
CD
G
Half Moon Locking Nuts Half Moon Locking Nuts
Rubber Caps
G
Tools you will need:
Adjustable Wrench Safety Goggles Bucket Silicone Sealant
6 5/8”
5 4/5”
3/8”
(10mm)
7/8”
19.7
º
(22mm)
8 5/16”
1 1/4-18UNF-2A
(21mm)
10 1/8”
(257mm)
1 3/8”
(35mm)
3 3/4”
(168mm)
(147.3mm)
(96mm)
∅ 1 3/4”
(∅ 45mm)
∅ 1 15/16”
(∅ 50mm)
9/16”-18UNEF
27mm ~ 41.3mm 1 1/16” ~ 1 5/8”
∅ 1 15/16”
(∅ 50mm)
12 7/16”
(316mm)
1 5/8”
(42.5 mm Max)
7A
8B
8C
8D
8A
7A
8B
8C
8D
8A
Adjustable wrench Phillips screwdriver
Tools You Will Need
Hex wrenchSilicone Sealant
A
I
D
J
F
B
G
C
H
E

3
B
A
C
D
J
F
I
H
G
E

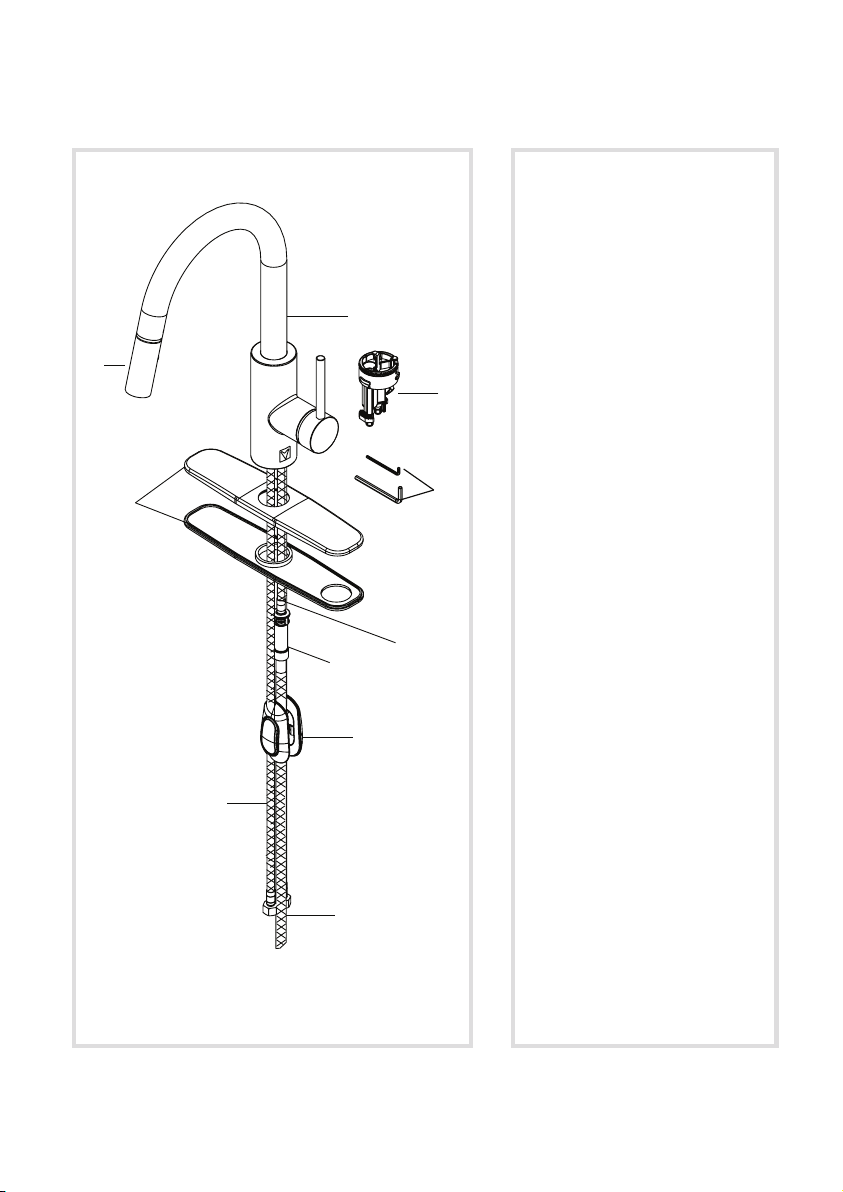

Diagram and Parts List
A. Spray Head
B. Faucet Body
C. Deck & Putty Plate
D. Base
E. Spray Hose
F. Supply Hose
G. Hot & Cold Waterlines
H. Weight
I. Quick Connect
J. Hex Wrench Set
J1. 2.5mm
J2. 4mm

4

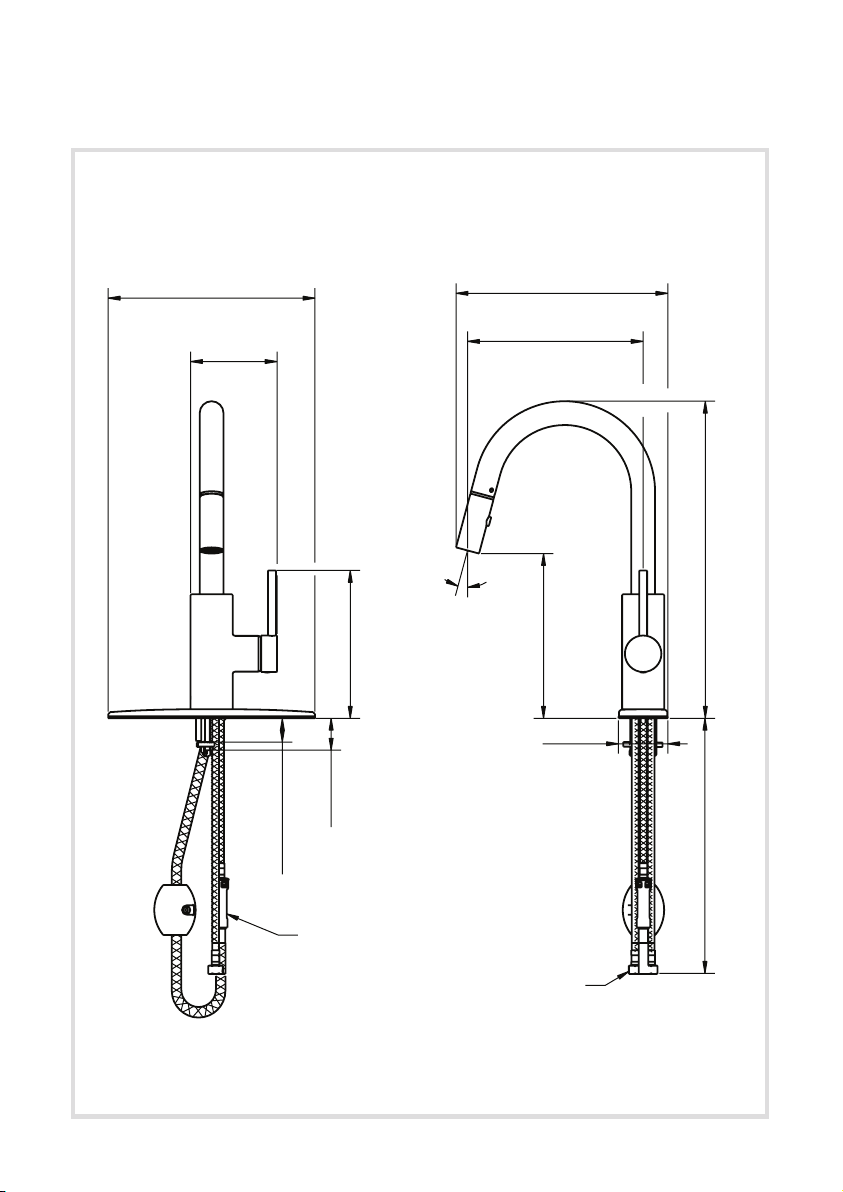

Faucet Dimensions
9/16-24 UNEF
(3/8” Compression)
Check Value
8-3/4
(221mm)
2-1/2”
(62mm)
7-1/4”
(186mm)
8-1/4”
(208mm)
15-3/4”
(400mm)
10-1/4”
(260mm)
4-1/4”
(109mm)
10-1/2”
(267mm)
1/16”~1-1/8”
(1mm~30mm)
1-5/8”
(40mm)
24-1/2”
(620mm)
15º

5
Step 1A: Install base without deck & putty plate
Insert base (D) into sink or
countertop with “FR↑NT” facing
forward. Tighten screws on base
(D) with 4mm hex wrench (J)
until base is secure on sink or
countertop
Without deck plate:
With deck plate:
1/16” (1mm) min.
1-1/2” (38 mm) max.
Ø 1-3/8” (35 mm) min.
Ø 1-1/2” (38 mm) max.
1/16” (1mm) min.
1” (25.4 mm) max.
Ø 1-3/8” (35 mm) min.
Ø 1-1/2” (38 mm) max.
1
2
Designated Mark
Hot
Upward
Black
Cold
1A 1B
234
567
G
G
EEF
G
G
G
G
F
F
F
E
E
H
E
E
A
A
I
B
J
D
D
CD
G
Half Moon Locking Nuts
Half Moon Locking Nuts
Rubber Caps
G
Installer Tip: Rotate the
two half-moon shaped
locking nuts inward before
inserting base (D) into sink or
countertop

6

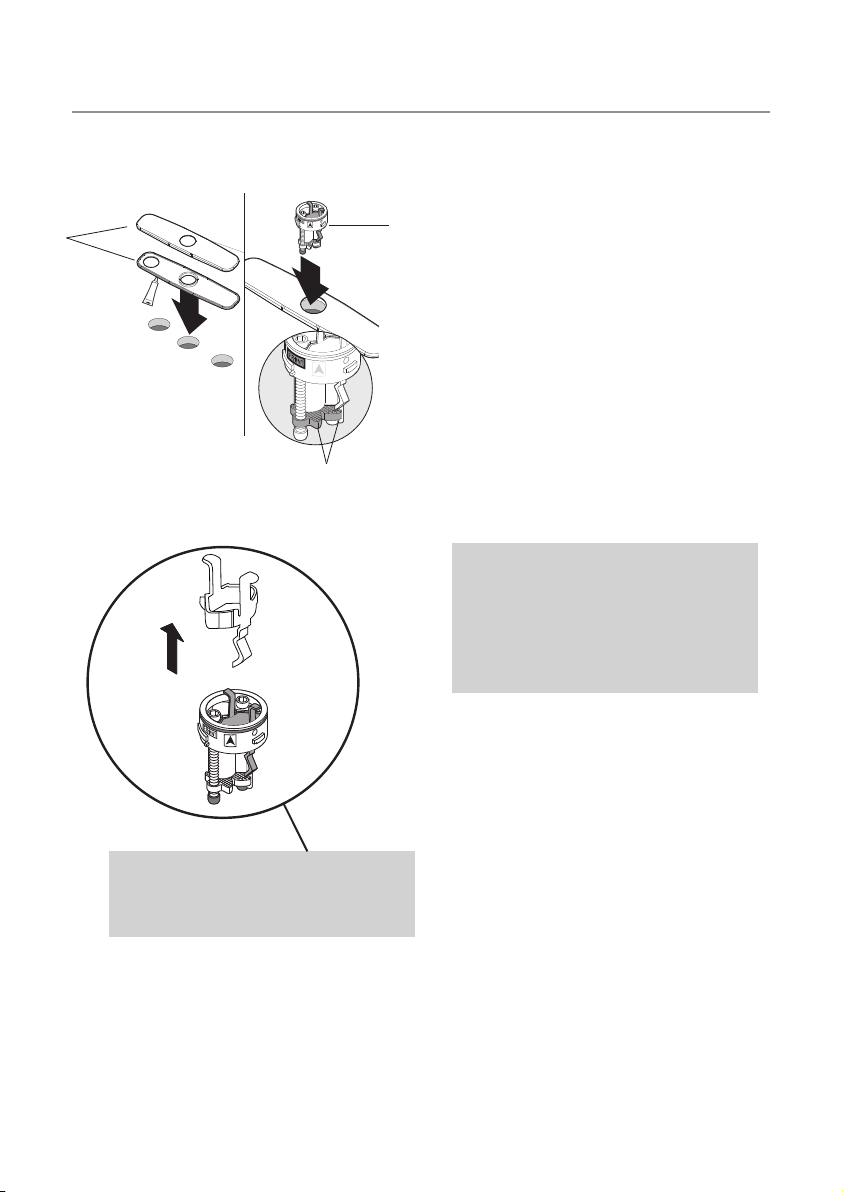

Step 1B: Install base with deck & putty plate
Place a bead of clear silicone
sealant (not included) around the
edge of the putty plate (C). Secure
deck & putty plate (C) on sink or
countertop. Insert base (D) into
hole of deck & putty plate (C) with
“FR↑NT” facing forward. Tighten
screws on base (D) with 4mm hex
wrench (J) until base is secure on
deck & putty plate (C)
Without deck plate:
With deck plate:
1/16” (1mm) min.
1-1/2” (38 mm) max.
Ø 1-3/8” (35 mm) min.
Ø 1-1/2” (38 mm) max.
1/16” (1mm) min.
1” (25.4 mm) max.
Ø 1-3/8” (35 mm) min.
Ø 1-1/2” (38 mm) max.
1
2
Designated Mark
Hot
Upward
Black
Cold
1A 1B
234
567
G
G
EEF
G
G
G
G
F
F
F
E
E
H
E
E
A
A
I
B
J
D
D
CD
G
Half Moon Locking Nuts
Half Moon Locking Nuts
Rubber Caps
G
Installer Tip: Rotate the two
half-moon shaped locking
nuts inward before inserting
base (D) into deck plate (C)
Please Note: After base (D) is
secure, remove clip

7

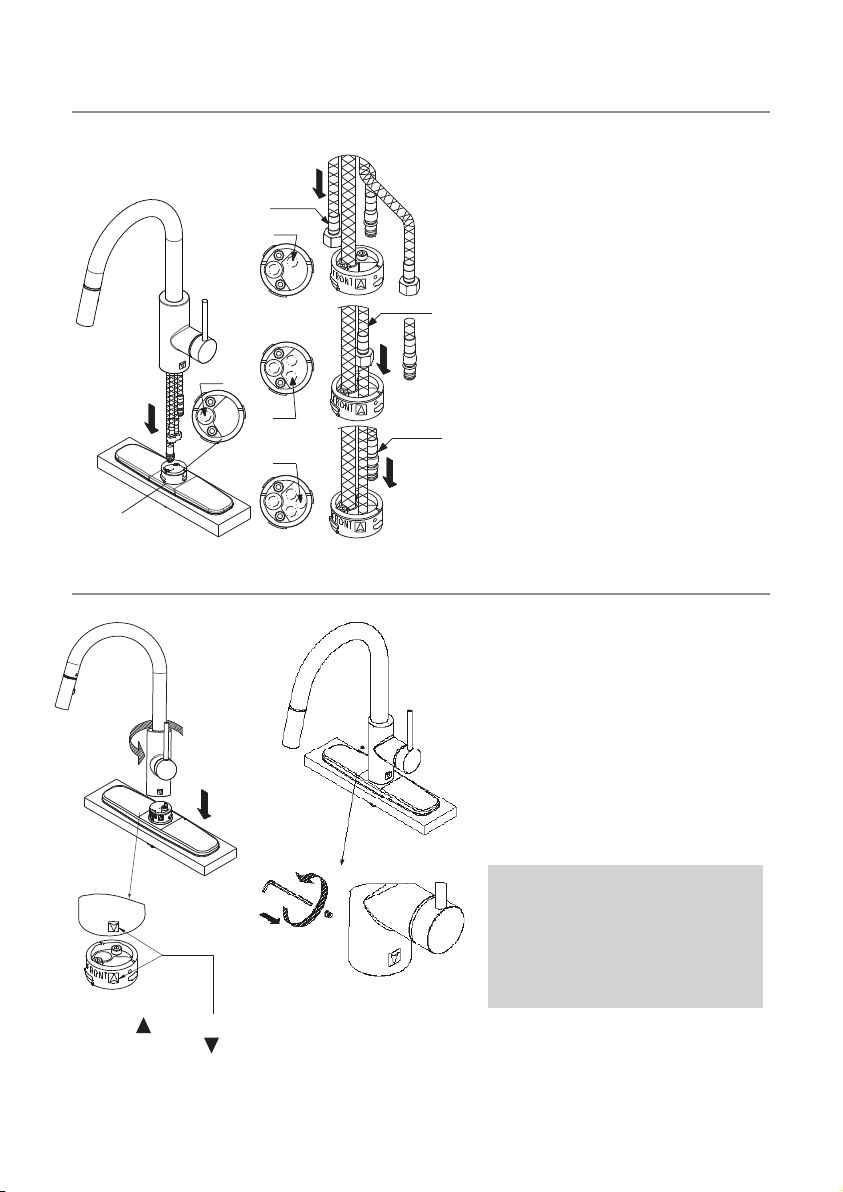

Step 2: Install faucet
Step 3: Secure faucet
Remove Quick Connect (I)
from spray hose (E). Insert
spray hose (E) into small hole
of base (D). Insert hot & cold
waterlines and supply hose
(F), one by one, in large hole
of base
Align arrow on faucet body (B)
with arrow on base (D). Attach
faucet body (B) to base (D) and
turn counter-clockwise. Secure
faucet body (B) by tightening
the set screw with 2.5mm hex
wrench (J)
D
G
G
G
G
G
B
D
J
F
F
F
I
I
EI
F
E
G
Hot Cold
Designated Mark
E
E
E
A
A
H
Rubber Cap
Installer Tip: Please loosen
set screw from faucet
body (B) prior to securing
to base (D)
Note: “ “ on base should be in
alignment with “ “ on faucet body.
Rotate faucet counterclockwise
to secure on base.

8

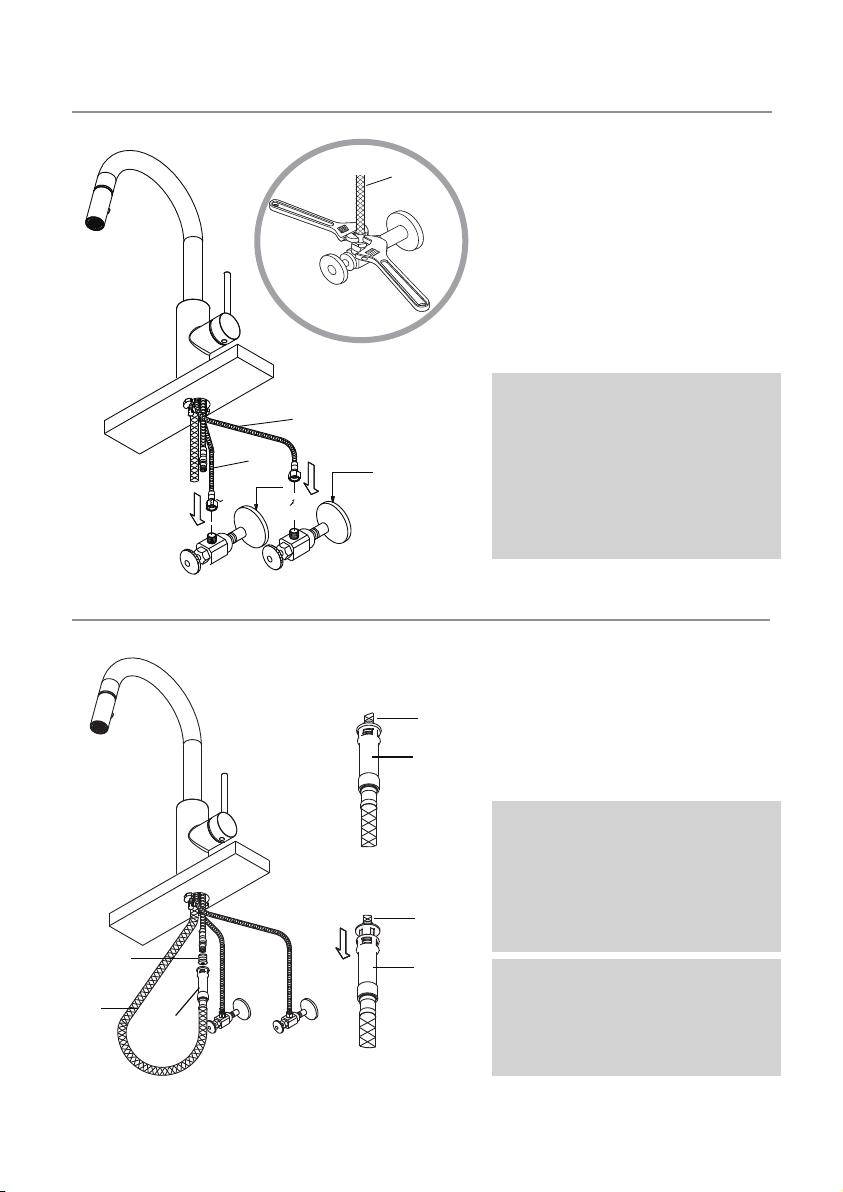

Step 4: Connect waterlines to main valve
Step 5: Connect quick connect
Thread hot & cold waterlines
(G) onto angle stops. Tighten
with adjustable wrench until
snug. Turn on the angle stops
and check for leaks (DO NOT
TURN FAUCET ON)
Attach Quick Connect (I) to
spray hose (E). Attach the other
end onto the supply hose (F)
until you hear a click
Installer Tip: Tug on the
spray hose (E) moderately to
ensure connection is secure
Installer Tip: Please remove
rubber cap from supply
hose (F) prior to installing
quick connect (I)
Installer Tip: Use two
wrenches when securing
waterlines to angle stops to
prevent kinking, as shown in
D
G
G
G
G
G
B
D
J
F
F
F
I
I
EI
F
E
G
Hot Cold
Designated Mark
E
E
E
A
A
H
Rubber Cap
D
G
G
G
G
G
B
D
J
F
F
F
I
I
EI
F
E
G
Hot Cold
Designated Mark
E
E
E
A
A
H
Rubber Cap
G

9

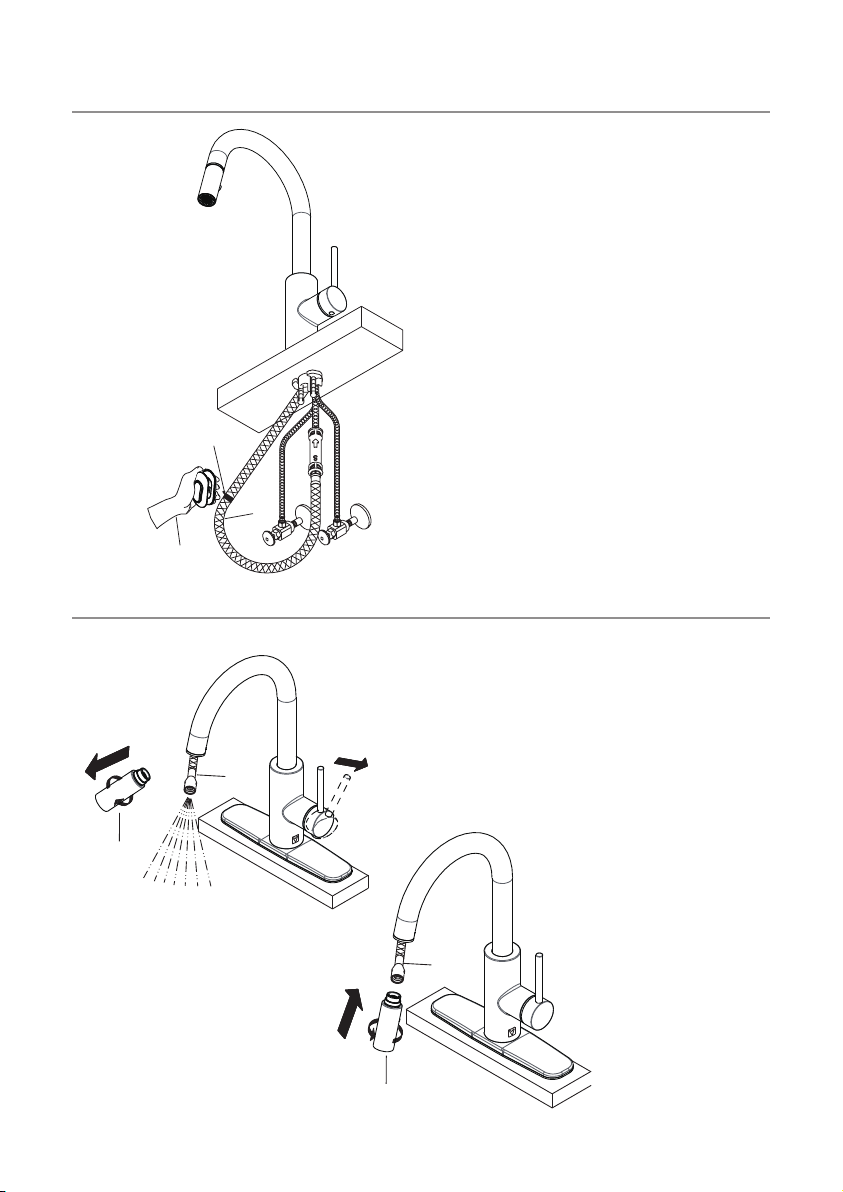

Step 6: Install weight
Step 7: Flush faucet
Attach weight (H) on the
designated mark on the spray
hose (E)
Remove spray head (A). Hold tip
of spray hose (E). Turn faucet on
for 1 minute to ush any debris.
Reconnect spray head (A)
D
G
G
G
G
G
B
D
J
F
F
F
I
I
EI
F
E
G
Hot Cold
Designated Mark
E
E
E
A
A
H
Rubber Cap
D
G
G
G
G
G
B
D
J
F
F
F
I
I
EI
F
E
G
Hot Cold
Designated Mark
E
E
E
A
A
H
Rubber Cap
D
G
G
G
G
G
B
D
J
F
F
F
I
I
EI
F
E
G
Hot Cold
Designated Mark
E
E
E
A
A
H
Rubber Cap

10

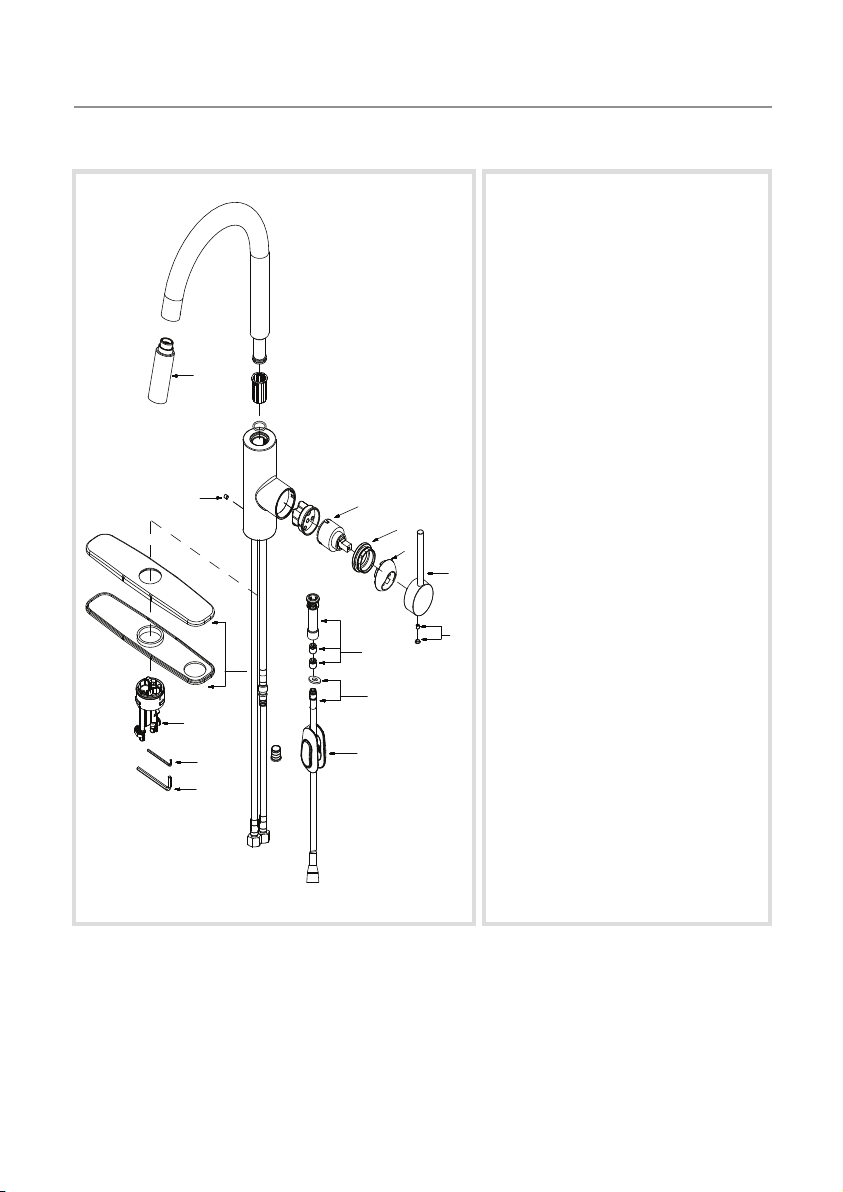

Replacement Part List
1
7
9
2
6
10
8
5
4
3
11
13
14
12
1. A Index Button
B Set Screw
2. Metal Handle
3. Cartridge Cover
4. Locking Nut
5. Cartridge
6. Spray Head
7. Set Screw
8. Quick Connect Assembly
9. Spray Hose
10. Weight
11. Cover & Putty Plate
12. Base
13. Hex Wrench 2.5mm
14. Hex Wrench 4mm

11
Trouble - Shooting
If you have followed the instructions carefully and your faucet still does not work
properly, take the following corrective steps:
PROBLEM CAUSE ACTION
Leaking from spray
hose
Quick Connect (8) may
be installed incorrectly
Remove Quick Connect
(8) from spray hose (9)
and reinstall. Make sure
you hear a click when
you install it on the spray
hose (9)
Water will not shut off
completely
Cartridge (5) may
need to be adjusted or
replaced
Remove index button
(1A). Loosen set screw
(1B) with 2.5mm hex
wrench (13). Remove
metal handle (2).
Remove cartridge
cover (3) by hand only.
Remove locking nut
(4) with an adjustable
wrench. Remove
ceramic disc cartridge
(5). Check for cracks
Hose does not retract Weight (10) may be
installed incorrectly
Readjust weight (10) on
the hose (9). Make sure
it is installed on the
designated mark on the
hose (9)
Low flow Quick Connect (8) may
be clogged with debris
Remove Quick Connect
(8) from hoses. Soak in
50/50 solution of warm
water and vinegar for 5
minutes, then reinstall

12
Care & Maintenance
*To keep the product clean & shining, follow the steps below:
1. Rinse with clean water & dry with a soft cloth
2. Do not clean with soaps, acid, polish, abrasives, or harsh cleaners
3. Do not use cloth with a coarse surface
4. Unscrew the aerator and clean when necessary
*This installation manual is subject to change without further notice.
1
10
279
10 31/32”
Minimum distance 90mm
Less than 90mm
Cold Water
32 3/32”
Ø35~Ø38
1
23
10
9
11
12 13
Hexagon Nut
Hot
Water
Cold
Water
2 3
1
45
7
6
8
45
67
8
Ø1 3/8”~Ø1 1/2”
815
194
7 5/8”
Ø1 3/8~Ø1 1/2”
30˚
10 11
Close
Open Left
Hot Water
Push
25˚ 90˚
12
13
8
7
Ø35~Ø38
Max35
217
8 17/32”
Max1 3/8”
9
11
12 13
2
3
4
5
6
7
8
Download the Kraus Care & Maintenance Guide at:
http://www.kraususa.com/maintenance

13
HELP LINE
Our customer service hours are Monday – Friday, 9am – 8pm EST.
Be sure to visit our website at www.kraususa.com
If you are a homeowner please contact a Kraus Customer Service Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
Toll-free 800-775-0703
[email protected]
If you are a plumbing contractor or trade professional please contact a Kraus Pro
Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
516-801-8955
[email protected]
If you are an Authorized Partner please contact a Partner Support Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
516-801-8954
[e-mail]
In requesting warranty service, please be ready to provide:
1. Proof of purchase.
2. A description of the problem.
Codes/Standards Applicable:
Meets ASME A112.18.1M/A112.18.1
1.75GPM 6.6L/min maximum
GREEN
Water Eciency
LEAD FREE
IAPMOR&T
TM
NSF/ANSI Standard 61 certied by IAPMO
NSF/ANSI Standard 372 certied by IAPMO

14
www.kraususa.com

Receive Proof of Ownership
Access Customer Care & Installation Help
Get Exclusive Kraus Oers & Promotions
Scan to Register Online
or visit http://www.kraususa.com/registration
Please take a moment to share your experience.
Visit http://www.kraususa.com/review to let us know what you think
about your new Kraus product.
Contact Us to Learn More
1.800.775.0703 / www.kraususa.com / [email protected]
Like & Follow KrausUSA
Download the Kraus Care & Maintenance Guide at:
http://www.kraususa.com/maintenance
www.kraususa.com
REGISTER YOUR PRODUCT TODAY
We’re always looking for ways to improve.

INSTALLATION MANUAL
Handmade Stainless Steel
Undermount Sink
KHU100-30 / KHU100-32 / KHU101-23 / KHU102-33 /
KHU103-33 / KHU104-33 / KHU105-32 / KHU121-23 /
KHU122-23 / KHU123-32
www.kraususa.com I toll free: 1.800.775.0703 I © 2016 Kraus USA Inc.

1
Thank you for your purchase
We would like to take this opportunity to thank you for choosing Kraus.
We hope that you are completely satised with your purchase, and enjoy it for years
to come. If you have any questions, or require technical assistance, please contact
us at 800.775.0703 and one of our representatives will be happy to help.
For more information about Kraus products, please visit:
www.kraususa.com
In order to activate your warranty and get faster access to customer support, please
register your new Kraus product at:
www.kraususa.com/registration
Sincerely,
Kraus USA Customer Service

2
Prior to Installation:
• Make sure that you have all necessary parts by checking the parts list. If any part is
missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a
replacement
• Inspect the sink prior to installation to make sure that it has not been damaged or
during shipping
• Use the cut-out template provided by Kraus
• Observe all plumbing and building codes according to your state requirements
• Not recommended to be installed with laminate countertop
For technical assistance or replacement parts, please contact Kraus
Customer Service and one of our representatives will be happy to help:
Toll-Free: 800-775-0703 or [email protected]
The step-by-step guidelines in the installation instructions are a general reference for installing a
Kraus Sink. Should there be any discrepancies, Kraus cannot be held liable. It is recommended to
install all Kraus products by hiring a licensed professional.

3
Parts List
• Cut-Out Template • Mounting Hardware • Bottom Grids • Drain
NOTE: Specialized tools may be necessary to install Kraus Stainless Steel Undermount
sinks with countertop materials other than wood, marble, or granite
Tools you will need:
Scissors
Screwdriver
Safety Goggles
Putty KnifePhillips Screwdriver
Drill
Tape Measure
Silicone Adhesive Jig Saw
Pencil
Adjustable wrench Phillips screwdriver
Tools You Will Need
Hex wrenchSilicone Sealant
A
I
D
J
F
B
G
C
H
E
Adjustable wrench Phillips screwdriver
Tools You Will Need
Hex wrench
Silicone Sealant
A
I
D
J
F
B
G
C
H
E
