Kraus Oletto KPF-2620 User manual

Oletto™ Single Handle Kitchen Faucet
KPF- 2620
INSTALLATION GUIDE
www.kraususa.com I Toll Free: 1.800.775.0703 I © 2019 Kraus USA Inc. I REV. Dec 21, 2020

Congratulations on the purchase of your new
Please keep the box and packaging materials until your product is
completely installed. If you have any questions, require technical
assistance, or have any problems with your product:
Please contact our Customer Service Team
1-800-775-0703 / [e-mail]
Have the model number available, and retain a copy of your receipt
with purchase date for reference.
If for any reason this product does not meet your expectations,
please be sure to repack this product in the original box and
packaging material to avoid damage during transit.
DO NOT RETURN TO STORE
1

Prior to Installation:
•Make sure you have all necessary parts by checking the diagram and parts list. If
any part is missing or damaged, please contact Kraus Customer Service at 800-775-
0703 for a replacement
•
•Pre-drilled countertop hole size requirement: 1-3/8”(min)
•Max countertop thickness: 2-1/8”
Tools you will need:
13
Wrench Phillips Screwdriver Safety Goggles
Silicone Sealant
(optional)
Pipe Tape
2
Turn o the hot and cold water lines at the angle stops and turn on the old faucet
to release any built-up pressure

3
A. Spray Head
C. Escutcheon
D. Gasket
F. Weight
B

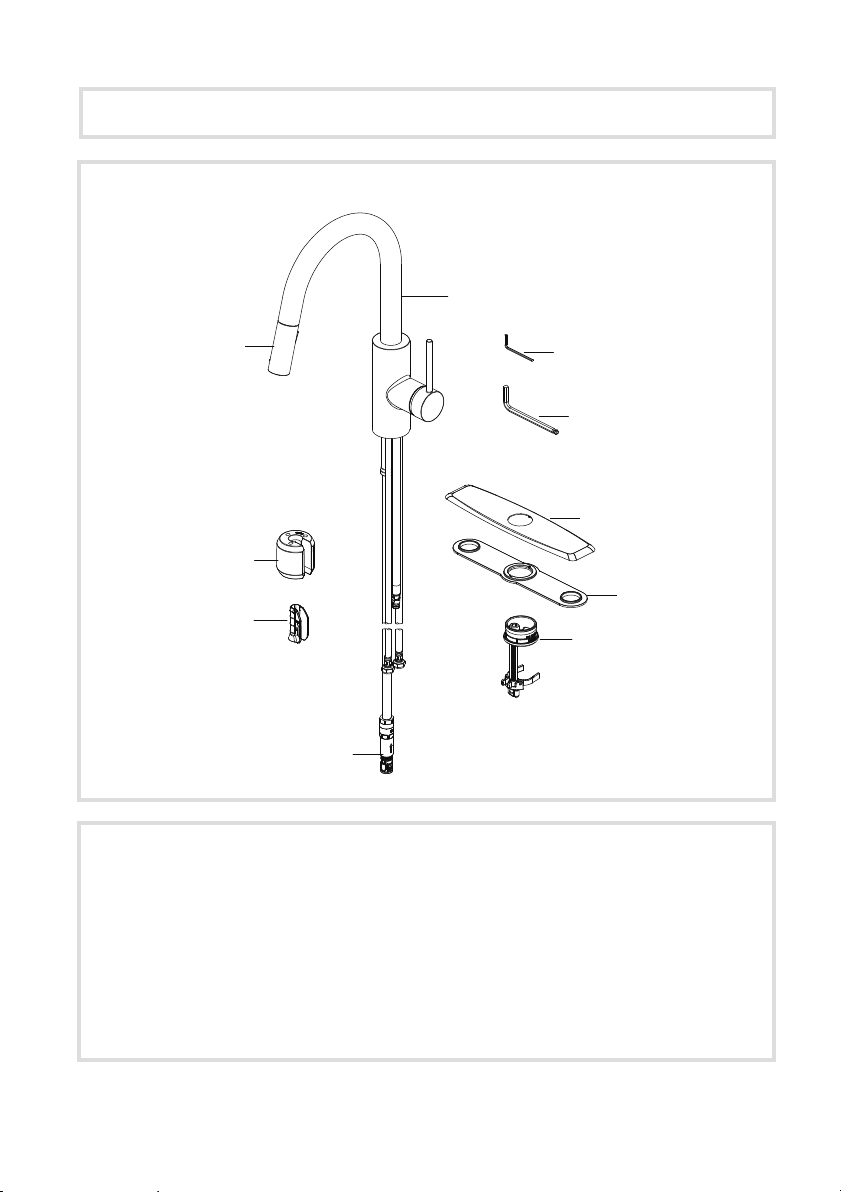

Diagram and Parts List
G. Weight Clip
H. Quick Connector
B. Faucet Body
E. Easy Install Assembly
C
D
G
H
I. 2.5mm Hex Wrench
J. 6mm Hex Wrench
F
A
E
I
J

4
Faucet Dimension
Installer Tip:
10 1/8''
[258.8mm]
15 1/4''
[388.8mm]
Max: 2 1/8''
[53.4mm]
10 5/8''
[269.7mm]
8 7/8''
[224.6mm]
7 3/8''
[187.4mm]
2 1/2''
[62.9mm]
10 1/2''
[265.2mm]
8 7/8''
[224.6mm]
7 1/8''
[181.6mm]
Max: 2 3/8''
[59.6mm]
Ø2 1/8''
[53.0mm]
3/8”-compression

5

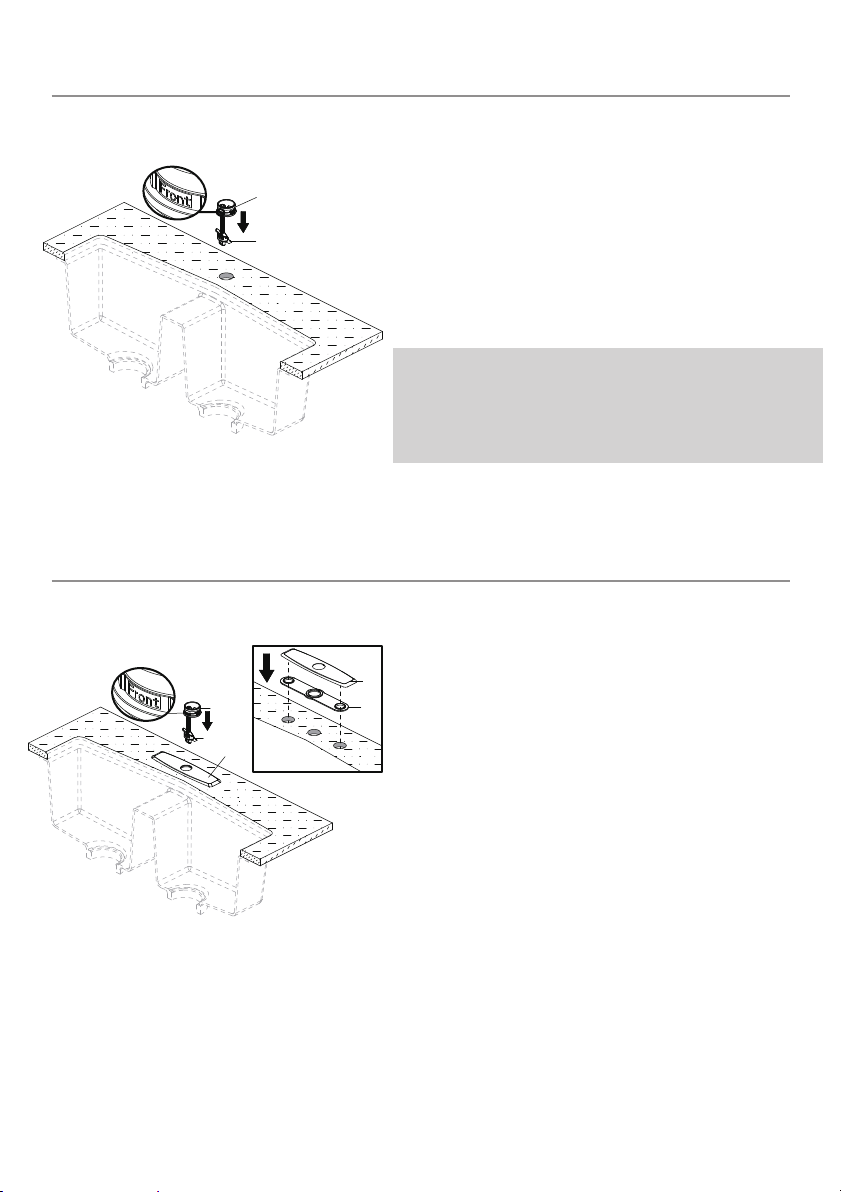

Step 1a: Installing the easy install assembly (Without escutcheon)
Shut o the water supply. Remove the old
faucet. Clean the mounting surface. Check
for the proper thickness of the sink.
Insert the base (a) into sink. If your model
does have a escutcheon, skip to step 1 b.
Step 1b: Installing the easy install assembly (With escutcheon)
Place the escutcheon (C) and the gasket (D)
on the sink. Insert the base (a) into
escutcheon (C). Note: “Front” on the base (a)
must face the front of the sink. The two
mounting plates (b) on the base (a) must be
loose and movable during the installation of
the base (a). If the sink is uneven, use silicone
under the gasket (D).
a
b
a
C
D
C
b
NOTE: “Front” on the base (a) must face the
front of the sink. The two mounting plates (b)
on the base (a) must be loose and movable
during the installation of the base (a).

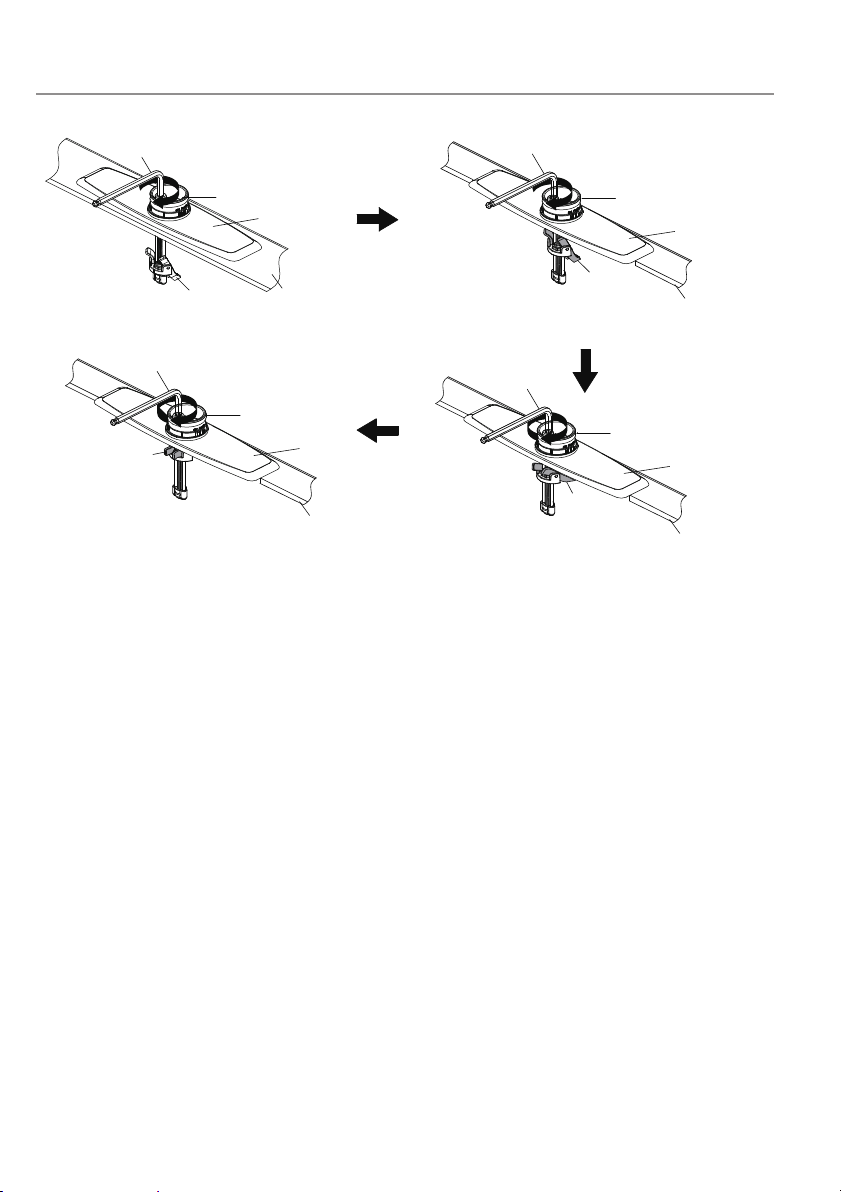

Step 2: Installing the easy install assembly
6
Fig 1 Fig 2
Press the base (a) and escutcheon (C) so that they can not move, then turn the
screws with the provided hex wrench (J, HEX: 6.0mm) clockwise, as shown Fig 1.
When the mounting plates (b) make contact with the sink (1), continue to turn
the screw with the provided hex wrench (J, HEX: 6.0mm) clockwise, as shown
Fig 2, until the base (a) is completely tightened and secured, as shown Fig.4.
Fig 3
Fig 4
C
J
a
b1
C
J
a
b
1
C
J
a
b
1
C
J
a
b
1

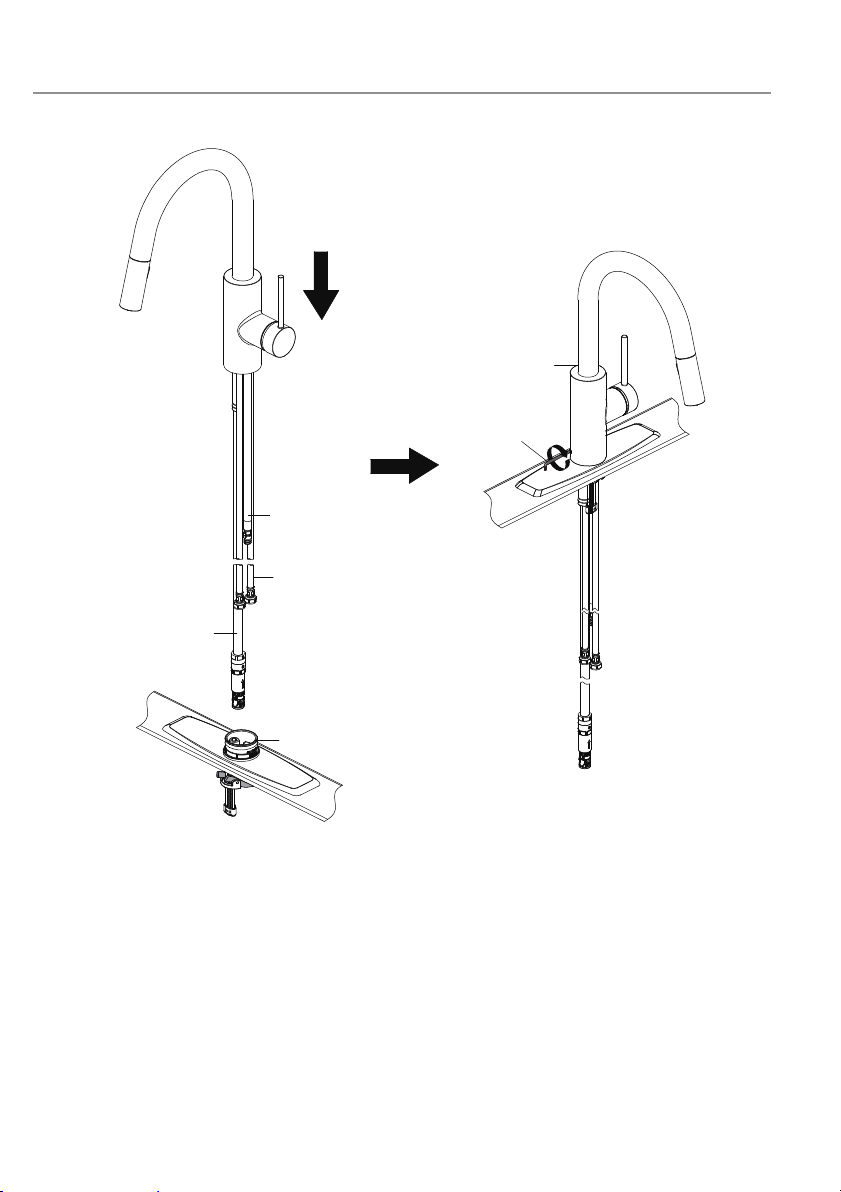

Step 3: Installing the faucet
7
Insert the hose (1)、supply lines (2) and quick connect hose (3) one by one
through the hole of the base (a). Carefully insert the hoses into the base.
Place the faucet assembly onto the base (a) as shown in the above gure.
Secure the faucet assembly (B) by tightening the set screw with the provided
hex wrench (I, Hex: 2.5 mm).
2
1
3
a
I
B

8
Step 4: Securing the faucet assembly
Install the weight clip (G) at the point of
the hose marking "weight here". Insert
the weight (F) onto the weight clip (G)
by sliding it down onto the weight clip (G).
Step 5: Connect waterlines to main valve
Attach waterlines to angle stops
and tighten until snug. Turn on angles
stops and check for leaks (DO NOT TURN
FAUCET ON)
Weight
here
Weight
here
G
F

9
Step 6: Flush faucet
Pull the hose assembly out of the spout and
remove the spray head (A) by unscrewing it
from the hose in a counterclockwise
direction. Be sure to hold the end of the hose
down into the sink and turn the faucet on to
the warm position where it mixes hot and
cold water. Flush the water lines for one
minute. This ushes away any debris that
could cause damage to internal parts. Check
for leaks. Re-tighten any connections if
necessary, but do not overtighten. Reinstall
the spray head (A) by hand tightening it
back onto the sprayer hose.
After installation is completed, turn on the
hot and cold water supplies. Check for leaks.
NOTE: Please make sure washer is
installed attaching sprayer to hose.
A

10

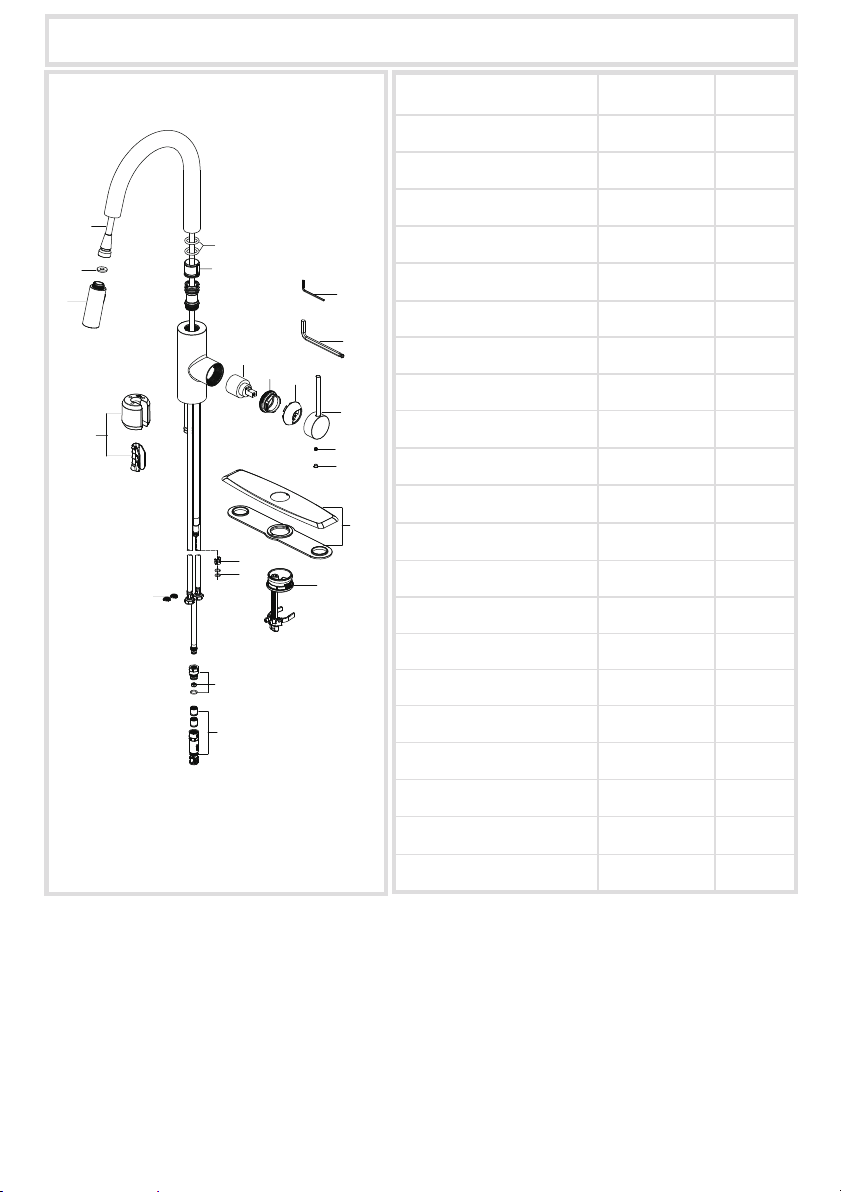

Replacement Parts
1. Spray Head
Replacement Parts List Part #
2. Washer
3. Spray Hose
5. O-Ring
6. Inverter
7. Cartridge
9. Cap
10. Handle
11. Set Screw
Finish / Color
KP27210
KP27211
KP27257
KP27258
KP27259
KP27260
KP27296
KP27208
KP27290
8. Bonnet Nut
4. Quick connector assembly KP27090
12. Cover Button
KP27001
KP27002
13. Weight & Clip Assembly KP27212
*Denotes faucet component color options:
CH- Polished Chrome ; SFS - Spot Free Stainless Steel ; BB - Brushed Brass;
Gray hose with Spot-Free Stainless connector (GRSFS);
Gray hose with Chrome connector (GRCH);
Black hose with Brushed Brass connector (BLBB);
GR - Grey;
BL - Black
14. 1.8GPM Flow Restrictor
15. Hex wrench
KP27074
16. Easy Install Assembly
KP27020
KP27262
17. Hex Wrench
18. Escutcheon
KP27263
19. Block
KP27261
KP27073
20. O-ring
21. Filter Washer
KP27092
KP27167
GR, BL*
BB, CH, SFS *
BLBB, GRCH,
GRSFS*
BB, CH, SFS *
14
4
3
18
1
2
5
78
10
11
12
6
9
19
20
13
21 16
15
17
BB, CH, SFS *
BB, CH, SFS *

11
Troubleshooting
If you have followed the instructions carefully and your faucet still does not work
properly, take the following coorective steps:
Care & Maintenance
*To keep the product clean & shining, follow the steps below：
1. Rinse with clean water & dry with a soft cloth
2. Do not clean with soaps, acid, polish, abrasives, or harsh cleaners
3. Do not use cloth with a coarse surface
4. Unscrew the aerator and clean when necessary
*This installation manual is subject to change without further notice.
10
9
11
12 13
Hexagon Nut
Hot
Water
Cold
Water
Close
Open Left
Hot Water
Push
25˚ 90˚
PROBLEM CAUSE ACTION
Leakage under the
handle
Bonnet nut (9) has
come loose
Remove the cover button (12).
Loosen set screw (11) with hex
wrench (15). Remove the
handle (10). Unscrew cap (9) (by
hand only). Tighten bonnet nut
(8) with an adjustable wrench
The aerator has an
irregular or reduced
water ow
The aerator is dirty or
mis-tted
Remove the aerator and
check for debris.
Ensure that the rubber
washer is properly installed
Water will not shut o
completely
Cartridge may need to
be adjusted or replaced
Remove the cover button (12).
Loosen set screw (11) with hex
wrench (15). Remove the
handle (10). Unscrew cap (9)
(by hand only). Tighten bonnet
nut (8) with an adjustable
wrench. Remove the cartridge
(7). Check for cracks
There is leaking from the
sink drain at the base of
the sink.
The sink has a rough or
irregular surface.
Apply additional silicone
sealant to the beveled side of
the drain ange. Retighten
and test for leaks
There is a low ow of
water.
The lter washer in the
hose connectors is dirty.
Turn o the water supply at
water valve and unscrew the
hose connectors from water
supply lines. Clean the lter
washer in the water lines with
hot water, removing any debris
or calcium build up

Codes/Standards Applicable:
Faucet Warranty
Restrictions
This warranty does not cover antediluvian, discontinued, or display products, whether such items are purchased at
discount outlets, unauthorized dealers, and/or sold on clearance.
This warranty does not cover instances of negligence, misuse, abuse, improper installation, carelessness, accident, hard
water or mineral deposits, exposure to corrosive materials, misapplication, damages caused by improper maintenance,
alteration of the product, or failure to follow care or installation instructions enclosed with your product. Avoid using
abrasive cleaners such as powders, bleach, ammonia, alcohol, or chlorine. Avoid using abrasive pads, steel wool, or wire
brushes, as these will damage and wear down the finish.
This warranty does not apply to Products that have not been installed or operated in accordance with instructions
supplied by Kraus and all applicable rules, regulations, and legislation pertaining to such installations.
This warranty does not apply unless the Kraus product is installed by a fully insured and licensed trade professional.
Kraus insists that such professionals have experience in the installation of bathroom and kitchen manufactured goods.
This warranty does not cover labor charges or costs of removal and reinstallation of said product. This warranty does
not allow recovery of incidental or consequential damages, such as loss of use, delay, property damage, or other
consequential damages, and Kraus accepts no liability for such damages.
This warranty does not cover Marine or Outdoor Installation.
Except as otherwise provided above, Kraus makes no warranties, expressed or implied, including warranties of
merchantability and fitness for a particular purpose, or compliance with any code.
NSF/ANSI 372
NSF/ANSI 6 1 ASME A112.18.1
1.8GPM 6.8L/min maximum
LEAD FREE
IAPMOR&T
TM
12
Kraus products are manufactured and tested to the highest quality standards by Kraus USA Inc. (“Kraus”).
Kraus extends this warranty to the original purchaser for personal household use of the “Faucet” in its original location.
The warranty is non-transferable.
Kraus warrants the structure and finish of the product to be free from defects in material and workmanship under
normal usage for the lifetime of the product. The warranty commences from the initial date of purchase by the owner or
trade professional, from an authorized Kraus dealer, through the lifetime of the original owner or end-user.
Kraus warrants the mechanical components such as but not limited to sprayhead assembly (includes engine, aerators,
structure, restrictors, back flow preventers, sprayer hoses, braided supply line hoses which encompasses nylon,silicon
and stainless steel, etc) of the product to be free from defects in material and workmanship under normal usage for a
period of one (1) year. The warranty commences from the initial date of purchase by the owner or trade professional,
from an authorized Kraus dealer, through the one (1) year term of the original owner or end-user.
Kraus warrants the mechanical component (cartridge) of the product to be free from defects in material and
workmanship under normal usage for a period of five (5) years. The warranty commences from the initial date of
purchase by the owner or trade professional, from an authorized Kraus dealer, through the five (5) year term of the
original owner or end-user.
Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be
repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or
end-user, and is not transferable to a subsequent owner.
Kraus warrants all electronic parts other than batteries to be free from defects in material and workmanship for a
period of two (2) years. The warranty commences from the initial date of purchase by the owner or trade professional,
from an authorized Kraus dealer, through the two (2) year term of the original owner or end-user. No warranty is provided
on batteries.

If you are a homeowner please contact a Kraus Customer Service Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
Toll-free 800-775-0703
[email protected]
If you are a plumbing contractor or trade professional please contact a Kraus
Pro Representative at:
If you are an Authorized Partner please contact a Partner Support Representative at:
In requesting warranty service, please be ready to provide:
1. Proof of purchase.
2. A description of the problem.
Download the Kraus Care & Maintenance Guide at:
http://www.kraususa.com/maintenance
Commercial Warranty
Kraus extends the above warranty for a period of one (1) year to purchasers of products for industrial, commercial, and
business use.
Shipping charges will be covered foe the first (1) year of the warranted replacement part or product (HI, AK, and Puerto
Rico shipping charges may apply). International shipping fees are not included.
All incidental or consequential damages are specifically excluded. No additional warranties, express or implied, are
given, including but not limited to any implied warranty of merchantability or fitness for a particular purpose.
Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long
an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific
legal rights, and you may also have other rights which vary from state to state.
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
516-801-8955
[email protected]
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
516-801-8954
[email protected]
13

IMPORTANT
Register Your Kraus Product
REGISTER TODAY
http://www.kraususa.com/registration
Activate Your Warranty
Access Premium Customer Support
Get Product Information
www.kraususa.com
