KROHNE OPTIWAVE 8300 C Instruction Manual

Portable Cleaning Unit for cleaning of the
OPTIWAVE 8300 C radar’s antenna
Technical Datasheet
Portable Cleaning Unit
• 10 l capacity stainless steel pressure tank for cleaning solvent or
chemical solution
• Manual hand pump or compressed air connection
• Effective cleaning of contaminated radar antennas
• Easy to carry on deck
© KROHNE Marine 01/2015

Portable Cleaning Unit
Technical data
Tank capacity 10 l
Working pressure 1-6 bar
Pump pressure (max) 6 bar
Connection ¼” BSP swivel nut
Max liquid temperature 50°C
Seal/gasket Viton
Compressed air connection Yes
Manual hand pump Yes
Metal nozzle with regulation Yes
Length of hose Approx. 1 m
Diameter/height 220 mm / 570 mm
Weight 5 kg
OPTIWAVE 8300 C Marine – closed cleaning facility
The OPTIWAVE 8300 C Marine cargo level radar is equipped with a closed
cleaning facility. A ball valve is tted on the side of the radar, allowing to
connect a steam hose or portable cleaning unit.
The cleaning outlet is pointing directly into the antenna / wave guide,
securing thorough cleaning of all important parts internally.
How to operate the portable cleaning unit?
1. Remove the protective plug on the ball valve.
2. Screw the swivel nut onto the ball valve.
3. Make sure the portable cleaning unit is pressurized
before opening the valve on the OPTIWAVE.
4. Press the hand pump valve and clean for at least 5 seconds
(depending on type of contamination and type of cleaning uid).
5. Close the ball valve on the OPTIWAVE, disconnect the unit and
mount the plug/bolt for safety.

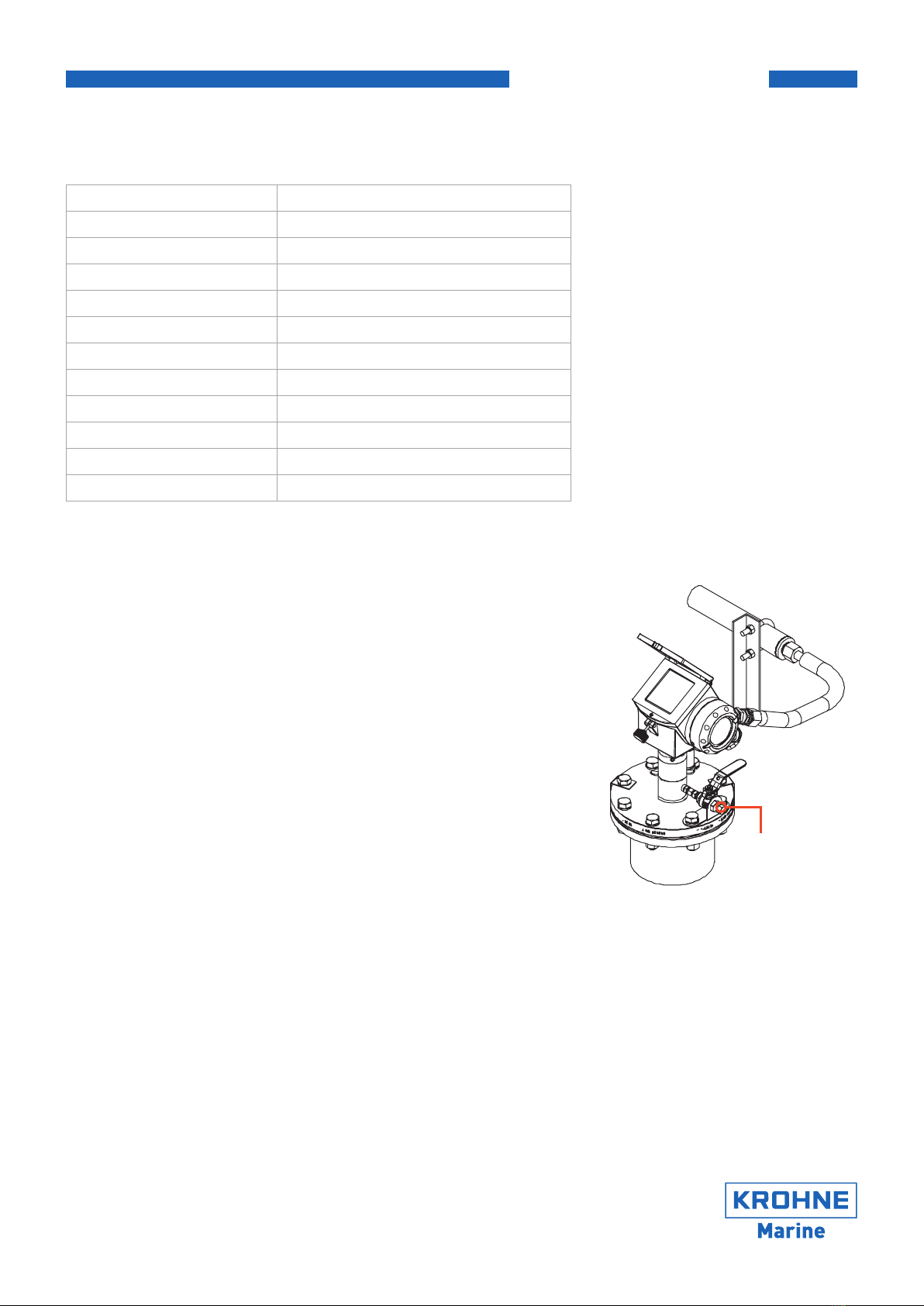

Cleaning connection
protected by a ball valve
