SAFETY INSTRUCTIONS 1
3
GA24
www.krohne.com04/2015 - 4000836702 - MA G24-Ex-II2G-AD R03 en
1.1 General notes
These additional instructions apply to explosion-protected versions of variable area flowmeters
with electrical built-ins and the marking II 2 G. They complete the installation and operation
instructions for the non-explosion protected versions.
The information given in these instructions contains only the data relevant to category 2
explosion protection. The technical details given in the installation and operation instructions for
the non-explosion protected versions apply unchanged unless excluded or superseded by these
instructions.
1.2 EC conformity
The manufacturer declares with the EC Declaration of Conformity on his own responsibility
conformity with the protection goals of Directive 94/9/EC for use in hazardous areas with gas.
The EC Type Test Certificate of the Physikalisch Technische Bundesanstalt (PTB) forms the basis
of the EC Declaration of Conformity: Conformity with the harmonised standards was verified
according to EN 60079-0 and EN 60079-11.
If required the EC Type Test Certificate can be downloaded under www.krohne.com.
1.3 Security information
Assembly, installation, start-up and maintenance may only be performed by personnel trained in
explosion protection!
PTB 05 ATEX 2025 X
PTB 05 ATEX 2025 XPTB 05 ATEX 2025 X
PTB 05 ATEX 2025 X
CAUTION!
The operator respectively his agent is responsible to follow further standards, directives or laws
if required due to operating conditions or place of installation. This applies particularly for the
use of easy detachable process connections such as SMS or Clamp when measuring flammable
mediums.

2 DEVICE DESCRIPTION
4
GA24
www.krohne.com 04/2015 - 4000836702 - MA G24-Ex-II2G-AD R03 en
2.1 Device description
Variable area flowmeters measure the volume flow of flammable and non-flammable gases and
liquids. Up to two separately adjustable electrical limit switches can be mounted to the on-site
display.
2.2 Safety description code

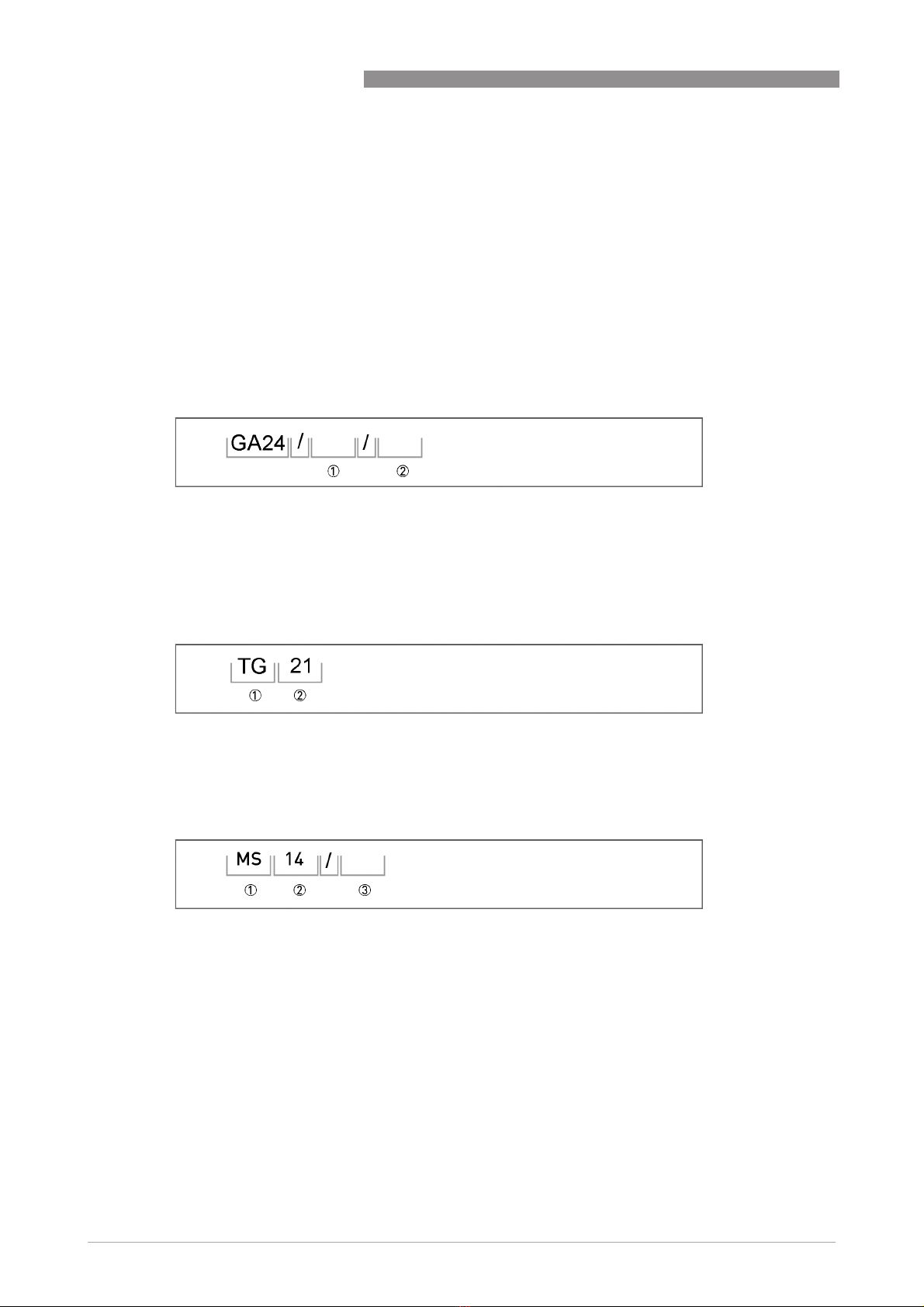

The safety description code * consists of the following elements:
* positions which are not needed are omitted (no blank positions)
1 R - Stainless steel
PTFE - Stainless steel with PTFE liner
2 K1 - one limit switch
K2 - two limit switches
1 TG - Slot sensor limit switch
2 21 - Version 21
1 MS - Magnetic switch
2 14 - Reed cartridge 14
3 A - Limit switch with terminal box (standard)
Empty space - Limit switch with cable assembly

DEVICE DESCRIPTION 2
5
GA24
www.krohne.com04/2015 - 4000836702 - MA G24-Ex-II2G-AD R03 en
2.3 Marking
Type designation of the complete unit is shown on the indicator with the nameplates reproduced
below.

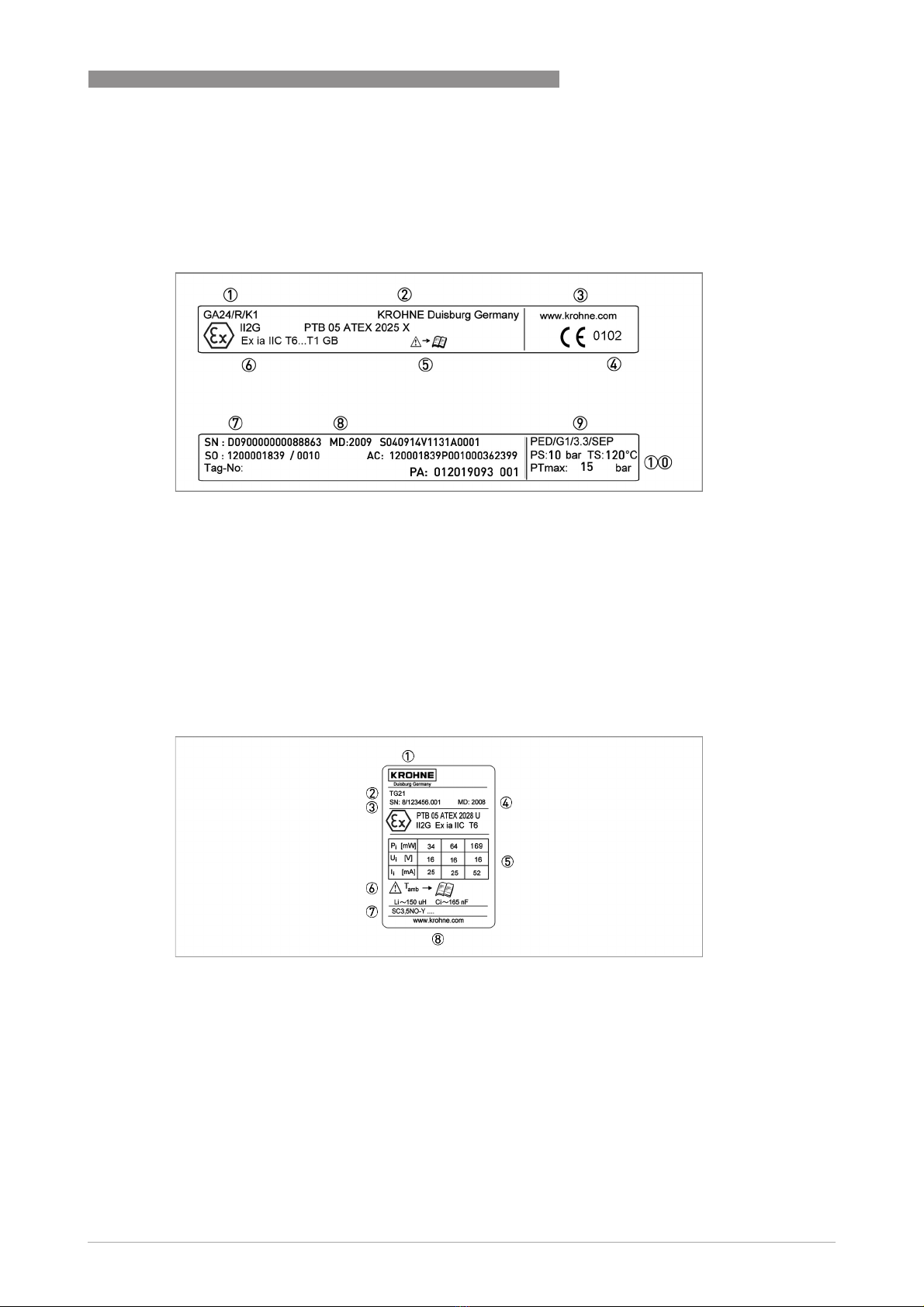

Nameplate GA24
1 Device type
2 Manufacturer
3 Manufacturer's website
4 Note manual
5 Ex data
6 Serial No.
7 Year of manufacture
8 Year of manufacture
9 PED-data
10 Design data: Temperature & pressure rating
Nameplate limit switch TG21
1 Manufacturer
2 Type
3 Serial number
4 Year of manufacture
5 Electrical data of built-in components
6 Observe Operation and Installation manual
7 Built-in components
8 Internet site

2 DEVICE DESCRIPTION
6
GA24
www.krohne.com 04/2015 - 4000836702 - MA G24-Ex-II2G-AD R03 en
No Ex marking for MS14 and MS14/A, because the reed limit switch operates as a simple device
and complies to intrinsic safety EN 60079-11 paragraph 5.7.

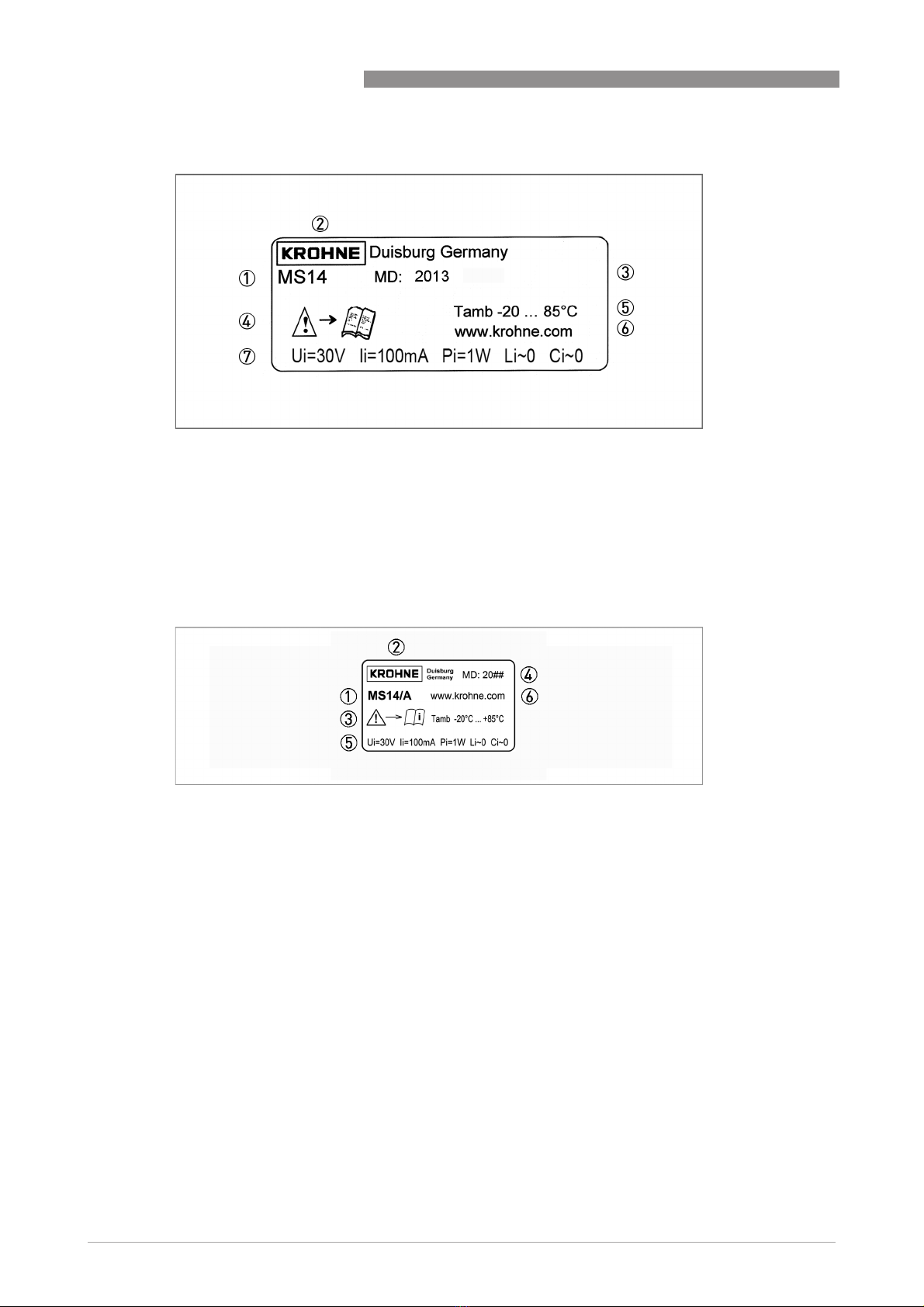

Marking Limit switches MS14
1 Type
2 Manufacturer
3 Year made
4 Observe Operation and Installation manual
5 Ambient temperature
6 KROHNE website
7 Electrical connection data
Marking Limit switches MS14A
1 Type
2 Manufacturer
3 Observe Operation and Installation manual
4 Year made
5 Electrical connection data
6 KROHNE website

DEVICE DESCRIPTION 2
7
GA24
www.krohne.com04/2015 - 4000836702 - MA G24-Ex-II2G-AD R03 en
2.4 Flammable products
Atmospheric conditions
Atmospheric conditionsAtmospheric conditions
Atmospheric conditions
An explosive atmosphere is a mixture of air and flammable gases, vapours, mists or dusts under
atmospheric conditions. The following values define it T
atm
= -20°C...+60°C /
-4°F...140°F and P
atm
= 0.8...1.1bar. Outside of this range, no key data are available as to ignition
behaviour for most mixtures.
Operating conditions
Operating conditionsOperating conditions
Operating conditions
Variable area flowmeters operate outside of atmospheric conditions, which means that
explosion protection according to Directive 94/9/EC (ATEX) –regardless of the zone assignment
–is fundamentally not applicable due to the lack of key safety data for the interior of the
measuring section.
2.5 Equipment category
Variable area flowmeters are designed in accordance with EN 60079-0 and EN 60079-11 in
category II 2 G for use in zone 1. The inside of the measuring unit is also approved for zone 1.
2.6 Types of protection
The variable area flowmeter is designed with protection type intrinsic safety, protection level "ia"
as per EN 60079-11.
The marking is: II 2G Ex ia IIC T6...T1 Gb
II 2G Ex ia IIC T6...T1 GbII 2G Ex ia IIC T6...T1 Gb
II 2G Ex ia IIC T6...T1 Gb
CAUTION!
Operation with flammable products is only permissible if no explosive fuel/air mixture is formed
on the interior of the flowmeter under operating conditions. The user is responsible for the safe
operation of the flowmeter with regard to the temperatures and pressures of the products used.
In case of operation with flammable products the measuring units must be included in the
periodic pressure tests of the system.
INFORMATION!
Definition of zone 1 according to EN 1127-1, Appendix B:
An area in which an explosive atmosphere may occasionally occur as a result of the mixture of
flammable substances in the form of gas, steam or mist with air under normal operation.
The marking contains the following information:
The marking contains the following information:The marking contains the following information:
The marking contains the following information:
II
IIII
II Explosion protection Group II
2
22
2Device category 2
G
GG
GGas explosion protection
ia
iaia
ia Intrinsically safe, protection level "ia"
IIC
IICIIC
IIC Suitable for gas groups IIC, IIB and IIA
T6...T1
T6...T1T6...T1
T6...T1 Suitable for temperature classes T6 ... T1
Gb
GbGb
Gb EPL, suitable for zone 1 or zone 2

2 DEVICE DESCRIPTION
8
GA24
www.krohne.com 04/2015 - 4000836702 - MA G24-Ex-II2G-AD R03 en
2.7 Ambient temperature / temperature classes
Because of the influence of the temperature of the product, no fixed temperature class is
assigned to variable area flowmeters with attached electrical equipment. In fact, the
temperature class of a device is a function of the temperature of both the product and the
environment. There is no distinction between devices with one or two contacts. The assignment
is outlined in the following tables.
The tables take into account the following parameters to determine the permissible
temperature class:
•Ambient temperature T
amb.
•Product temperature T
m
•attached equipment
•Supply type (maximum values for P
i
)
Maximum permitted product temperature Tmfor limit switch TG21
The maximum permitted ambient and product temperature for the type MS14 limit switch is
85°C / 185°F for temperature classes T6 ... T1.
The minimum permitted ambient temperature T
amb
for all versions is -20°C / -4°F.
2.8 Electrical data
The connection of limit switches MS14/. or TG21 may only be connected to intrinsically safe
circuits
to DIN 19234 with the following max. values:
MS14/.
TG21
Supply Type 1 Type 2 Type 3
Temperature
class
T6 T5 T4...T1 T6 T5 T4...T1 T6 T5 T4...T1
T
m
in °C1 70 85 95 60 75 95 35 50 70
T
m
in °F1 158 185 203 140 167 203 95 122 158
1These values may be limited by the Installation and Operating instructions. Observe the maximum values listed in the
Installation and Operating instructions.
Pi Ui Ii Ci Li
1 W 30 VDC 100mA ≈0 nF ≈0 µH
Supply Pi Ui Ii Ci Li
Type 1 34 mW 16 VDC 25mA 165 nF 150 µH
Type 2 64 mW 16 VDC 25mA 165 nF 150 µH
Type 3 169 mW 16 VDC 52mA 165 nF 150 µH

INSTALLATION 3
9
GA24
www.krohne.com04/2015 - 4000836702 - MA G24-Ex-II2G-AD R03 en
3.1 Installation
Installation and setup must be carried out according to the applicable installation installation
standards (e.g. EN 60079-14) by qualified personnel trained in explosion protection. The
information given in the Installation and Operation Instructions and the Supplementary
Installation and Operation Instructions must always be observed.
Variable area flowmeters must be installed in such a way that
•There is no danger from mechanical impact effects.
•There are no external forces affecting the indicator part.
•The device is accessible for any visual inspections that are necessary, and can be viewed from
all sides.
•The nameplate is clearly visible.
•It can be operated from a location with secure footing.
CAUTION!
The manufacturer is not liable for any damage resulting from improper use or use other than the
intended purpose. This applies in particular to hazards due to insufficient corrosion resistance
and suitability of the materials in contact with product.

4 ELECTRICAL CONNECTIONS
10
GA24
www.krohne.com 04/2015 - 4000836702 - MA G24-Ex-II2G-AD R03 en
4.1 General notes
The electrical connection of the limit switch with protection level "ia" or "ib" is described in the
manual. Permissible maximum values (electrical data) must be observed.
Observe the specified polarities.
The TG21 limit switch is electrically connected to the connection terminals in the connection box.

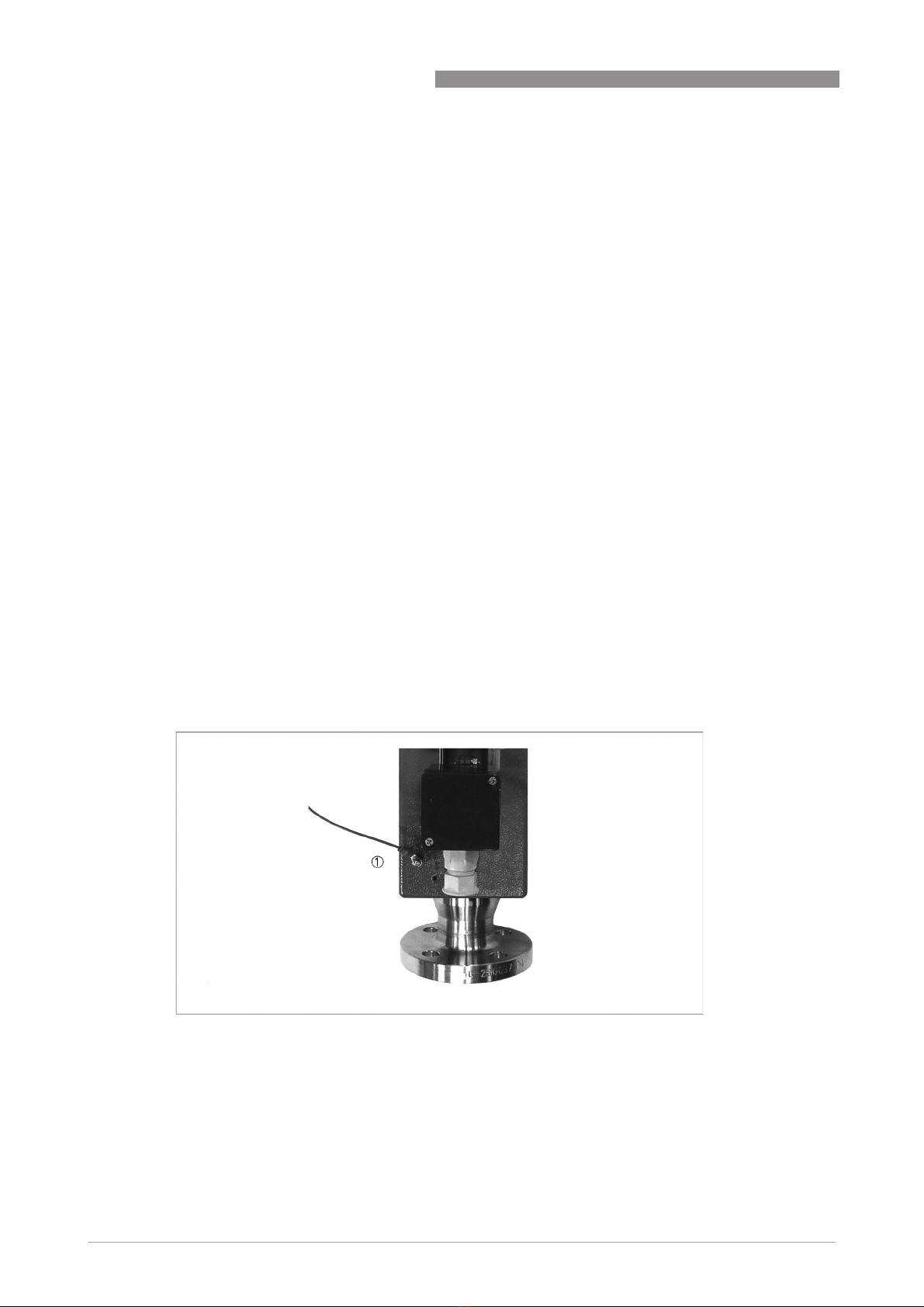

The MS14 limit switch is electrically connected on the strands of the connecting cable. The
terminal compartment used must satisfy a minimum IP protection category of IP20. The MS14/A
variant is electrically connected to the connection terminals in the connection box. The MS14/
limit switch is connected regardless of polarity.
Connecting cable
Connecting cableConnecting cable
Connecting cable
The connecting cables must be selected according to prevailing installation standards (e.g.
EN 60079-14).. The outer diameter of the connecting cable must be within the sealing range of
the cable entry. The connecting cables must be fixed and laid in such a way as to be sufficiently
protected against damage.
All cores that are not used must be securely connected to the earth potential of the hazardous
area or carefully insulated against each other and against ground (test voltage ≥500 V
eff
).
4.2 Grounding and equipotential bonding
If the device is not sufficiently electrostatically grounded via the process cables, an additional
earth connection must be established using the ground terminal. The location of the earth
connection 1on the back of the housing. This connection merely ensures electrostatic
connection of the device and does not meet the requirements for equipotential bonding.
The conductive parts of the limit switches are connected to the variable area flowmeter housing.
Ensure proper installation and fit of the installation elements.

OPERATION 5
11
GA24
www.krohne.com04/2015 - 4000836702 - MA G24-Ex-II2G-AD R03 en
5.1 Start-up
Make the following checks before starting up the device:
•Suitability of the materials used for the measuring unit and for the gaskets for adequate
resistance to corrosion from the process product.
•Correct connection of the built-on electrical components of the electical option.
•Proper fastening of the mounting elements of the limit switches.
•Electrostatic earthing of the measuring device.
5.2 Operation
Adjusting the limit switch during operation is permitted.
To do this, loosen the fastening screws on the mounting device.
Tighten the fastening screws again immediately after the switching point on the limit switch has
been set.
The switching behaviour for the TG21 limit switch can also be set in the terminal compartment.
Close the terminal compartment immediately after adjustment.
The mounting position of the reed contact cartridge determines the switching function of the
reed contact in the MS14/ limit switch. Changing the switching direction during operation is
permitted. Close the limit switch housing immediately afterwards.
5.3 Electrostatic charge
In variable area flowmeters, it is possible under field conditions for charge separation to occur in
the measuring tube due to the transport of non-conductive fluids and/or when the flow comes
into contact with non-conductive built-ins.
In glass devices, it is basically possible for the electrostatic field generated inside the measuring
tube to "punch through" to the outside of the device. For that reason, variable area flowmeters
need to be permanently grounded by the operator by way of the process connections in order to
allow discharge of electrostatic build-up.
The operator is also responsible for extending the ground continuity of the process pipeline.
If grounding cannot be made via the process connections, e.g. top and bottom connection blocks
are made of plastic, the flowmeter should be connected to the local ground potential via the
connection to ground described in the section entitled "Grounding and equipotential bonding".
This connection only ensures electrostatic grounding of the device and does not meet the
requirements for equipotential bonding.
When measuring dust-free gases or liquids, the flow rate should
not exceed ten times the nominal flow rate. The max. allowable working pressure PS printed on
the type nameplate is to be noted.

6 SERVICE
12
GA24
www.krohne.com 04/2015 - 4000836702 - MA G24-Ex-II2G-AD R03 en
6.1 Maintenance
The measuring device requires no maintenance under normal operating conditions and when
used as prescribed.
The following visual checks should be carried out at regular intervals in conjunction with the
system inspections required in hazardous areas to keep equipment in good operating condition:
•Checking the housing, the cable entries and the feed lines for corrosion and/or damage.
•Inspection of the measuring unit for leaks and glass cones.
•Include the flowmeter in the periodic pressure testing of the process piping.
Depending on application, however, the measuring function may in unfavourable cases become
impaired through soiling of the measuring cone and/or float.
Clean the meter in accordance with the installation and operating instructions for non-explosion
proof versions of the product.
The measuring unit must be removed for cleaning. To do this, follow the instructions for
removing the entire device.
6.2 Dismantling
Electrical connection
Dismantling should take place in a de-energised state if at all possible. If not possible, observe
the boundary conditions for intrinsic safety (e.g. no grounding or connection of different
intrinsically safe circuits) during dismantling.
Process connections
CAUTION!
• Pressurized pipes have to be depressurized before removing the measuring unit.
• Avoid uncontrolled discharge of residual liquids from the measuring unit.
• Avoid uncontrolled discharge of residual fluid from the measuring unit.
• Where environmentally critical products are concerned, carefully decontaminate the wetted
parts of the measuring tube after dismantling.
• Removal and installation are the responsibility of the operator.

NOTES 7
13
GA24
www.krohne.com04/2015 - 4000836702 - MA G24-Ex-II2G-AD R03 en

7 NOTES
14
GA24
www.krohne.com 04/2015 - 4000836702 - MA G24-Ex-II2G-AD R03 en

NOTES 7
15
GA24
www.krohne.com04/2015 - 4000836702 - MA G24-Ex-II2G-AD R03 en

KROHNE product overview
• Electromagnetic flowmeters
• Variable area flowmeters
• Ultrasonic flowmeters
• Mass flowmeters
• Vortex flowmeters
• Flow controllers
• Level meters
• Temperature assemblies
• Pressure transmitters
• Analysis products
• Products and systems for the oil & gas industry
• Measuring systems for the marine industry
Head Office KROHNE Messtechnik GmbH
Ludwig-Krohne-Str. 5
47058 Duisburg (Germany)
Tel.:[phone]
Fax:[phone]
[email protected]
© KROHNE 04/2015 - 4000836702 - MA G24-Ex-II2G-AD R03 en - Subject to change without notice.
The current list of all KROHNE contacts and addresses can be found at:
www.krohne.com
