KROHNE DK32 Series Wiring diagram

Variable area flowmeter
with electrical built-ins
Equipment category II 3 G
Equipment category II 3 GEquipment category II 3 G
Equipment category II 3 G
DK32 DK34
DK32 DK34DK32 DK34
DK32 DK34 Supplementary instructions
Supplementary instructionsSupplementary instructions
Supplementary instructions
© KROHNE 04/2015 - 4002148601 - MA DK32/34 II3G Ex AD R02 en

CONTENTS
2
www.krohne.com 04/2015 - 4002148601 - MA DK32/34 II3G Ex AD R02 en
DK32 DK34
1 Safety instructions 3
1.1 General notes ................................................................................................................... 3
1.2 EC conformity ................................................................................................................... 3
1.3 Security information......................................................................................................... 3
2 Device description 4
2.1 Device description ............................................................................................................ 4
2.2 Description code............................................................................................................... 4
2.3 Marking............................................................................................................................. 4
2.4 Flammable products ........................................................................................................ 5
2.5 Equipment category .........................................................................................................5
2.6 Protection types................................................................................................................ 6
2.7 Ambient temperature / temperature classes.................................................................. 7
2.8 Electrical data................................................................................................................... 8
3 Installation 9
3.1 Special conditions............................................................................................................. 9
3.2 Installation........................................................................................................................ 9
4 Electrical connections 10
4.1 General notes ................................................................................................................. 10
4.2 Earthing and equipotential bonding............................................................................... 11
5 Operation 12
5.1 Start-up........................................................................................................................... 12
5.2 Operation ........................................................................................................................ 12
5.2.1 Operation as intrinsically safe equipment "ic"..................................................................... 12
5.2.2 Operation as non-sparking equipment "nA" ........................................................................ 12
6 Service 13
6.1 Maintenance ................................................................................................................... 13
6.2 Dismantling .................................................................................................................... 13
7 Notes 14

SAFETY INSTRUCTIONS 1
3
DK32 DK34
www.krohne.com04/2015 - 4002148601 - MA DK32/34 II3G Ex AD R02 en
1.1 General notes
These additional instructions apply to explosion-protected versions of variable area flowmeters
with electrical built-ins and the marking II 3 G. They complete the installation and operation
instructions for the non-explosion protected versions.
The information given in these instructions contains only the data relevant to category 3
explosion protection. The technical details given in the installation and operation instructions for
the non-explosion protected versions apply unchanged unless excluded or superseded by these
instructions.
1.2 EC conformity
The manufacturer declares with the EC Declaration of Conformity on his own responsibility
conformity with the protection goals of Directive 94/9/EC for use in hazardous areas with gas.
The assessment was made according to Directive 94/9/EC, Annex VIII (module "Internal control
of production"), and is registered company-internal under KMT-TDZ-A0121X. This registration
number is also provided on the nameplate.
1.3 Security information
Assembly, installation, start-up and maintenance may only be performed by personnel trained in
explosion protection!
CAUTION!
The operator respectively his agent is responsible to follow further standards, directives or laws
if required due to operating conditions or place of installation. This applies particularly for the
use of easy detachable process connections such as SMS or Clamp when measuring flammable
mediums.

2 DEVICE DESCRIPTION
4
DK32 DK34
www.krohne.com 04/2015 - 4002148601 - MA DK32/34 II3G Ex AD R02 en
2.1 Device description
Variable area flowmeters measure and display the volume flow of flammable and non-
flammable gases and liquids. The display houses one or two separately adjustable electrical
limit switches.

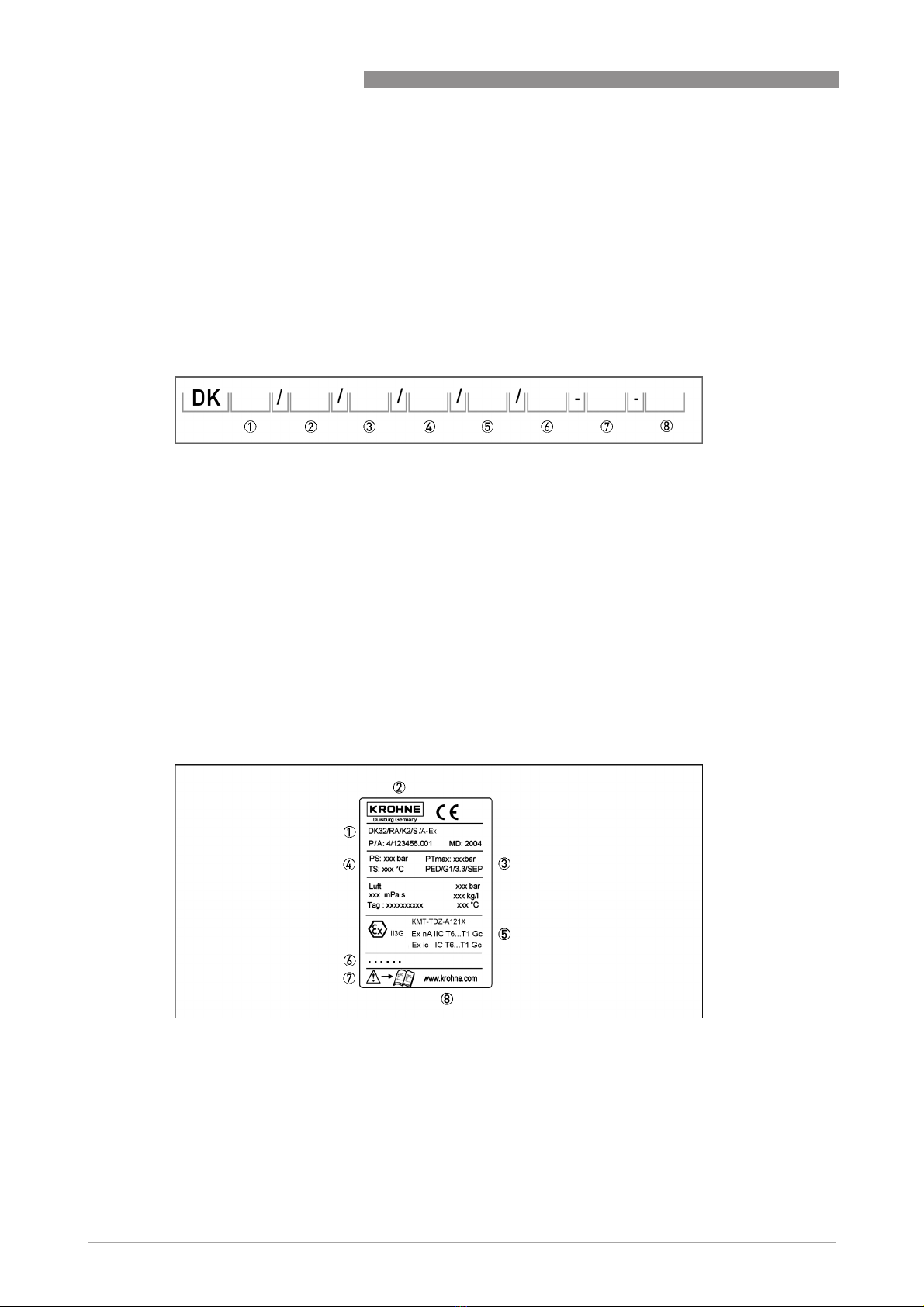

2.2 Description code
The safety description code * consists of the following elements:
* positions which are not needed are omitted (no blank positions)
2.3 Marking
The marking of the entire device is on the display, where the following identification plate can be
found. An additional marking is located on the inside of the display with the serial number (SN or
P/A number).
1 32 - with valve and horizontal connection / 34 without valve and vertical connection
2 RE - inlet pressure regulator / RA - outlet pressure regulator
3 K1 - one limit switch / K2 - two limit switches
4 S - plug connector / L - cable gland incl. cable
5 HT - high-temperature version
6 A - Limit switch tested for EC type approval or IECEx tested
7 Ex - Explosion-protected equipment
1 Device type
2 Manufacturer
3 PED data
4 Sizing data: temperature & pressure rating
5 Ex data
6 Built-in equipment
7 Note manual
8 KROHNE website

DEVICE DESCRIPTION 2
5
DK32 DK34
www.krohne.com04/2015 - 4002148601 - MA DK32/34 II3G Ex AD R02 en
2.4 Flammable products
Atmospheric conditions
Atmospheric conditionsAtmospheric conditions
Atmospheric conditions
An explosive atmosphere is a mixture of air and flammable gases, vapours, mists or dusts under
atmospheric conditions. The following values define it T
atm
= -20°C...+60°C /
-4°F...140°F and P
atm
= 0.8...1.1bar. Outside of this range, no key data are available as to ignition
behaviour for most mixtures.
Operating conditions
Operating conditionsOperating conditions
Operating conditions
Variable area flowmeters operate outside of atmospheric conditions, which means that
explosion protection according to Directive 94/9/EC (ATEX) –regardless of the zone assignment
–is fundamentally not applicable due to the lack of key safety data for the interior of the
measuring section.
2.5 Equipment category
The flowmeters are designed in category II 3G according to EN 60079-0, EN 60079-11 and EN
60079-15 for use in zone 2.
For more information see the chapter entitled "Flammable products".
CAUTION!
Operation with flammable products is only permissible if no explosive fuel/air mixture is formed
on the interior of the flowmeter under operating conditions. The user is responsible for the safe
operation of the flowmeter with regard to the temperatures and pressures of the products used.
In case of operation with flammable products the measuring units must be included in the
periodic pressure tests of the system.
INFORMATION!
Definition of Zone 2 according to EN 1127-1, Appendix B:
An area in which an explosive atmosphere as a result of the mixture of flammable substances in
the form of gas, steam or mist with air is not expected to occur under normal operation. If,
however, such an atmosphere does occur it only lasts for a brief period of time.

2 DEVICE DESCRIPTION
6
DK32 DK34
www.krohne.com 04/2015 - 4002148601 - MA DK32/34 II3G Ex AD R02 en
2.6 Protection types
Variable area flowmeters can be operated as protection type "non-sparking" or "intrinsic safety
protection level ic". Explanations of the individual protection types appear below.
The variable area flowmeter is designed with protection type "non-sparking" in accordance with
EN 60079-15. Protection against explosion is ensured in that no sparking contacts or hot
surfaces lead to ignition under normal operating conditions.
The marking is: II 3G Ex nA IIC T6...T1 Gc
II 3G Ex nA IIC T6...T1 GcII 3G Ex nA IIC T6...T1 Gc
II 3G Ex nA IIC T6...T1 Gc
The variable area flowmeter is designed with protection type "intrinsic safety, protection level ic"
in accordance with EN 60079-11. The explosion protection is ensured by way of limiting the
current and voltage so that no energy capable of ignition can occur.
The marking is: II 3G Ex ic IIC T6...T1 Gc
II 3G Ex ic IIC T6...T1 GcII 3G Ex ic IIC T6...T1 Gc
II 3G Ex ic IIC T6...T1 Gc
The marking contains the following information:
The marking contains the following information:The marking contains the following information:
The marking contains the following information:
II
IIII
II Group II explosion protection
3
33
3Equipment category 3
G
GG
GGas explosion protection
nA
nAnA
nA Non-sparking equipment
IIC
IICIIC
IIC Gas groups IIA, IIB, IIC
T6...T1
T6...T1T6...T1
T6...T1 Temperature classes T6 ... T1
Gc
GcGc
Gc Equipment protection levels (EPL)
The marking contains the following information:
The marking contains the following information:The marking contains the following information:
The marking contains the following information:
II
IIII
II Group II explosion protection
3
33
3Equipment category 3
G
GG
GGas explosion protection
ic
icic
ic Intrinsically safe equipment, protection level ic
IIC
IICIIC
IIC Gas groups IIA, IIB, IIC
T6...T1
T6...T1T6...T1
T6...T1 Temperature classes T6 ... T1
Gc
GcGc
Gc Equipment protection levels (EPL)

DEVICE DESCRIPTION 2
7
DK32 DK34
www.krohne.com04/2015 - 4002148601 - MA DK32/34 II3G Ex AD R02 en
2.7 Ambient temperature / temperature classes
Because of the influence of the temperature of the product, no fixed temperature class is
assigned to variable area flowmeters. In fact, the temperature class of a device is a function of
the temperature of both the product and the environment. There is no distinction between
devices with one or two contacts. The classification is outlined in the following tables.
The tables take into account the following parameters:
•Ambient temperature T
amb.
•Product temperature T
m
DK3./../.././../A–Ex permissible medium and ambient temperatures
INFORMATION!
The maximum permissible product temperatures listed in the tables are valid under
the following conditions:
• The measuring device is installed and operated in accordance with the installation
instructions in the installation and operating manual.
• It must be ensured that the flowmeter is not heated by the effects of additional heat radiation
(sunshine, neighbouring system components) and thus operated above the permissible
ambient temperature range.
• Insulation must be limited to the piping.
Unobstructed ventilation of the indicator part must be ensured.
Temperatur
e class Ambient temperature Maximum permitted product temperature with plug (P) or cable entry (C)
Type DK32 Type DK34
[°C] [°F] [°C] [°F] [°C] [°F]
T6 -25...+40 -13...+104 75 167 80 176
-25...+50 -13...+122 70 158 70 158
-25...+60 -13...+140 60 140 60 140
T5 -25...+40 -13...+104 100 212 100 212
-25...+50 -13...+122 95 203 100 212
-25...+60 -13...+140 85 185 90 194
T4 -25...+40 -13...+104 135 275 135 275
-25...+50 -13...+122 130 266 135 275
-25...+60 -13...+140 120 248 130 266
-25...+90 -13...+194 90 194 90 194
T3...T1 -25...+40 -13...+104 135 275 150 302
-25...+50 -13...+122 130 266 140 284
-25...+60 -13...+140 120 248 130 266
-25...+90 -13...+194 90 194 90 194

2 DEVICE DESCRIPTION
8
DK32 DK34
www.krohne.com 04/2015 - 4002148601 - MA DK32/34 II3G Ex AD R02 en
2.8 Electrical data
The electrical signal circuits are connected depending on the selected protection type:
Design DK3./../.././../A–Ex
When supplying as intrinsically safe equipment "ic" only to separate intrinsically safe circuits with the
following maximum values.
U
i
16 VDC
C
i
150 nF
L
i
150 µH
Observe the Special Conditions chapter when connecting ( refer to Special conditions on page 9).
When supplying as non-sparking equipment "nA" only for connection to switch amplifiers in accordance
with NAMUR (IEC 60947-5-6).
Nominal voltage U
N
8 VDC
Nominal current I
N
1...3 mA
Consult the Special Conditions chapter when connecting ( refer to
Special conditions on page 9).
WARNING!
As soon as the maximum value Um = 16 V is exceeded, the use in intrinsically safe circuits is no
longer permitted!

INSTALLATION 3
9
DK32 DK34
www.krohne.com04/2015 - 4002148601 - MA DK32/34 II3G Ex AD R02 en
3.1 Special conditions
The protective glass on the display of the variable area flowmeter may not be exposed to any
mechanical load.
During operation as non-sparking equipment "nA" only suitable for connection to switch
amplifiers in accordance with NAMUR (IEC 60947-5-6).
During operation as intrinsically safe equipment "ic" only for connection to separated
intrinsically safe circuit. In addition, for the variant with the cable assembly, a light blue hose
must be shrink fitted onto the connecting cable on the connector plug and on the cable end (the
hose is included in delivery) or other appropriate measures must be taken.
3.2 Installation
Installation and setup must be carried out according to the applicable installation installation
standards (e.g. EN 60079-14) by qualified personnel trained in explosion protection. The
information given in the Installation and Operation Instructions and the Supplementary
Installation and Operation Instructions must always be observed.
Variable area flowmeters must be installed in such a way that
•There is no danger from mechanical impact effects.
•There are no external forces affecting the indicator part.
•The device is accessible for any visual inspections that are necessary, and can be viewed from
all sides.
•The nameplate is clearly visible.
•It can be operated from a location with secure footing.
INFORMATION!
Marking connecting points in accordance with EN 60079-11:
Marking connecting points in accordance with EN 60079-11:Marking connecting points in accordance with EN 60079-11:
Marking connecting points in accordance with EN 60079-11: Connecting points, terminal boxes
and connectors of intrinsically safe equipment and accompanying equipment must be uniquely
marked and clearly identifiable. If a colour is used for this, it must be light blue.
CAUTION!
The manufacturer is not liable for any damage resulting from improper use or use other than the
intended purpose. This applies in particular to hazards due to insufficient corrosion resistance
and suitability of the materials in contact with product.

4 ELECTRICAL CONNECTIONS
10
DK32 DK34
www.krohne.com 04/2015 - 4002148601 - MA DK32/34 II3G Ex AD R02 en
4.1 General notes
For version DK3./../../S/../.-Ex (plug), the separate intrinsically safe signal circuits of protection
level "ic" are electrically connected in the terminal compartment of the plug housing and for
version DK3./../../L/../.-Ex (connecting cable) it is the connecting cable as illustrated in the
connection diagram. Permissible maximum values (electrical data) must be observed.
Connecting cable
The connecting cables must be selected according to prevailing installation standards (e.g.
EN 60079-14).. The outer diameter of the connecting cable must be within the sealing range of
the cable entry. The connecting cables must be fixed and laid in such a way as to be sufficiently
protected against damage.
All cores that are not used must be securely connected to the earth potential of the hazardous
area or carefully insulated against each other and against ground (test voltage ≥500 V
eff
).
Cable entries / Blanking plugs
The DK3./../../S/../.-Ex variable area flowmeter is equipped with a connector. The connector
guarantees protection from foreign bodies and water (protection category) IP65 acc. to EN
60529. The cable entry is closed with a plug. The plug is to be replaced with a suitable connecting
cable (nominal diameter range 6...9mm).

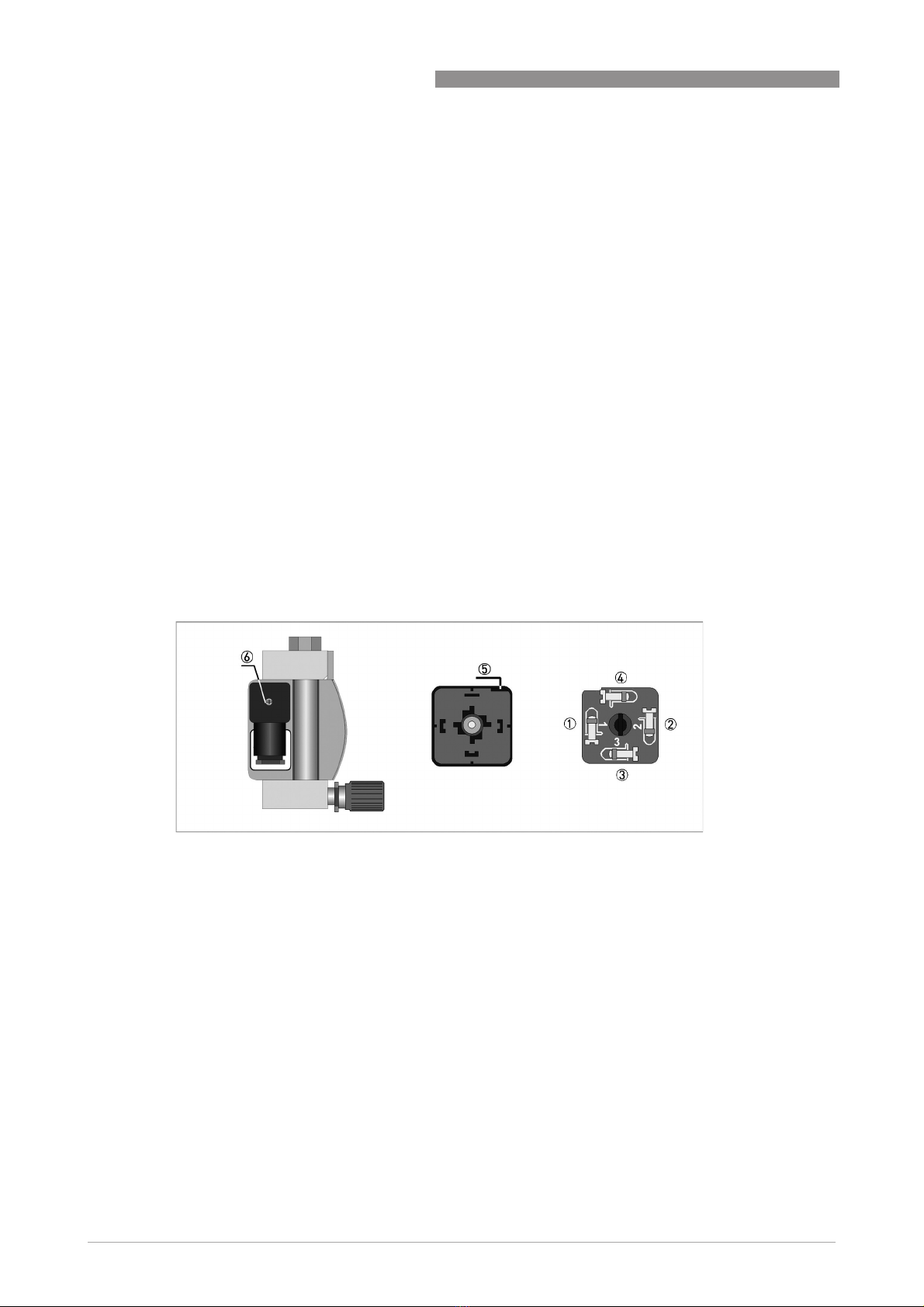

Connection diagrams
Contact connection Cable colors of assembled cable
1Min minus white
2Min plus yellow
3Max minusMax minus green
4Max plus brown
5Lift slot
6Fastening screw of connection box

ELECTRICAL CONNECTIONS 4
11
DK32 DK34
www.krohne.com04/2015 - 4002148601 - MA DK32/34 II3G Ex AD R02 en

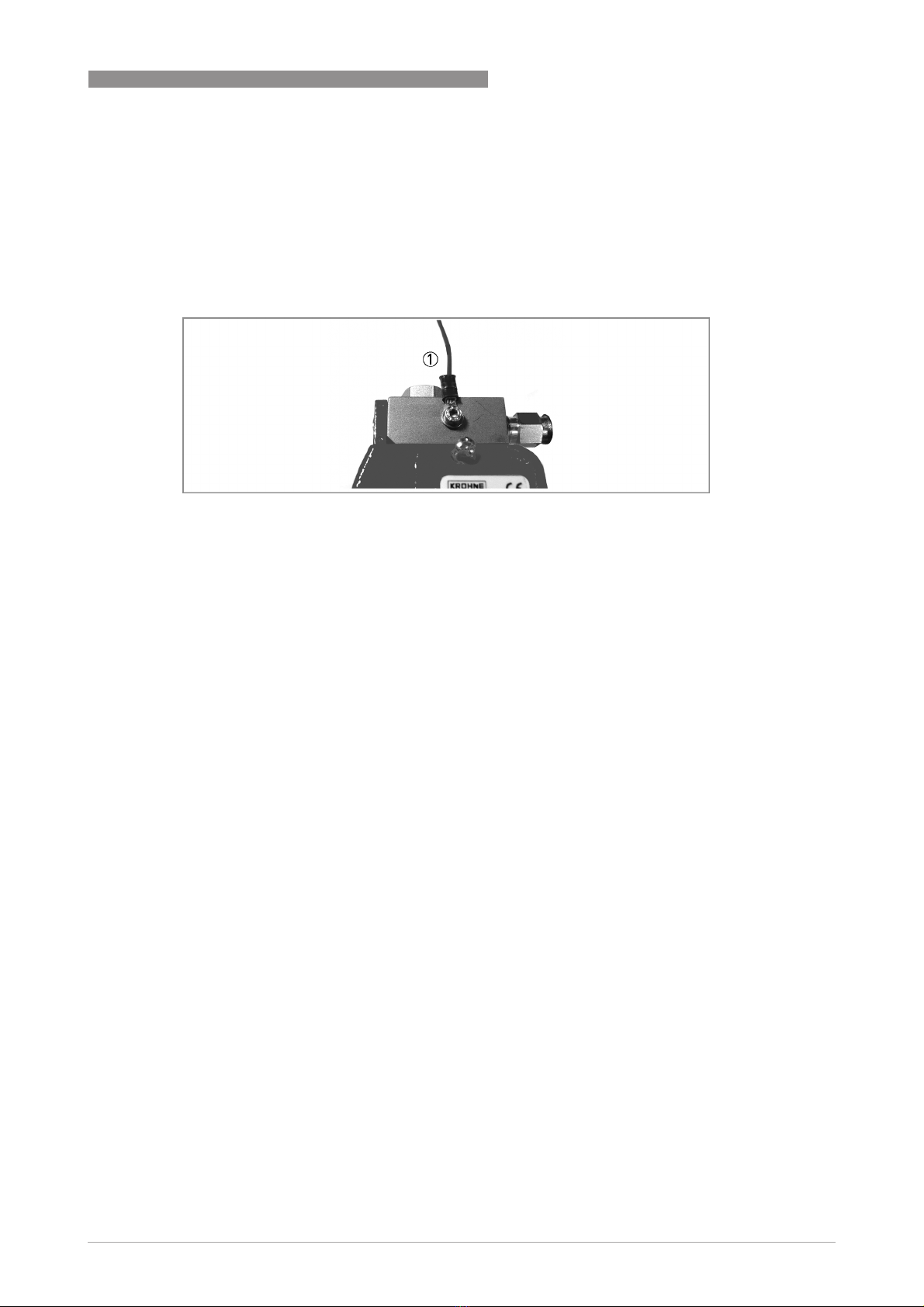

4.2 Earthing and equipotential bonding
If the device is not sufficiently electrostatically grounded via the process cables, an additional
earth connection must be established using the earth screw 1. The position of the ground
terminal is illustrated below. The connection guarantees only an electrostatic connection of the
device and does not comply with the requirements of an equipotential bonding connection.
DK32 - DK34

5 OPERATION
12
DK32 DK34
www.krohne.com 04/2015 - 4002148601 - MA DK32/34 II3G Ex AD R02 en
5.1 Start-up
Start-up is only permitted when the variable area flowmeter:
•is correctly installed in the system and connected.
•has been checked for the proper state with regard to its installation and connection
requirements.
The user of the system must have it checked before start-up in compliance with the national
regulations for checks before startup.
5.2 Operation
Variable area flowmeters must be operated in such a way that they remain within the maximum
and minimum permissible temperatures and pressures and the electrical limit values.
Variable area flowmeters may only be operated if the equipment parts necessary for safety are
effective in the long run, and are not rendered inoperable during operation.
5.2.1 Operation as intrinsically safe equipment "ic"
Adjusting the limit switch during operation is permitted. To do so, remove the housing cover.
Replace the housing cover immediately after adjusting the limit switch.
5.2.2 Operation as non-sparking equipment "nA"
DANGER!
During operation it is only permitted to open the indicator if no explosive atmosphere is present.

SERVICE 6
13
DK32 DK34
www.krohne.com04/2015 - 4002148601 - MA DK32/34 II3G Ex AD R02 en
6.1 Maintenance
Maintenance work of a safety-relevant nature within the meaning of explosion protection may
only be carried out by the manufacturer, his authorised representative or under the supervision
of authorised inspectors.
For systems in hazardous areas, regular tests are required in order to maintain the proper
condition.
The following checks are recommended:
•Checking the housing, the cable entries and the feed lines for corrosion and/or damage.
•Checking the measuring unit and the piping connections for leakage.
The cover is to be closed following maintenance work on the display unit.
6.2 Dismantling
Replacing the display part
Due to the modular design of the variable area flowmeter, it is possible to replace a complete
display with an identical spare part in accordance with safety guidelines.
Exchanging the entire device
Removal and installation are the responsibility of the operator.
Before disconnecting the electric connecting cable of the device, make sure that all cables
leading to the indication unit are isolated from the ground of the hazardous area. This also
applies to functional earthing conductors (FE) and equipotential bonding conductors (PA).
CAUTION!
There may be a loss of measuring accuracy!
CAUTION!
• Pressurized pipes have to be depressurized before removing the measuring unit.
• In the case of environmentally critical or hazardous products, appropriate safety precautions
must be taken with regard to residual liquids in the measuring unit.
• New gaskets have to be used when re-installing the device in the piping.

7 NOTES
14
DK32 DK34
www.krohne.com 04/2015 - 4002148601 - MA DK32/34 II3G Ex AD R02 en

NOTES 7
15
DK32 DK34
www.krohne.com04/2015 - 4002148601 - MA DK32/34 II3G Ex AD R02 en

KROHNE product overview
• Electromagnetic flowmeters
• Variable area flowmeters
• Ultrasonic flowmeters
• Mass flowmeters
• Vortex flowmeters
• Flow controllers
• Level meters
• Temperature assemblies
• Pressure transmitters
• Analysis products
• Products and systems for the oil & gas industry
• Measuring systems for the marine industry
Head Office KROHNE Messtechnik GmbH
Ludwig-Krohne-Str. 5
47058 Duisburg (Germany)
Tel.:[phone]
Fax:[phone]
[email protected]
© KROHNE 04/2015 - 4002148601 - MA DK32/34 II3G Ex AD R02 en - Subject to change without notice.
The current list of all KROHNE contacts and addresses can be found at:
www.krohne.com
