KROHNE OPTIWAVE 7300 C User manual

Non-contact Radar (FMCW) Level Meter
OPTIWAVE 7300 C Quick Start
QS_OPTIWAVE_EN-X3_070703.book Page 1 Tuesday, July 3, 2007 4:19 PM

OPTIWAVE 7300 C
OPTIWAVE 7300 COPTIWAVE 7300 C
OPTIWAVE 7300 C
::::::::::::::::::::::::::::::::::::::::::::::::::::
::::::::::::::::::::::::::::::::::::::::::::::::::::
::::::::::::::::::::::::::::::::::::::::::::::::::::
::::::::::::::::::::::::::::::::::::::::::::::::::::
4000050001
2
General safety notes
General safety notesGeneral safety notes
General safety notes
You can find additional information on the CD-ROM provided, in
the manual, the data sheet, special manuals and certificates.
Installation, mounting, commissioning, and maintenance can be
performed only by trained personnel.
Responsibility for suitability and intended use of this instrument
rests solely with the user.
The supplier accepts no liability for inappropriate use by the cus-
tomer.
Improper installation and operation may lead to loss of warranty.
Moreover, the "general terms and conditions" on the back of the
bill apply, which form the basis for the sales contract.
If you have to send the device back to the manufacturer or sup-
plier, fill out the form contained on the CD-ROM and enclose it
with the device. Unless this form is completely filled out, it will
unfortunately not be possible for KROHNE to perform repair or
inspection.
Respect general and local electrical safety requirements.
QS_OPTIWAVE_EN-X3_070703.book Page 2 Tuesday, July 3, 2007 4:19 PM

:::::::::::::::::::::::::::::::::::::::::::::::::::::
:::::::::::::::::::::::::::::::::::::::::::::::::::::
:::::::::::::::::::::::::::::::::::::::::::::::::::::
:::::::::::::::::::::::::::::::::::::::::::::::::::::
OPTIWAVE 7300 C
www.krohne.com 3
Scope of delivery
Scope of deliveryScope of delivery
Scope of delivery
1Signal converter and antenna in compact version
2Antenna extensions for the long antenna (option)
3Quick Start
4CD-ROM (including Handbook, Quick Start, Technical Datasheet, and related software)
QS_OPTIWAVE_EN-X3_070703.book Page 3 Tuesday, July 3, 2007 4:19 PM

OPTIWAVE 7300 C
OPTIWAVE 7300 COPTIWAVE 7300 C
OPTIWAVE 7300 C
::::::::::::::::::::::::::::::::::::::::::::::::::::
::::::::::::::::::::::::::::::::::::::::::::::::::::
::::::::::::::::::::::::::::::::::::::::::::::::::::
::::::::::::::::::::::::::::::::::::::::::::::::::::
4000050001
4
Visual check
Visual checkVisual check
Visual check
•Check the delivery for damage.

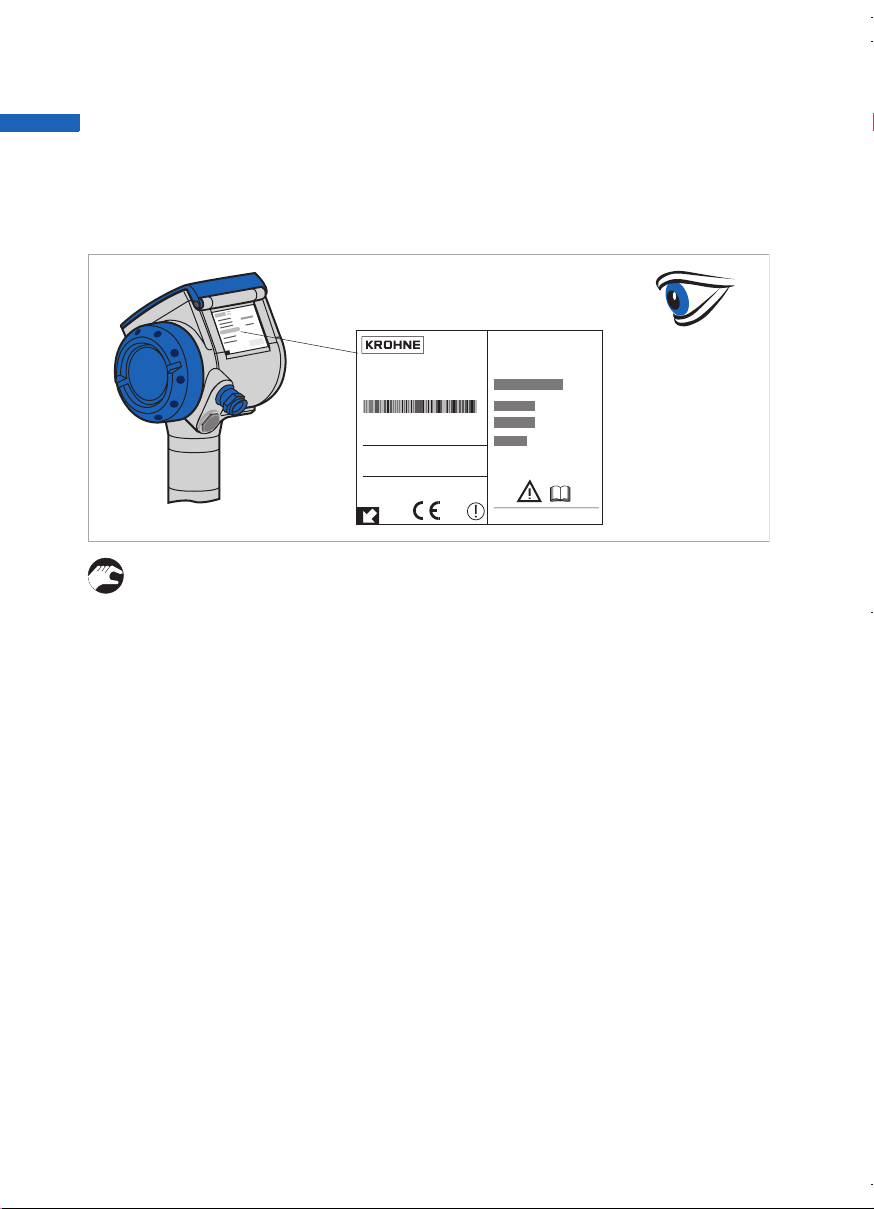

•Compare the data on the nameplate with your order data.
Manufactured: 2007
Order Nr. xxx xxxxxx xxx
Altometer, Dordrecht
NL - 3313 LC
OPTIWAVE 7300 C
VF70xxxxxxxxxxxxxxxxxxxxxxxxxxxx
Tag Nr. xxxxxxx
www.krohne.com
4567
0123
XXXXX
Protection ccc Y XXXX
QS_OPTIWAVE_EN-X3_070703.book Page 4 Tuesday, July 3, 2007 4:19 PM

:::::::::::::::::::::::::::::::::::::::::::::::::::::
:::::::::::::::::::::::::::::::::::::::::::::::::::::
:::::::::::::::::::::::::::::::::::::::::::::::::::::
:::::::::::::::::::::::::::::::::::::::::::::::::::::
OPTIWAVE 7300 C
www.krohne.com 5
How to attach antenna extensions (long antennas only)
How to attach antenna extensions (long antennas only)How to attach antenna extensions (long antennas only)
How to attach antenna extensions (long antennas only)
•Attach the antenna extensions 1to the flange.
•Attach the antenna 2.
•Make sure the antenna extensions are fully engaged.
•Use a 3 mm Allen wrench to tighten the locking screws 3.
•If you attach more or less extensions than were initially ordered, change
the antenna extension value in the OPTIWAVE program mode. Use the
display screen or PACTware™.
iAntenna extension = antenna extension length x number of extensions
•If you attach more extensions than were initially ordered, change the
blocking distance value in the user interface.
iMinimum blocking distance = antenna length + (antenna extension
length x number of extensions) + 0.1 m / 4"
QS_OPTIWAVE_EN-X3_070703.book Page 5 Tuesday, July 3, 2007 4:19 PM

OPTIWAVE 7300 C
OPTIWAVE 7300 COPTIWAVE 7300 C
OPTIWAVE 7300 C
::::::::::::::::::::::::::::::::::::::::::::::::::::
::::::::::::::::::::::::::::::::::::::::::::::::::::
::::::::::::::::::::::::::::::::::::::::::::::::::::
::::::::::::::::::::::::::::::::::::::::::::::::::::
4000050001
6
How to turn or remove the converter
How to turn or remove the converterHow to turn or remove the converter
How to turn or remove the converter
NOTE!
NOTE!NOTE!
NOTE!
The converter turns 360°. The converter can also be re-
moved under process conditions.
•Loosen the housing locking screw 1with a 5 mm Allen wrench.
•Turn the housing to the correct position, or
•Remove the housing.
•Tighten the housing locking screw 1.
CAUTION!
CAUTION!CAUTION!
CAUTION!
If you remove the housing, put a cover on the wave guide
hole in the flange assembly 2.
12
QS_OPTIWAVE_EN-X3_070703.book Page 6 Tuesday, July 3, 2007 4:19 PM

:::::::::::::::::::::::::::::::::::::::::::::::::::::
:::::::::::::::::::::::::::::::::::::::::::::::::::::
:::::::::::::::::::::::::::::::::::::::::::::::::::::
:::::::::::::::::::::::::::::::::::::::::::::::::::::
OPTIWAVE 7300 C
www.krohne.com 7
Transport
TransportTransport
Transport

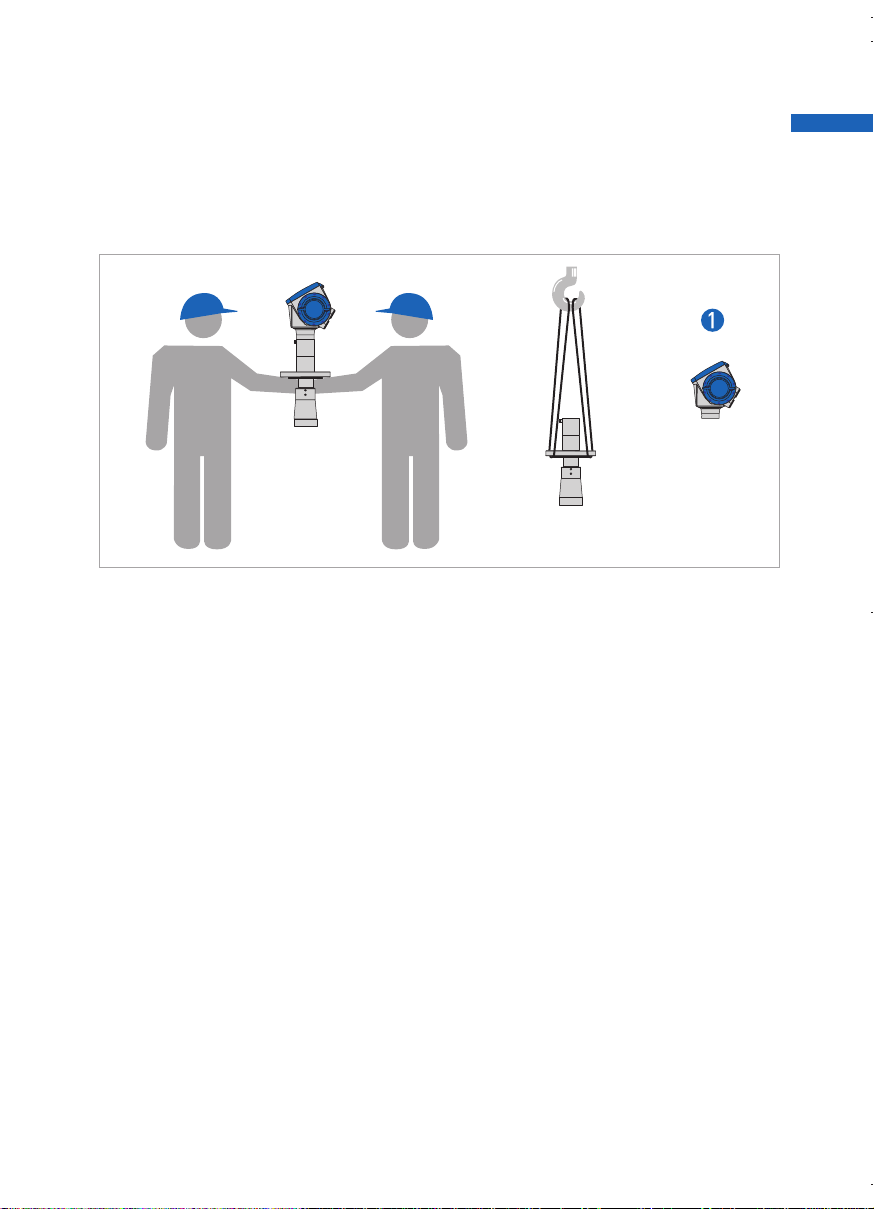

1Remove the converter before you lift the instrument with a hoist
QS_OPTIWAVE_EN-X3_070703.book Page 7 Tuesday, July 3, 2007 4:19 PM

OPTIWAVE 7300 C
OPTIWAVE 7300 COPTIWAVE 7300 C
OPTIWAVE 7300 C
::::::::::::::::::::::::::::::::::::::::::::::::::::
::::::::::::::::::::::::::::::::::::::::::::::::::::
::::::::::::::::::::::::::::::::::::::::::::::::::::
::::::::::::::::::::::::::::::::::::::::::::::::::::
4000050001
8
Pressure and temperature ranges
Pressure and temperature rangesPressure and temperature ranges
Pressure and temperature ranges

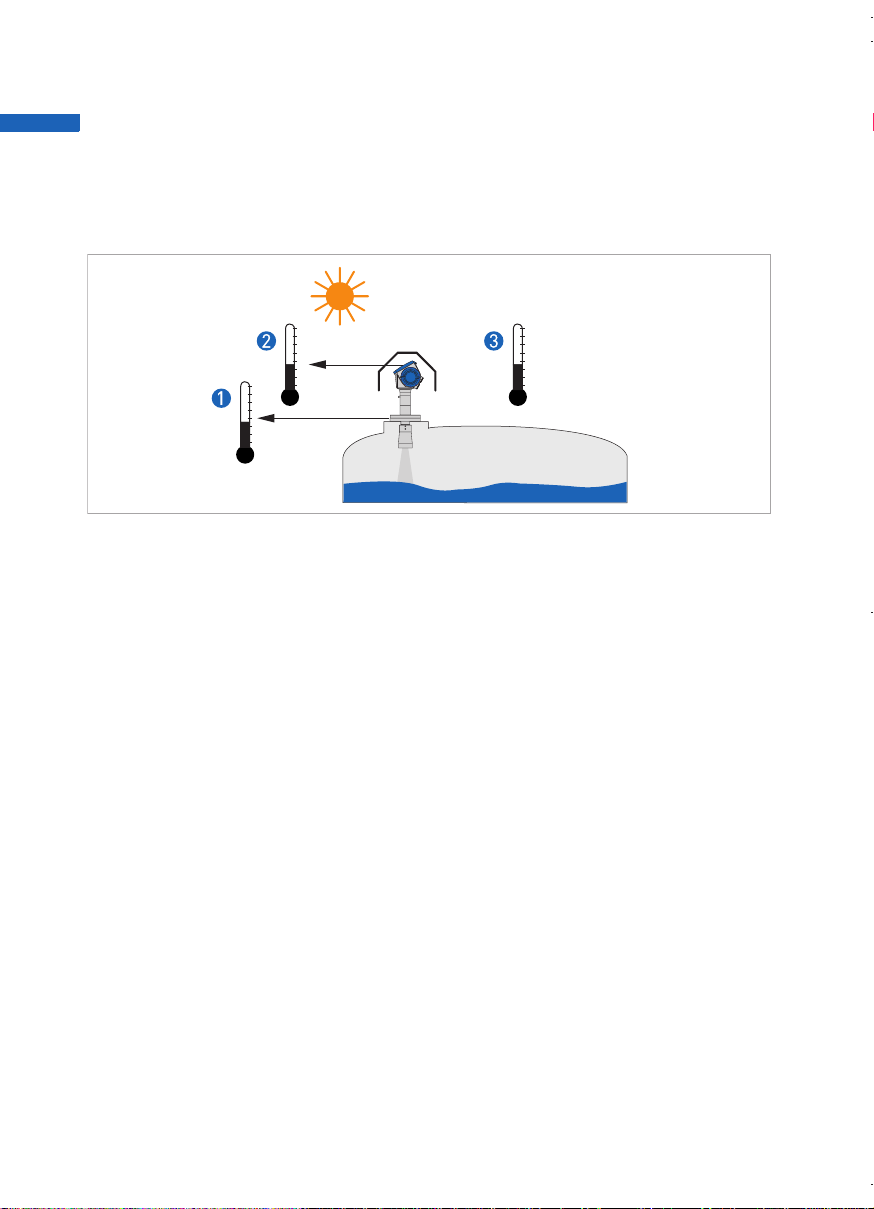

1Flange temperature
FKM/FPM: -40...200°C / -40...390°F; Kalrez 6375: -20...200°C / -5...390°F
Ex instruments: see supplementary operating instructions
2Ambient temperature for operation of the display
-20...+60°C / -4...+140°F
If the ambient temperature is not between these limits, the display screen switches off auto-
matically
3Ambient temperature
Non-Ex devices: -40...80°C / -40...175°F
Ex instruments: see supplementary operating instructions
4Process pressure
-1...40 bar / -14.5...580 psig
4
QS_OPTIWAVE_EN-X3_070703.book Page 8 Tuesday, July 3, 2007 4:19 PM

:::::::::::::::::::::::::::::::::::::::::::::::::::::
:::::::::::::::::::::::::::::::::::::::::::::::::::::
:::::::::::::::::::::::::::::::::::::::::::::::::::::
:::::::::::::::::::::::::::::::::::::::::::::::::::::
OPTIWAVE 7300 C
www.krohne.com 9
Installation recommendations
Installation recommendationsInstallation recommendations
Installation recommendations
We recommend that you prepare the installation when the tank is empty.
1Do not tilt the instrument more than 2°
2If there are too many objects in the radar beam, do an empty spectrum scan (refer to the hand-
book) or install a bypass chamber or stilling well
32.5 mm / 0.1" max. for liquids with high dielectric constants
4Curved and conical tank bottoms: Refer to the handbook for fine adjustment of the instrument
5Radar beam of DN40 antenna: 180 mm/m or 7 1/8"/3.3 ft (20°)
6Radar beam of DN50 antenna: 130 mm/m or 5 1/8"/3.3 ft (15°)
7Radar beam of DN80 antenna: 90 mm/m or 3 1/2"/3.3 ft (10°)
QS_OPTIWAVE_EN-X3_070703.book Page 9 Tuesday, July 3, 2007 4:19 PM

OPTIWAVE 7300 C
OPTIWAVE 7300 COPTIWAVE 7300 C
OPTIWAVE 7300 C
::::::::::::::::::::::::::::::::::::::::::::::::::::
::::::::::::::::::::::::::::::::::::::::::::::::::::
::::::::::::::::::::::::::::::::::::::::::::::::::::
::::::::::::::::::::::::::::::::::::::::::::::::::::
4000050001
10
Electrical installation: outputs 1 and 2
Electrical installation: outputs 1 and 2Electrical installation: outputs 1 and 2
Electrical installation: outputs 1 and 2
Terminal compartment
Terminal compartmentTerminal compartment
Terminal compartment

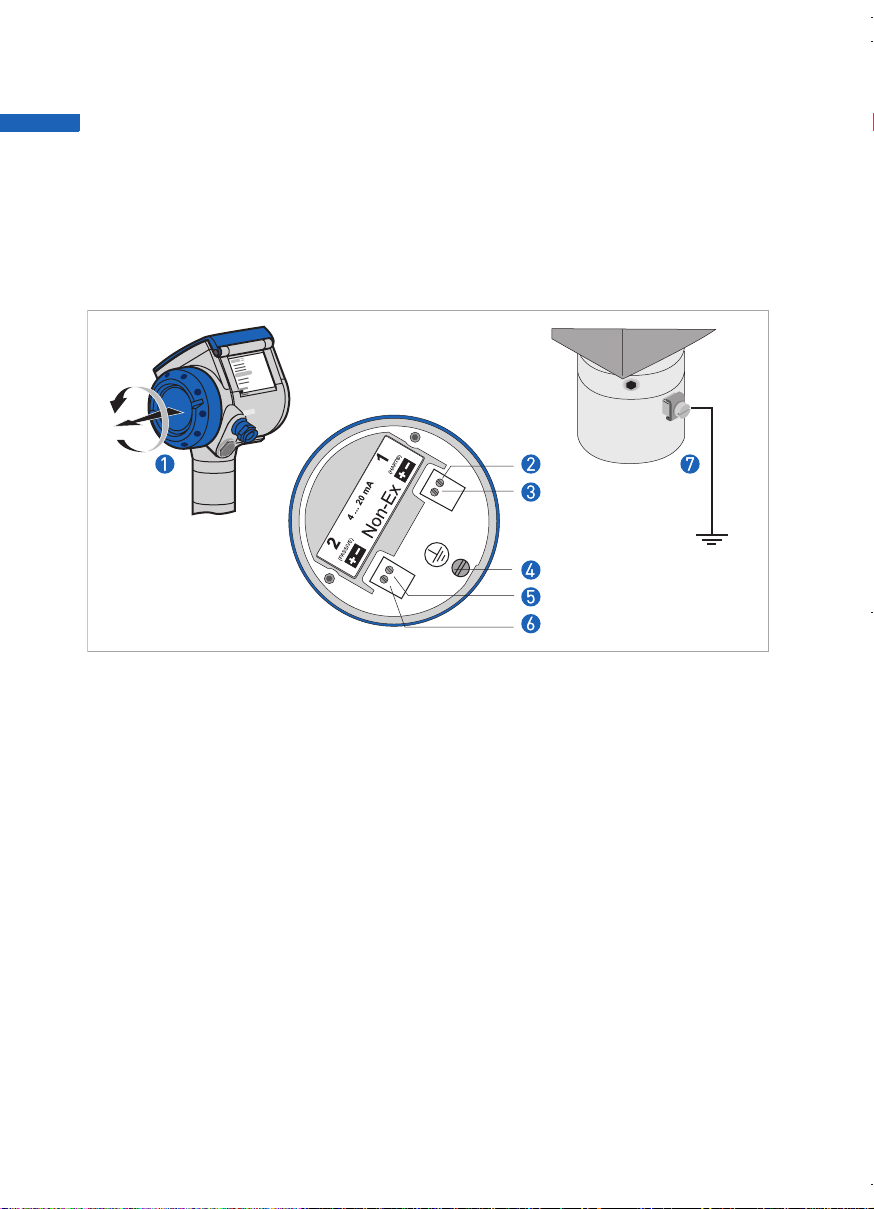

1Terminal compartment cover
2Terminal 1 current output -
3Terminal 1 current output +
4Grounding terminal in the housing
5Terminal 2 current output -
6Terminal 2 current output +
7Grounding terminal on the connection piece between sensor and converter.
QS_OPTIWAVE_EN-X3_070703.book Page 10 Tuesday, July 3, 2007 4:19 PM

:::::::::::::::::::::::::::::::::::::::::::::::::::::
:::::::::::::::::::::::::::::::::::::::::::::::::::::
:::::::::::::::::::::::::::::::::::::::::::::::::::::
:::::::::::::::::::::::::::::::::::::::::::::::::::::
OPTIWAVE 7300 C
www.krohne.com 11
Obey the instructions that follow:
•Unscrew the housing lid 1of the electric terminal compartment.
•Wire the device using standard rules.
•Observe the correct polarity.
•Attach the ground to 4or 7. Both terminals are technically equivalent.
Wiring procedure
Wiring procedureWiring procedure
Wiring procedure
NOTE!
NOTE!NOTE!
NOTE!
If the instrument has the second current output option,
use a separate power supply to energize terminal 2.
QS_OPTIWAVE_EN-X3_070703.book Page 11 Tuesday, July 3, 2007 4:19 PM

OPTIWAVE 7300 C
OPTIWAVE 7300 COPTIWAVE 7300 C
OPTIWAVE 7300 C
::::::::::::::::::::::::::::::::::::::::::::::::::::
::::::::::::::::::::::::::::::::::::::::::::::::::::
::::::::::::::::::::::::::::::::::::::::::::::::::::
::::::::::::::::::::::::::::::::::::::::::::::::::::
4000050001
12
Electrical connection for current output
Electrical connection for current outputElectrical connection for current output
Electrical connection for current output
Non-Ex
Non-ExNon-Ex
Non-Ex
Ex i
Ex iEx i
Ex i
1Power supply
2Intrinsically-safe power supply
3Zone non-Ex
4Zone Ex
5Resistor for HART®communication
614...30 VDC for an output of 22mA at the terminal (refer to caution)
710...30 VDC for an output of 22mA at the terminal
7
5
=
=
7
3Ex i
HART
QS_OPTIWAVE_EN-X3_070703.book Page 12 Tuesday, July 3, 2007 4:19 PM

:::::::::::::::::::::::::::::::::::::::::::::::::::::
:::::::::::::::::::::::::::::::::::::::::::::::::::::
:::::::::::::::::::::::::::::::::::::::::::::::::::::
:::::::::::::::::::::::::::::::::::::::::::::::::::::
OPTIWAVE 7300 C
www.krohne.com 13
Ex d
Ex dEx d
Ex d
1Power supply
2Resistor for HART®communication
3Non-Ex zone
4Ex zone
5U ≤5V
620...36 VDC for an output of 22mA at the terminal (refer to caution)
710...30 VDC for an output of 22mA at the terminal
CAUTION!
CAUTION!CAUTION!
CAUTION!
Make sure that you supply the correct voltage to the in-
strument terminal.
CAUTION!
CAUTION!CAUTION!
CAUTION!
If you remove the housing, put a cover on the wave guide
hole in the flange assembly.
4
QS_OPTIWAVE_EN-X3_070703.book Page 13 Tuesday, July 3, 2007 4:19 PM

OPTIWAVE 7300 C
OPTIWAVE 7300 COPTIWAVE 7300 C
OPTIWAVE 7300 C
::::::::::::::::::::::::::::::::::::::::::::::::::::
::::::::::::::::::::::::::::::::::::::::::::::::::::
::::::::::::::::::::::::::::::::::::::::::::::::::::
::::::::::::::::::::::::::::::::::::::::::::::::::::
4000050001
14
Protection category
Protection categoryProtection category
Protection category
NOTE!
NOTE!NOTE!
NOTE!
The instrument fulfills all requirements per protection
class IP 67.
DANGER!
DANGER!DANGER!
DANGER!
Make sure the cable gland is watertight.
•Make sure that the gaskets are not damaged.
•Make sure that the electrical cables are not damaged.
•Make sure that the electrical cables agree with the national electrical
code.
•The cables are in a loop in front of the instrument 1so water cannot
enter the housing.
•Tighten the cable glands 2.
•Close unused cable glands with dummy plugs 3.
12
3
QS_OPTIWAVE_EN-X3_070703.book Page 14 Tuesday, July 3, 2007 4:19 PM

:::::::::::::::::::::::::::::::::::::::::::::::::::::
:::::::::::::::::::::::::::::::::::::::::::::::::::::
:::::::::::::::::::::::::::::::::::::::::::::::::::::
:::::::::::::::::::::::::::::::::::::::::::::::::::::
OPTIWAVE 7300 C
www.krohne.com 15
User interface
User interfaceUser interface
User interface
Information for the operator
Information for the operatorInformation for the operator
Information for the operator

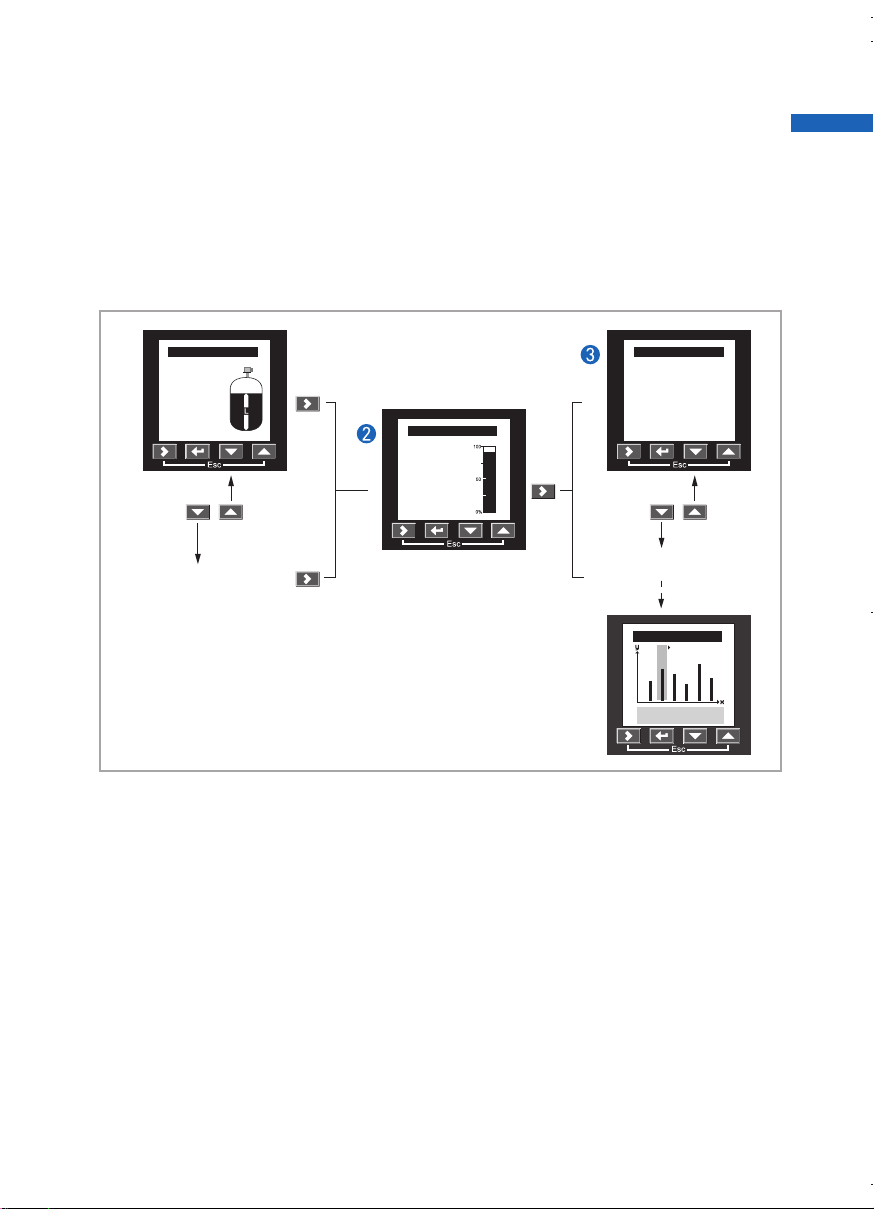

1Level measurement screen (with a stationary tank image)
2Percentage current output screen with an active bar graph (information depends on the output
function)
3Level measurement screen ( text only, large characters)
4Other information with text only (distance, volume...)
5Signal screen - press > to move the cursor to another signal
6Other information with a stationary tank image (distance, volume...)
x Distance: 0.262 m
y Amplitude: 70 dB
TAGNO01234567890
9.1000 m
TAGNO01234567890
Level
9.1000 m
TAGNO01234567890
Level
64
5
91 %
Output 1 (HART)
Level
TAGNO01234567890
1
QS_OPTIWAVE_EN-X3_070703.book Page 15 Tuesday, July 3, 2007 4:19 PM

OPTIWAVE 7300 C
OPTIWAVE 7300 COPTIWAVE 7300 C
OPTIWAVE 7300 C
::::::::::::::::::::::::::::::::::::::::::::::::::::
::::::::::::::::::::::::::::::::::::::::::::::::::::
::::::::::::::::::::::::::::::::::::::::::::::::::::
::::::::::::::::::::::::::::::::::::::::::::::::::::
4000050001
16
Press a button for more than one second to get access to the hot key
functions.
Press this button for more than three seconds to get access to the hot key
function.
Contact
ContactContact
Contact
KROHNE S.A.S.
KROHNE S.A.S.KROHNE S.A.S.
KROHNE S.A.S.
Les Ors - BP 98
F-26103 Romans Cedex
France
Tel : [phone]
Fax : [phone]
[email protected]
www.krohne.com
Hot keys in measurement mode
Hot keys in measurement modeHot keys in measurement mode
Hot keys in measurement mode
Hot key button Hot key description
Enter program mode
Active screen is saved as the default screen
Hot key button Hot key description
Display language will change to English. Press again to go back to the language
set in the user interface.
QS_OPTIWAVE_EN-X3_070703.book Page 16 Tuesday, July 3, 2007 4:19 PM
