KSF GL-500DC User manual

~1~
GLASS LIFTER
INSTRUCTION BOOK
SAFETY
To maintain the operation safety,
make sure read and understand
this instruction book BEFORE
operating this equipment.

~2~
If you have any questions about products please contact us anytime.
Qualified personnel
Only the qualified personnel is allowed to install and use this
equipment .The qualified personnel is authorized to move, install and
operate the machinery according to the setup Safety Practice and
Standard.
Correct usage
This equipment only can be used by the methods described in the
Specification List of this index. This equipment can be operated
correctly and safely only under the careful and right operation and
maintenance.
Responsibility Statement
We are very appreciated for your adopting GL Series of Electric Glass
lifter . Our company is the team insisted in High Quality and Excellent
Technology to manufacture all types of professional equipment to help
the customers to create high profits and high quality products . Any
suggestion to improve it will be very much welcome. GL Series of Electric
Glass lifters are the professional equipments to install for under mention.
.Hospital .Warehouse .Hotel .Factory
.Construction .Shopping mall .Temple .Airport

~3~
Unique of the products
1. New fast folding legs design, the backseat to expand only need 10
seconds, efficiency and convenience.
2. Lifter can free choose AC motor or DC direct current motor (include fill the
quickly battery charger), and electronic operation is convenient to save
time .
5. AC/DC motor type : We can free choose radio remote control , and it is
more convenient to operate .
6. Over-raising Limited switch design: Lifter have the Over-raising Limited
switch on the top of pillar . If over the raising limit, the power will be off
automatically.
7. Unusual design of front wheel : We can choose the erection collection or
horizontal collection , and it is convenient to transport .
8. 8-inch heavy-duty wheel is more convenient to move the building site.
Accessory of Patent :
1. Universal Crane :
Patented universal crane can follow you wish to lengthen or shorten without
moving the machine, and it can install all around in the range about 30~60
cm . Lifter must fixed single point to rise on the market , it usually needs to
move the machine to confirm the position for several times if not in advance
estimate to install position correct . Our Lifter has not this question and
assists you to install the product in the shortest time.

~4~
2 .3-Vacuums cradle :
1. Vacuum cradle angle can be controlled, it can choose the glass is
presented vertically or use horizontally . If installing for the roof, the glass
and vacuums cradle need to horizontally hang. If installing for the wall, the
glass and vacuums cradle need to vertically hang .
2. Pump vacuum cradle device, adopt three strong pump vacuums cradle,
and it easy to handle and reliable.
3. 4-Vacuums crane arm:
1. The platform adopts the universal rotate tray design and it can 360
degree rotate. Besides general level and rotating vertically areavailable,
and it can be fixed any angle to install the project. It is flexible to install the
angle and is not limited by the space of height.
2. Pump type vacuum cradle device, adopt four strong pump vacuums
cradle, and it easy handle and reliable.

~5~
~ INDEX ~
1. CAUTIONS ＆ WARNING
A. Symbol -----------------------------------------6
B. Hazards-----------------------------------------8
C. Dangerous working surroundings
Hazards ---------------------------------------9
2. SPECIFICATION
A. Lifter body -------------------------------------10
B. Accessory--------------------------------------13
3. CHECK BEFORE RISING-----------------15
4. LEGEND----------------------------------------16
5. SET UP
A. Installed the storage battery-----------------17
B. Expand the Lifter-------------------------------20
C. Restore the Lifter------------------------------26
D. Horizontal collection ---------------------------32
E. Erection collection--------------------------------34
6. OPERATING RAISING /LOWERING -----36
7. EXPLODE VIEW OF GL SERIES OF
ELECTRIC GLASS LIFTER-------------------37

~6~
1. CAUTIONS ＆ WARNING
A. SYMBOL
To maintain the operation safety of this machine, the user shall read the included
cautions in this manual very carefully to make sure of your personal safety , and to
indicated by the safety marks. The individual safety marks are as the follows.
1
DO NOT stand under or allow personal stand under
the platform when it’s raised.
2
DO NOT place ladders or scaffolding against any part
of the machine.
3
DO NOT move the machine when it’s raised.
4
Maintain safe distances away from electrical power
lines.
5
DO NOT raised unless the stabilizers and legs have
been fully lowered and locked and the casters are in
full contact with the ground.

~7~
6
DO NOT operate the machine under unsteady or
unbalanced place.
7
DO NOT exceed the rated load capacity.
8
Do not operate the Lifter on a moving or mobile or
vehicle.
9
DO NOT operate the machine under strong or raining
day.
10
DO NOT operate the machine when the typhoon
comes.
Please read the instruction carefully to avoid to damage machines and result in safety
issues.

~8~
B. HAZARDS
This manual shall be put in the place easily to be taken and handed to all the users to
read the details very carefully. Failure to obey the instructions and safety rules in this
instruction may result in the damage of machines and safety issues.
1. DO NOT stand under or allow personnel stand under the platform while it’s raising.
2. Always keep the Lifter away from the high voltage electrical wires.
3. DO NOT operate the machine under heavy win or raining day.
4. Do not use the Lifter on a moving or mobile or vehicle.
5. DO NOT exceed the load capacity.
6. Minima safe distance away from personnel is 3 meters.
7. Keep away from the machine if it contacts electrical wires.
8. Keep hands away form folding legs and other potential pinch point.
9. Do not lower the load unless the area below is clear of personnel and obstructions.
10. DO NOT place ladder or scaffolding against any part of this unit.
11. Only trained and authorized personnel be permitted to operate this unit , because
unauthorized personnel may attempt to operate it without proper instruction creating

~9~
an unsafe condition
12. Except for the professional trained personnel of our distributor , please do’t
disassemble the spare parts of this unit.
13. DO NOT use or operate the procedures which are prohibited in this instruction, or
other unidentified usage.
14. Use the attached tools correctly. If use the tools while are not approved, it will
damage the Lifter and cause the danger.
C. Dangerous Working Surroundings Hazards
1. Keep the working surroundings clean and in order. in the dark or dirty place ,
the operation maybe cause the incident , therefore please make sure the
enough light and clean for the working place.
2. DO NOT operate the machine under unsteady or unbalanced place. When operate ,
the machine must be steady and keeping the level in balanced.
3. DO NOT operate the machine under heavy rain and raining day.
4. If the loading objects are over-weight or large , it will reduce the balance of
the machine , thus , if the measurement is too large , must keep the load staying
in the center of platform
5. Before to use , check the work area for drop-offs , holes , bumps . debris ,
unstable or slippery surfaces or other possible hazardous conditions.

~10~
2. SPECIFICATION
A. Lifter body
Spec / Model GL-550DC GL-700DC GL-850DC
Basic height m 2,15 2,15 2,15
Lifting height(Folkdown) m 5,53 7,16 8,71
Lifting height (Folk up) m 4,98 6,64 8,16
Load capacity kg 300 300 300
Length –width(store) mm 900x760 900x760 900x760
Length –width(operating) mm 2220x1510 2220*1510 2220*1510
Ground clearance (Folk
up)
mm 170 170 170
Ground clearance
(Folk down)
mm 920 920 920
Weight kg 226 247 268

~11~
Photo 1
C D

~12~
Photo 2
Photo 3

~13~
B. Accessory
Photo 1 (FOLK)
Photo 2 (GL-U)
Spec / Model FOLK GL-U GL-3V GL-4V
Weight kg 14 18 18 27
Load capacity kg 300 250/300 180
690
340
335
690
700

~14~

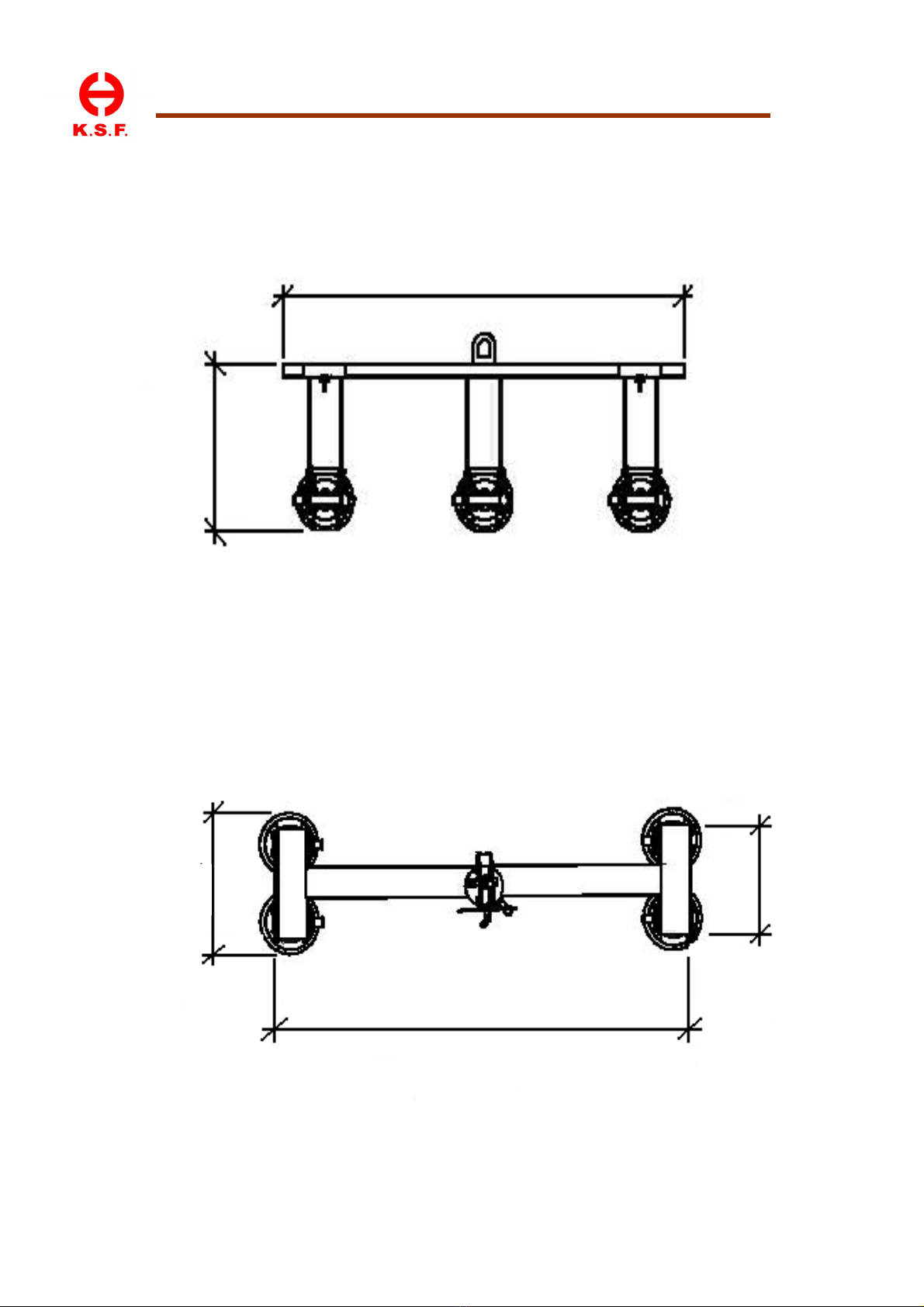

Photo 3 (GL-3V)
Photo 4 (GL-4V)
350
537
1450
454
1460

~15~
3.CHECK BEFORE RAISING
1.Please check the followings before use.
a.Check the steel wire before operating . If you find any damage or
tearing , stop using and contact the seller or the manufacturer to
check .
b.Check the whole machine to see whether the welded
points are broken ? Any loose , missing or broken parts ? Make sure
that the lifter is in its best condition .
2.Check the followings of the set up before raising up the
platform .
a. Whether have put down the counter weight seat and pull the
push handle set and put in counter weight ?
b. Make sure that all positioning pins are completely stuck in .
c. Make sure that the level shows that the Lifter is level position .
d.Make sure front legs are able to extend every inch and fixed propely.
3.Do not use any parts which are not recommend by manufacture .
4.Strictly follow the maintenance and repair guidelines , and do not
expose the Lifter to damp or rain .
5.Keep the Lifter clean . Do not let stones , stand or scrap iron fall
into the machine .
6.In order to keep the operator safety , do not apply any grease or
lubricant to the body of the Lifter .
7.Make sure that the positioning pins of the counter weight seat
and push handle seat are completely struck in during store , or
the leg set will pull out easily .

~16~
4. LEGEND
Universal crane
Urgently stop receiving box
Storage battery seat
Utility duty winch
Level device
Counter weight seat
Push handle seat
5-inch brake wheel
Aluminum Mast
8-inch wheels
Pull rod
Front leg

~17~
5. SET UP
Note:Please read the manual thoroughly and understand tne
functions for all parts , methods of operation , and cautions
completely before use .
A. Installed the storage battery
STORAGE
BATTERY
POSITION
HANG
STORAGE
BATTERY SEAT
Photo 1
Photo 2

~18~
PLUG THE
SOCKET
REMOVE THE
COVER
Photo 3
INSERT BATTERY
CHARGER OF THE
WIRED REMOVE
CONTROL
Photo 4
Photo 5

~19~
Photo 7 INSERT
BATTERY
CHARGER OF
WIRED REMOVE
CONTROL
WHEN BATTERY
RUN OUT
Photo 8 TURN ON
BATTERY
CHARGER
SWICH
Photo 6 PRESS BUTTON
FOR TEST

~20~
B. Open the Lifter
Photo 1
Photo 2
TAKE OUT
THE PIN (LONG)
FALL DOWN
THE COUNTER
WEIGHT SEAT
THE PIN STUCK
IN FIXED
POSITION(LONG)
Photo 3
