KTI Networks KGC-310M-C User manual

1
Web Smart Gigabit Ethernet
Media Converter
KGC-310M-C
F/W: KGC-310M-C 1.023 up
F/W: KGC-310M RC 1.028 up
Installation Guide
DOC.181122

2
(C) 2014-2018 KTI Networks Inc. All rights reserved. No part of this documentation may be
reproduced in any form or by any means or used to make any directive work (such as translation or
transformation) without permission from KTI Networks Inc.
KTI Networks Inc. reserves the right to revise this documentation and to make changes in content from
time to time without obligation on the part of KTI Networks Inc. to provide notification of such
revision or change.
For more information, contact:
15F-7, No. 79, Sec. 1, Hsin-Tai-Wu RD
His-chih, New Taipei City, Taiwan
Fax: [phone]
E-mail: [email protected].tw
URL: http://www.ktinet.com.tw/

3
The information contained in this document is subject to change without prior notice. Copyright (C)
All Rights Reserved.
TRADEMARKS
Ethernet is a registered trademark of Xerox Corp.
FCC NOTICE
This device complies with Class A Part 15 the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received including the interference that may cause.
CE NOTICE
Marking by the symbol indicates compliance of this equipment to the EMC directive of the European
Community. Such marking is indicative that this equipment meets or exceeds the following technical
standards:
EMC Class A
EN 61000-6-4
EN 61000-3-2
EN 61000-3-3
EN 61000-6-2
IEC 61000-4-2
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-6
IEC 61000-4-8
IEC 61000-4-11

4
Table of Contents
1. Introduction...................................................................................................................................6
1.1 Features.............................................................................................................. 7
1.2 Product Panels.................................................................................................... 9
1.3 Specifications...................................................................................................... 9
2. Installation...................................................................................................................................12
2.1 Unpacking......................................................................................................... 12
2.2 Safety Cautions................................................................................................. 12
2.3 Mounting the Media Converter.......................................................................... 13
2.4 Applying Power................................................................................................. 15
2.5 Making UTP Connections.................................................................................. 16
2.6 Making Fiber Connection .................................................................................. 17
2.7 Loop-back Test Push Button............................................................................. 18
2.8 Configuration DIP SW....................................................................................... 19
2.9 LED Indication................................................................................................... 19
3. Functions.....................................................................................................................................22
3.1 Abbreviation...................................................................................................... 22
3.2 Converter Function............................................................................................ 23
3.3 Link Fault Pass Through Function..................................................................... 24
3.4 Remote TP Status Monitoring Function............................................................. 25
3.5 802.1Q Control Function................................................................................... 26
3.5.1 VLAN Operation............................................................................................. 27
3.6 SNMP Trap Function......................................................................................... 29
4. Web Management .......................................................................................................................30
4.1 Start Browser Software and Making Connection............................................... 30
4.2 Login to the Device Unit.................................................................................... 30
4.3 Main Management Menu................................................................................... 31
4.4 Configuration..................................................................................................... 33
4.4.1 System........................................................................................................... 33
4.4.1.1 Management VLAN..................................................................................... 36
4.4.2 Ports .............................................................................................................. 37
4.4.2.1 802.1Q Filtering........................................................................................... 41

5
4.4.3 LLDP.............................................................................................................. 43
4.5 Monitoring......................................................................................................... 45
4.5.1 Statistics Overview......................................................................................... 45
4.5.2 LLDP Statistics............................................................................................... 46
4.5.3 LLDP Table.................................................................................................... 47
4.5.4 Ping................................................................................................................ 48
4.6 Maintenance ..................................................................................................... 49
4.6.1 Loop-back Test .............................................................................................. 49
4.6.2 Reboot System .............................................................................................. 49
4.6.3 Restore Default.............................................................................................. 50
4.6.4 Update Firmware............................................................................................ 50
4.6.5 Configuration File Transfer............................................................................. 51
4.6.6 Logout............................................................................................................ 51
5. SNMP Support.............................................................................................................................52
Appendix A. Factory Default Settings ..........................................................................................53
Appendix B. Models & Optical Specifications.............................................................................55

6
1. Introduction
The KGC-310M-C is Gigabit Ethernet media converter series which provide the following features:
Data Conversion between different Media types and Speed
The media converter supports the following conversions:
1000Mbps (1000BASE-T) copper to/from 1000Mbps (1000BASE-X) fiber
100Mbps (1000BASE-TX) copper to/from 1000Mbps (1000BASE-X) fiber
10Mbps (10BASE-T) copper to/from 1000Mbps (1000BASE-X) fiber
1000Mbps (1000BASE-T) copper to/from 100Mbps (100BASE-FX) fiber
100Mbps (1000BASE-TX) copper to/from 100Mbps (100BASE-FX) fiber
10Mbps (10BASE-T) copper to/from 100Mbps (100BASE-FX) fiber
Dual-speed Mini-GBIC (SFP) Fiber Connectivity
The mini-GBIC (SFP) port can be installed with different optional SFP optical fiber transceiver to
support multimode or single mode fiber for short reach up to long reach distance. The SFP can support
both 1000BASE-X and 100BASE-FX fiber connection. This feature extends a wider application range
with this device.
Loop-back Test Support
The media converter provides loop-back test function which can verify the fiber link with its link
partner by sending test packets to the link partner and verifying the echo packets sent back. This
feature is helpful in checking connection quality of fiber link during installation.
Link Fault Pass-Through
This feature can force the link to shut down as soon as it notices that the other link has failed. It allows
a link partner on one cable segment can notice a link fault occurred on the other segment and give
application a chance to react.

7
Remote TP Port Status Monitoring
When two devices are connected with each other via fiber link the device can monitor and display the
twisted-pair port status of the remote fiber link partner. The status display can be on the local LED
indicators or web management interface.
802.1Q Control
With software configuration support, the device is enhanced with more 802.1Q control features for
VLAN applications rather than just a typical media converter function. The optional features include:
Filtering all untagged packets
Filtering all tagged packets
Filtering tagged packets with certain VID
Egress un-tagging
Egress tagging
Double tagging
802.1ad Q-in-Q support
Web Management
The device is embedded with an Http server which provides management functions for advanced
network functions including Port Control and 802.1Q and 802.1ad functions. The management can be
performed via Web browser based interface over TCP/IP network.
1.1 Features
Basic functions
Provides tri-speed 10/100/1000Mbps copper to 100/1000Mbps fiber conversion
Provides SFP slot to accommodate any type of SFP fiber transceiver when needed.
Support full wire speed Gigabit copper to Gigabit fiber conversion
The copper port supports auto-negotiation and auto-MDI/MDI-X detection
Copper port auto-negotiation mode, speed and duplex configuration by DIP switch settings
Link Fault Pass Through function allows link fault status passes through between copper link and
fiber link transparently.
Far End Fault function on fiber port
Supports 802.3x flow control for full-duplex and backpressure for half-duplex
Supports loop-back test between two devices over fiber link
Power saving function
Supports remote twisted-pair status monitoring
Diversified mounting support : desktop, wall, center rack, and optional Din-Rail support
Center chassis installation: support installation in a center chassis rack with benefits of central
software management and redundant power backup.
Support wide range of fiber options : multimode fiber, single mode fiber (short reach up to long
reach), Bi-directional single fiber, and CWDM

8
Management functions
Port configuration control and status monitoring
Supports Jumbo frame conversion
Packet filtering
Supports transparent forwarding
802.1Q Control between two ports
Supports remote loop-back test
Supports remote twisted-pair status monitoring
LLDP support
Configuration file upload and download
In-band embedded firmware upgrade function
Web-based browsing interface

9
1.2 Product Panels
The following figure illustrates the front panel and rear panel of the device:
Front
Rear
1.3 Specifications
10/100/1000 Twisted-pair Copper Port (UTP, RJ-45)
Compliance IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX,
IEEE 802.3u 1000Base-T
Connectors Shielded RJ-45 jacks
Pin assignments Auto MDI/MDI-X detection
Configuration Auto-negotiation, manual settings or software control
Transmission rate 10Mbps, 100Mbps, 1000Mbps
Duplex support Full/Half duplex
Network cable Cat.5 UTP
Dual-speed Fiber Port (FX, SFP)
Compliance IEEE 802.3 1000Base-X, 100BASE-FX
Connectors SFP for optional SFP type fiber transceivers
Configuration Auto, 1000Mbps Full duplex Auto-nego, 100Mbps Full
Transmission rate 1000Mbps, 100Mbps (Dual-speed support)
Network cables MMF 50/125 60/125, SMF 9/125
Eye safety IEC 825 compliant
Loop-back Test Push Button
LOOPBACK TEST Push button to start loop-back test

10
LED Indicators
PWR Power status
LTP Local or remote TP indication on TP LEDs
LBT Loop-back test in-progress LED
LBR Loop-back test result LED
FXLNK Fiber port link and activity status
TP1G Twisted-pair copper port 1000Mbps and link status
TP100 Twisted-pair copper port 100Mbps and link status
TP10 Twisted-pair copper port 10Mbps and link status
TPFDX Twisted-pair copper port duplex status
Configuration DIP Switches
SW1-SW3 Twisted-pair copper port configuration
SW4 Flow control setting
SW5 Remote Twisted-pair copper port monitoring
SW6 Link fault pass through function setting
Center Interface
Interface For center chassis mounting
Connector FutureBus
Basic Functions
MAC Addresses Support up to 8K
Forwarding technology Store and forward
Maximum packet length Jumbo frame support up to 9600 bytes
Flow control IEEE 802.3x pause frame base for full duplex operation
Back pressure for half duplex operation
DC Power Input
Interfaces DC Jack ( -D 6.3mm / + D 2.0mm)
OperatingInputVoltages +5 ~ +12VDC(+/-5%)
Power consumption 4.2W max. @5V

11
Mechanical
Dimension (base) 108 x 72.5 x 23 mm
Housing Enclosed metal with no fan
Mounting Desktop mounting, wall mounting, optional Din-rail mounting
Environmental
Operating Temperature Typical -40oC ~ +70oC (Main device)
Storage Temperature -40oC ~ +85oC
Relative Humidity 5% ~ 90%
Electrical Approvals
FCC Part 15 rule Class A
CE EMC, CISPR22 Class A
C-Tick AS/NZS

12
2. Installation
2.1 Unpacking
The product package contains:
The media converter unit
One product CD-ROM
2.2 Safety Cautions
To reduce the risk of bodily injury, electrical shock, fire, and damage to the product, observe the
following precautions.
Do not service any product except as explained in your system documentation.
Opening or removing covers may expose you to electrical shock.
Only a trained service technician should service components inside these compartments.
If any of the following conditions occur, unplug the product from the electrical outlet and replace
the part or contact your trained service provider:
-The power cable, extension cable, or plug is damaged.
-An object has fallen into the product.
-The product has been exposed to water.
-The product has been dropped or damaged.
-The product does not operate correctly when you follow the operating instructions.
Do not push any objects into the openings of your system. Doing so can cause fire or electric shock
by shorting out interior components.
Operate the product only from the type of external power source indicated on the electrical ratings
label. If you are not sure of the type of power source required, consult your service provider or
local power company.

13
2.3 Mounting the Media Converter
The media converter can be mounted on a desktop or shelf or a wall. Make sure that there is proper
heat dissipation from and adequate ventilation around the device. Do not place heavy objects on the
device.
Desktop mounting
Wall mounting
The device has one mounting wall on the bottom side to support wall mounting.

14
Din-Rail mounting
For a Din-Rail chassis, the device can support mounting on a Din-Rail. An optional Din-Rail bracket,
KC-3DR can be purchased separately. The following figure shows an example after bracket
installation:
Center rack mounting
The media converter can also be installed in KC-1300 center chassis. The center chassis provides the
power supply to the converter also with optional power redundancy. Up to 16 units can be installed in
one chassis. Unscrew and remove the cover of the center connector before inserting the converter into
the chassis. Refer to the operation manual of center chassis KC-1300 for more information.

15
2.4 Applying Power
Before you begin the installation, check the AC voltage of your area. The AC power adapter which is
used to supply the DC power for the unit should have the AC voltage matching the commercial power
voltage in your area.
Steps to apply the power to the device are:
1. Connect power adapter DC plug to the DC input jack located on the back of the unit before
connecting to the AC outlet.
2. Connect the power adapter to the AC outlet.
3. Check Power LED indication.
Note: Before you begin the installation, check the AC voltage of your area. The AC power
adapter which is used to supply the DC power for the unit should have the AC voltage
matching the commercial power voltage in your area.

16
2.5 Making UTP Connections
The 10/100/1000 twisted-pair copper (TP) port supports the following connection types and distances:
Network Cables
10BASE-T: 2-pair UTP Cat. 3,4,5 , EIA/TIA-568B 100-ohm
100BASE-TX: 2-pair UTP Cat. 5, EIA/TIA-568B 100-ohm
1000BASE-T: 4-pair UTP Cat. 5 or higher (Cat.5e is recommended), EIA/TIA-568B 100-ohm
Link distance: Up to 100 meters
Auto MDI/MDI-X Function
This function allows the port to auto-detect the twisted-pair signals and adapts itself to form a valid
MDI to MDI-X connection with the remote connected device automatically. No matter a straight
through cable or crossover cable is connected, the ports can sense the receiving pair automatically and
configure itself to match the rule for MDI to MDI-X connection. It simplifies the cable installation.
Auto-negotiation Function
The port is featured with auto-negotiation function and full capability to support connection to any
Ethernet devices. The port performs a negotiation process for the speed and duplex configuration with
the connected device automatically when each time a link is being established. If the connected device
is also auto-negotiation capable, both devices will come out the best configuration after negotiation
process. If the connected device is incapable in auto-negotiation, the port will sense the speed and use
half duplex for the connection.
Port Configuration Management
For making proper connection to an auto-negotiation INCAPABLE device, it is suggested to set port
configuration to one of non-auto (forced) operating modes and specify speed and duplex mode which
match the configuration used by the connected device.
Two methods for setting copper port configuration are as follows:
1. DIP SW (switches) SW1, SW2, SW3
2. Software management via web interface
Configuration -> Ports -> TP Mode

17
2.6 Making Fiber Connection
The mini-GBIC SFP (FX) port must be installed with an SFP fiber transceiver for making fiber
connection. Your device unit may come with an SFP transceiver pre-installed when it was shipped.
Installing SFP Fiber Transceiver
To install an SFP fiber transceiver into mini-GBIC SFP port, the steps are:
1. Turn off the power to the device unit.
2. Insert the SFP fiber transceiver into the mini-GBIC port. Normally, a bail is provided for every
SFP transceiver. Hold the bail and make insertion.
3. Until the SFP transceiver is seated securely in the slot, place the bail in lock position.
Dual Speed Support
The SFP port supports 1000BASE-X based SFP fiber transceivers and 100BASE-FX based SFP fiber
transceivers. Select “Auto”for port configuration. The system will detect the type of the installed
transceiver and configure the port properly and automatically during boot-up.
Connecting Fiber Cables
LC connectors are commonly equipped on most SFP transceiver modules. Identify TX and RX
connector before making cable connection. The following figure illustrates a connection example
between two fiber ports:
Make sure the Rx-to-Tx connection rule is followed on the both ends of the fiber cable.
Network Cables
Multimode (MMF) - 50/125, 62.5/125
Single mode (SMF) - 9/125

18
2.7 Loop-back Test Push Button
The push button is used to perform loop-back test between two media converters connected with fiber
cable as shown below:
It allows installer to perform diagnostic to the fiber link during installation and check the test result
displayed on the LED indicators.
The button may also be used to restore the software configuration settings to factory default values.
The operations are:
Operations Functions
Press the button and release in normal operation Perform loop-back test over fiber cable
Press the button about 5 seconds when power up Restore all factory default settings

19
2.8 Configuration DIP SW
The configuration DIP SW (setting switches) is used for setting operation configuration manually.
The functions of each DIP SW states are:
SW1 SW2 SW3 SW4 SW5 SW6 Function
OFF OFF OFF ------ ------ ------ Ignore DIP SW6 SW5 SW4 settings
(Use software configuration for managed model)
ON OFF OFF ------ ------ ------ Set TP Port in non-auto, 10Mbps, Full duplex mode
OFF ON OFF ------ ------ ------ Set TP Port in non-auto, 10Mbps, Half duplex mode
ON ON OFF ------ ------ ------ Set TP Port in non-auto, 100Mbps, Full duplex mode
OFF OFF ON ------ ------ ------ Set TP Port in non-auto, 100Mbps, Half duplex mode
ON OFF ON ------ ------ ------ Set TP Port in auto, 1000Mbps, Full duplex mode
OFF ON ON ------ ------ ------ Disable TP Port function
ON ON ON ------ ------ ------ Set TP Port in auto, 10/100/1000Mbps, Half/Full duplex
------ ------ ------ OFF ------ ------ Enable flow control
------ ------ ------ ON ------ ------ Disable flow control
------ ------ ------ ------ OFF ------ Disable remote TP status auto-report function
------ ------ ------ ------ ON ------ Enable remote TP status auto-report on TP LEDs
------ ------ ------ ------ ------ OFF Disable Link Fault Pass Through function
------ ------ ------ ------ ------ ON Enable Link Fault Pass Through function
Important Note:
Any change of DIP SW setting will not take effect until next boot-up.

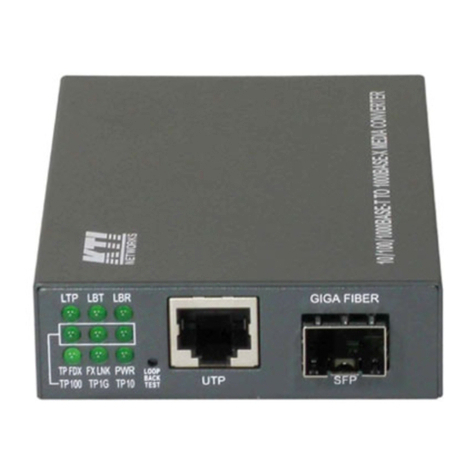

2.9 LED Indication

20
LED Function State Interpretation
PWR Power status ON The power is supplied to the unit.
OFF The power is not supplied to the unit.
LTP Local TP status ON Local TP port status displayed on TPxxx LEDs
OFF Remote TP port status displayed on TPxxx LEDs
Blink Fail to display remote TP port status
Remark: 1. LTP is always ON if remote TP status auto-report function is disabled.
2. When remote TP status auto-report function is enabled, LTP is ON and
OFF for ten seconds respectively.
LBT Loop-back Test Blink Loop-back Test in operation
ON Loop-back Test Result is displayed on LBR LED.
OFF Loop-back Test stops
Remark: 1. LBT blinks to indicate loop-back test in operation.
2. LBT is ON for 10 seconds to indicate a test result is displayed on LBR.
LBR Loop-backTestResult ON Loop-back Test OK
Blink Loop-back Test failed
Remark: 1. LBR display is valid only when LBT is ON.
2. LBR is displayed for 10 seconds to indicate a loop-back test result.
FXLNK FX port link status ON Link is established on FX port. (No traffic)
Blink Port link is up and there is traffic.
OFF FX port link is down.
TP1G TP 1000M link status ON 1000M link is established on the TP port.
Blink Port link is up and there is traffic.
OFF TP port link is down.
TP100 TP 100M link status ON 100M link is established on the TP port.
Blink Port link is up and there is traffic.
OFF TP port link is down.
TP10 TP 10M link status ON 10M link is established on the TP port.
Blink Port link is up and there is traffic.
OFF TP port link is down.
TPFDX TP duplex status ON Full duplex on TP port
OFF Half duplex on TP port
