KVM-TEC FLEXLINE KT-6011L Original operating instructions

Misprints, errors and technical changes reserved
kvm-tec
First Aid
SMARTfl ex
Video error
(stripes in the
picture)
USB is not
working
No Power
(No LED)
Check the
powerplug
Is the power
supply ok? Try
another Unit.
Try reprogramming
the Unit by using a
JTAG programmer
Contact kvm-tec
support
Are the USB
Devices plugged
in correctly?
Is the USB cable
on the Local side
plugged into the
PC?
Are the USB
Devices working
directly on the
PC?
Check if local
and remote Unit
have the same
fi rmware
Replace the USB
cable from PC to
the Local
Extender
Check if the local
or the remote
Unit is causing
the problem by
swaping fi rst the
local and than the
remote Unit to
another Unit
Contact kvm-tec
support
Check if all
cables are plug-
ged in correctly
Check if the PC is
sending a Image by
plugging in a
monitor on the
local out of the
local Unit
Check if the DDC is
set correctly (in menu
under point „O“)
Check if both
Units have the
correct fi rmware
No Video
Contact kvm-tec
support
Check if all
cables are plug-
ged in correctly
Check if the PC is
sending a Image
by plugging in a
monitor on the
local out of the
local Unit
Check if local and re-
mote Unit have the
correct fi rmware
Check if the DDC
is set correctly (in
the menu under
point „o“)
Check if the
network switch
is setup correctly
and has enough
bandwidth
Contact kvm-tec
support
Check if other units
have the same
behaviour
We are here for you to answer
your questions about installation?
Manual download www.kvm-tec.com
or
kvm-tec Installationchannel on our homepage
personally [phone]
kvm-tec Support
kvm-tec Support
[email protected]
[email protected]
Phone: [phone] - 30
Phone: [phone] - 30
www.kvm-tec.com
flex
flex
smart
kvm-tec
Quick
Installation
FLEXLINE
6011 SET

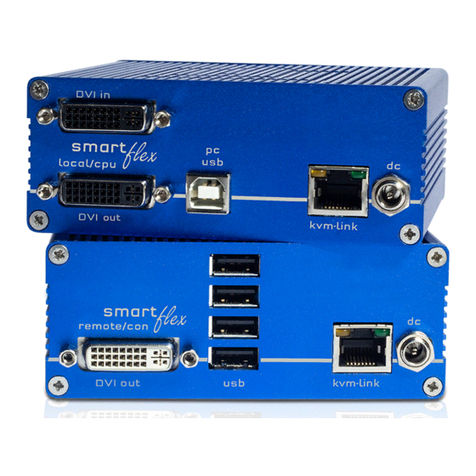

SMARTfl ex
Single in copper
KT - 6011L CPU/LOCAL
KT - 6011R CON/REMOTE
V10522

Misprints, errors and technical changes reserved Misprints, errors and technical changes reserved
Power plug
12V 1A
Power plug
12V 1A
USB to PC DVI in from PC
DVI to Monitor
USB from Keyboard and mouse
Network cable CAT5e/6/7/ up to 150m/492ft
DVI out to Monitor
Quick Installation Smartfl ex Single local / CPU – remote / CON
1. Connect the CON / Remote and the CPU / Local Unit to the included 12V 1A power supply.
2. Now connect the USB cable to a USB port on your PC and connect the other end of the USB cable to the CPU /
Local Unit. Connect keyboard and mouse to the CON / Remote Unit.
3. Connect the CPU / Local and the CON / Remote Unit with a network cable.
4. Now connect the DVI cable to the DVI socket of the PC and the other end to the DVI socket of the CPU / Local
Unit (PC-in). Then connect the monitor with the DVI cable to the CON / Remote Unit.
5. Using a switch: Connect all endpoints to the switch. Ensure that all connections have a bandwith of 1Gbit/sec.
For video sharing the network has to support IGMP snooping.
HAVE FUN - your kvm-tec Extender is now in use for many years (MTBF approx 10 years)
open the OSD main meu
open the OSD main meu
The OSD main menu is opened with the default shortcut:
The OSD main menu is opened with the default shortcut:
5 x ALT Gr
5 x ALT Gr
(Attention: the fi rst 20 seconds 5 x Scroll always works, in
(Attention: the fi rst 20 seconds 5 x Scroll always works, in
case the shortcut was forgotten.
case the shortcut was forgotten.
Switching list : CTRL+ALT+PRINT
Switching list : CTRL+ALT+PRINT
Changing the shortcuts in the OSD menu
Changing the shortcuts in the OSD menu
Go to the Remote Settungs and then navigate to Keyboard
Go to the Remote Settungs and then navigate to Keyboard
Shortcut.
Shortcut.
Delivery Content
Delivery Content
LOCAL/CPU Unit
LOCAL/CPU Unit
1 x SV local (CPU)
1 x SV local (CPU)
1 x power supply unitl 12V 1A (EU-plug)
1 x power supply unitl 12V 1A (EU-plug)
1 x DVI - DVI cable 1,8m/5.9ft
1 x DVI - DVI cable 1,8m/5.9ft
1 x USB cable 1,8m/5.9ft
1 x USB cable 1,8m/5.9ft
4 x rubber feet
4 x rubber feet
REMOTE/CON Unit
REMOTE/CON Unit
1 x SV remote (CON)
1 x SV remote (CON)
1 x power supply unit 12V 1A (EU-plug)
1 x power supply unit 12V 1A (EU-plug)
4 x Gerätefüße
4 x Gerätefüße

Misprints, errors and technical changes reserved Misprints, errors and technical changes reserved
ACCESS TO THE MAIN MENU
Use the monitor and keyboard to access the main menu
Access to the main menu (main menu):
1. Make sure the extenders, monitors and computers are turned on.
2. Press the Alt Gr key fi ve times quickly. The main menu and an overview of the an overview
of the submenus is displayed.
3. To enter a submenu, press the corresponding key.
Main Menu
Main menu Short Cuts :
S Status Overview Status menu / current status
F Features Overview Features settings
D DDC Option DDC Option Fixed Setting 1020 x 1080
L Local Settings Settings Local
R Remote Setting Settings Remote
U Update Flash FW Update fi rmware
A About Overview Upgrade overview
Q Exit Finish
SYSTEM STATUS
Single
Dual
The „Status Menu“ displays the current status of the extender connection. The menu shows the
information about the connection, the resolution of the video channel and the USB status.
The activated upgrades and the current FW version are displayed in the upper left corner.
Link status shows if a connection is possible. Connected shows if the kvm fi les can currently be
transferred.
Video and USB show if data is currently being transferred.
FIRMWARE VERSION DISPLAY
Make sure that the main menu is open. Under „A“ - About the currently installed fi rmware
version of the remote (CON) and local (CPU) extender is displayed (e.g. ‚4267‘).
FEATURES MENU
Press the F key to enter the Features menu.
Features Menu
P Point to Point Mode Enabled/Disabled
(Point to Point excludes itself with Matrix mode)
M Matrix Switching Mode Disabled/Enabled
D Freeze last Image (Disabled)Disabled/Enabled
E USB Emulation Mode (Disabled ) Disabled/Enabled
S USB Save Feature (mass storage usable) Disabled/Enabled
C Diagnosis Diagnostic menu
U Unlock Features Activate features
I IP Management IP Management
POINT TO POINT
By pressing the “P” key you can switch the Point to Point mode off and on
ATTENTION - if the Point to Point mode is activated, the Switching Mode cannot be activated.
MATRIX SWITCHING MODE
By pressing the “M” key, you can switch the Matrix Switching Mode off and on.
