Kyocera FS-7028M User manual

Duplexer
Duplexeinheit
Module recto-verso
Unità duplex
Duplexor
Instructions
Anleitung
Instructions
Istruzioni
Instrucciones
For the Kyocera Laser Printers
Für Kyocera Laserdrucker
Pour imprimantes laser Kyocera
Per le stampanti laser Kyocera
Para las impresoras láser Kyocera

1
English
Deutsch
FrançaisItalianoEspañol
We shall have no liability or responsibility to customers or any other person or
entity with respect to any liability, loss or damage caused or alleged to be caused
directly or indirectly by equipment sold or furnished by us, including but not
limited to, any interruption of service, loss of business or anticipatory profits, or
consequential damages resulting from the use or operation of the equipment or
software.
Caution
NO LIABILITY IS ASSUMED FORANY DAMAGE CAUSED BY IMPROPER
INSTALLATION.
Notice
The information in this manual is subject to change without notification.
Additional pages may be inserted in future editions. The user is asked to excuse
any technical inaccuracies or typographical errors in the present edition.
No responsibility is assumed if accidents occur while the user is following the
instructions in this manual.
The contents of this manual are protected by copyright. No part of this manual may
be reproduced or copied by any means without the permission of the copyright
holder.
Regarding Tradenames:
PRESCRIBE is a registered trademark of Kyocera Corporation.

2
According to Council Directive 89/336/EEC and 73/23/EEC
Manufacturer’s name: Kyocera Corporation, Printer Division
Manufacturer’s address: 2-14-9 Tamagawadai, Setagaya Ward, Tokyo 158-8610, Japan
declares that the product
Product name: Dupex Unit
Model number: DU-31 (as tested with Page Printer FS-7000+ and other enhancement
optional units: PF-30, DF-31, UF-1, BC-1 and HD-2)
Conforms to the following product specifications.
EN 55 022:1994 Class B
EN 60 950:1992+A1+A2+A3+A4
The manufacturer and its merchandising companies retain the following technical documentation in
anticipation of the inspection that may be conducted by the authorities concerned.
User’s instruction that conforms to the applicable specifications
Technical drawings
Descriptions of the procedures that guarantee the conformity
Other technical information
KYOCERA ELECTRONICS EUROPE GmbH
Tetsuo Okada, President
Revised Date:
Contact in Europe:
KYOCERA ELECTRONICS EUROPE GmbH
Mollsfeld 12
40670 Meerbusch, Germany
Phone: [phone]
Fax: [phone]
Declaration of Conformity
Manufacturer’s name: Kyocera Corporation, Printer Division
Manufacturer’s address: 2-14-9 Tamagawadai, Setagaya Ward, Tokyo 158-8610, Japan
declares that the product
Product name: Duplex Unit
Model number: DU-31 (as tested with FS-7000+ and enhancement option units: as PF-30,
DF-31, UF-1, BC-1 and HD-2)
Description of device: This Page Printer Model FS-7000+ is the 28ppm; A3 size and utilized plain
paper; laser; dry toner etc.. The printer can be equipped with several
enhancement optional units as a paper feeder as PF-30, a document finisher
DF-31, etc..

3
English
Deutsch
FrançaisItalianoEspañol
Conforms to the following product specifications.
AS/NZS 3548:1995
(EN 55 022: 1994 Class B)
IEC60 950
(EN 60 950:1992+A1+A2+A3+A4)
The manufacturer and its merchandising companies retain the following technical documentation in
anticipation of the inspection that may be conducted by the authorities concerned.
User’s instruction that conforms to the applicable specifications
Technical drawings
Descriptions of the procedures that guarantee the conformity
Other technical information
David Finn
Managing Director
Date:
Unit 8, 43-45 Herbert Street,
Artarmon NSW 2064, Australia
Phone: [phone]
Fax: [phone]

4
Warning
FCC Regulations state that any unauthorized changes or modifications to
this equipment not expressly approved by the manufacturer could void the
user’s authority to operate the equipment.
Note: The equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
The equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications.
Operation of the equipment in a residential area is likely to cause harmful
interference, in which case the user will be required to correct the interfer-
ence at his own expense.
Radio interference requirement in European countries
The optional universal feeder DU-31 is intended for use with the printer
models FS-7000, FS-7000+ and FS-9000 which are type tested and catego-
rized as a Class B computing device in accordance with the EN55022 rules.
A device in the Class B category may cause interference to radio or television
reception, particularly in a residential installation.

5
English
Deutsch
FrançaisItalianoEspañol
Information to users:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installa-
tion. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guaranteee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
❒Reorient or relocate the receiving antenna.
❒Increase the separation between the equipment and receiver.
❒Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
❒Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the manufacturer for compli-
ance could void the user’s authority to operate the equipment.
Contents
Introduction .............................................................................................................6
Names of Parts.........................................................................................................6
Installing the Duplexer ............................................................................................7
Duplex Printing .......................................................................................................9
Clearing Paper Jams ..............................................................................................14
Paper Selection ......................................................................................................20
Specification ..........................................................................................................26

6
Introduction
The DU-31 duplexer is an optional duplex printing unit for the Kyocera Page
Printers.
Before using the DU-31 duplexer, please read this manual, then carefully follow all
instructions given for installing and using the duplexer. Adhere to any cautions and
warnings indicated on the unit itself.
Retain this manual in an easily accessible place.You may need it for future
consultation if you later have questions about the operation or what to do in case of
troubles.
Packing List
DU-31 1
Instruction manual (this booklet) 1
Names of Parts
Before installing the duplexer, please study the following part names. These names
are used in describing procedures for installing and using the duplexer.
Duplexer (DU-31)
Transparent plastic cover
(two covers)
Installation rails

7
English
Deutsch
FrançaisItalianoEspañol
Installing the Duplexer
Open the front cover of the printer, and install the DU-31 in the vacant space below
the transfer unit.
CAUTION Before installing (or removing) the optional duplexer, be sure
to turn off the printer’s power and disconnect the power cord
plug from theAC outlet.
1. Open the printer’s front cover.
2. After removing the duplexer from the packing materials, remove the
adhesive tape holding the cover in place.
Front cover
Installation space for the
DU-31
Tape
Tape

8

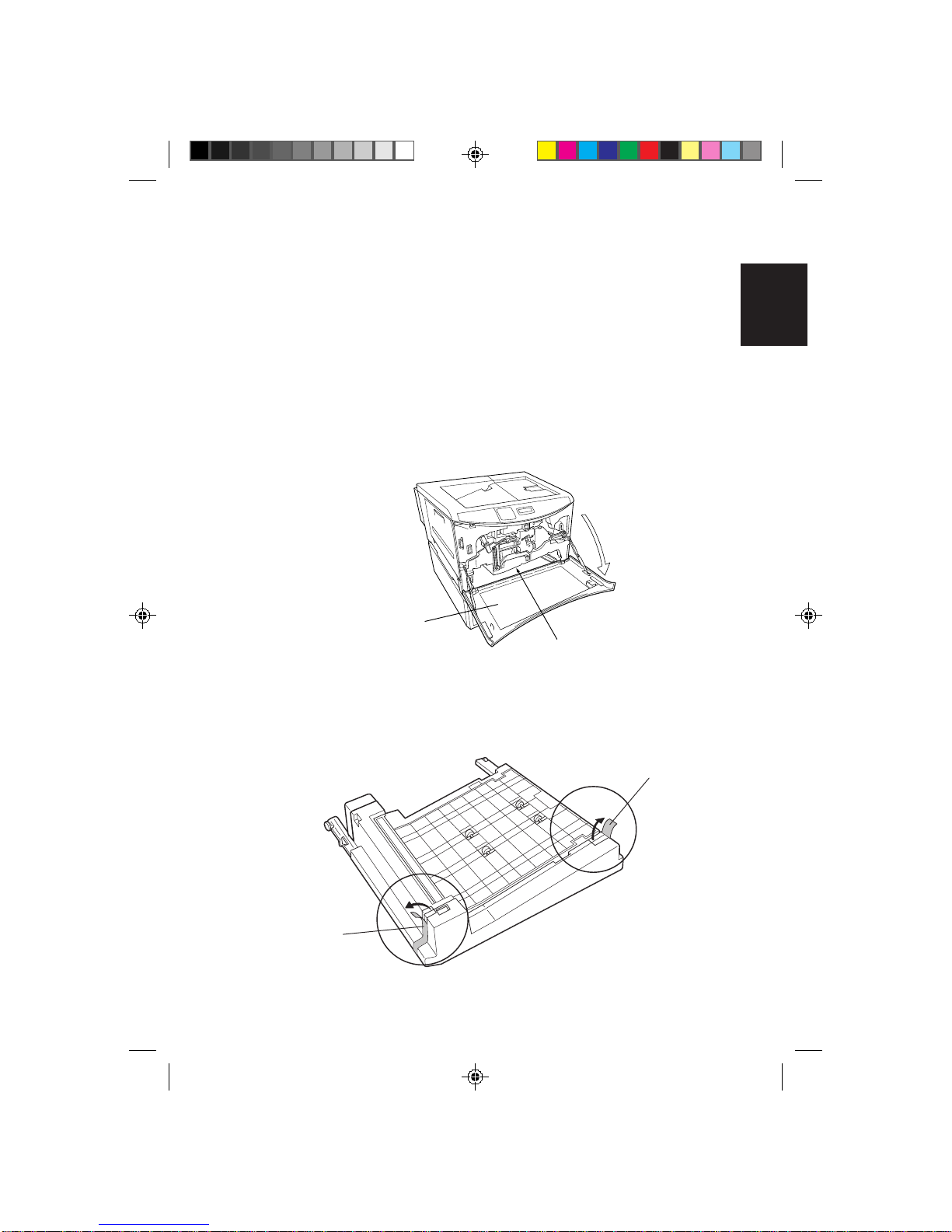

3. Remove the duplexer from the packing materials and install in the printer
as shown in the figure. Install so that the left and right rails are correctly
resting on the rails of the printer.
4. Push the DU-31 all the way into the printer.
5. Close the printer’s front cover. This completes installation of the duplexer.
Rail
Rail

9
English
Deutsch
FrançaisItalianoEspañol
Duplex Printing
After the duplexer is installed, the duplex printing menu is added to the printer’s
mode selection menu as shown below (added menu enclosed in frame), and it is
used to switch the duplex printing mode on/off and to set the orientation for duplex
printing.
Mode selection menu
The duplex printing mode is explained on the following pages.
Ready
PAR 600 A4 001
Paper handling >
Duplex mode
None
Short edge bind
Long edge bind
(FS-7000 only)
Ready
PAR 600 A4 001
Interface >
Parallel
Paper type
Normal
Duplex mode
None
Short edge bind
Long edge bind
Others >

10
Duplex Printing Mode
The printing operation flow in duplex printing mode is as follows. Initially, the first
sheet is fed and page 2 of the document is printed on one side of the sheet. The first
printed sheet is temporarily transferred to the duplexer. Then the printer feeds the
second sheet on which page 4 is printed on one side. After page 4 has printed, the
first sheet held in the duplexer is again sent to the printer’s transfer unit for printing
of page 1. This completes printing of the first sheet and this is output. Following
this and while the second sheet, on which page 4 has been printed on one side, is
retained on standby in the duplexer, the printer feeds the third sheet and prints page
6 on this sheet. The operation is now repeated as described above to perform the
duplex printing.

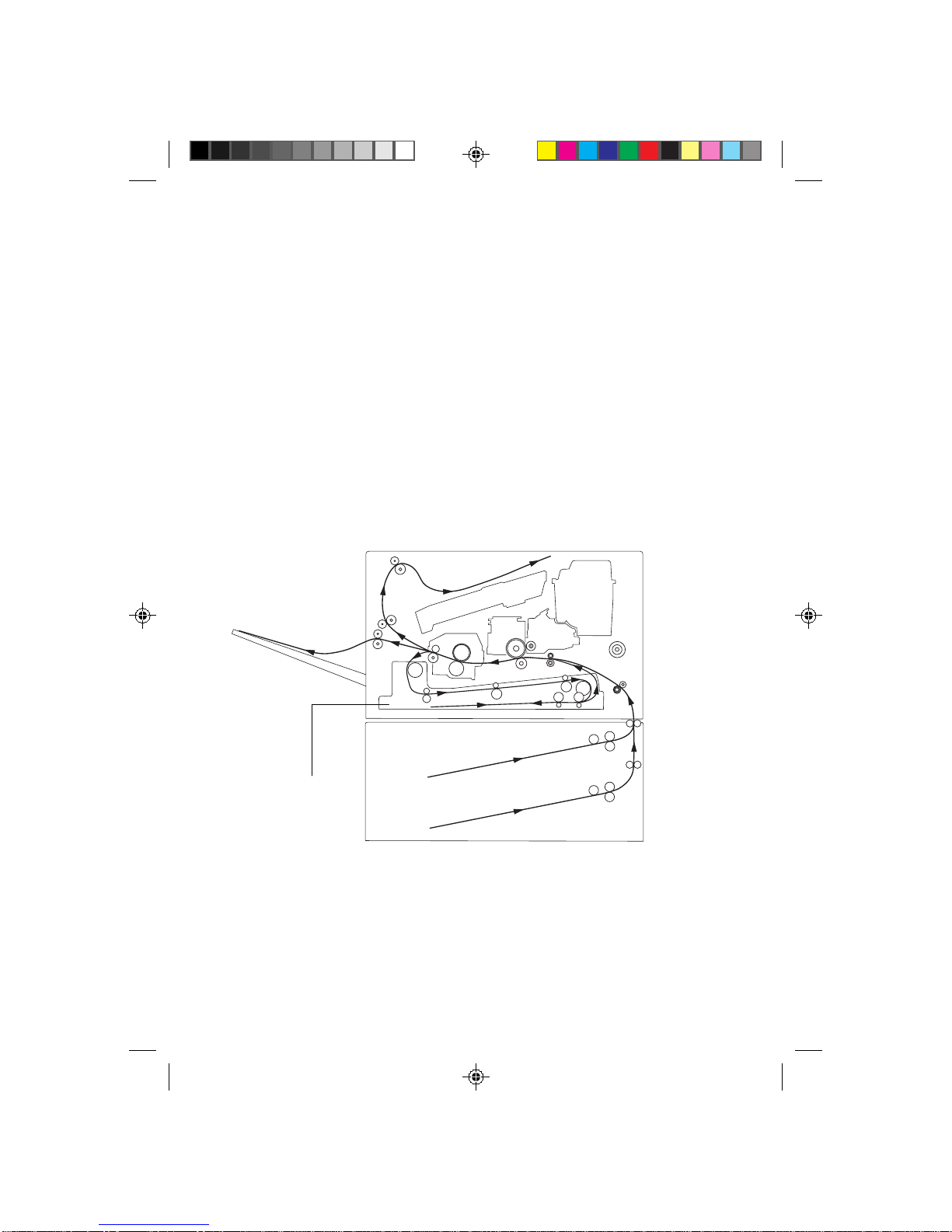

Duplex Printing Flow
Printer
Paper feeder
(PF-30)
Duplexer (DU-31)

11
English
Deutsch
FrançaisItalianoEspañol
Setting the Binding Mode
To bind printed sheets like a book is called “binding.” There are two forms of
binding; “long edge” which is binding on the long side of the page, and “short
edge” which is binding on the short side of the page. You can select both portrait
and landscape printing for both long edge and short edge binding.
Binding type and printing direction can be set using the following four binding
modes. These are 1Portrait / Long edge, 2Portrait / Short edge, 3Landscape /
Long edge, 4Landscape / Short edge. (See the figures below.)
Binding mode
In the portrait/long edge and landscape/short edge modes (1, 4), both sides of the
page are printed in the up to down direction.
In the portrait/short edge mode and landscape/long edge mode (2, 3), the front
side of the page and the rear side of the page are printed in reverse up/down
directions.
Portrait /
Long edge Portrait /
Short edge
Landscape /
Long edge
Landscape /
Short edge

12
Duplex mode
?None
Duplex mode
?Short edge bind
Duplex mode
?Long edge bind

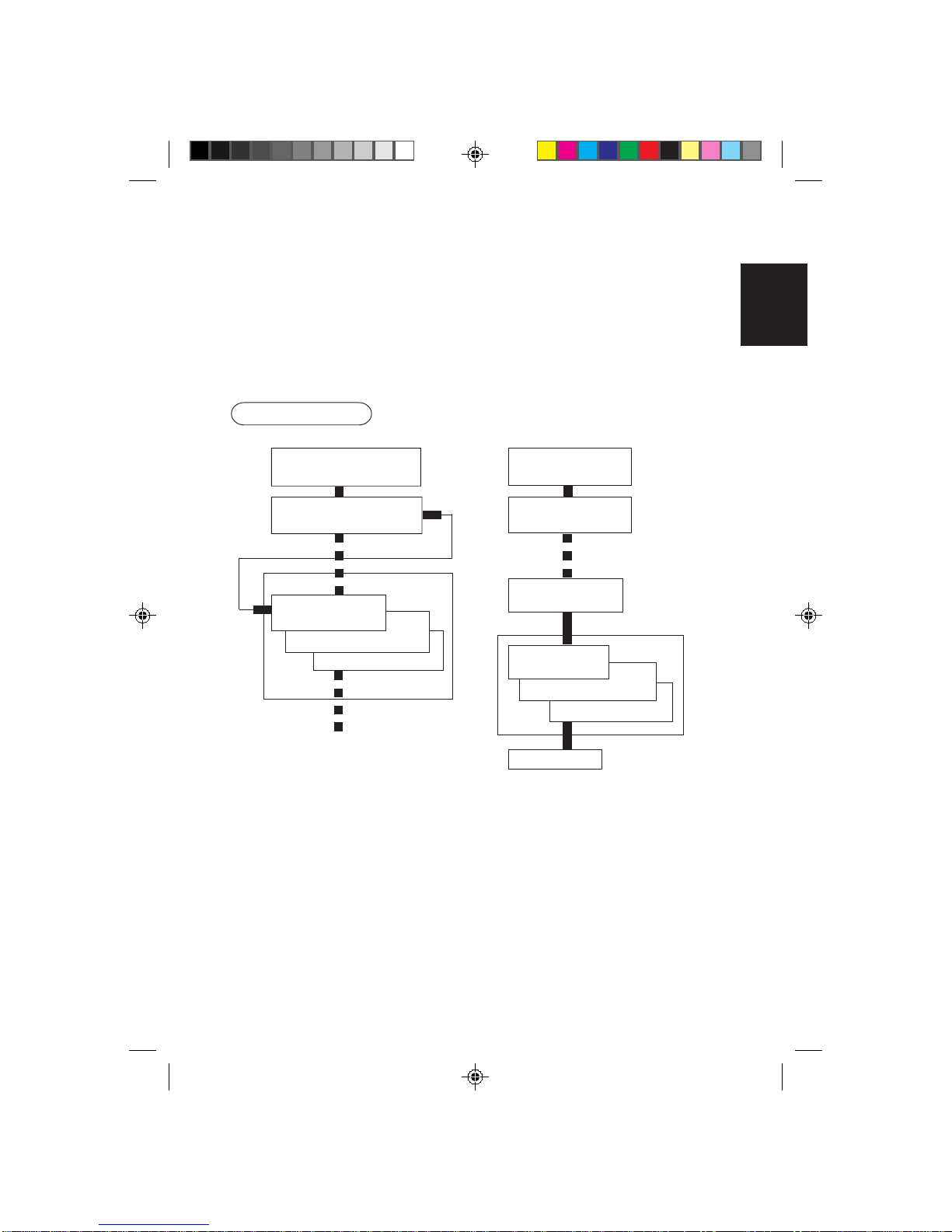

Duplex Printing Mode Settings
Settings for the duplex printing mode are made on the printer’s control panel.
Settings on the Printer’s Control Panel
Make the settings for duplex printing and binding on the printer’s control panel
using the following procedure.
1. Confirm that Ready is indicated on the printer’s message display and
that the on-line indicator is lit.
2. Press the printer’s MODE key.
3. Display “paper handling >”, press the key, and press the +or –
key to display “ >Duplex mode”. The second line indicates the
current mode. (In the initial state, None is shown.) In the case of an FS-
7000, using the +or –key, display Duplex mode on the message
display.
4. When the ENTER key is pressed, the ? mark flashes and the display can
be changed by pressing the +or –key as shown in the following diagram.
To abandon the setting, press the CANCEL key.
5. Select the desired binding mode and press the ENTER key.
6. When the MODE key is pressed, the message display indication returns to
Ready.
The same setting can also be performed by accessing the printer driver from the
printer setting menu of your appplication software.
Duplex printing is not performed.
(Initial setting)
Short edge binding
Long edge binding
➔➔➔

13
English
Deutsch
FrançaisItalianoEspañol
Duplex printing from the Multi-Purpose Tray
In first mode, be sure to set the MP tray to the same paper size, paper type and feed
direction as set for the current cassette. If the paper size, type or feed direction
differs, a paper jam may result.Also note that it is not possible to select the multi-
purpose tray as the current cassette and perform duplex printing. We therefore
recommended that duplex printing be performed from the paper cassette.
Note In the case of an FS-7000, duplex printing is not possible from the
printer’s MP (multi-purpose) tray, the optional envelope feeder (EF-
1), or optional universal feeder (UF-1). If duplex printing is at-
tempted from these paper sources, the mode is automatically
canceled and the printed paper is output from the face-up tray.
When the duplex printing mode is set to off, paper can also be
output from the face-down tray. However, when feeding paper from
the envelope feeder, output is through the face-up tray.

14
Clearing Paper Jams
Error messages and remedial actions when paper jamming has occurred during
duplex printing are explained in the following section.
WARNING Take care not to leave any small pieces of paper in the printer
when removing paperjams. This could result in fire.
This section describes how to remove paper when it jams in the printer. The printer
will stop whenever paper jams in the printer or paper is not fed from a cassette. The
printer will go offline and the message Paper jam Open front cover
will appear on the message display.
Paper jam
Open front cover
Opening the printer’s front cover will cause the message display to change. It will
now indicate the coded location (Athrough Iand 1through 6) of the paper jam.
Example
Paper jam
C, H, I, 3
In this example, paper is jammed in the paper feeder (C), paper feed unit (H),
duplexer (I), and in the upper cassette of the optional paper feeder (3). The
corrective action to take in cases like this is explained using actual examples
beginning from page 17.
The meanings of symbols appearing on the message display and the corresponding
locations of paper jams are given in the table on the next page. Be sure to correct
paper jams according to the procedure given on the following pages.

15
English
Deutsch
FrançaisItalianoEspañol

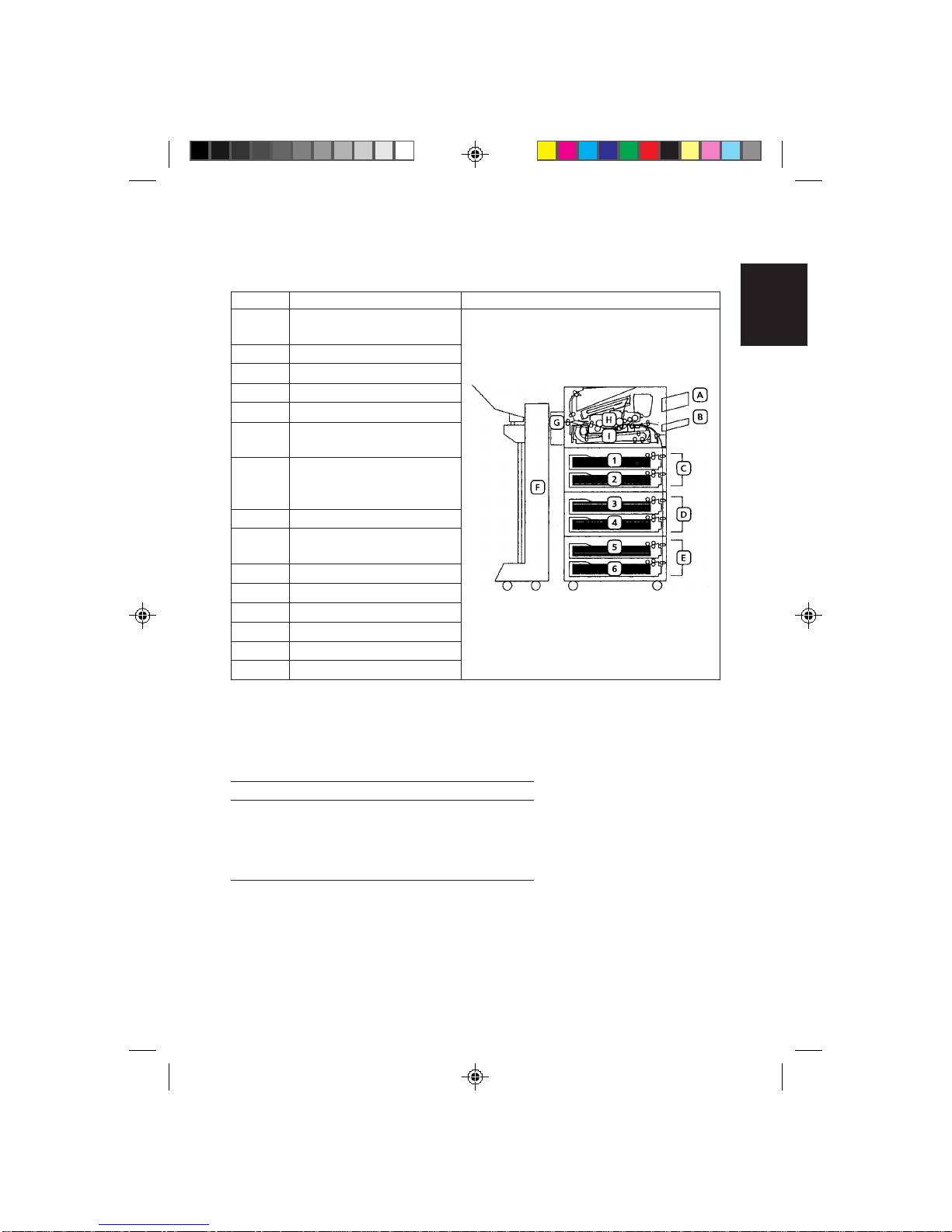

Message Display Indicator and Paper Jam Location
Indicator Meaning of Indicator Corresponding Printer Location
AOptional paper feeder
(EF-1 or UF-1)
BMP (multi-purpose) tray
CPaper feeder included with printer
DOptional paper feeder (PF-30)
EOptional paper feeder (PF-30)
FOptional unit
(DF-30/DF-31, SO-30 or ST-30)
Face-up output tray
G/face-down output tray
(connection with optional unit)
HPaper feed unit
IOptional duplexer
(DU-31 [this unit])
1Cassette 1
2Cassette 2
3Cassette 3
4Cassette 4
5Cassette 5
6Cassette 6
When a paper jams, the indicator on the printer’s control panel also flashes to
indicate the location of the jam. When a paper jam occurs in a paper feeder, the
LED at the front of this paper feed cassette also flashes. The meanings of the
flashing modes can be seen in following table.
LED status Meaning
Fast flashing Paper is jammed in this cassette.
Slow flashing No paper in this cassette.
Lit Currently selected cassette
Off • Cassette improperly inserted.
• Cassette is not currently selected.
In case of a paper jam, after checking the location of the paper jam using the above
table, take corrective action according to the table on the next page.After removing
all jammed paper, the printer will automatically resume printing.
A label titled “Paper Jam Location Indicators” is also
attached to the back of the front cover.

16
CorrectiveAction for Paper Jam
Indicator
A
B
C
D
E
F
G
H
I
1 to 6
Corrective Action
A paper jam has occurred in the optional feeder.
Carefully pull out the jammed paper. (For details, read
the EF-1/UF-1 instruction manual.)
A paper jam has occurred in the MP (multi-purpose)
tray. Carefully pull out the jammed paper.Then open
and close the front cover of the printer once.
Open the side cover of the paper feeder indicated and
remove the jammed paper. (Refer to the example on the
next page.)
Remove the paper jammed in the paper stacker. (For
details, read the DF-30/DF-31/SO-30/ST-30 instruction
manual.)
Paper is jammed before being completely output. Open
the side cover of the printer and carefully remove the
jammed sheet. (For details, read the printer’s instruction
manual.)
If printing stops before a sheet is completely output,
carefully remove that sheet.
Open the front cover and carefully pull out the paper
feed unit as far as it will go. If paper is jammed in the
registration rollers, remove it by pulling out in the
direction where this is most easily accomplished. (For
details, read the printer’s instruction manual.)
If paper is jammed in the fuser unit, remove the paper in
the same manner. (For details, read the printer’s
instruction manual.)
After all paper has been completely removed, return the
paper feed unit to its original folded down position.
Open the front cover and carefully pull out the paper
feed unit as far as it will go. Open the fuser unit cover
(hold the [green] knob), and check the interior of the
fuser unit. Paper may remain trapped inside the fuser
unit.
Open the front cover, pull out the duplexer and remove
the jammed paper. (For details, read the following
pages.)
Pull out the paper feed cassette indicated and remove the
jammed paper. After all paper has been completely
removed, open and close the front cover once.
Meaning of Indicator
Check the optional paper
feeder (EF-1 or UF-1). (Only
when installed)
Check the printer’s MP
(multi-purpose) tray.
Check the paper feeder
(main unit).
(D and E are only displayed
when an optional PF-30 is
installed.)
Check the optional unit
(DF-30/DF-31/SO-30/ST-
30). (Only when installed)
Check the printer’s face-up
output tray.
(connection with optional
unit)
Check the printer’s face-
down output tray.
Check the printer’s paper
feed unit.
Check the printer’s fuser
unit.
Check the optional duplexer
(DU-31 [this unit]).
Check the paper feed
cassette indicated.

17
English
Deutsch
FrançaisItalianoEspañol

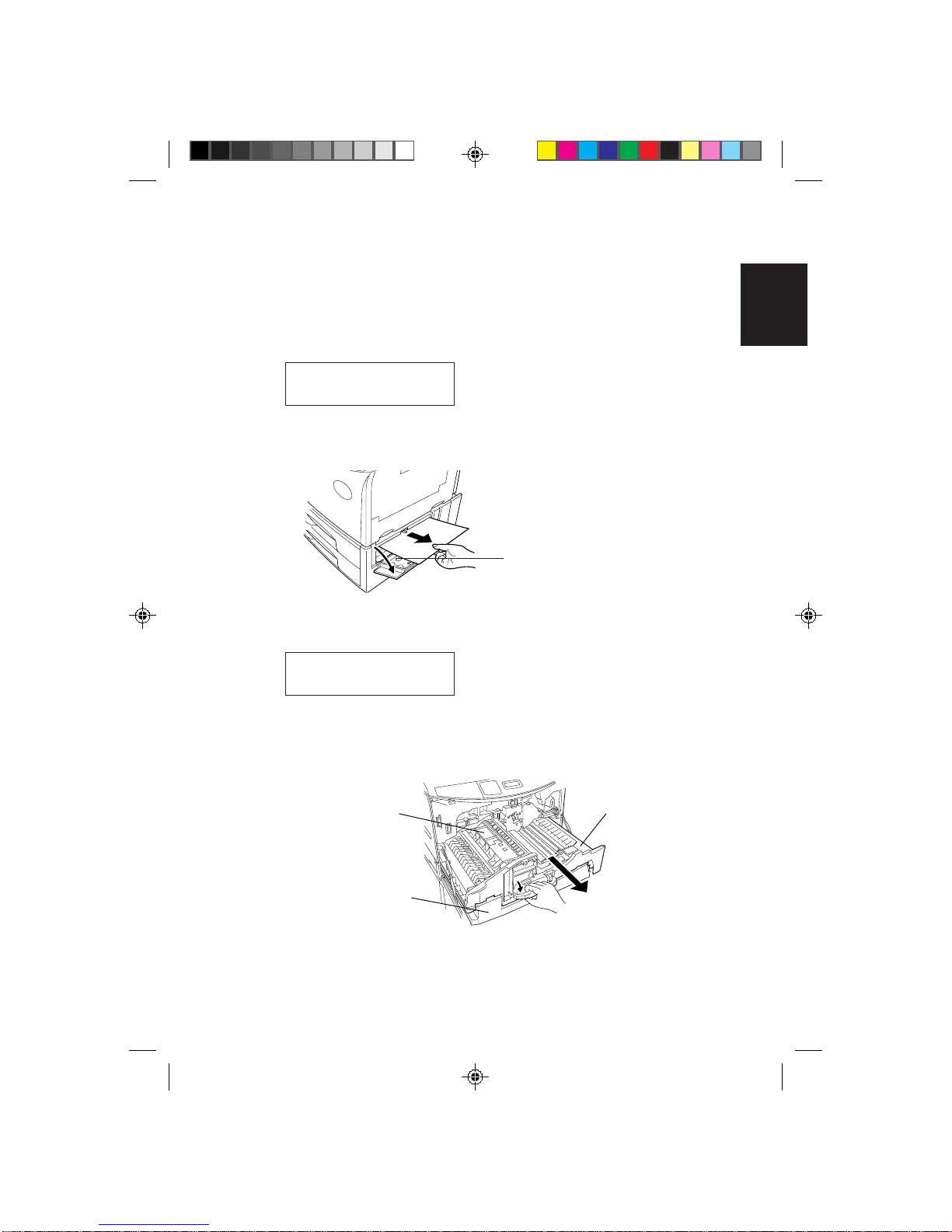

Example
In the example given on page 14, paper is jammed in the paper feeder (C), the
paper feed unit (H), the duplexer (I), and upper cassette of the optional paper
feeder (3).
Paper jam
C, H, I, 3
1. When paper jams in multiple locations such as in this example, begin
taking corrective action from the location displayed at the left.
After the paper jam in the paper feeder (C) has been corrected, the display
will change as follows:
Paper jam
H, I, 3
2. Next, open the printer’s front cover and turn the lock lever counter
clockwise (except for the FS-7000). And then carefully pull the transfer
unit out as far as it will go. (At this point, the duplexer is simultaneously
pulled out.)
CAUTION For a while after the transfer unit is pulled out, the fuser unit
inside will be hot. Do not touch with bare hands as burns
could result.
Side cover of the paper feeder
Fuser unit
Duplexer
Transfer unit

18

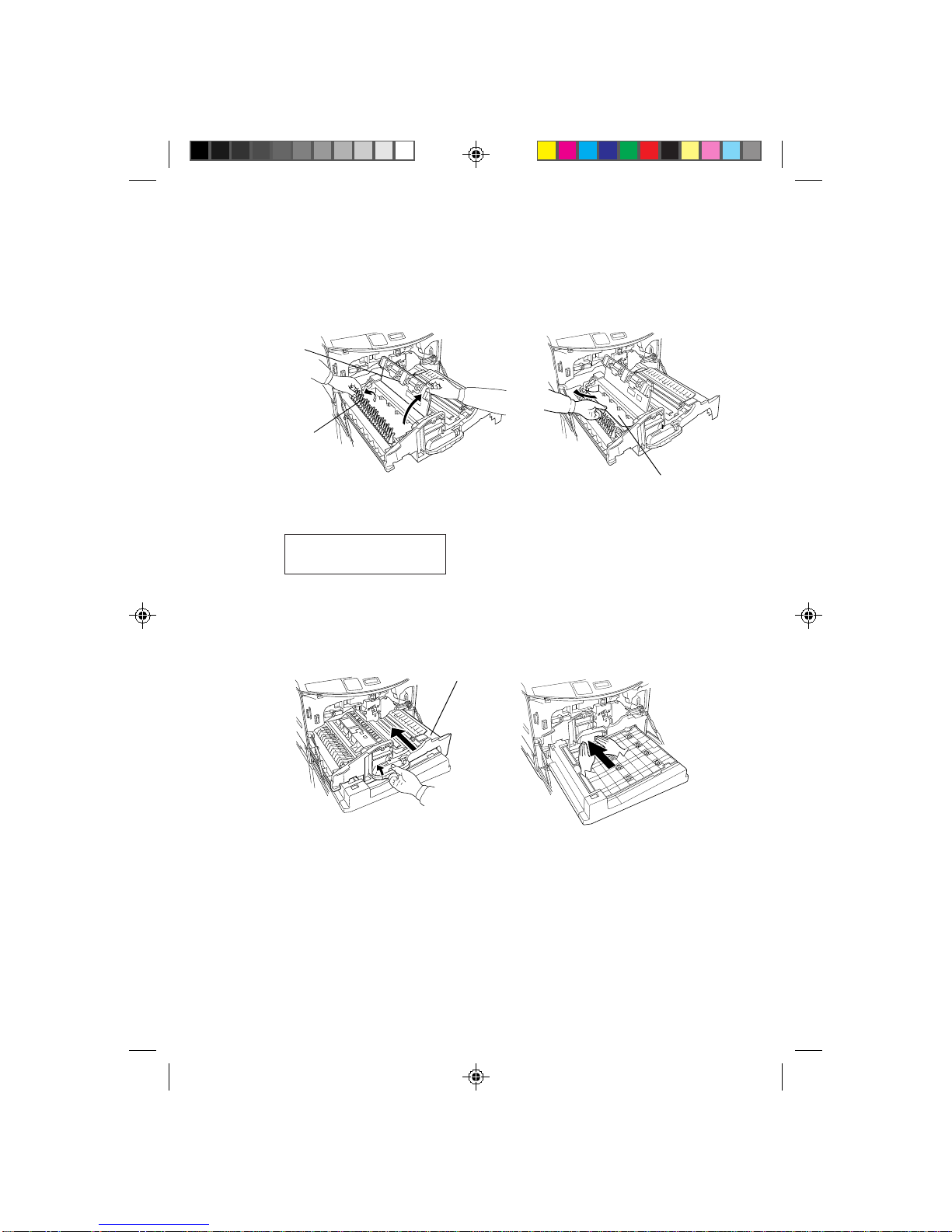

3. Check the guide changer on the left side of the fuser unit. Should paper be
jammed underneath, raise the guide changer and the fuser unit cover
(hold the [green] knob). Remove paper as shown in the following figure.
After remedying, the message display indication changes to the following:
Paper jam
I, 3
4. After confirming that paper is not jammed in the transfer unit, return the
transfer unit alone into the printer.
5. Turn the lock lever clockwise to securely lock the transfer unit.
➞Jammed paper
Guide changer
Transfer unit
➞
Fuser unit
cover

19
English
Deutsch
FrançaisItalianoEspañol

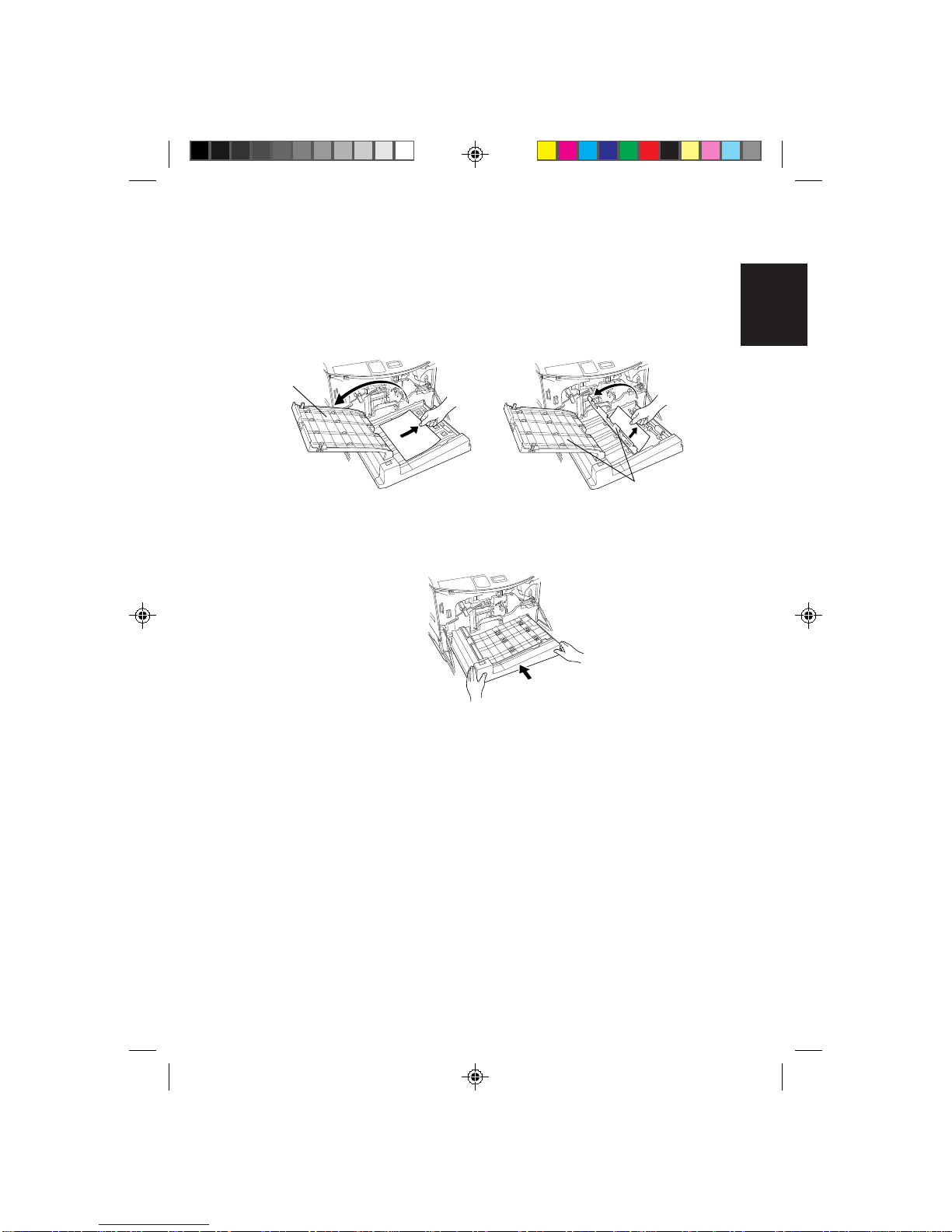

6. Open the two transparent plastic covers at the top of the duplexer.
Remove any jammed paper from the inside as shown in the following
figure.
7. Following removal of the paper, return the transparent plastic covers to
their original positions and reinsert the duplexer into the printer. The
message display indication changes to Front cover Open.
8. Close the printer’s front cover. This completes the actions for clearing
paper jamming.
Notes • Sometimes the page on which the paper jam occurred will not be
re-printed depending on the location of the paper jam.
• Note that your hands may become dirty from unfused tonerwhen
removing paper jams.
Frequent occurrence of paper jams may indicate you are using a paper specification
which does not suit the printer. If this appears to be the case, please change to a
different type of paper.
If you have tried changing paper types and paper jams still occur frequently, there
may be a problem with the printer. In this case, please contact your Kyocera
dealer.
Transparent
plastic cover
Open the first cover and
remove paper. Open the second cover
and remove paper.
Transparent
plastic cover
