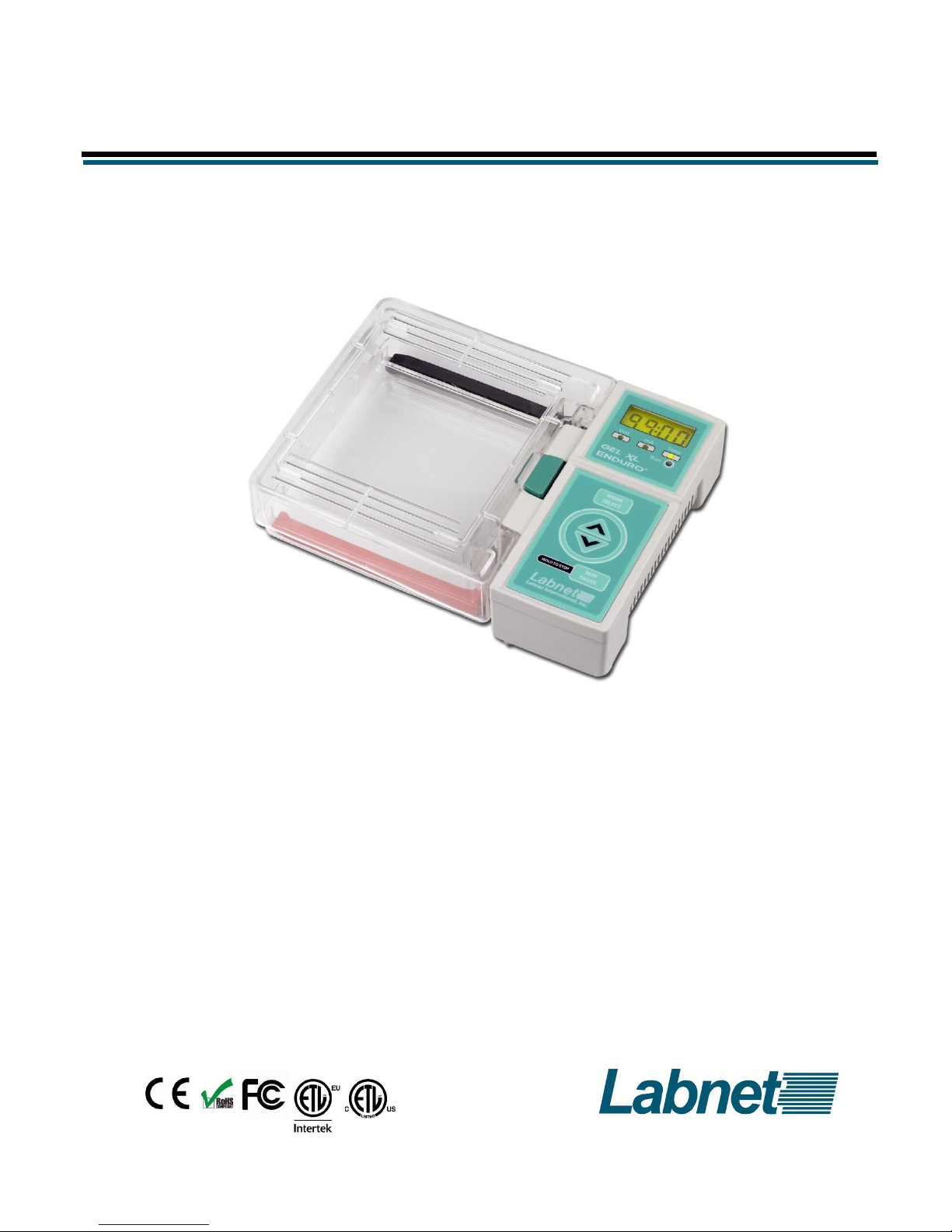

Labnet ENDURO GEL XL E0160 User manual

Lit M00078 Rev 3; September 2016
ENDURO™ GEL XL
User Manual
HORIZONTAL GEL ELECTROPHORESIS UNIT
E0160
E0160-230V
E0160-230V-UK
E160-CAN

About This Manual
This manual is designed to assist you in the optimal usage of your Enduro
GelXL. The manual is available in English, French, German, Italian, Portuguese,
and Spanish on our website at www.labnetinternational.com/document-center

TABLE OF CONTENTS
I. MAINTENANCE 1
II. OPTIONS AND SPECIFICATIONS 2
A.
Components and Accessories 2
B.
Specifications 3
III. OPERATING INSTRUCTIONS 3
A.
Preparation of the Agarose Gel and Electrophoresis Buffer – DNA 3
B. Preparation of the Agarose Gel and Electrophoresis Buffer - RNA 5
C.
Casting the Gel 6
D. Removing the Comb 7
E. Loading the Samples onto the Gel 8
F.
Electrical Connections to the Safety Lid 8
G. Sample Electrophoresis 9
H.
Detection and Documentation of Separated Fragments 10
IV APPENDICES 11
A. Buffers for Electrophoresis 11
B. Physical Properties of Electrophoretic Plastics 12
V REFERENCES 12
DECLARATION OF CONFORMITY 17
WARRANTY 18

1
I. MAINTENANCE
Please handle the unit with care:
Do not expose the unit or its accessories to temperatures above
60°C.
Do not expose the unit to organic solvents.
Do not clean the unit with abrasive cleaners or cleaning aids.
In most cases, rinsing with deionized water will sufficiently clean the unit.
For heavier dirt, use a mild cleansing solution such as dish soap (alkaline
cleansers are not recommended). Hand wash and dry with a soft cloth.
To remove residual ethidium bromide, occasionally soak the unit in 1%
commercial bleach solution for 16 hours. Rinse well.
PLEASE NOTE: The degradation of acrylic due to solvents may result in
substantial discoloration, cracking, warpage, or etching of the
electrophoresis unit.
Do not apply any of the following solvents: benzene, xylene,
toluene, chloroform, carbon tetrachloride, alcohols, phenols, ketones,
or esters.
Do not expose the ABS combs supplied with this unit to
formaldehyde for extended periods. When casting gels containing
formaldehyde, remove the combs promptly upon hardening of the gel
and rinse completely with deionized water.
Elimination of RNase Contamination
Should treatment of the unit to eliminate RNase contamination be desired, clean
the unit with a mild detergent as described above followed by soaking for 10
minutes in a solution of 3 % hydrogen peroxide, and then for 1 hour in 0.1 % DEPC
(diethyl pyrocarbonate). Pour out final rinse, and air dry.
CAUTION: DEPC is a suspected carcinogen; handle with care.
Alternatively, soak the unit and accessories in freshly made 2.2 mM acetic
anhydride treated water (200 µl/liter) for at least five minutes. Solutions for RNA
work (electrophoresis buffers, etc) may be made from the same acetic anhydride
treated water as well.

2
WARNINGS:
CAUTION! Injury, damage to equipment, or property, may result if used in a
manner not specified by the manufacturer.
CAUTION! A pinch hazard exists between the plastic enclosure and the shaking
head.
CAUTION! NOT for use with flammable liquids.
II. OPTIONS AND SPECIFICATIONS
A. Components and Accessories
Catalog # Description
E0160 ENDURO Gel XL Complete Electrophoresis System
Comes complete with 1) 12.5 x 12 cm, 2) 12.5 x 6 cm UV Transmittant casting
trays, casting stand with divider, and four 1.0 mm thick 28/14 reversible tooth
combs, power cord and manual.
Accessories
Catalog #
Description
E0161
(1)12.5 x 12cm UV Transmittant Casting Tray
E0162
(2) 12.5 x 6 cm UV Transmittant Casting Tray
E0163
(4) 6 x 6cm UV Transmittant Casting Tray
E0164
(2) 1 mm x 14/28 tooth Reversible Comb
E0165
(
2) 1mm 5/8 tooth Reversible comb
E0166
Micro casting set - (4) 6 x 6cm UV Transmittant Casting Tray, 2) 1mm
5/8 tooth Reversible combs, Casting stand with divider
E0167
Casting Stand with divider
E0168
Standard casting set – (1) 12.5 x 12cm tray, (2) 12.5x6cm trays, (4)
14/28 tooth multi-channel compatible combs, casting stand with
divider
R1000
-
100BP
Molecular Weight marker 100 bp
R1000
-
1KB
Molecular Weight marker 1 Kb
B. Specifications
Unit dimensions 24.5 x 17.0 x 6.2 cm
Gel dimensions 12.5 x 12.0 cm
Maximum sample capacity: 112 samples (4 combs, 26
samples each)
Buffer Capacity: 300 ml
Distance Between Electrodes: 13.5 cm
Electrophoresis Tank
Overall dimension 18.3 × 16.4 × 5.6 cm
Material characteristic UV transmitting (50% at 254nm,
80% at 312nm)
Solution volume 300ml (includes buffer and gels)
Safety Lid
Overall dimension 19.7 × 16.9 × 3.8 cm
Material characteristic UV non-transmitting Polycarbonate

3
Power Supply
Overall dimension 7.5 × 17.0 × 6.2 cm
Weight 410 g
Input Voltage AC100 - 240V, 50/60Hz
Output Voltage 10 to 150 volts; Constant peak
voltage of 150V
Output Amperage 10 to 400 mA
Maximum Wattage 45 W
Timer 99 hours 59 min, and continuous
model
Safety Switch Micro-sensor (hall) in the Power
Supply. No output without safety lid,
Memory Function Automatic memory (the last used V
and T)
III. OPERATING INSTRUCTIONS
A. Preparation of the Agarose Gel and Electrophoresis Buffer -
DNA
1. Select the percentage gel necessary to effectively resolve your
sample, using Table 1 as a guideline.
Table 1: Gel Concentrations and Resolving Ranges
Table taken from Sambrook, J., Fritsch, E.F., & Maniatis, T. (1989)
Molecular Cloning, A Laboratory Manual, 1, 6.8 613.
2. Weigh an appropriate quantity of agarose (0.3 % means 0.3 g of
agarose per 100 ml of gel volume) and place it into a 250 ml flask.
Note a 4mm gel will use 100 mls of agarose solution.
3. Make 500 ml of either 1X TAE or 1X TBE electrophoresis buffer
(see below).
Electrophoresis Buffers
The two most commonly used buffers for horizontal
electrophoresis of double stranded DNA in agarose gels are Tris-
Acetate-EDTA (TAE) and Tris-Borate-EDTA (TBE). While the
Concentration of Efficient Range of
Agarose in Gel Separation of Linear DNA
(% w/V) (Kb)
0.3% 5 - 60
0.6% 1 - 20
0.7% 0.8 - 10
0.9% 0.5 - 7
1.2% 0.4 - 6
1.5% 0.2 - 3
2.0% 0.1 - 2

4
resolving powers of these buffers are very similar, the relative
buffer capacities are very different, conferring different run
attributes which are summarized below:
TAE: Tris-acetate has traditionally been the more commonly
used buffer. However, its relatively low buffer capacity will
become exhausted during extended electrophoresis,
making buffer recirculation necessary in runs exceeding
140 mA-hours. Potential advantages of using TAE buffer
over TBE buffer include superior resolution of supercoiled
DNA and approximately 10 % faster migration of double-
stranded linear DNA fragments (1) .
TBE: Tris-borate’s significantly greater buffering capacity and its
relatively low current draw eliminates the need for
recirculation in all but the most extended runs (> 300 mA-
hours). TBE buffer systems are not recommended when
fragments are to be recovered from the gel after
electrophoresis.
4. Add ethidium bromide to the diluted electrophoresis buffer to a
final concentration of 0.5 µg/ml.
NOTE: The addition of ethidium bromide to both the gel and the
running buffer will result in maximum detection levels by
providing high levels of sample fluorescence with an evenly
low level of background.
5. Add 6.6 ml of the 1X electrophoresis buffer containing ethidium
made in step 4 per millimeter of gel thickness desired, up to a
maximum to 100 ml, to the flask containing the agarose. A 100
ml gel solution will make a 7.6 mm thick gel. Thinner gels may be
made, however care must be taken that the wells are deep
enough to accommodate the desired sample volume.
Catalog # Comb Description Well Width Sample Volume 1mm
E0167 1 mm, 14 tooth 5mm 5ul
E0167 1 mm, 28 tooth 2.5mm 2.5ul
E0168 1 mm, 5 tooth 8mm 8ul
E0168 1mm, 8 tooth 4mm 4ul
6. Make note of the total solution volume so that degree of
evaporation can be determined and corrected for.
7. Heat the agarose slurry in a microwave oven for 90 seconds.
Swirl the flask to make sure any grains sticking to the walls enter
into the solution. Undissolved agarose appears as small "lenses"
floating in the solution. Heat for an additional 30 - 60 seconds.
Re-examine the solution and repeat the heating process until the
agarose completely dissolves.

5
8. Add deionized water to replace any volume lost through
evaporation during the heating process.
Proceed to Section C, Step 1, “Casting the Gel” on page 12.
B. Preparation of the Agarose Gel and Electrophoresis Buffer - RNA
RNA molecules are separated by electrophoresis through denaturing gels prior to
analysis by northern hybridization. Agarose gels containing formaldehyde(1, 2, 3) are
commonly used for RNA electrophoresis. Presented below is a general protocol
for electrophoresis of RNA using formaldehyde gels.
CAUTION! All equipment and solutions used in the following protocol
should treated with DEPC (diethyl pyrocarbonate) or acetic
anhydride prior to use to inhibit RNase activity (see Section II,
page 4 for protocol). It is recommended that dedicated
solutions be made solely for RNA work to minimize the risk of
sample degradation due to RNase activity.
NOTE: Staining RNA samples with ethidium bromide has been
reported to reduce sample blotting efficiency. Therefore, if
samples are to be analyzed by northern hybridization after
electrophoresis, run a duplicate lane(s) for staining, or
minimize the exposure of RNA samples to ethidium bromide
by following the post-electrophoresis staining protocol on page
12.
The following protocol will make 50 ml of a 1.5 % agarose gel containing 1X MOPS
[3-(N-morpholino)-propanesulfonic acid]-Acetate-EDTA (MAE) buffer and 2.2 M
formaldehyde, resulting in a 7.5 mm thick gel:
1. Weigh out 0.5 g of agarose, and place into a 125 ml flask.
2. Add 43.5 ml of DEPC (or acetic anhydride) treated water.
3. Make note of the total solution volume so that degree of
evaporation can be determined and corrected for.
4. Heat the agarose slurry in a microwave oven for 60 seconds.
Swirl the flask to make sure any grains sticking to the walls enter
into the solution. Undissolved agarose appears as small "lenses"
floating in the solution. Heat for an additional 30 - 60 seconds.
Re-examine the solution and repeat the heating process until the
agarose completely dissolves.
5. Add deionized water to replace any volume lost through
evaporation during the heating process.

6
6. Allow the solution to cool to 60oC. Place the flask in a hood and
add 5 ml of 10X MAE buffer (see Appendix A for recipe), and 1.5
ml of 37 % formaldehyde.
CAUTION: Formaldehyde vapors are toxic. Gel
preparation should take place in a hood and solutions and gels
containing formaldehyde should be kept covered when
possible.
Proceed with Section C, Step 1, “Casting the Gel” on page 12.

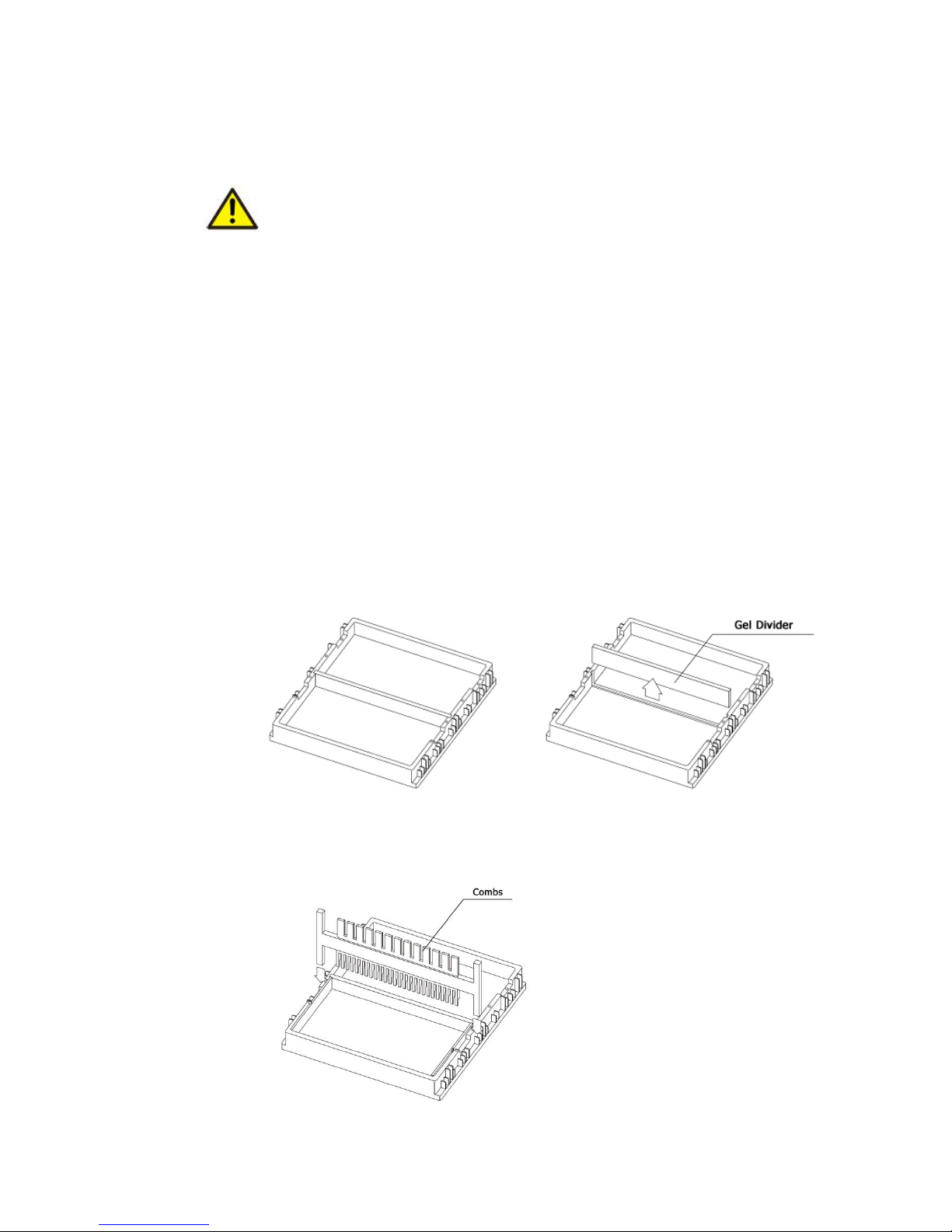

C. Casting the Gel
1. Place the gel casting stand on a lab bench.
CAUTION! Cast agarose gels containing formaldehyde in a hood.
2. Insert the gel casting tray into the casting Stand. If you are using
the 12 x 6 cm gels place the spacer in the center of the casting
Stand, then insert the two 12 x 6 cm landscape gel trays (see
direction 2 below).
3. When the gel solution has cooled to approximately 55oC, slowly
pour it into the gel tray. If hotter gel
solutions are routinely poured
the tray may warp over time.
4. If bubbles form on the surface of the gel upon pouring, use the

7
comb to either pop them or lightly brush them to the sides of the
gel. If large bubbles are allowed to harden within the gel, they
may cause artifacts to occur during electrophoresis.
5. Insert one or more combs by placing them into the slots in the
casting stand. For best results, place the comb in the slot nearest
the end of the casting fixture. If two combs are desired, place the
second in the center comb slot.
6. Allow the gel to harden undisturbed for at least 30 minutes.
D. Removing the Comb
1. When the gel is solidified and fully opaque, carefully remove the
comb with a gentle wiggling, upward motion. If the comb is
difficult to remove or if a low percentage gel is being used, overlay
the comb area with a small volume of 1X electrophoresis buffer to
preserve the integrity of the wells. Check the wells to ensure their
bases are intact.
CAUTION: Prolonged exposure of the combs supplied to gels containing
formaldehyde will cause them to degrade. Be sure to remove
the comb(s) from formaldehyde gels as soon as gel hardening
is complete and rinse them well prior to storage.
If a gel is not to be used immediately after preparation, remove it from the
casting fixture and place it in a plastic bag or container and submerge in 1X
electrophoresis buffer containing 1 mM NaN3. Store at +4oC.
E. Loading the Samples onto the Gel
1. Remove the casting tray containing the hardened agarose gel
from the casting fixture by lifting the ends. Place the tray and gel
into the main unit assembly such that the samples wells are on
the same end as the negative (black) electrode.
2. Fill the unit with the remaining 1X electrophoresis buffer
containing ethidium bromide made previously (or 1X MAE buffer
for RNA gels), covering the gel to a depth of 1-5 mm.
Approximately 300 ml of buffer will be required.
NOTE: Use of the same batch of electrophoresis buffer for both the
gel and the running buffer is very important. Slight variations
in buffer composition between gel and running buffer may
result in ionic or pH gradients that can significantly impact the
mobility of the samples.
3. Pre-run RNA gels at 100 V for five minutes prior to loading the

8
samples.
4. Load the samples into the wells with a micropipette or similar
device taking care not to puncture the bottom of the wells or load
the sample onto the top of the gel. .
F. Electrical Connections to the Safety Lid and
The ENDURO Gel XL can only be operated with the safety lid in
place. Electrical current is supplied through the tank electrodes to
the power supply by placing the lid on the tank the circuit is
completed. A simple gravity connector in the cover ensures a
complete current path, yet allows the lid to be removed from the unit
without disturbing the loaded samples.
1. Make sure the power supply is turned off
2. Plug the male ends of the black (-) and red (+) electrodes into the
jacks on the side of the power supply. .
3. After the samples have been loaded into the gel, place the lid
over the unit so that the lid covers align with the tank.
4. Set the lid straight down so that the lid rests squarely on the tank,
connection is inside end of the lid which engages the power
supply.
5. Plug the Power Supply into a wall outlet.
Ensure an approved power cord that satisfies your regional
voltage standard is used.
Input voltage is automatically detected by the system. A
transformer is not necessary in Europe and any other region
where the standard voltage is higher than 100V.
6. Set the timer. Increase or decrease the value with the Up and
Down buttons. Timer can be set between 1min – 99 hours. Set “--
:--” for continuous operation.
7. Select the required output voltage up to 150 volt or 400 mA.
8. Press the start/stop button to start the run.
To Pause a run and change parameters.
1. To pause the run press the Run/Pause button once. During the
pause mode the voltage amperage or time can be changed by
highlighting the function and using the arrow keys then pressing
the mode key. Once the changes have been made the start
button can be pressed to resume the run.
2. To stop the run press the run/pause button for 3 seconds. Stop
will appear on the display.
CAUTION: Do not jar or bump the gel box once the lid is place. The
safety switch is operated by a hall-effect sensor which relies
on a lid mounted magnet. Moving the gel box can move the
lid and cause the unit to pause until the lid is put back into
position.

9
G. Sample Electrophoresis
The maximum suggested applied voltage for the
electrophoresis of DNA in agarose gels using the Gel XL is
150 volts. In a 1 % TBE gel, this translates into a run time of
approximately 1 hour. Lower voltages may be used, of
course, and as a general rule, a 70 volt run will take twice as
long as a 140 V run. Higher voltages may be used to
decrease run time, however, if the unit is being operated at
higher voltages than 140 V, the heat generated during
electrophoresis may decrease sample resolution. Such
artifacts may be avoided by running the unit in a cold room or
adding 1X electrophoresis buffer "ice cubes" to keep the unit
properly cooled.
CAUTION: DO NOT EXCEED THE MAXIMUM OPERATING VOLTAGE
OF 150 VOLTS.
The suggested run parameters for the electrophoresis of RNA
in agarose gels containing formaldehyde is 60 - 80 Volts.
CAUTION: Formaldehyde vapors are toxic. Electrophoresis of RNA in
gels containing formaldehyde should take place within a fume
hood.
Follow the sample migration into the gel using the loading dye
as an indicator. (See Appendix A for the Sample Loading
Buffer recipe.) Allow the samples to migrate until the
fragments have separated, normally until the bromophenol
blue dye front has migrated 3/4 of the way down the gel.
NOTE: If the gel contains ethidium bromide, the progress of
electrophoresis may be monitored during the run by turning
off the power supply, removing the lid, and shining a medium-
wave UV light onto the gel. The resolved bands will appear
as orange bands against a dark purple background.
H. Detection and Documentation of Separated Fragments
1. At the completion of the run, turn off the power supply and
disconnect the power cord. Remove the lid and remove the gel
tray. Alternatively the entire tank can be placed on a
Transilluminator
2. To stain RNA gels containing formaldehyde post electrophoresis,
soak the gel in 1 liter of DEPC-treated water overnight at room
temperature. Transfer the gel to a solution of 20X SSC containing
0.5 µg/ml of ethidium bromide, stain for 5 -10 minutes.
3. Ethidium bromide stained samples are visualized by exposing

10
them to medium wavelength (312 nm) UV light. Because the gel
casting tray is UV transmittant, the gel does not need to be
removed from the tray before viewing. Place the gel casting tray
containing the gel on the filter surface of a UV Transilluminator for
convenient viewing.
3. Sample banding patterns may be documented by
autoradiography
I. Trouble shooting guide
Problem
Cause
Solution
The LCD
screen is blank AC power cord is not connected Check AC power cord connections at both ends. Use the correct cords.
The power switch is not on Toggle the power switch
Operation stops
with alarm: The
screen displays
“LOAD”
Electrophoresis tank is not
connected to the power
supply or
there is a broken circuit in
the electrophoresis cell
Check the connections to the power
supply and on your electrophoresis cell
to make sure the connection is intact;
check condition of wires in
electrophoresis unit. Close the circuit by
reconnecting the cables. Press
RUN/PAUSE to restart the run.
Buffer concentration
incorrect Replace bufffer
Operation stops
with alarm:
Display shows
“Lid”
Lid was removed during a
run
• Verify that the lid is properly seated
• Verify the all connections are attached
correctly
• press the RUN/PAUSE button to
restart
Other error • Turn off the power, disconnect the
power cord from the outlet, and contact
Technical Service

11
IV. APPENDICES
A. Buffers for Electrophoresis
Tris Acetate EDTA Buffer (TAE):
1X Working Concentration: 10X Stock Solution:
40 mM Tris base 48.4 g Tris Base
20 mM Glacial Acetic Acid (NaOAc) 16.4 g or 11.42 ml NaOAc
2.0 mM EDTA pH 8.3 7.4 g EDTA or 20 ml 0.5 M
EDTA (pH 8.0)
H2O to 1 liter
Tris Borate EDTA Buffer (TBE):
1X Working Concentration: 10X Stock Solution:
89 mM Tris Base 108g Tris Base
89 mM Boric Acid 55g Boric Acid
2.0 mM EDTA pH 8.0 6.72g EDTA or 40ml 0.5M EDTA
(pH 8.0)
H2O to 1 liter
RNA electrophoresis Running Buffer
MOPS Acetate EDTA (MAE):
Solutions containing MOPS should be wrapped in aluminum foil and stored
at room temperature. The buffer tends to yellow with age. Light yellow
buffer may be used, however, dark yellow solutions should be discarded.
1X Working Concentration: 10X Stock Solution:
20 mM MOPS (pH 7.0) 41.8 gMOPS
8 mM NaOAc 800 ml DEPC treated H2O
1 mM EDTA (pH 8.0) adjust pH to 7 with NAOH and add:
16.6 ml 3M DEPC-treated NaOAc
20.0 ml 0.5 M DEPC-treated
EDTA, pH 8 bring to 1.0 liter and
filter

12
Solutions containing MOPS should be wrapped in aluminum foil and stored
at room temperature. The buffer tends to yellow with age. Light yellow
buffer may be used, however, dark yellow solutions should be discarded.
Sample Loading Buffer, DNA Sample Loading Buffer, RNA
10X Stock Solution: 5X Stock Solution:
50 % Glycerol 1 mM EDTA, pH 8.0
100mM Na3EDTA 0.25 % Bromophenol Blue
1% SDS 0.25 % Xylene Cyanol
0.1% Bromophenol blue 50 % Glycerol
pH 8.0
B. Physical Properties of Electrophoretic Plastics
Figure A: UV Transmission Characteristics of UV Gel Tray
The UV transmittant tray is ideal for monitoring the progress of electrophoresis without removing
the gel from the tray. Figure A above clearly delineates the absorption specifications of the UV
transmittant plastic gel tray. Minimal transmission is seen below
V. REFERENCES
1. Lehrach, H., et al. 1977. Biochemistry 16:4743.
2. Sambrook, J., Fritsch, E.F., and Maniatis, T., (1989). Molecular Cloning, A Laboratory
Manual, vol 1. Cold Spring Harbor Press, New York.
3. Selden, R.F. (1988) Analysis of RNA by Northern Hybridization,” in Current Protocols in
Molecular Biology, F.M. Ausubel, et. al, editors, volume 1, p.4.9.1. Green Publishing
Associates and Wiley-Interscience.
Technical Support and Information Services:
Our staff is available to advise you with any questions regarding our products or
their specific application.
Wavelength, nm
0%
10%
20%
30%
40%
50%
60%
70%
80%
90%
275 287 300 312 325 337 350 362

13
For Technical Support and Information in the USA:
Labnet International
31 Mayfield Ave.
Edison, NJ 08837
Tel: [phone]
www.labnetinternational.com

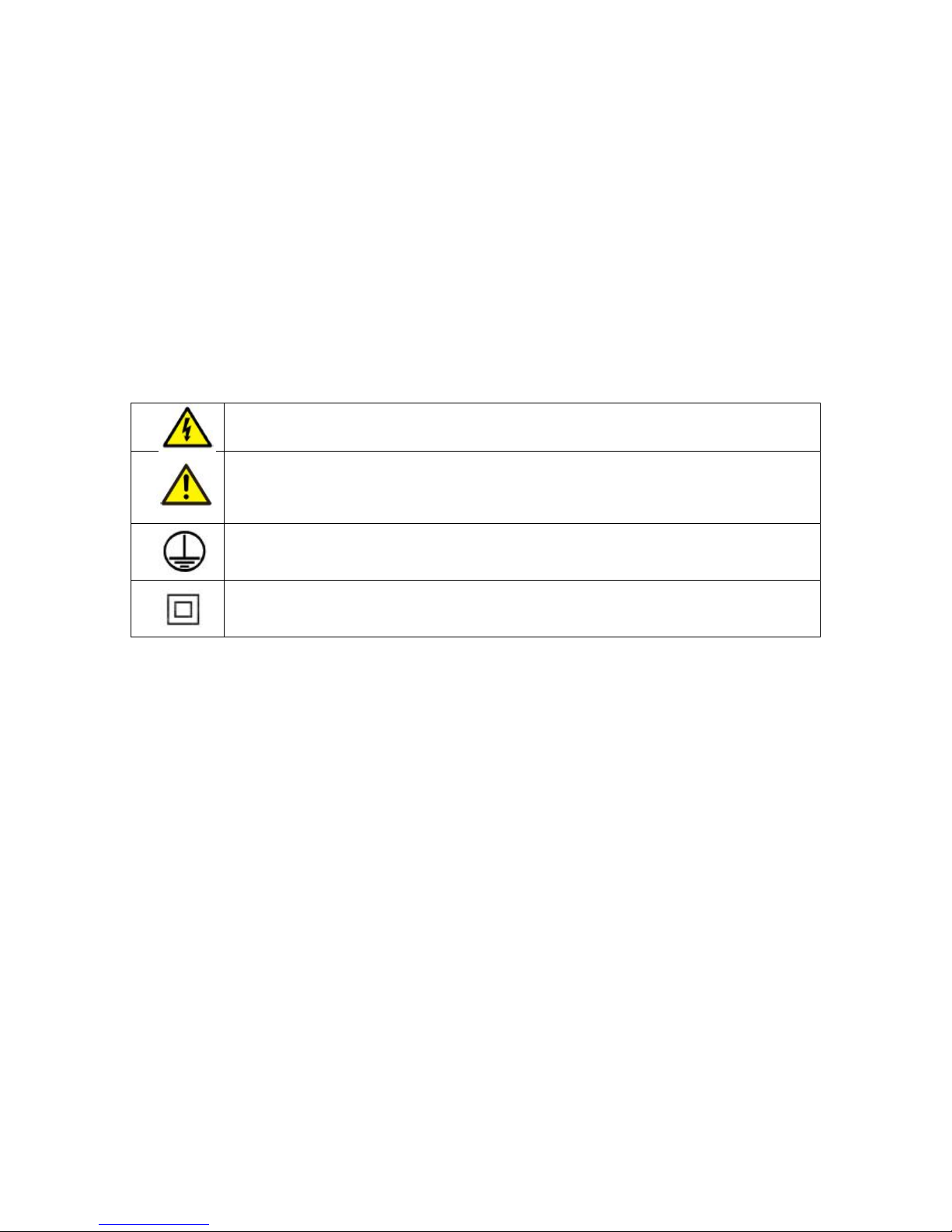

Symbols and Conventions
The following chart is an illustrated glossary of the symbols that may be used in this manual or on
the product.
The electrical warning indicates the presence of a potential hazard which could result in
electrical shock.
CAUTION This symbol refers you to important operating and maintenance (servicing)
instructions within the product Instruction Manual. Failure to heed this information may
present a risk of damage or injury to persons or equipment.
This symbol identifies a Protective Earth (PE) terminal, which is provided for connection of
the supply system’s protective earth (green or green/yellow) conductor.
This symbol indicates double insulation - no serviceable parts.

14
EQUIPMENT DISPOSAL-EUROPEAN REGULATIONS
According to Directive 2012/19/EU of the European
Parliament and of the Council of 4 July 2012 on waste
electrical and electronic equipment (WEEE), Enduro
GelXL is marked with the crossed-out wheeled bin
and must not be disposed of with domestic waste.
Consequently, the buyer shall follow the instructions
for reuse and recycling of waste electronic and
electrical equipment (WEEE) provided with the
products and available at the following link:
www.corning.com/weee

NOTES

31 Mayfield Ave. Edison, NJ 08837
P: [phone] F: [phone]
Toll Free: 888-522-6381
[e-mail]
www.labnetinternational.com
9300130000
