Labnet Prism User manual

Prism™ Microcentrifuge
Instruction Manual
Catalog Numbers:
C2500, C2500-230V
This manual is available in additional languages at www.labnetlink.com.

Table of Contents
1.0 Introduction ...................................................................................1
2.0 Safety Information .............................................................................1
2.1 Operation Safety Precautions................................................................1
3.0 Specifications ..................................................................................2
4.0 Package Contents ..............................................................................2
5.0 Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
5.1 Unpacking the Centrifuge ...................................................................2
5.2 Required Space .............................................................................2
5.3 Installing the Centrifuge ....................................................................2
6.0 Installation of Rotors and Rotor Maintenance....................................................3
6.1 Rotors and Accessories ......................................................................3
6.2 Rotor Maintenance .........................................................................4
6.3 Removing and Installing the Angle Rotor.....................................................4
6.4 Loading the Rotor...........................................................................4
6.5 Overloading Rotors .........................................................................4
7.0 Operation......................................................................................5
7.1 Attaching Rotor Lid .........................................................................5
7.2 Closing the Lid..............................................................................5
7.3 Lid Release .................................................................................5
7.4 Lid Lock ....................................................................................5
7.5 Speed Selection.............................................................................5
7.6 Selection of Operating Time, Momentary Operation, Start/Stop ...............................6
8.0 Service and Maintenance .......................................................................6
8.1 Centrifuge Service ..........................................................................6
8.2 Cleaning ...................................................................................6
8.3 Replacing Fuses.............................................................................6
9.0 Troubleshooting Guide .........................................................................7

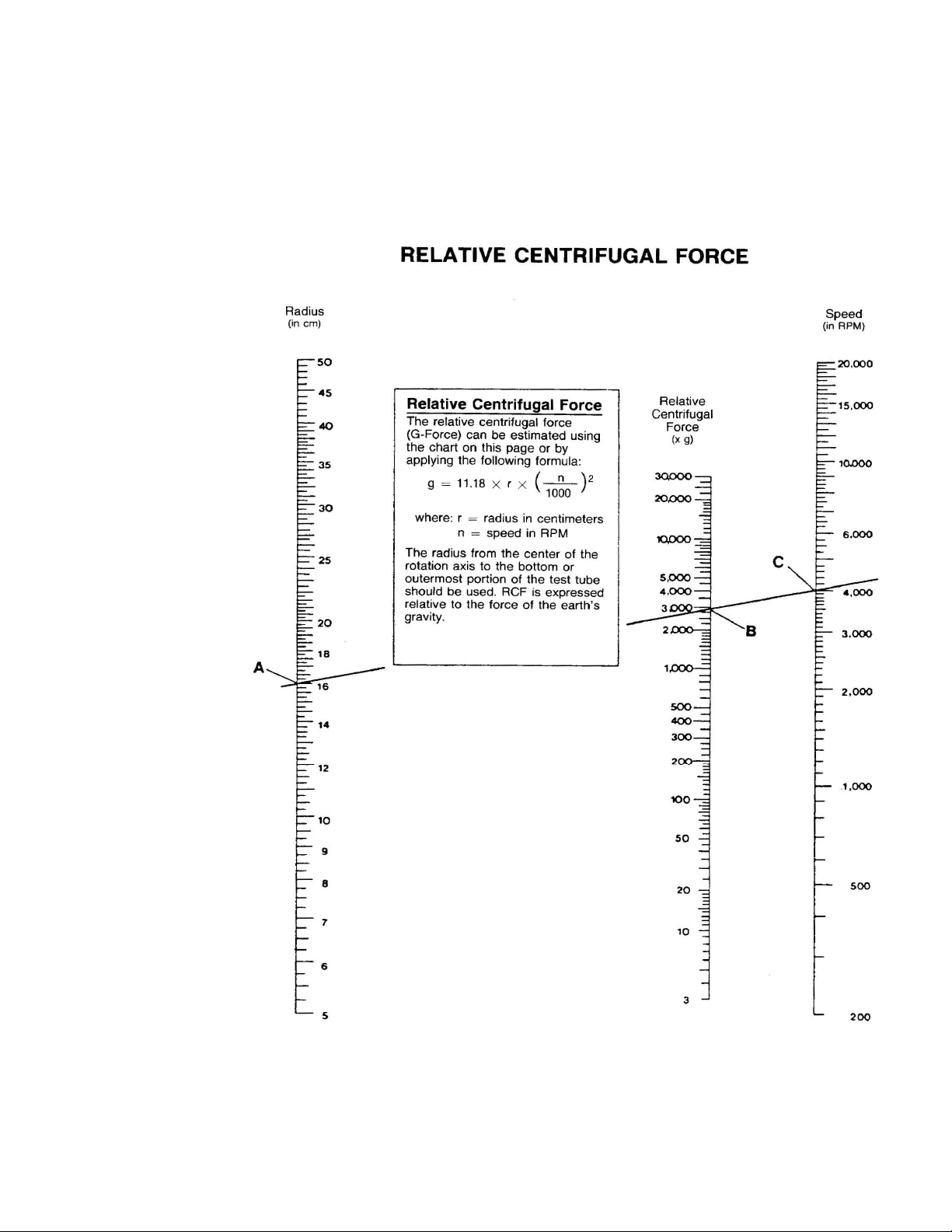

10.0 Determination of G-values......................................................................8
11.0 Limited Warranty...............................................................................9
12.0 Equipment Disposal ............................................................................9

Instruction Manual | 1
1.0 Introduction
The Prism™ is a small benchtop centrifuge designed for separation of various research samples. The
motor is brushless and requires no routine maintenance. The Prism Microcentrifuge is supplied with a
24 x 1.5/2.0 mL rotor for micro sample tubes. Adapters are available for tubes smaller than 1.5 mL. The
Prism reaches speeds of up to 15,000 rpm/21,200 x g.
2.0 Safety Information
Before using the Prism Microcentrifuge for the first time, please read this entire manual carefully.
If the equipment is used in a manner not specified by the manufacturer, the protection provided by
the equipment may be impaired.
2.1 Operation Safety Precautions
Never use the centrifuge in any manner not specified in these instructions.
Never operate the centrifuge without a rotor properly attached to the shaft.
Never tighten rotor nut by hand only.
Never fill tubes while they are in the rotor. Liquid spillage may harm unit.
Never put hands in the rotor area unless the rotor is completely stopped.
Never move the centrifuge while the rotor is spinning.
Never use solvents or flammables near this or other electrical equipment.
Never centrifuge flammable, explosive or corrosive materials.
Never centrifuge hazardous materials outside of a hood or proper containment facility.
Always load the rotor symmetrically. Each tube should be counter balanced by another tube of the
same type and weight.
Always locate the centrifuge within easy access to an electrical outlet.
Always use only microcentrifuge tubes made from plastic and designed to withstand centrifugal forces
of at least 21,200 x g.
Always use a wrench to tighten the rotor nut.
Do not operate the centrifuge if any of the following conditions exist:
The centrifuge has not been installed properly.
The centrifuge is partially dismantled.
Service has been attempted by unauthorized or unqualified personnel.
The rotor has not been installed securely on the motor shaft.
Rotors and accessories not belonging to the standard range are being used without permission being
obtained from the manufacturer to use such rotors and/or accessories in the centrifuge.
Exception: Microcentrifuge tubes made of plastic, normally available in the laboratory.
The centrifuge is located in an explosive atmosphere.
Materials to be centrifuged are combustible and/or explosive.
Materials to be centrifuged are chemically reactive.
The rotor load is not properly balanced.
The rotor nut was not tightened with a wrench.

2| LABNET PRISM MICROCENTRIFUGE
3.0 Specications
Dimensions (W x D x H) 10.25 x 13.8 x 7.48 in.
(26 x 35 x 19 cm)
Maximum Speed 15,000 rpm
Maximum RCF 21,200 x g
Maximum Volume 24 x 2.2 mL
Timer 0.5 to 99 minutes or continuous
Admissible Sample Density 1.2 kg/dm3
Electrical/Fuse Rating 120V, 50-60Hz, 1.9A, 5AT
230V, 50-60Hz, 1.1A, 2.5AT
Operating Conditions 0°C to 40°C / ≤80%RH
4.0 Package Contents
Description Quantity
Prism™ Microcentrifuge 1 each
Standard angle rotor (Cat. No. 24D-RTR) 1 each
Rotor removal tool 1 each
Instruction manual 1 each
Warranty card 1 each
Power cord 1 each
5.0 Installation
The centrifuge should be installed on a rigid, even surface such as a stable laboratory bench,
countertop, etc. To guarantee sufficient ventilation, ensure that the centrifuge has at least 15 cm
(6 inches) of free space on all sides, including the rear. The centrifuge should not be located in areas
subject to excessive heat such as in direct sunlight or near radiators or the exhaust of a compressor, as
a buildup of heat may occur within the chamber.
Before operating the centrifuge, check that the power source (electrical outlet on the wall)
corresponds to that on the manufacturer’s rating label, then connect the power cord to the centrifuge
and the power source.

Instruction Manual | 3
6.0 Installation of Rotors and Rotor Maintenance
6.1 Rotors and Accessories
The following accessories are included or available for the Prism™ Microcentrifuge:
Angle rotor for 24 x 1.5 ml tubes (included)
Cat. No. 24D-RTR
Tube Measurement 1.5 mL / 2.0 mL (10 x 40 mm)
Maximum Speed 15,000 rpm
Centrifuging Radius 8.4 cm
Maximum RCF (G-value) 21,200 x g
Rotor Wrench (included)
Cat. No. AM190
Rotor Lid (included)
Cat. No. C2400-RC1
Rotor Securing Screw (included)
Cat. No. AR110
Strip Spin Adapter
Cat. No. C2400-SS
Tubes Accepted 0.2 mL tubes or 8 x 0.2 mL strips
Maximum Speed 15,000 rpm
Centrifuge Radius Range 4.32 cm to 5.33 cm
RCF (G-value) Range 10,874 x g to 13,405 x g
Adapter for 0.5 mL tubes (pk./6)
Cat. No. C-1205
Tube Measurement 8 x 30 mm
Maximum Speed 15,000 rpm
Centrifuging Radius 7.53 cm
RCF (G-value) 18,942 x g
Adapter for 0.4 mL tubes (pk./6)
Cat. No. C-1206
Tube Measurement 6 x 47 mm
Maximum Speed 15,000 rpm
Centrifuging Radius 8.4 cm
RCF (G-value) 21,200 x g
Adapter for 0.2 mL tubes (pk./6)
Cat. No. C-1222
Tube Measurement 6 x 21 mm
Maximum Speed 15,000 rpm
Centrifuging Radius 7.03 cm
RCF (G-value) 17,684 x g

4| LABNET PRISM MICROCENTRIFUGE
6.2 Rotor Maintenance
The rotor should be cleaned thoroughly after each use. Thorough cleaning must be performed when
spinning samples containing phenol or phenol chloroform. Periodically inspect the rotor for dents,
dings, scratches, discoloration and cracks. If any damage to the rotor is found, discontinue use of the
rotor immediately and replace.
6.3 Removing and Installing the Angle Rotor
The Prism™ Microcentrifuge comes complete with a standard 24-place rotor installed. To remove
the rotor for cleaning, remove the rotor securing screw from the motor shaft by turning the screw
counterclockwise, using the rotor wrench. Lift the rotor directly upward in a straight vertical motion.
Figure 1. Loading the rotor to achieve balance
To replace rotor, first make sure the motor shaft and rotor mounting hole are clean. Place the rotor on
the motor shaft. Reinstall the rotor securing screw on the motor shaft by turning it clockwise. Hold the
rotor with one hand and tighten the rotor securing screw, using the rotor wrench.
6.4 Loading the Rotor
Tubes to be loaded should be filled equally by eye. The difference in the weight between the tubes
should not exceed 0.1 gram. Tubes should always be loaded so that there is equal spacing between all
tubes. One or two additional loaded tubes may need to be added to achieve this. Refer to Figure 1. to see
one typical balancing scheme.
6.5 Overloading Rotors
The maximum load of the rotor and maximum speed has been established by the manufacturer. Do
not attempt to exceed these values. The maximum speed of the rotor has been established for liquids
having a homogeneous density of 1.2g/ml or less. In order to centrifuge liquids with a higher density
it is necessary to reduce the speed. Failure to reduce the speed may result in damage to the rotor and
centrifuge. The revised maximum speed can be calculated with the following formula:
1.2
higher density value
Reduced speed (n
red) = × max speed (nmax)
1.2
1.7
(nred) = × 15,000 = 12,602 rpm
Example: Where the density of the liquid is 1.7, the new maximum speed would be calculated as follows:
1.2
higher density value
Reduced speed (nred) = × max speed (nmax)
1.2
1.7
(nred) = × 15,000 = 12,602 rpm
If in doubt concerning maximum speeds, please contact the manufacturer for assistance.

Instruction Manual | 5
7.0 Operation
ATTENTION: Never attempt to operate the centrifuge with rotors or adapters that show signs of
corrosion or mechanical damage. Never centrifuge strongly corrosive materials that may damage the
rotors, accessories, or bowl of the unit.
7.1 Attaching Rotor Lid
After the rotor has been properly secured and loaded, attach the rotor lid to the rotor. Always use the
rotor lid for safety and to allow the rotor to reach proper speed. Make sure that the rotor lid snaps
securely into place, by pressing down on center catch.
7.2 Closing the Lid
Close the centrifuge lid. The Prism™ Microcentrifuge has a lid lock that activates only when a run is started.
7.3 Lid Release
The lid will remain locked during a centrifuge run. Once the run has been completed and the rotor has
come to a stop, a beep will indicate the end of a run, and the lid will unlock automatically.
WARNING: Do not attempt to open the lid of any centrifuge until the rotor has come to a complete stop.
In the event of a power failure or malfunction, it may be necessary to open the lid manually.
1. Disconnect the power cord from the wall socket.
2. Remove the plastic plug, located on the left side of the unit.
3. Pull the wire (attached to the plug) to open the lid lock manually.
7.4 Lid Lock
The centrifuge can be started only with the lid securely closed. When a run is started, the lid lock
automatically activates. Do not attempt to open the lid during a centrifuge run. At the end of the
run, the lid will automatically unlock. Never attempt to override the lid lock mechanism. Doing so is
dangerous and could damage the centrifuge.
7.5 Speed Selection

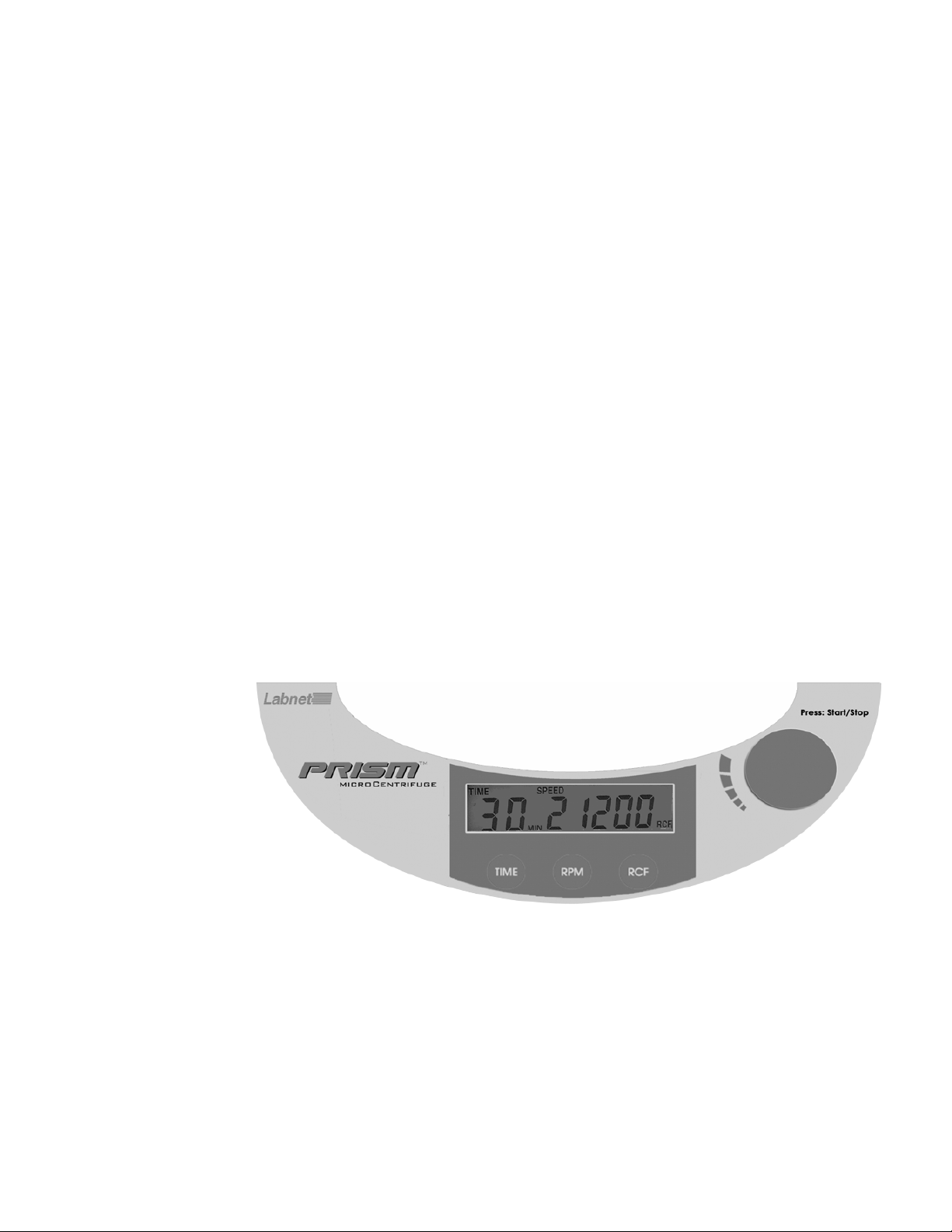

Figure 2. Prism Microcentrifuge control panel layout
The speed (rpm or g-force) can be selected from 500 to 15,000 rpm in 100 rpm increments or from
100 to 21,200 x g with the control knob. The speed is selected by pressing the RPM or RCF button. The
speed signal will begin to blink. Then, turn the control knob to increase or decrease the value.

6| LABNET PRISM MICROCENTRIFUGE
7.6 Selection of Operating Time, Momentary Operation, Start/Stop
Operating time can be selected from 0.5 min to 99 min by pressing the TIME button and adjusting with
the control knob. The time can be set in 0.5 minute increments from 0 to 10 minutes and in 1 minute
increments from 10 to 99 minutes. After 99 minutes, the display shows “--” which indicates continuous
run. In this mode, the centrifuge will run until manually stopped. To start a run, press the control knob.
When the preselected time expires, the centrifuge will stop automatically. To stop the centrifuge prior
to the expiration of set time, press the control knob. The centrifuge may be operated for a short run by
pressing and holding the control knob. The centrifuge will continue to run as long as the control knob is
depressed and the time, in seconds will count up on the time display.
8.0 Service and Maintenance
8.1 Centrifuge Service
The brushless motor in the Prism™ Microcentrifuge requires no routine maintenance. Any required
service should be performed by authorized, qualified personnel only. Repairs performed by unauthorized
personnel may void the warranty.
8.2 Cleaning
Always keep the centrifuge housing, rotor chamber, rotor and rotor accessories clean. All parts should be
wiped down periodically with a soft cloth. For more thorough cleaning, use a neutral cleaning agent (pH
between 6 and 8) applied with a soft cloth. Excessive amounts of liquid should be avoided. Liquid should
not come into contact with the motor. After cleaning, ensure that all parts are dried thoroughly by hand
or in a warm air cabinet (maximum temperature 50°C).
The rotor should be cleaned after each use. When spinning samples containing phenol or phenol
chloroform, the rotor should be cleaned immediately after use.
Should a spill of infectious materials occur within the rotor or chamber, the unit should be disinfected.
This should be performed by qualified personnel with proper protective equipment.
8.3 Replacing Fuses
Check the fuse when it is recommended in the Troubleshooting Guide located in this manual. The fuse
holder is located in the power inlet on the rear of the unit. Disconnect the power cord from the power
inlet. Open the fuse holder drawer by inserting a small screwdriver under the tab and prying it open.
Remove the innermost (operative) fuse from its retaining tabs and replace the fuse if necessary. A spare
fuse is located in the outermost chamber of the fuse drawer. Replace only with a fuse of exactly the
same value as the original. Fuse type may be found in the Technical data section of this manual.

Instruction Manual | 7
9.0 Troubleshooting Guide
Problem Possible Cause Solution
Centrifuge will not start No power supply Check that power is being supplied to
the outlet
Check that the power cord is plugged
into both the wall
outlet and the back of the centrifuge
Check that power cord is not damaged
Blown fuse Check fuse and replace if necessary
Lid lock will not release Defective lid lock Open manually and have unit serviced
No power from PC board Call for service
Lid lock is jammed Call for service
Centrifuge is not receiving
power
See “Centrifuge will not start”
Centrifuge cannot be
started, although power
is on
Lid not closed correctly Close lid correctly
No speed or time has been
selected
Set speed and/or time
bAL: Error Message
Indicates imbalance
Tubes not inserted
symmetrically in rotor holes
Load tubes symmetrically (see Section 3.4
on Loading the rotor)
Sample liquid in tubes not
balanced
Make sure the same volume of liquid is in
each tube
Defective or improperly
adjusted balance sensor
Call service
Lid: (Error message) Lid
not closed
Lid not closed completely Close lid
Lid lock or sensor defective Call service
Other Error Messages Er
on Display
–Press time or speed knob to clear error
Call service
Should you have a question about the operation of the Labnet Prism™ Microcentrifuge or if service is
required, contact Customer Service. Do not send in a unit for service without first calling to obtain a
repair authorization number. Should the unit require return for service, it should be properly packed to
avoid damage. Any damage resulting from improper packaging shall be the responsibility of the user.

8| LABNET PRISM MICROCENTRIFUGE
10.0 Determination of G-values
The centrifuging radius of the 1.5/2.0 mL rotor is 8.23 cm. The Prism™ Microcentrifuge has an automatic
g-force conversion program, so g-values are automatically calculated and can be displayed on the control
panel, for this centrifuging radius. If adapters or smaller tubes are used, the centrifuging radius changes
as does the g force. The chart on the next page can be used to manually determine g-values for any
centrifuging radius.

Instruction Manual | 9
11.0 Limited Warranty
Corning Incorporated (Corning) warrants that this product will be free from defects in material
and workmanship for a period of one (1) year from date of purchase. CORNING DISCLAIMS ALL
OTHER WARRANTIES WHETHER EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR OF FITNESS FOR A PARTICULAR PURPOSE. Corning’s sole obligation shall be
to repair or replace, at its option, any product or part thereof that proves defective in material or
workmanship within the warranty period, provided the purchaser notifies Corning of any such defect.
Corning is not liable for any incidental or consequential damages, commercial loss or any other damages
from the use of this product.
This warranty is valid only if the product is used for its intended purpose and within the guidelines
specified in the supplied instruction manual. This warranty does not cover damage caused by accident,
neglect, misuse, improper service, natural forces or other causes not arising from defects in original
material or workmanship. This warranty does not cover motor brushes, fuses, light bulbs, batteries or
damage to paint or finish. Claims for transit damage should be filed with the transportation carrier.
In the event this product fails within the specified period of time because of a defect in material or
workmanship, contact Corning Customer Service at: USA/Canada 1.800.492.1110, outside the U.S.
+1.978.442.2200, visit www.corning.com/lifesciences, or contact your local support office.
Corning’s Customer Service team will help arrange local service where available or coordinate a return
authorization number and shipping instructions. Products received without proper authorization will
be returned. All items returned for service should be sent postage prepaid in the original packaging or
other suitable carton, padded to avoid damage. Corning will not be responsible for damage incurred by
improper packaging. Corning may elect for onsite service for larger equipment.
Some states do not allow limitation on the length of implied warranties or the exclusion or limitation
of incidental or consequential damages. This warranty gives you specific legal rights. You may have other
rights which vary from state to state.
No individual may accept for, or on behalf of Corning, any other obligation of liability, or extend the
period of this warranty.
For your reference, make a note of the serial and model number, date of purchase, and supplier here.
Serial No. __________________________________________ Date Purchased _______________________________________
Model No. _________________________________________ Supplier _____________________________________________
12.0 Equipment Disposal
According to Directive 2012/19/EU of the European Parliament and of the Council of 4 July 2012
on waste electrical and electronic equipment (WEEE), this product is marked with the crossed-out
wheeled bin and must not be disposed of with domestic waste.
Consequently, the buyer shall follow the instructions for reuse and recycling of waste electronic and
electrical equipment (WEEE) provided with the products and available at www.corning.com/weee.

To request certificates, please contact us at www.labnetlink.com.
Warranty/Disclaimer: Unless otherwise specified, all products are for research use only. Not intended
for use in diagnostic or therapeutic procedures. Corning Life Sciences makes no claims regarding the
performance of these products for clinical or diagnostic applications.
For additional product or technical information, visit www.corning.com/lifesciences or call 800.492.1110.
Outside the United States, call +1.978.442.2200 or contact your local Corning sales ofce.
www.labnetlink.com
For a listing of trademarks, visit www.corning.com/clstrademarks. All other trademarks are the property of their respective owners.
© 2021 Corning Incorporated. All rights reserved. 4/21 CLSLN-AN-1003DOC REV1
Corning Incorporated
Life Sciences
www.corning.com/lifesciences
NORTH AMERICA
t 800.492.1110
t 978.442.2200
ASIA/PACIFIC
Australia/New Zealand
t 61 427286832
Chinese Mainland
t 86 21 3338 4338
India
t 91 124 4604000
Japan
t 81 3-3586 1996
Korea
t 82 2-796-9500
Singapore
t 65 6572-9740
Taiwan
t 886 2-2716-0338
EUROPE
[email protected]
[email protected]
LATIN AMERICA
[email protected]
Brazil
t 55 (11) 3089-7400
Mexico
t (52-81) 8158-8400
