Auto-Lift™
Operating System
Installation Instructions
Parasol Cellular Shades

CONTENTS
Getting Started:
Product View ................................................................ 1
Tools and Fasteners Needed .......................................... 2
Installation:
Installation Overview .................................................... 3
STEP 1 — Install the Brackets....................................... 3
Mount the Installation Brackets — Inside Mount........... 4
Mount the Installation Brackets — Outside Mount ........ 6
Mount the Installation Brackets — EndMount .............. 9
STEP 2 — Install the Shade ........................................ 10
STEP 3 — Connect the Power Source.......................... 12
Operation:
Operate the Shade ...................................................... 15
Reset the Shade ......................................................... 16
Level the Bottom Rail (If Necessary).............................. 16
Troubleshooting .......................................................... 17
Care:
Removing the Shade (If Necessary) .............................. 19
Cleaning Procedures ................................................... 19
© 2014. All rights reserved.
Radio Frequency FCC Compliance:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
■Reorient or relocate the receiving antenna.
■Increase the separation between the equipment and receiver.
■Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
■Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.

GETTING STARTED
1
Product View
Not Shown:
Bottom-Up/Top-Down Shade
Day/Night Shade
Installation
Brackets
Spacer
Blocks
Bottom Rail
Standard
Bottom-Up
Shade
Headrail
Low Mount
Battery Wand
Bracket (Optional)
Battery Pack Mounting Bracket Options
(Rear View)
High Mount
Battery Wand
Bracket (Standard)
Satellite Battery Pack or
DC Power Supply (Optional)
18V Battery
Wand with Batter
y
Wand Clip
DC Power Supply
Sensor Eye and
Manual Button

2
GETTING STARTED
Thank you for purchasing battery-powered motorized shades. With proper installation, operation,
and care, your new shades will provide years of beauty and performance. Please thoroughly
review this instruction booklet before beginning the installation.
Tools and Fasteners Needed
■Flat blade and Phillips screwdriver ■Level (laser level is recommended)
■Measuring tape and pencil ■Power drill,
3
/ 32 " drill bit, and
1
/ 4 " hex driver
In addition, you will need fasteners designed to work with your specific mounting surface(s).
■#6 Hex Head Screws (Provided). Two 1
1
/ 2 " screws are provided per installation bracket.
■Longer #6 Hex Head Screws (Not Provided). If using spacer blocks, use #6 screws long
enough for a secure attachment.
■#6 Flat Head Screws (Provided). If end mounting the shade, use two 1
1
/ 2 " screws per
installation bracket.
■Speed Nuts and Screws (Provided). Extension brackets come with speed nuts and screws.
■Drywall Anchors (Not Provided). Use drywall anchors when mounting into drywall.
Speed Nut
and Screw
(Provided with Each
Extension Bracket)
#6 x 1
1
/ 2 "
Hex Head Screw
(Provided)
Longer #6 Hex Head Screw
for Use with Spacer Blocks
(Not Provided)
#6 Flat Head Screw
for Use with Common
Headrail End Mounts
(Provided)

INSTALLATION
3
Installation Overview
To install your shade, you will need to perform the following three easy steps:
STEP 1: Install the Brackets
STEP 2: Install the Shade
STEP 3: Connect the Power Source
STEP 1 — Install the Brackets
■Your order will include the correct number of installation
brackets for your shade width, as shown in the table.
➤There are two sizes of installation brackets, one for
3
/ 8 " and
3
/ 4 " pleat sizes and a larger one for 1
1
/ 4 "
pleat sizes.
➤For end mounts, only two brackets are used up to the
maximum of 72".
IMPORTANT: A
1
/ 2 " spacer block is required for shades
using the battery wand clip. The spacer block is pre-attached to
the back of the installation bracket.
■Should the spacer block become detached, reattach it.
➤Insert the legs of the installation bracket into the tabs
onthespacer block.
➤Rotate the installation bracket back,
asshown.
1¼"
Installation
Bracket
3
∕8" and ¾"
Installation
Bracket
1¼"
End Mount
Brackets
3∕8" and ¾"
End Mount
Brackets
Shade
Width
Brackets
Required
12" – 36" 2
36
1
/ 8 " – 72" 3
72
1
/ 8 " – 108" 4
108
1
/ 8 " – 144" 5
144
1
/ 8 " – 174" 6
TabTab

INSTALLATION
4

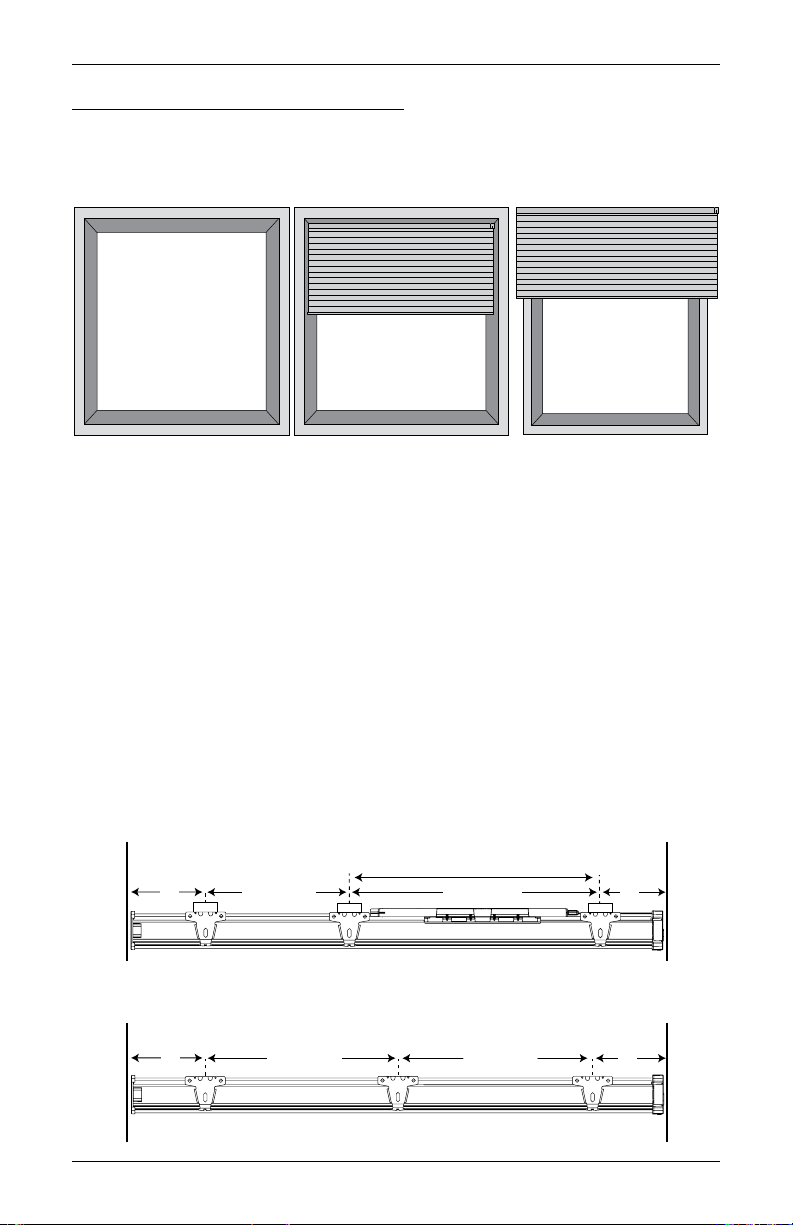

Mounting Types and Window Terminology
If the installation brackets are mounted correctly, the rest of the installation process follows very
easily. To prepare for this important first step, review the mounting types and basic window
terminology illustrated below.
■Refer to the appropriate page below based on your order:
➤Inside Mount — Below
➤Outside Mount — Page 7
➤End Mount — Page 9
Mount the Installation Brackets — Inside Mount
■Mark 2" in from each jamb for bracket location.
➤If more than two installation brackets came with your order, space additional bracket(s)
evenly between the two end brackets. Allow a minimum of 15" between the brackets at
the motor end for the battery wand. Mount into wood whenever possible.
Outside Mount
Shade mounts outside
window opening.
Inside Mount
Shade fits within
window opening.
Collectively, the sill and
jambs are called the
“window casement.”
Molding
Head Jamb
Sill
Jamb Jamb
Jamb
Motor
End
Jamb
Shades with Battery Wand (Top View)
Space Evenly
2" 2"
Minimum of 15" for Battery Wand
Shades with Optional Satellite Battery Pack or DC Power Supply (Top View)
Space Evenly
Jamb
Motor
End
Jamb
Space Evenly
2" 2"
Space Evenly

INSTALLATION
5
■Center the brackets on your marks, then mark each of the screw holes.
➤Mounting depths vary depending on the fabric pleat size. See the following chart for
minimum and fully recessed (from the front of the sill to the back of the installation
bracket) depth requirements.
➤For window casement using the minimum depth of
1
/ 2 ", mark both winged screwholes.
➤For all other mounting options, mark the center screw hole.
Mounting Depth Requirements
Fabric Design:
A
B
A
B
A
B
A
B
A
B
A
B
A
B
A
B
A
B
High Mount Bracket
(Standard)
Low Mount Bracket
(Optional)
Satellite Battery Pack
or DC Power Supply
(Optional)
3
/ 8 " and 3 / 4 "
Pleat Sizes
and
Double Cell
Fabric
1
1
/ 4 "
Pleat
Size
3
/ 8 " and 3 / 4 "
Pleat Sizes
and
Double Cell
Fabric
1
1
/ 4 "
Pleat
Size
3
/ 8 " and 3 / 4 "
Pleat Sizes
and
Double Cell
Fabric
1
1
/ 4 "
Pleat
Size
Minimum Mounting
Depth: Inside Mount (A) 1" 1" 1" 1"
1
/ 2 "
1
/ 2 "
Minimum Mounting
Depth: End Mount 1
3
/ 4 " 1
3
/ 4 " 1
3
/ 4 " 1
3
/ 4 " 1
1
/ 4 " 1
1
/ 4 "
Minimum Mounting
Depth: Flush Mount (B) 2
3
/ 4 " 3
1
/ 2 " 2
5
/ 8 " 3
3
/ 8 " 2
1
/ 4 " 3"
Minimum Flat Vertical
Surface: Outside Mount 1
1
/ 4 " 1
1
/ 4 " 1
1
/ 4 " 1
1
/ 4 " 1
1
/ 4 " 1
1
/ 4 "
Use Center Hole
When Depth Permits
See Depth
Chart

INSTALLATION
6

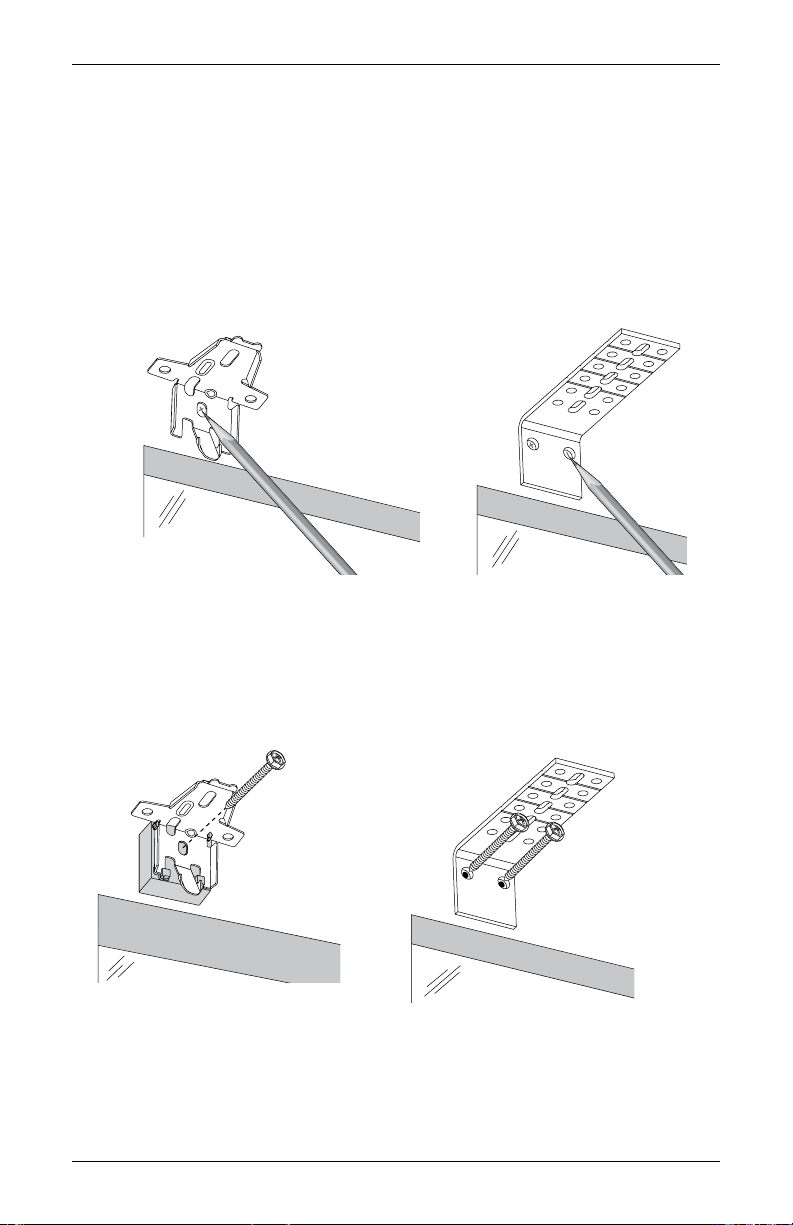

■Drill the screw holes using a
3
/ 32 " drill bit.
CAUTION: Use drywall anchors when mounting into drywall.
■Use a level to check that the mounting surface is level. Shim the brackets if necessary.
■Attach the installation brackets using the screws provided.
IMPORTANT: The front edges of the installation brackets must be level and aligned. If
mounting to a heavily textured surface, shim the brackets, if needed.
Proceed to “STEP 2 — Install the Shade” on page 10.
Mount the Installation Brackets — Outside Mount
■Center the headrail over the window opening at the desired height. Use a pencil to lightly
mark the wall at each end of the headrail.
➤Alternatively, measure the width of the headrail and use that width to mark the headrail
end points over the window opening.
■Mark 2" from each end of the headrail.
➤If more than two installation brackets came with your order, space them evenly between
the two end brackets and mark their location. Mount into wood whenever possible.
Headrail End Marks
Window Opening
2" 2"
Space EvenlySpace Evenly
Minimum of 15" for Battery Wand

INSTALLATION
7
■Center the brackets on your marks, then mark each of the screwholes.
➤A minimum of 1
1
/ 4 " flat vertical surface is required to mount the brackets.
➤The top of the installation brackets or extension brackets should be at the desired shade
height. The brackets should be level and aligned.
➤When using extension brackets, mark two screw holes per bracket.
CAUTION: The rear of the brackets must be flush against a flat mounting surface. Do not
mount brackets oncurved molding.
■Drill the screw holes using a
3
/ 32 " drill bit.
CAUTION: Use drywall anchors when mounting into drywall.
■Attach the installation or extension brackets using the screws provided.
IMPORTANT: The front edges of the brackets must be level and aligned to each other.

INSTALLATION
8

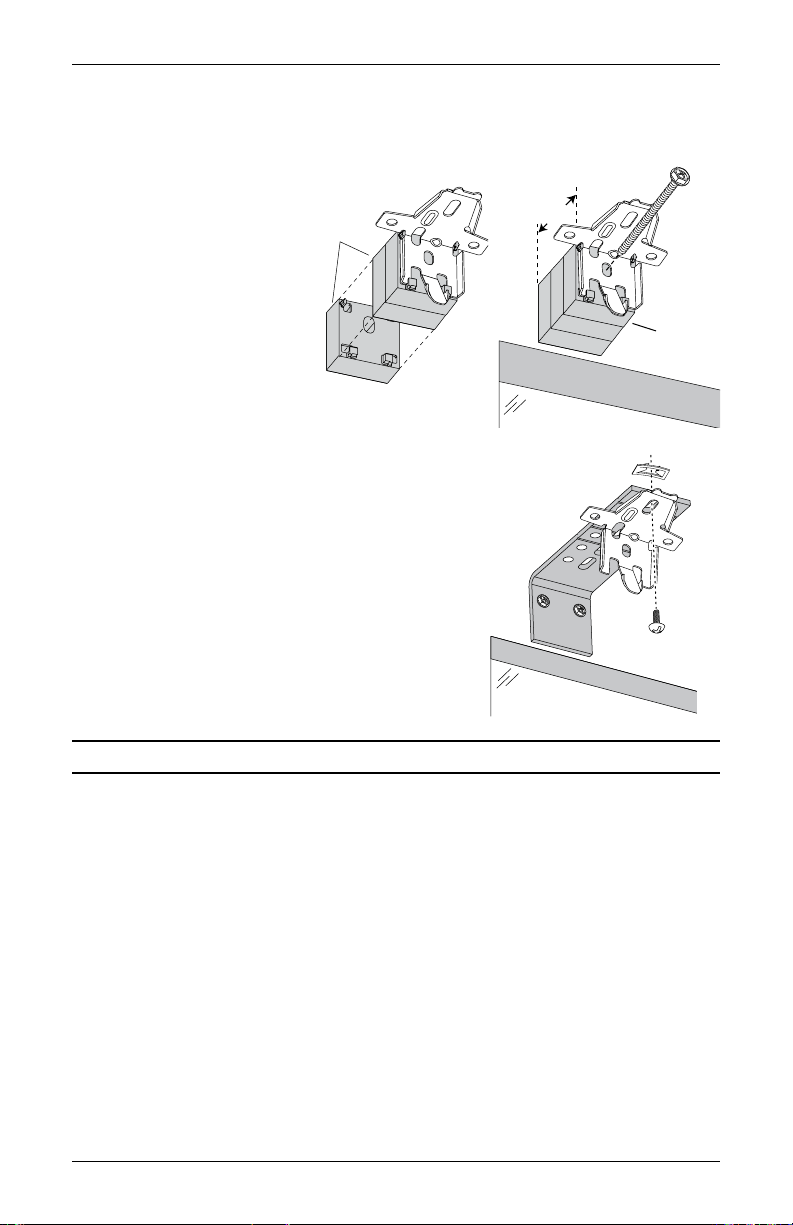

■If using additional spacer blocks, attach the spacer block/installation bracket assembly to a
flat vertical mounting surface with a #6mounting screw long enough for asecure
installation.
■If using more than one
spacer block, snap
the additional spacer
block(s) to the pre-
installed spacer block.
➤A maximum of 1
1
/ 2 "
of spacer blocks per
installation bracket
is recommended.
■If using extension brackets, attach an installation bracket
to the underside of each extension bracket using the
provided screws and speed nuts.
Proceed to “STEP 2 — Install the Shade” on page 10.
Shims and
spacer blocks
may be stacked.
Spacer Blocks
1
1
/
2
"
Speed
Nut
Extension
Bracket

INSTALLATION
9
Mount the Installation Brackets — EndMount
End mount the headrail when conventional mounting techniques will not work — for example, in
an arched window opening.
■Position the end mount brackets so that the top of the attached installation brackets are at
the ordered height of the shade.
CAUTION: Both brackets must be installed at the same depth and height.
■Mark both screw holes for each end mount bracket.
➤The mounting surface must be vertical
and flat, not part of an archedcurve.
➤Minimum mounting depths and minimum
flush mount depths vary depending upon
your shade(s) pleat sizes and mounting
options. To determine specific mounting
depths, refer to the chart on page 5.
NOTE: The measurement for a
fullyrecessed end mount is from the front
of the window casement to the back of
the mounting bracket.
■Drill the holes using a
3
/ 32 " drill bit.
■Attach the end mount installation brackets usingthe flat
head screwsprovided.
CAUTION: Drywall mounting is not recommended.
IMPORTANT: For instructions on installing an arch
over a rectangular shade, see the installation,
instructions that came with your arch shade.
Proceed to “STEP 2 — Install the Shade” on page 10.
1
1
/
4
"
Minimum
Ordered
Shade
Height
1
1
/
4
"
Minimum
Ordered
Shade
Height

INSTALLATION
10
STEP 2 — Install the Shade

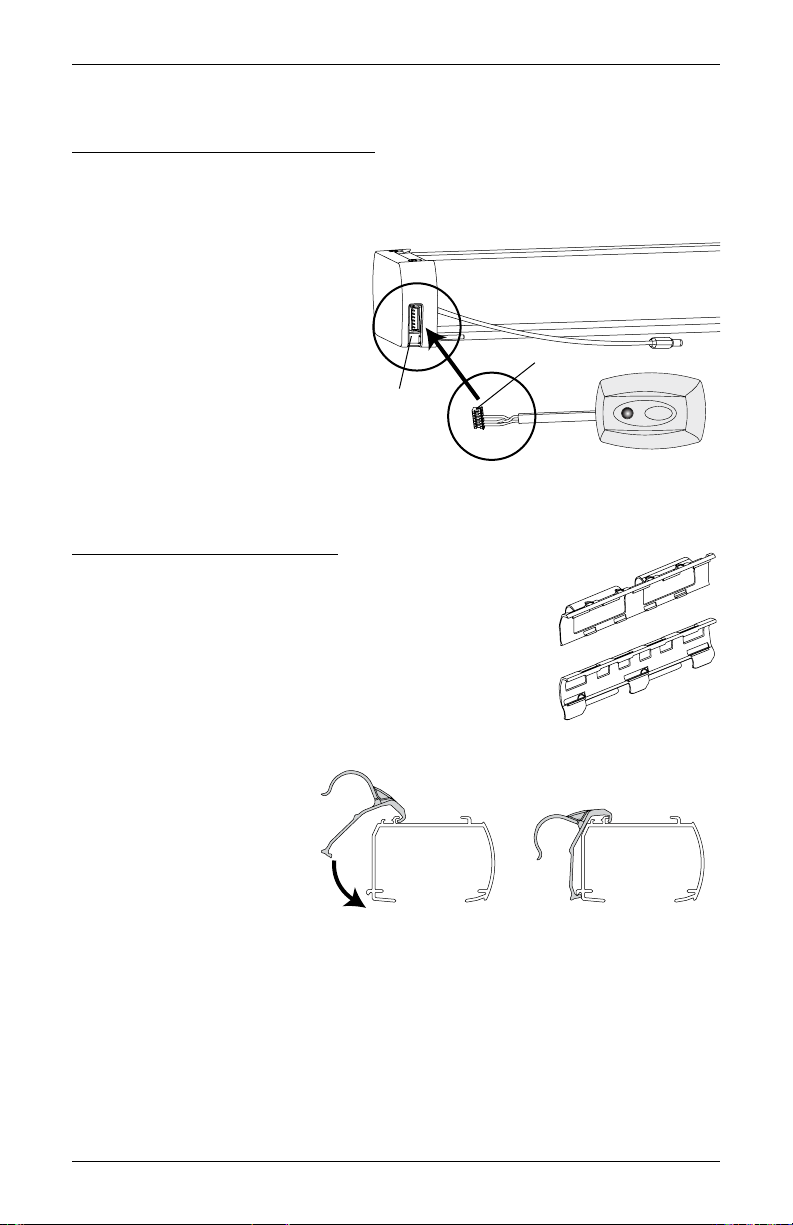

If You Have an External Satellite Eye...
CAUTION: Handle the external eye carefully to avoid damaging the infrared eye. Do not touch
the infrared eye.
■Plug the 6-pin satellite eye connector
into the 6-pin port on the side of
the controller housing, on the back
of the headrail. Be sure the plug
is oriented correctly. Do not force
theconnection.
IMPORTANT: For the shade to
recognize the satellite eye, the eye
must be plugged into the 6-pin port
before the shade is connected to the
power source.
If You Have a Battery Wand Clip...
(For DC power supply or satellite battery
pack installations, skip this step.)
■Attach the battery wand clip to the headrail.
IMPORTANT: Position the clip so that the battery wand will
be between installation brackets.
■Hook the battery wand
clip onto the back channel
ofthe headrail.
■Rotate the clip down until it
snaps into place.
CAUTION: Be sure the power cable or satellite eye cable does not become pinched by the
brackets or headrail during installation; damage or overheating of components couldresult.
CAUTION: Do not connect the battery wand to the power cable prior to installing the shade.
6-Pin Connector
Satellite Eye
6-Pin P
ort
Back of Shade
Battery Wand Clip
(High Mount – Standard)
Battery Wand Clip
(Low Mount – Optional)
Front of
Headrail
Battery
Wand
Clip Front of
Headrail

INSTALLATION
11
Mount the Headrail
■Hold the shade so that the front of the headrail faces you.
■Slip the headrail onto the installation brackets, so that the
front of the bracket fits under the groove of theheadrail.
■Push the headrail up and back until it snaps into place.
■Inspect the installation brackets to verify the back of
the headrail is securely snapped into the base of each
bracket. Also, the front edge of each bracket must be in
the groove of the headrail. If any brackets are not installed
correctly, remove the shade and reinstall. See “Removing
the Shade (If Necessary)” on page 19.
If You Have an External Satellite Eye...
CAUTION: Handle the external eye carefully to avoid damaging the infrared eye. Do not touch
the infrared eye.
■For infrared operation, choose a location where the infrared signal from the remote is not
obstructed. Check that the wire is not caught or pinched in the brackets or headrail.
IMPORTANT: For infrared operation do not mount the satellite eye in direct sunlight
or bright, focused light such as from halogen or fluorescent light fixtures, track lighting,
spotlights, or neonlights.
Mount the Satellite Eye
■Using a single screw, mount the hinged flange to the wall through
the center hole on the flange. The satellite eye should face down,
as shown in the illustration.
■After mounting the hinged flange, swivel the satellite eye
upward to the correct angle for receiving an infrared signal
from the remote control.
The back of the headrail
snaps into the bracket.
The front of the bracket
fits under the groove.
Headrail
Bracket
Snap
in Place
Good Bad
Good
Bad
Wall

INSTALLATION
12
STEP 3 — Connect the Power Source
■Refer to the appropriate page based on your order.
➤For a battery wand or satellite battery pack, see “If You Have a Battery Wand or Satellite
Battery Pack...” below.
➤For an optional DC power supply, see “If You Have a DC Power Supply...” on page 14.
➤For an optional DC power supply with daisy-chain connections, see “If You Have a DC
Power Supply with Daisy-Chain Connections...” on page 14.
If You Have a Battery Wand or Satellite Battery Pack...
Install the Batteries into the Battery Wand
■Squeeze the cap latch to release thecap.
■Remove the cap from the battery wand.
■Install the batteries according to the
instructions on the battery wand label.
➤AA alkaline batteries are recommended for use with Battery-Powered shades. These will
provide approximately one year of operation. Lithium and rechargeable batteries are not
recommended.
■Replace the cap.
➤Align the tab with the end of the wand.
➤Press the cap on until it latches.
IMPORTANT: If you have a satellite battery pack, proceed to “If You Have a Satellite
Battery Pack...” on page 13 for installation of the wall mount bracket.
Mount the Battery Wand into theBatteryWandClip
■Align the battery
wand with its socket
toward the motor
side end cap.
■Push the battery
wand straight up into the
battery wand clip until it snaps into place.
Check to make sure the battery wand is secure.
CAUTION: Be sure the cable does not become pinched by the battery wand clip during
installation. Damage or overheating of components could result.
Tab Slot
Cap
Latch
Battery
Wand
Squeeze
Back of Shade
Socket

INSTALLATION
13
Plug the Power Cable into the Battery Wand
■On the back of the headrail, connect the
power cable (coming from the shade) into
the socket on the battery wand.
Proceed to “Operate the Shade” on page 15.
If You Have a Satellite Battery Pack...
Mount the Satellite Battery Pack
■Decide where you want to attach the wall mount bracket.
A satellite battery pack may be mounted in any orientation.
■Mark the screw holes.
■Drill the screw holes using a
3
/ 32 " drill bit.
■Remove the backing from the double-sided tape. Press the bracket into place.
■Attach the bracket using the screws provided.
■Position the battery wand so the power cable is easily connected to the socket.
■Snap the battery wand into the bracket.
■Install the battery wand cover with the slot aligned
to the socket in the battery wand.
■Plug the power cable from the shade into the
extension cable.
■Plug the other end of the extension cable
into the socket in the battery wand.
■Secure the power supply cable using wire
retainers (not supplied). If hiding the cable
behind the shade, make sure it does not impede
the operation of theshade.
Proceed to “Operate the Shade” on page 15.
Wall Mount Bracket
Socket
Battery Wand Cover
Socket
Slot
Battery Wand Cover
Extension
Cable
Power Cable
from Shade

INSTALLATION
14

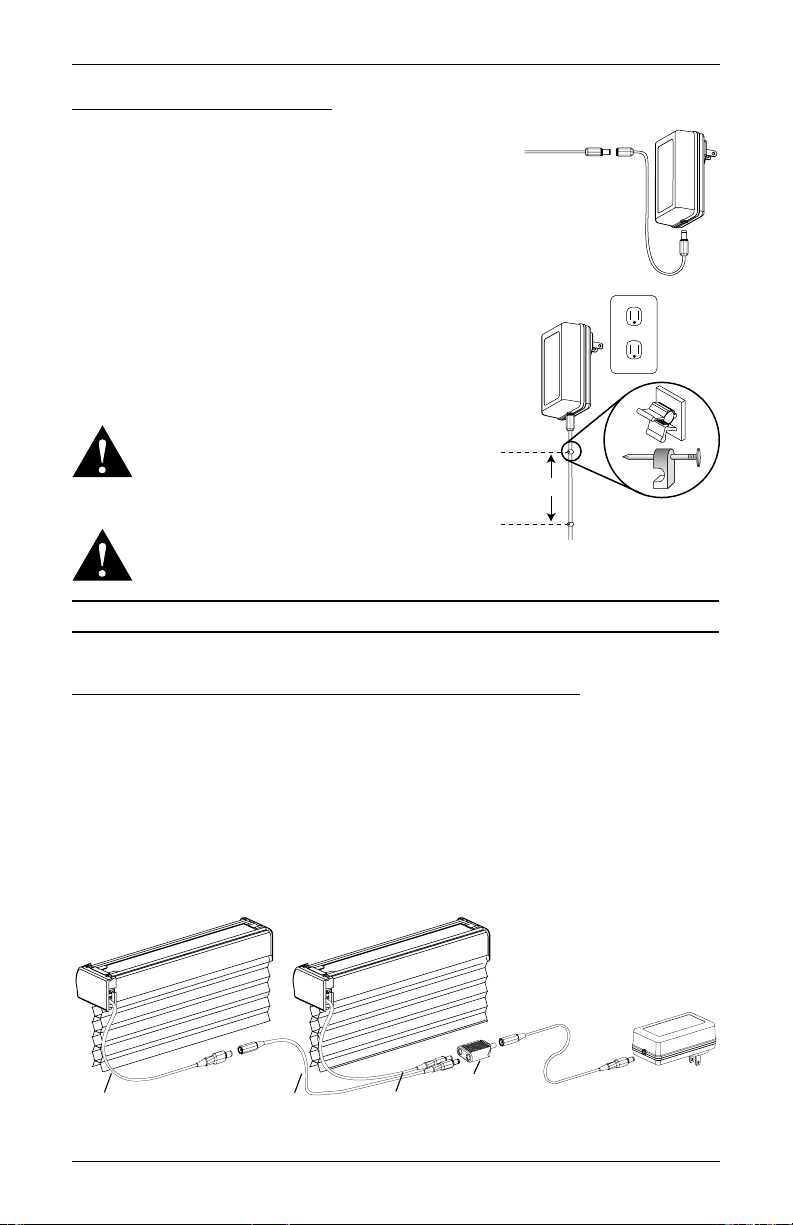

If You Have a DC Power Supply...
Connect the Power Supply
■Plug the power cable from the shade into the extension cable.
■Plug the other end of the extension cable into the DC power supply.
■Plug the DC power supply into a standard outlet.
■Secure the power supply cable using wire retainers (not supplied). If
hiding the cable behind the shade, make sure it does not
impede the operation of theshade.
■Space the wire retainers approximately 15" apart along
the power supply cable, as shown.
WARNING: Keep cables and small parts out of
the reach of children. They can wrap cables
around their necks and STRANGLE. They can also
put small parts in their mouths and CHOKE.
WARNING: Electric shock and/or a fire hazard
may occur, if not properly installed.
Proceed to “Operate the Shade” on page 15.
If You Have a DC Power Supply with Daisy-Chain Connections...
The daisy-chain feature allows up to three shades to be powered by a single DC power supply.
However, each shade has its own receiver eye and can operate independently. The daisy-chain
feature is only available with the DC power supply option.
■Route the power cables from each shade through the connector, using an extension cable,
if necessary.
■Plug an extension cable into the connector and the DC power supply. Two extension cables
and two connectors are used for three shades.
Power Cable
from the Shade
Extension
Cable
DC Power
Supply
Plug
15" (Max)
Po
wer
Supply
Wire Retainer
Power Cable
from Shade
Extension
Cable
Power Cable
from Shade
Connector

OPERATION
15
Operate the Shade
Test the Shade Using the Manual Control Button
Testing the shade with the manual control button will allow you to ensure that the motor and
power source are working correctly.
CAUTION: When raising the shade for the first time, observe how the fabric stacks. It should
stack evenly. If the bottom rail is not level, the shade starts to rub against either window jamb,
or the shade height is incorrect, immediately stop the shade. See “Level the Bottom Rail (If
Necessary)” on page 16.
■Press the manual control button on the bottom of the
end cap to test operation.
➤Press the button to alternately lower, stop, and raise
the shade.
NOTE: For Bottom-Up/Top-Down and Day/Night shades the bottom rail must be in the fully
lowered position to operate the middle rail. The middle rail must be in the fully raised postion
to operate the bottom rail.
■If the shade does not operate, see “Resetting the Shade” on page 16 or refer to
“Troubleshooting” on page 17.
Further Operation and Programming Information
Remote Control Operation
For information regarding operation and programming of the remote control,
refer to your Remote Control Guide.
Wireless Wall Switch Operation
For information regarding operation and programming of the wireless wall switch,
refer to your Wireless Wall Switch Guide.
Home Automation Control via the Connection Interface
For information regarding operation via a home automation system, refer to your
Connection Interface Installation Guide.
Manual
Control
Button
Front of
Shade
Note: The wireless wall switch will
not be available until 3Q 2014, but
we left it in these instructions. If you
wish, remove it from this page and the
troubleshooting section.

OPERATION
16
Resetting the Shade
Basic Reset
■Press and hold the manual control button for 6+ seconds. The shade moves slightly up and
down once to indicate that it has been reset. Release the button.
■Press and release the manual control button to close the shade completely. This sets the
lower motor limit.
■Press and release the manual control button again to open the shade completely. This sets
the upper motor limit.
Factory Reset
To clear all stops, erase all radio frequency (RF) programming, and reset the shade to factory
default:
■Press and hold the manual control button for 12+ seconds. The shade moves slightly up
and down twice to indicate that it has been reset. Release the button.
■Press and release the manual control button to close the shade completely. This sets the
lower motor limit.
■Press and release the manual control button again to open the shade completely. This sets
the upper motor limit.
NOTE: Both upper and lower motor limits have been reset. However, any intermediate
stop position is cleared and all RF programming has been erased and will need to be
programmed again.
Level the Bottom Rail (If Necessary)
■Lift the bottom rail to locate the pockets on the underside
of the rail.
■Gently pull down on the bottom rail to fully insert the
7
/ 64 "
Allen wrench key into the pocket. The key is fully inserted
when the ring on the key abuts to the pocket.
➤Lift up the bottom rail slightly before turning the
Allen wrench key. Turn the key clockwise to raise
that side of the bottom rail, or counter-clockwise to
lower it.
➤One quarter turn of the key equals approximately
1
/ 4 ".
IMPORTANT: The Allen wrench key must be fully inserted to avoid stripping the
mechanism. Do not pull down on the bottom rail while turning the key.
■If more than two pockets exist, adjust the outer pockets first. Then adjust inner pockets
as necessary, to maintain equal tension across the bottom rail. As pocket adjustments are
made, it is recommended that the shade be raised and lowered to check that it is level.
Pocket
Underside of Bottom Rail
Allen
Wrench
Key
Lower
Raise

OPERATION
17
Troubleshooting
If your shade is not operating correctly:
■First review the guide that came with your remote control or wireless wall switch.
■Next refer to the following troubleshooting procedures below for the specific solutions for
your shade.
Problem The shade will not fit into the installation brackets.
Solution Check that the installation brackets are level and aligned. Adjust and/or shim to
level, if necessary.
Be sure the heads of the mounting screws are flush against the installation
bracket.
Make sure that the shade fabric is not caught between the installation bracket
and the headrail.
Check that the headrail is completely inserted into the installation brackets. See
“STEP 2 — Install the Shade” on page 10.
Problem The shade is not responding to the remote or the wireless wall switch.
Solution Battery power may be low in the battery wand or satellite battery pack. Replace
the batteries.
Check that the battery wand, satellite battery pack, or DC power supply is
securely connected to the power cable and the cables are not pinched or caught
in the headrail or installation brackets.
Reset the shade. See “Resetting a Window Covering to its Factory Defaults”
in the Remote Control Guide or the Wireless Wall Switch Guide for further
information or see “Resetting the Shade” on page 16.
See the Remote Control Guide or the Wireless Wall Switch Guide for operation or
programming troubleshooting solutions.

OPERATION
18
Problem The shade is operating slowly or does not raise or lower completely.
Solution The batteries may be low in the wand or satellite battery pack. Replace the
batteries.
Check that the battery wand, satellite battery pack, or DC power supply is
securely connected to the power cable and the cables are not pinched or caught
in the headrail or installation brackets.
Check that the fabric stacks up evenly into the headrail. If not, see “Level the
Bottom Rail (If Necessary)” on page 16.
Reset the stop positions. See “Resetting a Window Covering to its Factory
Defaults” in the Remote Control Guide or the Wireless Wall Switch Guide for
further information.
Problem The shade raises or lowers unevenly or the bottom rail is uneven when fully
raised.
Solution Lower the shade completely to allow it to “self-correct” skewing.
Check that the headrail and installation brackets are level and aligned. Shim the
installation brackets to level the headrail, ifnecessary.
Adjust the bottom rail. See “Level the Bottom Rail (If Necessary)” on page 16.
