laguna MDCCF32201 User manual

3HP CYCLONE
1 MICRON CANISTER

3HP Mobile Dust Cyclone Manual
1
TABLE OF CONTENTS
Important Safety Instructions
Safety Guidelines - Definitions
General Safety Rules
Additional Safety For Dust Collectors
Power Connections
Motor Specifications
Grounding Instructions
Key Features and Components
Functional Description
Product Specifications
npacking
Assembly
General Tool Assembly
Maintenance Procedures
Cleaning the Filter
Changing the Filter Bag
Emptying the Drum
Routine Inspection
Trouble Shooting
Parts breakdown and parts list

3HP Mobile Dust Cyclone Manual
2
IMPORTANT SAFETY INSTRUCTIONS
READ AND UNDERSTAND ALL WARNINGS AND OPERATING
INSTRUCTIONS BEFORE USING THIS EQUIPMENT. Failure to follo all instructions listed
belo , may result in electric shock, fire, and/or serious personal injury or property
damage.
Wood orking can be dangerous if safe and proper operating procedures are not follo ed.
As ith all machinery, there are certain hazards involved ith the operation of the product.
Using the machine ith respect and caution ill considerably lessen the possibility of
personal injury. Ho ever, if normal safety precautions are overlooked or ignored, personal
injury to the operator may result. Safety equipment such as guards, push sticks, hold-
do ns, featherboards, goggles, dust masks and hearing protection can reduce your
potential for injury. But even the best guard on’t make up for poor judgment,
carelessness or inattention. Always use common sense and exercise caution in the
orkshop. If a procedure feels dangerous, don’t try it. Figure out an alternative procedure
that feels safer. REMEMBER: Your personal safety is your responsibility.
This machine as designed for certain applications only. We
strongly recommend that this machine not be modified and/or used for any application
other than that for hich it as designed. If you have any questions relative to a
particular application, DO NOT use the machine until you have first contacted the
manufacturer to determine if it can or should be performed on the product.
If you have any questions relative to its application DO NOT use the product until you
have contacted the manufacturer and e have advised you.
When using an electrical appliance, basic precautions should al ays be follo ed, including
the follo ing:
READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE)
To reduce the risk of fire, electric shock, or injury:
1. Do not leave appliance hen plugged in. Unplug from outlet hen not in use and before
servicing.
2. Do not use outdoors or on et surfaces
3. Do not allo to be used as a toy. Close attention is necessary hen used by or near
children.
4. Use only as described in this manual. Use only manufacturer’s recommended
attachments.
5. Do not use ith damaged cord or plug. If appliance is not orking as it should, has
been dropped, damaged, left outdoors, or dropped into ater, return it to a service center.

3HP Mobile Dust Cyclone Manual
3
6. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord
around sharp edges or corners. Do not run appliance over cord. Keep cord a ay from
heated surfaces.
7. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
8. Do not handle plug or appliance ith et hands.
9. Do not put any object into openings. Do not use ith any opening blocked; keep free of
dust, lint, hair, and anything that may reduce air flo .
10. Keep hair, loose clothing, fingers, and all parts of body a ay from openings and
moving parts.
11. Turn off all controls before unplugging.
12. Use extra care hen cleaning on stairs.
13. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in
areas here they may be present.
14. Connect to a properly grounded outlet only. See Grounding Instructions.
SAVE THESE INSTRUCTIONS
1. Read and understand the arnings posted on the machine and in this manual.
Failure to comply ith all of these arnings may cause serious injury.
2. Replace the arning labels if they become obscured or removed.
3. This 3HP Portable Cyclone Dust Collector is designed and intended for use by
properly trained and experienced personnel only. If you are not familiar ith the
proper and safe operation of this type of dust collector, do not use until proper
training and kno ledge have been obtained.
4. Do not use this machine for other than its intended use. If used for other purposes,
LAGUNA TOOLS INC., disclaims any real or implied arranty and holds itself
harmless from any injury that may result from that use.
5. Al ays ear approved safety glasses/face shields hile using this machine.
6. Before operating this dust collector, remove tie, rings, atches and other je elry,
and roll sleeves up past the elbo s. Remove all loose clothing and confine long hair.
Non-slip foot ear or anti-skid floor strips are recommended. Do not ear gloves.
7. Wear ear protectors (plugs or muffs) during extended periods of operation.
8. Some dust created by po er sanding, sa ing, grinding, drilling and other
construction activities contain chemicals kno n to cause cancer, birth defects or
other reproductive harm. Some examples of these chemicals are:
•Lead from lead based paint.
•Crystalline silica from bricks, cement and other masonry products.
•Arsenic and chromium from chemically treated lumber.

3HP Mobile Dust Cyclone Manual
4
Your risk of exposure varies, depending on ho often you do this type of ork. To
reduce your exposure to these chemicals, ork in a ell-ventilated area and ork
ith approved safety equipment, such as face or dust masks that are specifically
designed to filter out microscopic particles.
9. Do not operate this machine hile tired or under the influence of drugs, alcohol or
any medication.
10.Make certain the s itch is in the OFF position before connecting the machine to the
po er source.
11.Make certain the machine is properly grounded.
12.Make all machine adjustments or maintenance ith the machine unplugged from
the po er source.
13.Form a habit of checking to see that all extra equipment such as adjusting keys,
renches, scrap, stock, and cleaning rags are removed a ay from the machine
before turning on.
14.Keep safety guards in place at all times hen the machine is in use. If removed for
maintenance purposes, use extreme caution and replace the guards immediately
hen maintenance is complete.
15.Make sure the dust collector is on a flat even surface and the heels locked in place
before use.
16.Check damaged parts. Before further use of the machine, a guard or other part that
is damaged should be carefully checked to determine that it ill operate properly
and perform its intended function. Check for alignment of moving parts, binding of
moving parts, breakage of parts, mounting and any other conditions that may
affect its operation. A guard or other part that is damaged should be properly
repaired or replaced.
17.Provide for adequate space surrounding ork area and non-glare, overhead lighting.
18.Keep the floor around the machine clean and free of scrap material, oil and grease.
19.Keep visitors a safe distance from the ork area. Keep chil ren away.
20.Make your orkshop child proof ith padlocks, master s itches or by removing
starter keys.
21.Give your ork undivided attention. Looking around, carrying on a conversation and
“horse-play” are careless acts that can result in serious injury.
.

3HP Mobile Dust Cyclone Manual
5
22.Maintain a balanced stance at all times so that you do not fall or lean against the
dust collector. Do not overreach or use excessive force to perform any machine
operation.
23.Use the right tool at the correct speed and feed rate. Do not force a tool or
attachment to do a job for which it was not designed. The right tool will do the job
better and safer.
2 .Use recommended accessories; improper accessories may be hazardous.
25.Maintain machinery with care. Follow instructions for lubricating and changing
accessories.
26.Turn off the machine before cleaning. Use a brush or compressed air to remove
dust or debris — do not use your hands.
27.Do not stand on the machine. Serious injury could occur if the machine tips over.
28.Never leave the machine running unattended. Turn the power off and do not leave
the machine until it comes to a complete stop.
29.Never operate or run the machine without closing the drum up against the lid.
Failure to do so will result in the machine amperage increasing and may trip your
circuit.
Familiarize yourself with the following safety notices used in this manual:
SAFETY GUIDELINES - DEFINITIONS
This manual contains information that is important for you to know and understand. This
information relates to protecting YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS.
To help you recognize this information, we use the symbols below. Please read the manual
and pay attention to these sections.
Indicates an imminently hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury.

3HP Mobile Dust Cyclone Manual
6
Used ithout the safety alert symbol indicates potentially hazardous
situation hich, if not avoided, may result in property damage.
GENERAL SAFETY RULES
WARNING FAILURE TO FOLLOW THESE RULES MAY RESULT
IN SERIOUS PERSONAL INJURY.
FOR YOUR OWN SAFETY, READ AND UNDERSTAND THE INSTRUCTION MANUAL
BEFORE OPERATING THE MACHINE. Learn the unit’s application and limitations as ell
as the specific hazards peculiar to it.
KEEP WORK AREA CLEAN. Cluttered areas and benches invite accidents.
DON’T USE IN DANGEROUS ENVIRONMENT. Don’t use this unit in damp or et
locations, or expose it to rain. Keep ork area ell-lighted.
KEEP CHILDREN AND VISITORS AWAY. All children and visitors should be kept a safe
distance from ork area.
DISCONNECT UNIT before servicing.
CHECK DAMAGED PARTS. Before further use of the unit, properly repair or replace any
part that is damaged.
FAILURE TO FOLLOW THESE RULES MAY RESULT IN
SERIOUS INJURY.
ADDITIONAL SAFETY FOR DUST COLLECTORS
Inten e use. This dust collector is only intended for collecting ood dust and chips from
ood orking machines. Do not use this dust collector to collect metal, dirt, pebbles,
dry all, asbestos, lead paint, silica, liquids, aerosols, or any flammable, combustible, or
hazardous materials.
Hazar ous ust. Dust created hile using machinery may cause cancer, birth defects, or
long-term respiratory damage. Be a are of dust hazards associated ith each ork piece
material, and al ays ear a NIOSH-approved respirator to reduce your risk.

3HP Mobile Dust Cyclone Manual
7
Dust allergies. Dust from certain oods may cause an allergic reaction in people and
animals.
Make sure you kno hat type of ood dust you ill be exposed to in case there is a
possibility of an allergic reaction.
Wear respirator. Fine dust that is too small to be caught in the filter ill be blo n into
the ambient air during operation. Al ays ear a NIOSH-approved respirator during
operation and for a short time after to reduce your risk of permanent respiratory damage.
Emptying ust. When emptying dust from the collection container, ear a respirator and
safety glasses. Empty dust a ay from ignition sources and into an approved container.
Disconnecting power supply. Turn the s itch off, disconnect the dust collector from the
po er supply, and allo the impeller to come to a complete stop before leaving the
machine unattended or doing any service, cleaning, maintenance, or adjustments.
Suspen e ust particles an ignition sources. Do not operate the dust collector in
areas ere explosion risks are high. Areas of high risk include, but are not limited to,
areas near pilot lights, open flames, or other ignition sources.
Fire suppression. Only operate the dust collector in locations that contain a fire
suppression system or have a fire extinguisher nearby.
Impeller hazar s. Do not place your hands or tools near the open inlet during operation
for any reason. The po erful suction could easily cause accidental contact ith the
impeller, hich ill
cause serious personal injury or damage to the machine. Al ays keep small animals and
children a ay from open dust collection inlets.
Avoi ing sparks. Do not allo steel or rocks to strike the impeller—this may produce
sparks.
Sparks can smolder in ood dust for a long time before a fire is detected. If you
accidentally cut
Into ood containing tramp metal (nails, staples, spikes, etc.), immediately turn off the
dust collector, disconnect it from po er, and ait for the impeller to stop—then empty the
collection container into an approved airtight metal container.
Operating location. To reduce respiratory exposure to fine dust, locate permanently
installed dust collectors a ay from the orking area, or in another room that is equipped
ith a smoke detector. Do not operate the dust collector in rainy or et locations—
exposure to ater may create a shock hazard or decrease the life of the machine.
Static electricity. Plastic dust lines generate high amounts of static electricity as dust
chips pass through them. Although rare, sparks caused by static electricity can cause
explosions or fire. To reduce this risk, make sure all dust lines are thoroughly grounded by
using a grounding ire.

3HP Mobile Dust Cyclone Manual
8
Regular cleaning. Regularly check/empty the collection bags or drum to avoid the
buildup of fine dust that can increase the risk of fire. Make sure to regularly clean the
surrounding area here the machine is operated—excessive dust buildup on overhead
lights, heaters, electrical panels, or other heat sources ill increase the risk of fire.
This means that if precautions are not heeded, it may result in minor injury and/or
possible machine damage.
This means that if precautions are not heeded, it may result in serious injury or possibly
even death.
SAVE THESE INSTRUCTIONS.
Refer to them often nd use them to instruct others.
POWER CONNECTIONS
DO NOT EXPOSE THE MACHINE TO RAIN OR OPERATE THE
MACHINE IN DAMP LOCATIONS.

3HP Mobile Dust Cyclone Manual
9
MOTOR SPECIFICATIONS
Your machine is ired for 220 volts, 60 HZ alternating current. Before connecting the
machine to the po er source, make sure the s itch is in the "OFF" position.
GROUNDING INSTRUCTIONS
THIS MACHINE MUST BE GROUNDED WHILE IN USE TO PROTECT
THE OPERATOR FROM ELECTRIC SHOCK.
1. This appliance must be connected to a grounded metal, permanent iring system; or
an equipment-grounding conductor must be run ith the circuit conductors and connected
to the equipment-grounding terminal or lead on the appliance.
The installer, such as a qualified electrician, cut (or bend over) and insulate the grounding
conductor from a field iring supply cable.
In the event of certain types of malfunctions or breakdo ns, grounding provides a path of
least resistance for electric current—in order to reduce the risk of electric shock.
Improper connection of the equipment-grounding ire can result in a risk of electric shock.
The ire ith green insulation ( ith or ithout yello stripes) is the equipment-grounding
ire. If repair or replacement of the po er cord or plug is necessary, do not connect the
equipment-grounding ire to a live (current carrying) terminal.
Check ith a qualified electrician or service personnel if you do not understand these
grounding requirements, or if you are in doubt about hether the tool is properly
grounded. If you ever notice that a cord or plug is damaged or orn, disconnect it from
po er, and immediately replace it ith a ne one.
Full Load a mperage Draw
Amp draw at 220V ( p r e wi r e d ) .................. 2 2 Am ps
Power Supply Circuit Requirements
The po er source c i r cu i t for your m a ch i ne must be g r o u n d ed and r a t e d f o r the
a m p e r ag e g iv en belo . Never replace a circuit breaker on an exist ing circuit ith
one of higher amperage without consulting a qualified electrician to ensure
compl i ance ith iring codes. If you are unsure about the wiring co es in your
area or you plan to connect your machine to a share circuit, consult a qualifie
electrician.
C i r c u i t Size ( 220 V ) .................................. 30 A m p s

3HP Mobile Dust Cyclone Manual
10
IN ALL CASES, MAKE CERTAIN THE RECEPTACLE IN QUESTION IS
PROPERLY GROUNDED. IF YOU ARE NOT SURE, HAVE A QUALIFIED ELECTRICIAN CHECK
THE RECEPTACLE.
220 VOLT Single Phase Operation
The motor supplied ith your machine is a 220 volt motor. It is shipped ready-to-run
for 220 volt operation.
FUNCTION
High frequency remote control switch
Hand held remote controller
OFF button ON button
*Remote set button
*Used to match up a new hand he d
contro er with the remote switch
ON/OFF Switch
Motor Cord
On board circuit breaker
Power Cord

3HP Mobile Dust Cyclone Manual
11
PROGRAMMING THE REMOTE CONTROL
1. Ensure the machine is s itch ON before programming the remote control.
2. Press the BLACK set button on the bottom of the remote switch until you hear two beeps.
3. Press the emote set button on your hand held controller simultaneously with the BLACK
button until you hear three beeps to complete the set up.
Receiver set button

3HP Mobile Dust Cyclone Manual
12
PRODUCT SPECIFICATIONS
Motor Specs:
3 HP
Electrical Specs:
22
0V
/
60Hz
/
1PH
/
3450 RPM
Running AMP
( ith 8” inlet) 22A at 220V
Air Volume:
1624CFM (cubic feet per minute)
Max. static pressure
11.2
Inc
h
es of ater
Fan size
15.5”
Inlet:
Ø
8
”
S itch
High frequency remote control s itch
Collection capacity
46 gallon Octagon drum
Packing Size:
(L x W x H)
49.6” x 30.3” x 49.2”
(126 x 77 x 125 cm)
Machine eight
309 lbs (140 kgs)
Shipping eight
375
lbs (
170
kgs)
Filter Media
filtering area: 9.5 m2 (102 ft2)
Cartridge Filter
1 Micron
Ø
15.74
” x
35.43
” (
Ø40 x
9
0cm)
x 1pc

3HP Mobile Dust Cyclone Manual
13
UNPACKING
Your 3HP Mobile Dust Cyclone comes packed in a single box. Before attempting to
assemble this machine, follo these directions for unpacking:
1. Carefully cut the banding straps and remove them from the box.
2. Cut along the tape line at the top of the box.
3. Remove all parts from the top of the styrofoam and set aside.
4. Remove the styrofoam packing material from the top of the machine.
5. Carefully take out the machine components from the box and set aside.
6. Using the diagram belo , ensure that all parts are present and in good condition.
DESCRIPTION (QUANTITY) Figure 1
A. Motor
B. S itch and remote controller
C. Dust chute
D. Top upright supports (3)
E. Canister 1 Micron
F. Base frame
G. Octagon front and back panel
H. Octagon drum side panels
I. Octagon drum lid
J. Cyclone funnel
K. Cyclone barrel
L. Intake cylinder
Report any missing or damaged parts to your dealer or distributor. Prior to tool
assembly and use, read this manual thoroughly to familiarize yourself ith proper
assembly, maintenance and safety procedures.
G
J
K
J
K
J
I
N
P
P
R
S
T
T
T1
T2
T
3
Hardware
box
Manual
M. Canister cover plate
N. Octagon drum foot peddle
O. Inlet adapter
P. Lo er upright supports (3)
Q. Drum insert
R. Upright support reinforcement plate (3)
S. Foot peddle bar (left and right)
T. Foot peddle assembly fittings
T1. Lo er triangular support plate (2)
T2. Foot peddle bar support (2)
T3. Lo er support plate (2)
U. Hard are box
V Operating and Parts Manual
U
V
A
B
C
D
M
E
L
O
F
Q
G
H

3HP Mobile Dust Cyclone Manual
14
GENERAL TOOL ASSEMBLY
This step requires two a ults. This 3HP Mobile Dust
Cyclone is heavy, be careful hen lifting and handling it! Failure to comply
may cause serious injury and/or damage to the machine and/or property!
Tools Require
10mm rench / 12mm rench / 14mm rench
Phillips scre driver
4mm hex rench / 5mm hex rench
To assemble your dust cyclone, follo these steps:
For your o n safety, do not connect the machine to the po er source until
the machine is completely assembled. Please also make sure that you read
and understand the entire instruction manual.
ASSEMBLY TIME ESTIMATE 5 hour to 6 hour
Step One: Turn the unit upside do n. Make sure you use a cushion under the
canister top side to even out the unit to the same height as the motor. Do
not have the unit lopsided. Remove the base (G) hich has been fastened to
the (3) top upright supports (E).

3HP Mobile Dust Cyclone Manual
15
Step Two: Secure the (4) 3” wheels to the underside of the base (G) using (16)
5/16”*3/4” hex bolts and (16) 5/16”*od18*2T flat washers.
Step Three: Turn the base (G) around ith it standing on the (4) 3” red
heels and secure the three lo er upright support panels (R). using (6)
3/8”*3/4” hex bolts and (6) 3/8”*OD23*2t flat ashers.
Each lo er upright support panels (R) numbered for its specific location.
A – sho n ith one dot is located on the canister side.
B – sho n ith t o dots ith extension on left is located on the front side
C – sho n ith t o dots ith extension on right is located on opposite end.
A
C
B
A
B
C

3HP Mobile Dust Cyclone Manual
16

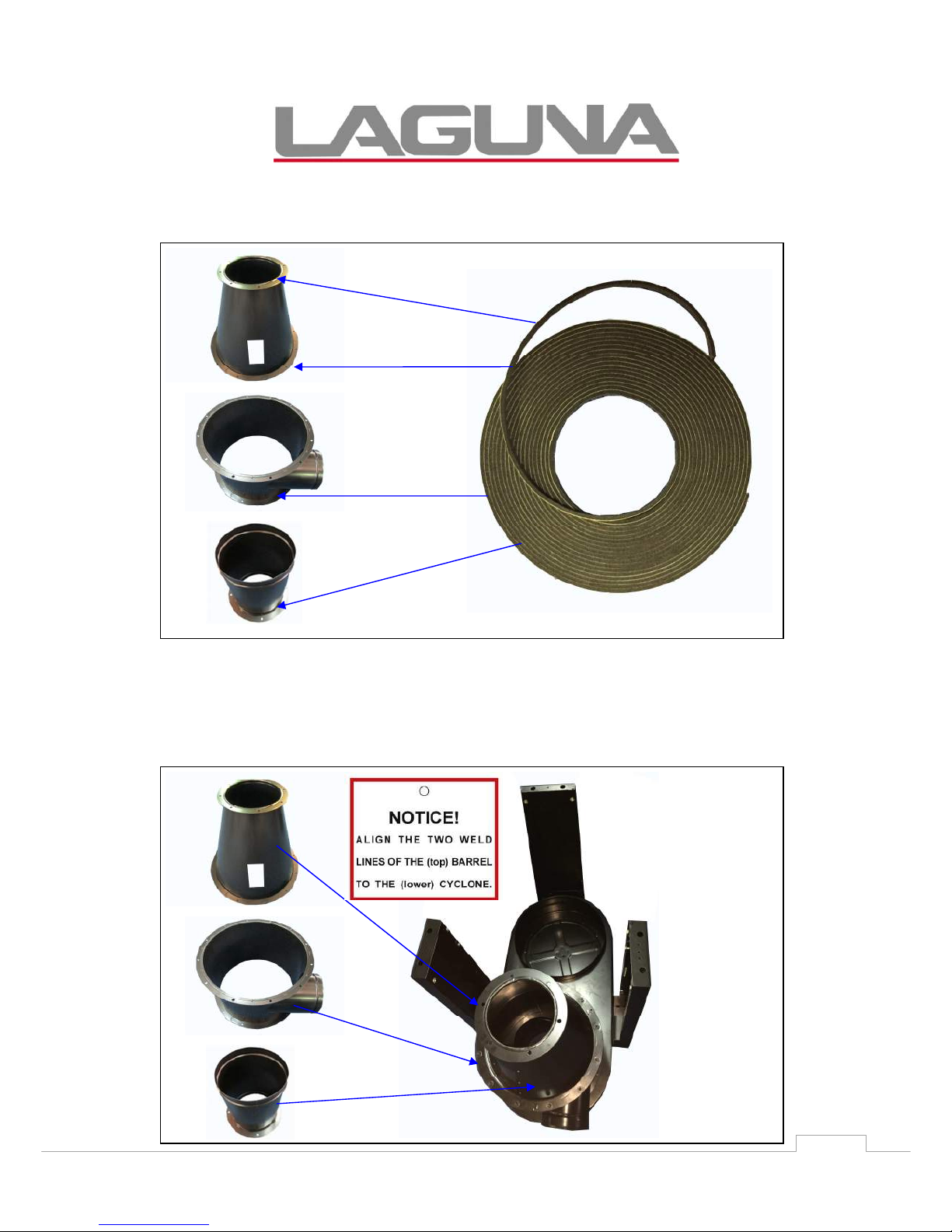

Step Four: Install the foam tape to the upper and lower rims of the three
components listed, Cyclone funnel, Cyclone barrel, and Intake cylinder.
Step Five: Attach the intake cylinder to the dust chute using (4) 5/16”*5/8” hex
spring bolts. Then, attach the cyclone barrel onto the dust chute using (12)
5/16”*3/4” hex bolts and (12) 5/16”*OD18*2t flat washers followed by attaching
the cyclone funnel to the barrel using (12) 5/16”*3/4” hex bolts, (24)
5/16”*OD18*2t flat washers and (12) 5/16” hex nuts.

3HP Mobile Dust Cyclone Manual
17
Step Six: Secure the base ith (3) lo er upright support panels to the unit
using (6) 5/16”*3/4” hex bolts and (6) 5/16”*OD18*2t flat ashers.
Step Seven: Secure the (3) upright support reinforcement plates (T) using (12)
5/16”*3/4” hex bolts and (12) 5/16”*OD18*2t flat washers.

3HP Mobile Dust Cyclone Manual
18
Step Eight: With the help of another person, lift the unit up carefully to the
right side up ith the motor on top and the heels at the bottom.
Step Nine: Secure the lower triangular support plate to the base using (4)
5/16”*3/4” hex bolts and (4) 5/16”*OD18*2t flat washers.
. .
. Follow the same steps
for the opposite side.

3HP Mobile Dust Cyclone Manual
19
Step Ten: Slide the Foot pedal bar into the opening on the lower upright support
panel ( ). Make sure the end of the bar is on the inside of the triangular support
plate. Follow the same steps for the opposite side.
Step Eleven: Secure the foot pedal support to the lower upright support panel
using (4) 5/16”*1/2” carriage bolts, (4) 5/16”*OD18*2t flat washers and (4) 5/16”
hex nuts. Then secure the foot pedal bar to this support using (4) 5/16”*1-3/4”
hex bolts, (8)5/16”*OD18*2t flat washers and (4) 5/16” hex nuts. Follow the
same steps for the opposite side.
