laguna PX20 User manual
OWNERS’S MANUAL
PX20 Planer
Lagunatools.com
"!
Thank you for investing in a PX20 Planer by Laguna Tools. This planer is one of a
family of unique machines proudly offered by Laguna Tools. Every Laguna
machine is engineered for years of dependable service. Please feel free to
contact Laguna Tools if you have a question or suggestion. We appreciate
working with you and your choice of a Laguna Tools machine for your shop.
Regards,
Torben Helshoj
President & Founder Laguna Tools
Dealer Machinery Warranty
New woodworking machines sold by Laguna Tools carry a two-year warranty effective from the date of
dealer invoice to consumer.
Laguna Tools guarantees all new machine sold to be free of manufacturers’ defective workmanship,
parts and materials. We will repair or replace, without charge, any parts determined by Laguna Tools,
to be a manufacturer’s defect. In the event the item/part is determined to be damaged due to lack of
maintenance, cleaning or misuse/abuse, the customer will be responsible for the cost to replace the
item/part, plus all related shipping charges. This limited warranty does not apply to natural disasters,
acts of terrorism, normal wear and tear, product failure due to lack of maintenance or cleaning,
damage caused by accident, neglect, lack of or inadequate dust collection, misuse/abuse or
damage caused where repair or alterations have been made or attempted by others.
This manual applies to the PX20-3PH Planer. Enter the model number and serial number
below for quick reference when ordering accessories,supplies or parts. NOTE: The
model and serial number plate can be found on the side of the planer.
Model: ___________
Serial: ___________
Laguna Tools
Grand Prairie
744 Refuge Way, Suite 200
TX 75050
800-234-1976 www.lagunatools.com
#!
CONTENTS
Warranty: 02
Safety: 04
Important Safety Instructions 05
General Safety Rules 08
Unpacking: 11
Assembly: 12
Components: 14
Power Supply: 15
Connecting Power 16
Operation: 19
Maintenance/Adjustment: 19
Trouble Shooting: 27
Exploded Views: 29
Wiring Diagram 32
Parts List: 33
Specifications: 40
Supplies: 40
$!
SAFETY
%&'(!')(!*)(&%+,')(!,-.+!/')*'0!')(!'00!.)+,%*1,.2)+!3&42%&!*+.)5!,-.+!&6*.7/&),8!
49:;<=>!?@!A@;;@B!9;;!:CD?=<E?:@CD!F9G!=>D<;?!:C!>;>E?=:E!DH@EIJ!A:=>!9CKL@=!D>=:@<D!M>=D@C9;!:CN<=G!@=!
M=@M>=?G!K9F9O>P!!&;>E?=@C:E!E@M:>D!@A!?H:D!F9C<9;!9=>!9Q9:;9R;>!9?!BBB8;9O<C9?@@;D8E@F8!!!
SAFETY GUIDELINES - DEFINITIONS
This manual contains information that is important for you to know and understand. This
information relates to protecting YOUR SAFETY and PREVENTING EQUIPMENT
PROBLEMS. To help you recognize this information, we use the symbols below. Please
read the manual and pay attention to these sections.
.CK:E9?>D!9C!:FF:C>C?;G!H9S9=K@<D!D:?<9?:@C!BH:EHJ!:A!C@?!9Q@:K>KJ!will!=>D<;?!:C!K>9?H!@=!D>=:@<D!
:CN<=G8!
.CK:E9?>D!9!M@?>C?:9;;G!H9S9=K@<D!D:?<9?:@C!BH:EHJ!:A!C@?!9Q@:K>KJ!could!=>D<;?!:C!K>9?H!@=!D>=:@<D!
:CN<=G8!
.CK:E9?>D!9!M@?>C?:9;;G!H9S9=K@<D!D:?<9?:@C!BH:EHJ!:A!C@?!9Q@:K>KJ!may!=>D<;?!:C!F:C@=!@=!F@K>=9?>!
:CN<=G8!
T*D>K!B:?H@<?!?H>!D9A>?G!9;>=?!DGFR@;U!:CK:E9?>D!9!M@?>C?:9;;G!H9S9=K@<D!D:?<9?:@C!BH:EHJ!:A!C@?!
9Q@:K>KJ!may!=>D<;?!:C!M=@M>=?G!K9F9O>8!!!
V@@KB@=I:COJ!F>?9;B@=I:COJ!E@FM@D:?>DJ!>?E8!T9CK!D:F:;9=!F9?>=:9;DU!E9C!R>!K9CO>=@<D!:A!D9A>!9CK!
M=@M>=!@M>=9?:CO!M=@E>K<=>D!9=>!C@?!A@;;@B>K8!!'D!B:?H!9;;!F9EH:C>=GJ!?H>=>!9=>!E>=?9:C!H9S9=KD!
:CQ@;Q>K!B:?H!?H>!@M>=9?:@C!@A!?H>!F9EH:C>8!!*D:CO!?H>!F9EH:C>!B:?H!=>DM>E?!9CK!E9<?:@C!B:;;!
E@CD:K>=9R;G!;>DD>C!?H>!M@DD:R:;:?G!@A!M>=D@C9;!:CN<=G8!!-@B>Q>=J!:A!C@=F9;!D9A>?G!M=>E9<?:@CD!9=>!
@Q>=;@@I>K!@=!:OC@=>KJ!M>=D@C9;!:CN<=G!?@!?H>!@M>=9?@=!F9G!=>D<;?8!!+9A>?G!>W<:MF>C?!D<EH!9D!O<9=KDJ!
M<DH!D?:EIDJ!H@;KXK@BCDJ!A>9?H>=XR@9=KDJ!O@OO;>DJ!K<D?!F9DID!9CK!H>9=:CO!M=@?>E?:@C!E9C!=>K<E>!?H>!
M@?>C?:9;!A@=!:CN<=G8!!&Q>C!?H>!R>D?!O<9=K!B:;;!C@?!F9I>!<M!A@=!M@@=!N<KO>F>C?J!E9=>;>DDC>DD!@=!
:C9??>C?:@C8!!Always'use'common'sense!9CK!>Y>=E:D>!E9<?:@C!:C!?H>!B@=IDH@M8!!.A!9!M=@E>K<=>!A>>;D!
Z!
K9CO>=@<DJ!K@!C@?!?=G!:?8!!4:O<=>!@<?!9C!9;?>=C9?:Q>!M=@E>K<=>!?H9?!:D!D9A>=8!!REMEMBER:
\!
1. Read and understand the warnings posted on the machine and in this
manual. Failure to comply with all of these warnings may cause serious
injury.
2. Replace the warning labels if they become obscured or removed.
3. This machine is designed and intended for use by properly trained and
experienced personnel only. If you are not familiar with the proper and safe
operation of this type of machine, do not use until proper training and knowledge
have been obtained.
4. Do not use this machine for other than its intended use. If used for other
purposes, LAGUNA TOOLS INC., disclaims any real or implied warranty and
holds itself harmless from any injury that may result from that use.
5. Always wear approved safety glasses/face shields while using this machine.
6. Before operating this machine, remove tie, rings, watches and other jewelry, and
roll sleeves up past the elbows. Remove all loose clothing and confine long hair.
Non-slip footwear or anti-skid floor strips are recommended.
7. Wear ear protectors (plugs or muffs) during extended periods of operation.
8. Some dust created by power sanding, sawing, grinding, drilling and other
construction activities contain chemicals known to cause cancer, birth defects or
other reproductive harm. Some examples of these chemicals are: (next page)
•Lead from lead based paint.
•Crystalline silica from bricks, cement and other masonry
products.
•Arsenic and chromium from chemically treated lumber.
Your risk of exposure varies, depending on how often you do this type of work. To
reduce your exposure to these chemicals, work in a well-ventilated area and work
with approved safety equipment, such as face or dust masks/respirators that are
specifically designed to filter out microscopic particles.
9. Do not operate this machine while tired or under the influence of drugs, alcohol or
any medication.
10. Make certain the switch is in the OFF position before connecting the machine to
the power source.
11. Make certain the machine is properly grounded.
12. Make all machine adjustments or maintenance with the machine unplugged from
the power source.
13. Form a habit of checking to see that all extra equipment such as adjusting keys,
wrenches, scrap, stock, and cleaning rags are removed away from the machine
before turning on.
!
]!
14. Keep safety guards in place at all times when the machine is in use. If removed
for maintenance purposes, use extreme caution and replace the guards
immediately when maintenance is complete.
15. Make sure the dust collector is on a flat even surface and the wheels locked in
place before use.
16. Check damaged parts. Before further use of the machine, a guard or other part
that is damaged should be carefully checked to determine that it will operate
properly and perform its intended function. Check for alignment of moving parts,
binding of moving parts, breakage of parts, mounting and any other conditions
that may affect its operation. A guard or other part that is damaged should be
properly repaired or replaced.
17. Provide for adequate space surrounding work area and non-glare, overhead
lighting.
18. Keep the floor around the machine clean and free of scrap material, oil and
grease.
19. Keep visitors a safe distance from the work area. Keep children away.
20. Make your workshop child proof with padlocks, master switches or by removing
starter keys.
21. Give your work undivided attention. Looking around, carrying on a conversation
and “horse-play” are careless acts that can result in serious injury.
.
22. Maintain a balanced stance at all times so that you do not fall or lean against the
dust collector. Do not overreach or use excessive force to perform any machine
operation.
23. Use the right tool at the correct speed and feed rate. Do not force a tool or
attachment to do a job for which it was not designed. The right tool will do the job
better and safer.
24. Use recommended accessories; improper accessories may be hazardous.
25. Maintain machinery with care. Follow instructions for lubricating and changing
accessories.
26. Turn off the machine before cleaning. Use a brush or compressed air to remove
dust or debris — do not use your hands.
27. Do not stand on the machine. Serious injury could occur if the machine tips over.
28. Never leave the machine running unattended. Turn the power off and do not leave
the machine until it comes to a complete stop.
29. Never operate or run the machine without closing the drum up against the lid.
Failure to do so will result in the machine amperage increasing and may trip your
circuit.
Familiarize yourself with the following safety notices used in this manual:
^!
SAFETY GUIDELINES - DEFINITIONS
This manual contains information that is important for you to know and understand. This
information relates to protecting YOUR SAFETY and PREVENTING EQUIPMENT
PROBLEMS. To help you recognize this information, we use the symbols, described
earlier. Please read the manual and pay attention to these sections.
GENERAL SAFETY RULES
FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS INJURY.
FOR YOUR OWN SAFETY, READ AND UNDERSTAND THE INSTRUCTION MANUAL
BEFORE OPERATING THE MACHINE. Learn the unit’s application and limitations as
well as the specific hazards peculiar to it.
KEEP WORK AREA CLEAN. Cluttered areas and benches invite accidents.
DON’T USE IN DANGEROUS ENVIRONMENT. Don’t use this unit in damp or wet
locations, or expose it to rain. Keep work area well-lighted.
KEEP CHILDREN AND VISITORS AWAY. All children and visitors should be kept a safe
distance from work area.
DISCONNECT UNIT before servicing.
CHECK DAMAGED PARTS. Before further use of the unit, properly repair or replace any
part that is damaged.
FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS INJURY.
ADDITIONAL SAFETY INFORMATION
Intended use. This machine is intended for the applications discussed and approved by
Laguna. Do not use this machine for non-approved applications or flammable,
combustible, or hazardous materials.
Hazardous dust. Dust created while using machinery may cause cancer, birth defects,
or long-term respiratory damage. Be aware of dust hazards associated with each work
piece material, and always wear aNIOSH-approved respirator to reduce your risk.
Dust allergies. Dust from certain woods and other materials may cause an allergic
reaction in people and animals. Make sure you know what type of dust you will be
exposed to in case there is a possibility of an allergic reaction.
_!
Wear respirator. Fine dust that is too small to be caught in the filter may be introduced
into the ambient air during operation. Always wear a NIOSH-approved respirator during
operation and for a short time after to reduce your risk of permanent respiratory
damage.
Disconnecting power supply. Turn the switch off, disconnect from the power supply,
and allow machine to come to a complete stop before leaving the machine unattended or
doing any service, cleaning, maintenance, or adjustments.
Suspended dust particles and ignition sources. Do not operate in areas were
explosion risks are high. Areas of high risk include, but are not limited to, areas near
pilot lights, open flames, or other ignition sources.
Fire suppression. Only operate in locations that contain a fire suppression system or
have a fire extinguisher nearby.
Static electricity. Plastic dust lines generate high amounts of static electricity as dust
chips pass through them. Although rare, sparks caused by static electricity can cause
explosions or fire. To reduce this risk, make sure all dust lines are thoroughly grounded
by using a grounding wire.
Regular cleaning. Regularly check the machine for excessive dust and debris and
clean. Make sure to regularly clean the surrounding area where the machine is
operated—excessive dust buildup on overhead lights, heaters, electrical panels, or other
heat sources will increase the risk of fire.
SAVE THESE INSTRUCTIONS.
Refer to them often and use them to instruct others.
Please read and save these instructions. Read carefully before attempting to assemble,
install, operate or maintain the product described. Protect yourself and others by
observing all safety information. Failure to comply with instructions could result in
personal injury and/or property damage! Retain instructions for future reference.
DO NOT EXPOSE THE MACHINE TO RAIN OR OPERATE THE MACHINE IN DAMP
LOCATIONS.
MOTOR SPECIFICATIONS
The typical main motor is 5HP and is wired for 400-415 Volt, Three-Phase, 50 HZ, AC
current. Confirm your motor electrical configuration before connecting power! Before
connecting the machine to the power source, make sure the starter and switches are in
the "OFF" position. Power Cord and “plug” are NOT included. These must be installed by
a qualified technician/electrician to meet all applicable codes.
Confirm electrical configuration (Voltage & Phase) of this machine before connecting to
power source!
`a!
GROUNDING INSTRUCTIONS
THIS MACHINE MUST BE GROUNDED WHILE IN USE TO PROTECT THE OPERATOR FROM
ELECTRIC SHOCK.
`.This machine must be connected to a grounded metal, permanent wiring system; or
an equipment-grounding conductor must be run with the circuit conductors and
connected to the equipment-grounding terminal or lead on the appliance.
The installer, such as a qualified electrician, shall cut (or bend over) and insulate the
grounding conductor from a field wiring supply cable.
In the event of certain types of malfunctions or breakdowns, grounding provides a path of
least resistance for electric current—in order to reduce the risk of electric shock.
Improper connection of the equipment-grounding wire can result in a risk of electric shock.
The wire with green insulation (with or without yellow stripes) is the equipment-grounding
wire. If repair or replacement of the power cord or plug is necessary, do not connect the
equipment-grounding wire to a live (current carrying) terminal.
Check with a qualified electrician or service personnel if you do not understand these
grounding requirements, or if you are in doubt about whether the tool is properly
grounded. If you ever notice that a cord or plug is damaged or worn, disconnect it from
power, and immediately replace it with a new one.
Power Supply Circuit Requirements
The
power source
c
i
r
cu
i
t
for
your
m
a
ch
i
ne must
be grounded
and ra te dfo r
sufficient amperage.
Never replace
a circuit
breaker
on an
exist
ing circuit
with one of higher
amperage without
consulting
a qualified
electrician
to
ensure
compli
ance
with wiring
codes.
If youare unsure about the wiring codes in your
area or youplan to connect your machine to a shared circuit, consult a qualified
electrician.
IN ALL CASES, MAKE CERTAIN THE RECEPTACLE OR DISCONNECT IS PROPERLY
GROUNDED. IF YOU ARE NOT SURE, HAVE A QUALIFIED ELECTRICIAN CHECK THE
RECEPTACLE OR DISCONNECT.
``!
UNPACKING
Your PX20 comes packed in a single box attached to a pallet. Before attempting to
assemble this machine, follow these directions:
1. Carefully cut the banding straps and remove them from the box, if so packed.
2. Remove the box covering the machine.
3. Remove the plastic cover from the machine, if so packed.
4. Remove the wrapped dust chute.
5. Using the information below, ensure that all parts are present and in good condition.
This step requires a forklift. The PX20 is heavy, be careful when lifting and handling
it! Failure to comply may cause serious injury and/or damage to the machine and/or
property! Use a forklift to remove PX20 from pallet and place on floor.
NOTE: Another option to remove the planer from the pallet is to attach hooks to frame of
machine at each of the four corners. The machine can then be lifted with a harness and
forklift.
NOTE: Another option to remove the planer from the pallet is to attach the included
hooks to frame of machine at each of the four corners (Fig. 1). The hooks and bolts are
included in the hardware kit. The machine can then be lifted with a harness and forklift.
Remove and save hooks for later movement scenarios.

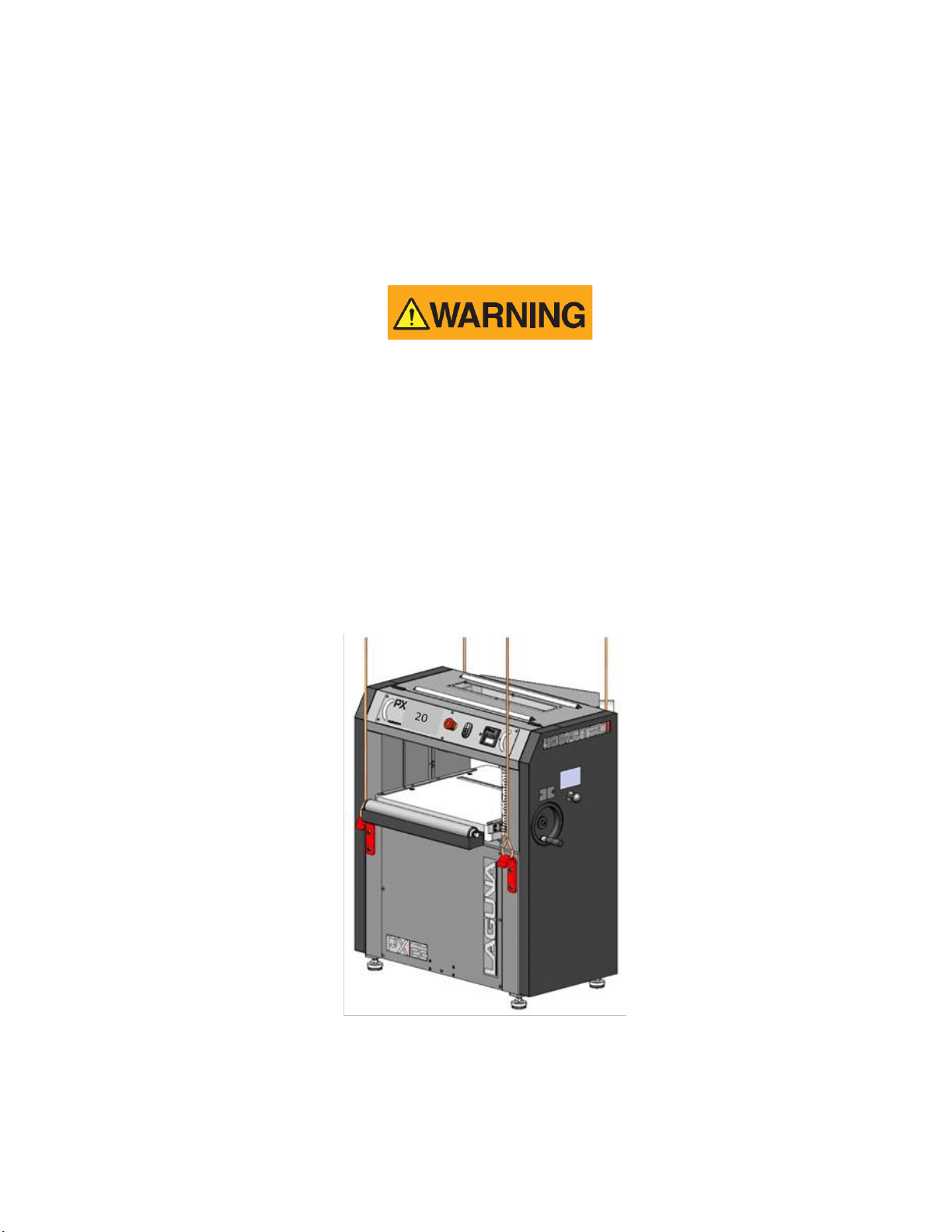

Figure 1: Lifting planer with hooks and harness
`"!
Inventory
Pallet
4 Leveling Feet with nuts (typically
installed)
Bubble Wrap
1 Dust Chute
4 Hex Head Screws M6x10
2 T25 Torx Wrenches
4 Lifting hooks & hardware

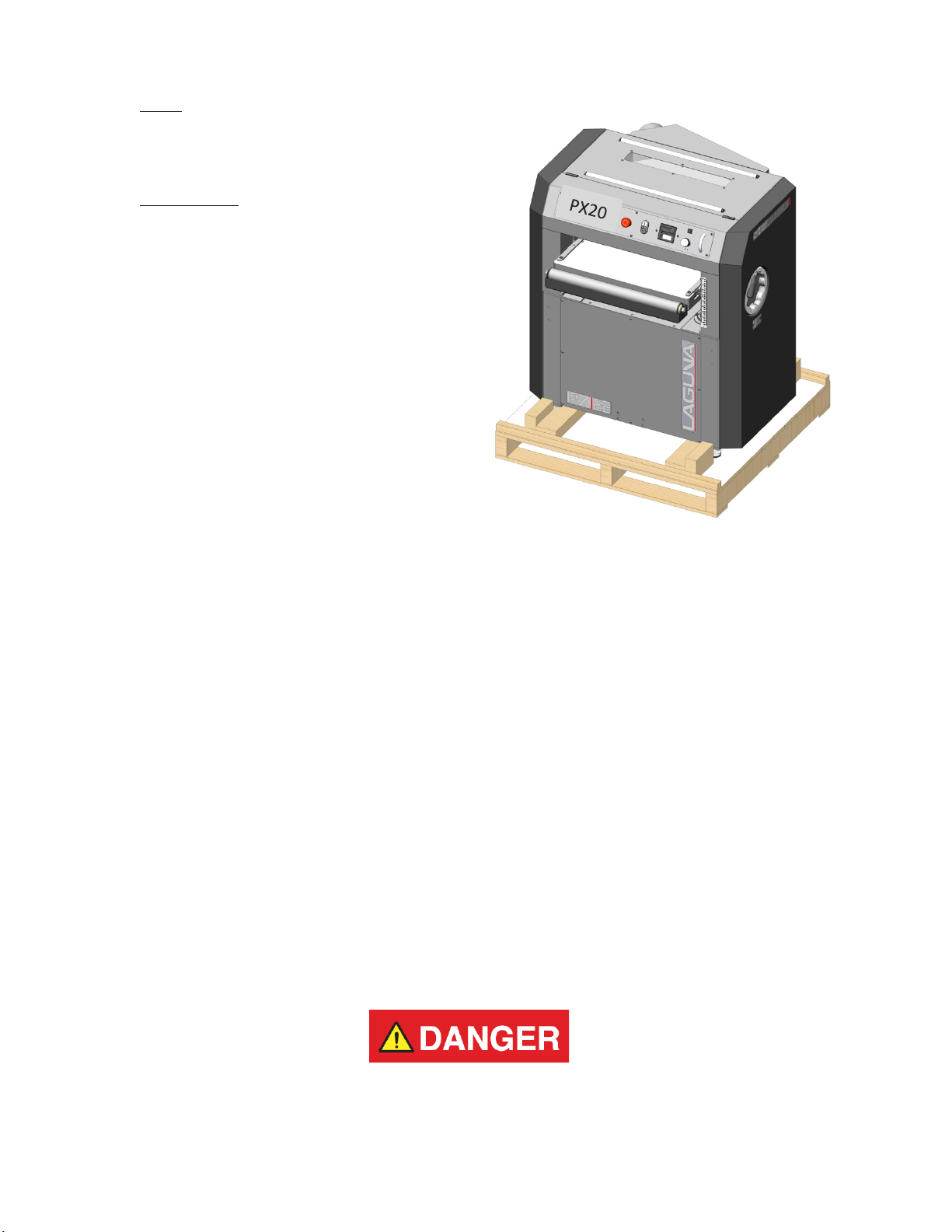

Figure 2: Pallet
Report any missing or damaged parts to your dealer or distributor. Prior to machine
assembly and use, read this manual thoroughly to familiarize yourself with proper
assembly, maintenance and safety procedures.
ASSEMBLY
Tools/items Required:
T-25 Torx wrench
9/16” wrench
1/2” wrench
5mm hex wrench
Power Cord and Plug (unless hard wiring into a disconnect)
For your own safety, do not connect the machine to the power source until the
machine is completely assembled. Please also make sure that you read and
understand the entire manual.
`#!
Machine Preparation and Setup:
1. Level machine using the four leveling feet on each of the four corners. Lock
leveling feet into position with the nut on the leveling foot stud.

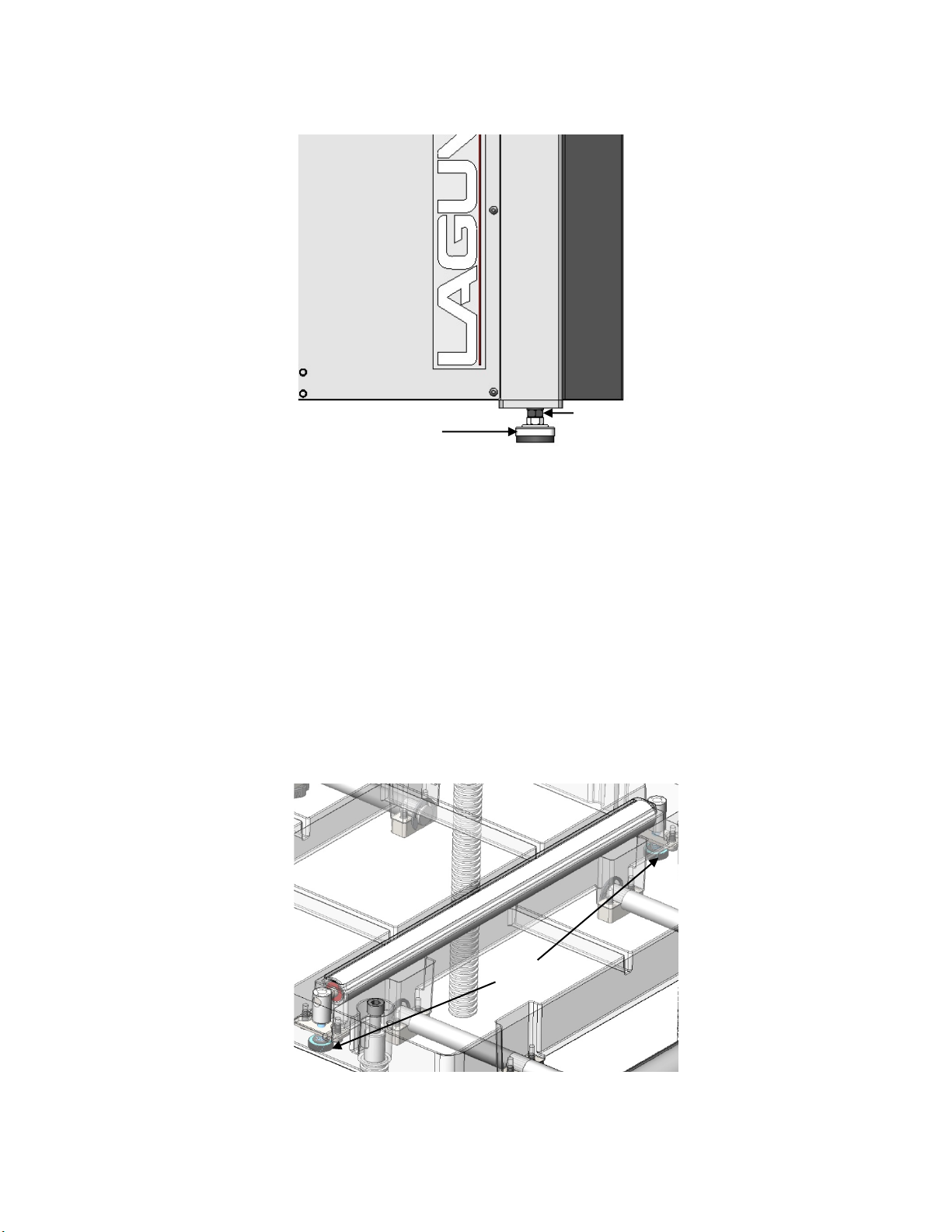

Figure 3: Leveling Feet
2. Clean all rust protected surfaces with a commercial de-greaser. DO NOT use
acetone, gasoline, lacquer thinner or any type of cleaner that could damage
paint. Coat cleaned surfaces with WD-40® or 20W machine oil.
Table Roller adjustment
3. Turn the knobs (Fig. 4, G) to move the table roller up or down to the desired
position.
NOTE: The roller is typically set higher when planing rough
stock. When planing smooth stock, the roller
should be set slightly above, or flush with the table.

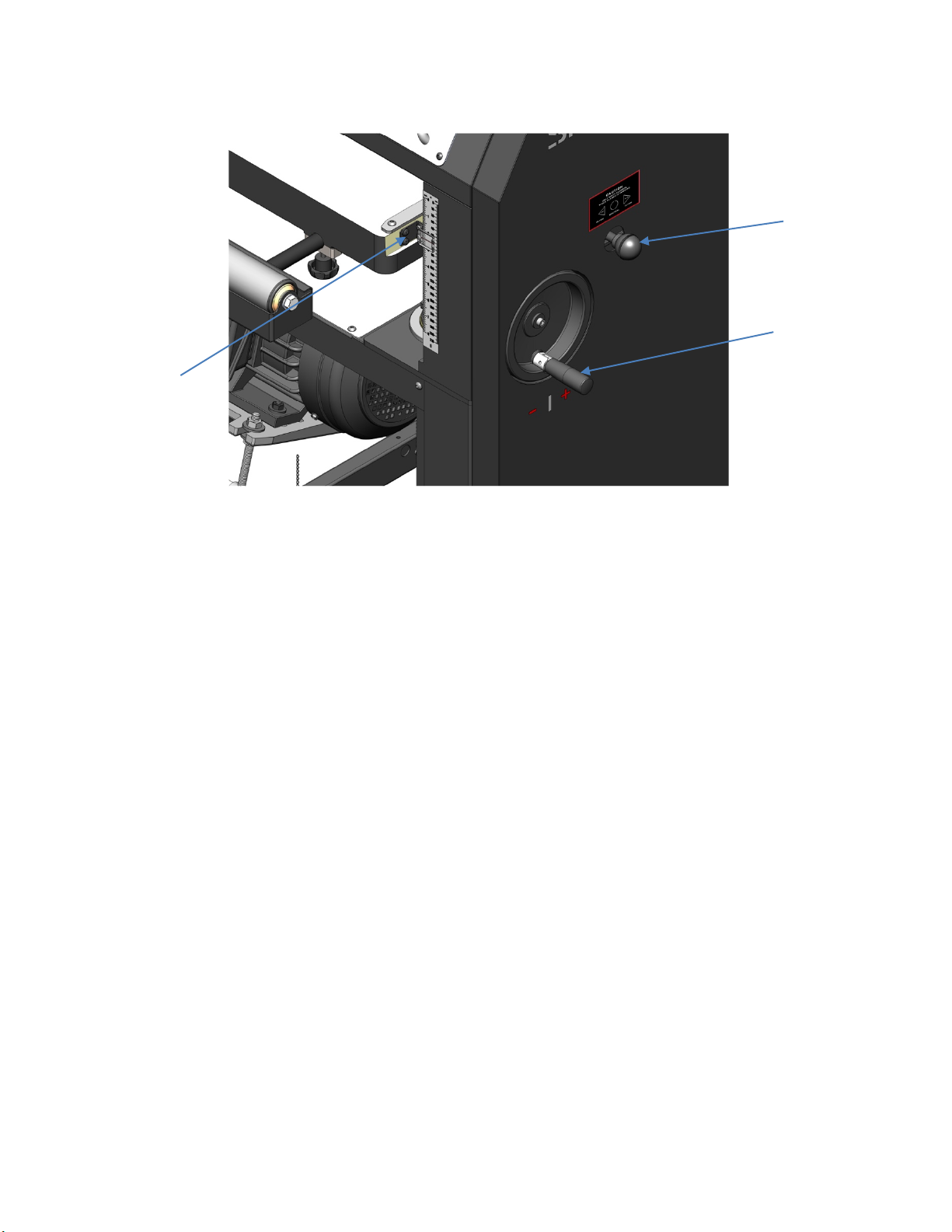

Figure 4: Table Roller
4. The dust chute can be attached with the port facing either to the right or left.
To attach use four included screws (Fig. 5, H) to mount to the rear (outfeed) side
of the planer head.
A
B
G
`$!
NOTE: Make sure the dust collection system has sufficient
capacity and CFM for this planer. Always turn ON the
dust collector before planning.

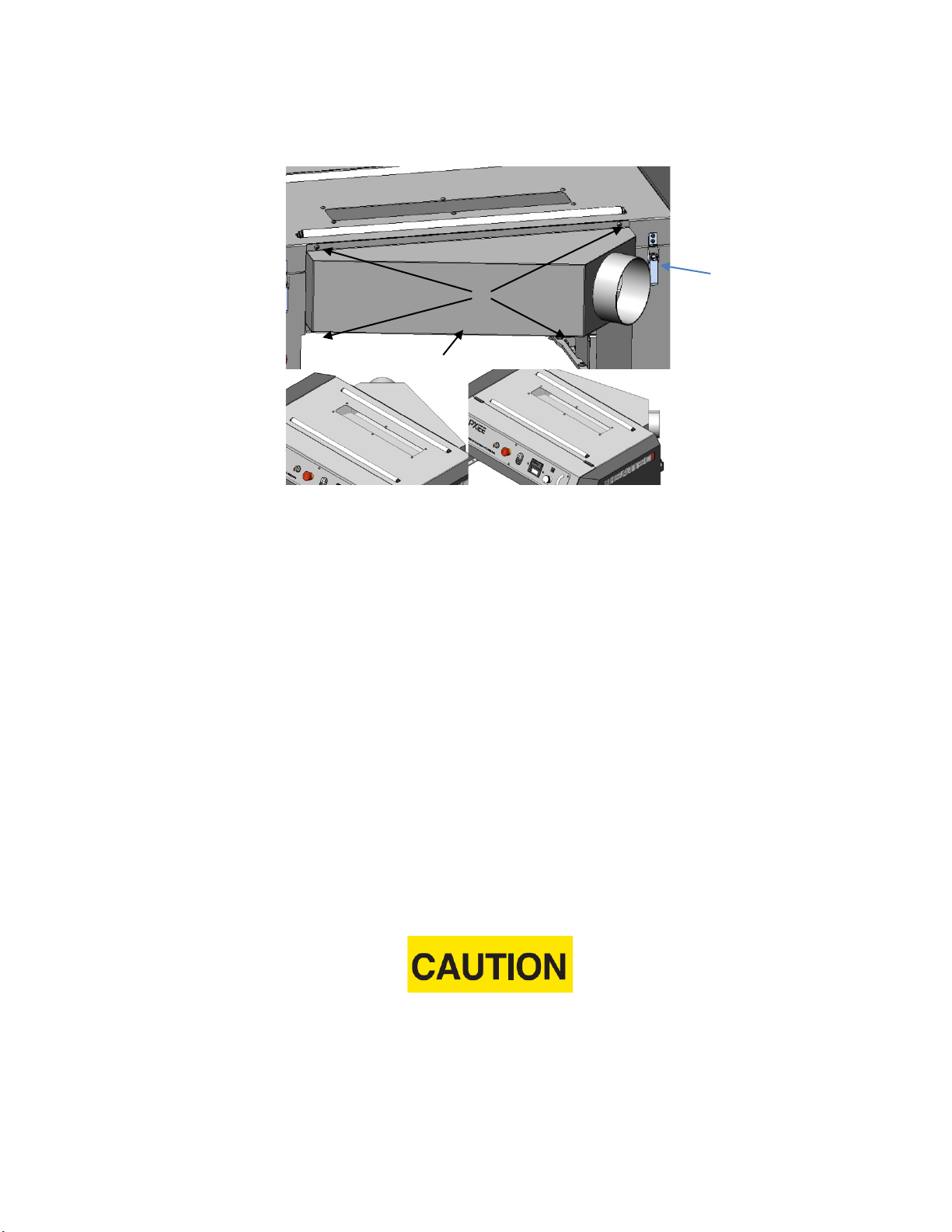

Figure 5: Dust Chute & Hood Clips
Opening Hood
1. Release the 2 Clips (Fig. 5) on each side of the hood.
2. Remove the two lower screws holding the dust chute in place (Fig. 5)
3. Raise hood until automatic latch secures hood in open position
4. To close, press IN automatic latch while lowering hood
Cutting Limiter
The Limiter (Fig. 6) acts as a stop to prevent the cutterhead from contacting the
table and to prevent stock from sliding past the edge of the cutterhead.
Feed Speed Selector
The feed speed selector offers two feed speeds, 16 FPM & 28 FPM. Move lever
(push/pull front to back) until it locks in place. The middle setting is neutral.
Change feed speeds ONLY when the machine is running!
H
I
1;:MDJ!H@@K!T"U!
`Z!
COMPONENTS
Figure 6: Main Components of PX20
Control Panel
Figure 7: Control Panel
A. Emergency Stop (E-STOP); stops all functions of machine, however, power
continues to machine.
NOTE: To reset E-STOP, rotate switch clockwise until the button
“pops” out.
B. ON/OFF Switch; Starts and Stops rotation of cutterhead.
NOTE: Will not work of the E-STOP is engaged or if the Hood is
open.
C. Digital Read Out (DRO); Thickness display
NOTE: Assembly is continued in next section “Power Supply”
A
Ｂ
Ｃ
&F>=O>CEG!+?@M!
1@C?=@;!79C>;!
T+>>!)>Y?!4:O<=>U!
,9R;>!->:OH?!
'KN<D?F>C?!!
,9R;>!%@;;>=!
,9R;>!
+?@EI!%>?<=C!%@;;>=D!T"U!
4>>K!+M>>K!1@C?=@;!
,9R;>!&Y?>CD:@C!
%@;;>=!T"U!
0>Q>;:CO!4>>?!T$U!
0:F:?>=!T"U!
`\!
POWER SUPPLY
Power Supply Circuit Requirements
The
power source
c
i
r
cu
i
t
for
your
m
a
ch
i
ne must
be grounded
and ra te dfor
sufficient amperage.
Never replace
a circuit
breaker
on an
exist
ing circuit with one
of higher
amperage without
consulting
a qualified
electrician
to
ensure
compli
ance
with wiring
codes.
If youare unsure about the wiring codes in your
area or youplan to connect your machine to a shared circuit, consult a qualified
electrician.
IN ALL CASES, MAKE CERTAIN THE RECEPTACLE IN QUESTION IS PROPERLY
GROUNDED. IF YOU ARE NOT SURE, HAVE AQUALIFIED ELECTRICIAN CHECK THE
RECEPTACLE.
MOTOR SPECIFICATIONS
The typical main motor is 5HP and is typically wired for 400-415 Volt, Three Phase, 50
HZ, AC current. Confirm your motor electrical configuration before connecting power!
Before connecting the machine to the power source, make sure the starter and switches
are in the "OFF" position. Cord and “plug” are NOT included. These must be installed by
aqualified technician/electrician to local codes.
NOTE: A “plug” and cord are NOT included and must be installed by aqualified
technician/electrician or the power cable connected (hard wired) to an appropriate
disconnect according to local codes. See Wiring Diagram
A qualified electrician should do the connection. When completed, the machine must
conform to the National Electric Code and all local codes and ordinances.
Connecting Power (see Wiring Diagram)
1. Remove screws securing cover to connection box
2. Insert power cable through strain relief, tighten cinch nut and attach wires to
terminals.
3. Re-install the connection box cover
Disconnect power supply to planer before continuing! Only connect power when
required.
17!
Calibrating the Thickness Scale
Figure 8: Thickness Scale Adjustment
NOTE: The following procedures describe the use of a “calibrating
board”. It is a piece of hardwood which has been surfaced on
one side with a jointer, drum sander or wide belt sander.
1. With the planer OFF, the cutter head not rotating and power disconnected,
place the Calibrating Board on the table, with the previously machined face
“down”, and slide under the cutterhead.
2. Use the Table Height Adjustment handle (Fig. 8, A) to raise the table until the
infeed roller is approximately 1/16” (1.6mm) above the calibrating board.
3. Remove the calibrating board from the planer.
4. Connect power to the planer and turn ON.
5. Turn the height adjustment handle clockwise, one complete revolution, to raise
the table and run the calibrating board (previously machined face “down”)
through the planer.
6. Repeat Step 5 until the planer removes the entire top surface of the calibrating
board.
B!
A!
C!
`^!
NOTE: Drawing pencil marks across the width of the top of the
calibrating board in several locations can make it easier
to determine when the entire surface has been planned.
7. Measure the thickness of the calibrating board with a caliper.
8. Loosen the screws of the Thickness Scale pointer and adjust the pointer
(Fig. 8, B) until it corresponds to the measured thickness and tighten the screws.
Calibrating the DRO (Digital Read Out)
1. Remove the battery cover of the DRO and install 2 AAA batteries.
Figure 9: DRO Batteries
`_!
DRO2Button2Reference2and2Use2
.?!:D!H>;MA<;!?@!A9F:;:9=:S>!?H>D>!R<??@CD!9CK!?H>:=!M<=M@D>!B:?H!?H>!V:Y>Gb!(%2!
Figures 10-12: DRO Reference
20!
OPERATION
1. Establish the proper depth of cut (typically less than 1/16” (1.6mm)), using
either the DRO or scale.
2. Pull out and lock each extension roller to support long stock
3. Start dust collection.
4. Start planer.
5. Adjust feed speed (Fig. 7, C) to desired speed (16 or 28 FPM), while planer is
running.
6. Feed stock into planer, maintain control and support of stock until the stock is
securely feeding through planer.
7. Reposition yourself to the outfeed side of planer and control and support stock
until it has exited the outfeed roller.
MAINTENANCE/ADJUSTMENT
Shear-Tec II Cutterhead
Figure 13: Shear-Tec II Cutterhead (52-60 in/lb.).
Knife inserts are dangerously sharp. Use extreme caution when
inspecting, removing, or replacing knife inserts.
Other manuals for PX20
2
This manual suits for next models
1
Table of contents
Other laguna Planer manuals
laguna
laguna MPLAN2010-0130 User manual
laguna
laguna PX20 User manual
laguna
laguna PX|22 Sheartec:II User manual
laguna
laguna Sheartec:II PXl16 User manual
laguna
laguna MPLAN25-15-3-0130 User manual
laguna
laguna PX20 User manual
laguna
laguna Quadtec I PXI12 User manual
laguna
laguna PX-16 SHEARTEC II User manual
laguna
laguna SHEARTEC II PX-22 User manual
laguna
laguna PX12 User manual
