LaiHui Cleaning Equipment B320H User manual
LaiHuiCleaningEquipmentCo., Ltd. www.pvclean-china.com Solar cleantools
Page 2 of17 9/6/2018
1General overview..................................................................................................................3
2Product description...............................................................................................................4
2.1Overview...................................................................................................................4
2.2Product specifications...............................................................................................5
2.3Product configuration reference................................................................................5
2.4Working Capability...................................................................................................6
2.5Water consumption...................................................................................................7
2.6Service life................................................................................................................8
2.7Pole...........................................................................................................................8
2.8High pressure hoses and connectors.........................................................................9
2.8.1 High pressure hoses......................................................................................9
2.8.2 Connector......................................................................................................9
2.9Washer (High Press Pump,Optional accessories)................................................10
2.9.1 The specifications of the pump...................................................................10
2.9.2 Instructions of HighPress pump BCC0717C..........................................10
3Instructions..........................................................................................................................12
3.1Preparation..............................................................................................................12
3.2Installing the product..............................................................................................12
3.3Operation.................................................................................................................13
3.4Tips for cleaning.....................................................................................................13
4Transport and storage..........................................................................................................14
5Maintenance Guide.............................................................................................................14
6Warrantyand Customer Services........................................................................................15

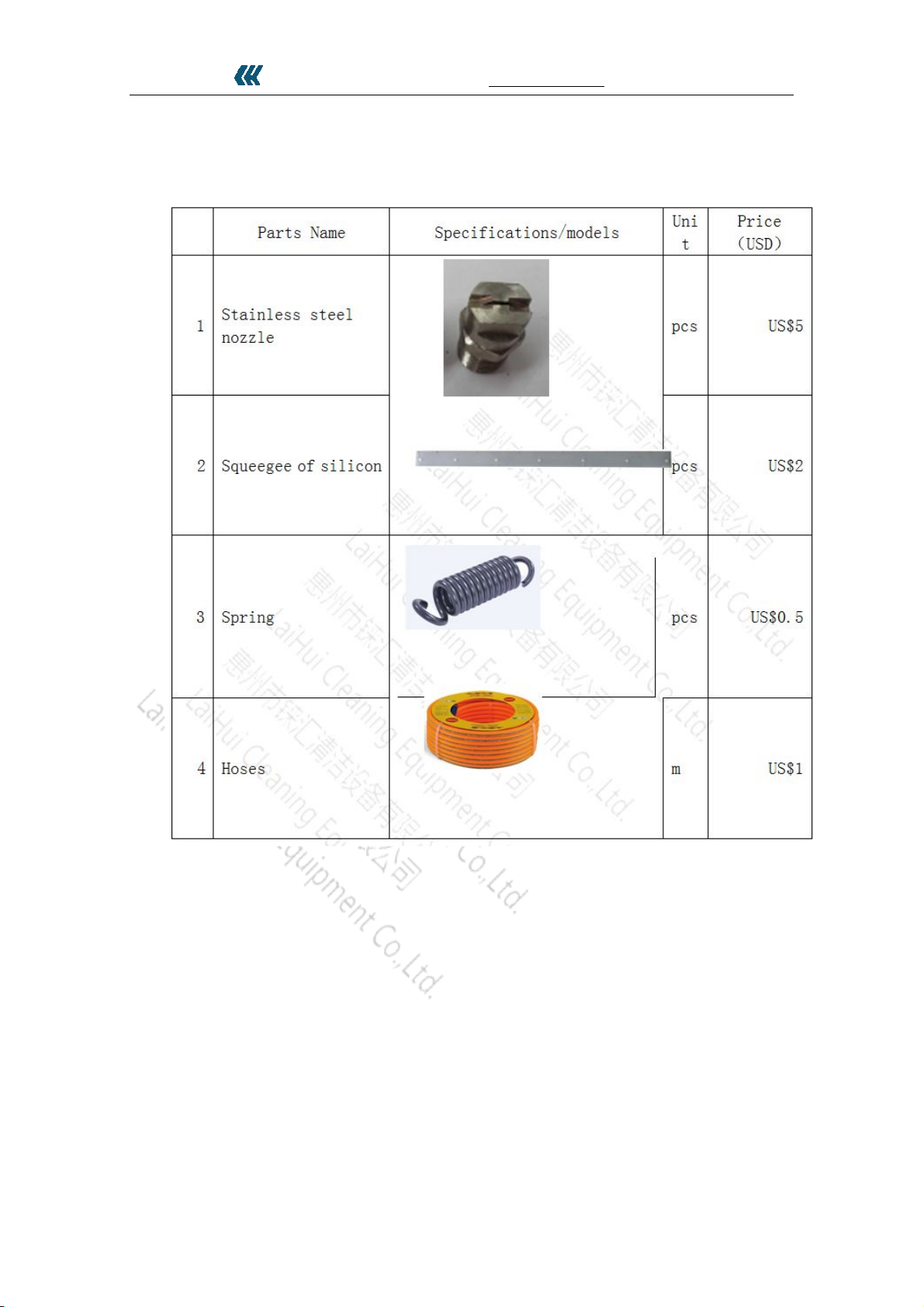

7Spare parts and consumable items......................................................................................16
8Safetyinstructions...............................................................................................................16
LaiHuiCleaningEquipmentCo., Ltd. www.pvclean-china.com Solar cleantools
Page 3 of17 9/6/2018
1 General overview
What is the high pressure water fed solar brush?
It's a kind of handheld water fed pole, it combined sprayed
high press water ,nylon bristles, squeegeeas one. it'ssuitable
for washing solar panels. Water fed pole takeyour solarpanel
cleaning business tothe next level, it will saveyou hours of
labor cost and increase productivityacross the board. It's
suitable for almost of all kind solar power plant. Spraying,
washing and wipe canacting at the sametime. Ifusepure
water, the effect is better.

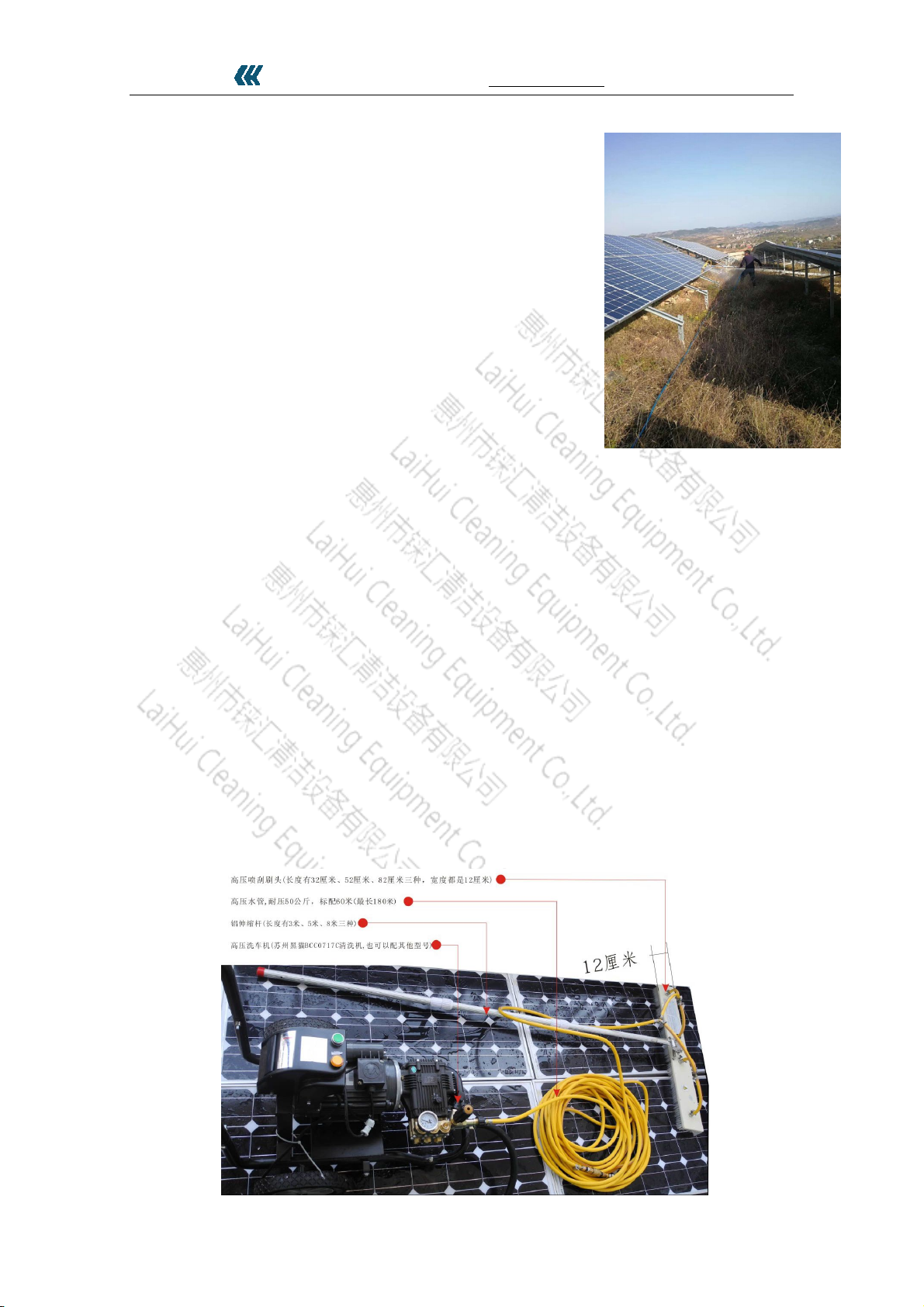

The high-pressure solar brush cleaning kit includes:
high-pressure water pump + pole brush + aluminumtelescopic rod.
The Water Fed Poles comein 3different sizes of rod length to suit anyjob you throwat it. Available in
10’,16’and26’foot lengths…thosehardto reachplaces arenoweasilywithinreach. Thebrushhead
comein 3different sizes too, available in 13" ，,21"，32"long with an adjustable flexible angle head to
achievethe perfect clean. Also featuring; -Squeegee of silicon-Telescoping sections operated with quick
clamps -Made fromstrong and lightweight aluminum.The Pump-made of the highest qualitymaterials, it
produces avariable water pressure of 600-1000 PSIand a flowrate of up to 4 Gallon/Minute.
Efficiency:200~300 square meters can be washed per hours (2000~3000square meters one days),
and onemegawatt solar panels can be washed within three days byone person.
LaiHuiCleaningEquipmentCo., Ltd. www.pvclean-china.com Solar cleantools
Page 4 of17 9/6/2018
2 Product description
2.1 Overview
Solar brush kits, bythe nylon brush○
1, aluminumtelescopic pole○
2, water hoses○
3, cleaner（high press
pump）○
4composition. The aluminumtelescopic rod is connectedto the brush head byelastic connection
○
6.For the inclined installationof the panels ,this flexible connection allowsthe brushto alwaysclose to
the panels surface.
The water supplyhoses is connectedto the pump, which has aswitch ○
7and canadjust the flowrate
of the water.

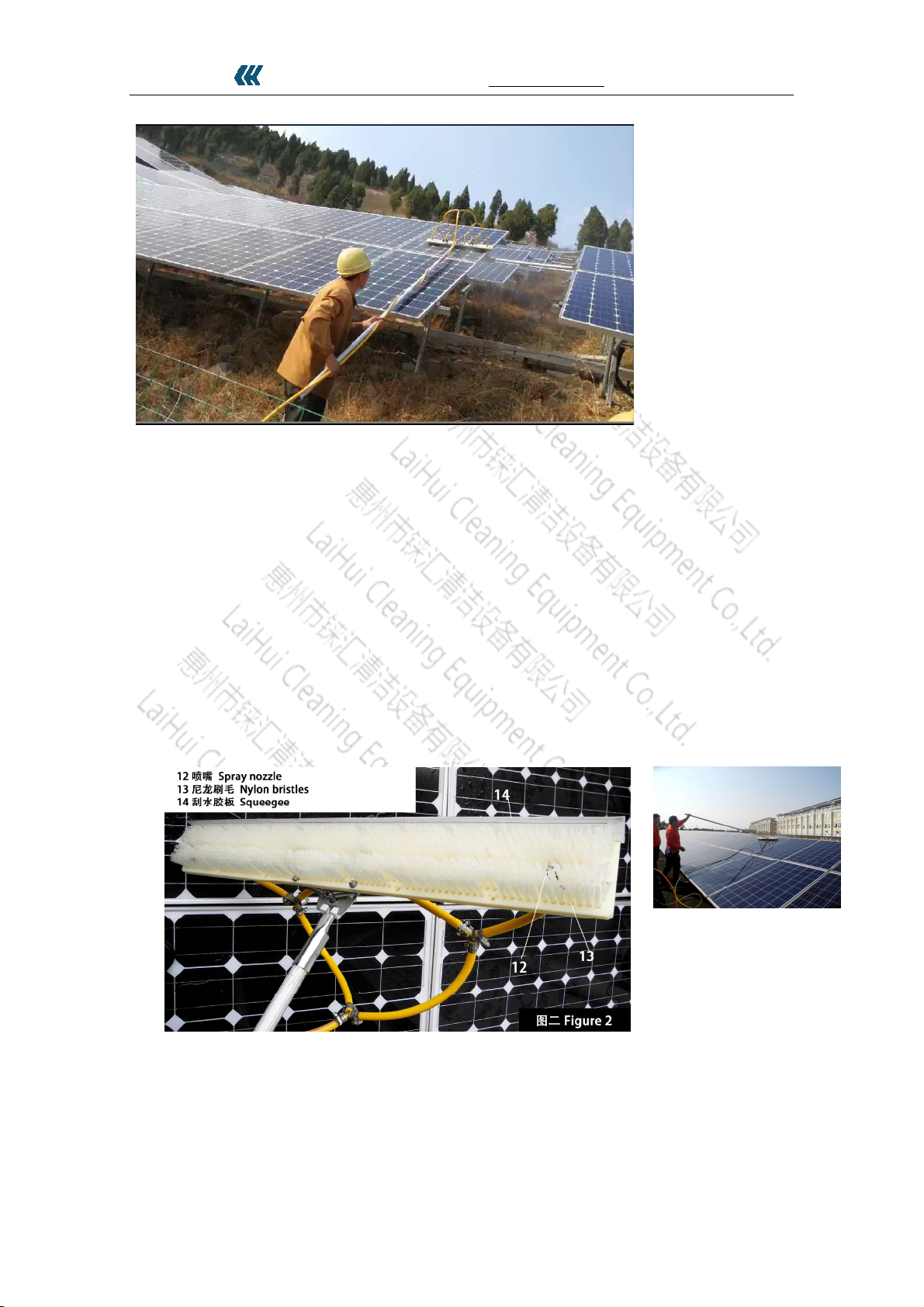

Brush head havespraynozzle, andhavespraynozzle at the side topalso ○
5,nylon bristles, Squeegee.

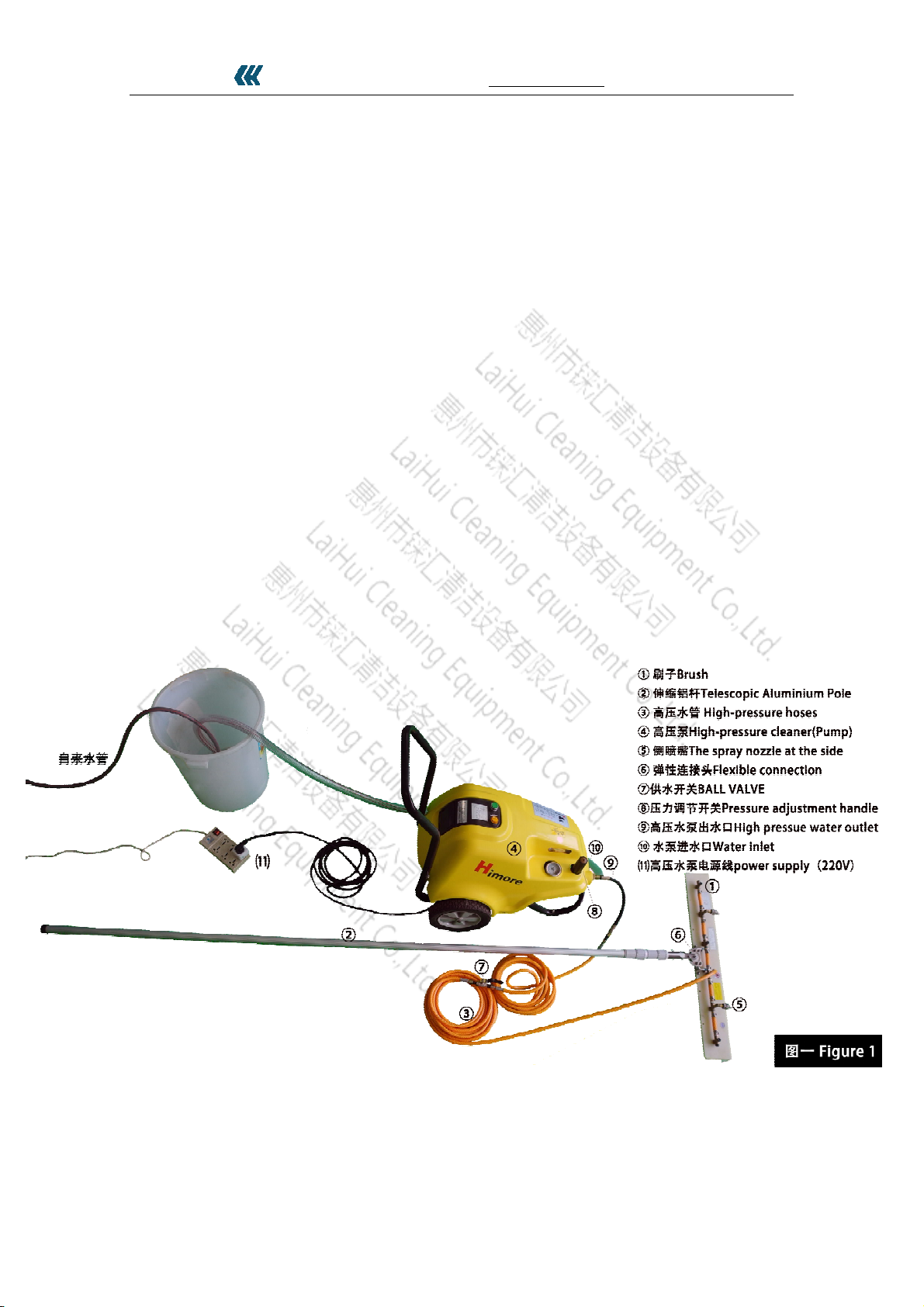

See Figure 1, Figure 2.
Itis manual tools, operation byone or two person.
LaiHuiCleaningEquipmentCo., Ltd. www.pvclean-china.com Solar cleantools
Page 5 of17 9/6/2018
2.2 Product specifications
Model No.
P/N B320H B520H B820H
Medium Water
Working
pressure 4MPa
Max
pressure(Bursting
Pressure)
6MPa
WorkingRated
Water Flow 8L/min 10L/min 16L/min
Maximumflow
rat 12L/min 15L/min 24L/min
WorkingLength
320mm 520mm 810mm
SizeLXWXH
320mmX115mm*50mm
520mmX115mm*50mm
810mmX1108mm*50mm
Net Weight 1.3 Kg 2.1Kg 2.9Kg
Noise 《60dB
Thepipeinner
diameter ofmatching
inlet
8mm
Work
temperature 4℃
Max
temperature 60℃
2.3 Product configuration reference
Howto choose the suitable high pressure water fed solar brush for you?
Solar panel cleaning kit provide different sizes of assembly,users can choose it according to
LaiHuiCleaningEquipmentCo., Ltd. www.pvclean-china.com Solar cleantools
Page 6 of17 9/6/2018
their conditions. The following is a reference:
(1) Inusually,choose B820H or B520Hbrush ,with the telescopic aluminumpole of 5
meters .
(2) If the panel modules too high, or too far,the general tool is not enough, you can choose
B320Hbrush + pole of 8 meters.
(3) Pole of 3meters + B820H brush, is the most efficiency
2.4 Working Capability
Highpressurewater fedsolarbrushhaveahighefficiency.Asingle personcanwash more than
150 squaremeters per hour.
The brush can beoperated byone people, but additional support is needed,to movethe hoses,
monitor the operation of the pump, cleaning operation take it in turns etc. That is, itisrecommended
that employtwo people to operate it.
Water-driven brush have a high efficiency.The following list is the reference data
The following list is the reference data
Model No.
P/N B320H B520HB820H
Length of brush 320mm520mm810mm
Capability100～200 ㎡/h150～300 ㎡/h 200～400 ㎡/h
LaiHuiCleaningEquipmentCo., Ltd. www.pvclean-china.com Solar cleantools
Page 7 of17 9/6/2018
2.5 Waterconsumption
High pressure water fed solar brush working with clean water.
Water consumption can be adjusted bythe valve (see Figure 1, ).
Cleaningonesquaremeter panels, theaverage water consumption is 2to 3liters. Clean one
megawatt panels Water consumption is about 15 to 20 tons.
The use of softened water (deionizer water) can improve the cleaning effect and reduce water
stains.
You can add an allowable cleaning agent in wash water.
LaiHuiCleaningEquipmentCo., Ltd. www.pvclean-china.com Solar cleantools
Page 8 of17 9/6/2018
2.6 Service life
The high press high pressurewater fed solar brush its service life is greater than 5 years.
Continuousworking time is more than 3000 hours.
Can complete the cleaning area of more than 1 million square meters

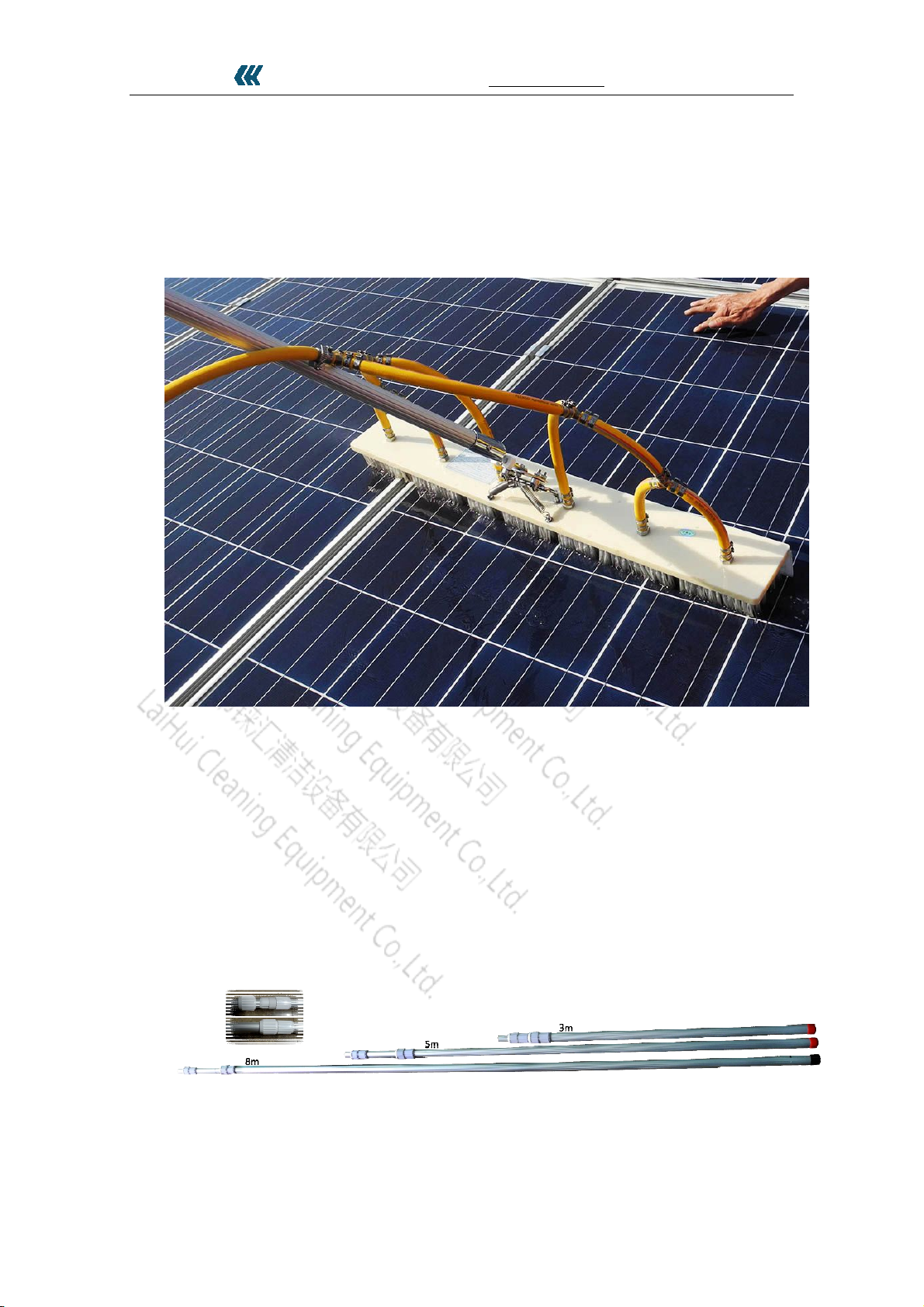

2.7 Pole
Aluminumtelescopic pole
Aluminumtelescopic pole havethree kind of length,specifications is 3meters, 5meters, 8
meters.
Loosen the plastic chuck,you canadjust thelengthof the aluminumpole out, andthen lock,
you can start working.
LaiHuiCleaningEquipmentCo., Ltd. www.pvclean-china.com Solar cleantools
Page 9 of17 9/6/2018

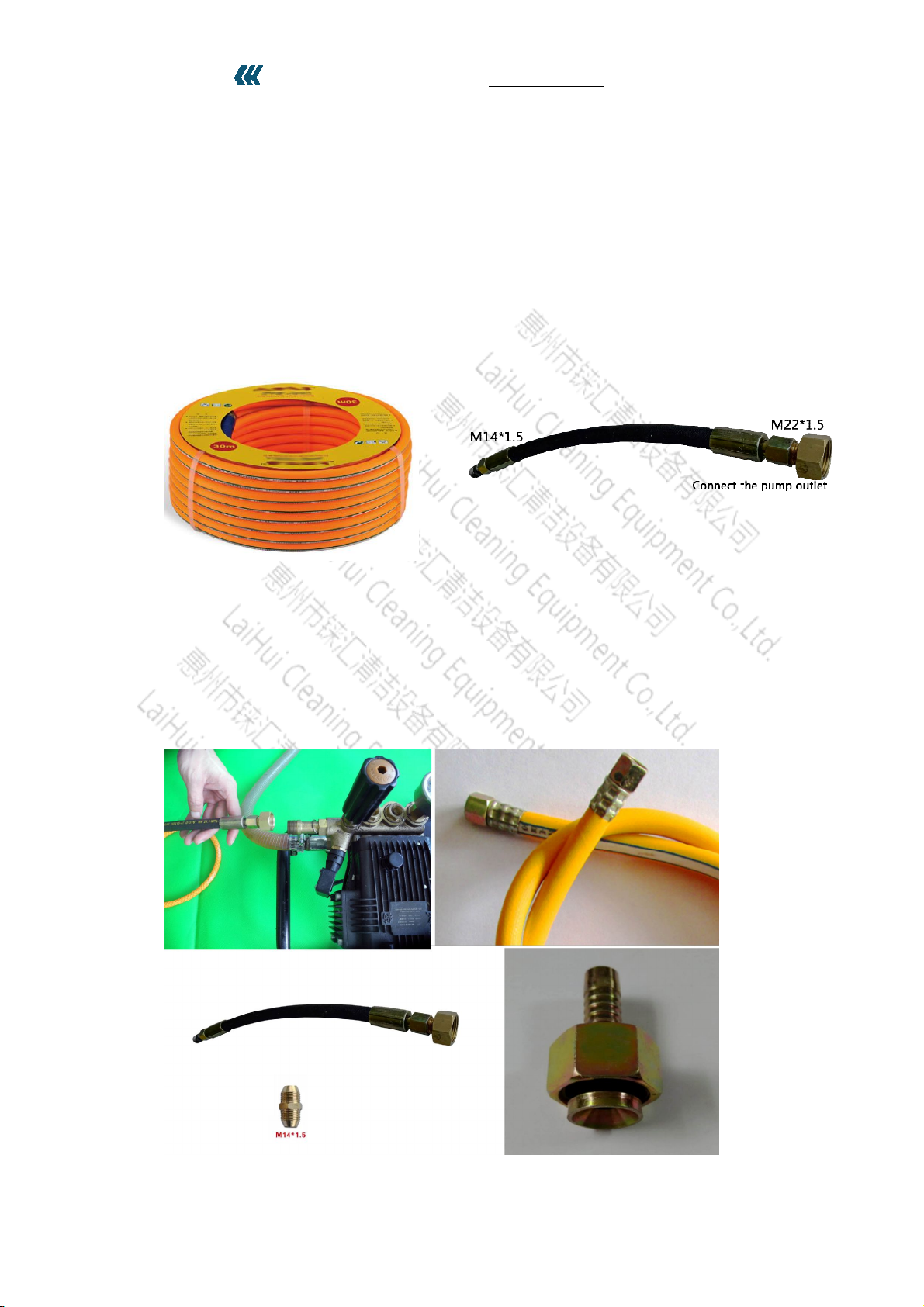

2.8 High pressurehoses and connectors
2.8.1 High pressure hoses
The inner diameter of the high-pressure hoses is 8millimeters, and the outer diameter is 14
millimeters. Working pressure is more than 4 MPa.
The length can be more than 100 meters.
Weight: 1.7 kg/10 meters.
2.8.2 Connector
High pressure Brush have the connector in the metric system.
The hoses connection is: M14 *1.5
The connection to thecleaners is: M22 *1.5.
LaiHuiCleaningEquipmentCo., Ltd. www.pvclean-china.com Solar cleantools
Page 10of179/6/2018
2.9 Washer (High Press Pump,Optional accessories)
2.9.1 The specifications ofthe pump
The brush must be equippedwith high pressure pumpto working. This system is compatible
with manykind of pressure washers, that meaning, Users existing pressure washers can usuallybe
used to operate it.
The suggestion specifications of the pump :
Pressure: more than 4 MPa.
Flowrate : more than 16 L/ min. (For B520H, B320H, 9L/ min)
If the flowrate is enough, one pump can drive more than one brush.
The greater power of the pump, the higher efficiencyof cleaning
Before the pumpis startup on the first time, itmust belubricated! The engine oil must be
filling.

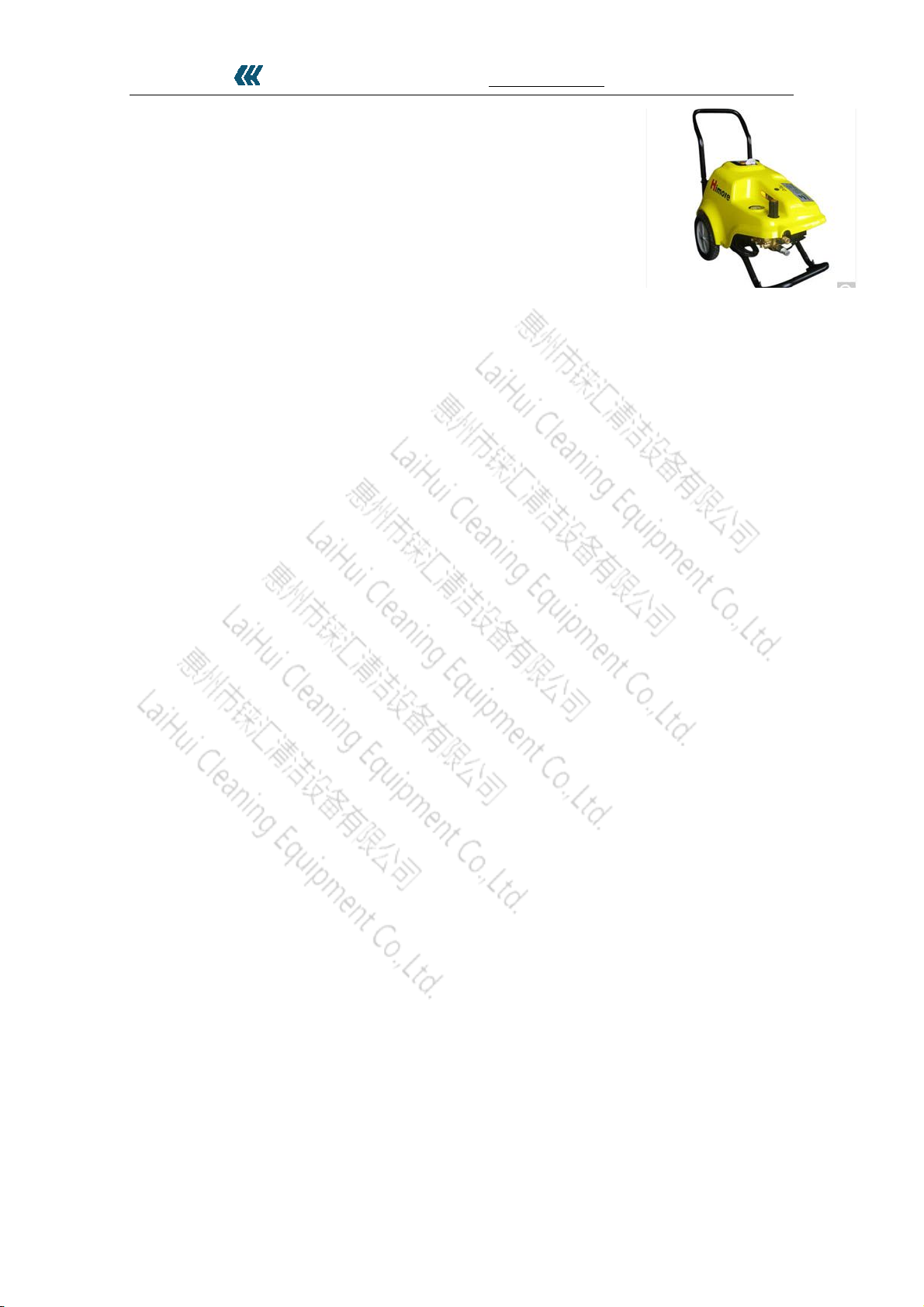

2.9.2 Instructions ofHigh Press pump BCC0717C
Himore BCC0717C cleaners(high pressure pump)
Features:
1, 24 hours of continuous operation
2, Compact structure; transport, storage convenience
3, The unique transmission design, small vibration, lownoise
Model BCC0717C
Rated Pressure(MPa)7
Flow(L/min)17
Motive Power(KW) 2.2
Power(V/HZ)220/50
Weight(kg)63
LaiHuiCleaningEquipmentCo., Ltd. www.pvclean-china.com Solar cleantools
Page 12of179/6/2018
3 Instructions
3.1 Preparation
Before you start work , safetyprotection must be done.
Readyfor water.
Readythe power supplyfor the pump.
3.2 Installing the product
1, Put the telescopic pole ②into the brush ①activities connector.
Release nut fixed. Adjust the length of the telescopic pole，and lock the nut.
2, Connected water supplyhoses.
3, Start-up the pump.
4, Adjust the pump pressure adjustment handle, to adjust the water's pressure.
5, Adjust the amount of water flowrate
6, The angle and direction ofthe spraynozzle at the sidetop, can be adjust byloosenthe nuts
with a spanner.
7, Spring (workingangle) adjustment:
Inorder to allowthe brush tofit the panels surface,the brush and pole are flexible connections.
The brushheadhaveaspring, it ensures that thebristles lie flat throughout, enabling consistently
uniformcleaning results. For different bevels and mounting heights, you can bychanging the spring
with different hardness to suit the panel surface
LaiHuiCleaningEquipmentCo., Ltd. www.pvclean-china.com Solar cleantools
Page 13of179/6/2018

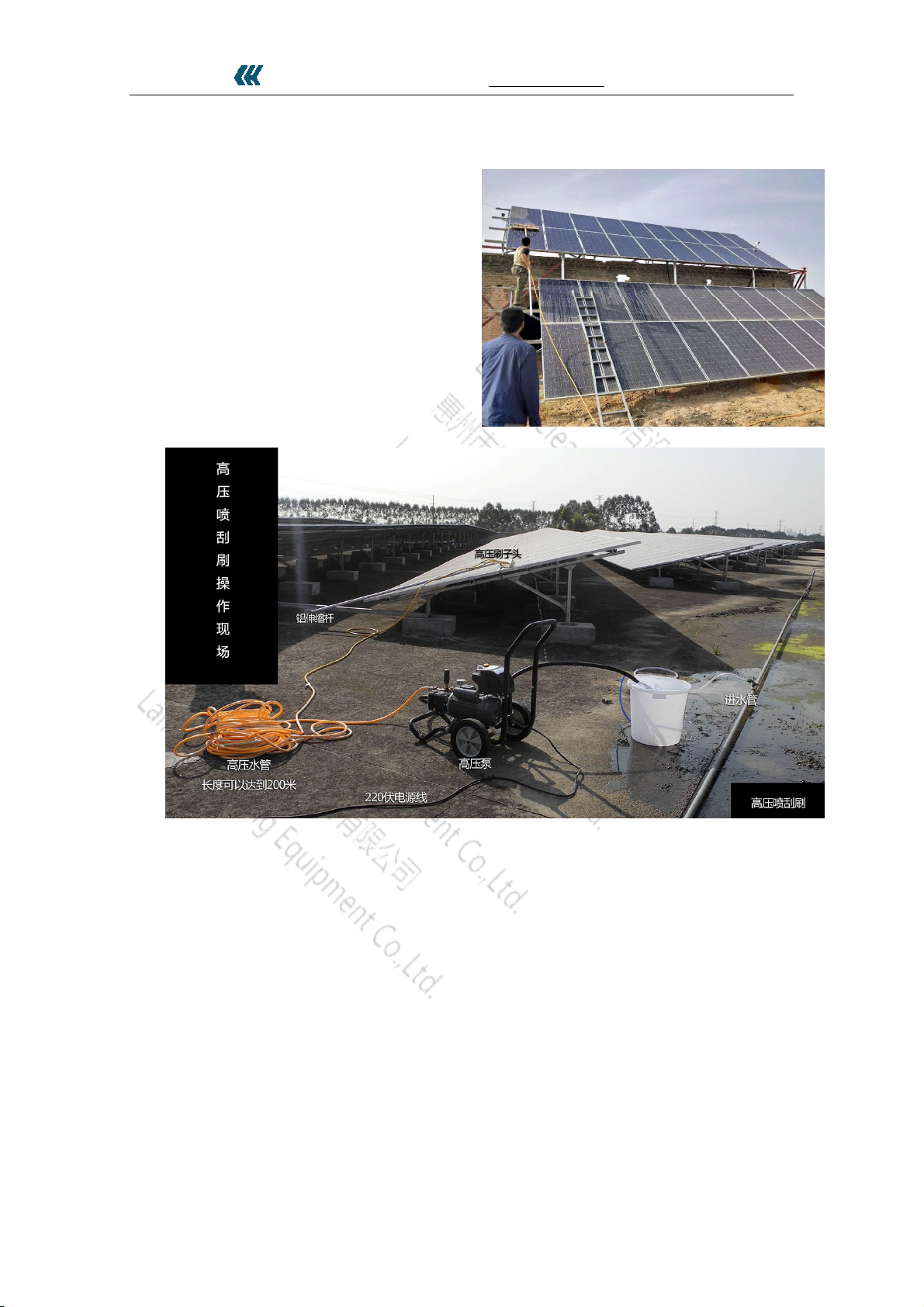

3.3 Operation
The operation of High PressHigh pressure
water fed solar brush is verysimple, almost no
need of training.
Byhand-held pole brush, open theswitch of
water,adjust the water flowrate, and then you
can cleaning. Itis advisable tostart cleaning from
the top of thepanel andoperate fromtop to
bottom.
3.4 Tips for cleaning
-Work with the maximumwater quantity.The more water the more clean.
-Moisten the panels first, that is, this removes stubborn soiling and the scrubbing of the brush
on a drysurface is avoided. and then usethe brush cleaning, that is more efficient
–Cleaning fromthe roof ridge: Clean the modules from top to bottom.
–Cleaning fromlifting platform/scaffold.
–Use cleaning agents, which can improve the cleaning efficiency.
–Use soft water (deionized water)
LaiHuiCleaningEquipmentCo., Ltd. www.pvclean-china.com Solar cleantools
Page 14of179/6/2018
4 Transport and storage
During transport, it is necessaryto tighten the pole.
Do not press the bristles and high pressure pipes.
Long-termno use, you need to emptythe water, keep the brush in a dryenvironment.
The Brush can not work below 2 C.
5 Maintenance Guide
5.1. Regularlycheck the brush, especiallythe water supplyhoses, eachtimeyou start work
should be carefullychecked whether the water leakage,
5.2. Inanysituation, havetowork through the pole to brush. can not drag the hose tomovethe
brush
5.3.If necessary, replace old parts to ensure operational reliabilityand longer service life
5.4 Squeegee replacement
Use theAllen wrench,loosenthe wiper blade screws,removethe old squeegee,replace the new
one
LaiHuiCleaningEquipmentCo., Ltd. www.pvclean-china.com Solar cleantools
Page 15of179/6/2018
5.5 Filter screen clean (some of models)
The brush jet the high pressure water through the spraynozzle. Inorder to prevent the nozzle
'sblocked, in the pumpinlet,installed afilter screen ,after long timeof working ,youneed to clean
the filter screen .
6 Warranty and CustomerServices
Warrantyperiod
The Warrantyperiod of the high pressure water fed solarbrush is 12 months, including brush ,
pole, water supplyhoses.
Note: The Squeegee is consumable parts and is not covered under warranty.
The user will need to send solar Brush backto the companyor its authorized dealers to provide
free maintenance services, the general maintenance time is 21 days.
LaiHuiCleaningEquipmentCo., Ltd. www.pvclean-china.com Solar cleantools
Page 16of179/6/2018
7 Spare parts and consumable items
8 Safety instructions
Personal protectiveequipment shouldprotectthe operator fromthe risk ofwater,including
head,eyes, body,handsandfeet. Protectiveequipment to beusedincludes:helmets, faceguards/
combinations of goggles, protectivegloves, and other safetyequipment that are required for the site.
Before use must checkwhether the pipeline is connected firmly,whether the pipeline wear,water
leakage, can not bring anyhidden trouble operations.
LaiHuiCleaningEquipmentCo., Ltd. www.pvclean-china.com Solar cleantools
Page 17of179/6/2018
WARNING: Read the following carefully！
–Themachine canbeoperatedin wet andrain,but in orderto reduce theriskof
lightning, do not operate the unit in the event ofthunderstorms orpossibly thunder.
–Therehave high pressurewaterjet, eye protection is must be done!
–This tool is electrically conductive andnon insulating! Be careful notto touch
electricity!
–Torque dueto rotatingbrush,holdtightly on tothe rodduringwork,especially when
the rod farextended.
–Ensurefirmfooting during cleaning work.
–Checkthe solarmodules fordamage (cracks, scratches, leaks, etc.) priortocleaning.
Damaged modules must not be cleaned.
–Uponcompletion ofthecleaningoperation,switchoffthehigh-pressurecleaner,close
the watersupply to the appliance.
–Employ at least 2 people to performthe cleaning work.
–Cleaningworkmust not be performed froma ladder.
END
Mr. Zhang zhi feng
Mobile Phone:+086 13923620400
Address：
No.13Jinda Road，Huinan High-Tech Industrial Park,
HuiAo Avenue, Huizhou, Guangdong, China
This manual suits for next models
2
Table of contents
Other LaiHui Cleaning Equipment Cleaning Equipment manuals
