Laipac LP-1500 User manual

Wireless Home Safety
and Security System
LP-1500 System
OWNER’S MANUAL
Laipac Technology, Inc.
http://www.laipac.com
Tel: [phone] Fax: [phone]
Richmond Hill, Ontario Canada

1
TableofContents
Introduction (LP-1500) ……………………………………………………….. 3
System Package ……………………………………………………… 3
Optional Accessories …………………………………………………. 3
Deployment of System ……………………………………………….. 3
Planning for Installation ……………………………………………………… 4
Choosing Location ……………………………………………………. 4
Setting Alarm Zones ………………………………………………….. 4
Installing the Back-up Battery ……………………………………….. 4
Power the Main Console ……………………………………………… 4
Connecting the Telephone Line ……………………………………… 4
Setting the Antenna …………………………………………………… 5
Mounting the Main Console …………………………………………. 5
About Password ………………………………………………………. 5
Others ………………………………………………………………….. 5
About the Main Console Operation ………………………………………… 6
LCD Panel Illustration ……………………………………………….. 6
Terminal Block Function Illustration ………………………………… 7
Function for Installer – Factory Default Password ………………… 8
Function for Master – Factory Default Password …………………. 13
Check Function ……………………………………………………….. 14
Panic Alert Function …………………………………………………… 15
Arm or Disarm via the Telephone Line ……………………………… 15
Two – Way Voice Communication ………………………………….. 16
Chime Function for Door Sensor ……………………………………. 16
LCD “MSG” Message Indicating on LCD ………………………….. 16
Setting the Alarm Sound ON / OFF …………………………………. 17
Reset the System …………………………………………………….. 17
LP-120 PIR Motion Detector …………………………………………………. 17
LP-122 / LP-123 Door / Window Detector …………………………………. 21
LP-119 Remote Control Handset …………………………………………… 25
LP-207 External Siren and Strobe Light …………………………………… 26
Specifications of LP-1500 System ………………………………………….. 27
Summary of LP-1500 Programmed …………………………………………. 28
Summary of Sensor and Zone Setting ……………………………………… 29
Encl. LCD Display – “ Master “ Setting Structure
LCD Display – “ Installer “ Setting Structure
LCD Display – “ Check “ Setting Structure

2
ImportantSafetyInstruction
•Read Instructions – All the safety and operating instructions should be read before
operating this equipment. These instructions should be retained for future reference
•Heed Warnings – All warnings on the equipment and in the operating instructions
should be adhered to.All instructions regarding care and operation of this equipment
should be followed.
•Power Sources – Equipment should only be connected to the power supply specified
in the operating instructions or as marked on the equipment.
•Grounding or Polarization – Take precautions that the equipment is properly
grounded. Take note that the power supply is fitted in the correct input jack ( marked
DC 12V ), and auxiliary units ( external siren and strobe light ) are fitted into the correct
external jack points.
•Power-Cord Protection – Keep cable cords and plugs clear of other objects,
particularly at the point where they exit the equipment.
•Cleaning – Clean the equipment by wiping with a soft cloth, ( do not use any abrasive
agents or water ).
•Non-use Periods – Power cords should be unplugged from the outlet when left
unused for a long period of time.
•Object and Liquid Entry – Take care not to drop objects or liquids on any part of the
equipment.
•Damage Requiring Service – The alarm should be serviced by a qualified service
personnel when:
-The power-supply cord or the plug has been damaged, or
-Objects have fallen, or liquid has been spilled onto the equipment, or
-The equipment has been exposed to rain, or
-The equipment does not appear to operate normally or exhibits a marked
change in performance, or
-The equipment has been dropped, and/or the enclosure has been damaged.
•Servicing – Do not attempt to service the appliance beyond that described in the
operating instructions.All other servicing should be referred to a Qualified Distributor’s
Service Personnel.
•System Maintenance – Under normal use your system requires virtually no
maintenance other than regular testing. It is recommended that you test your system
once a week, and replace the batteries at least once every 6 months ( or as needed ).
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE OR POWER ADAPTER TO WATER OR MOISTURE
IMPORTANT NOTE: IF YOU RETURN TO YOUR PREMISES AND FIND THAT THE
ALARM IS IN PROGRESS, DO NOT ENTER, AS A FIRE OR AN INTRUDER MAY BE
PRESENT. GO TO A NEIGHBOR AND CONTACT THE RELEVANT LOCAL
AUTHORITIES FROM THERE.

3
Introduction
Thank you for choosing LAIPAC Wireless Home Security System. LP-1500 series are
high-quality, reliable and versatile security systems. This system provides both two-way
voice communication and built inAuto-dialer function. To ensure the best performance of
your system, please read this manual thoroughly and follow the precautions and
instructions presented. These systems are designed to be simple and easy to install and
maintain.
Wireless easy to use : No messy and expensive wiring is required to install the system.
Expandability : You can add different kinds of accessories to the system to
create a more complex system as your future needs may require.
Flexibility : You can choose the kinds of sensors and response actions for
the system.
Personalized : Program the system to notify whoever you choose in the case of
alarm activation.
System Package
LP-1500 X 1 Main Console
LP-119 X 1 Remote Control Handset
LP-120 X 1 PIR Motion Detector…
LP-123 X 1 Door/Window Detector (9V battery)
LP-207 X 1 Wired External Siren with Strobe Light
Optional Accessories
LP-117 Panic Watch Transmitter LP-126 Range Extender
LP-118 Smoke Detector LP-206 Wired Mini-Siren
LP-122 Door/Window Detector LP-700 Rechargeable Battery (for LP-1500)
LP-124 Door Keypad LP-180 Rechargeable Battery (for LP-126)
LP-125 Gas Detector

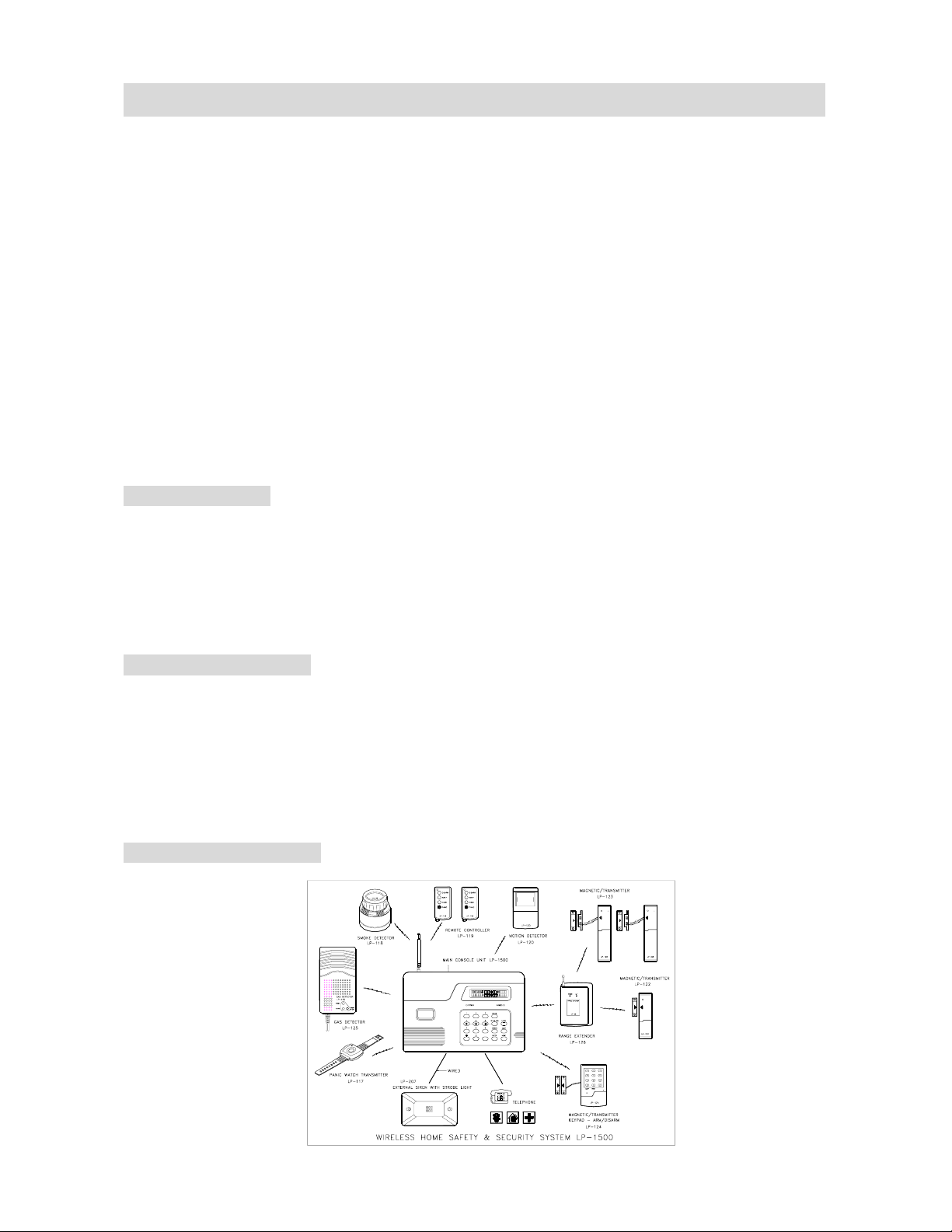

Deployment of System
#
WIRELESS SECURITY SYSTEM
LP-1500
TWO-WAY VOICE COMMUNICATION
HELP

4
PlanningForInstallation
The LP-1500 system is designed to be as flexible as possible in order to meet your
present needs, and also to adapt as your needs change. For the reason, we recommend
that you read and consider the following information and plan your system before installing
devices.
Choosing Location
It is important to try and place the Main Console in an area central. This way. It can let all
the sensors transmit signals with maximum efficiency. In additional, The Main Console
must be placed near a power outlet and telephone jack, because the system needed to be
connected with them.
Setting Alarm Zones
Before installation, you shall have the sensors learn into Main Console via system learning
mode of the Main Console. This system allows to install maximum 63 wireless sensors
and 3 wired sensors.
Installing the Back-up Battery
Remove the battery cover of the Main Console and install the backup battery set to ensure
security system in normal operation whenAC adapter out of work.
Powering the Main Console
1. Attach the end of the adapter into the connector provided at the back inside of the
console.
2. Locate the AC adapter, plug the AC adaptor to power outlet.
3. Shown as the LCD screen while power on.
Connecting the Telephone Line
To correct the Main Console to the telephone line, Please follow these steps:
1. Locate the two phone jacks on the back inside of the main console. These phone jacks
are marked “ Phone “ and “ Line “.
2. Connect one end of the telephone cord that came with the system into the connector
labeled Line. Connect the other end of that cord into the wall jack.
3. Connect a telephone to the Main Console through the phone jack.
4. Set the back cover and fix it securely. (Before setting the back cover, you need to finish
the Battery and AC Adaptor installation)
00 HOME SECURITY
Disarmed

5
Setting the Antenna
Carefully extend the antenna upward in order to maximize the range of communication
between sensors and the Main console.
Mounting the Main Console
The Main Console may be set on a table top, or mounted on a wall. To mount the console
on a wall, follow these steps.
1.Remove the two black rubber pads and store them away for future use.
2.Measure and fix screws into the wall so that the two screws fit into grooves left under
removed pads.
3.Connect all wire connection to the jacks on the back inside. and replace to back
cover.
4.Set the console onto the screws and carefully allow the console to drop into the
groove securely from inside.
About Passwords
This system provides two sets of password for setting the system. A〉”Install ” B〉”Master ”
A〉”Install ” : You can use this password to set the system, such as telephone numbers or
record message…etc
B〉”Master ” : This password is used for setting “Arm”( Arm away or Arm home) or
“Disarm” the system.
When the system is finished installation, your family members only need to “ Arm” or
“Disarm” the system.
Others
We recommend that you install and program the console after installing the other
components (sensors) of the system. This is to ensure that all of the components are
working together properly.

6
About the Main Console Operation
The Main Console is the heart of the security system. It monitors the sensors and the
responds according to how it is programmed, whenever the sensor is activated. The
controls shown on the Main Console may look complex at the first sight, however, most
procedures are straightforward and easy. Please review the illustration below which labels
all of the parts of the Main Console.

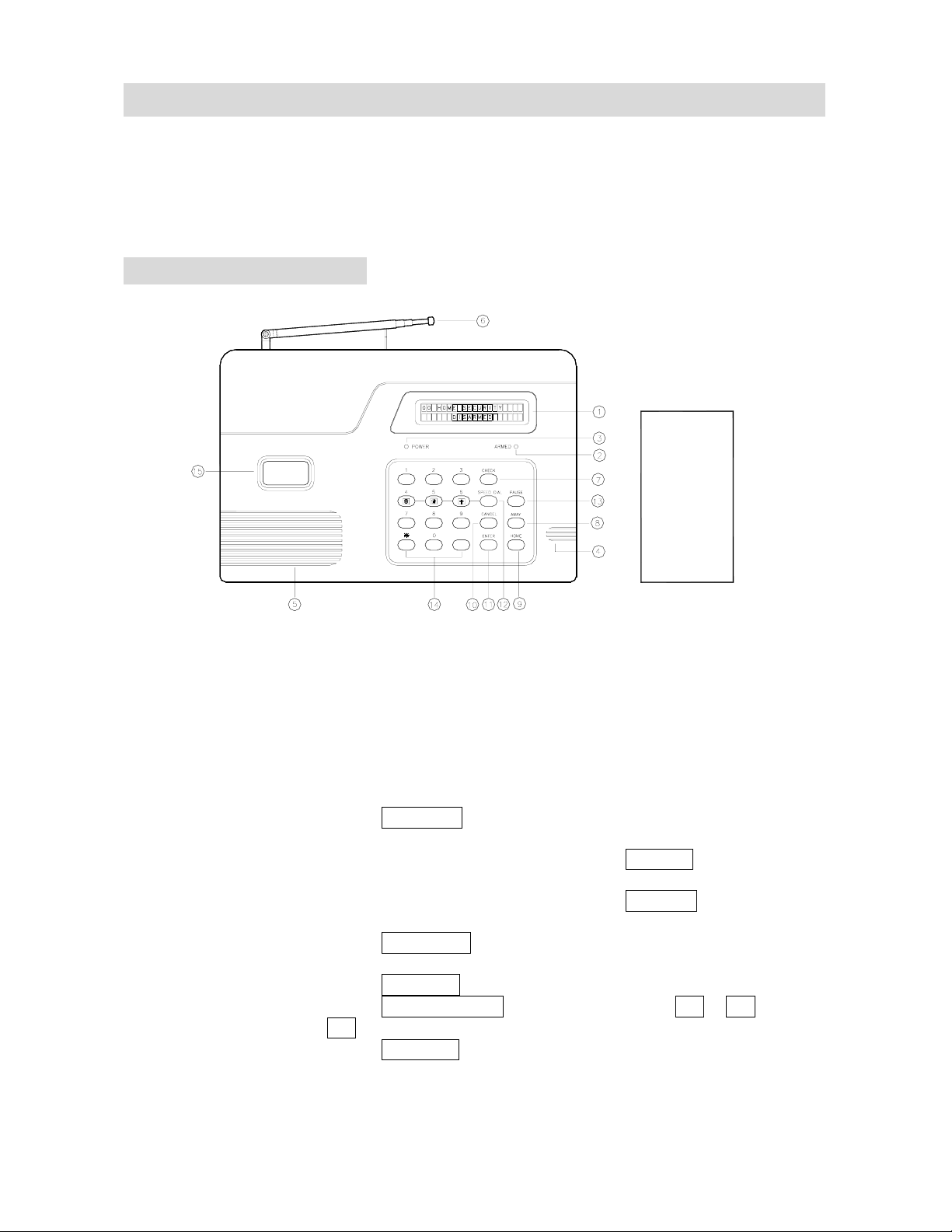

LCD Panel Illustration
#
WIRELESS SECURITY SYSTEM
LP-1500
TWO-WAY VOICE COMMUNICATION LEGEND
1. LCD PANEL
2. ARMED LED
3. POWER LED
4. MICROPHONE
5. SPEAKER
6. ANTENNA
7. CHECK KEY
8. AWAY KEY
9. HOME KEY
10. CANCEL KEY
11. ENTER KEY
12. SPEED DIAL KEY
13. PAUSE KEY
14. TELEPHONE KEY
15. HELP BUTTON
HELP
1. LCD panel : Shows the messages and/or status of setting and operating.
2. Armed LED : When the light ‘on’, system is armed; the light ‘off’, system is
disarmed.
3. Power LED : Indicates the AC Adaptor power is on or off.
4. Microphone : To record the messages and use for two way communication
voice input.
5. Speaker : Sounds alarm and plays back messages, door chime.
6. Antenna : Leave extended to enable maximum range of communication
between the sensors and the Main Console unit.
7. Check : Press CHECK button to review sensor setting and check
recording message.
8. Away : Key-in the “ Master ” code then press AWAY button to arm
at away mode
9. Home : Key-in the “ Master ” code then press HOME button to arm
at home mode
10. Cancel : Press CANCEL button to go back to previous menu or
deleted MSG.
11. Enter : Press ENTER to confirm program entry.
12. Speed Dial : Press SPEED DIAL button together with 4 , 5 or
6to activate 3-emergency dialing.
13. Pause : Press PAUSE button to turn on/off the chime function in
disarm status. or use in extension number ex.
4949123P123, P indicate to pause 2 seconds.
14. Numeric keys and
# , * keys : For telephone setting included pound and star keys.
15. Help : One-touch button to trigger the system for emergency help

7
InstalltheMainConsole

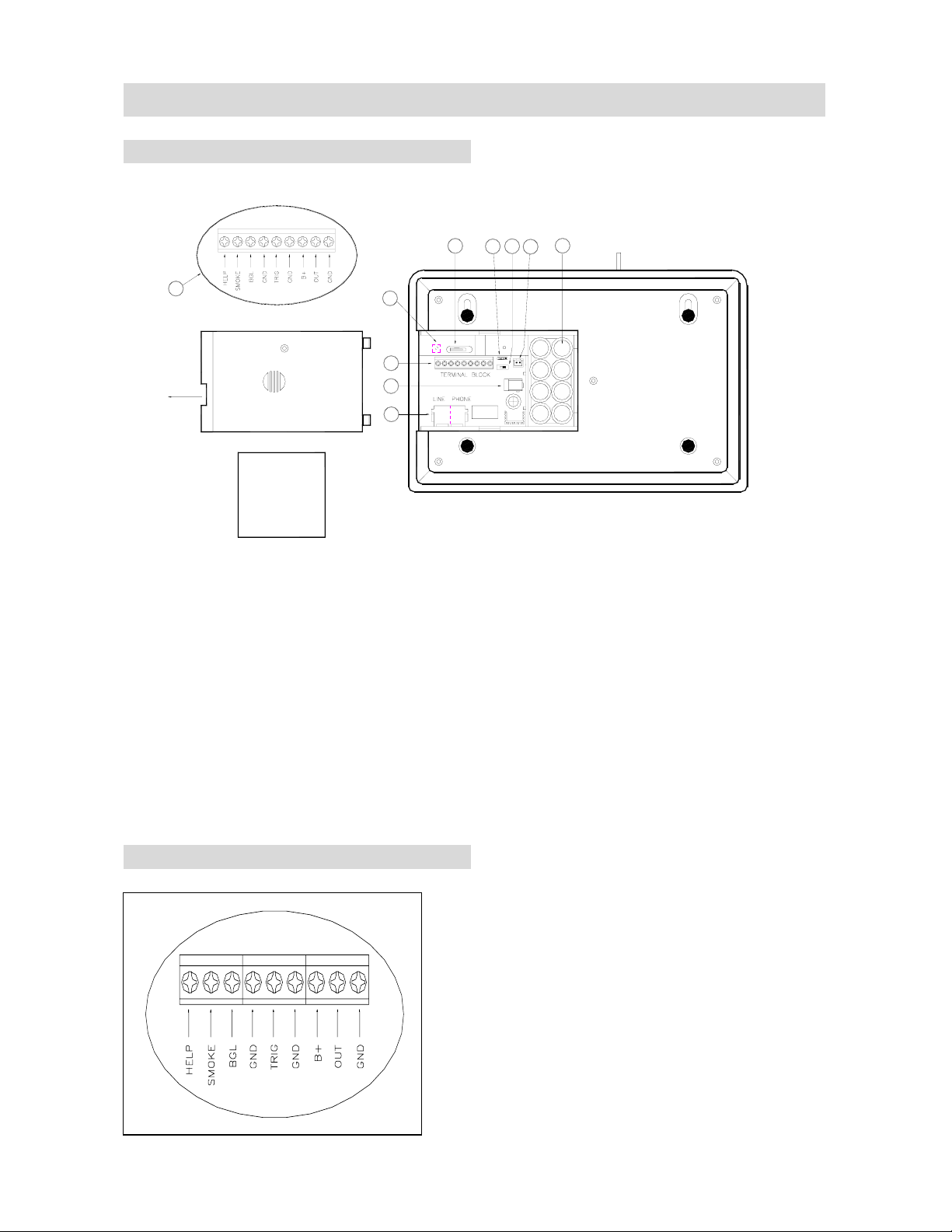

Terminal Block Function Illustration
DC INPUT JACK
TEL JACK
RECHARGEABLE BATTERY
TERMINAL BLOCK
CABLE OUT
1
1.
2.
3.
4.
5.
6.
RESET SWITCH
LEGEND
7.
234
5
6
7
5
TAMPER SWITCH
PULSE TONE SWITCH
VOICE/DTMF JUMPER
LP-1500 BACK
8
8.
9
BATTERY CONNECTOR
9.
1. Reset button : Press reset button to back to factory defaults
2. Tamper :Open the tamper Button. It will trigger alarm and dialing out the preset
phoneNo.
3. Voice/Surveillance center : Normal voice or Surveillance center use
4. Pulse/Tone : Pulse or Tone selectable
5. Input/Output : External device. Ex, wired sensor, external siren or NC contact
6. DC supply inlet : AC Adaptor DC input
7. Telephone Socket : Connect to telephone line input
8. Rechargeable Battery : Use LP-700 rechargeable battery
9. Rechargeable Battery Socket : Rechargeable battery input ( please note the polarity
of battery)
Terminal Block Function Illustration
HELP : To connect with the wired sensor for
medicalpurpose.
SMOKE : To connect with the wired sensor for
fire purpose.
BGL : To connect with the wired sensor for
burglary / police office purpose.
GND : To connect with the ground for wired
sensor.
TRIG : NC/NO connect point.
GND : GND
B+ : DC 12V for external device.
OUT : To connect with the external wired siren.
GND : For DC12V and external wired siren

8
Place the rechargeable battery to the proper position
Function for Installer – Factory Default Password :123456
1. Enter password to start the menu. LCD shown as below(Enter the password and do
the function setting according to your need)
zIncorrect password entering will show “ Access Denied” and will emit beep sound
warning.
zIf 3 incorrect password enters, keyboard disabled and locked (LCD shown as
below). Try it again after one minute idle or use Remote Control Handset (LP-119
DISARM button) to disarm the system.
zIf 9 incorrect password enters, (equals has 3 times keyboard locked, system
disabled and locked, LCD shown as below). It will trigger alarm but not to dial out
the phone number. you can use Remote Control Handset (LP-119 DISARM
button) to disarm the system.
2. If the password is correct (default 123456), It will have beep sound and LCD panel
shown as below.
Access Denied
HOME SECURITY
KEYBOARD LOCKED
System Lock
Pass
Install Mode
Code : ******

9
3. Select the Number setting
0 - SET Function menu : Press 0 to start setting
(1) 0-T : For time setting (Default is 30 seconds.) minimum 1 second, maximum
255 seconds.
Press 0 button, will go to time setting (exit, alarm, entry) time
Press 1 button, setting delay time for exiting house.
Press 2 button, setting alarm time for triggering alarm
Press 3 button, setting delay time for entering house
(2) 123456-P Numeric key : To set telephone number ( can set 6 sets phone
number and each number up to 20 digits)
Setting 1 , 2 or 3 : For neighbors, relative friends and family members
to notify in case of emergencies.
Setting 4 :ThefirstprioritydialincaseofBurglary.(check
policedeptifacceptableorotherpeople)
Setting 5 :ThefirstprioritydialincaseofFire.(checkfire
deptifacceptableorotherpeople)
Setting 6 :ThefirstprioritydialincaseofMedicalhelp.
( check hospital if acceptable or other people )
Learning : 0 – SET
1 – SEQUE 2 – OVR 3 - CLR
Setting : 0 – T 1 2 3 4 5 6 – P
7 – MSG 8 – DIAL 9 - CODE
Setting : Time 1 - Exit
2 – Alarm 3 - Entry
Setting : Time
1 – Exit : 30 Sec
Setting : Time
2 – Alarm : 30 Sec
Setting : Time
3 – Entry : 30 Sec
Setting : Phone Num : 1
********************

10
(3) 7- MSG : To set recording message which contains 4 segments of different recording
message and each segment is maximum to 15 seconds. If the recording
message is less than 15 Secs, press ENTER to end the recording
message. When alarm is triggered, it will play one of the first 3 segments
depends on what sensor designated and next together with Msg 4
recording. ex. (Msg 1, Msg 4) or (Msg 2, Msg 4) or ( Msg 3, Msg 4)
respondingtotheemergency.
Msg 1 : Record message for Burglary help while pressing 1, it will
automatically count down from 15 and start recording the message.
Msg2:RecordmessageforFirehelp
Msg 3 : Record message for emergency (medical) help
Msg 4 : Record message for name, address and telephone numbers…etc.
(this is common message)
Press 7 and in the message recording menu, (It contains 4 segments can be
recorded )
Press 1to start first segment message recording (it will automatically count
down from 15 Sec)
When finished recording message, it will automatically playback recorded Message one
time and LCD panel shown as below.
(4) 8 - DIAL : To set Dial mode. (default is 2-ALL to dial all telephone sets)
Press 1 for single attempt dial. ( if one of the telephone set is acceptable, it will
stop to dial next telephone set)
Press 2 for 3 cycles attempt dial.( it will be in turn to dial all the telephone set)
Setting : Dialer Mode
1 – Single 2 – All 1
Setting : Message Rec
Sel Msg : 1 2 3 4
Setting : Message Rec
Sel Msg : 1 15 Sec
Setting : Message Play
Sel Msg : 1 15 Sec
Setting : Dialer Mode
1 – Single 2 – All 2
Setting : Dialer Mode
1 – Single 2 – All 2

11
(5) 9 - CODE : To make password change. (factory defaults, Install code 1-123456,
Master code 2-135246). If you want to change the password, key-in 6
digitsandwillautomaticallyshow“OK”(maxset6digits),ifthewordis
lessthan6digits,youcanpress ENTER afterkey-inthenumberand
itwillshow”OK”.
Press 1 and in the change Install code menu.
Press 2 and in the change Master code menu.
1. SEQUE: " Sequent " for code learning to set zone location . First of all, all the sensors
needed to be learning into main console, and main console can receive the signal if the
sensor trigger. When sensor is learning into main console, main console will leave the
learning order for the sensor. This system allows to set Zone numbers maximum to 63
addresses. It is recommend that use a pen on the sensor back label to mark the sensor
location, It is available to overlay or clear sensor for changing sensor.
In the learning menu,
Press 1 and into the learning Sequent Mode
(01 sensor learning order)
The method for sensors learning:
1. PIR Motion Detector (LP-120) :
First to install Battery and push the Power Switch from OFF to C position. PIR
sensor LED will light on for 1 Sec, it means that the sensor transmit 1 sec signal.
Or you can move in the front of PIR, It will detect your movement and transmit 1
sec signal. The sensor will be learned into main console.
2. Door / Window Detector ( LP-123/LP-122/LP-124) :
First to install Battery and let the magnetic switch from close to open, the led will
light on for 1 Sec, The sensor will be learned into main console.
Setting : Change code
1 – Install : 1 2 3 4 5 6
Setting : Change code
2 – Master : 1 3 5 2 4 6
Setting : Change Code
1 – Install 2 – Master
Learning : Sequent
Trigger Sensor 01
Learning : 0 – SET
1 – SEQUE 2 – OVR 3 - CLR

12
3. Remote Control handset (LP-119) :
First to install Battery and press PANIC button, the led will light on for 1 Sec,
The sensor will be learned into main console.
4. Panic Watch (LP-117) :
First to install Battery and press RED button, the led will light on for 1 Sec, The
sensor will be learned into main console.
5. Smoke Detector (LP-118) :
First to install Battery and press S1 button, the led will light on for 1 Sec, The
sensor will be learned into main console.
6. Gas Detector (LP-125) :
Plug the AC power and press the TEST button, the led will light on for 2 Sec,
The sensor will be learned into main console.
7. When the sensor is learned into main console, It will show the message as below.
At the time it will automatically switch to next sensor learning mode
8. If the sensor has been learned in main console. Main console will show the sensor
has been learned in memory and not allow same sensor to learn into main
console.
9. If sensors have learned and reach 63 zone numbers, LCD panel shows memory
full message.
NOTE:1. Sensors belong to 24 hours included:
Smoke Detector (LP-118), Gas Detector (LP-125), Panic Watch (LP-117)
Remote Control Handset (LP-119 PANIC button) and Main Console HELP
button.
2.DistinguishA-AWAY and H-HOME mode:
When system is armed in HOME mode, Main Console will neglect the
transmission signal from the PIR(LP-120).
2. OVR: To overlay the sensor. (when sensor is no good or replacement)
To replace the original sensor, only need to key-in sensor learned order
number. Finish the number key-in and press ENTER , system will ask
for relearning the Sensor, you can trigger the sensor and learn the sensor
into the main console.
STORAGE SENSOR
IN MEMORY
Learning: Sequent
Trigger Sensor 02
Learning : Sequent
Memory Full 63
WARNING !!
Sensor in memory

13
Press 2 to go into overlay learning mode.
3. CLR : Clear Sensors (clear 1 - Single zone or 2 - All zones).
Select 1 - Single, you can key-in learned sensor order code and press
ENTER . It will clear the sensor. If select 2- All, It will clear all learned
sensors.
Press 3 and go into clear mode.
Press 1 and key-in learned sensor order code then press ENTER ,It will clear
this sensor.
Press 2 , It will show the “Are you sure ? ”. press ENTER It will clear all
learned sensors.
Function for Master – Factory Default Password – 135246
1. To enter Master code – 135246, LCD display shown as below
Code : ******
Learning: OVER
Overlay Num:xx
Learning: CLEAR
1–Single 2-All
Learning: CLEAR
ClearOK Num:xx
Learning: CLEAR
Are You Sure ? Enter
Learning: CLEAR
Waiting …
Learning: CLEAR
Clear All OK
Learning: CLEAR
1–Single Num:xx
Pass
Master Mode :

14
zWhen the password is incorrect, It will introduce Beep …Warning sound. LCD
display shown as below.
zIf the password is correct, It will introduce a long Beep sound. LCD display shown
as below.
You can select the arm mode to set as below:
A - AWAY : Press AWAY button to set “ Armed - Away “ alert,
(ArmedLEDalwayslightson)
H-HOME : Press HOME button to set “ Armed - Home “ alert,
( Armed LED always blinks)
* - CODE :The program will be designed for Central Monitoring use in future
Thefunctionisnotavailableatthemoment.
NOTE:1. Sensors belong to 24 hours included:
Smoke Detector (LP-118), Gas Detector (LP-125), Panic Watch (LP-117)
Remote Control Handset (LP-119 PANIC button) and Main Console HELP
button.
2.DistinguishA-AWAY and H-HOME mode:
When system is armed in HOME mode, Main console will neglect the
transmission signal from the PIR(LP-120).
Check Function
To press CHECK button to check the memory data you have installed previously
without any password, but you can only review not allow to change the data in ‘Check’
Mode. Following with the menu structure as below.
MASTER
A-AWAY H-HOME * -CODE
00 HOME SECURITY
Armed AWAY
Check : 0 – T 1 2 3 4 5 6 –P
7 – MSG 8 – DIAL * – CODE
Access Denied
00 HOME SECURITY
Armed HOME

15
Check :
0–T : To review (1- Exit) Exit time, (2-Alarm) Alarm time, (3- Entry) Entry time.
123456 – P : To review phone number sets.
7-MSG : To review recorded message (Press number key will play back the recorded
message).
8-DIAL : To review dial mode
*- CODE : To review the setting for Central Monitoring. (The program will be designed
for Central Monitoring use in future, the function is not available at the
moment).
Panic Alert Function
zPress and hold SPEED DIAL button and assigned button, Main console will
automatically execute the autodial and alarm, if you want to cancel the autodial and
alarm when they are activated, Please key-in the Master password to cancel them..
zSPEED DIAL + 4 , the autodial order is: phone 4 phone 1 phone 2
phone 3 (Intruder happened condition)
zSPEED DIAL + 5 , the autodial order is: phone 5 phone 1 phone 2
phone 3 (Fire happened condition)
zSPEED DIAL + 6 , the autodial order is: phone 6 phone 1 phone 2
phone 3 (Medical help happened condition)
Arm or Disarm Via the Telephone Line
This function allows you to dial your home telephone from outside toArm or Disarm your
security system. When hear a long ‘Beep’ sounds after 10 rings in the phone, then entry
‘Master code’135246 (default) if the password is correct, it will respond a long Beep
sounds in the phone then to respond the system status at this moment(if the password is
less than 6 digits, need to use #
button to finish the password entry). One ‘Beep’ sound means in ‘Armed-Away’, two ‘Beep’
sound means in ‘Armed-Home’ and three ‘Beep’ sound means in ‘Disarm’. At this moment
you can key-in (1, 2, 3 or 4). Main console will respond the relative message.
Respond message as below:
zPress 1 means in ‘Armed-Away’ and in the phone will hear one ‘Beep’ sound.
zPress 2 means in ‘Armed-Home’ and in the phone will hear two ‘Beep’ sound .
zPress 3 means in ‘Disarm’ and in the phone will hear three ‘Beep’ sound.
zPress 4 will switch to telephone communication mode.
zPress 0 will end the telephone communication.
zIf the system has been programmed in ‘Armed-Away’ or ‘Armed-Home’ status
previously, you need to ‘Disarm’ it first to reset the status. If you do not disarm
first, and press ‘1’ or ’2’ directly, the system will emit ‘bi-bi-bi’ to reject your
setting. So press ‘3’ to disarm it.

16
Two-Way Voice Communication
Operation method: Main console to remote party
zWhen the remote party receive the main console emergency help. In the party phone
can hear the recorded message (which is stored in main console). If you want to
know what happened, press number 4 on the phone then you can communicate
with some people or threaten the intruder via Main Console. If you have finished the
talk, press the 0 button to end the voice communication or automatically exit the
voice communication after 5 minutes.
zWhen you use the function, main console will stop to dial out remains telephone set.
Chime Function for Door Sensor
When system is in disarm status, press the PAUSE button to turn on ‘Chime’ function.
if the Door sensor (LP-124/LP-123/LP-122) is activating and Main Console unit will sound
‘Ding - Dong’, LCD shown as below. To press PAUSE button again to turn off
‘Ding-Dong’ function.
Auto-dialer priority
This system stores up to six (6) telephone numbers in the Main Console. If it is triggered
and alarm is activated, the auto-dialer will call the pre-set telephone numbers and play
your pre-recorded message.
If system is triggered
Burglary help - It will automatically dial phone 4 phone 1 phone 2 phone 3,
call sequentially by 3 cycles attempt (4, 1, 2, 3). When telephone
answered, it will playback message 1 and 4 by 2 times (1, 4)
Fire help - It will automatically dial phone 5 phone 1 phone 2 phone 3,
call sequentially by 3 cycles attempt (5, 1, 2, 3). When telephone
answered, it will playback message 2 and 4 by 2 times (2, 4)
Medical help - It will automatically dial phone 6 phone 1 phone 2 phone 3,
call sequentially by 3 cycles attempt (6, 1, 2, 3). When telephone
answered, it will playback message 3 and 4 by 2 times (3, 4)
LCD “MSG” : Message indicating on LCD
This system will leave warning message on LCD panel while sensors opened or triggered
or in low battery. It also emits 3 short ‘Beep’ at every 10 Secs to remind you in the
meantime, It can be stored first 5 messages and displayed on the LCD. If you want to
check or delete the MSG, the system need to be in disarm mode. LCD display shown as
below.
00 HOME SECURITY
Chime Disarmed
00 HOME SECURITY
Disarmed MSG

17
Press ENTER button to read the message. Press ENTER again will read next
message…etc.
When Backup Battery is in battery low condition
Press CANCEL button to delete all ‘MSG’. It will show as below.
Setting the Alarm Sound ON/OFF
To turn ON/OFF alarm sound, it depends on what you need. The alarm function defaults is
ON.
1. Please remove main console back cover and find the position SK3 on the PCB of main
console. Refer to following picture.
2. Add short pin (black) on the SK3 position, It can turn off the alarm sound when main
console is activated.
The reversed side of Main console
63 DOOR SENSOR
01 Open
00 HOME SECURITY
Backup Bat Low
MESSAGE DELETED

18
Reset the System ( Refer to above picture)
You can press the SW3 reset button to let password ( Install, Master )
and timer ( exit, alarm, entry time ) go back to defaults.
LP-120PIRMotionDetector
The PIR Motion Detector is designed to detect the movement of object in rooms or hallway.
The effective range of the motion sensor is 30 feet long, and with an 84 degree horizontal
angle.
Before using the sensor, the sensor needed to be learned into main console. If main
console is armed in HOME mode. Even if PIR Triggered, the main console will neglect the
PIR signal.
Main Features :
1.LED : When PIR has detected any moving of human. The red LED will blink for one
sec. it means to transmit out a signal to Main Console.
When the battery power is down to low level, It will send out a low voltage signal.
The red LED will blink for one sec. If Main Console receive the signal, will leave
some message on the display.
2.C/OFF/W SWITCH :
zWhen the switch is set on “C – Continue” position, the PIR continually
detects at interval every 3 to 5 seconds after detecting the movement of
human (dog ,cat).It is an idea for checking
zWhen the switch is set on “ OFF” position, It will turn off the power, the PIR
does notdetect at all.
zWhen the switch is set on “W- Wait” position, the PIR detects at every 2
minutes to 3 minutes after detecting the movement of human ( dog, cat).
“ W ” position set mode will save the power.
3. DETECTING SENSITIVITY : (1 , 2 , 4) select the sensor to high , medium or low

19
sensitivity.
4. BATTERY : Remove the Battery cover and insert one 9V alkaline battery.
5. ROCKET ARM & HOLDER : For mounting on the wall.
6. BATTERY COVER
Replace the Battery
zWhen the sensor send the low battery voltage signal to main console. Please
replace a new battery for the sensor. In the main console, the LCD display shown
the message as below
Zone Address Setting
Enter the Installer password and the main console is in learning mode, after installing the
battery on the PIR. Set the power switch from “ OFF ” to “ C ” position. In the PIR panel,
The red LED will blink for 1 sec, It means to transmit out a signal for 1 sec or to activate
PIR sensor by detecting people pass by, then the Main Console emits one ‘Beep’ and LCD
displays ‘In Memory’, it means the PIR has learned into the system successfully.
When main console is in armed mode, If PIR detects the movement of human or
animals (cat, dog), it will leave message on the LCD display as below.
Notes on the Position when Install
Motion sensors detect the movement of humans and animals within their range. In order
to prevent false alarms, we recommend that you do not install any motion sensor in the
following areas:
Do not install any motion sensor in the following areas:
zWhere there is a device that causes rapid temperature change or rapid heat
transfer. for instance, near an air conditioner, fire place, heater or other
intermittent heat sources.
zWhere the sensor will be exposed to direct sunlight.
zNear large electrical devices and/or high output radio frequency sources, like the
refrigerator, microwaves computers, and light dimmers.
zWhere the effective range of the sensor is covered or blocked by furniture.
zWhere pets enter and exit freely, for instance - a cat or dog door.
zDirectly opposite any large object with flat reflecting properties, like large
windows or mirrors.
zIn a bathroom or other area that is exposed to moisture and extreme temperature
change.
63 PIR SENSOR
01 Low battery
63 PIR SENSOR
01 Zone
