Lamona LAM3407 Guide

Instructions and Installation
LAM3407
Built-In Single Fan Oven
www.howdens.com/appliance-registration

See back page for product serial number

www.howdens.com
Page _ 3
LAMONA Appliances
Dear Customer,
Congratulations on your choice of oven.
The user manual will help you use your product quickly and safely.
Please read this user manual before installing and using the oven.
Always follow the safety instructions.
Keep this user manual within easy reach for future reference.
Please read any other documents supplied with the product.
Explanation of symbols
Throughout this user manual the following symbols are used:
Important information or useful tips about usage.
Warning for possible hazards to health and property.
Warning possibility of electric shock.
This appliance is marked according to the European directive 2012/19/EU on Waste
Electrical and Electronic Equipment (WEEE). WEEE contains both polluting substances
(which can cause negative consequences for the environment) and basic components
(which can be re-used). It is important to have WEEE subjected to specific treatments, in
order to remove and dispose properly all pollutants, and recover and recycle all materials.
Individuals can play an important role in ensuring that WEEE does not become an
environmental issue; it is essential to follow some basic rules:
• WEEE shall not be treated as household waste.
• WEEE shall be handed over to the relevant collection points managed by the municipality or by
registered companies.
• WEEE can be recycled free of charge.
Product information correct at the time of publication in June 2017.
The company has a policy of continuous product development and reserves the right to change
any products and specifications given in this manual.

17
16
16
18
18
18
18
19
19
20
20
20
21
22
23
24
25
Exclusive to Howdens Joinery.co Page _ 4
Index
05
10
10
10
10
11
11
12
12
12
12
13
13
13
13
13
14
14
14
14
15
User manual LAM3407
Before using the oven & Safety
05
05
08
General
Safety for children
Safety when working with electricity
09
Shelf positions
General information
Oven layout
Control panel layout
Accessories
Operation modes
Operating modes
Preparation
Clock Programmer
Minute Minder
Timed Operation
Time Stop Point
Delayed Start Cooking
First cleaning of the appliance
Initial heating
Tips for energy saving
How to operate the main oven
How to use the main oven
Select a temperature and
operating mode
Shelf positions
Switch off the oven
Cooking and baking advice
Cooking table
Oven cooking table
Care and maintenance
General information
Cleaning the control panel
Cleaning the door glass
Removal of the inner door glass
Replacing the oven lamp
Installation
Before installation
Installation and connection
Connection to mains supply
Cooling Fan
Technical specification
Troubleshooting
Your Guarantee

LAMONA Appliances
Exclusive to Howdens Joinery.co
Page _ 5
Safety for children
• Make sure that you have removed all packaging, wrappings, stickers and films from the oven’s
surface.
• It is recommended that you clean and wash the oven’s surface before using for the first time.
Before using the Oven
General
• This appliance is for
domestic cooking purposes
only. It must not be used for
other purposes, e.g room heat-
ing, or drying towels and dish
cloths over the handle. Com-
mercial use will void the guar-
antee (see guarantee page).
• The manufacturer shall not
be liable for any damage
caused by improper use or
handling errors.
• This product is not intended
to be used by persons with
physical, sensory or mental
disorders or unlearned or
inexperienced people (including
children) unless they are super-
vised by a person who will be
responsible for their safety or
who will instruct them accord-
ingly in the use of the product.
• Children must be super-
vised to prevent them from
playing with the product.
• Electrical products can be
dangerous to children. Keep
children away from the product
when it is operating and do not
allow them to play with or near
the product.
• CAUTION: Accessible parts
of the oven may become hot
when the oven or grill is in use.
Children should be kept away
until the product has cooled
down.”
• Do not store any items
above the appliance that chil-
dren may reach for.
• When the door is open, do
not load any heavy object on it
and do not allow children to sit
on it. The door or door hinges
may be damaged.
• The packaging materials
will be dangerous for children.
Keep the packaging materials
away from children. Please
dispose of all parts of the pack-
aging according to environmen-
tal standards.

Exclusive to Howdens Joinery.co Page _ 6
User manual LAM3407
• Accessible parts may
become hot during use. To
avoid burns, children less than
8 years of age should be kept
away unless continuously
supervised.
• This appliance can be used
by children aged 8 years and
above, persons with reduced
physical, sensory or mental
capabilities or lack of experi-
ence and knowledge, if they
have been given supervision or
instruction concerning use of
the appliance in a safe way and
understand the hazards
involved.
• Cleaning and user mainte-
nance must not be made by
children without supervision.
• Connect the product to an
earthed outlet protected by a
fuse of suitable capacity as
stated in the “Technical specifi
cations” table. Our company
shall not be liable for any prob-
lems arising due to the product
not being earthed in accord-
ance with the local regulations.
• Do not operate the product
if the power cable is damaged.
Replace with a suitable cable
by a qualified person.
• Do not operate the product
if it is defective or has any
visible damage.
• Do not carry out any repairs
or modfications to the product.
• Never wash down the
product with excessive water,
as there is the risk of electric
shock!
• Never use the product
when your judgment or coordi-
nation is impaired by the use of
alcohol and/or drugs.
• Product must be discon-
nected from the mains during
installation, maintenance,
cleaning and repair proce-
dures.
• Repair procedures must
always be performed by quali-
fied persons. The manufacturer
shall not be held responsible
for damages arising from
procedures carried out by
unauthorised persons, which
may also void the guarantee.
• Be careful when using
alcoholic drinks in your dishes.
Alcohol evaporates at high
temperatures and may ignite
when it comes into contact with
hot surfaces.

www.howdens.com
Page _ 7
LAMONA Appliances
• Do not heat closed tins and
glass jars in the oven. The
pressure that would build-up in
the tin/jar may cause it to
burst.
• Do not place any materials
close to the product as the
sides may become hot during
use.
• WARNING FIRE RISK -
Do not place aluminium foil,
baking trays or cook on the
base of this oven, doing so will
cause permanent damage to
your appliance and cabinetry
with the potential risk of fire.
• Parts of the oven may
become hot during or immedi-
ately after use. Care should be
taken to avoid touching the
heating elements, and compo-
nents inside the oven which
maybe hot. Always allow oven
to cool.
• If the door seal is very dirty
this can prevent the door from
closing properly during use,
resulting in possible damage to
adjacent furniture and poor
efficiency. Always ensure the
door seal is clean.
• Product may become hot
when it is in use. Please be
careful not to touch these hot
surfaces.
• Always use heat resistant
oven gloves when putting
dishes in or removing dishes
from the hot oven.
• Do not use the product if
any door glass is removed or
damaged.
• Rear surface of the oven
may get hot when it is in use.
Make sure that the electrical
connections do not contact the
rear surface; otherwise, con-
nections may be damaged.
• Do not trap the mains cable
and do not route it over hot
surfaces. The cable insulation
may melt and cause a short
circuit.
• Product must be installed
by a qualified person in accord-
ance with the regulations in
force. Otherwise, the guarantee
may become void.
• When hot and cold air
meet, condensation can form.
The outer door is air cooled and
the inner glass will become hot
during cooking, therefore some
condensation might form. This
is perfectly normal. All conden-
sation will disappear as the
oven reaches cooking tempera-
ture.

User manual LAM3407
Exclusive to Howdens Joinery.co Page _ 8
Safety when working with
electricity
Safety and cleaning
• Make sure that the product
control knobs are switched off
after every use.
• Any work on electrical
equipment and systems should
only be carried out by author-
ised or qualified persons.
• In case of any damage,
switch off the product and
disconnect it from the mains.
To do this, turn off at the fuse
box.
• The appliance must be
installed so that it can be
completely disconnected from
the mains easily after installa-
tion by the isolation switch.
• Do not bend or trap cable
against hot surfaces during
install.
• Make sure that fuse rating
is compatible with the product.
• Do not switch the oven
off at the mains isolation
switch immediately after
cooking. Cooling fan contin-
ues to run for up to 20-30
minutes (approx) even after
the oven control is turned off.
• Keep all ventilation slots
clear of obstructions, as this
may cause premature failure of
the oven element.
• Do not allow the oven to
cool with the door open. Even if
the appliances door is only
open a little, front panels of
adjacent units could become
damaged over time.
• Do not use harsh abra-
sive cleaners or sharp metal
scrapers to clean the oven door
since they can scratch the
surface, which may result in the
shattering of the glass.
• WARNING Ensure that
the appliance is switched off
before replacing the lamp to
avoid the possibility of an
electric shock.
• Do not use oven light for
household room illumination.
• Do not use steam clean-
ers for cleaning.
• The appliancemust not be
installed behind a decorative
door.
i
i

www.howdens.com
Page _ 9
.
Shelf positions
The oven has 5 shelf positions.
It is important to position the
wire shelf into the runners
correctly before placing items
on the shelf. Do not insert
shelves forcefully.
LAMONA Appliances

Exclusive to Howdens Joinery.co Page _ 10
User manual LAM3407
abc
°C
50
100
150200
250
Max
0
oven / grill temperature knob

Operating modes
Operating modes
or the ovens and grill are listed in this section. Please not our
ov der of operating modes av y deviate from the illustrations sho w.
www.howdens.com
LAMONA
Lamp
Turns on the oven light. This will
automatically activate the cooling fan.
Defrosting
o this position. The
fan circulates air at room temperature
around the frozen foods so that it
defrosts in a few minutes without the
protein content of the f
altered.
Circular Heating Element and Fan
that has heated is wn y the
fan onto the different levels. is ideal for
cooking different types of food at the same
time andmeat without
tastes and smell. cooks very gently and is ideal
for sponge cakes, pastries, etc.
Grill
the top heating element. Success is
guaranteed for ed grills, k and
gratin dishes. The grill should
heated to a high temperature for
minutes. e meats should always placed at
some distance from the grill element, the cooking
time is slightly longer the meat will more
succulent. ed meat and fish fillets can placed
directly onto the shelf with the drip tray placed
on lower shelf position.
Grill and Fan
The top heating element is used in
with the fan which circulates
the hot air around the oven. Pre heating is
recommended for red meats is not
necessary for white meats. is ideal for
cooking thicker food items such as pork or poultry.
ood to grilled should placed directly at the
centre of the middle shelf.
sliding the drip tray underneath the shelf it will
ensure that any are collected. or
results always make sure that the food is not too
close to the grill element and turn the food over half
way through the cooking time.
Page _ 11

Preparation
First cleaning of the appliance
1. Remove all packaging materials.
2. Wipe the surfaces of the appliance with a
damp cloth or sponge and dry with a clean
cloth and mild detergent.
The surface may get damaged by some detergents
or cleaning materials.
Do not use aggressive detergents, cleaning powder/
cream or any sharp objects or abrasives.
Initial heating
It is recommended to heat up the product for
about 30 minutes and then switch it off. Thus, any
production residues or layers will be burnt off and
removed.
1. Take the tray and the wire grid out of the oven.
2. Close the oven doors.
3. Select the highest oven & grill power levels
(See How to use the oven and grill section).
4. Operate oven & grill for about 30 minutes.
5. Turn off your oven & grill and allow to cool.
Small amounts of fumes may emit during the
initial heating process; this is normal, however
monitor the oven at all times and ensure that the
room is well ventilated.
Tips for saving energy
The following information will help you to use your
appliance in an ecological way, and to save energy:
Use dark coloured or enamel coated cookware
in the oven as the heat transmission will be
better.
Perform a preheating operation if it is advised
in the user manual or cooking instructions.
Do not open the door of the oven frequently
during cooking.
Try to cook more than one dish in the oven at
the same time whenever possible. You can
place two cooking vessels onto the wire shelf.
Cook one dish after another. The oven will
already be hot.
You can save energy by switching off your oven
a few minutes before the end of the cooking
time. Do not open the oven door.
Defrost frozen dishes before cooking them if
possible if applicable.
Exclusive to Howdens Joinery.co Page _ 12
User manual LAM3407

°C
50
100
150200
250
Max
0
Select temperature
& Operating mode
a
The operating modes of the electric oven are
selected with the function knob. The temperature is
adjusted with the thermostat knob.
How to use the Oven & Grill
1. Set thermostat knob to the desired
temperature.
2. Set function knob to the required operating
mode.
3. Close the oven door
The oven heats up to the adjusted temperature
and maintains it. During heating, the temperature
indicator light will remain on until the desired
temperature is reached.
Shelf positions
The oven has 5 shelf positions as illustrated below,
It is important to position the wire shelf into the
runners correctly.
Please ensure shelves are fully inserted before
closing the oven door, failure to do so could lead to
damage to the door.
Warning -Do not place aluminium foil or baking
trays on the base of the oven. This can lead to
permanent damage to your appliance.
Warning –Do not place plates, dishes or trays on
Warning - Do not use the oven or grill cavity for
storage when not in use.
Switch off the electric oven
Turn function knob and thermostat knob to off
position (top).
How to operate the main oven and grill
b
a. Oven / grill function knob
b. Oven / grill thermosat knob
www.howdens.com
Page _ 13

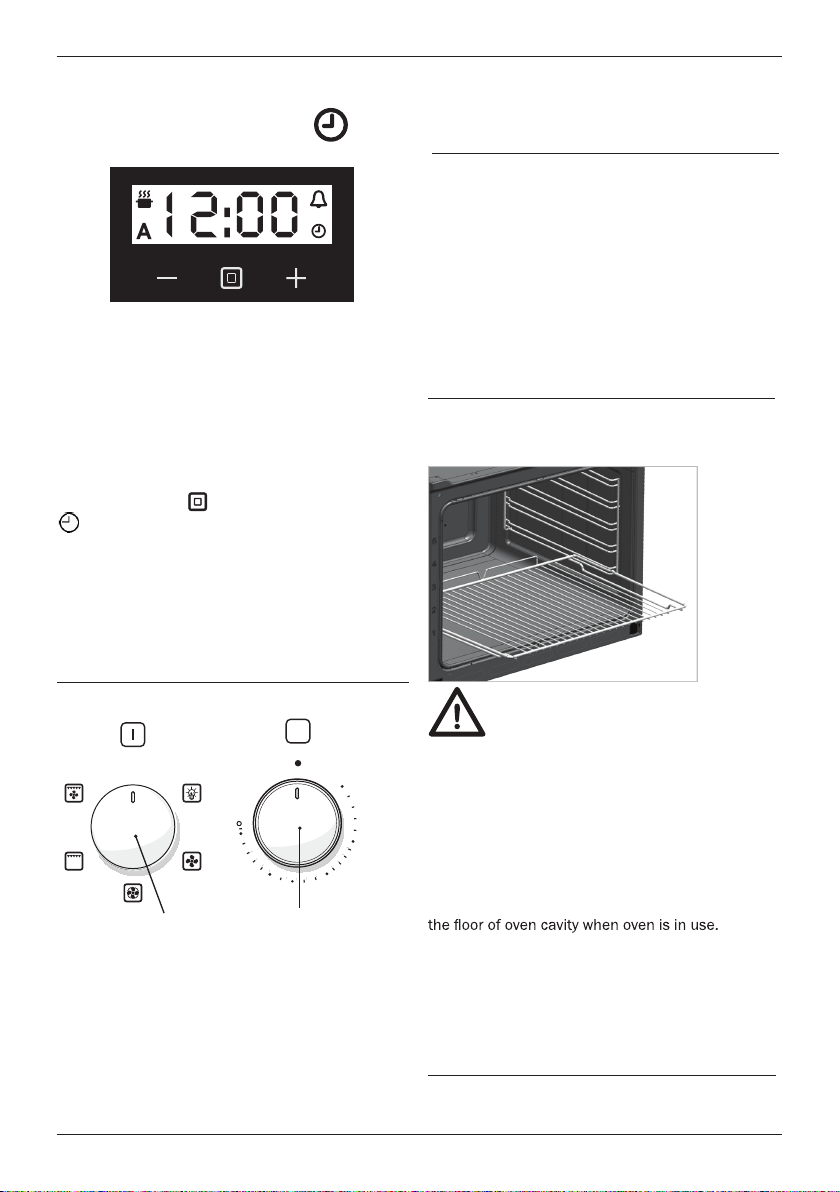

LAMONA Appliances
Setting the correct time
WARNING: The oven will not operate until clock is set.
When first switched on the clock display will flash
‘12.00’
Touch the + or – buttons whilst the display is
flashing to adjust the time. (The display stops
flashing after 5 sec and time is displayed).
To adjust clock time:
Press mode button x 4 times until clock symbol
is displayed. Touch the + or – buttons whilst
display is flashing to set the time of day. (The display
stops flashing after 5 sec and time is displayed).

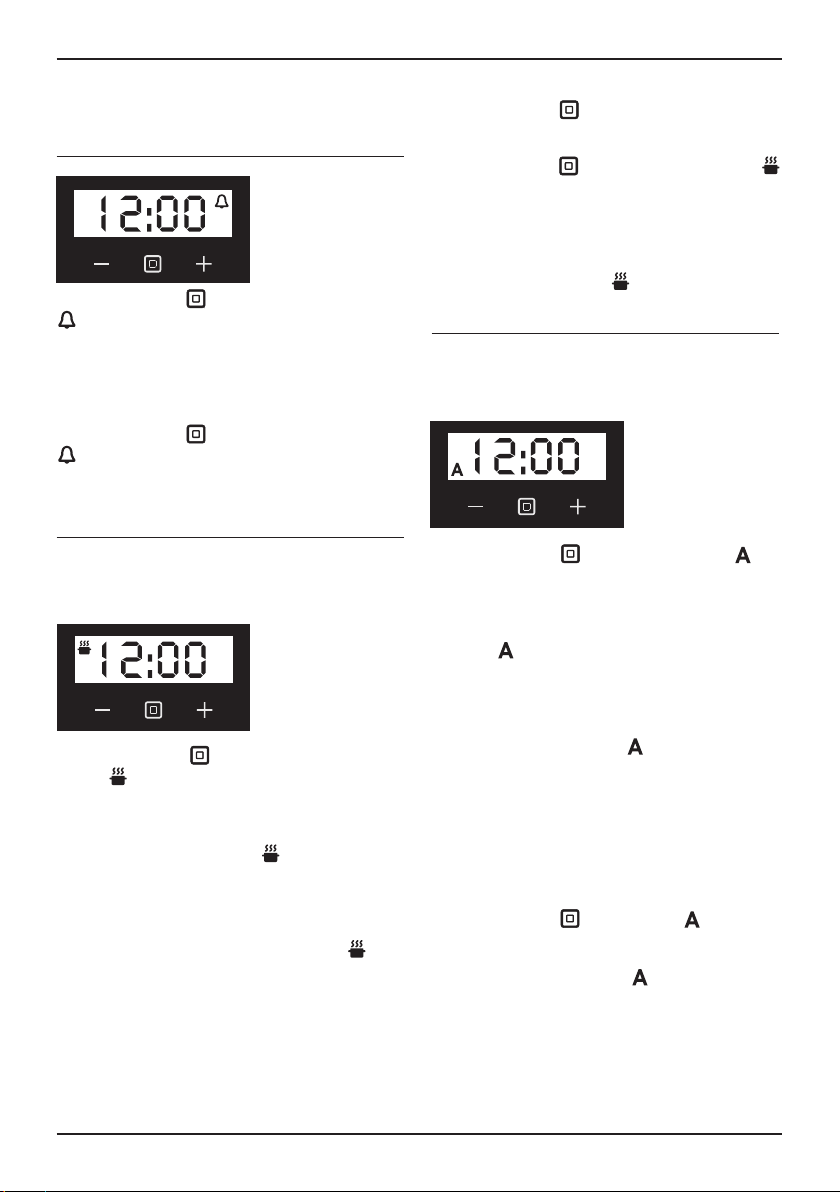

To Check time left:
Press mode button x 1
To Cancel:
Press mode button x 1 time until Cook symbol
is displayed.
Touch the + or – buttons until alarm sounds and
display shows 00.00. Clock time returns.
Note: Whilst cook symbol is flashing the oven
cannot be used in ‘Manual’ mode.
User manual LAM3407
Page _ 14
Timed Operation Period
Oven cooks for a selected time period then
stops: (0.01min to 10.00 hr)
Press mode button x 1 time until Cook
symbol is displayed and flashing.
Touch the + or – buttons to set the desired cooking
time duration.(Display reverts to time of day after
desired time period is set and symbol remains lit)
Select desired oven cooking mode and temperature
using the oven control knobs.
The alarm will sound and the Cook symbol will
flash when the selected cooking time has elapsed.
Turn oven control knobs to ‘Off’ and touch any
button to stop alarm and return oven to ‘Manual’
use mode.
www.howdens.com
Time Stop Point
Oven cooks until a designated time then stops:
(up to 23.59 hr)
Press mode button x 2 times until symbol is
displayed and flashing.
Touch the + or – buttons to set the desired stop time.
(Display reverts to time of day after desired stop time
is set and symbol remains lit).
Select desired oven cooking mode and temperature
using the oven control knobs.
The alarm will sound and the symbol will flash
when the selected time has been reached.
Turn oven control knobs to ‘Off’ and touch any button
to stop alarm and return to ‘Manual’ use mode.
(Timer will sound for 2 mins then stop if no button
is pressed).
To Cancel:
Press mode button x 2 times until symbol is
displayed.
Touch the + or – buttons until flashes, alarm
sounds and time of day returns.
Clock Programmer
Minute Minder (0.01 min - 2.30hr)
Timer Cooking
Press mode button x 3 times until alarm symbol
is displayed.Touch the + or – buttons to set the
desired time duration. The alarm will sound when
the selected time has elapsed.Touch any button to
stop alarm
To Cancel:
Press mode button x 3 times until alarm symbol
is displayed. Touch the + or – buttons to set the
duration to 00.00.
(Timer sounds for 2 mins then stops if no button is pressed).

LAMONA
The two timed cooking modes can be combined to
create a delayed start cooking period.
Programme a Timed Operation Period
(as described on p14).
Then
Programme a Time Stop Point
(as described on p14).
Both symbols and will be displayed and the
cooking process will start at a future point in time
e.g.
If Time Stop Point is set to 16.00 and Timed
Operation Period is set to 1.30 hrs
- The oven will switch on at 14.30 and cook until
16.00
To Check Settings:
Push mode button x 1 to see cooking period.
Push mode button x 2 to see cooking end
time.
To Cancel:
Press mode button x 1 time until Cook symbol
is displayed.
Touch the + or – buttons until alarm sounds and
display shows 00.00 Clock time returns.
Page _ 15 www.howdens.com

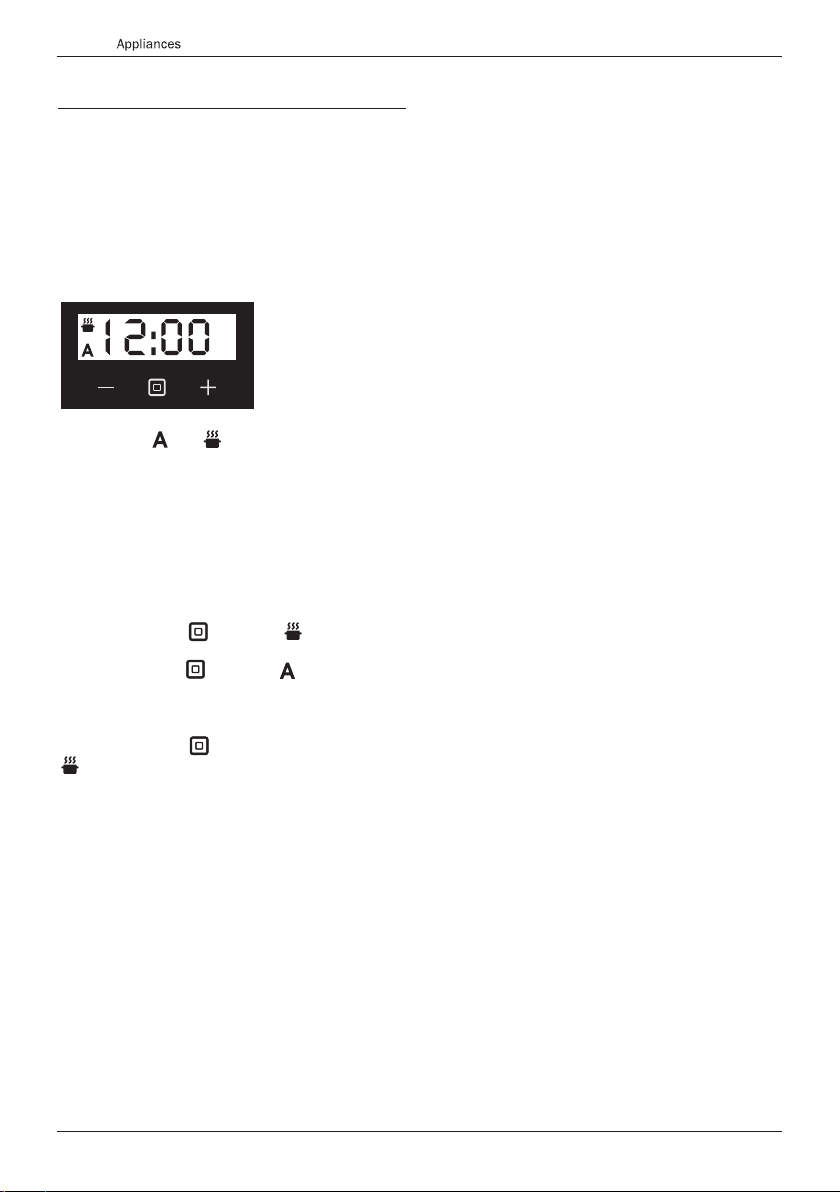

Delayed Start Cooking

Oven cooking table
The values indicated in the tables below are
indicative. They may vary according to the type of
food, the quantity and your preferences of cooking.
Baking and roasting
Level 1 is the lowest shelf level.
Cooking Tables
Exclusive to Howdens Joinery.co Page _ 16
LAMONA Appliances
MAIN OVEN COOKING TABLE
Dish Cooking level Oven Function Temperature °C Cooking Time min
Baking
Cakes in tray*
1 Level 175 30 - 40
2 Levels 175 45 - 50
Cakes in mould* 1 Level 175 50 - 60
Cakes in bun cases
1 Level 175 25 - 35
2 levels 175 35 - 45
3 levels 180 45 - 55
Sponge cake* 1 level 200 15 - 20
Cookies*
1 Level 175 25 - 30
2 levels 170 ... 190 35 - 45
3 levels 175 30 - 40
Dough pastry*
1 Level 200 35 - 45
2 levels 200 50 - 60
3 levels 200 55 - 65
Rich pastry*
1 Level 200 25 - 35
2 levels 200 35 - 45
3 levels 190 45 - 55
Meat
Lasagne* 1 level 200 30 - 40
Roast Beef 1 level 25 min at 230/max
then 180 ... 190 100 - 120
Leg of Lamb 1 level 25 min at 220
then 180 ... 190 70 - 90
Roasted chicken 1 level 25 min at 230/max
then 180 ... 190 55 - 65
Turkey (5.5kg) 1 level 15 min at 230/max
then 190 150 - 210
Fish
Fish 1 level 200 20 - 30
When cooking with 2 trays at the same time, place the deeper tray on the upper rack and the other one on the lower rack.
* It is suggested to perform preheating for all foods
If cooking requires preheating, heat the oven until the thermostat lamp goes out.

Risk of scalding by hot steam! Take care when
opening the oven door as steam may escape.
Tips for baking
Use nonstick coated appropriate metal trays
and containers or heat-resistant silicone
moulds.
Make best use of the space on the shelf.
It is recommended to place the vessels in the
middle of the shelf.
Select the correct shelf position before turning
the oven or grill on - don’t move oven shelves
when hot.
Keep the oven door closed.
gnitsaor rofspiT
Seasoning with lemon juice and black pepper
will improve the cooking performance when
cooking a whole chicken, turkey or a large
piece of meat.
Meat with bones takes about 15 to 30
minutes longer to cook than a roast of the
same size without bones.
Let meat rest in the oven for about 10 minutes
after the cooking time. The juices will be better
distributed thought the meat and will not run
out when the meat is cut.
Fish in a heat proof dish should be placed at
the medium or lower level.
gnillirg rofspiT
poultry and will achieve nice browning without
drying out the food. Flat pieces, meat skewers
and sausages are particularly suited for
grilling, as are vegetables with a high water
content, such as tomatoes and onions.
Distribute the pieces to be grilled on the wire
rack.
Use tray or grill pan under the wire rack in
order to collect dripping fat or juices.
Adding some water to the grill pan will assist
with cleaning.
Cooking and baking advice
Tips for baking cake
If the cake is too dry, increase the temperature
by 10°C and decrease the cooking time.
If the cake is wet, use less liquid or lower the
temperature by 10°C.
If the cake is too dark on top, place it on
a lower shelf, lower the temperature and
increase the cooking time.
If cooked well on the inside but sticky on the
outside use less liquid, lower the temperature
and increase the cooking time.
Tips for baking pastry
If the pastry is too dry, increase the
temperature by 10°C and decrease the
cooking time. Dampen the layers of pastry with
a wash composed of milk, oil, egg.
If the pastry takes too long to bake, pay
attention to the thickness of the pastry you
have prepared
If the upper side of the pastry gets browned,
but the lower part is not cooked, make sure
that the amount of wash you have used for the
pastry is not too much at the bottom of the
pastry. Try to spread the wash equally over the
pastry for an even browning.
Cook the pastry in accordance with the mode
and temperature given in the cooking table.
Tips for cooking vegetables
If the vegetable dish runs out of juice and gets
too dry, cook it in a dish with a lid instead of
an open tray. Closed vessels will preserve the
juice of the dish.
If a vegetable dish is not cooked, boil the
vegetables beforehand.
www.howdens.comPage _ 17
User manual LAM3407

Service life of the product will extend and the
possibility of problems will decrease if the product
is cleaned at regular intervals.
Risk of electric shock!
Switch off the electricity before cleaning appliance
to avoid possibility of an electric shock.
Hot surfaces may cause burns!
Allow the appliance to cool down before you clean
it.
• Clean the product thoroughly after each use.
This way it will be possible to remove cooking
residues more easily and will avoid burning them
on the next time the appliance is used.
• No special cleaning agents are required for
cleaning the product. Use warm water with
washing liquid, a soft cloth or sponge to clean the
product and wipe with a dry cloth.
• Always ensure any excess liquid is thoroughly
wiped off after cleaning and any spillage is
immediately wiped dry.
• Do not use cleaning agents that contain acid or
chloride to clean the stainless steel surfaces and
the handle.
Use a soft cloth with a liquid detergent (not
abrasive) to wipe those parts clean, paying
attention to sweep in a horizontal direction.
The surface may be damaged by some
detergents or cleaning materials.
Do not use aggressive detergents, abrasive
cleaning powder/cream or any sharp objects.
Do not use steam cleaners for cleaning.
Cleaning the control panel
Clean the control panel and control knobs with a
damp cloth and wipe them dry.
Do not remove the control knobs for control panel
cleaning.
Page _ 18
Don’t use any harsh abrasive cleaners or sharp
metal scrapers for cleaning the oven door. They
could scratch the surface and damage the glass.
1. Open the door.

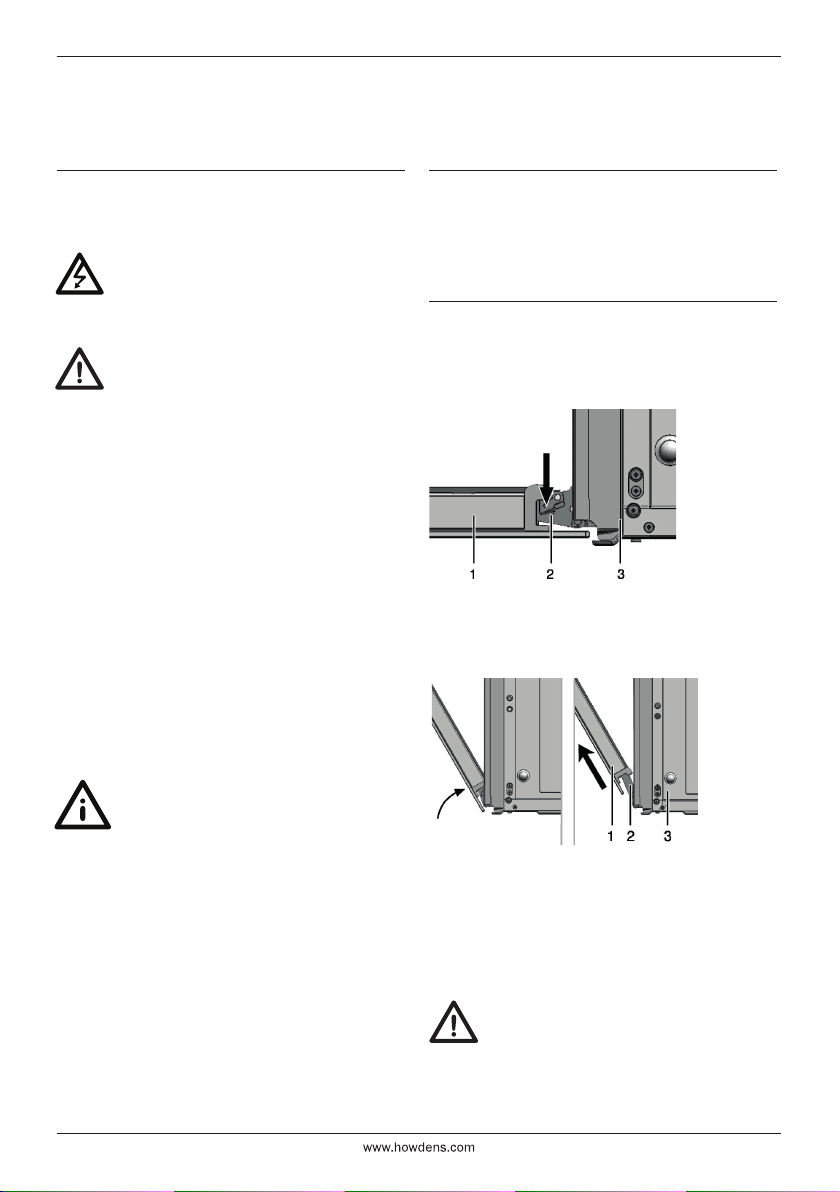

2. Unlock the clips at the hinge housing on the right
and left hand sides of the door by pressing them
down as illustrated in the diagram.
1. Door door
2. Clips
3. Oven
4. Raise the door to the half-way position.
5. Remove the door by pulling it up-wards to slide it
from the hinges.
Steps carried out during removing process should
be performed in reverse order to reattach the door.
Do not forget to close the clips at the hinge
housing when reinstalling the door.
Care and maintenance
General inf Cleaning the Oven Door
Removal of the Oven Door
ormation
LAMONA Appliances

User manual LAM3407
The inner glass panel of the oven door can be
removed for cleaning.
When cleaning, avoid the use any harsh
abrasive chemicals or sharp metal scrapers as this
could scratch the surface and damage the glass.
Please be aware when removing and
cleaning the glass that the door has the potiential
to spring closed.
We recommend you support the door at all times or
remove the entire door assembly prior to attempting
to clean it.
In order to do this:

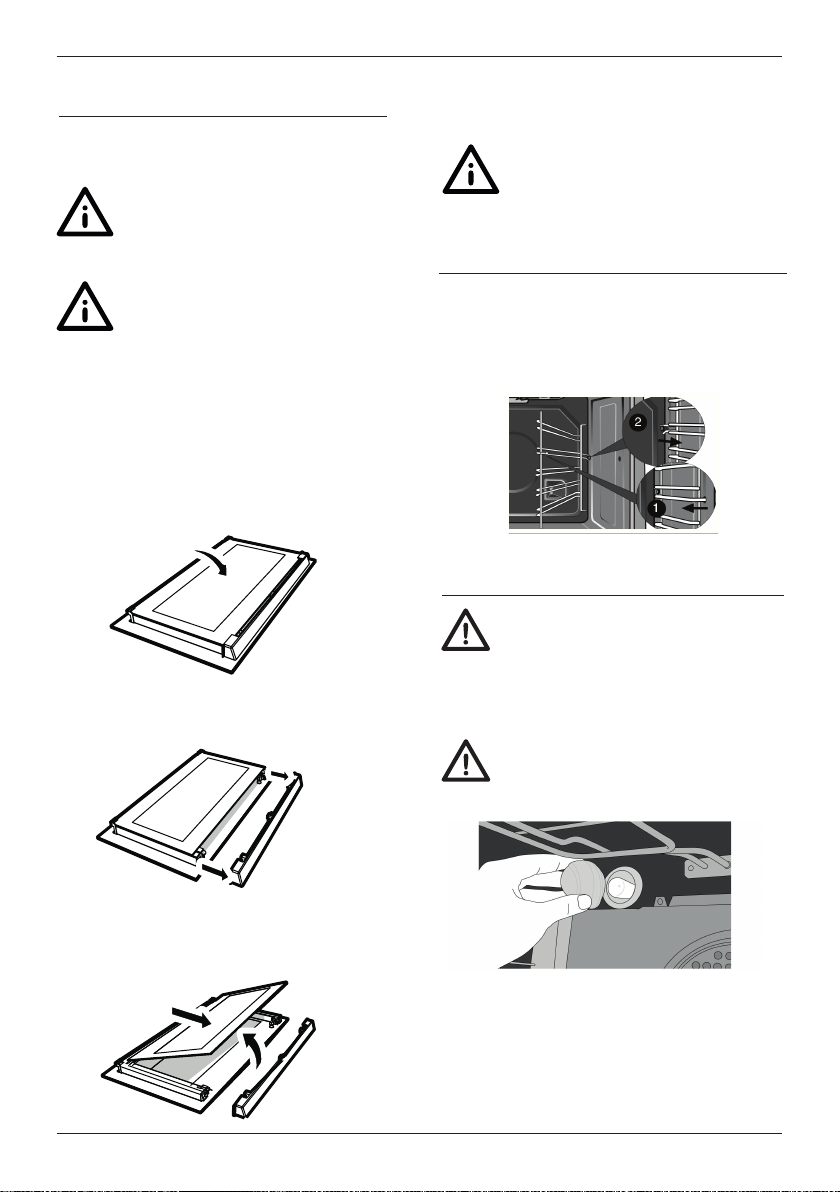

1. Open the door fully.
2. The top plastic cap can be pulled away from the
retaining clips.
4. To replace the glass follow this process in reverse
ensuring the printed surface of the glass is facing
downwards.
Ensure the glass is fully located in the lower
retaining slots before attempting to re-fit the top cap.
Hot surfaces may cause burns
Make sure that the appliance is switched off and
cooled down in order to avoid the risk of an electric
shock or burns.
The oven lamp is a special lamp that can
resist up to 300ºC. (See technical specifications)
1. Disconnect the oven from the mains
2. Turn glass outer cover counter clockwise to
remove.
3. Remove oven lamp by turning counter
clockwise. (Dispose of carefully).
4. Replace with new lamp.
5. Replace glass outer cover.
Exclusive to Howdens Joinery.co
Page _ 19
Removing the Inner Door Glass
Replacing the Oven Lamp
1. Remove the front section of the side rack by
pulling it in the oppsite direction of the side wall.
To clean the side wall
2. Remove the side rack completely by pulling it
towards you.
3. The inner glass can then be lifted from its
re taining slot
