Lanier MP 6002 Owner's manual

Lanier MP 6002/MP 7502/MP 9002
MP 6002/MP 7502
MP 9002
Multifunction B&W
Copier
Printer
Facsimile
Scanner
MP 7502
ppm
monochrome
75
MP 6002
ppm
monochrome
60
MP 9002
ppm
monochrome
90

Experience more power, more features in a
sleek, compact, sustainable design
You may not be able to predict the future. But you can prepare for it. The LANIER®MP 6002/
MP 7502/MP 9002 combines user-friendly customization, access to cloud-based solutions and
a sleek, easy-to-use design to streamline an array of everyday tasks efficiently. The services-
led platform of the 60 ppm, 75 ppm and 90 ppm black-and-white multifunction devices offers
advanced printing, copying, scanning, and distribution capabilities to ensure fast-moving, intuitive
workflows that help reduce total cost of ownership. Choose the one that works best for you —
as the primary system for your workgroup or as an integral part of our Managed Document
Services (MDS) strategy — and bolster productivity throughout your organization.
• Produce up to 90 prints/copies per minute
• Simplify complex tasks with exceptional multifunction performance
• Customize workflow to improve productivity
• Streamline administration with intuitive document management
• Protect documents and data

Smart technology designed for convenience
Accelerate workflow, enhance efficiencies

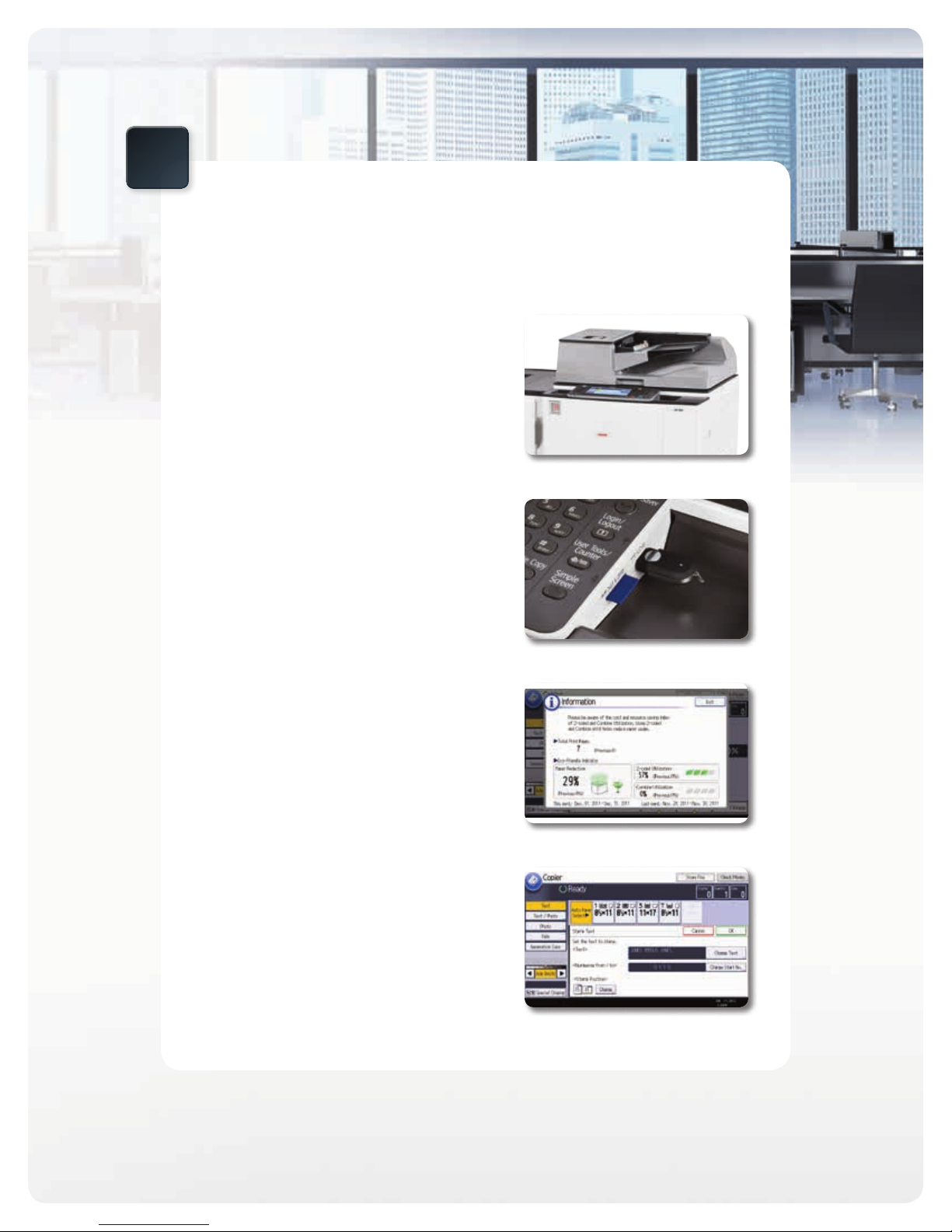

Be more productive
Choose from three speeds (60, 75 and 90-ppm) for
reliable throughput that helps you transition from one
job to the next with ease and efficiency. Users can
consolidate tasks — including copying, printing and
scanning — with the MP 6002/MP 7502/MP 9002.
Start quickly and deliver first print times in as little as
2.9 seconds (90-ppm) on a wide range of paper stocks
without compromising space or your budget. Extend
productivity even further with optional faxing and finishing.
Control how you work
Take responsibility for improving workflow in your office.
Powered by an enhanced controller, these intuitive
MFPs maximize efficiency while minimizing impact on
the environment. Scan to and print from a USB/SD card
right from the control panel — no PC is required. Plus,
Quota Setting allows administrators to set limits on
output for individual users to curb excessive use.
Enjoy the comforts of home
Lanier-customized efficiency is at your fingertips. Add
frequently used functions as icon shortcuts directly to the
full-color, animated home screen. Access cloud-based
solutions or HotSpot printing quickly using the MFP
Browser. You can attach an external keyboard via USB
cable for more user-friendly navigation. In addition,
you can return to the home screen at any time with
convenient one-touch operation.
Protect the integrity of your
business
Overwrite all stored data on the hard disk drive with
standard DataOverWrite and encrypt the address
book, authentication information and stored documents
using standard HDD Encryption. Enhanced Encryption
Level (AES256bit, SHA-2) offers safer, more secure
encryption algorithms. Plus, standard Bates Numbering
provides identification protection and automatic
consecutive numbering of documents.

Manage more documents in less time
Powerful print performance
Print high-quality documents at high speeds. The versatile
systems offer 1200 x 1200 dpi resolution for compelling output
that is sure to impress. Schedule Print enables users to print
larger jobs during off-peak hours to reduce network congestion.
Use Auto Job Promotion to skip error print jobs. You can also
preview PDF, JPEG and TIFF documents from a USB/SD card
to minimize print errors.
Output on the go
Business moves fast — so should you. These flexible systems
offer convenient mobile printing from most manufacturers’
smartphones/tablets and other web-enabled devices to ensure
productivity in more places. Simply download the new RICOH
Smart Device Print app and gain access to functions that
streamline workflow and enhance efficiency.
Professional finishing options
Choose from a variety of impressive finishing options to ensure end-
to-end document production in more settings, from smaller offices
to Central Reprographic Departments. Use the 3,000-sheet multi-
tray finisher with 50- or 100-sheet staple capacity to expedite larger
jobs. The 2,000-sheet finisher with saddle-stitch stapler can produce
professional-grade booklets. Take advantage of hole punching, multi-
folding option, a user-assignable 9-bin mailbox and more to produce
high-quality, finished documents on a wide range of paper stocks
and sizes.

Choose your own functionality

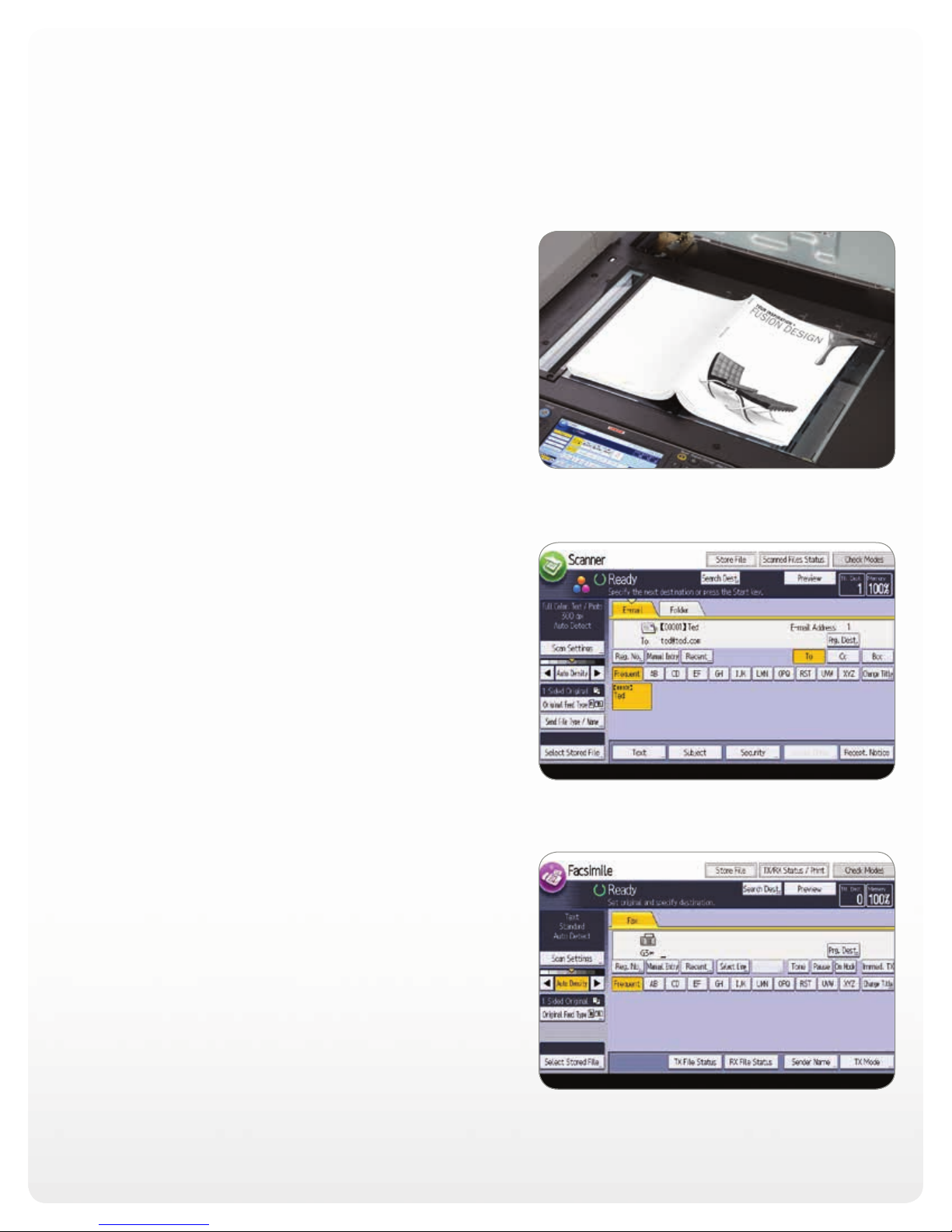

Fast, easy scanning
These versatile systems offer advanced capabilities to improve the
speed and security of scanning tasks. Enhanced Batch Scan lets
users alternate between one- and two-sided scanning of original
documents in a single job. The size of high-quality PDF files can be
reduced significantly with JBIG2 compression support for faster, easier
distribution. In addition, users can save scans as digitally signed PDFs
or in PDF/A format to protect the data more efficiently and securely.
Cost-effective distribution
Share more information with more people. Scan full-color or black-and-
white originals, access LDAP-registered directories and distribute a wide
range of documents using scan to web-mail/e-mail/SMB/FTP/URL/NCP
with incredible control and minimal effort. Plus, users can send scans
and faxes simultaneously to streamline distribution.
User-friendly faxing
Speed communications while reducing costs with optional faxing
capabilities. With IP Fax (T.38) and Internet Fax (T.37), users can
distribute documents directly to e-mail addresses for more cost-
effective delivery. Users can simplify inbound faxing as well. Faxes
can be forwarded automatically to e-mail addresses, network folders
or the system hard drive. Add faxing capabilities to your system to
check, print, delete, retrieve, or download documents using your
computer for paperless faxing that cuts steps and helps to reduce
costs. In addition, several services-led platform Lanier devices can
be connected to share phone lines helping to reduce costs further.

Simplify the way you work
Embrace and enhance sustainability
With the new services-led platform, backed by Lanier’s environmental
stewardship, these compact MFPs are designed with default duplex
printing to reduce paper consumption significantly. Users can visualize
cost and paper resources by displaying the Eco-Friendly indicator,
showing the percentage of paper reduction achieved. With class-leading
TEC values, these systems offer an energy consumption reduction
while maintaining productivity. In addition, Lanier’s manufacturer is
the first to incorporate electric furnace melted steel sheets into our
multifunctional devices. These sheets are made of 100% recycled steel,
which help to reduce the consumption of environmental resources.

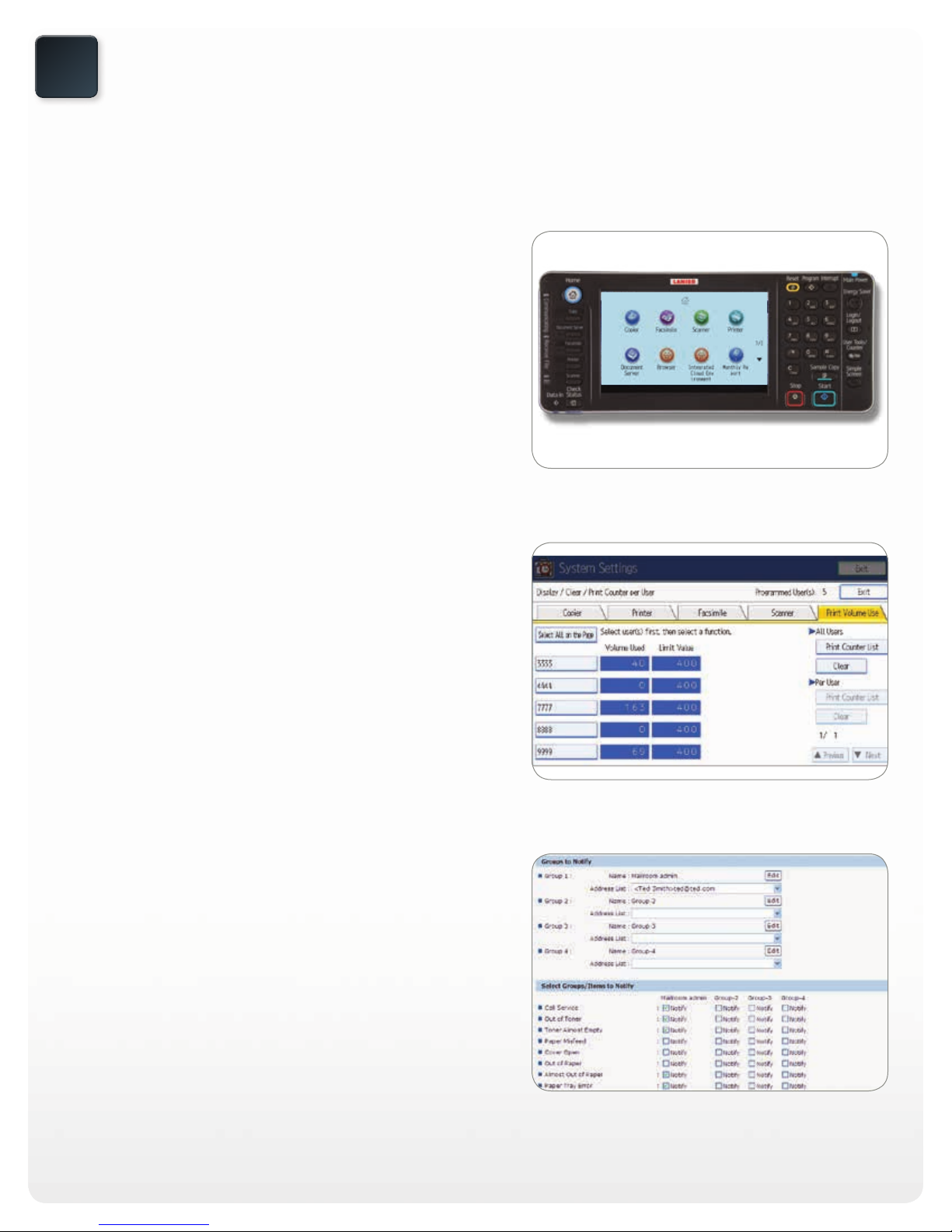

Manage users, maintain efficiency
Streamline fleet management with intuitive, unobtrusive
administrative controls. Efficiently reset print volume counters
automatically to manage excess print and copy costs for individual
users or workgroups. Import and export preference settings —
including applications, system settings and shortcuts — from
other Lanier services-led platform devices for fast, convenient
deployments. Identify up to 1,000 user codes to check usage
and status via SmartDeviceMonitor. Use banner page printing
to separate print jobs to determine who printed each job.
Integrated device management
Integrated, scalable administrative controls can save time and help
reduce costs. Use WebSmartDeviceMonitor from any web browser
to configure and diagnose network devices remotely. Easy-to-
use @Remote software automates service calls and simplifies the
collection of critical device data. Plus, administrators can receive
email alerts to ensure that devices are replenished with supplies
promptly.

8
3
1
2
4
6
7
5
10
9

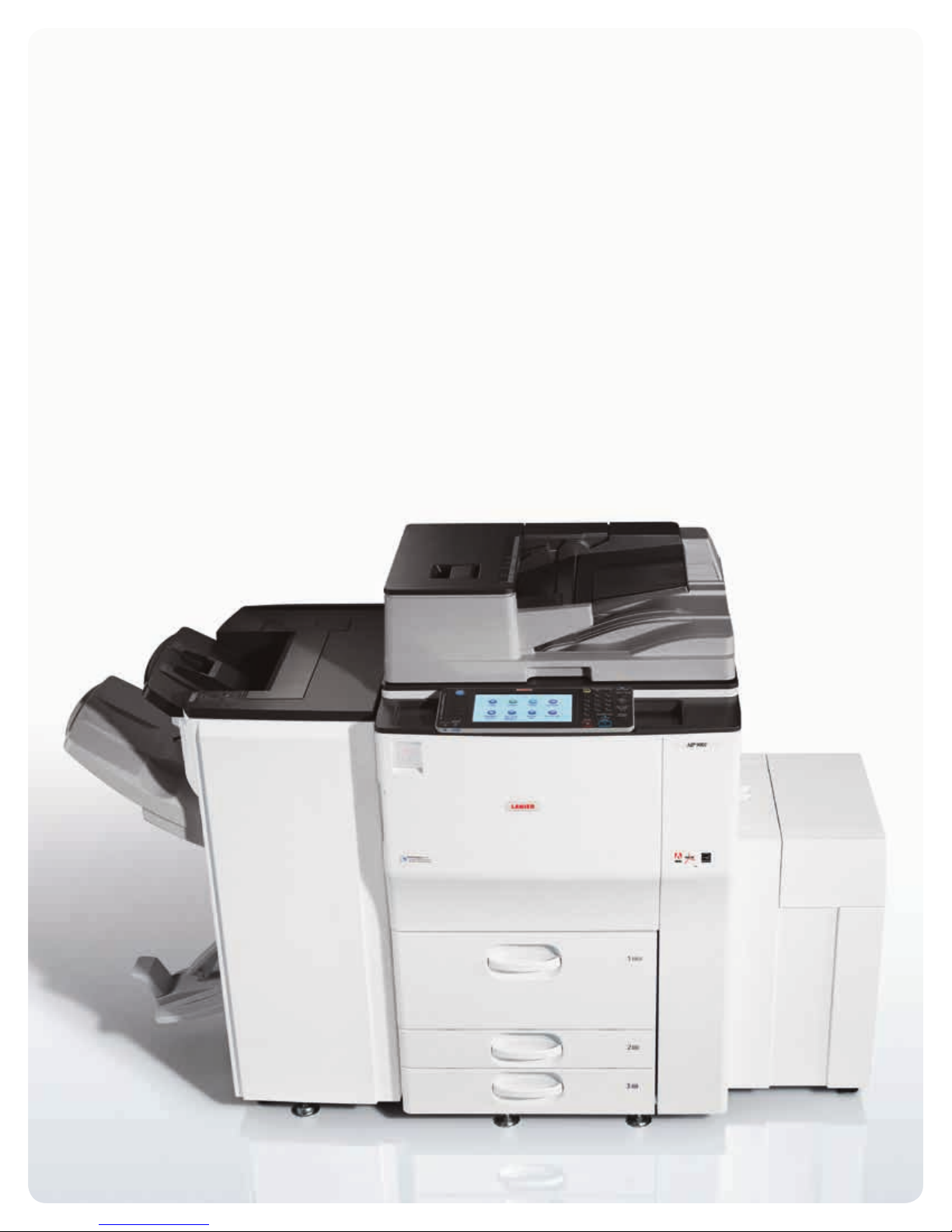

Lanier MP 9002
Big impact in a compact design
1

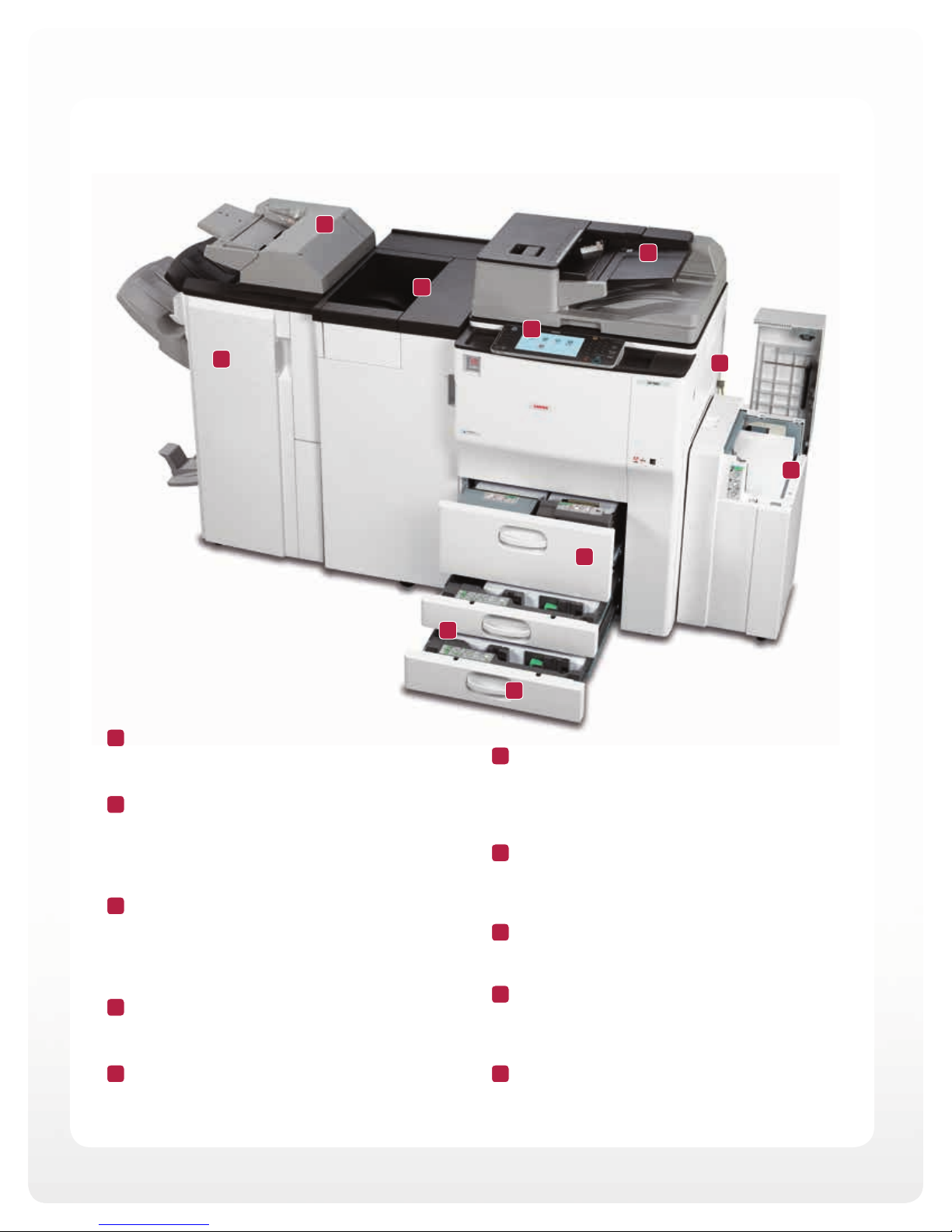

Cover Interposer Tray CI4000 (Option)
Add full-color or black-and-white covers
and insert sheets with the Cover Interposer.
2
Multi-Fold Unit FD4000 (Option)
Accommodate various folding needs with the flexible
in-line Multi-Fold Unit. Available patterns include: Half-
Fold, Letter Fold-in (Tri-fold), Letter Fold-out (Tri-fold),
Gate-Fold, Double Parallel (Four-Fold) and Z-Fold.
3
2,000-Sheet Saddle-Stitch Finisher with 50-Sheet
Stapler SR4070 (Option/shown)
Also choose from two separate Finishers; SR4080
3,000-Sheet Finisher with 100-Sheet Stapler or
SR4060 3,000-Sheet Finisher with 50-Sheet Stapler.
4
Large Capacity Tray RT4010 (Option)
Increase total paper capacity to 8,300 sheets with
the optional 4,000-sheet Large Capacity Tray (LCT).
5
Two 550-Sheet Paper Trays
Standard paper capacity is an ample 4,300 sheets,
which includes dual front-loading paper trays.
6
Automatic Document Feeder
The one-pass color duplex scanning document
feeder can scan up to 88 ipm simplex black-and-
white and color and 176 ipm duplex black-and-
white and color documents per minute.
7
Full-Color LCD Control Panel with USB/SD Slot
Navigate from job to job easily with fingertip control
via the intuitive angled control panel featuring a
user-friendly slot for USB/SD cards.
8
Bypass Tray
Copy up to 110 lb. Index through the 100-Sheet
Bypass Tray
9
Tandem Paper Tray
This tray holds 1,550 sheets in each of two
compartments for a total capacity of 3,100 sheets.
Load paper on-the-fly while copying/printing.
10
Normal/Reverse Grip Handles
Easy grip handles on all paper trays allow any user
to reload paper quickly and conveniently.

SYSTEM SPECIFICATIONS
Lanier MP 6002/MP 7502/MP 9002
Specifications
Memory (RAM) 1.5 GB
HDD 250 GB
First Copy Time MP 6002: 3.9 seconds
MP 7502: 3.2 seconds
MP 9002: 2.9 seconds
Recovery Time to MP 6002/MP 7502: 30 seconds
Print Ready Mode MP 9002: 300 seconds
Copy Speed 60/75/90 copies/minute multiple sets
(Letter LEF)
Original Size Up to 11” x 17”
Copy Size 5.5” x 8.5” – 11” x 17”
Copy Resolution True 600 x 600 dpi
Grayscale 256 levels
Zoom 25% – 400% in 1% increments
Paper Capacity Standard: Tray 1: 1,550 sheets x 2
(tandem) = 3,100 (Letter); Trays 2 & 3:
550 sheets each (user adjustable)
Bypass: 100 sheets
Total Standard/Max: 4,300/8,300 sheets
Paper Weight Trays 1 – 2: 52 – 169 g/m2(14 lb. Bond –
45 lb. Bond)
Tray 3: 52 – 216 g/m2(14 lb. Bond –
80 lb. Cover)
Power Requirements 120V/60Hz/20A (Requires dedicated
20A outlet)
MP 9002: 208-220V/60Hz/20A
(Requires dedicated 20A outlet)
Typical Electricity MP 6002: SP version: 6.02 kWh
Consumption (TEC) MP 7502: SP version: 6.83 kWh
MP 9002: SP version: 14.07 kWh
Dimensions (WxDxH) 27.2” x 31.5” x 46.1” (690 x 799 x
1171 mm)
Weight 471.6 lbs. (214 kg)
System Accessories
Automatic Document Feeder (Standard)
Original Size 5.5” x 8.5” – 11” x 17”
Paper Weight
Simplex: 11 lb. – 34 lb. Bond (40 – 128 g/m2)
Duplex: 14 lb. – 34 lb. Bond (40 – 128 g/m2)
Capacity 150 sheets (based on 20 lb. Bond – 75 g/m2)
Options
RT4010 Large-Capacity Tray (LCT)
Paper Size 8.5” x 11”/A4 (LEF)
Paper Weight 14 – 34 lb. Bond (52 – 128
g/m2 )
Paper Capacity 4,000 sheets (20 lb. Bond – 75 g/m2)
Dimensions (WxDxH) 12.36” x 18.03” x 25.94” (314 x 458 x
659 mm)
8.5” x 14” Paper Size Tray Type 9002
Enables legal-size (8.5” x 14”) paper to be fed through LCT.
Paper Size 8.5” x 14”/B4, 8.5” x 11” /A4 SEF
Paper Capacity 2,500 sheets (20 lb. Bond – 75 g/m2)
CS4000 9-Bin Mailbox
Compatible with SR4060 and SR4070 Finishers.
Number of Bins 9
Stack Capacity 100 sheets/bin (20 lb. Bond – 75 g/m2)
Paper Size 5.5” x 8.5” – 11” x 17”
Copy Tray Type 9002
Paper Capacity 500 sheets (8.5” x 11”, 8.5” x 15”),
250 sheets (5.5” x 8.5”, 11” x 17”)
11” x 17” Tray Type 9001
Enables 8.5” x 11” – 11” x 17” paper to be fed from Tray 1.
Paper Size 11” x 17” SEF, 8.5” x 14” SEF, 8.5” x 11”
Paper Capacity 1,000 sheets
Cover Interposer Tray Type CI4000
Compatible with all three finishers.
Paper Size 5.5” x 8.5” – 11” x 17”
Paper Weight 17 lb. Bond – 110 lb. Index (64 – 216 g/m2)
Paper Capacity 200 sheets (20 lb. Bond – 75 g/m2)
FD4000 Multi-Folding Unit
Compatible with SR4080 and SR4070 only.
Folding Type
Single Sheet Mode Z-Fold, Half-Fold, Letter Fold-in, Letter
Fold-out, Double Parallel, Gate-Fold
Multiple Sheets Mode Half-Fold, Letter Fold-in, Letter Fold-out.
Up to 3 sheets
Paper Size
Single Sheet Mode Z-Folding: 8.5” x 11” – 11” x 17”
Half-Folding: 8.5” x 11” – 11” x 17”
Letter Folding: 8.5” x 11” – 11” x 17”
Double Parallel/Gate-Folding: 8.5” x 11”
Multiple Sheets Mode Half-Folding: 8.5” x 11” – 11” x 17”
Letter Folding: 8.5” x 11”
SR4070 2,000-Sheet Saddle-Stitch Finisher with 50-Sheet
Stapler
Proof Tray
Paper Size 5.5” x 8.5” – 11” x 17” (A5-A3) SEF
Paper Weight 14 lb. Bond – 90 lb. Index (52 – 128 g/m2)
Stack Capacity 250 sheets (8.5” x 11” or smaller)
50 sheets (8.5” x 14” or larger)
30 sheets (Z-Fold/8.5” x 14” or larger)
20 sheets (Z-Fold/8.5” x 11” or smaller)
Shift Tray
Paper Size 5.5” x 8.5” – 11” x 17” (SEF)
Paper Weight 14 lb. Bond – 80lb. Cover (52 – 216 g/m2)
Stack Capacity 2,000 sheets (8.5” x 11” LEF)
1,000 sheets (8.5” x 11” SEF,
8.5” x 14” SEF, 11” x 17” SEF)
100 sheets (5.5” x 8.5” SEF)
30 sheets (Z-Fold/8.5” x 14” or larger)
20 sheets (Z-Fold/8.5” x 11” or smaller)
Staple Capacity
Same Paper Size 50 sheets (8.5” x 11” or smaller)
30 sheets (8.5” x 14” or larger)
Mixed Paper Size 30 sheets (8.5” x 11”, 11” x 17”)
Z-Fold Paper Only 5 sheets
Saddle-Stitch 15 sheets (8.5” x 11” SEF, 8.5” x 14” SEF,
11” x 17” SEF)
Staple Position Top, Bottom, 2 Staples, Top Slant Booklet
Dimensions (WxDxH) 25.9” x 24.1” x 37.8” (657 x 613 x 960mm)
Punch Unit Type 3260 (For use on SR4060/4070 nishers)
Hole Positions 2 or 3 holes
Paper Size 5.5” x 8.5” – 11” x 17”
Paper Weight 14 lb. Bond – 90 lb. Index (52 – 163 g/m2)
SR4080 3,000-Sheet Finisher with 100-Sheet Stapler
Proof Tray
Paper Size 5.5” x 8.5” – 11” x 17” (A5-A3) SEF
Paper Weight 14 lb. Bond – 80 lb. Cover (52 – 216 g/m2)
Stack Capacity 500 sheets (8.5” x 11” or smaller)
250 sheets (8.5” x 14” or larger)
30 sheets (Z-Fold)
Shift Tray
Paper Size 5.5” x 8.5” – 11” x 17” (A5-A3) SEF
Paper Weight 14 lb. Bond – 110 lb. Index (52 – 216 g/m2)
Stack Capacity 3,000 sheets (8.5” x 11” LEF)
1,500 sheets (8.5” x 11” SEF,
8.5” x 14” SEF, 11” x 17” SEF)
500 sheets (5.5” x 8.5” LEF)
100 sheets (5.5” x 8.5” SEF)
30 sheets (Z-Fold)
Staple Capacity
Same Paper Size 100 sheets (8.5” x 11”)
50 sheets (8.5” x 14”, 11” x 17”)
Mixed Paper Size 50 sheets (8.5” x 11” LEF, 11” x 17” SEF)
Z-Fold Paper Only 10 sheets
Staple Positions Top, Top Slant, Bottom, 2 Staples
Dimensions (WxDxH) 31.5” x 28.7” x 38.6” (800 x 730 x 980mm)
Punch Unit Type 1075
Hole Positions 2 or 3 holes
Paper Size 5.5” x 8.5” – 11” x 17”
Paper Weight 14 lb. Bond – 90 lb.Index (52 – 162 g/m2)
SR4060 3,000-Sheet Finisher with 50-Sheet Stapler
Proof Tray
Paper Size 5.5” x 8.5” – 11” x 17” SEF
Paper Weight 14 lb. Bond – 90 lb. Index (52-163 g/m2)
Stack Capacity 250 sheets (8.5” x 11” or smaller)
50 sheets (8.5” x 14” or larger)
Shift Tray
Paper Size 5.5” x 8.5” – 11” x 17” SEF
Paper Weight 14 lb. Bond – 80 lb. Cover (52 – 216 g/m2)
Stack Capacity 3,000 sheets (8.5” x 11” LEF)
1,500 sheets (8.5” x 11” SEF,
8.5” x 14” SEF, 11” x 17” SEF)
100 sheets (5.5” x 8.5” SEF)
Staple Capacity
Same Paper Size 50 sheets (8.5” x 11” or smaller)
30 sheets (8.5” x 14” or larger)
Mixed Paper Size 30 sheets (8.5” x 11” LEF, 11” x 17” SEF)
Staple Positions Top, Bottom, 2 Staples, Top Slant
Dimensions (WxDxH) 25.9” x 24.1” x 37.8” (657 x 613 x 960mm)
GBC StreamPunch PRO
Paper Size 8.5” x 11” LEF
Paper Weight 20 lb. Bond – 110 lb. Index (75 – 216 g/m2)
Die Sets CombBind®, Twin Loop Wire (2:1 or 3:1),
ColorCoil®, VeloBind®, Three-Ring, ProClick®
BK5010e Production Booklet Maker
Paper Size 8.5” x 11” – 11” x 17”
Paper Weight 16 lb. Bond – 110 lb. Index (60 – 216 g/m2)
Print Controller Specifications
Print Speed MP 6002: 60 ppm
MP 7502: 75 ppm
MP 9002: 90 ppm
CPU Intel Celeron M 1.0 GHz
Host Interface Standard: 10Base-T Ethernet/100Base-TX
Ethernet, USB 2.0, SD Card Interface
Optional: IEEE 1284 (Parallel), IEEE
802.11a/b/g (Wireless LAN), Gigabit
Ethernet
Network Protocol TCP/IP (IPv4/IPv6), IPX/SPX1
1Requires Netware Option
Memory Capacity 1.5 GB
PDL Standard: PCL5e, PCL6
Optional: Adobe PostScript 3©
Print Resolution PCL5e: 300/600 dpi
PCL6: 600/1200 dpi
PS 3: 300/600/1200 dpi
Drivers PCL5e/PCL6 /PS3
Scanner Specifications
Scan Speed B/W 200 dpi (LT): 88 ipm (Simplex)/
176 ipm (Duplex)
B/W 300 dpi (LT): 88 ipm (Simplex)/
176 ipm (Duplex)
Color 200 dpi (LT): 88 ipm (Simplex)/
176 ipm (Duplex)
Color 300 dpi (LT): 88 ipm (Simplex)/
120 ipm (Duplex)
Optical Resolution 100 dpi – 600 dpi (100 – 1200 dpi
with TWAIN)
Output Format Single Page: TIFF/JPEG, PDF, High
Compression PDF, Encrypt PDF, PDF/A
Multi Page: TIFF, PDF, High Compression
PDF, Encrypt PDF, PDF/A
Interface Support Standard: 10Base-T Ethernet/
100Base-TX Ethernet;
Optional: IEEE 802.11a/b/g, Gigabit Ethernet
Drivers Network TWAIN Driver and WIA Driver1
Scan-to-Email Yes (up to 500 addresses per send)
LDAP Support Yes (Version 3)
Max Stored Destinations 2,000
Authentication SMTP/POP before SMTP
Scan-to-Folder Yes (up to 50 folders per job)
Protocol Support SMB, FTP, NCP (requires netware option)
Scan-to-Media USB/SD Card
1Download driver from website.
Facsimile Specifications (Optional)
Type ITU-T (CCIT) G3, Additional G3 (Optional)
Circuit PSTN, PBX
Resolution 200 x 100 dpi (Standard Mode); 200 x
200 dpi (Detail Mode); 200 x 400 dpi (Fine
Mode); 400 x 400 dpi (Super Fine Mode;
available with optional SAF memory)
Modem Speed 33.6 Kbps with auto fallback
Compression Method MH, MR, MMR, JBIG
G3 Transmission Speed Approximately 2 seconds/page (with JBIG);
Approximately 3 seconds/page (with MMR)
Scan Speed 0.70 seconds/page (Standard/Detail/Super
Fine Mode; LTR SEF)
Auto Dialing 2,000 Quick Dials, 100 Group Dials (500
locations each)
SAF Memory Capacity Standard: 4 MB (Approximately 320 pages);
Maximum: 28 MB (approximately 2,240
pages) with memory option
Additional Modes Internet Fax by e-mail (T.37), IP Fax (T.38),
LAN Fax, Fax Forward to E-mail/Folder,
LDAP support
Options G3 Interface Unit Type 9002 (provides one
additional G3 line; up to two lines may be
added for a maximum of three lines); Memory
Unit Type B (32 MB for fax option), Fax
Connection Unit Type E
Accessories
Gigabit Ethernet Type B, IEEE802.11a/g Interface Unit Type J,
PostScript3 Unit Type 9002, SD Card for NetWare Printing Type L,
Browser Unit Type J, Fax Connection Unit Type E, File Format Converter
Type E, 32MB Memory Unit Type B, Copy Data Security Unit Type F
For maximum performance and yield, we recommend using genuine Lanier parts
and supplies
L3376-1
www.lanier.com
Lanier, 70 Valley Stream Parkway, Malvern, PA 19355, 1-855-5-LANIER
Lanier®and the Lanier Logo are registered trademarks of Ricoh Americas Corporation. All other trademarks are the property of their respective owners. ©2012 Ricoh Americas Corporation.
All rights reserved. The content of this document, and the appearance, features and specifications of Lanier products and services are subject to change from time to time without notice.
Products are shown with optional features. While care has been taken to ensure the accuracy of this information, Lanier makes no representation or warranties about the accuracy, completeness
or adequacy of the information contained herein, and shall not be liable for any errors or omissions in these materials. Actual results will vary depending upon use of the products and services,
and the conditions and factors affecting performance. The only warranties for Lanier products and services are as set forth in the express warranty statements accompanying them.
