Lanzar SDIN74DU User manual

1
PRECAUTION
!
CAUTION
RISKOF ELECTRIC SHOCK
DONOTOPEN
WARNING:TOREDUCETHE
RISK OFFIREOR ELECTRIC
SHOCK, DONOTEXPOSE
THISAPPLIANCETORAINOR
MOISTURE.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightening flash with arrowhead symbol, within an equilateral triangle, is intended to alert
the user to the presence of uninsulated dangerous voltage within the products
enclosure that may be of sufficient magnitude to constitute a risk of electric shock
to persons.
The exclamation point within an equilateral triangle is intended to alert user to the presence of
important operating and maintenance (servicing) instructions in the literature
accompanying the appliance.
CLASS1 LASER PRODUCT
Laser product symbol: located on the rear panel of the unit, indicate this player is a class
laser product, only use weak laser and no hazardous radiation outside of the unit.
1.Read through this instruction manual before installation and use.
2.Before removing the unit, remove the disc from the unit first.
3.Do not open the cover or touch any of the components exposed out of the unit, only for
qualified technicians.
4.Do not expose the unit to direct sunlight or nearby objects that radiate heat to avoid
damage the unit.
5.Do not place the unit in moist and humid conditions.
6.Please ensure the ventilation holes are not covered to avoid overheating and
malfunction.
7.Clear the panel and case with soft dry cloth only, do not apply any kind of thinner,alcohol
or sprays.
!
PDF created with FinePrint pdfFactorytrial version http://www.pdffactory.com

2
Contents
1. Before Operation...........................................................................................3
1.1 Glossary...............................................................................................3
1.2 Precautions..........................................................................................3
1.3 Maintenance and Cleaning of Discs.....................................................4
1.4 Battery Information of the Remote Control........................................... 4
1.5 The Remote Control Description............................................................5
1.6 The Locations and Names of Controls on or in the Unit.........................6
1.7 Wires Connection Description.................................................................7
1.8 Unit Installation........................................................................................8
2. Common Operation...........................................................................................9
3. Radio Operation...............................................................................................10
4. Disc, USB and MMC/SD Card Operation.........................................................11
4.1 Load/unload Disc, USB or Card............................................................11
4.2 Pause Playback.....................................................................................13
4.3 Stop Playback .......................................................................................13
4.4 Select Chapter/Track with the UP/DN or the >>|/|<< Buttons.................13
4.5 Select Chapter/Track with the Number Buttons......................................13
4.6 Select Chapter/Track with the Root/PBC Menu.......................................13
4.7 Playback with Speed................................................................................14
4.8 Playback with Slow Speed.......................................................................14
4.9 Display Still Frame Step by Step..............................................................15
4.10 Playback Repeatedly...............................................................................15
4.10.1 One/All Repeat....................................................................................15
4.10.2 A-B Repeat...........................................................................................15
4.11 Playback in Scan Mode.........................................................................16
4.12 Playback from a specified Chapter/Track or a Specified Time...................16
4.13 Playback in Random.............................................................................16
4.14 Playback in Zoom Mode........................................................................16
4.15 Change the Caption Language..............................................................17
4.16 Change the Audio Language.................................................................17
4.17 Change the Video Signal System..........................................................17
4.18 Look over the Playback Status..............................................................17
4.19 Program Playback...............................................................................18
4.20 Playback IMAGE files..........................................................................18
4.21 Playback MP4 files..............................................................................19
4.22 ESP and Id3 Function..........................................................................19
4.23 DVD System Menu Setup Operation......................................................19
* Region Code.......................................................................................23
5. Trouble Shooting.........................................................................................24
6. Specification...............................................................................................25
PDF created with FinePrint pdfFactorytrial version http://www.pdffactory.com

3
1. Before Operation
1.1 Glossary
PBC (playback control)
It is a kind of signal(menu) recorded in the disc with SVCD or VCD2.0 format used for the
playback control. For the discs containing PBC, It can playback interactive software with the
menu displayed on monitor screen.
If the disc contain still images, it can playback high definition of still images.
Title
Generally, the title is the important part of DVD disc. for example, the theme part of movie is
title 1, the part described how to make movie is title 2, the cast is title 3, etc. Every title contain
a serial number that is easy to look up.
Chapter
A title can be divided into several blocks, so that every block can be operated as a unit, the
unit is called chapter. The chapter contain a unit at least.
Track
It is the biggest component of VCD. Generally, every song of karaoke disc is a track.
1.2 Precautions
Safety
1. Power Source: The unit should be connected to power supply only of the type described
in the operating instructions or as marked on the unit.
2. The unit is designed for negative terminal of the battery which is connected to the
vehicle metal. Please confirm it before installation.
3. Do not allow the speaker wires to be shorted together when the unit is switched on.
Otherwise it may overload or burn out the power amplifier.
4. Do not install the detachable panel before connecting the wire.
Environment
1. Do not use this unit near water and moisture.
2. If moisture forms inside the Lens, it may not operate properly. To correct this problem,
wait until the moisture is evaporated.
3. If the car interior is extremely hot, do not use the player until the car has been cool off .
PDF created with FinePrint pdfFactorytrial version http://www.pdffactory.com

4
1.3 Maintenance and Cleaning of Discs
Disc Maintenance
1. To keep the disc clean, handle the disc by its edge, do not touch the disc surface of the
play side.
2. Do not stick paper or tape on the disc. If there is anything on the disc surface, wipe it up
with a soft cloth before using.
3. Do not expose the disc to direct sunlight, or nearby heat sources such as caliduct, or leave
it in a car parked in direct sunlight where there can be a considerable rise in temperature.
4. Put the disc inside disc case to keep temperature after finishing playback.
Disc Cleaning
1. Before playing, wipe the disc with a clean cloth. wipe the disc outwards from the disc
center.
2. Do not use petrol, thinner. Commercial cleaner or anti-static spray to wipe disc.
Fig.1 Fig.2 Fig.3
A
B
+side up
1.4 Battery Information of the Remote Control
Replace Battery in the Remote Control:
1.Before using the remote control for the first time, pull the insulating sheet out of the remote
control as the direction indicated by the arrow.(see fig.1)
2.Press the movable block hold as the direction indicated by the A arrow(See fig.2), then pull
the battery holder out of the remote control as the direction indicated by the B arrow(see
fig.2).
3.Replace the old battery by a new battery with (+) polarity side upward(See fig.3).
4.Insert the battery holder to the original position in remote control.(See fig.3).
Note about the Battery of the Remote Control:
1.Lithium battery: CR 2025 3V.
2.Battery Life: 6 months with normal use in normal room temperature.
3.Improper use of battery may cause overheating or explosion, so that Result in injury or fire .
4.Battery leakage may cause damage to the remote control.
5.Do not short the battery.
6.Do not throw the battery into the fire.
7.To avoid the risk of accident, keep the battery out of reach of children.
PDF created with FinePrint pdfFactorytrial version http://www.pdffactory.com

5

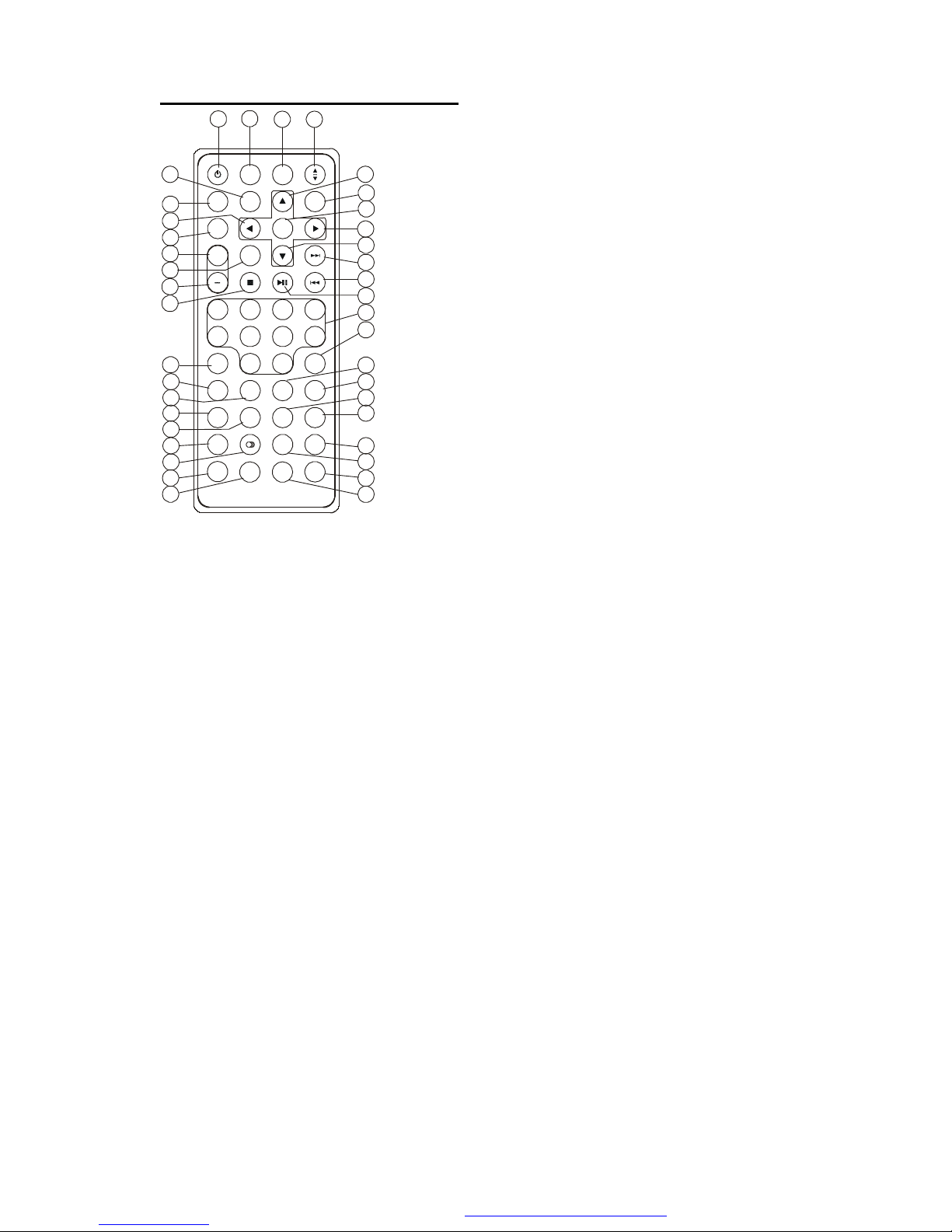

1.5 The Remote Control Description
1
2
3
4
5
6
7
9
8
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
SLOW_FWD
A-B
ZOOM
AUDIO
INT
LOC
ST
CLK
5
9
6
-10
1
+10
2
+
SETUP
SEL
MU
MODE
PWR OPEN
EQ
SUBTITLE
TITLE/PBC
RPT
RDM
SEARCH
APS
P/N
0/10
7
10+
8
3
4
0K
MENU
BAND
PROG
OSD
LOUD
STEP
39
36
37
38
1. TILT BUTTON
2. MENU BUTTON
3. POWER BUTTON
4. ^ BUTTON
5. >>| BUTTON
6. > BUTTON
7. |<< BUTTON
8. v BUTTON
9. SEL BUTTON
10. PLAY/PAUSE BUTTON
11.NUMBER(0~10,+10
-10) BUTTONS
12. 10+ BUTTON
13. SETUP BUTTON
14. MODE BUTTON
15. APS BUTTON
28. LOC/SLOW-FWD BUTTON
29. MUTE BUTTON
30. STOP BUTTON
31. VOLUME- BUTTON
32. < BUTTON
33. OK BUTTON
34. VOLUME+ BUTTON
35. BAND AND P/N BUTTON
36. PROG BUTTON
37. OSD BUTTON
38. LOUD BUTTON
39. STEP BUTTON
16. SEARCH BUTTON
17. RDM BUTTON
18. RPT BUTTON
19. SUBTITLE BUTTON
20. TITLE/PBC BUTTON
21. ST BUTTON
22. ZOOM BUTTON
23. AUDIO BUTTON
24. CLK BUTTON
25. A-B BUTTON
26. INT BUTTON
27. EQ/OPEN BUTTON
PDF created with FinePrint pdfFactorytrial version http://www.pdffactory.com

6

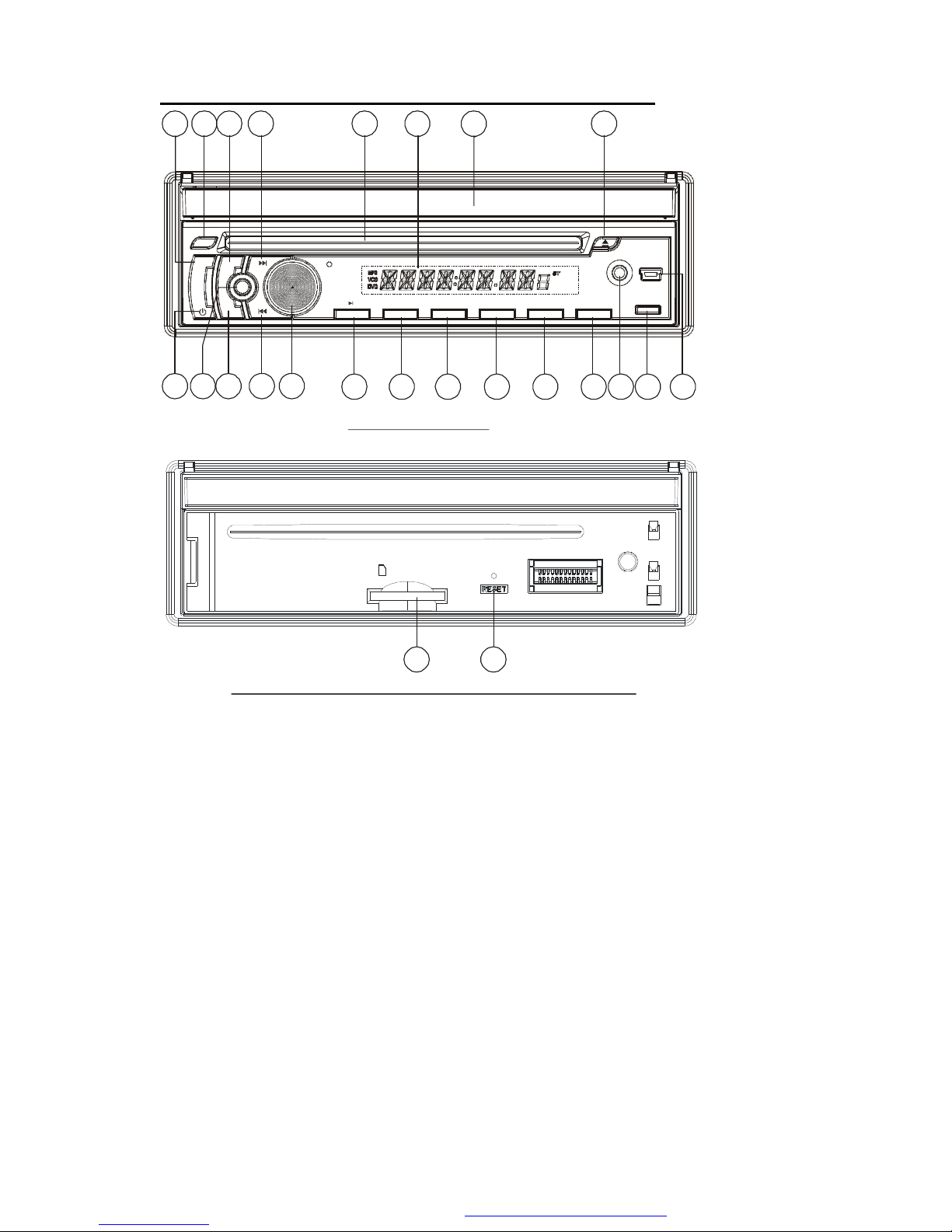

1.6 The Locations and Names of Controls on or in the unit
The Front Facetafterremoving thefrontpanel
7
21
SD/MMC
1
2
3
4
6
10
9
8
11 12
14
16
17
5
13
18
15
19
20
22
23
24
The FrontPanel
MODE
REL
+10
6
USB
1
RPT
INT
2 3
-10RDM
4 5
OPEN
AVIN
APS
MUTE
BAND
1. OPEN button
2. POWER/MUTE button
3. Monitor
4. AV IN socket
5. Disc Slot
6. USB Jack
7. SD/MMC Card Slot
8. MODE button
9. VOL knob
10. >>| button
11. |<< button
12. PLAY/PAUSE/1 button
13. INT/2 button
14. RPT/3 button
15. RDM/4 button
16. - 10 / 5 button
17. + 10 / 6 button
18. BAND button
19. APS button
20. EJECT button
21. RESET button
22. Small LCD Screen
23. IR Remote Sensor
24. REL button
PDF created with FinePrint pdfFactorytrial version http://www.pdffactory.com

7
1.7 Wires Connection Description
The Description of the Wires Connection
FixingScrew Bolt
WiringConnectingSocket1
WiringConnecting Socket2
RadioAntenna jack
Black Black
1. Parking wire must be connected. And the parking brake must be engaged in order for the
monitor to work.
2. Use the clip end of the Ground Wire provided by manufacturer to connect Mounting Screw,
using the other end of the Ground Wire to connect the negative pole of the power source.
Otherwise, the video on screen maybe flashes.
The Description of the Wiring Diagram for Socket 1
WIRING CONNECTINGSOCKET 1
WIRING CONNECTINGPLUG 1
NOTES:
1. Only speakers with 4 ohms impedance may be used.
2. Ensure that the blue auto antenna cable does not make contact with any ground
connection.
The Description of the Wiring Diagram for Socket 2
REARVIEW CAMERA
WIRINGCONNECTINGSOCKET 2
WIRING CONNECTINGPLUG 2
PDF created with FinePrint pdfFactorytrial version http://www.pdffactory.com

8
Description of Connecting the Parking Brake Line to the Parking Brake SystemBuilt in the Car
Parkingbrake
Parkingbrakeswitch
(insidethecar)
Ground(-)/Park Break(Coffee)
To metallicbodyorchassisofthecar
NOTE:afterconnecting theParkingLine,thevideoonthesmall monitorof thefrontpanel willbedisplayonlyafterbrakingthe car.
1.8 UNIT INSTALLATION
INSTALLATIONINSTRUCTIONS
TO BOOST UP THE CAPABILITYOF
ANTI-JAMMING,PLEASEFIXTHE
METALSTRAPON THE METAL
CONNECTEDTO THE BOTTOM
BRACKETOFTHE CAR.
METALSTRAP
DASHBOARD
SLIDING METAL HOUSING
TO DRAW THECHASSIS OUTOF
THESLIDING METALHOUSING,
INSERTTHE LEFT ANDRIGHT KEY
PLATESINTOTHERIGHT POSITION
OFTHE2 SIDESOF CHASSIS.
PLASTICTRIMOUT
UNIT CHASSIS
SELECTTHEPROPER TAB
FORFIXING THE SLIDING
METALHOUSING.
THEUNITIS INSTALLEDTO BEAN ANTI-THEFT ONE. THE CHASSIS
OFTHE UNIT WEARS A SLIDING METAL HOUSING.PLEASE DO THE
CONNECTIONOFTHE POWER, SPEAKERS AND ANTENNAACCORDING
TOTHE REQUIREMENTOF THE INSTRUCTION BOOK , THEN INSTALL
THESLIDING METAL HOUSINGIN THECAR AS FOLLOWS.
FRONT PANEL
PDF created with FinePrint pdfFactorytrial version http://www.pdffactory.com

9
2. Common Operation
1. To turn on/off the unit
In power off mode, short press the POWER button to turn on the unit.
In power on mode, long press the POWER button on the front panel or short press the
POWER button on the remote control to turn off the unit.
2. To slide the monitor of the Car Audio System out of the chassis
Shortly press the OPEN button on the front panel or long press the OPEN button on the
remote control can slide the monitor of the Car Audio System out of the chassis or slide
it into the chassis.
3. To select function mode
Press the MODE button to select RADIO, DISC
(After inserting a disc), USB(After inserting a USB
storage), SD/MMC CARD(After inserting a SD/
MMC card) or AUX mode.
During playback, tapping the icon after opping
up Keyboard interface can pop up Mode Menu as
right image. then tap one icon in it to select your
desired mode.
4. To adjust sound level
Rotate the VOL knob on the front panel or press and hold the + or - button on the remote
control will adjust the volume level.
5. To mute sound
Press the MUTE button on the remote control to turn on/off MUTE mode.
Pressing the POWER button on the front panel shortly also can turn on/off MUTE mode.
6. To display clock time
Press the CLK button to display clock time on the small monitor of the front panel.
After sliding the monitor into the chassis, pressing the CLK button can display clock time
on the small LCD.
7. To select a desired EQ mode
Press the EQ button on the remote control to select one of the preset music equalizer
curves: POP, ROCK, CLAS, FLAT. The sound effect will be changed.
8. To turn on/off LOUD mode
Press the LOUD button on the remote to turn on/off LOUD mode.
When turning on LOUD mode, it will enhance bass level immediately when bass is not
enough.
9. To reset the player
When the monitor , the small LCD display or some buttons are not working or sound is
distorted, press the REL button and detach the front panel from the main unit, then press
the RESET button to reset the program to factory default.
ModeMenu
PDF created with FinePrint pdfFactorytrial version http://www.pdffactory.com

10

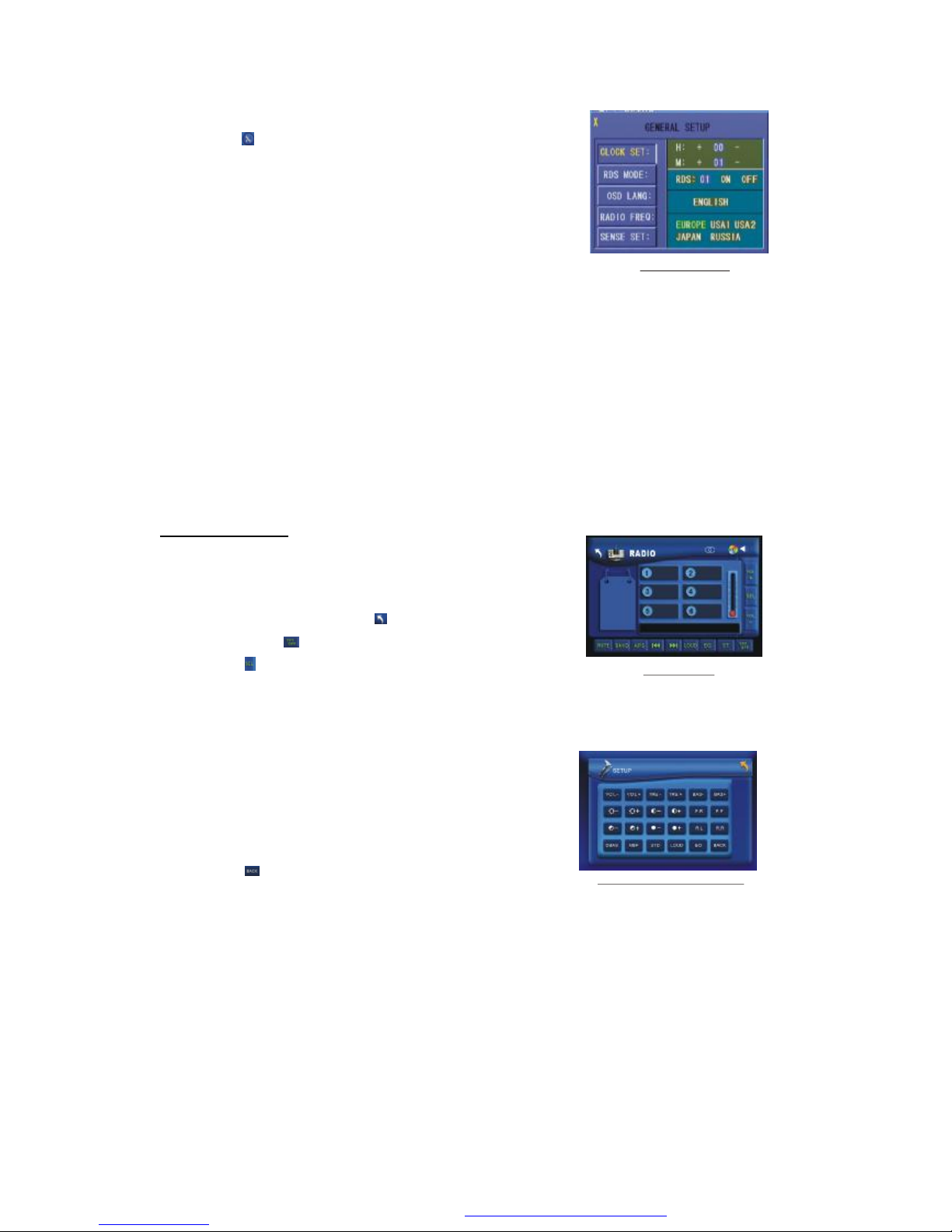

10.To do general setup
To do general setup, first pop up Mode Menu as in item 3,
then tap the icon in the Mode Menu to pop up GENERAL
SETUP interface as right.
In the interface, select one of CLOCK SET, RDS MODE ,
OSD LANG, RADIO FREQ and SENSE SET on the left side
by tapping them, then set them by tapping some icons on
the right side accordingly.
*SENSE SET is used to set the sensitivity of stopping auto
searching for an available radio station. When you tap it,
it will ask you to input a password. The password is 19,
after inputting it, you can set the item.
11.To do calibration
To pop up Calibration interface during media playback, first
press the STOP button , then press the ZOOM button, finally press the ^ and v buttons in turn.
In the interface, you can have calibration by accurately tapping the cross cursor.
3. Radio Operation
1. Enter RADIO mode
When you use MODE button or Mode Menu to enter RADIO
mode, it will display RADIO interface as right.
In RADIO interface, tapping the icon can enter Mode
Menu; tapping the icon can turn on or off TFT display;
tapping the icon can pop up AUDIO & VIDEO SETUP
interface as right; the other icons are same as ones in the
unit panel or in the Remote Control.
In the AUDIO & VIDEO SETUP interface, you can adjust
VOLUME, TREBLE, BASS, BALANCE, FADER,
BRIGHT-NESS, CONTRAST, COLOR, HUE; you can also
turn on or off DBAS, MBP, LOUD; you can still select your
desired transparency mode(by STD) and EQ mode(by EQ);
tapping the icon can return back to the previous status.
2. BAND BUTTON
In RADIO mode, press the BAND button on the remote controller or on the front panel to
select your desired radio band of Fm1, Fm2, Fm3, Am1 and AM2, and the word means which
band is selected will be displayed on the small monitor of the front panel.
3. TUNE/SEEK UP/DOWN BUTTONS
In RADIO mode:
1) Long press the >>|/ |<< button to automatically search up/down for a available station from
the current frequency.
2) Briefly press the >>| / |<< button to manually search up or down with step by step for your
desired station from the current frequency.
GENERAL SETUP
RADIOinterface
AUDIO& VIDEOSETUPinterface
PDF created with FinePrint pdfFactorytrial version http://www.pdffactory.com
