1 SAFETY AND WARNING NOTICES
Intended use
The Laufen shower toilet cleans your bottom. Any other kind of use is not permitted. Glowing cigarettes
or other burning objects must not be thrown into the WC bowl. Laufen shall not accept liability for
damage that occurs as a result of connecting the appliance incorrectly, misuse, or inappropriate use.
Improper operation includes initiating the shower procedure without anyone sitting on the shower toilet.
This may cause water damage in the surrounding area.
Persons with physical, sensory or mental disabilities as well
as persons who are completely unfamiliar with the appliance
(especially children) may only use the shower toilet under the
supervision or instruction of a responsible person.
Warning notices/ precautions (your safety)
Never operate a defective appliance.
Always use tap water to operate your Laufen shower toilet. Do not use rainwater, grey water,
or demineralised water.
Check all functions regularly to ensure they work normally. Should you have any suspicion
that the appliance is faulty, disconnect it immediately from the power supply and contact
Laufen customer services.
Do not attempt to open or repair the appliance yourself. Do not install any additional components or
make any modifications. The appliance contains live components. Opening the appliance can be
extremely dangerous!
Unprofessional repairs can cause dangerous accidents, malfunctions, or damage to the appliance and
installation. Repairs must therefore always be performed by trained and authorised personnel using
original spare parts and accessories.
Do not allow children to clean and maintain the appliance without supervision. Installation may only be
carried out using new hose sets. Old hose sets must not be reused.
Only original electrical connection, water inlet and replacement part material may be used.
For care and cleaning and also for descaling, use only original Laufen or Laufen-recommended
products. We do not accept liability for the use of other products.
Visit www.laufen-cleanet.com to view the Declaration of Conformity

5
2 INTRODUCTION
30. October 2017 | Laufen ∙ Icons app 1
©
Laufen
Gegenüberstellung Icons
Menu
alternativer Iconvorschlag,
da Symbol bei iOS bereits für den
Home Button verwendet wird
POWER
or
or
30. October 2017 | Laufen ∙ Icons app 2
©
Laufen
Gegenüberstellung Icons
Fö hn
Kein Icon mehrKein Icon mehr
Kein Icon mehrKein Icon mehr
Kein Icon mehr
Düse wechseln
Kein Icon mehr
Kein Icon für P2 App
alternativer Iconvorschlag,
da auf native s Gestaltungs-
element zurückgegriffen wird
30. October 2017 | Laufen ∙ Icons app 3
©
Laufen
Gegenüberstellung Icons
BedienungsanleitungTutorialInformationen über
das Dusch-WC
RegistrierungTroubleshooting Fernbedienung
Downloads Schritt für Schritt AnleitungGerätestatus auslesen
Verbrauchsmaterial Erklärung der IconsErsatzzeile
FilmeServiceanfrageDirektwahl Laufen
Präsentationsmodus
Dialog und Feedback
Deckel entfernen
30. October 2017 | Laufen ∙ Icons app 1
©
Laufen
Gegenüberstellung Icons
Menu
alternativer Iconvorschlag,
da Symbol bei iOS bereits für den
Home Button verwendet wird
POWER
or
or
30. October 2017 | Laufen ∙ Icons app 2
©
Laufen
Gegenüberstellung Icons
Fö hn
Kein Icon mehrKein Icon mehr
Kein Icon mehrKein Icon mehr
Kein Icon mehr
Düse wechseln
Kein Icon mehr
Kein Icon für P2 App
alternativer Iconvorschlag,
da auf native s Gestaltungs-
element zurückgegriffen wird
30. October 2017 | Laufen ∙ Icons app 3
©
Laufen
Gegenüberstellung Icons
BedienungsanleitungTutorialInformationen über
das Dusch-WC
RegistrierungTroubleshooting Fernbedienung
Downloads Schritt für Schritt AnleitungGerätestatus auslesen
Verbrauchsmaterial Erklärung der IconsErsatzzeile
FilmeServiceanfrageDirektwahl Laufen
Präsentationsmodus
Dialog und Feedback
Deckel entfernen
30. October 2017 | Laufen ∙ Icons app 1
©
Laufen
Gegenüberstellung Icons
Menu
alternativer Iconvorschlag,
da Symbol bei iOS bereits für den
Home Button verwendet wird
POWER
or
or
30. October 2017 | Laufen ∙ Icons app 2
©
Laufen
Gegenüberstellung Icons
Fö hn
Kein Icon mehrKein Icon mehr
Kein Icon mehrKein Icon mehr
Kein Icon mehr
Düse wechseln
Kein Icon mehr
Kein Icon für P2 App
alternativer Iconvorschlag,
da auf native s Gestaltungs-
element zurückgegriffen wird
30. October 2017 | Laufen ∙ Icons app 3
©
Laufen
Gegenüberstellung Icons
BedienungsanleitungTutorialInformationen über
das Dusch-WC
RegistrierungTroubleshooting Fernbedienung
Downloads Schritt für Schritt AnleitungGerätestatus auslesen
Verbrauchsmaterial Erklärung der IconsErsatzzeile
FilmeServiceanfrageDirektwahl Laufen
Präsentationsmodus
Dialog und Feedback
Deckel entfernen
Menu
30. October 2017 | Laufen ∙ Icons app 1
©
Laufen
Gegenüberstellung Icons
Menu
alternativer Iconvorschlag,
da Symbol bei iOS bereits für den
Home Button verwendet wird
POWER
or
or
30. October 2017 | Laufen ∙ Icons app 2
©
Laufen
Gegenüberstellung Icons
Fö hn
Kein Icon mehrKein Icon mehr
Kein Icon mehrKein Icon mehr
Kein Icon mehr
Düse wechseln
Kein Icon mehr
Kein Icon für P2 App
alternativer Iconvorschlag,
da auf native s Gestaltungs-
element zurückgegriffen wird
30. October 2017 | Laufen ∙ Icons app 3
©
Laufen
Gegenüberstellung Icons
BedienungsanleitungTutorialInformationen über
das Dusch-WC
RegistrierungTroubleshooting Fernbedienung
Downloads Schritt für Schritt AnleitungGerätestatus auslesen
Verbrauchsmaterial Erklärung der IconsErsatzzeile
FilmeServiceanfrageDirektwahl Laufen
Präsentationsmodus
Dialog und Feedback
Deckel entfernen
Shower settings Help
Info
NOTICES2.1
LED indicator light Information Description
No indication Normal operation Everything functioning correctly.
Steady red Care notice Please descale your shower toilet.
For further information and descriptions on the notice, see
section5.7, Descaling.
Red, flashing Care programme
active
Descaling is active when the red LED indicator light is flashing.
For further information and descriptions,
see section5.7, Descaling.
Red, flashing
fast
Fault indication Please contact us at www.laufen-cleanet.com
For further information and descriptions of the problem,
see section6, Troubleshooting.
SHOWER TOILET: LED INDICATOR LIGHT
The LED indicator light is located on the underside of
the appliance. It provides information about required
maintenance or possible malfunctions on your
shower toilet.
2.2
LED indicator light

6
SHOWER TOILET3.1
3 OVERVIEW OF YOUR NAVIA SHOWER TOILET
Descaling
agent opening
LED indicator light
Controller with
rotary button
Main switch

7
CONTROLLER WITH ROTARY BUTTON
You can operate the Laufen shower toilet
easily by turning and pressing the controller
located on the right. The following functions can
be activated using the controller:
Rear shower
Jet intensity
Shower jet position
Oscillation
LAUFEN APP
Your shower toilet can be operated easily
with the Laufen app for iPhone and Android,
including useful special functions.
For further descriptions, see section 4.2.
An active internet connection is not required.
Main menu
Rear shower
Jet intensity
Shower jet position
Water temperature
3.2
3.3
3 OVERVIEW OF YOUR NAVIA SHOWER TOILET
Controller with
rotary button
Laufen App
Oscillation
Basic profile management
Appliance connection
Maintenance menu
Descaling programme
Appliance flushing
Temperature settings
and ECO mode
Water hardness settings
Language and country settings
Appliance information
Ordering consumables
Info menu
Appliance information
List of serial numbers
Downloading instructions
Service menu
Recording service messages
First aid, questions and answers
Explanation of the icons and symbols
Install the free app directly from the App Store or Google Play.

8

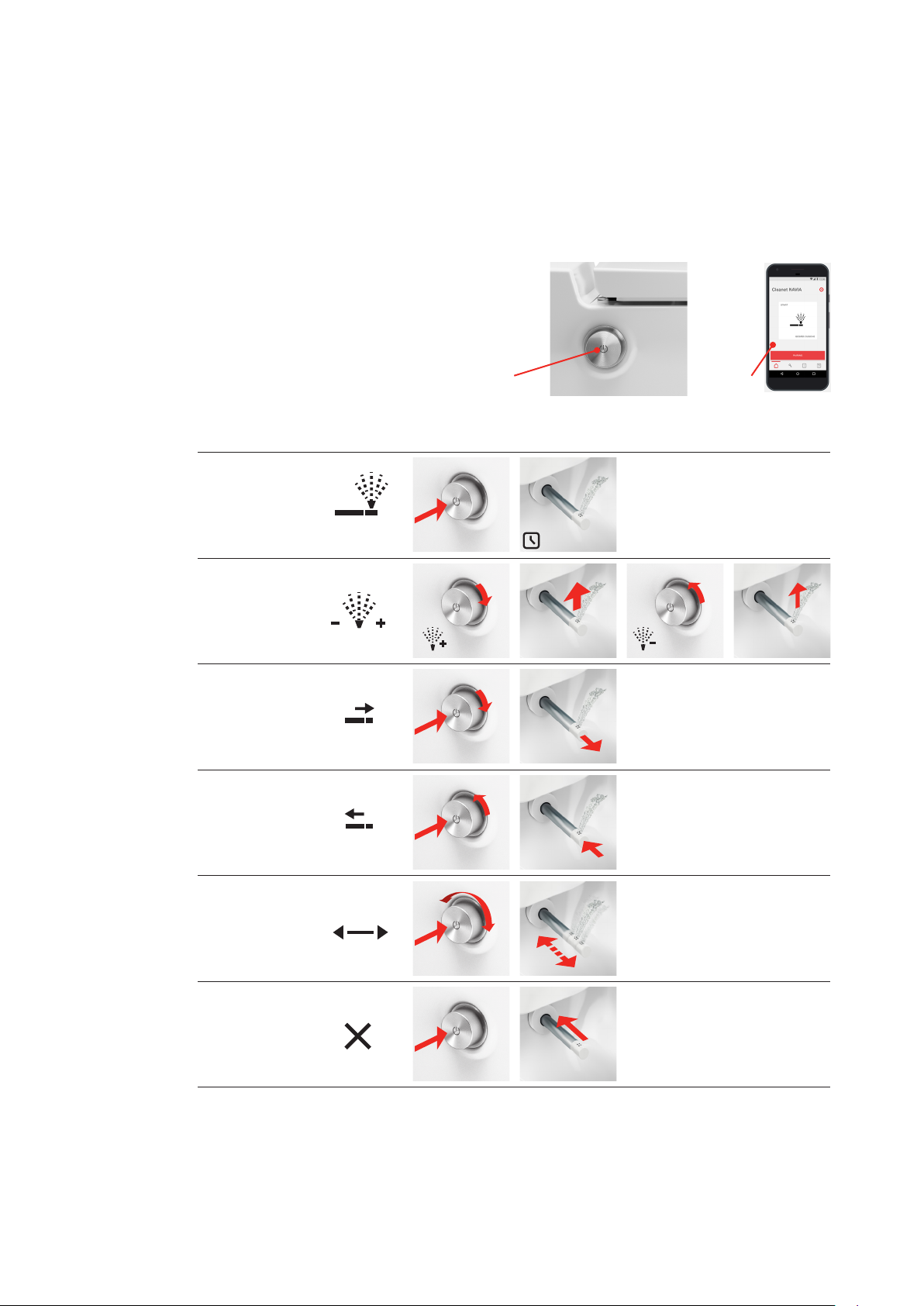

4 OPERATING THE SHOWER TOILET
