Lava Heat Ember User manual

Outdoor Flame Heater
Owner’s Manual
Read these instructions before lighting this appliance.
This appliance must be installed in accordance
to municipal and local regulations.
Model(PEHU
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from
the appliance and immediately call
your gas supplier or fire department.
Do not store or use gasoline or
other flammable vapors and liquids
in the vicinity of this or any other
appliance.
An LP-cylinder not connected for
use shall not be stored in the vicinity
of this or any other appliance.
DANGER
WARNING
WARNING
For Outdoor Use Only.
Installer: Leave this manual to the
owner for future use.
Consumer: Please keep this manual
for future reference. 
Gas-Fired Outdoor Infrared Patio Heaters
Questions, problems, missing / replacement parts? Before returning to your retailer,
call our customer service department at 1.888.779.5282, 10 a.m.- 6:00 p.m., 3ST,
Monday-FridayRUHPDLOFV#ODYDKHDWFRP.

2
This appliance can produce carbon monoxide
which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such
as a camper, tent or home.
DANGER CARBON MONOXIDE HAZARD
WARNING:
Improper installation, adjustment, alteration, service or maintenance can cause injury,
death or property damage. Read the installation, operating and maintenance instructions
thoroughly before installing or servicing this equipment.
WARNINGS AND CAUTIONS
SPECIFICATION
Certification CSA
Height 70.87" (1.80 m)
Rated heat input 51,000 BTU/hr
Gas type LPG
Gas Supply 20 lb (9 kg) LP gas cylinder
Manifold pressure 11" W.C.
Diameter of injector 1/13" (1.90 mm)
Safety features Flame failure device, anti-tilt switch
Gas supply pressure Max. 250 PSI, Min. 5 PSI

3
The installation must conform with local codes
or, in the absence of local codes, with the
National Fuel Gas Code, ANSI Z223.1/NFPA 54,
NFPA58 Natural Gas and Propane Installation
Code, CSA B149.1, or Propane Storage and
Handling Code, B149.2
The heater, when installed, must be electrically
grounded in accordance with local codes or, in
the absence of local codes, with the National
Electrical Code, ANSI/NFPA 70, or the Canadian
Electrical Code, CSA C22.1.
Children and adults should be alerted to
the hazards of high surface temperatures
and should stay away to avoid burns or
clothing ignition.
Young children should be carefully
supervised when they are in the area of
the heater.
Clothing or other flammable materials
should not be hung from the heater, or
placed on or near the heater.
Prior to use, check for damaged parts such as
hoses, regulators, pilot or burner.
All leak tests should be done with a soapy solu-
tion. NEVER USE AN OPEN FLAME TO
CHECK FOR LEAKAGE.
The propane hose with regulator assembly shall
be located out of pathways where people may
trip over it or in areas where the hose will not be
subject to accidental damage.
Any guard or other protective device
removed for servicing the heater must be
replaced prior to operating the heater.
Installation and repair should be done by
a qualified service person. The heater
should be inspected before use and at
least annually by a qualified service
person.
More frequent cleaning may be required
as necessary. It is imperative that control
compartment, burners and circulating air
passageways of the heater be kept clean.
Keeping the appliance area clear and free from
combustible materials, gasoline and other flam-
mable vapors and liquids.
Not obstructing the flow of combustion and venti-
lation air.
Keeping the ventilation opening(s) of the cylin-
der enclosure free and clear from debris.
This appliance shall be used only in a well-
ventilated space and shall not be used in a build-
ing, garage or any other enclosed area.
An appliance may be installed with shelter no
more inclusive than:
With walls on all sides, but with no overhead
cover.
Within a partial enclosure which includes an
overhead cover and no more than two side
walls. These side walls may be parallel, as in a
breezeway, or at right angles to each other.
NOTE:PLEASE READ THE FOLLOWING SAFETY RULES
WARNING:
WARNINGS AND CAUTIONS

4
The pressure regulator and hose assembly sup-
plied with the appliance must be used, replace-
ment pressure regulators and hose assemblies
must be those specified by the appliance manu-
facturer.
Do not store a spare LP-gas cylinder under or
near this appliance;
Never fill the cylinder beyond 80 percent full;
Do not clean the heater with cleaners that are
combustible or corrosive.
NOTE:PLEASE READ THE FOLLOWING SAFETY RULES
Place the dust cap on the cylinder valve outlet
whenever the cylinder is not in use. Only install
the type of dust cap on the cylinder valve that is
provided with the cylinder valve. Other types of
caps or plugs may result in leakage of propane.
Within a partial enclosure which includes an
overhead cover and three side walls, as long as
30 percent or more of the horizontal periphery of
the enclosure is permanently open.
This appliance requires 9kg(20lb) LP-gas supply
cylinder.
The LP-gas supply cylinder to be used must be:
Constructed and marked in accordance with the
Specifications for LP-gas cylinders of the U.S.
Department of Transportation (DOT); or the
Standard for Cylinders, Spheres and Tubes for
Transportation of Dangerous Goods and Com-
mission, CAN/CSA-B339, as applicable;
Provided with a listed overfilling prevention
device; and provided with a cylinder connection
device compatible with the connection for the
appliance.
The cylinder be disconnected when the appli-
ance is not in use.
Storage of an appliance indoors is permissible
only if the cylinder is disconnected and removed
from the appliance.
A cylinder must be stored outdoors in a well-
ventilated area out of the reach of children. A
disconnected cylinder must have dust caps
tightly installed and must not be stored in a build-
ing, garage or any other enclosed area.
WARNING:
WARNINGS AND CAUTIONS

5
This heater is designed to operate with a standard 20 Ib propane cylinder with Approved Cylinder
Connection.
NOTE: PLEASE READ THE FOLLOWING SAFETY RULES:
PREPARATION
Before beginning assembly of product, make sure all parts are present. If any part is missing or
damaged, do not attempt to assemble the product. Contact customer service for replacement parts.
Perform a leak test with a soapy solution:
1. To check gas connections.
2. After connecting a new cylinder.
3. Upon re-assembly after disassembly.
WARNINGS AND CAUTIONS

6
PARTS CONTENTS
Please check the contents of the packaging as to whether anything is missing!
A hinged metal door is provided for
easy access to the LP gas cylinder.
Heat exchange tube has a large
heat-radiating surface.
Weather resistant dome prevents
water from entering the combustion
zone and reflects heat down.
Safety guard protects the full
height of the heat exchanger tube.
Gas control with electronic igniter is
centrally positioned for easy access.
Integrated wheels allow for easy
transport.
The large base ensures good stability.
Chimney cover
Control
Knob AA Battery(1.5V)
(not included)
M6x12
Thumb
Screw
M6x35
Thumb
Screw

7
ASSEMBLY INSTRUCTIONS
Step 1
Step 2
Step1: To assemble unit-partially open gas chamber
door.Carefully lift dome until entire heat exchange tube
is exposed.
Step 2: After heat exchange tube is fully extended, rotate
counter-clockwise until stopped.
Warning:This appliance requires installation
by a competent person. Proper assembly is
the responsibility of the installer.

ASSEMBLY INSTRUCTIONS
8
2
1
3
Step 4
Step4: Fully open gas chamber door. Remove knob
from door and place on control stem.
Warning:This appliance requires installation by a
competentperson. Proper assembly is the
responsibility of theinstaller. Step 3
Step3: Insert M6x35 thumb screw into hole A, and M6x12
A
B
thumb screw into hole B. Lock the screws.

9
ASSEMBLY INSTRUCTIONS
AA
(not included)
Battery(1.5V)
Step 5
Step 6
+-
AA
Step5: Place battery incompartment below control panel.
Warning:This appliance requires installation
by a competent person. Proper assembly is
the responsibility of the installer.
Step6: Place the gas cylinder (not included) into the base
assembly , and fix it with fixing chain. Attach the regulator
to the cylinder, turn clockwise to tighten it securely, and
then close the door.
Note: Make sure to check for leaks once the cylinder has
been replaced. (Refer to the “check for leaks” section on
page 10)
Tighten

10
SAFETY CHECK
Check for leaks
All connection on the patio heater have been
checked for leakage at the factory. Follow these
steps to check the gas hose/regulator/cylinder
connections:
1) Make leakage solution by mixing 1 part liquid
dish soap and 3 parts water.
2) Spoon or brush several drops (or use squirt
bottle) of the solution onto hose connection,
regulator & cylinder connection.
3) Turn on gas cylinder valve. Inspect the
connections and look for bubbles.
4) If no bubbles appear, the connection is safe.
5) If bubbles appear, there is leakage. Loosen
and re-tighten this connection. If connection
still leaks, please call customer service:
1-866-814-0585.
Note:
1) The cylinder supply system must be arranged
for vapor withdrawal;
2) The cylinder used must include a collar to
protect the cylinder valve.
regulator & cylinder
connection
WARNING : ONLY AN AUTHORIZED GAS TECHNICIAN SHOULD INSTALL THIS PRODUCT.
brush

OPERATION
11
1. Ensure control knob is in OFF position.
2. Depress control knob and turn counter clockwise to
IGNITE.
3. Continue to depress knob for 30 seconds, listen to ignition
pulse.
4. Then, release knob and turn to adjust heat intensit
5. If pilot does not light, turn knob to OFF and wait 5 minutes
for gas vapors to dissipate, then repeat steps 2 to 4.

OPERATION
12
Note: The burner may be noisy when initially turned on.
To eliminate excessive noise from the burner, turn the control
knob to the Minimum position.
Then, turn the knob to the level of heat desired.
If you experience any ignition problem consult the following
“Troubleshooting”.
These lighting instructions must be followed. An unsafe
condition can occur if they are not followed correctly.

OPERATION
13

14
LOCATING HEADER FOR USE
CAUTION: WHEN CERTAIN MATERIALS OR ITEMS ARE LEFT, ABOVE, BESIDE OR UNDER
THIS HEATER WHILE IN USE, THEY WILL BE SUBJECT TO RADIANT HEAT AND COULD BE
SERIOUSLY DAMAGED.
This heater is primarily used for the heating of
outdoor patios, decks, spas, pools and open
working areas.

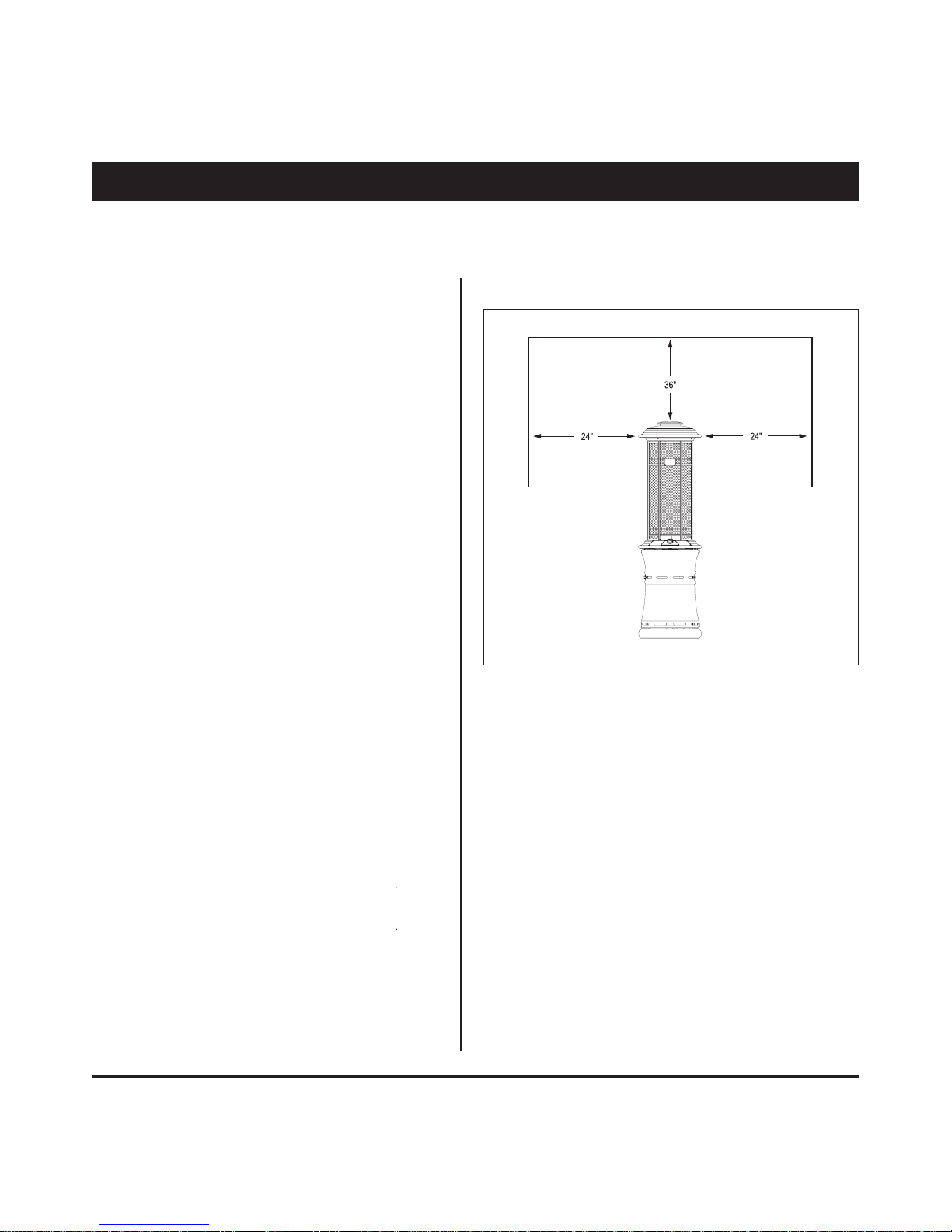

Always make sure that adequate fresh air
ventilation is provided. Follow the spacing
tolerances shown in the following figure right at
all times.
This heater must be placed on level, firm
ground.
Never operate in an explosive atmosphere.
Keep away from areas where gasoline or other
flammable liquids or vapors are stored or used.

15
MAINTENANCE/STORAGE
DO NOT touch or move heater for
at least 45 minutes after use. Allow
all burner elements to cool before
touching.
FOR YOUR SAFETY ;
WARNING:
NOTE:
In a salt-air environment (such as
near an ocean). corrosion occurs
more quickly than normal.
Frequently check for corroded
areas and repair them promptly.
NOTE:
wait until heater is cool before
covering.
CLEANING AND MAINTENANCE :
To enjoy years of outstanding performance from your
heater make sure you perform the following maintenance
activities on a regular basis:
Keep exterior surfaces clean.
Use warm soapy water for cleaning. Never use
flammable of corrosive cleaning agents.
While washing your unit, be sure to keep the area
around the burner and pilot assembly dry at all times. If
the gas control is exposed to water in any way, do NOT
try to use it. It must be replaced.
Keep the appliance area free and clean from combustible
materials, gasoline and other flammable vapors and
liquids; not obstructing the flow of combustion and
ventilation air; keeping the ventilation opening(s) of the
cylinder enclosure free and clear from debris.
Gas odor with extreme yellow tipping of flame.
Heater does NOT reach the desired temperature.
Heater glow is excessively uneven.
Heater makes popping noises.
Visually check burner flames.
Screw down the screws on pole, take out the burner
head assembly.
Check if there are cracks or worn sections on hose. If
yes, please call our customer service to replace hose.
At least once a year, the unit should be inspected for
the presence of spiders, spider webs or other insects.
Air flow must be unobstructed. Keep controls, burner,
and circulating air passageways clean. Signs of possible
blockage include:
Check the cracks or worn sections

16
MAINTENANCE/STORAGE
NOTE:
wait until heater is cool before
covering.
Turn the control knob to "OFF" position.
Turn LP cylinder to "OFF" position.
Store heater upright in an area sheltered from direct
contact with inclement weather (such as rain, sleet, hail,
snow, dust and debris).
If desired, cover heater to protect exterior surfaces and
to help prevent build up in air passages.
Spiders and insects can nest in burner or orifices. This
dangerous condition can damage heater and render it
unsafe for use. Clean burner holes by using a heavy-duty
pipe cleaner. Compressed air may help clear away
smaller particles.
Carbon deposits may create a fire hazard. Clean dome
and engine with warm soapy water if any carbon
deposits develop.
STORAGE:
Between uses:
During periods of extended inactivity or when
transporting;
Turn the control knob to "OFF" position.
Disconnect the regulator from the LP Cylinder by turning
counter-clockwise and move to a secure, well-ventilated
location outdoors. DO NOT store in a location that will
exceed 125 degrees F.
Store heater upright in an area sheltered from direct
contact with inclement weather (such as rain, sleet, hail,
snow, dust and debris).
If desired, cover heater to protect exterior surfaces and to
help prevent build up in air passages.

TROUBLESHOOTING
17

18
The appliance has been manufactured under the highest standards of quality and workmanship. We
warrant to the original consumer purchaser that all aspects of this product will be free of defects in
material and workmanship for five (5) year from the date of purchase. A replacement for any defective
part will be supplied free of charge for installation by the consumer. Defects or damage caused by the
use of other than genuine parts are not covered by this warranty. This warranty shall be effective from
the date of purchase as shown in the purchaser’s receipt.
This warranty is valid for the original consumer purchaser only and excludes industrial, commercial or
business use of the product, product damage due to shipment or failure which results from alteration,
product abuse, or product misuse, whether performed byacontractor, service company, or consumer.
We will not be responsible for labor charges and/or damage incurred in installation, repair or replace-
ment, nor for incidental or consequential damage.
LAVA HEAT ITALIA
Toll free No.: 1.888.779.LAVA 1.888.779.5282
Addr.: 5999 Malburg Way, Vernon, CA, 90058
FIVE-YEAR LIMITED WARRANTY
When You Receive Your Product:
If Your Product is..
• Damaged
• Requires Technical Support
• Requires Parts
• Or If You Have A Sales Question Or You Would Like To Offer Product Feedback
Please contact the manufacturer:
LAVA HEAT ITALIA
888.779.5282 or
[email protected]
DO NOT RETURN PRODUCT TO RETAILER!
