INTRODUCTION
Developed inGermany,the UHF Diversitywireless systems fromthe U300® seriesa deliver excellent audioperformance. They achievea range
of 100 metres in ideal conditions and are available in three frequency bands: 470-542MHz. Up tosix U300®systems can be used
simultaneously for each frequency band.Convenient one-touch synchronisation of transmitter and receiver
via infra-red facilitates fast,
trouble-free wireless connection and the squelch function with pilot tone ensures fail-safe operation.
• Available with hand or pockettransmitter
• Infra-red frequency synchronisation
• Fail-safe operation provided by pilot tone
• 12 channels
• Up to 6 systems can be used simultaneously
• Belt-pack transmitter with gain control and status LED
• Dynamic hand-held microphone with status LED
• U500® microphone heads also suitable for U300® hand-held transmitter
• Long battery life

5
• Available in the following frequencies: 470-542MHz (LDU 504.7/LDU 505.1/LDU 305.1/LDU 304.7)
Please note: The use of the wireless microphone system may require a license, depending on the country of use. For detailed information
please contact the relevant authority in your country.
Pilot tone
The pilot tone function protects a wireless microphone system against interference, for example, unwanted signals from other radio trans-
mission systems. The transmitter adds a second, inaudible signal (the pilot tone) to the actual signal which is to be transmitted. The receiver
identifies it as the matching pilot tone and frees the associated signal. Signals without a matching pilot tone remain muted.
Included
LDU30xHHD: Receiver plus hand-held transmitter with dynamic capsule (cardioid), power supply, 2 x AA batteries, audio cable, manual
LDU30xBPH: Receiverplus pocket transmitter andheadset (black), power supply, 2x AA batteries, audio cable, manual
LDU50xHHD:Receiver plus pocket transmitter and guitar cable, power supply, 2 x AA batteries, audio cable, manual
LDU50xBPH: Receiver plus pocket transmitter and Lavalier microphone, power supply, 2 x AA batteries, audio cable, manual
CONNECTIONS, OPERATING AND DISPLAY ELEMENTS

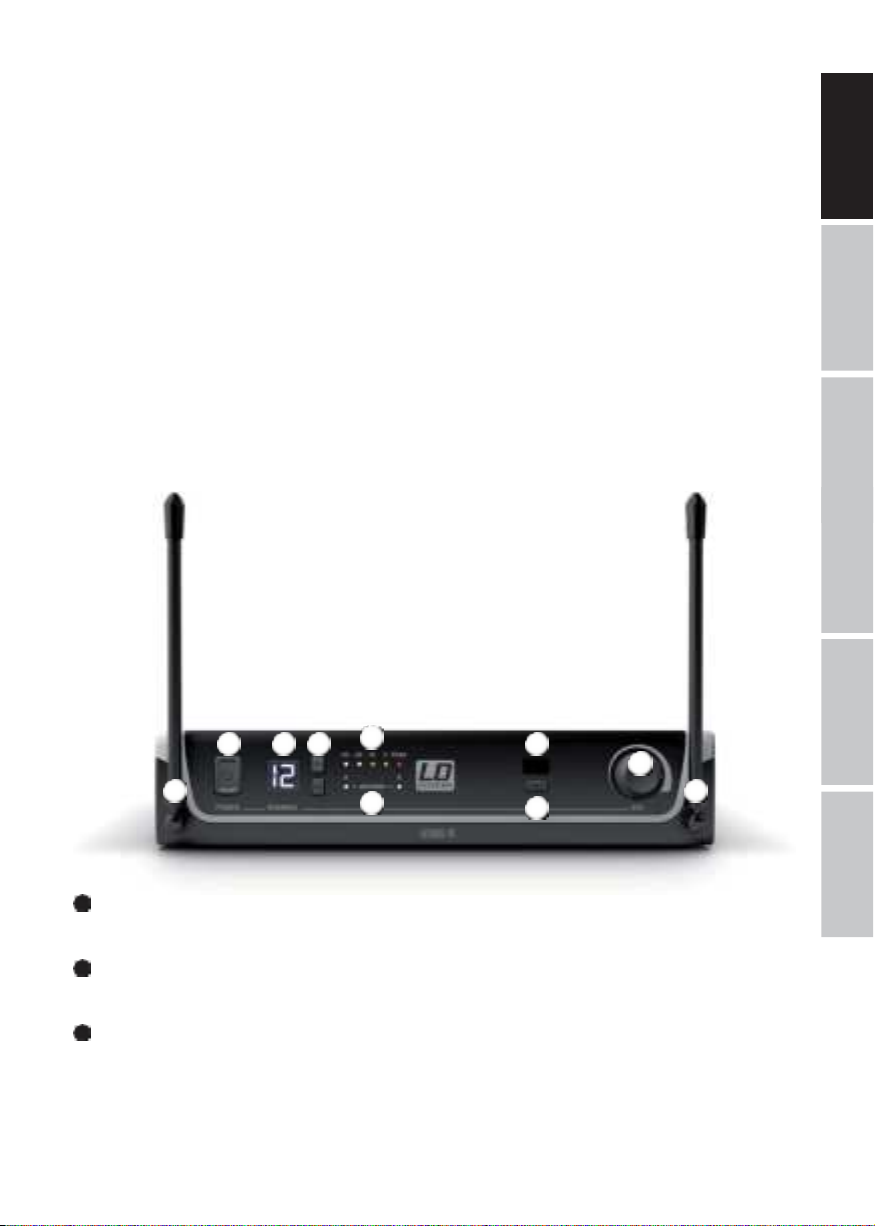

RECEIVER
On/off switch. Press and hold the button for approximately 1 seconds to turn the device on or off.
CHANNEL DISPLAY
Illuminated LC display to show the radio channel.
CHANNEL + / -
Push buttons to select the radio channel 01 to 12. To establish a wireless connection between the transmitter and the receiver, the radio
frequency on both machines must match (synchronisation process as described under point 6. ASC).
1 2 3 75
4
989
6
1POWER
2
3

6
VOL
Rotary knob to adjust the output volume.
IR INTERFACE
Infra-red interface for synchronising the receiver’s radio channel with the transmitter.
ASC
Tosynchronise thetransmitterwith theradio channel setin thereceiver,position the infra-red port ofthe transmitter directly inline withthe
infra-red interface ofthe receiver and switch onthe transmitter andreceiver(distance about 10 cm, IRinterfaceof the handtransmitter is
below the status LED,IR interface of the pocket transmitter on the front side).Now press the ASC button to start the synchronisation process.A
red LED indicator will light up in the window ofthe IR interface during the process.After a few seconds, the process is completed and one of the
LED indicators ANTENNA A and B will light up (= wireless connection exists).
LEVEL INDICATOR
5-segment LED chain to display the audio signal level.
ANTENNA A - B
Indicator LEDs for the antenna systems A and B. The antenna system with the stronger radio signal is activated and the corresponding
indicator LED lights up.
RECEPTION ANTENNAS A - B
For optimum reception, please position the antennas in an upward-facing V-position.
Low-voltage socket for the power supply to the device. Please use only the supplied mains adapter.
11
CABLE STRAIN-RELIEF
Cable strain relief for power adapter cable.
12
UNBALANCED OUTPUT
Unbalanced audio output via 6.3mm jack socket.
13
INSTRUMENT/LINE (UNBALANCED OUTPUT)
Switch for level and impedance-matching to instruments or line inputs of an amplifier or mixer. Using a suitable tool (e.g. a ballpoint pen),
push the switch into the depressed INSTRUMENT position for connection to the input of an instrument amplifier (guitar or bass amp) and for
connection to the line-input of a mixer or amplifier, select the non-depressed position LINE.
4
5
6
7
8
9
11
12 14
13
10
10 DC SOCKET

14
BALANCED OUTPUT
Balanced audio output via 3-pin XLR jack.
HAND-HELD TRANSMITTER
15
MICROPHONE HEAD
The microphone head is interchangeable, the hand-held transmitter is compatible with the microphone heads from the LD U500® series,
available separately.
16
ON / OFF
On/off switch. Move the switch to the ON position to turn on the hand-held transmitter, and to the OFF position to turn it off.
17
STATUS LED
If the charge status of the batteries is sufficient, the LED lights up green when the hand transmitter is switched on. If the LED lights up red, the
charge status is weak. In this case,replace the batteries (2 x AA/LR6 type, alkaline). During the synchronisation process,the LED flashes green
and amber.
18
IR INTERFACE
Infra-red interface for synchronising the radio channel from receiver and transmitter.
19
BATTERY COMPARTMENT COVER
Toreplacethe batteries, open the hand transmitter battery compartmentby rotating it anti-clockwise and pulling it from the housing.Remove the
used batteriesand replacewith new batteries (AA),following the diagramin the batterycompartment. Replacethe batterycompartment cover and
rotateitclockwiseto closethebatterycompartment.Ifthetransmitterisnot usedfora longperiod,removethebatteriestoavoiddamagetothe
transmitter from leakingbatteries.
20
BATTERY COMPARTMENT
For 2x AA, Mignon
7
20
19
15
16
17
18

8

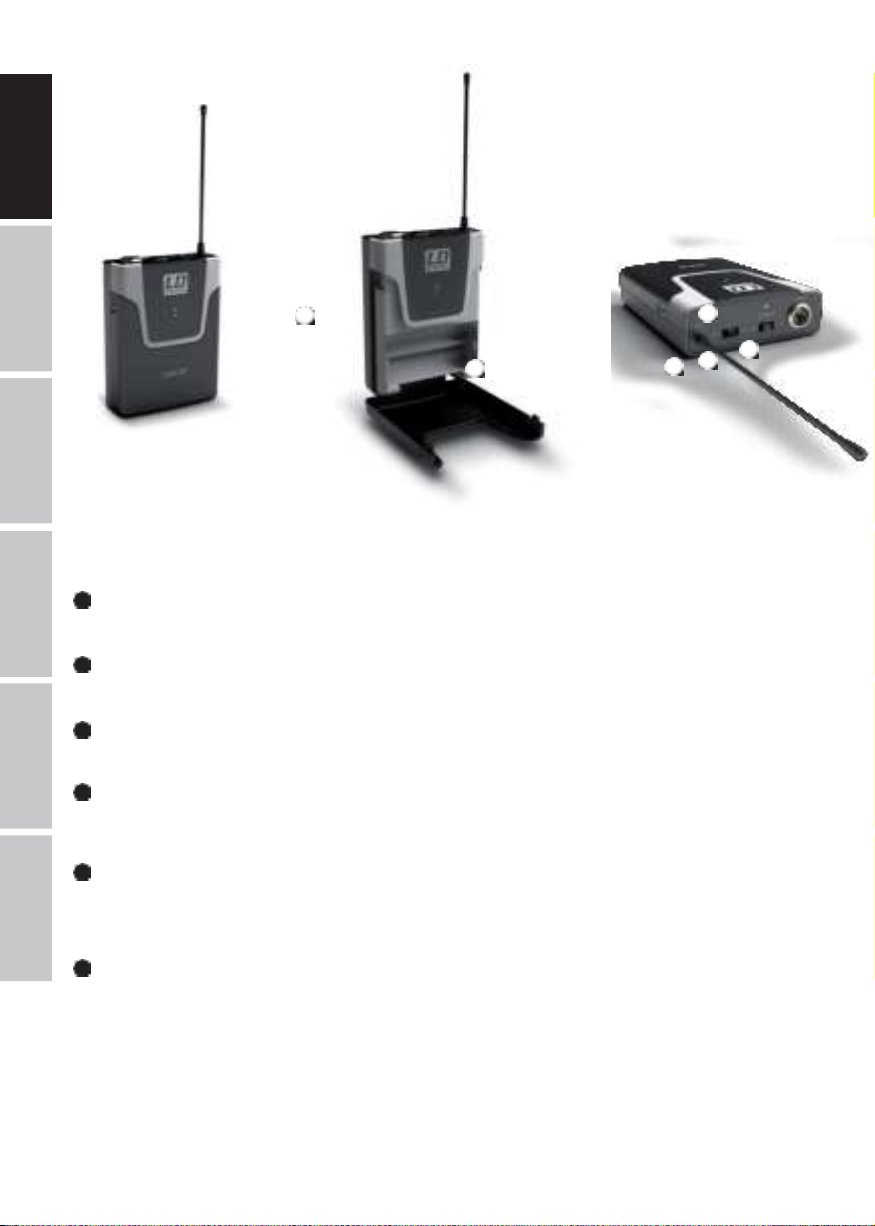

21 Antenna Pocket transmitter antenna. For optimum reception, do notcover or kink.
23 INPUT
22 IR INTERFACE
Infra-red interface for synchronising the radio channel from receiver and transmitter.
3-pin mini XLR socket to connect a headset, Lavalier or instrument microphone and guitar cable.
24
ON / STANDBY / OFF
Switch to activate or deactivate the pocket transmitter (ON = transmitter is switched on, OFF = transmitter is switched off). In the STANDBY
position, the transmitter is in operation but the audio signal is muted.
25
STATUS LED
If the charge status of the batteries is sufficient, the LED lights up green when the pocket transmitter is switched on. If the LED lights up red, the
charge status is weak.In this case, replace the batteries (2 x AA/LR6 type, alkaline).During the synchronisation process,the LED flashes green
and amber.
26
MIC / 0dB / -10dB
Forsetting the input sensitivity.Adjust the sensitivity so that an active signal (speech, vocals,guitar...)causes the amber-colouredlevel-LED
on the receiver to light up. If the red PEAK LED lights up or flashes,reduce the sensitivity on the 3-position switch MIC/0dB/-10dB to the next
lower value to prevent otherwise unwanted distortion. (Examples: Headset = MIC, guitar with passive pickups = 0dB, guitar with active pickups
= -10dB).
2
2
2
2
2
2
2

9
31
MIN I-XLR
2
3 1
R
2,2k
27
BATTERY COMPARTMENT
Toreplace the batteries, open the battery compartment of the pocket transmitter by simultaneously pressing both markers on the sides of the
battery coverand opening it forwards.Remove theused batteries and replace with newbatteries (AA/LR6,alkaline), followingthe diagram in
the battery compartment. Replace the battery compartment cover on the housingand clickit into place.If the transmitter is not used for a long
period, remove the batteries to avoid damage to the transmitter from leaking batteries.
ATTACHING THE POCKET TRANSMITTER
Attach the transmitter to a belt or strap as shown.
PIN ALLOCATION FOR MINI XLR CONNECTOR (POCKET TRANSMITTER)
MINI-XLR 6,3 mm jack
tip
Guitar, bass and other high-impedance signal sources.
MINI-XLR
2
Condenser microphone with internal pull-up resistor.
Condenser microphone without internal pull-up resistor.
sleeve
2
3 1

10
TROUBLESHOOTING
PROBLEM SYMPTOM SOLUTION
No audio signal or level
too low
Receiver: No reception displayed on either antenna
A or B.
Check if the transmitter is turned on.
Check the batteries in the transmitter.
Receiver: Display lighting is switched off Checkthepowersupplyforthereceiverandwhether
the receiver is switched on.
Receiver: No reception displayed on either antenna
A or B.
Transmitter: Device is switched on. Charge status of
the batteries is ok.
Checkwhetherradiofrequencyofthetransmitter and
the receiver are matching.
Reduce the distance between transmitter and
receiver.
Ensure that there is a direct line of sight between the
transmitter and the receiver.
Ensurethattheantennasonthe receiverare posi-
tioned in an upward V-shape.
Receiver: Reception on antenna A or B is displayed. Increasethesignal levelor increasethe inputsensi-
tivity on the pocket transmitter.
Distortion and interference Receiver: Radio signal is displayed
Remove possible sources of interference (digital
devices, other radio systems).
Distorted sound Transmitter: Status LED is lit up red.
Receiver: Peak LED on the receiver is lit.
Replace the batteries in the transmitter.
Reduce the signal level or reduce the input sensitivity
on the pocket transmitter.
OPTIONAL ACCESSORIES
LDU 504.7 – microphone head with condenser capsule and hypercardioid pickup pattern (for hand-held transmitters, matt black)
LDU 505.1 – microphone head with dynamic capsule and hypercardioid pickup pattern (for hand-held transmitters, matt black)
LDU 305.1– microphone head with condenser capsule and cardioid pickup pattern (for hand-held transmitters, matt silver)
LDU 304.7– microphone head with dynamiccapsule and cardioid pickup pattern (for hand-held transmitters, matt silver)
LDWS100MH3 – beige-coloured headset with condenser microphone (for pocket transmitters)
LDWS100MH1 – black headset with condenser microphone (for pocket transmitters)
LDWS1000MW – clip microphone for wind instruments (for pocket transmitters)
LDWS100ML – Lavalier microphone (for pocket transmitters)
LDWS100GC – guitar cable (for pocket transmitters)
LDU300RK – 19" rack mounting kit for the installation of a single receiver (2 rack-mount brackets, 2 caps and 1 set of screws included).

11
1 2
LDU500RK2–19"rackmountingkitfortheinstallationoftwosinglereceivers(2rack-mountbrackets,2connectorsand1setofscrews
included).
Installation
1. Attach connectors (receiver A on the right-hand side, receiver B on the left-hand side).
2. Screw both receivers together.
3. Attach brackets (receiver A on the left-hand side, receiver B on the right-hand side).
TECHNICAL DATA
RECEIVER
Modulation: FM FM
Frequency range: 470-542MHz 470-542MHz
Channels: 12 24
Antenna connectors: 2 x fixed antennas 2 x fixed antennas
Antenna gain: 2.15 dBi 2.15 dBi
Frequency response: 25–16,000 Hz 25–16,000 Hz
Noise reduction: Squelch, fixed level Squelch, fixed level
THD (system): <0.3% <0.3%
Signal-to-noise ratio
(system):
>104dB >104dB
Balanced output: XLR XLR
3
Item number: LDU 500 LDU 300 L
Receiver type: UHF diversity UHF diversity

12
Unbalanced output: 6.3 mm jack 6.3 mm jack
Audio output level
(balanced):
+10dBu +10dBu
Audio output level
(unbalanced):
+7dBV/+2.5dBV +7dBV/+2.5dBV
(switchable line/instrument) (switchable line/instrument)
Controls: POWER, + / - channel select,
ASC, VOL volume control, switch
INSTRUMENT/LINE
POWER, + / - channel select,
ASC, VOL volume control, switch
INSTRUMENT/LINE
Indicators: 2 digit LC display, 5-segment LED 2 digit LC display, 5-segment LED
level meter, antenna A/B LEDs level meter, antenna A/B LEDs
Operating voltage: 12V DC, 500 mA 12V DC, 500 mA
Ambient temperature (in
operation):
5°C to 40°C -10°C to 45°C
Relative humidity: 20% to 80% (non-condensing) 20% to 80% (non-condensing)
Dimensions (W x H x D): 211 x 43 x 120 mm 211 x 43 x 120 mm
Weight: 0.7 kg 0.7 kg
Accessories included: power adapter power adapter
Features: infra-red frequency
synchronisation, pilot tone
infra-red frequency
synchronisation, pilot tone
HAND-HELD TRANSMITTER
Frequency range: 470-542MHz
Channels: 12 24
Microphone type: Dynamic Dynamic
Polar pattern: Cardioid Cardioid
Frequency response: 55–16,000 Hz 55–16,000 Hz
RF output power: 10 mW PEP 0.42 mW PEP
Antenna gain: 0.5 dBi 0.5 dBi
Controls: Power on/off Power on/off
Indicators: Status LED Status LED
Power supply: 2 x AA batteries 2 x AA batteries
Operating time: up to 10 h
(depending on batteries)
up to 10 h
(depending on batteries)
Ambient temperature (in
operation):
5°C to 40°C -10°C to 45°C
Relative humidity: 20% to 80% (non-
condensing)
20% to 80% (non-condensing)
Dimensions (L x Ø): 257 x 50 mm 257 x 50 mm
Weight (without
batteries):
0.235 kg 0.235 kg
Accessories included: 2 x AA batteries 2 x AA batteries
Features: infra-red frequency
synchronisation, pilot tone,
microphone head
interchangeable
infra-red frequency
synchronisation, pilot tone,
microphone head interchangeable
Item number: LDU 305.1 HT / LDU 304.7 HT LDU 504.7HT /LDU 505.1 HT
Modulation: FM FM
470-542MHz

470-542MHz 470-542MHz
13
Item number: LDWS100GC
BODY PACK TRANSMITTER
Frequency range:
Channels: 12 24
Input: 3-pin mini-XLR
(low-Z + phantom power/high-Z) (low-Z + phantom power/high-Z)
3-pin mini-XLR
Frequency response: 25–16,000 Hz 25–16,000 Hz
RF output power: 10 mW PEP 0.42 mW PEP
Antenna gain: 0.5 dBi 0.5 dBi
Controls: ON/STANDBY/OFF, MIC/0/-10 ON/STANDBY/OFF, MIC/0/-10
Indicators: Status LED Status LED
Power supply: 2 x AA batteries 2 x AA batteries
Operating time: Up to 10 h
(depending on batteries)
Up to 10 h
(depending on batteries)
Ambient temperature (in
operation):
5°C to 40°C -10°C to 45°C
Relative humidity: 20% to 80% (non-condensing) 20% to 80% (non-condensing)
Dimensions (W x H x D): 65 x 91 x 25 mm 65 x 91 x 25 mm
Weight (without
batteries):
0.085 kg 0.085 kg
Accessories included: 2 x AA batteries 2 x AA batteries
Features: infra-red frequency
synchronisation, pilot tone
infra-red frequency
synchronisation, pilot tone
MICROPHONES FOR BODY PACK TRANSMITTER
Capsule: Back-electret condenser Back-electret condenser Back-electret condenser
Polar pattern: Cardioid Cardioid Cardioid
Frequency response:
20–20,000 Hz 20–20,000 Hz 50–18,000 Hz
Connector: 3-pin mini-XLR 3-pin mini-XLR 3-pin mini-XLR
Accessories included: Foam windscreen Foam windscreen Foam windscreen
GUITAR CABLE FOR BODY PACK TRANSMITTER
Connector 1: 3-pin mini-XLR
Connector 2: 6.3 mm jack
Cable length: 1.5 m
Item number:
Modulation: FM FM
Item number: LDWS100MH1 LDWS100ML
LDWS1000MW
Microphone type: Headset Lavalier microphone
Wind instrument microphone
LDU 305.1 BP/ LDU 304.7 BP LDU 504.7BP /LDU 505.1 BP

14
MANUFACTURER´S DECLARATIONS
MANUFACTURER‘S WARRANTY & LIMITATIONS OF LIABILITY
You can find our current warranty conditions and limitations of liability at: https://cdn-shop.adamhall.com/media/pdf/MANUFACTU-
RERS-DECLARATIONS_LD_SYSTEMS.pdf. To request warranty service for a product, please contact Adam Hall GmbH, Adam-Hall-Str. 1,
61267 Neu Anspach / Email: [e-mail] / +49 (0)6081 / 9419-0.
CORRECT DISPOSAL OF THIS PRODUCT
(valid in the European Union and other European countries with a differentiated waste collection system)
This symbol on the product, or on its documents indicates that the device may not be treated as household waste.This is to avoid
environmental damage or personal injury due to uncontrolled waste disposal. Please dispose of this product separately from other waste
and have it recycled to promote sustainable economic activity. Household users should contact either the retailer where they purchased
this product, or their local government office, for details on where and howthey can recycle this item in an environmentallyfriendly manner.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed
with other commercial waste for disposal.
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation
CE Compliance
Enping Pasgao Electronic Company Limited states that this product meets the following
guidelines (where applicable):
R&TTE (1999/5/EC) or RED (2014/53/EU) from June
2017
Low voltage directive (2014/35/EU)
EMC directive (2014/30/EU)
RoHS (2011/65/EU)
The complete declaration of conformity can be found at www.adamhall.com.
Furthermore, you may also direct your enquiry to [e-mail].

Adam Hall GmbH | Adam-Hall-Str. 1 | 61267 Neu-Anspach | Germany
Phone: [phone] | adamhall.com
LD-SYSTEMS.COM
REV: 04

FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by manufacturer
could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
RF Exposure Information
The device has been evaluated to meet general RF exposure requirement. The device can be used
in portable exposure condition without restriction.
