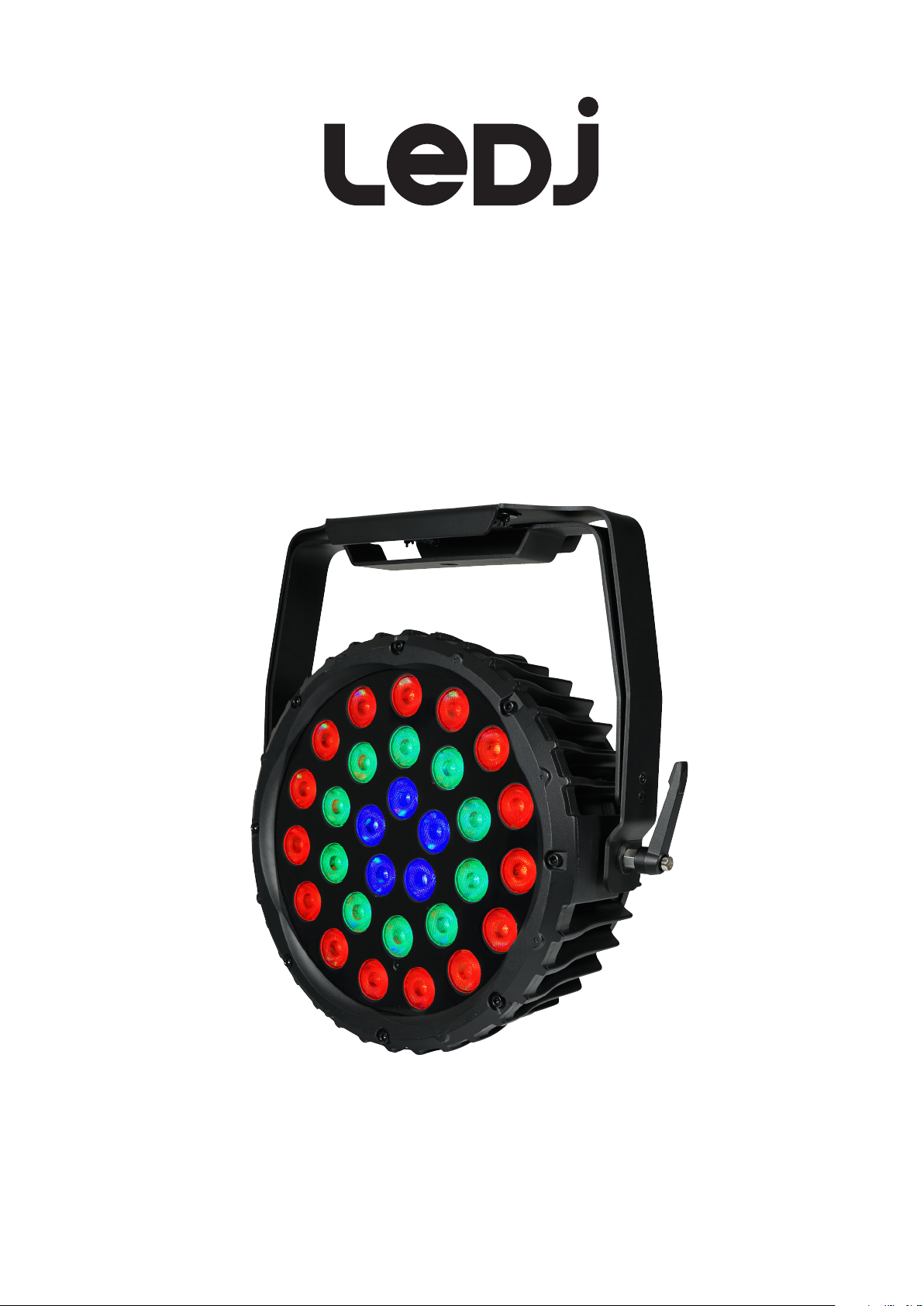

Ledj Spectra Par 30Q8 PRO Exterior Fixture User manual

Order code: LEDJ310
Spectra Par 30Q8 PRO
Exterior Fixture
User Manual

www.prolight.co.uk Spectra Par 30Q8 PRO User Manual 2
Safety advice
WARNING
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL
CAREFULLY BEFORE YOUR INITIAL START-UP!
• Before your initial start-up, please make sure that there is no damage caused during transportation.
• Should there be any damage, consult your dealer and do not use the equipment.
• To maintain the equipment in good working condition and to ensure safe operation, it is necessary
for the user to follow the safety instructions and warning notes written in this manual.
• Please note that damages caused by user modications to this equipment are not subject to warranty.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance
of this manual or any unauthorised modication to the equipment.
OPERATING DETERMINATIONS
If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and
the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc.
Do not endanger your own safety and the safety of others!
Incorrect installation or use can cause serious damage to people and/or property.
CAUTION!
TAKE CARE USING
THIS EQUIPMENT!
HIGH VOLTAGE-RISK
OF ELECTRIC SHOCK!!
• Never let the power cable come into contact with other
cables. Handle the power cable and all mains voltage
connections with particular caution!
• Never remove warning or informative labels from the unit.
• Do not open the equipment and do not modify the unit.
• Do not connect this equipment to a dimmer pack.
• Do not switch the equipment on and off in short intervals,
as this will reduce the system’s life.
• Do not expose to ammable sources, liquids or gases.
• Always disconnect the power from the mains when
equipment is not in use or before cleaning! Only handle
the power-cable by the plug. Never pull out the plug by
pulling the power-cable.
• Make sure that the available mains supply voltage is
between 100~240V AC, 50/60Hz.
• Make sure that the power cable is never crimped or
damaged. Check the equipment and the power cable
periodically.
• If the equipment is dropped or damaged, disconnect the
mains power supply immediately and have a qualied
engineer inspect the equipment before operating again.
• If your product fails to function correctly, stop use
immediately. Pack the unit securely (preferably in the
original packing material), and return it to your Pro Light
dealer for service.
• Only use fuses of same type and rating.
• Repairs, servicing and power connection must only be
carried out by a qualied technician. THIS UNIT CONTAINS
NO USER SERVICEABLE PARTS.
• This lighting xture is for professional use only - it is
not designed for or suitable for household use. The
product must be installed by a qualied technician in
accordance with local territory regulations. The safety of
the installation is the responsibility of the installer. The
xture presents risks of severe injury or death due to re
hazards, electric shock and falls.
• Warning! Risk Group 2 LED product according to
EN 62471. Do not view the light output with optical
instruments or any device that may concentrate the beam.
• WARRANTY: One year from date of purchase.

www.prolight.co.uk Spectra Par 30Q8 PRO User Manual 3
IP Rating:
The IP (International Protection) rating classies and rates the degree of protection
provided against intrusion of foreign objects such as dust and water into housings
and electrical enclosures.
The rating consists of the letters IP followed by two digits (i.e. IP65) where the numbers
dene the level of protection. The rst digit (solids) stands for the level of protection the
enclosure provides against solid bodies, whilst the second digit (liquids) stands for the
degree of protection of the equipment inside the enclosure against water.
An IP65 rated xture is one which has been designed and tested to protect from all in-
gress of dust (6) and water projected by low pressure jets (6.3mm) from any angle (5).
Marine/Coastal Installations:
Although this xture has an IP rating it is NOT suitable for installation in a coastal/
marine environment. Installing this xture in a coastal/marine environment could cause
corrosion and excessive wear to the internal and/or external components. Any damages,
faults or performance issues resulting from the installation in one of the environments
listed above will void the manufacturers warranty and will NOT be subject to any
warranty claims, parts or repairs.
Please ENSURE all connections are sealed with the rubber caps if provided and the
correct cables are used and connected correctly to prevent dust and/or water ingress,
condensation and/or corrosion.
IMPORTANT INFORMATION!
If this xture is installed in extreme outdoor and/or wet conditions, it MUST be powered
ON and operated for a minimum of 30 minutes every 1-2 weeks. Excessive usage in
extreme outdoor and/or wet conditions without a consistent usage cycle as described
above can lead to component damage and/or a reduced xture lifetime. Any damage to
the xture found to be a direct result of not following the above guidelines will void the
manufacturers warranty and will NOT be subject to any warranty claims, parts or repairs.
PLEASE READ THE BELOW CAREFULLY BEFORE USING
THE FIXTURE IN OUTDOOR/EXTREME ENVIRONMENTS
IP65
RATED
!
IP rating information

www.prolight.co.uk Spectra Par 30Q8 PRO User Manual 4
Product overview & technical specications
Packing all the popular features of its smaller sibling
(15Q8 PRO), the exterior Spectra Par 30Q8 PRO
features 30 x 8W quad-colour LEDs, delivering a smooth
wash of colour, ranging from intense, rich saturated
hues through to pastel shades. Three individually
controllable concentric rings allow for even more
versatility creating mesmerising eye-candy effects.
Controllable via the onboard 4 button OLED menu
system for auto, static colour or master/slave modes,
with the option of DMX control for larger projects.
The silent running, convection cooled heavy-duty alloy
enclosure features PowerTwist TR1 and 5-Pin DMX
inputs and outputs to facilitate a problem-free,
rental-ready connection.
• 30 x 8W quad-colour LEDs (RGBW)
• Beam angle: 20°
• 13,144 Lux @ 2m (full on)
• Refresh rate: 1kHz, 3kHz, 6kHz or 12kHz selectable
• Pixel zone mapping
• DMX channels: 4/6/10/12/14 or 22 selectable
• RDM (Remote Device Management)
• Static colour, colour change, colour fade and master/slave modes
• 0 - 100% dimming
• Variable strobe
• Bracket allows for multiple rigging or oor standing applications
• Quick release omega clamp included
• 4 button menu with OLED display
• PowerTwist TR1 input/output
• IP rated 5-Pin XLR input/output
• Convection cooled
Spectra Par 30Q8 PRO
Specications Spectra Par 30Q8 PRO
Power consumption 220W
Power supply 100~240V, 50/60Hz
IP rating IP65
Dimensions 370 x 386 x 145mm
Weight 11.9kg
Order code LEDJ310
IP65
0m 1m 2m 3m 4m 5m
20° - Lux
FULL ON
R
G
B
W
52576
14532
22200
4044
24060
13144
3633
5550
1011
6015
5842
1615
2467
449
2673
20°
3286
908
1387
253
1504
2103
581
888
162
962

www.prolight.co.uk Spectra Par 30Q8 PRO User Manual 5

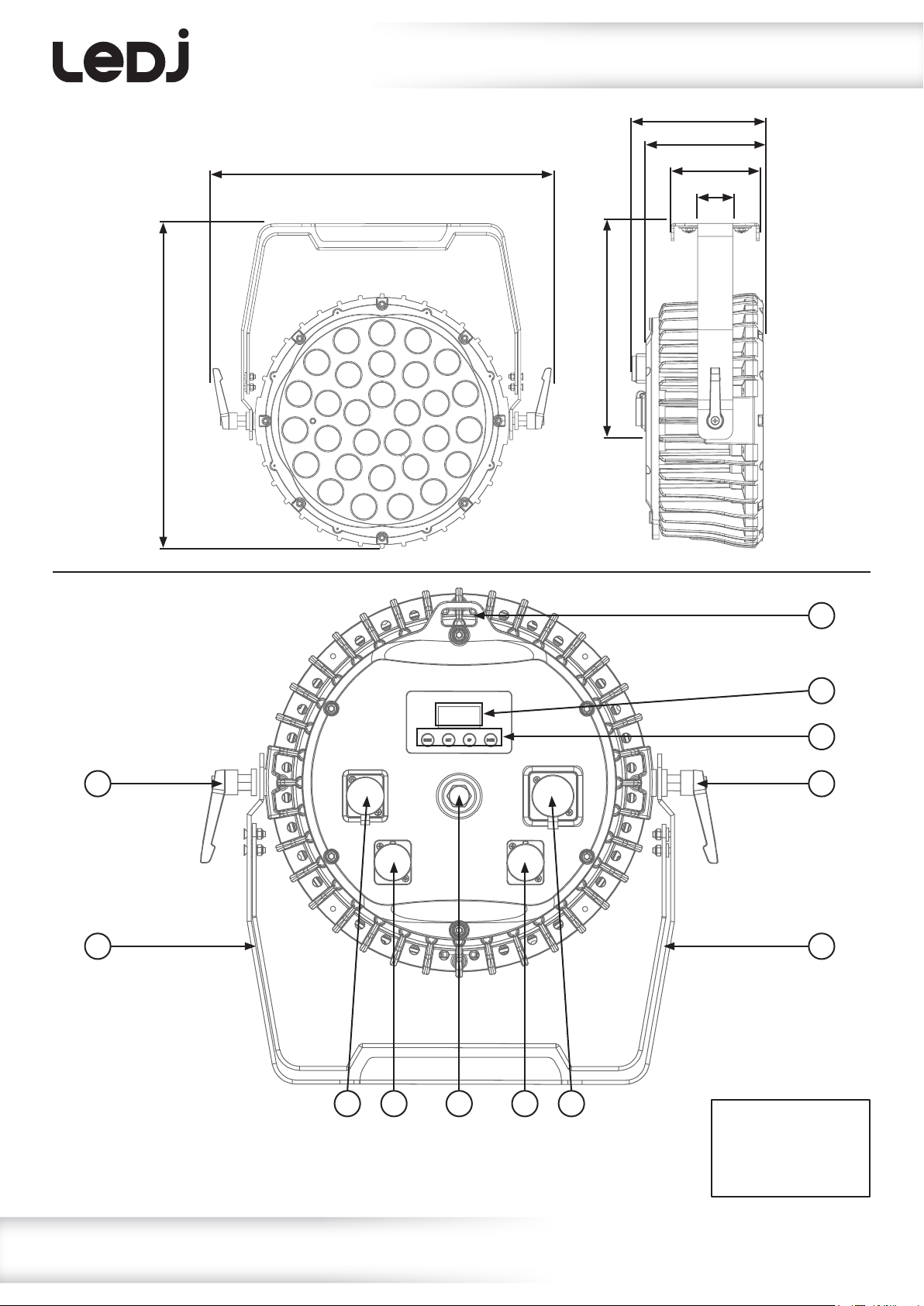

Technical specications
386mm
370mm
01 - Bracket tightening knobs
02 - Bracket
03 - PowerTwist TR1 input
04 - IP rated 5-Pin XLR input
05 - Pressure relief valve
06 - PowerTwist TR1 output
07 - IP rated 5-Pin XLR output
08 - Safety eye
09 - OLED display
10 - Function buttons
In the box:
1 x xture,
1 x omega clamp
& 1 x power cable
01 01
08
09
10
02 02
03 05 0604 07
246mm
134mm
145mm
40mm
100mm

www.prolight.co.uk Spectra Par 30Q8 PRO User Manual 6
Installation
Before installing the xture, the supporting structure (ie. truss) must be able to hold a minimum of 10
times the xtures weight without any deformation (eg. 15kg - 150kg point load). The xture must be se-
cured with a secondary safety attachment when being installed (ie. an appropriate safety cable). Never
stand directly below the xture when mounting, removing, and/or servicing.
Overhead installation requires experience and qualications to calculate working load limits, the ma-
terial being used at the installation area and periodic safety inspections of the xture and installation
material. If you do not have the relevant experience and/or qualications please do not attempt the
installation yourself. The installation should be checked annually by a qualied person.

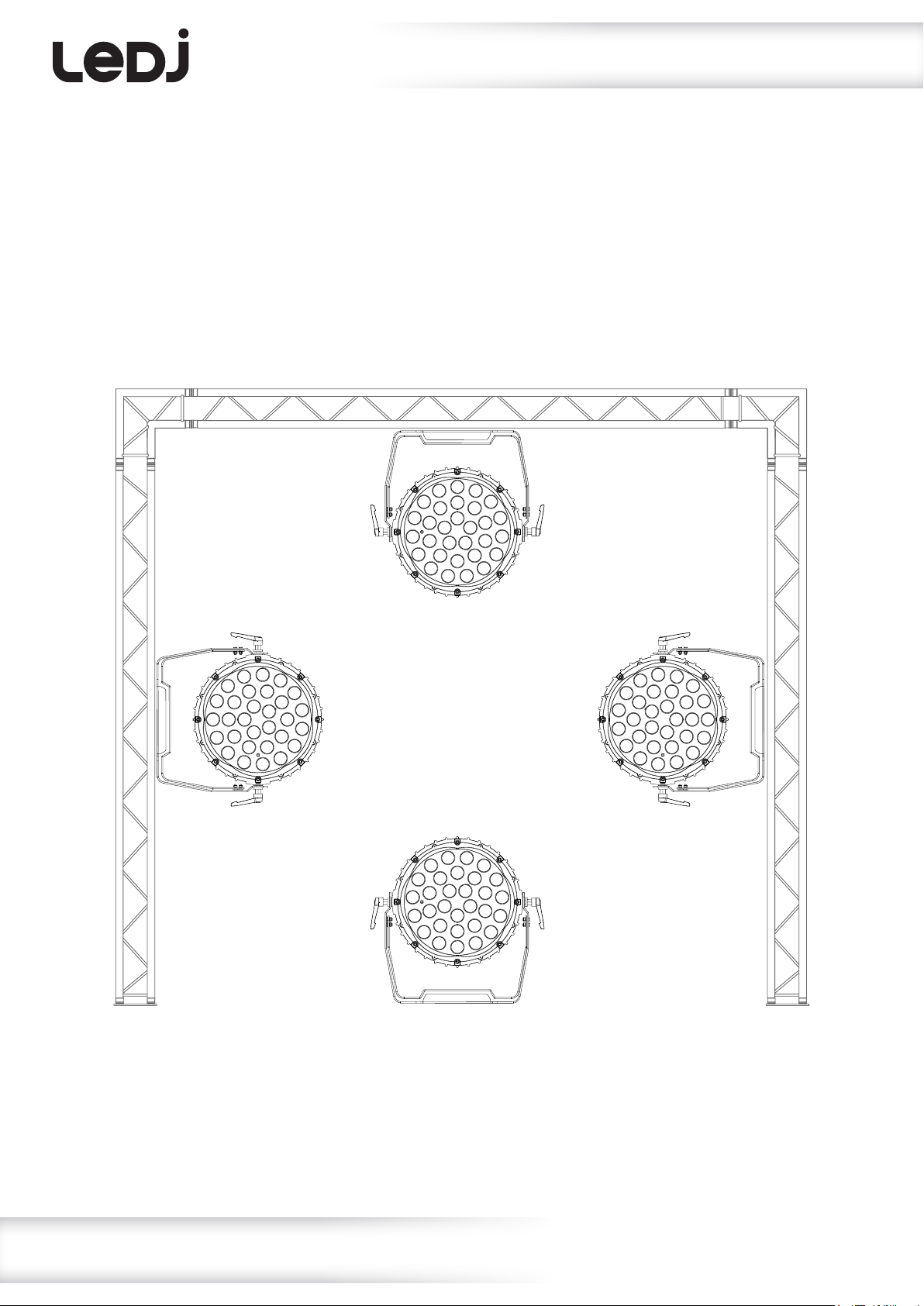

The Spectra Par 30Q8 PRO can be operated in a number of mounting positions as shown in the diagram
above, hanging upside-down from the ceiling or truss, mounting sideways on truss or stood upright on a
at level surface. Always use a safety wire as an
extra safety precaution to prevent damage/injury in the event a clamp fails (see the next page for
clamp installation). Never use the carry handles for secondary attachments.

www.prolight.co.uk Spectra Par 30Q8 PRO User Manual 7
Installation

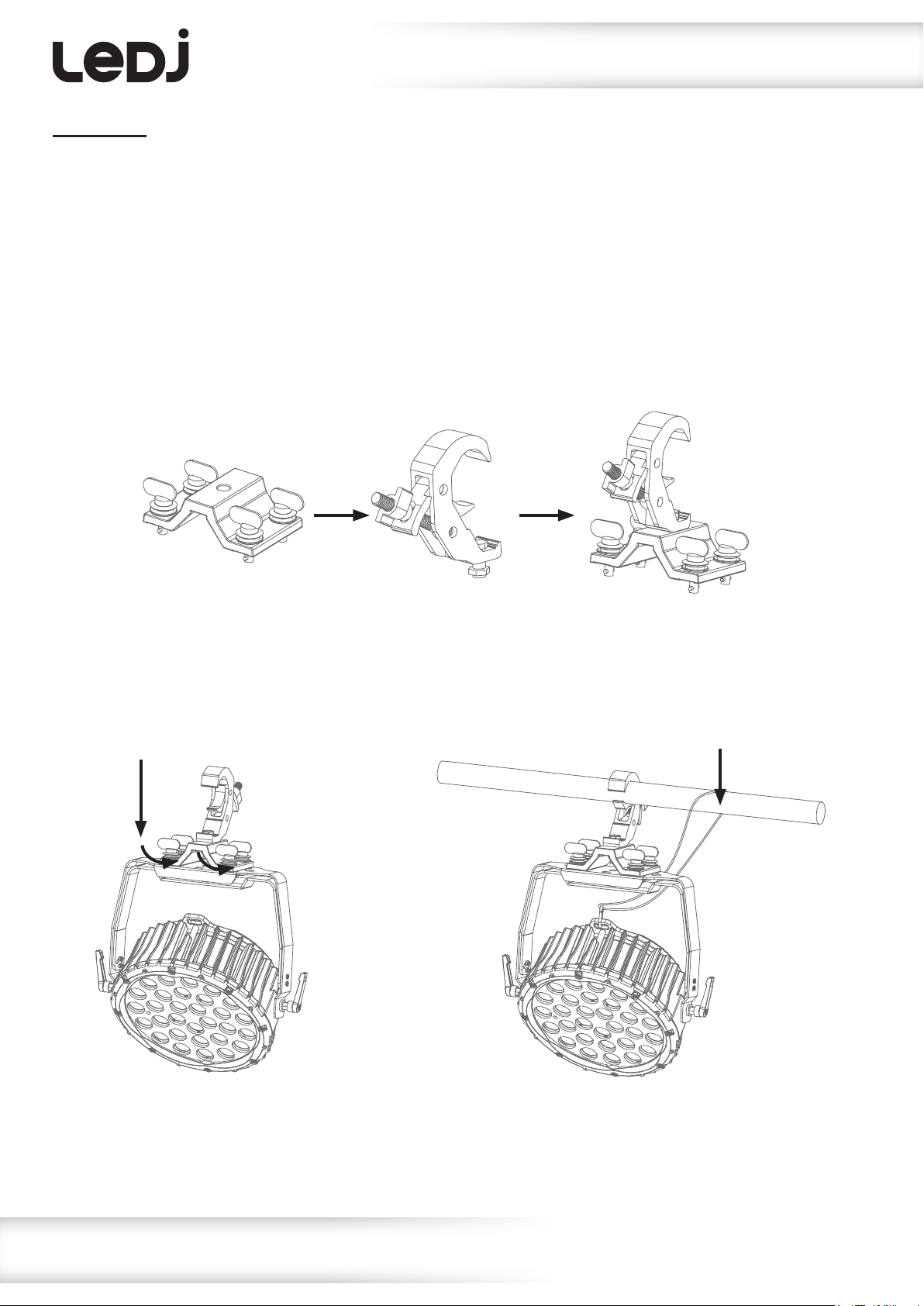

Installation:
1. Fasten each clamp to the omega clamps with a bolt and lock nut through the hole in the
omega clamp.
2. Align and insert the omega clamps quick-lock fasteners with the respective holes on the bottom
of the unit.
3. Tighten both locking fasteners clockwise on each omega clamp ensuring they’re fully secure.
4. Mount the xture onto your truss system via the clamps and tighten to ensure secure.
5. Pull the safety cable through the safety cable holes located on the top rear of the xture
and around the truss.
1
2
3
45

www.prolight.co.uk Spectra Par 30Q8 PRO User Manual 8
Main Menu Sub Menu Options/Values Description
DMX
Address 001-512 DMX Address Setting
Channels
4 (4 channel mode)
DMX Channel Modes
6 (6 channel mode)
10 (10 channel mode)
12 (12 channel mode)
14 (14 channel mode)
22 (22 channel mode)
Dimmer
Colour All All Red 000-255
Dimming Mode
Colour All All Green 000-255
Colour All All Blue 000-255
Colour All All White 000-255
Colour Ring
Ring 1
Red 000-255
Green 000-255
Blue 000-255
White 000-255
Ring 2
Red 000-255
Green 000-255
Blue 000-255
White 000-255
Ring 3
Red 000-255
Green 000-255
Blue 000-255
White 000-255
Auto Yes Auto Mode
No
Program
Mode 01-22 Built-in Programs
Colour 01-33 Static Colour Mode
Speed 1-100 (81) Speed
Strobe 0-99 Strobe
Slave Yes Slave Mode
No
Operating instructions
IMPORTANT! PLEASE NOTE:The OLED display for this xture has a menu locking function where
after 30 seconds ofinactivity it will lock. To unlock the menu hold the “MODE” and “SET” buttons
for 3 seconds.

www.prolight.co.uk Spectra Par 30Q8 PRO User Manual 9
Main Menu Sub Menu Options/Values Description
Settings
Curves Select
1) Linear
Dimming Curve Setting
2) Square Law
3) Inv Square Law
4) S-Type
Dimmer Speed Fast Dimming Speed Setting
Smooth
Display Normal Display Direction Setting
Inverted
PMW Frequency
12K
Refresh Rate Setting
6K
3K
1K
DMX Fail
Off
DMX Fail Setting
Hold
Auto
Program
Backlight Time
5s
Backlight Time Setting
10s
20s
30s
On
Lock On Display Lock Setting
Off
Factory Yes Reset Factory Defaults
No
Information
V: x.x T: xx°C
Fixture Information
Fan: xxxx rpm
Work Time: xxxxxh
UID: xxxxxxxxxxxx
Operating instructions

www.prolight.co.uk Spectra Par 30Q8 PRO User Manual 10
Operating instructions
6 channel mode:
Channel Value Function
1 000-255 Master dimmer (0-100%)
2 000-004 No function
005-127 Strobe (slow-fast)
128-189 Random strobe (slow-fast)
190-255 Random zone strobe (slow-fast)
3 000-255 Red dimmer (0-100%)
4 000-255 Green dimmer (0-100%)
5 000-255 Blue dimmer (0-100%)
6 000-255 White dimmer (0-100%)
4 channel mode:
Channel Value Function
1 000-255 Red dimmer (0-100%)
2 000-255 Green dimmer (0-100%)
3 000-255 Blue dimmer (0-100%)
4 000-255 White dimmer (0-100%)

www.prolight.co.uk Spectra Par 30Q8 PRO User Manual 11
Operating instructions
10 channel mode:
Channel Value Function
1 000-255 Master dimmer (0-100%)
2 000-004 No function
005-127 Strobe (slow-fast)
128-189 Random strobe (slow-fast)
190-255 Random zone strobe (slow-fast)
3 000-007 No function
008-013 Colour 1 (R255 G000 B000 W000)
014-020 Colour 2 (R255 G000 B000 W100)
021-027 Colour 3 (R255 G000 B000 W200)
028-034 Colour 4 (R255 G050 B000 W000)
035-041 Colour 5 (R255 G150 B000 W000)
042-048 Colour 6 (R255 G255 B000 W000)
049-055 Colour 7 (R255 G255 B000 W075)
056-062 Colour 8 (R000 G255 B000 W255)
063-069 Colour 9 (R000 G255 B000 W150)
070-076 Colour 10 (R000 G255 B000 W050)
077-083 Colour 11 (R000 G255 B000 W000)
084-090 Colour 12 (R000 G255 B050 W000)
091-097 Colour 13 (R000 G255 B150 W000)
098-104 Colour 14 (R000 G255 B255 W000)
105-111 Colour 15 (R000 G255 B255 W075)
112-118 Colour 16 (R000 G255 B255 W150)
119-125 Colour 17 (R000 G100 B255 W255)
126-132 Colour 18 (R000 G000 B255 W100)
133-139 Colour 19 (R000 G000 B255 W050)
140-146 Colour 20 (R000 G000 B255 W000)
147-153 Colour 21 (R075 G000 B255 W000)
154-160 Colour 22 (R160 G000 B255 W000)
161-167 Colour 23 (R255 G000 B255 W000)
168-174 Colour 24 (R255 G000 B175 W000)
175-181 Colour 25 (R255 G000 B100 W000)
182-188 Colour 26 (R255 G000 B100 W050)
189-195 Colour 27 (R255 G000 B025 W050)
196-202 Colour 28 (R255 G000 B025 W025)
203-209 Colour 29 (R255 G000 B025 W000)
210-216 Colour 30 (R000 G000 B000 W255)
217-223 Colour 31 (R075 G075 B000 W255)
224-230 Colour 32 (R000 G000 B100 W255)
231-255 Colour 33 (R255 G255 B255 W255)
Channel Value Function
4 000-005 No function
006-019 Program jump 1
020-033 Program jump 2
034-047 Program jump 3
048-061 Program jump 4
062-075 Program jump 5
076-089 Program jump 6
090-103 Program jump 7
104-117 Program jump 8
118-131 Program jump 9
132-145 Program fade 1
146-159 Program fade 2
160-173 Program fade 3
174-187 Program fade 4
188-201 Program fade 5
202-215 Program fade 6
216-229 Program fade 7
230-243 Program fade 8
244-255 Program fade 9
5 000-255 Speed (slow-fast)
6 000-255 Red dimmer (0-100%)
7 000-255 Green dimmer (0-100%)
8 000-255 Blue dimmer (0-100%)
9 000-255 White dimmer (0-100%)
10
(Hold for
2 secs)
000-015 No function
016-039 Dimmer fast
040-063 Dimmer slow
064-087 Linear
088-111 Square law
112-135 Inv square law
136-159 S-Type
160-183 Refresh rate 1kHz
184-207 Refresh rate 3kHz
208-231 Refresh rate 6kHz
232-255 Refresh rate 12kHz

www.prolight.co.uk Spectra Par 30Q8 PRO User Manual 12
Operating instructions
12 channel mode:
Channel Value Function
1 000-255 Red dimmer 1 (0-100%)
2 000-255 Green dimmer 1 (0-100%)
3 000-255 Blue dimmer 1 (0-100%)
4 000-255 White dimmer 1 (0-100%)
5 000-255 Red dimmer 2 (0-100%)
6 000-255 Green dimmer 2 (0-100%)
7 000-255 Blue dimmer 2 (0-100%)
8 000-255 White dimmer 2 (0-100%)
9 000-255 Red dimmer 3 (0-100%)
10 000-255 Green dimmer 3 (0-100%)
11 000-255 Blue dimmer 3 (0-100%)
12 000-255 White dimmer 3 (0-100%)
14 channel mode:
Channel Value Function
1 000-255 Master dimmer (0-100%)
2 000-004 No function
005-127 Strobe (slow-fast)
128-189 Random strobe (slow-fast)
190-255 Random zone strobe (slow-fast)
3 000-255 Red dimmer 1 (0-100%)
4 000-255 Green dimmer 1 (0-100%)
5 000-255 Blue dimmer 1 (0-100%)
6 000-255 White dimmer 1 (0-100%)
7 000-255 Red dimmer 2 (0-100%)
8 000-255 Green dimmer 2 (0-100%)
9 000-255 Blue dimmer 2 (0-100%)
10 000-255 White dimmer 2 (0-100%)
11 000-255 Red dimmer 3 (0-100%)
12 000-255 Green dimmer 3 (0-100%)
13 000-255 Blue dimmer 3 (0-100%)
14 000-255 White dimmer 3 (0-100%)
22 channel mode:
Channel Value Function
1 000-255 Master dimmer (0-100%)
2 000-004 No function
005-127 Strobe (slow-fast)
128-189 Random strobe (slow-fast)
190-255 Random zone strobe (slow-fast)
3 000-007 No function
008-013 Colour 1 (R255 G000 B000 W000)
014-020 Colour 2 (R255 G000 B000 W100)
021-027 Colour 3 (R255 G000 B000 W200)
028-034 Colour 4 (R255 G050 B000 W000)
035-041 Colour 5 (R255 G150 B000 W000)
042-048 Colour 6 (R255 G255 B000 W000)
049-055 Colour 7 (R255 G255 B000 W075)
056-062 Colour 8 (R000 G255 B000 W255)
063-069 Colour 9 (R000 G255 B000 W150)
070-076 Colour 10 (R000 G255 B000 W050)
077-083 Colour 11 (R000 G255 B000 W000)
084-090 Colour 12 (R000 G255 B050 W000)
091-097 Colour 13 (R000 G255 B150 W000)
098-104 Colour 14 (R000 G255 B255 W000)
105-111 Colour 15 (R000 G255 B255 W075)
112-118 Colour 16 (R000 G255 B255 W150)
119-125 Colour 17 (R000 G100 B255 W255)
126-132 Colour 18 (R000 G000 B255 W100)
133-139 Colour 19 (R000 G000 B255 W050)
140-146 Colour 20 (R000 G000 B255 W000)
147-153 Colour 21 (R075 G000 B255 W000)
154-160 Colour 22 (R160 G000 B255 W000)
161-167 Colour 23 (R255 G000 B255 W000)
168-174 Colour 24 (R255 G000 B175 W000)
175-181 Colour 25 (R255 G000 B100 W000)
182-188 Colour 26 (R255 G000 B100 W050)
189-195 Colour 27 (R255 G000 B025 W050)
196-202 Colour 28 (R255 G000 B025 W025)
203-209 Colour 29 (R255 G000 B025 W000)
210-216 Colour 30 (R000 G000 B000 W255)
217-223 Colour 31 (R075 G075 B000 W255)
224-230 Colour 32 (R000 G000 B100 W255)
231-255 Colour 33 (R255 G255 B255 W255)

www.prolight.co.uk Spectra Par 30Q8 PRO User Manual 13
Operating instructions
Channel Value Function
4 000-005 No function
006-019 Program jump 1
020-033 Program jump 2
034-047 Program jump 3
048-061 Program jump 4
062-075 Program jump 5
076-089 Program jump 6
090-103 Program jump 7
104-117 Program jump 8
118-131 Program jump 9
132-145 Program fade 1
146-159 Program fade 2
160-173 Program fade 3
174-187 Program fade 4
188-201 Program fade 5
202-215 Program fade 6
216-229 Program fade 7
230-243 Program fade 8
244-255 Program fade 9
5 000-255 Speed (slow-fast)
6 000-255 Red master dimmer (0-100%)
7 000-255 Green master dimmer (0-100%)
8 000-255 Blue master dimmer (0-100%)
9 000-255 White master dimmer (0-100%)
10 000-255 Red dimmer 1 (0-100%)
11 000-255 Green dimmer 1 (0-100%)
12 000-255 Blue dimmer 1 (0-100%)
13 000-255 White dimmer 1 (0-100%)
14 000-255 Red dimmer 2 (0-100%)
15 000-255 Green dimmer 2 (0-100%)
16 000-255 Blue dimmer 2 (0-100%)
17 000-255 White dimmer 2 (0-100%)
18 000-255 Red dimmer 3 (0-100%)
19 000-255 Green dimmer 3 (0-100%)
20 000-255 Blue dimmer 3 (0-100%)
21 000-255 White dimmer 3 (0-100%)
Channel Value Function
22
(Hold for
2 secs)
000-015 No function
016-039 Dimmer fast
040-063 Dimmer slow
064-087 Linear
088-111 Square law
112-135 Inv square law
136-159 S-Type
160-183 Refresh rate 1kHz
184-207 Refresh rate 3kHz
208-231 Refresh rate 6kHz
232-255 Refresh rate 12kHz
22 channel mode (cont.):

www.prolight.co.uk Spectra Par 30Q8 PRO User Manual 14
Setting the DMX address:
The DMX mode enables the use of a universal DMX controller. Each xture requires a “start address”
from 1- 512. A xture requiring one or more channels for control begins to read the data on the channel
indicated by the start address. For example, a xture that occupies or uses 7 channels of DMX and was
addressed to start on DMX channel 100, would read data from channels: 100, 101, 102, 103, 104,
105 and 106. Choose a start address so that the channels used do not overlap. E.g. the next unit in
the chain starts at 107.
DMX 512:
DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent
xtures and controllers. A DMX controller sends DMX data instructions form the controller to the xture.
DMX data is sent as serial data that travels from xture to xture via the DATA “IN” and DATA “OUT”
XLR terminals located on all DMX xtures (most controllers only have a data “out” terminal).
DMX linking:
DMX is a language allowing all makes and models of different manufactures to be linked together
and operate from a single controller, as long as all xtures and the controller are DMX compliant.
To ensure proper DMX data transmission, when using several DMX xtures try to use the shortest
cable path possible. The order in which xtures are connected in a DMX line does not inuence the
DMX addressing. For example; a xture assigned to a DMX address of 1 may be placed anywhere in
a DMX line, at the beginning, at the end, or anywhere in the middle. When a xture is assigned a
DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit,
no matter where it is located in the DMX chain.
DATA cable (DMX cable) requirements (for DMX operation):
This xture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit.
Your unit requires either a standard 3-pin or 5-pin XLR connector for data input/output,
see images below.
Also remember that DMX cable must be daisy chained and cannot be split.
DMX setup
Further DMX cables can be purchased from all good sound and lighting suppliers or Prolight Concepts dealers.
Please quote: CABL185 – 2m CABL187 – 5m CABL188 – 10m5-Pin:

www.prolight.co.uk Spectra Par 30Q8 PRO User Manual 15

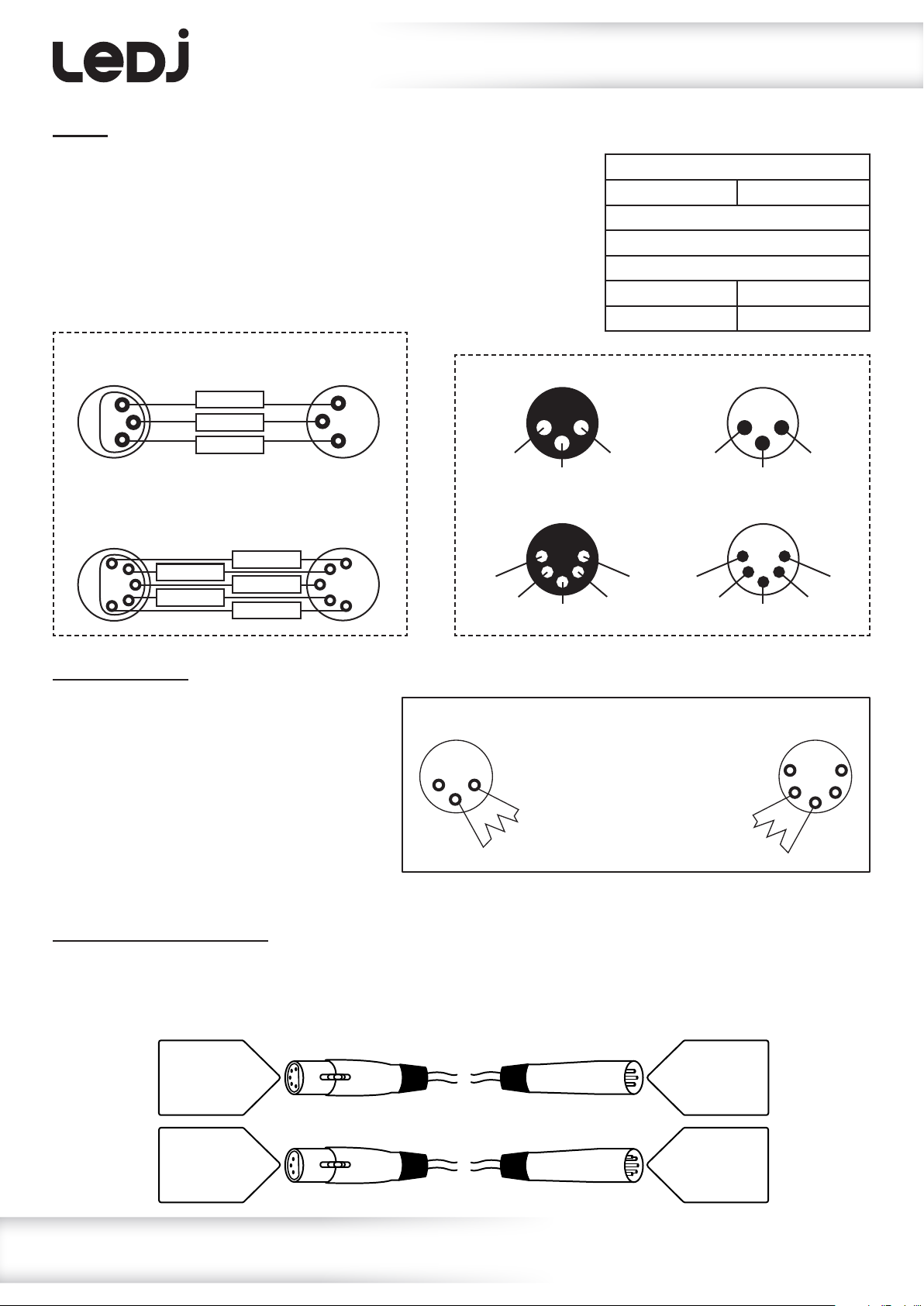

Notice:
Be sure to follow the diagrams below when making your own cables.
Do not connect the cables shield conductor to the ground lug or
allow the shield conductor to come in contact with the XLRs
outer casing. Grounding the shield could cause a short circuit
and erratic behaviour.
Line termination:
When longer runs of cable are used,
you may need to use a terminator on
the last unit to avoid erratic behaviour.
Using a cable terminator will decrease
the possibilities of erratic behaviour.
(3-pin - Order ref: CABL90,
5-pin - Order ref: CABL89)
5-pin XLR DMX connectors:
Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-pin XLR xtures
may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin XLR connectors in to a
3-pin line a cable adaptor must be used. The diagram below details the correct cable conversion.
5-pin XLR (female)
Pin 1: GND (screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
Pin 4: N/C
Pin 5: N/C
3-pin XLR (female)
Pin 1: GND (screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
3-pin XLR (male)
Pin 1: GND (screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
5-pin XLR (male)
Pin 1: GND (screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
Pin 4: N/C
Pin 5: N/C
DMX setup
Termination reduces signal
transmission problems and
interference. It is always
advisable to connect a DMX
terminal, (resistance 120
Ohm 1/4W) between pin 2
(DMX-) and pin 3 (DMX+) of
the last xture.
5-Pin
1
2 4
5
3
3-Pin
1 2
3
Pin Conguration
3-Pin 5-Pin
Pin 1 - Ground
Pin 2 - Negative
Pin 3 - Positive
– Pin 4 - N/C
– Pin 5 - N/C
1
2
3
1
2
3
DMX 512
3-Pin XLR output
DMX 512
3-Pin XLR input
GROUND
DMX +
DMX –
DMX 512
5-Pin XLR output
DMX 512
5-Pin XLR input
1
2
45
3
12
4
5
3
GROUND
N/C
DMX –
N/C DMX +
1 ground
3 hot
2 cold
3-Pin XLR male 3-Pin XLR female
2 cold
3 hot
1 ground
2 cold
1 ground 5 N/C
3 hot 4 N/C
5-Pin XLR male 5-Pin XLR female
4 N/C
5 N/C 1 ground
3 hot 2 cold

www.prolight.co.uk Spectra Par 30Q8 PRO User Manual 16

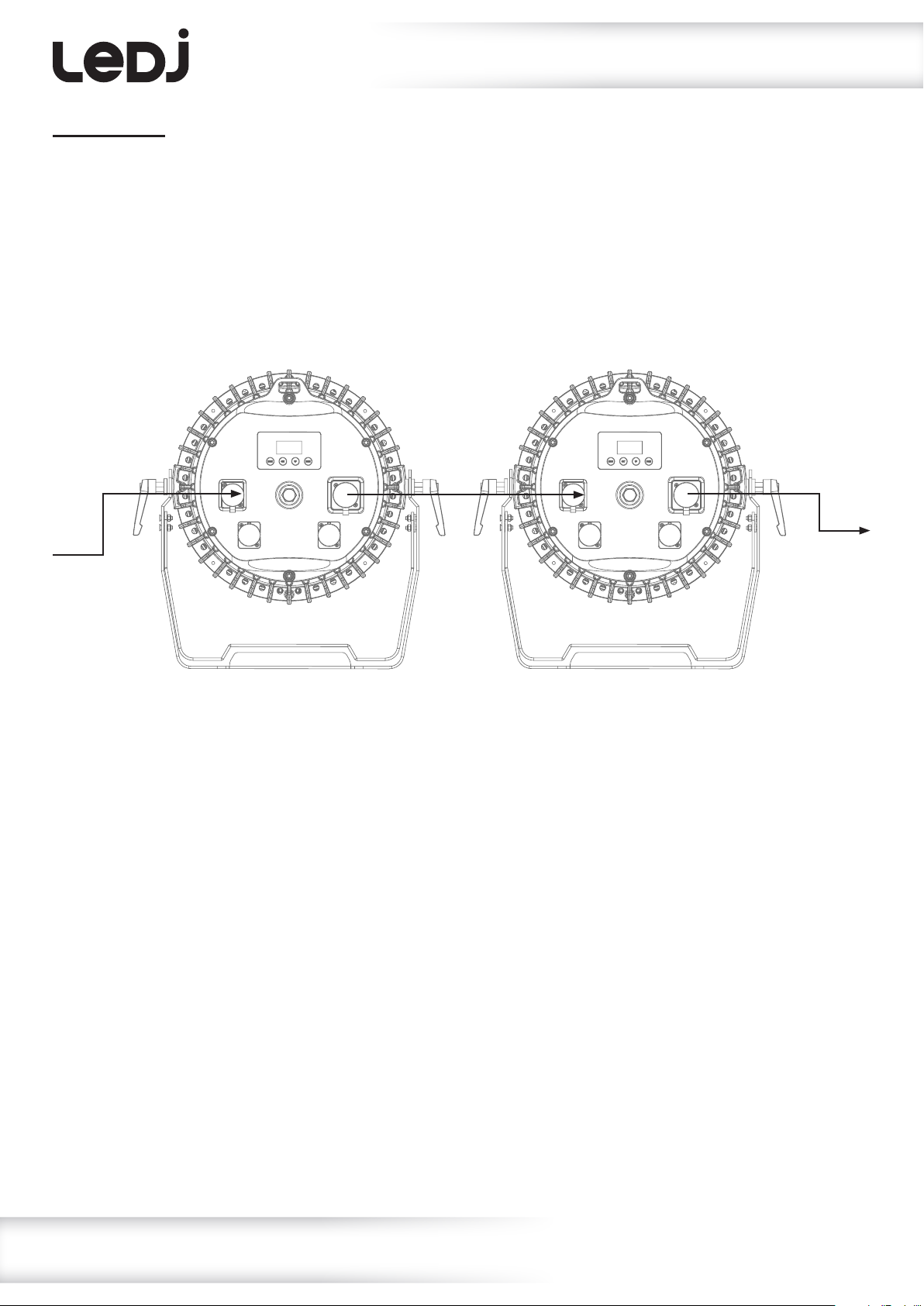

Multiple xture power linking
Power linking:
This xture provides power linking via the power output on the rear allowing multiple units to be
connected together. The maximum number of xtures that can be connected is 2 xtures @ 240V
or 1 xture @ 120V (including the rst xture). After the maximum number of xtures are
connected a new power run will need to be started.
Please note: Caution should be used when power linking other xtures to the Spectra Par 30Q8 PRO
as the power consumption of other xtures will vary. Fixtures tted with lamps often require 2/3 times
more current on startup, these may require their own power source.

www.prolight.co.uk Spectra Par 30Q8 PRO User Manual 17
WEEE notice
Correct Disposal of this Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries
with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed of
with other household wastes at the end of its working life. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, please separate this from other
types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their
local government ofce, for details of where and how they can take this item for environmentally
safe recycling.
Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product should not be mixed with other commercial wastes for disposal.
