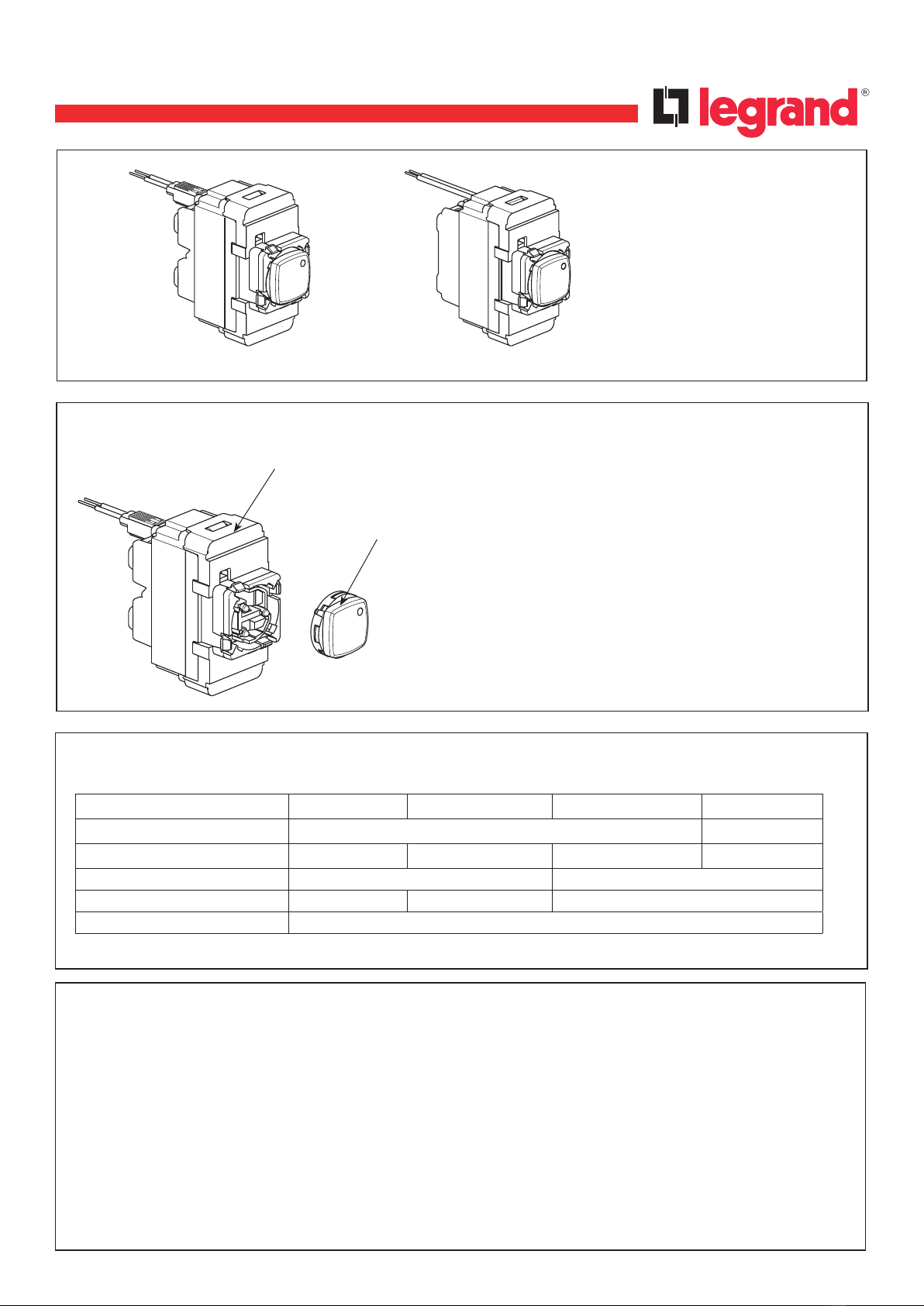

LEGRAND Arteor AR970LMWE Series User manual

AR970LMWE AR970LIMMWE AR970LBPMWE AR970LELVMWE
Nominal Input Voltage 250 V a.c. 12/24 V d.c.
Rating (Fluorescent/Incandescent) 10 AX 10 AX 10 A 5 A
Rating (LED) 100 W -
Switch type 2-way Intermediate Momentary
Terminals 2 x 1.5 mm2 or 1 x 2.5 mm2
■ 1 x Push-button mechanism
■ 1 x Pack of buttons
■Instruction Sheet
AR970LMWE / AR970LBPMWE / AR970LELVMWE AR970LIMMWE
Important Information
■This product must be installed and used as per these instructions.
■This product must be installed by a licensed electrician or similarly qualified person.
■V90-rated building wire must be used when wiring this product.
■This product has been designed with limited short circuit protection.
■ Repeated short circuits may still damage the product.
■Severe electromagnetic interference from other products may cause malfunction of this product.
■ This product should only be cleaned with a damp cloth. Cleaning agents and solvents should not be used.
■ This product contains no serviceable parts and no attempt should be made to repair this product. If the product
is faulty it should be discarded.
■ Legrand reserves the right to modify the specifications of this product at anytime.
Push-button mechanism
Button
For colour variation, order separately pack of buttons (pack of 20):
● ARPBCOV970LMGN (Magnesium)
● ARPBCOV970LCHP (Champagne)
●ARPBCOV970LALU (Aluminium)
Technical specifications
Package Contents
ArteorTM
MECHANICAL PUSH-BUTTON
AR970LMWE / AR970LIMMWE / AR970LBPMWE / AR970LELVMWE Series

Installation
(Note: Laser marking is done on front of mechanism for guidance)
1. Pick the button with the desired coloured LED lens: Red or Blue
2. Check the wall plate orientation: Vertical or Horizontal. See fig. C.
3. Clip the button and press firmly on the mechanism. See fig. A and B.
4. Clip the assembly into the grid and proceed to wiring (Refer to wiring section below).
Horizontal Plate
Vertical Plate
CLICK
CLICK
A
A
C
C
B
B

AR970LMWE
AR970LMWE
AR970LMWE
AR970LMWE
Wiring
One way switching
LED Indicator ON when Load is ON
Active and Neutral at Switch
LED Indicator always ON
Active and Neutral at Switch
LED Indicator ON when Load OFF
(High impedance Load)
Active and Neutral at Switch
LED Indicator ON when Load OFF
(High impedance Load)
Active at Switch, Neutral at Load
LOAD A
N
LOAD A
N
LOAD A
N
LOAD
N
ELE6VA
*
A
LED
LED
LED
LED

AR970LMWE AR970LMWE
LED
Paper
Warranty
Legrand will honour all statutory guarantees that you as a consumer are
entitled to rely upon under the Australian and New Zealand Consumer
Laws against a manufacturer, including a guarantee that this product is
of acceptable quality.
To make a claim under any statutory guarantee you should first contact
the supplier, or retailer from whom you purchased this product.
Customer Service
For all Customer Service and Technical Support
please call Monday to Friday during business hours.
Legrand Australia
1300 369 777
www.legrand.com.au
Legrand New Zealand
0800 476 009
www.legrand.co.nz
ABN: 31 000 102 661
LE12735AA 02/2021
Two way switching
Three or more way switching
LED Indicator ON when Load OFF
Active and Load at first Switch
LED Indicator ON when Load OFF
Active at first switch and Load at last switch *May be required for High Impedance Loads
A
LOAD
N
ELE6VA
*
LOAD N
ELE6VA
*
A
AR970LMWE AR970LMWE
AR970LIMMWE
LED LED
LED
LED
