Lehner Lifttechnik ALPHA User manual

Alpha | User Manual Version 09/2022
User manual
Stairlift "Alpha”
Version: September 2022
Lehner Lifttechnik GmbH
Salling 8
4724 Neukirchen am Walde
Austria
Tel.: [phone]
Fax.: [phone]
Email: [e-mail]
Web: www.lehner-lifttechnik.at
Have a look in
the user video
of the Alpha
stairlift

Alpha | User Manual Version 07/2022
CONTENT
1Introduction............................................................................................................................................................................. 1
2Attention - safety first...........................................................................................................................................................2
2.1 Signs and symbols used ............................................................................................................................................2
2.2 Operator of the stairlift ..............................................................................................................................................3
2.3 User group.....................................................................................................................................................................3
2.4 Range of application...................................................................................................................................................3
2.5 Qualified workers.........................................................................................................................................................3
2.6 Decommissioning ........................................................................................................................................................3
2.7 Intended use .................................................................................................................................................................4
2.7.1 Safety instructions...................................................................................................................................................4
2.7.2 Use of the stairlift....................................................................................................................................................5
3Technical equipment ............................................................................................................................................................6
3.1 Schematic representation .........................................................................................................................................6
3.2 Technical specifications..............................................................................................................................................8
4Safety devices .........................................................................................................................................................................9
4.1 Armrests .........................................................................................................................................................................9
4.2 Contact bottom............................................................................................................................................................9
4.3 Lateral covers on the drive and carriages............................................................................................................9
4.4 Emergency stop (optional) .......................................................................................................................................9
4.5 On/Off switch................................................................................................................................................................9
4.6 Alarm button (optional) .............................................................................................................................................9
4.7 Speed limiter and safety gear..................................................................................................................................9
4.8 Battery charging system ..........................................................................................................................................10
4.8.1 The beeper .............................................................................................................................................................10
5Operating Elements .............................................................................................................................................................11
5.1 The main power switch.............................................................................................................................................11
5.2 Operating elements...................................................................................................................................................11
6Opertation of the lift ...........................................................................................................................................................12
6.1 Automatic footrest function ...................................................................................................................................13
6.2 Calling and sending the stairlift.............................................................................................................................13
6.3 Rotating the seat with a manual swivel seat......................................................................................................14
6.4 Rotating the seat with the automatic swivel seat.............................................................................................15
6.5 Passing through an intermediate stop with automatic swivel seat.............................................................16

Alpha | User Manual Version 07/2022
7Folding rail .............................................................................................................................................................................16
7.1 Journey from the lower to the upper stop ........................................................................................................16
7.2 Journey from the upper to the lower stop ........................................................................................................16
7.3 Emergency release of the folding rail.................................................................................................................. 17
8Malfunction and troubleshooting ...................................................................................................................................18
9Movement of the lift with emergency handwheel.................................................................................................... 20
10 Control and maintenance .................................................................................................................................................21
10.1 Security checks ...........................................................................................................................................................21
10.2 Cleaning .......................................................................................................................................................................21
11 Maintenance / inspection................................................................................................................................................. 22
11.1 Review.......................................................................................................................................................................... 22
11.2 Maintenance instructions ....................................................................................................................................... 22
11.2.1 Stairlift controls................................................................................................................................................ 22
11.2.2 Mechanics of the swivel seat, footrest and armrests ........................................................................... 22
11.2.3 Contact base and contact-sensitive covers............................................................................................ 23
11.2.4 Safety gear / Speed limiter .......................................................................................................................... 23
11.2.5 Rails / rack ........................................................................................................................................................ 23
11.2.6 Carriage rollers................................................................................................................................................ 23
11.2.7 Fastening of the rail and the supports ..................................................................................................... 23
11.2.8 Mechanical switches ...................................................................................................................................... 23
11.2.9 Gearbox and drive motor ............................................................................................................................ 24
11.2.10 Signalling equipment .................................................................................................................................... 24
11.2.11 Documents / Emergency release key....................................................................................................... 24
11.3 Lubricants and operating fluids, spare parts .................................................................................................... 24
11.3.1 Lubricants and operating fluids.................................................................................................................. 24
11.3.2 Spare parts ....................................................................................................................................................... 24
12 Installation and commissioning ...................................................................................................................................... 25
12.1 Fixing the rail system ............................................................................................................................................... 25
12.2 Dismantling and disposal ....................................................................................................................................... 25
13 CE declaration of conformity........................................................................................................................................... 26
14 Duties of the stairlift operator ......................................................................................................................................... 27
15 Requirements for the maintenance company............................................................................................................ 28
16 Assembly and maintenance records............................................................................................................................. 29

Alpha | User Manual Version 09/2022 Page 1
1INTRODUCTION
We would like to congratulate you on the purchase of a stair lift from Lehner Lifttechnik GmbH
and welcome you to our large circle of satisfied customers. For more than 30 years, our lifts have
been known as reliable means of transport, which are characterised by individual adaptation to
structural conditions.
The Alpha stairlift represents a new generation of seated stairlifts with proven technology. The lift
has been built according to the currently valid European safety rules.
As with any appliance that operates under load and whose parts are in motion, the
utmost attention is required. Please read this user manual carefully. Make sure that every
user of the lift has read and understood the user manual before using the lift. You will
find instructions for operating the unit as well as safety instructions.
Use these instructions to benefit from Lehner Lifttechnik's many years of experience in the
operation of stairlifts. Proper care of the system on your part as well as scheduled maintenance by
a competent company will provide you with a reliable lift system over a long period of time.
Lehner Lifttechnik GmbH and its authorised partner companies offer you a comprehensive
maintenance programme specifically for your installation, precisely adapted to its operation. Take
advantage of the manufacturer's experience to achieve the highest possible efficiency for your
stairlift system.
Keep these operating instructions for future reference.
Lehner Lifttechnik GmbH expressly disclaims any liability for breakdowns caused by disregard of
these instructions, non-compliance with the safety instructions or incorrect handling.
We hope you enjoy using the Alpha stairlift!

Alpha | User Manual Version 09/2022 Page 2
2ATTENTION - SAFETY FIRST
This manual also contains instructions for emergencies. It must therefore be ensured that this manual
is always available at the installation and kept accessible to the operator, lift attendant, rescue and
maintenance personnel.
Please carefully observe the following points/regulations:
2.1 Signs and symbols used
The following signs enable you to become aware of important points immediately. This makes it
much easier to use the operating instructions.
All passages marked with this sign require special attention. They are notes for
smooth operation or important recommendations.
Warning: In the case of text passages with this sign, failure to observe the procedure
indicated may lead to dangerous situations, causing personal injury or damage to
property. Therefore, read these points with special care.
Text passages with this symbol refer to actions that must not be carried out under
any circumstances. In case of non-observance, there is immediate increased danger,
whereby personal injury or damage to property may occur.
All pictures, photos and drawings used in this manual are symbolic only and may
differ from reality.

Alpha | User Manual Version 09/2022 Page 3
2.2 Operator of the stairlift
At least one responsible person must be appointed for each stair lift; this person must be easily
accessible during the operating time of the installation. The installation must be maintained in a safe
condition. If the installation is found to be unsafe, it must be taken out of service immediately; danger
points must be secured. Accidents must be reported immediately to the expert (lift inspector or
installation company) or the manufacturer.
The person in charge must satisfy themselves weekly that there are no obvious operationally
dangerous defects and that the tasks listed in the chapter "Duties of the stairlift operator" are being
carried out carefully.
2.3 User group
The stairlift may only be used by competent, qualified and responsible persons who are familiar with
the system. The user must be able to take responsibility for himself and for third parties.
Persons who do not meet these requirements, as well as children, may only be transported by
accompanying persons who also assume responsibility for the person being transported.
2.4 Range of application
The stairlift may only be used on stairs or accessible ramps. It is recommended to install the system
in predominantly dry rooms. The ambient temperature must not be below -15 °C or above + 40°C.
This type is not suitable for use in unusual locations (e.g. explosive areas, areas with aggressive
media, etc.).
Outdoor use is possible in principle, however, in the case of outdoor installations that are exposed
to the weather, it may be necessary to clear parts of the installation of ice and snow in winter on a
case-by-case basis.
2.5 Qualified workers
Installation, maintenance, repairs and checks must be carried out by qualified persons, preferably by
companies authorised by Lehner Lifttechnik.
2.6 Decommissioning
When the unit is taken out of service for cleaning, maintenance or repair work, it must be protected
against unintentional movement. The key switches on the call stations must be switched off and the
keys removed.

Alpha | User Manual Version 09/2022 Page 4
2.7 Intended use
Preventive checks and regular maintenance of the system are highly recommended and guarantee
you long-term, safe functioning.
2.7.1 Safety instructions
Observe the following points for correct use:
▪The stairlift is designed exclusively for transporting one person seated on the seat
provided.
▪Never ride standing on the seat (risk of injury to the head, risk of falling).
▪The stair lift is not intended for load transport.
▪Always lock the stairlift so that it cannot be operated by unauthorised persons (e.g.
children playing).
▪Adhere to the specified maximum loads.
▪The system must be maintained and safety-checked at the prescribed intervals.
▪Passers-by going up or down the stairs must avoid any contact with the stairlift.
Stairlift users must always be aware of pedestrians or other obstacles.
▪Do not use the stairlift in case of fire! There could be a power failure during the ride
and the user would be trapped.
▪Never exceed the permissible payload! The payload is indicated on the type plate.
▪Never bring your hands or loose clothing near the track or the back of the stairlift
when the lift is in motion. Passengers must remain in the seat throughout the ride.
▪Do not open the armrests while driving or outside of landings.
▪Do not activate the manual swivel lever for turning the seat during driving or outside
of landings.
▪Do not disable any safety device by making mechanical or electrical changes to the
installation. Without the written consent of Lehner Lifttechnik, all types of adjustments
and/or modifications to the system are prohibited
▪The stair lift may only be used by one person at a time. Accompanying persons are
not allowed on the stair lift under any circumstances. Otherwise there is a risk of
falling.

Alpha | User Manual Version 09/2022 Page 5
2.7.2 Use of the stairlift
The stairlift may only be used if it is in technically perfect condition. Any malfunction that could affect
safety must be avoided or eliminated.
Report anything unusual to your service engineer. Do not use the stairlift if there are any irregularities
or unusual noises - call the service immediately. All instructions and advice from experts, fitters and
service personnel must be followed.
Before entering the up or down command, make sure that no one is endangered by the
movement of the system. Always look in the direction of travel!
The transport of goods is only permitted if sufficient stability is ensured so that they cannot slip or
fall over.
Also, keep the keys in a safe place and do not give them to unauthorised persons. Do not leave the
keys on the vehicle or at the call stations when the lift is not in use.
In the user video of our Alpha stairlift
we show you the correct use of your lift.

Alpha | User Manual Version 09/2022 Page 6
3TECHNICAL EQUIPMENT
The Alpha stairlift is designed to transport people with reduced mobility. It is driven by a rack and
pinion on the bottom rail. The lift is powered by 2 x 12 V batteries which are charged at the stops
(as long as the power supply unit is powered).
The standard version is supplied with a manually folding footboard as well as manual swivel seat.
The lift can be operated from 2 radio remote controls in the stops and from the control on the seat.
3.1 Schematic representation
A) Call station F) Base plate of the post
B) Seatbelt G) Upper stop
C) Upper rail H) Horizontal parking curve
D) Lower rail I) Charger
E) Lower stop J) Upper loading curve

Alpha | User Manual Version 09/2022 Page 7
1. Front cover 9. Joystick in the armrest
2. Footrest 10. Lever for swivel seat
3. Folding seat 11. Side cover
4. Backrest 12. Contact bottom
5. Left armrest 13. Drive carriage cover
6. Right armrest 14. Seat belt
7. Main power switch 15. Emergency handwheel
8. Key switch in armrest

Alpha | User Manual Version 09/2022 Page 8
3.2 Technical specifications
In some situations, it may be necessary to make a special adjustment to the stairlift, which may alter
the above specifications.
Application
Private or public staircases
Driving distance
Gradients 0...52°
Length up to 35 m
Load capacity
130 kg (optionally 145 kg)
Seat size
460 x 326 mm
Speed
0.11 m/s on straight runs
0.06 m/s in curves
Rail inclination
0° to 52°
Drive system
Rack
Operating elements
Joystick on the armrest
and call stations at the landings
Motor
0.37 kW, 24 V direct current
Charger connection
1 x 230 V 50 Hz
Depth seat folded up
37 cm
Deep seat folded down
64.5 cm
Material rail
Steel (powder coated)
Warranty
24 months for parts
Temperature permissible
-10° C to +40° C
Batteries
2 x 12 V / 9 Ah
Seat height above footboard
496 mm
Volume
< 60 dB (A)
Certificates
TÜV according to EN 81-40

Alpha | User Manual Version 09/2022 Page 9
4SAFETY DEVICES
The Alpha stairlift is equipped with the following safety features:
4.1 Armrests
The armrests, which must be closed (horizontal) or folded up while driving empty, prevent falling
from the chair and act as support for getting in and out of the chair in the landings.
4.2 Contact bottom
The contact bottom is attached to the underside of the footrest and serves as an additional safety
feature. It reacts to pressure so that the system stops immediately if the footrest hits an obstacle.
The travel command in upward direction remains active.
4.3 Lateral covers on the drive and carriages
Contact-sensitive covers are fitted to the sides of the drive and the carriages, which prevent
jamming in the direction of travel. The travel command in the opposite direction remains active.
4.4 Emergency stop (optional)
The stairlift can be equipped with an emergency stop button. If you need to stop the stairlift in an
emergency, press the red button and the lift will stop. Unlocking is done by pressing it again or
turning it clockwise.
4.5 On/Off switch
The stairlift is fitted with an on/off switch. When the lift is not in use, this switch should be turned off.
4.6 Alarm button (optional)
The stairlift can be equipped with an alarm button to summon help. Pressing the alarm button will
sound a loud emergency signal.
4.7 Speed limiter and safety gear
The stairlift is equipped with a speed limiter and a safety gear. If the stairlift descends at an
increased speed (e.g. due to a defect or similar), the increased speed is immediately detected by
the overspeed governor and the safety gear is triggered. The safety gear brings the stairlift to a
stop by holding it against the rails. This prevents the stairlift from falling.

Alpha | User Manual Version 09/2022 Page 10
4.8 Battery charging system
The drive motor of your Alpha stairlift is powered by batteries which are charged via a charger.
Charging takes place at each stop via charging contacts. When the stairlift is not in use, it is therefore
necessary to always park the stairlift in the landing.
To prevent accidental parking outside a loading bay, an acoustic signal has been installed in the
stairlift:
4.8.1 The beeper
If the stairlift does not park exactly on the loading point after use, the lift will give a short
beep every second after 5 seconds. Then please move the lift to a stop (where it will also
stop automatically) and the beep will stop.
If the stairlift parks correctly in the charging position and the lift starts to beep briefly
every second, this means that the battery charging process has been interrupted. Turn
off the main switch on the stairlift (the lift will stop beeping) and check if there is a power
failure in your building or if the fuse or RCD in the stairlift power supply circuit is not in
order. Replace the fuse or switch on the RCD and then the main switch. If the lift continues
to beep, please call the service department, it could be that the battery charger is faulty.
If the battery voltage for the travel drive of the lift becomes too low, a long beep sounds
every 2.5 seconds while the lift is travelling. Drive the vehicle to the charging station,
where the batteries will recharge. If the lift beeps while driving even after charging the
batteries, the batteries are defective. The batteries must now be replaced by the service
department. If the stairlift continues to operate despite weak batteries, the stairlift control
is programmed so that the stairlift will definitely reach the lower landing with the
remaining battery voltage.

Alpha | User Manual Version 09/2022 Page 11
5OPERATING ELEMENTS
5.1 The main power switch
The main power switch connects the system to the mains. It is located at
the front of the drive.
The main power switch must be switched on so that the system can be
operated. With this switch, the power can be switched off on the entire
system and the control unit.
5.2 Operating elements
The chair lift is operated by the joystick in the armrest or by the up and down buttons of the call
points. The optional key switch in the armrest or in the call station must be switched on to operate
the chair.
The status of the radio remote control can be read from the LED:
LED light
Description
Green glow
Radio connection available and move command active
Orange glow
Radio connection present and lift does not move
Possible reasons:
•e.g.: The lift is already at the top floor Safety circuit interrupted
Red glow
Radio connection available, but the lift is busy. Lift is operated from seat
or from another call station.
Green flashing
Radio transmitter has been successfully registered with the receiver
Orange flashing
Radio connection interrupted
Red flashing
The battery of the radio transmitter is weak and should be replaced.
Drive up
Drive down
Joystick
Key switch

Alpha | User Manual Version 09/2022 Page 12
6OPERTATION OF THE LIFT
The Alpha stairlift is safe and easy to use. The operation is designed for a user with walking difficulties.
Before moving the lift, make sure that nobody is endangered by the movement of the
platform. If a dangerous situation arises while the platform is moving, stop the platform
immediately by releasing the command!
1) Switch on the main switch and the key switch (optional) on the armrest.
2) Fold down the footrest, the folding seat and armrests.
3) Sit on the chair with your feet on the footrest and close the belt
4) Press the joystick in the desired direction of travel. After 2-3 seconds the chair will start
moving (safety time delay).
5) The stairlift runs as long as the joystick is pressed and stops automatically at the stop.
6) Please always look in the direction of travel!
Key switch (optional)
Main power switch

Alpha | User Manual Version 09/2022 Page 13
6.1 Automatic footrest function
If the lift is equipped with an optional automatic footrest folding,
you can unfold the footrest comfortably before or after being
seated. The footrest movement is activated by pressing of the
button on the side of the armrest.
If you choose to first sit down, open your legs about 30cm when
sitting on the chair and press the button on the side of the
armrest. The footrest will now fold down automatically.
When you exit the seat, you can comfortably fold up the footrest
by pressing again the button on the side of the armrest.
6.2 Calling and sending the stairlift
1) Make sure that no one is using the lift and no one is on the stairs.
2) Now you can call or send the lift with the up or down button on the call stations.
3) The chairlift runs as long as the drive command button is pressed and stops automatically
at the stop.
Call stations are supplied with 2 x 1.5V AAA batteries. The service life of the batteries is approx. 1
year. The batteries can be replaced during the annual maintenance.
If the green LED light stops flashing when the buttons are pressed, the batteries must be changed.
Battery cover

Alpha | User Manual Version 09/2022 Page 14
6.3 Rotating the seat with a manual swivel seat
On the upper landing, the seat can be manually rotated (swivelled) into different positions for easier
entry or exit.
1) Push the lever down. The levers are located on the side of the chair, behind the armrest
supports.
2) Turn the seat in the direction of the exit
3) There are 5 different positions at 0°, 20°, 45°, 70° and 90° rotation. At the desired rotation,
pull the lever back up and make sure that the lever snaps back into place and fixes the seat
in this position!
4) Leave the chair.
5) Turn the seat back to the driving position and pull the lever firmly upwards so that it
engages again.
6) If desired, you can now fold up the footrest and the armrests and park the lift in this way.
7) Remove the key (optional) from the armrest to prevent unauthorised persons or children
from using the lift.
8) The platform must be folded to release the lift for other users. Thus, the call stations become
active again and the lift can be sent or called to a desired location.
Always make sure that the lever is in locked position (pulled downwards) after swivelling,
especially when the lift is parked.

Alpha | User Manual Version 09/2022 Page 15

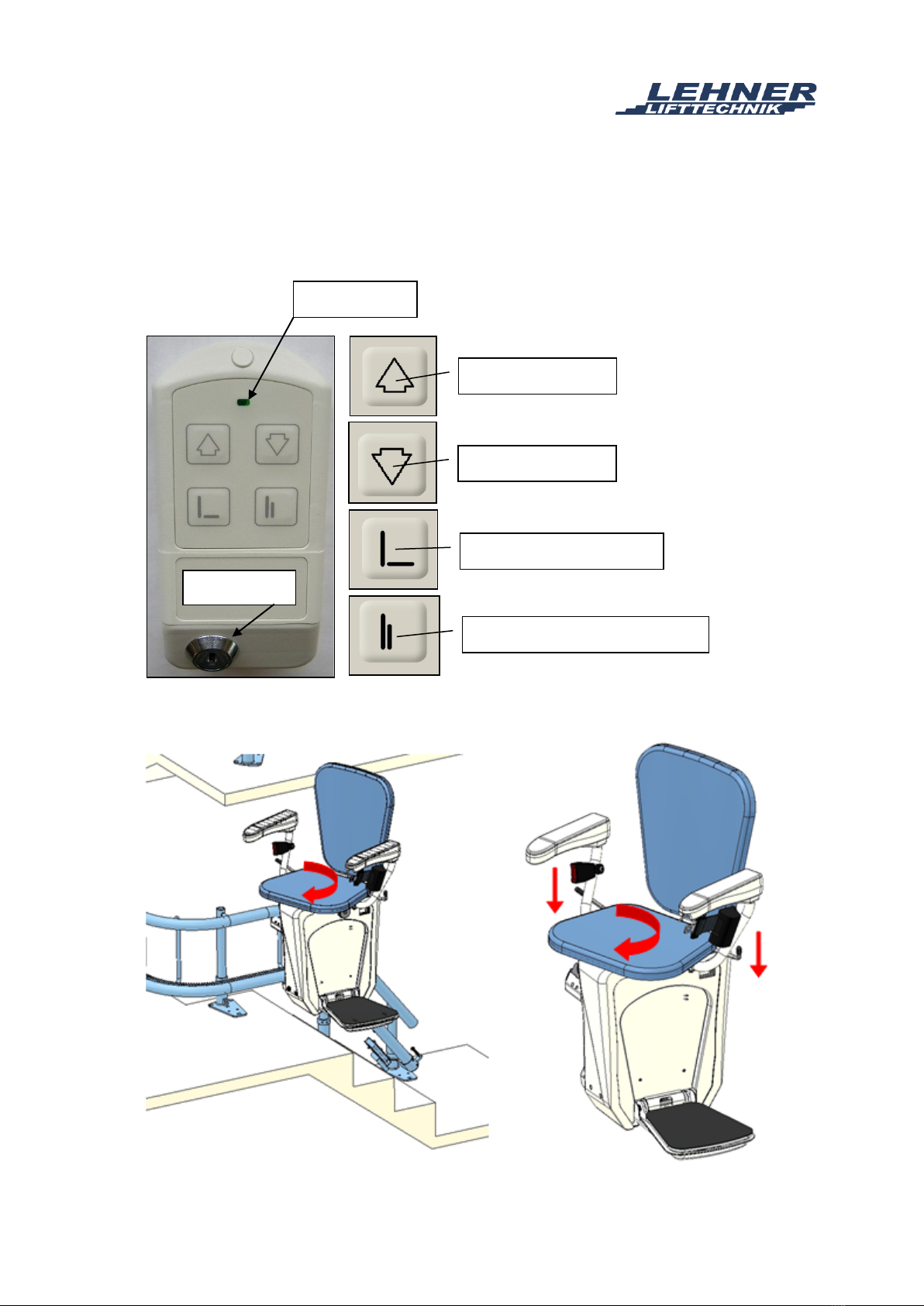

6.4 Rotating the seat with the automatic swivel seat
In the case of an automatic swivel seat, the call stations are equipped with 2 additional buttons that
allow the seat to be swivelled automatically on an intermediate or the upper landing.
Key
LED lamp
Drive downwards
Drive upwards
Turn seat (for entry/exit)
Turn seat (for driving)

Alpha | User Manual Version 09/2022 Page 16
1) When the lift arrives at the stop, keep the joystick pressed in the direction of travel. After a
short delay, the seat will start to turn automatically. Wait until the seat has turned
completely and stops.
2) Leave the seat.
3) Turn the seat back by pressing the button on the call station.
4) Now you can fold up the seat, footrest and armrests.
6.5 Passing through an intermediate stop with automatic swivel seat
If you do not want the seat to start turning in an intermediate landing, release the joystick briefly as
soon as the seat stops in the intermediate landing stop. Now you can press the joystick again and
the lift will continue in the desired direction.
7FOLDING RAIL
If the unit is equipped with a folding rail, please read the following points carefully:
▪Before the folding rail can be used, the key switch on the control station must be in the
"ON" position
▪The folding rail can be operated by means of a joystick on the armrest or with the
additional remote control supplied for the folding rail.
7.1 Journey from the lower to the upper stop
▪If you want to move from the lower to the upper landing, the lift stops automatically at the
loading station, which is installed after the folding rail. Now press and hold the joystick
upwards so that the rail folds in completely and the lift can continue to move upwards.
▪The stairlift can also be manoeuvred by remote control. To do this, press the "Drive up"
button. The lift then stops after the folding rail at the loading station. Now activate the folding
of the rail by pressing the "Fold" button on the additional remote control of the folding rail.
After it has been folded, you can now park the stairlift at the charging station or continue
the journey to the upper stop without any problems.
7.2 Journey from the upper to the lower stop
▪If you want to move from the upper to the lower stop, press the joystick down. The lift stops
automatically on the loading station in front of the folding rail. Now keep the joystick pressed
down so that the rail opens, and the lift moves to the lower landing.
▪The stairlift is located in the upper landing and is called down with the remote control. At
the loading station in front of the folding rail, it stops automatically. Now press the "Unfold"
button on the additional remote control of the folding rail until it is fully opened. The ride
down to the lower stop works with the operation for the lift, to do this, keep the "Ride down"
button pressed.
