Leica Z6 APO User manual

Leica
Z6 APO &
Z16 APO
User manual

2 Leica Z6 APO & Z16 APO – User manual
Dear User,
Thank you for your faith in our product. We hope
your work with it is both enjoyable and successful.
The Leica Z6 APO and Z16 APO from Leica
Microsystems are the only fully apochromatically
corrected zoom systems on the market, and are
superior to other zoom systems in contrast, image
sharpness, color fidelity and image precision. The
Leica Z6 APO and Z16 APO are exceptionally well
suited to high-precision inspections throughout
the entire manufacturing process, all the way to
the integration of them into machine vision sys-
tems, as well to scientific and medical applica-
tions.
Furthermore, you can create complete single
measurement and testing stations tailored to your
custom needs. The new zoom systems include the
widest line of accessory products to meet every
imaginable examination, training, and documenta-
tion task. With compatible stands, illuminators,
binocular tubes and video/phototubes, motorized
focus, modern CCD cameras, and much more, the
Leica Z6 APO and Z16 APO are suitable for video
inspection, measurement, documentation and
analysis tasks in the QA lab, just as they are suited
for biology, geology, histology, criminology and
training.
In developing our instruments, we place great
value on simple, self-explanatory operation. How-
ever, please take the time to read the user manual
and the operating safety information to become
familiar with the advantages and options of your
Leica Z6 APO and Z16 APO zoom systems, so that
you can use them optimally and safely.
Should you have any questions, please consult
your local Leica representative. You will find the
address of the closest local representative as
well as valuable information about products and
ser
vices from Leica Microsystems on our home-
page at
www.leica-microsystems.com
We are gladly at your service. Customer service is
a big thing with us. Not only before the sale, but
afterwards as well.
Leica Microsystems (Switzerland) Ltd.
Business Unit Stereomicroscopy
www.stereomicroscopy.com

Leica Z6 APO & Z16 APO – User manual 3
Overview of the instrument

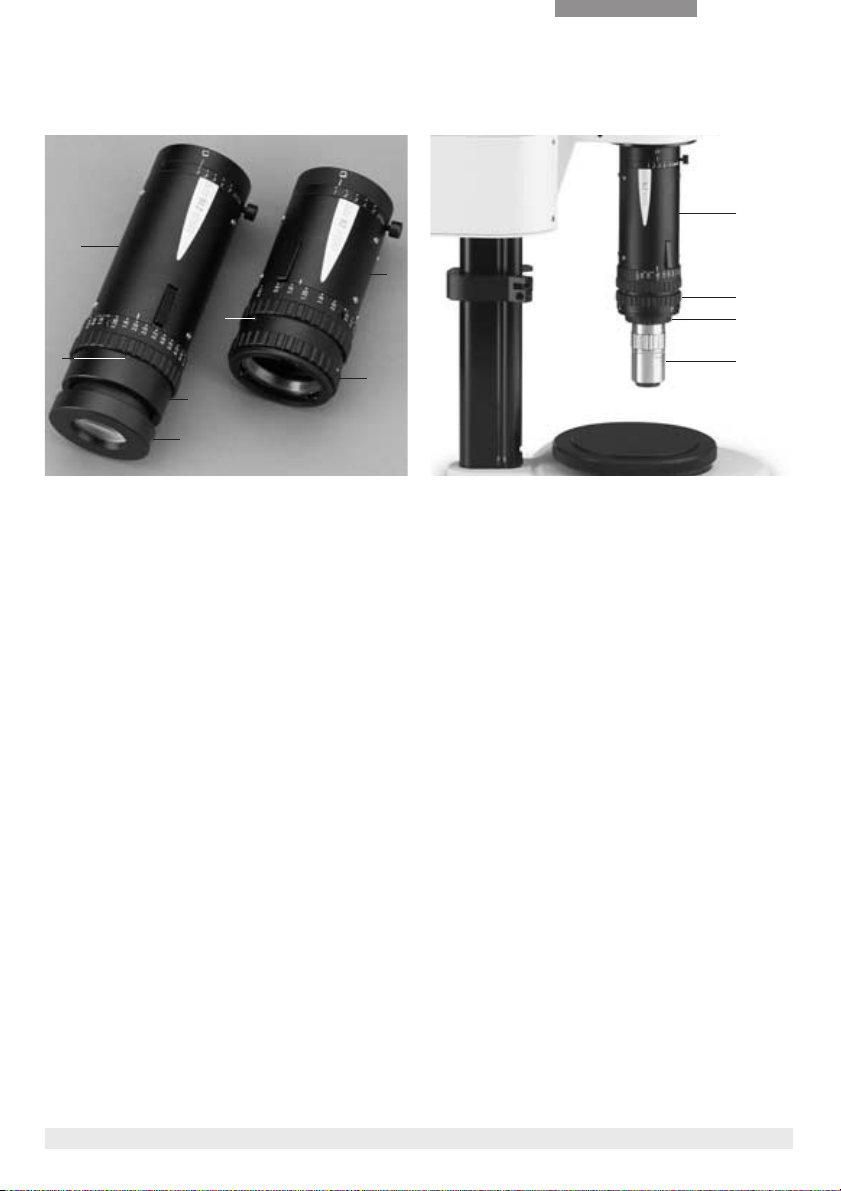

Fig. 1 Basic components and controls: left, Leica Z16 APO zoom system with fine focusing and objective.
Right, Leica Z6 APO zoom system with objective.
8
Clamping screw for adjusting and locking the
iris diaphragm
(1 = smallest diameter, 5 = OPEN)
9Hexagon-head screws for fastening the zoom
system to the tube
10 Diaphragm ring with thread for tightening the
objective (when using the fine focusing, re-
lease the three hexagon-head screws on the
diaphragm ring and remove the diaphragm
ring)
9
8
2
7
10
6
4
4
3
1
7
6
98
5
1Leica Z16 APO zoom system
2Leica Z6 APO zoom system
3Fine focusing
(the diaphragm ring [10] is removed)
4Objective
5Switch for activating/deactivating the zoom
click stop
6Knurled ring for adjusting the zoom
7Scale with magnification factors

4 Leica Z6 APO & Z16 APO – User manual
Page
1. Safety concept . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.1 The user manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
1.1.1 Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
1.1.2 Symbols used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
1.2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
2. Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.1 Zoom systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.2 Assembly of zoom system and objective . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

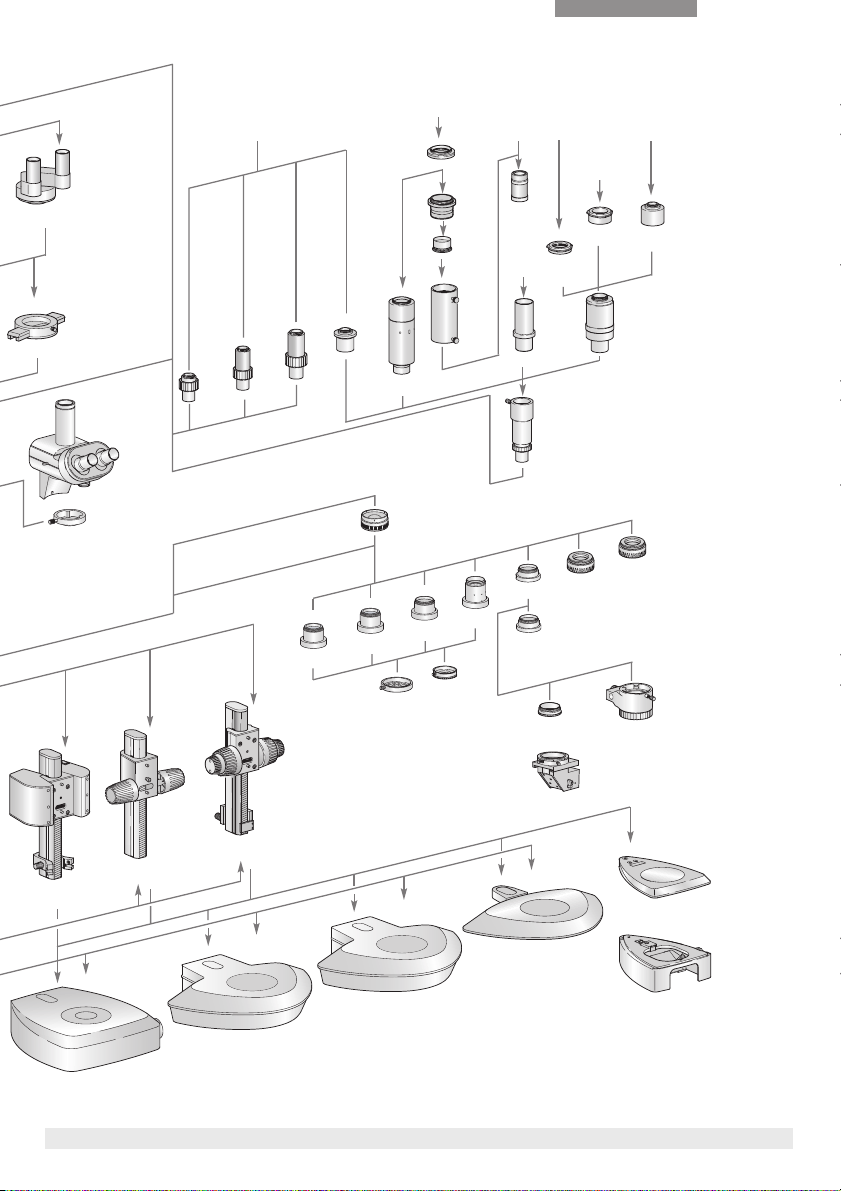

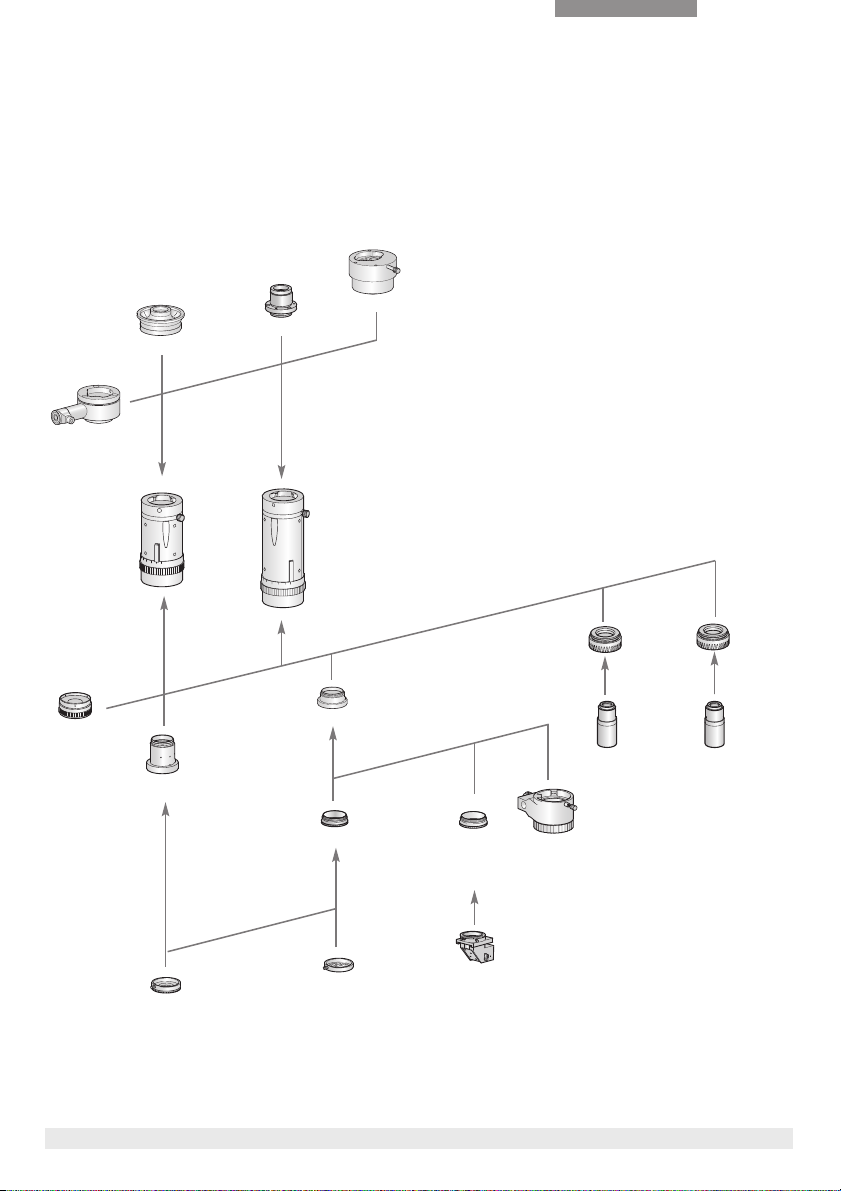

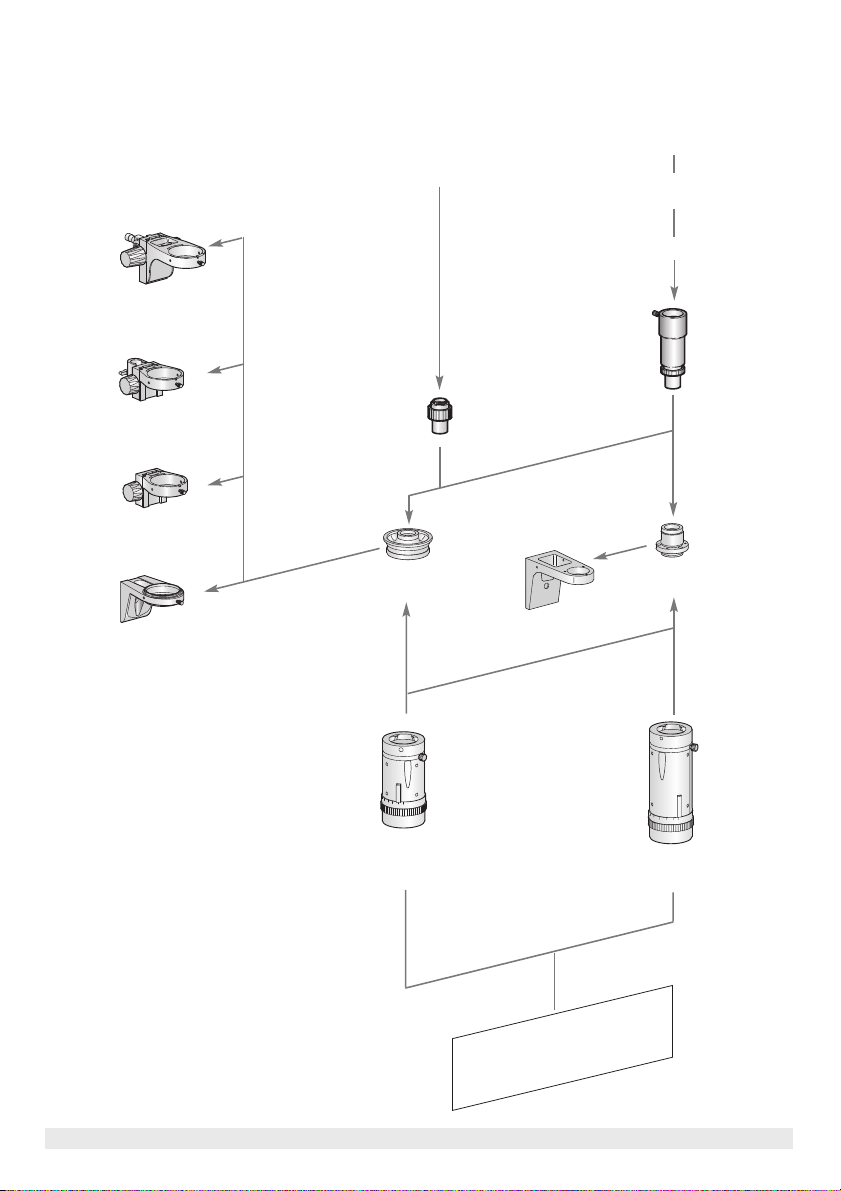

2.3 Assembly diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
2.4 Tubes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2.4.1 Digital imaging with AS video/phototube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.4.2 Digital imaging with A video/phototube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2.4.3 Assembly with Y tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
2.5 Illumination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
2.6 Attachment to stands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
2.6.1 Incident and transmitted light stands with column 500mm . . . . . . . . . . . . . . . . . . . 27
2.6.2 Swinging-arm stands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
2.6.3 Large swinging-arm stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
2.6.4 OEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
3. Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
3.1 Starting up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
3.2 Zoom systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
3.3 Iris diaphragm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
3.4 Fine focusing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
3.5 Working with a binocular tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
3.5.1 Adjusting diopter settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
4. Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
4.1 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
4.2 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
4.3 Optical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Contents

Leica Z6 APO & Z16 APO – Safety concept 5
1. Safety conce t
1.1 The user manual
Included with your Leica Z6 APO and Z16 APO
zoom systems is an interactive CD-ROM with all
pertinent user instructions in German, English,
French, Spanish, Italian, Portuguese, Dutch,
Danish, Swedish, Finnish, and Greek. Keep it in a
safe place, and readily accessible to the user.
User manuals and updates are also available for
you to download and print from our web site at
www.stereomicroscopy.com.
This operating manual describes the special func-
tions of the Leica Z6 APO and Z16 APO zoom sys-
tems and contains important instructions for their
operational safety, maintenance, and accessories.
The Leica Z6 APO and Z16 APO are zoom systems
which can be expanded in a modular system,
allowing an almost unlimited range of individual
equipment configurations. The identical modules,
such as stands, binocular tubes, accessories, etc.
are described in User Manual M2-105-0 for Leica
M stereomicroscopes, which also contains addi-
tional safety instructions pertaining to acces-
sories and electrical accessories, as well as care
instructions.
Special manuals are provided for the following
accessories:
– User Manual M2-267-1 for the
motorized focus system.
– User Manual M2-216-2 for the
Leica HL RC™ transmitted-light base
Before installing, operating or using the
instruments, read the user manuals listed above.
In particular, please follow all safety instructions.
To maintain the unit in its original condition and to
ensure safe operation, the user must follow the
instructions and warnings contained in these user
manuals.
1.1.1 Diagrams
(1.5) Numbers in parentheses within the descrip-
tions pertain to diagrams and the items in the
diagrams.
Example (1.5): Figure 1is found on Page 3 and item
5is the switch for activating/deactivating the
zoom click stop.

6 Leica Z6 APO & Z16 APO – Safety concept
1.1.2 Symbols used
Warning of a danger
This symbol indicates especially important infor-
mation that, if not observed,
– can cause hazards to personnel,
– can lead to functional disturbances and dam-
aged instruments.
Warning of hazardous electrical voltage
This symbol indicates especially important infor-
mation that, if not observed,
– can cause hazards to personnel,
– can lead to functional disturbances and dam-
aged instruments.
Danger due to hot surface
This symbol warns against touching hot surfaces,
e.g. those of light bulbs.
Important information
This symbol indicates additional information or
explanations that intend to provide clarity.
Action
This symbol refers to actions described in the
text that are to be carried out.
Explanatory notes
• This symbol indicates additional notes and
explanations provided in the text.
1.2 Safety instructions
Description
The Leica Z6 APO and Z16 APO are optical sys-
tems with 6.3:1 or 16:1 magnification changer and
a central beam path. The most precise information
can be obtained thanks to the parallax error free
observation. Measurements, adaptation tasks and
evaluations become more precise; more high-
quality information is obtained in photography and
image processing. The vertical beam path is virtu-
ally predestined for digital recordings with multifo-
cus programs. Polarized optical examinations pro-
vide true polarization colors, and the geometric
layers of flat, highly reflective objects such as
wafers appear without distortion when using
coaxial illumination.
A comprehensive range of modular accessories
such as objectives, carriers, video/phototubes,
stands, binocular tubes, eyepieces, etc. are avail-
able for the Leica Z6 APO and Z16 APO.
Permitted uses
With the Leica Z6 APO and Z16 APO zoom systems
and the apochromatic objectives, entire objects
can be inspected and documented without distor-
tion. As high-performance optical equipment, they
lend themselves to use with measurement and
testing systems including vision technology sys-
tems, and for high-end laboratory workstations.

Leica Z6 APO & Z16 APO – Safety concept 7
Non-intended use
If the Leica Z6 APO or Z16 APO, its components or
accessories are used other than as described in
the user manual, injury or property damage may
occur. Never:
– install other plugs or cables.
– change, rebuild or take apart parts, if not
specifically instructed to in this in the manual.
– allow unauthorized persons to open parts.
– use the Leica Z6 APO and Z16 APO for examin-
ing, or operating on the human eye.
The devices and accessories described in this
operating manual have been tested for safety and
potential hazards. The responsible Leica affiliate
must be consulted whenever the device is altered,
modified or used in conjunction with non-Leica
components that are outside of the scope of this
manual.
Unauthorized alterations to the device or noncom-
pliant use shall void all rights to any warranty
claims!
Responsibilities of the person(s) in charge of in-
strument
Ensure that
– the Leica Z6 APO and Z16 APO and accessories
are operated, maintained and repaired by
authorized and trained personnel only.
– the operating personnel has read, understands,
and is observing these instructions as well as
those listed on page 5, and, in particular, the
safety instructions.
Place of use
– The Leica Z6 APO and Z16 APO may only be
operated in closed, dust-free rooms at +10 ˚C to
+40 ˚C. Ensure that the room is free of oil and
chemical fumes and extreme humidity.
– Electrical components must be assembled at
least 10cm away from the wall and from flam-
mable substances.
– Large temperature fluctuations, direct sunlight
and vibrations should be avoided. These condi-
tions can distort measurements and micro-
graphic images.
– Optical systems in warm and warm-damp
climatic regions require special care in order
to prevent the build up of fungus.
Disposal
The products described here must be disposed
off in accordance with applicable local laws and
regulations.
Legal requirements
Adhere to general and local regulations relating to
accident prevention and environmental protection.
Conformity with European Community directive
The Leica Z6 APO and Z16 APO and their acces-
sories are constructed based on the state of the
art of technology and are provided with an EU
Declaration of Conformity.

8 Leica Z6 APO & Z16 APO – Safety concept
Health risks
Workplaces with optical systems facilitate
and improve the viewing task, but they also im-
pose high demands on the eyes and holding mus-
cles of the user. Depending on the duration of un-
interrupted work, asthenopia and musculoskeletal
problems may occur. For this reason, appropriate
measures for reduction of the workload must be
taken:
– optimal arrangement of workplace, work
assignments and work flow (changing tasks
frequently).
– thorough training of the personnel, giving con-
sideration to ergonomic and organization
aspects.
The ergonomic optics concept and the design of
Leica optics systems aim to limit the strain on the
user to the lowest possible level. If you wish to
equip your zoom system with one of our binocular
tubes, we offer ErgoTubes®and ErgoModules®,
which compensate for the varying design heights
of the equipment, accessories and working dis-
tances, and for the variation of human height of its
users. If you have problems with the viewing con-
figuration, ask your Leica consultant for the most
ergonomic Leica solutions.
Direct contact with eyepieces is a potential
transmission method for bacterial and viral infec-
tions of the eye. Users should be made aware of
the potential risk of infection. The risk can be kept
to a minimum by using personal eyepieces for
each individual or detachable eyecups.
Repairs and servicing
– Only Leica Microsystems-trained service
technicians, or technical specialists assigned
by the person in charge of the instrument, are
permitted to carry out repairs.
– Only original Leica Microsystems spare parts
may be used.
– Unplug the power cable before opening voltage
carrying parts.
Touching the live circuit can cause injury.
Transport
– Use the original packaging for shipping or
transporting the zoom systems and their acces-
sory components.
– In order to prevent damage from vibrations,
disassemble all moving parts that (according to
the user manual) can be assembled by the cus-
tomer and pack them separately. These include
the objective, video/phototube, carrier, binocu-
lar tube, eyepieces, etc.
Integration in third-party products
When installing Leica products into third-party
products, note the following: The manufacturer of
the complete system or its dealer is responsible
for following all applicable safety instructions,
laws and guidelines.

LEICA Z6 APO
LEICA Z16 APO
10 447 204
Z6 APO
10 447 174
10 447 109
10 447 128
Z16 APO
10 447 173
10 447 170
10 447 175
Planapo
10 447 207
11 506 084
10x
11 506 057
20x
10 447 179
10 447 085
10x
10 447 086
20x
10 447 206
10 441 597 100mm
10 441 787 150mm
10 431 692 175mm
10 382 162 200mm
Achromat
10 445 198
10 445 156
10 411 589
1,0x
Achromat
Achromat
10 447 083
10 447 177
0,5x
10 446 360
0,8x
10 447 176
1,0x
10 447 178
2,0x
10 315 306
10 422 564
0.32x
10 422 563
0,5x
10 445 201
0,63x
HR DM
Leica Z6 APO & Z16 APO – Assembly 9
2. Assembly
Diagram 1: Zoom systems, objectives and accessories

10 Leica Z6 APO & Z16 APO – Assembly
2.1 Zoom systems
For every zoom system, please order a
Leica Z6 APO and Z16 APO objective and, option-
ally, the fine focusing.
The basic components–the zoom system and
objective–can be combined in modular fashion
with various tubes, carriers, stands, focusing dri-
ves, binocular tubes, illuminators and accessories
for digital imaging and expanded into complete
workstations. Accessories that are also used for
Leica M series stereomicroscopes are listed in
the User Manual for Leica M stereomicroscopes,
M2-105-0.
Either the integrated clamping screws or an Allen
key is necessary for assembly; these are included
in delivery.
2.2 Assembly of zoom system and
objective
• We recommend using the 1×, 2×, 0.8×, 0.5×
planapochromatic objectives, in order to take
advantage of the high performance of the
apochromatic zoom system.
• You can attach the quarter-wave plate for
coaxial illumination, the analyzer for polariza-
tion or the ring illuminator to the planapochro-
matic objectives.
• Also available are the M series 0.63×, 0.5×,
0.32×achromatic objectives, which can be at-
tached to the zoom or the fine focusing using
an adapter (see assembly diagram on page 9).
• You can attach the vertical illuminator or the
attachment for incident/oblique observation to
the achromatic objectives.
• For magnifications in the microscopic range,
DM and HR objectives are available, which can
be attached to the zoom or fine focusing with
an adapter (see assembly diagram on page 9).
Always use the DM and HR objectives with fine
focusing.
You can use the objectives on the Z6 APO or
Z16 APO zoom systems or with the fine focusing.
Objective / zoom system
Screw the planapochromatic objective (2.4)
counterclockwise onto the diaphragm ring (2.3).
Screw the achromatic objective onto the
diaphragm ring (2.3) using an adapter.
Objective / fine focusing / zoom system
Release the three hexagon-head screws (2.6)
on the diaphragm ring (2.3) and remove the di-
aphragm ring.
Tighten the fine focusing (2.5) to the zoom sys-
tem using the three hexagon-head screws (2.7).
Screw the planapochromatic objective (1.4)
counterclockwise onto the fine focusing (2.5).
Tighten the achromatic objective to the fine
focusing (2.5) using an adapter.
Tighten the DM and HR objectives (3.2) to the
fine focusing (3.4) using an adapter (3.3).

Leica Z6 APO & Z16 APO – Assembly 11
Fig. 2 Assembly of zoom system and objective:
Left: Leica Z16 APO zoom system, objective
mounted to the diaphragm ring.
Right: Leica Z6 APO zoom system with fine focus-
ing (without diaphragm ring).
1Leica Z16 APO zoom system
2Leica Z6 APO zoom system
3Diaphragm ring with thread for tightening the
objective (when using the fine focusing, re-
lease the three hexagon-head screws on the
diaphragm ring and remove the diaphragm ring)
4Objective
5Fine focusing
(the diaphragm ring [2.3] is removed)
6The hexagon-head screws on the diaphragm
ring fasten the diaphragm ring to the zoom sys-
tem (one of the three hexagon-head screws is
visible)
7The hexagon-head screws fasten the fine
focusing to the zoom system (one of three
hexagon-head screws is visible)
Fig. 3 Assembly of zoom system and
micro-objective
1Leica Z16 APO zoom system
2Micro-objective
3Adapter for micro-objective
4Fine focusing
(the diaphragm ring [2.3] is removed)
1
6
7
4
35
2
1
4
3
2

10 446 259
10 445 913
10 446 101
10 446 174 HU
10 446 194 HV
10 446 197
10 445 924 50%
10 446 229 100%
10 445 822
10 429 781
10 445 619
10 447 160
10 445 301
10 445 302
10 445 303
10 445 629
10 446 228
10 446 303
10 446 301
10 446 304
10 446 302
10 445 152
10 445 153 (450mm)
10 445 154 (800mm)
10 439 096
10 439 170
10 439 097
10 446 299
10 346 910
10 446 123
10 447 159
10 446 253
10 382 130
10 446 237
10 446 238
10 446 344
10 446 345
10 446 343
10 446 394
10 447 196
10 447 109
LEICA Z6 APO
Z6 APO
10 447 174
LEICA Z16 APO
Z16 APO
10 447 173
10 447 170
10 447 128
10 376 070
10 447 204
12 Leica Z6 APO & Z16 APO –Assembly
2.3 Assembly diagram
Diagram 2: Complete module program

Leica Z6 APO & Z16 APO –Assembly 13
10 447 041 (500mm)
10 429 783
10 445 363
10 445 631
10 446 340
10 445 367
10 447 185 (500 mm)
10 445 387
10 446 341
10 446 100 (500mm)
10 445 156
10 441 597 100 mm
10 441 787 150 mm
10 431 692 175 mm
10 382 162 200 mm
Achromat
10 411 589 1.0x
Achromat
10 445 198
10 447 168
11 541 006
1”, 1x
11 541 007
2/3”,0.63x
11 541 016
1/2”,0.5x
10 445 928
1/3”,
0.32x
10 445 929
1/2”, 0.5x
10 446 261
10 404 207
0,5x
10 447 177
1,0x
10 447 176
2,0x
10 447 178
10 447 179 10 447 206
10 315 306 10 447 207
10 447 083
10 447 175
11 446 261
2/3”,0.63x
11 446 307
2/3”,0.8x 11 541 038
0,55x-x1,1x
11 543 702 11 543 706
10 445 930
1x
SLR
camera housing Leica
MPS30 / MPS60
photoautomats
B-Mount
3-chip 2/3”
CCD camera
B-Mount
3-chip 1/2”
CCD camera
1”
C-Mount
CCD camera
10 445 935
SLR
adapter
1”, 2/3”, 1/2”, 1/3”
C-Mount, CCD cameras
Leica DC cameras
10 162 226
10 445 541
0,63x 10 445 201
0,5x 10 422 563
0,32x 10 422 564
10 446 120
8x
10 445 304
10x
10 445 305
16x 11 543 703
0,8x
10 446 360
Macroscope
10 447 129

10 445 928
1/3”
0.32x
LEICA Z6 APO
LEICA Z16 APO
10 447 128
A
Z6 APO
10 447 174 Z16 APO
10 447 173
10 447 204
AS
10 447 196
10 445 930
1x
10 446 345
10 446 344
10 446 343
10 446 394
Objectives see page 8
10 446 307
0.8x
10 446 261
2/3”
0.63x
10 445 929
1/2”
0.5x
1”, 2/3”, 1/2”, 1/3”
C-Mount, CCD-Camera
Leica DC-Camera
CCD-Camera
Leica
MPS30 / MPS60
SLR-Camera
14 Leica Z6 APO & Z16 APO –Assembly
2.4 Tubes
Diagram 3: Tubes, carriers

Leica Z6 APO & Z16 APO –Assembly 15
The tubes allow you to attach accessories for
photography and observation. The carriers allow
you to attach the instrument to stands, machines
and working equipment. The following tubes and
carriers are available:
–AS video/phototube (10447204)
For use with carrier (10447196).
–A video/phototube (10447128)
For use with microscope carrier (10446394) or
focusing arms (10446345, 10446343 and
10446344).
–Y tube (10447109) for tubes of the Leica
M stereomicroscope line, 1.25×tube factor,
50/50 light splitting
For use with microscope carrier (10446394) or
focusing arms (10446345, 10446343 and
10446344).
The video/phototubes and the Y tube are attached
to the dovetail ring of the zoom system, and fas-
tened to the zoom system using the hexagon-head
screw (1.9).
Similarly, you can also attach a coaxial illuminator
between the zoom system and the tube (Chapter
2.5).

16 Leica Z6 APO & Z16 APO –Assembly

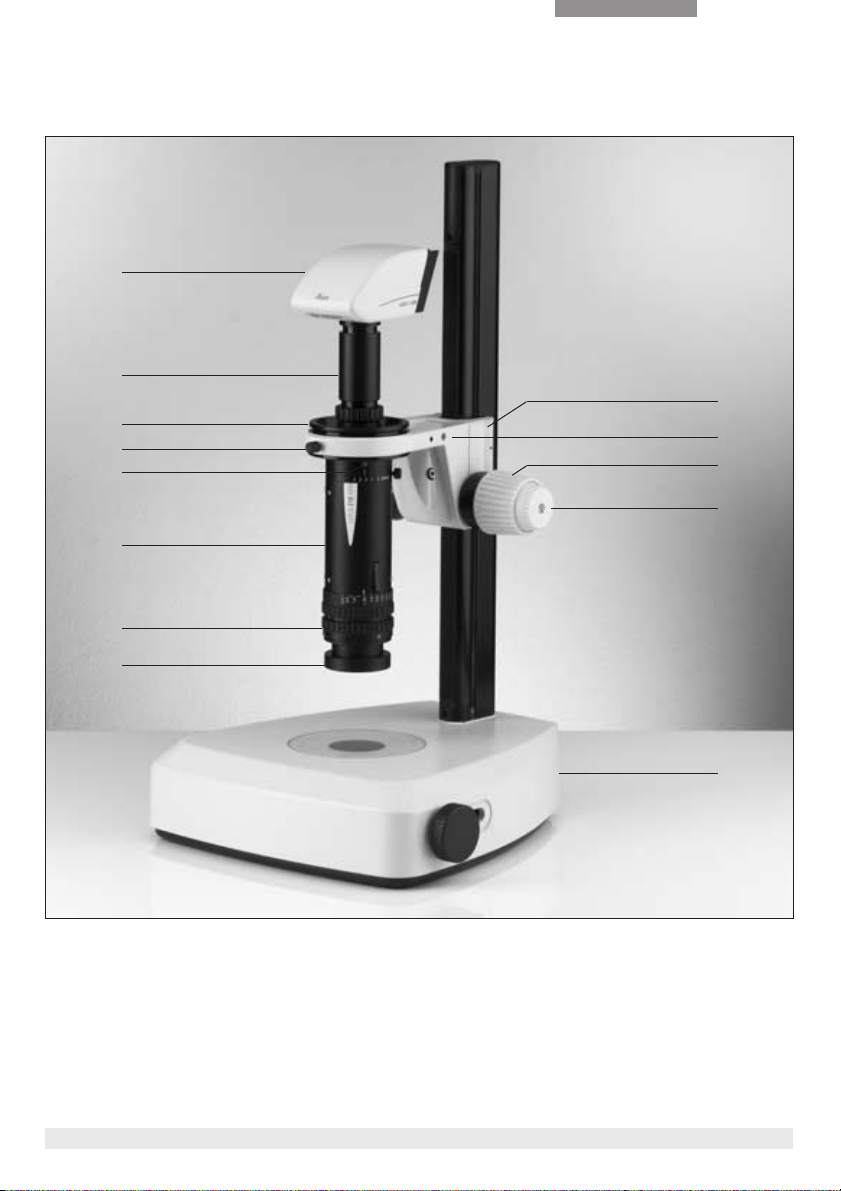

2.4.1 Digital imaging with
AS video/phototube
You can mount digital cameras onto the AS
video/phototube to create a slim, space-saving
equipment configuration. This configuration
consists of:
–Leica Z6 APO or Z16 APO zoom system, objec-
tive and optional fine focusing
–Video/phototube AS (10447204)
–Video objective with C-mount
–Digital camera
Zoom system ➔AS video/phototube
Release the hexagon-head screw (4.10) using
the Allen key provided.
Adjust the zoom system (4.1) to the dovetail ring
of the AS video/phototube (4.4) and tighten the
hexagon-head screw (4.10).
Video objective ➔zoom system with AS
video/phototube
Screw the desired digital camera (4.6) onto the
C thread of the video objective (4.5).
Insert the video objective into the AS video/
phototube (4.4) and tighten the knurled ring
(4.11).
Attachment to stand
Use the carrier of the AS tube (10447196) to attach
the unit to a Leica incident or transmitted light
stand or the large swinging-arm stand.
For assembly instructions, please refer to Chapter
2.6.
Fig. 4 Equipment configuration for digital imaging
with AS video/photo tube. Right side of the
Leica Z6 APO.
1Leica Z6 APO zoom system
2Fine focusing
3Objective
4Video/phototube AS
5Video objective with C-mount
6Leica digital camera
7Carrier for AS tube
8Incident-light stand
9Focusing drive, coarse, with column 500mm
10 Hexagon-head screw for fastening the zoom
system to the AS video/phototube
11 Knurled ring for screwing on the
video objective

Leica Z6 APO & Z16 APO –Assembly 17
6
5
11
7
4
10
1
2
3
8
9

18 Leica Z6 APO & Z16 APO –Assembly
2.4.2 Digital imaging with
A video/phototube
You can mount digital cameras to the A video/
phototube using a video objective. This configura-
tion consists of:
–Leica Z6 APO or Z16 APO zoom system,
objective and optional fine focusing
–A video/phototube (10447128)
–Video objective with C-mount
–Digital camera
Assemble as described in Chap. 2.4.1 (assembly
with AS video/phototube).
Attachment to stand
For attaching to a Leica incident or transmitted
light stand or to the swinging-arm stand, use the
microscope carrier (10446394).
For use with machines or working equipment,
mount the equipment to the focusing arms
10446345 (can also be used for swinging-arm
stands), 10446344 (for round columns, ∅25mm)
or 10446343.
For assembly instructions, please refer to Chapter
2.6.
Fig. 5 Equipment configuration for digital imaging
with A video/photo tube. Right side of the
Leica Z16 APO.
1Leica Z16 APO zoom system
2Fine focusing
3Objective
4Video/phototube A
5Video objective with C-mount
6Leica digital camera
7Microscope carrier (10446394)
8Clamping screw for fastening the A video/
phototube to the microscope carrier
9HL RC™transmitted light stand
10 Focusing drive, coarse/fine,
with column 500mm
10a Coarse drive
10b Fine drive
11 Hexagon-head screw for fastening the zoom
system to the video/phototube

Leica Z6 APO & Z16 APO –Assembly 19
6
5
4
8
11
1
2
3
10
7
10a
10b
9

Objectives see page 8
10 446 345
10 446 344
10 446 343
LEICA Z6 APO
LEICA Z16 APO
10 447 109
Z6 APO
10 447 174
Z16 APO
10 447 173
Stand see page 30
10 446 123
10 346 910 10 447 168
10 447 159
10 447 160
10 445 301
10 445 302
10 445 303
10 445 619 10 446 253
10 445 822
10 429 783
10 429 781
10 446 237
10 446 238
10 479 887
10 446 394
10 445 629
20 Leica Z6 APO & Z16 APO –Assembly
2.4.3 Assembly with Y tube
Diagram 4: Y tube with binocular tubes,
ErgoModules®and accessories
