LELY 770 P User manual

Lely Lotus
770 P
T-H001.1103EN
Operators Manual

TRADEMARKS, COPYRIGHT AND
DISCLAIMER
Lely, Astronaut, Astri, Atlantis, Attis, AWS, C4C, Calm, Commodus,
Compedes, Cosmix, Discovery, F4C, Fertiliner, Gravitor, Grazeway, Hibiscus,
Hubble, Juno, L4C, Lely Center, Lelywash, Lotus, Luna, Nautilus, Orbiter,
Qwes, SAE, Shuttle, Splendimo, Storm, T4C, Tigo, Viseo, Voyager, Walkway
and Welger are registered trademarks of the Lely Group. The right of exclusive
use belongs to the companies of the Lely Group. All rights reserved. The
information given in this publication is provided for information purposes only
and does not constitute an offer for sale. Certain products may not be available
in individual countries and products supplied may differ from those illustrated.
No part of this publication may be copied or published by means of printing,
photocopying, microfilm or any other process whatsoever without prior
permission in writing by Lely Holding S.à r.l. Although the contents of this
publication have been compiled with the greatest possible care, Lely cannot
accept liability for any damage that might arise from errors or omissions in this
publication.
The English language manual is the original manual. Translations into other
languages use the English language manual as the source document. Lely
accepts no liability for discrepancies between the original English language
manual and versions in other languages. If there is a conflict over the content
and accuracy of any translated manual, the English language manual is the
authority document.
Copyright © 2010 Lely Industries NV
All rights reserved
Lely Industries NV
Weverskade 110
3147 PA Maassluis
The Netherlands
Phone: Tel: [phone]
Fax: Fax: [phone]
Website: www.lely.com
PREFACE
Manual Contents
This manual contains the information necessary to operate the Lely Lotus. It
also includes maintenance information that can be done by an operator.
Study and understand this information thoroughly before you operate the Lely
Lotus. Failure to do so could result in personal injury or damage to equipment.
Please consult your local Lely service provider if you do not understand the
information in this manual, or if you need additional information.
All information in this manual has been compiled with care. Lely shall not be
liable for errors or faults in this manual. The recommendations are meant to
serve as guidelines. All instructions, pictures and specifications in this manual
ii

are based on the latest information that was available at the time of publication.
Your Lely Lotus may comprise improvements, features or options that are not
covered in this manual.
Warranty Conditions
For those parts that fail under normal operating conditions, the factory will
make replacement parts available, free of charge, for a period of 12 (twelve)
months from the date of purchase.
The warranty shall not apply if the instructions mentioned in this manual have
not been followed, or if they have not been followed completely or correctly.
Nor will the warranty apply if you or third parties modify the machine without
our foreknowledge and/or authorisation.
Registration
The Type and Serial Number Plate is on the right front of the drawbar.
Always include the type and serial numbers of your product when you contact
your local Lely service provider or order spare parts.

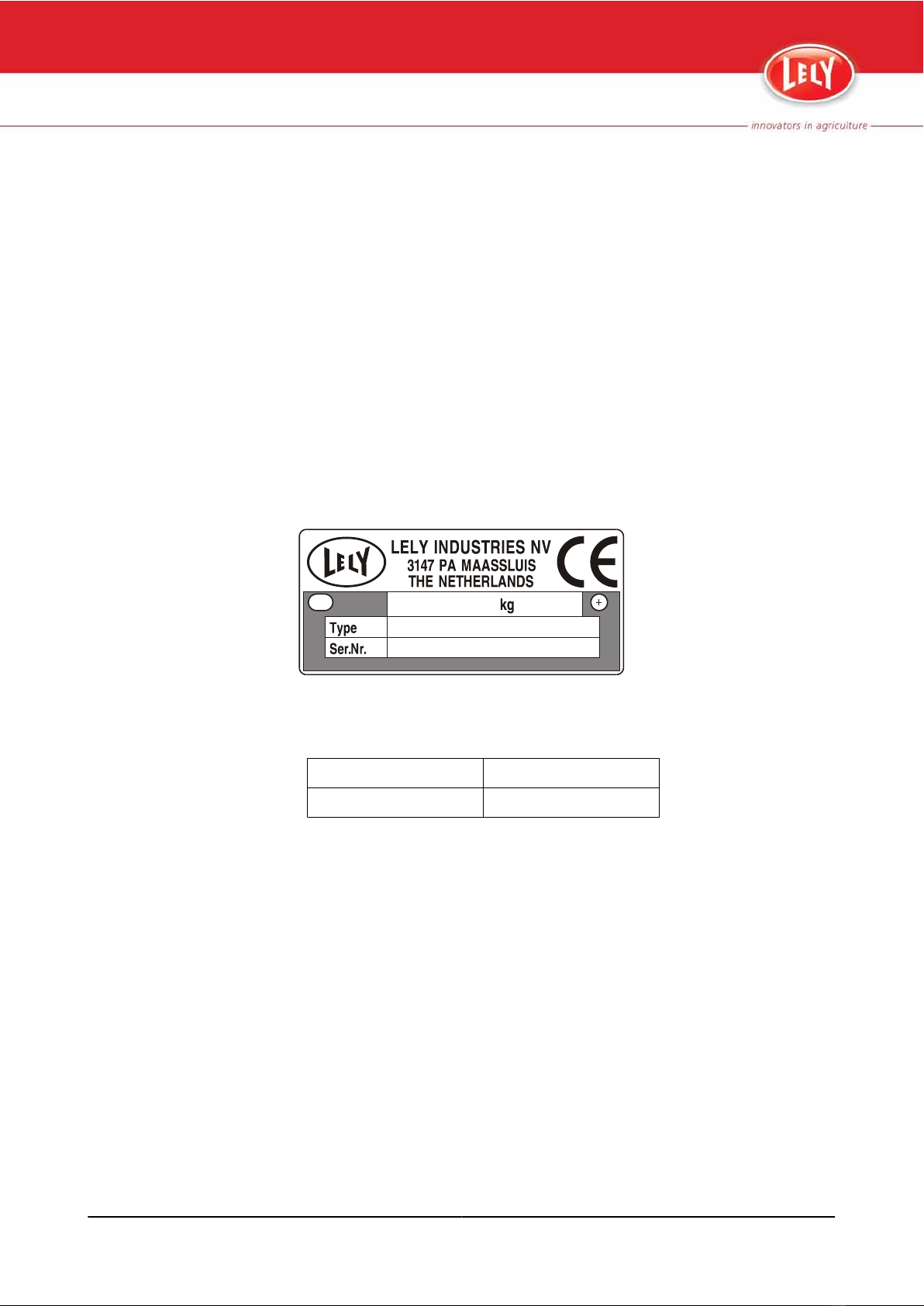

Type and Serial Number Plate
We suggest you complete the table below with the type and serial numbers of
your product. This makes sure you can easily find the information.
Type number
Serial number
iii

iv

Table of Contents
1. Introduction.........................................................................................................................................1-1
1.1 Optional Extras Lely Lotus 770 P.............................................................................................1-2
1.1.1 Spare Wheel Support...............................................................................................................1-2
2. Safety...................................................................................................................................................2-1
2.1 Signal Words............................................................................................................................2-1
2.2 Safety Instructions....................................................................................................................2-1
2.3 Explanation of the Safety Decals on the Lely Lotus 770 P......................................................2-2
2.4 Position of the Safety Decals on the Lely Lotus 770 P............................................................2-3
3. Operation.............................................................................................................................................3-1
3.1 Connect the Lotus to the Tractor..............................................................................................3-1
3.2 Disconnect the Lotus from the Tractor.....................................................................................3-3

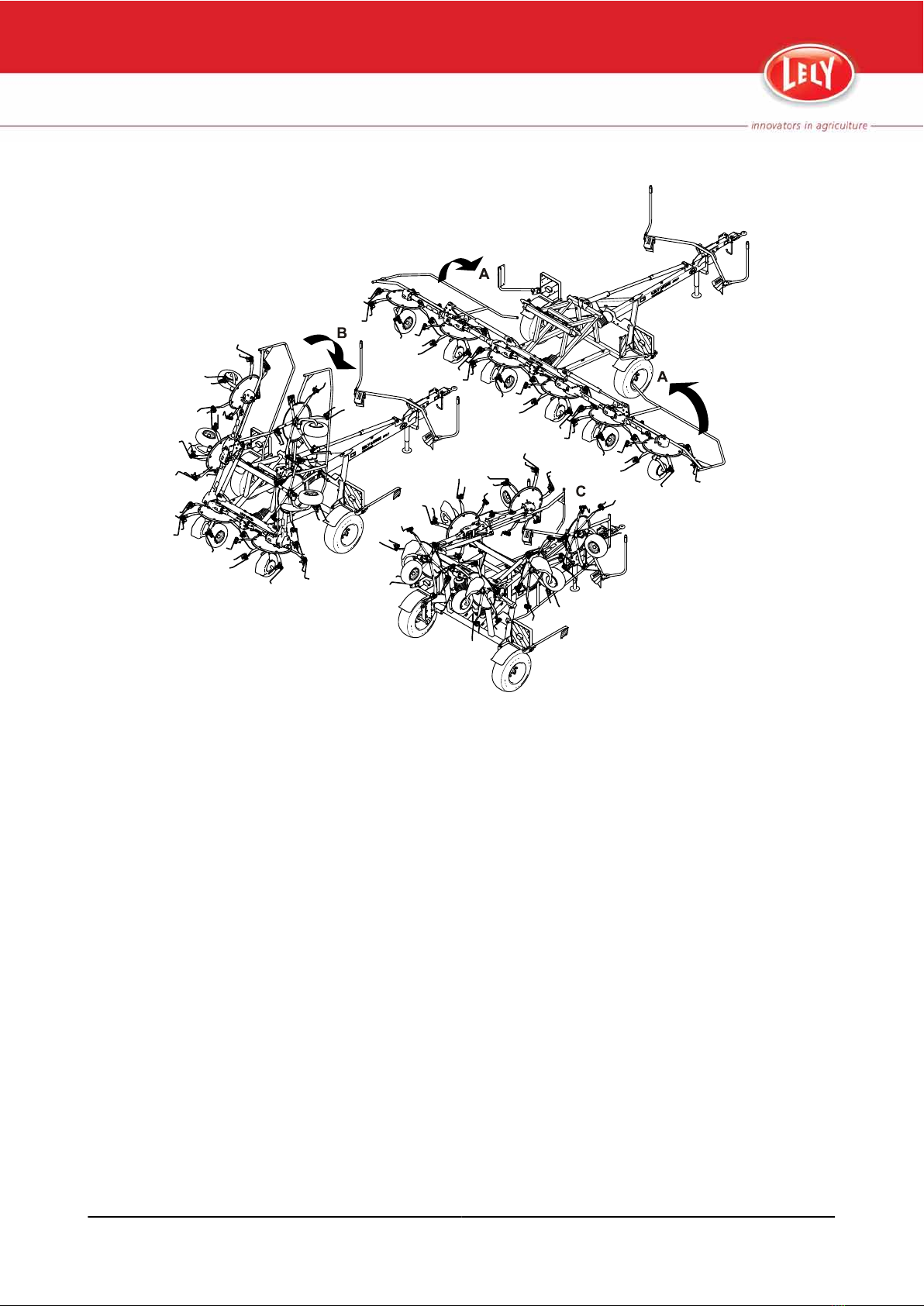

3.3 Move the Lotus from the Transport Position to the Working Position......................................3-4
3.4 Move the Lotus from the Working position to the Transport Position.......................................3-6
3.5 Start Tedding............................................................................................................................3-9
3.6 Move the Lotus from the Working Position to the Headland Position....................................3-10
3.7 Stop Tedding..........................................................................................................................3-10
4. Test and Adjustment..........................................................................................................................4-1
4.1 Adjust the Tines.......................................................................................................................4-1
4.2 Adjust the Rotor Angle.............................................................................................................4-2
4.3 Adjust the Height of the Rotor Wheels.....................................................................................4-4
5. Maintenance........................................................................................................................................5-1
5.1 Scheduled Maintenance...........................................................................................................5-1
5.1.1 Maintenance After Operation...................................................................................................5-1
5.1.2 Maintenance Every 10 Working Hours....................................................................................5-1
5.1.3 Maintenance Every 50 Working Hours....................................................................................5-1
5.1.4 Maintenance Every 100 Working Hours..................................................................................5-1
5.1.5 Maintenance Every 250 Working Hours..................................................................................5-1
5.1.6 Maintenance Every 500 Working Hours..................................................................................5-1
5.1.7 Maintenance Before Prolonged Storage..................................................................................5-1
5.1.8 Maintenance After Prolonged Storage.....................................................................................5-2
5.2 Preventive Maintenance...........................................................................................................5-3
5.2.1 Clean the Lotus........................................................................................................................5-3
5.2.2 Grease the Pivot Points...........................................................................................................5-3
5.2.3 Grease the Drive Line..............................................................................................................5-4
5.2.4 Grease the PTO shaft..............................................................................................................5-5
Table of Contents v
T-H001.1103EN

5.2.5 Replace the Gearbox Grease..................................................................................................5-6
5.3 Corrective Maintenance...........................................................................................................5-7
5.3.1 Adjust the Deflection of the Rotors..........................................................................................5-7
6. Diagrams and Tables.........................................................................................................................6-1
6.1 Lely Lotus 770 P Diagrams and Schematics...........................................................................6-1
6.2 Bolt and Nut Torque Table.......................................................................................................6-1
6.3 Tyre Pressure Diagram............................................................................................................6-2
7. Specifications.....................................................................................................................................7-1
7.1 Lotus 770 P Specifications.......................................................................................................7-1
vi Table of Contents
T-H001.1103EN

1. INTRODUCTION
The Lely Lotus 770 P is a pull-type rotary tedder-to ted mown fodder crops or
to wide spread crop swaths.
The working width of the Lely Lotus 770 P is 7.70 meter, and can be driven at
speeds up to 15 km/h. The wheels are positioned closely behind the tines to
follow ground contours accurately.
The Lely Lotus 770 P has 6 rotors. A rotor has 7 tine arms with a double spring
steel tine each. The special shaped tines pick up the crop and spread it with a
minimum loss. The rotors can pivot in relation to each other to follow field
indulations accurately.
The Lely Lotus 770 P is connected to the tractor hydraulics. The hydraulic
control makes sure the Lely Lotus 770 P moves quick and easily to the
transport position. The machine can be transported behind the tractor. The
transport width is 3 meter. The Lely Lotus 770 P has either a towing eye for an
upper tractor drawbar or a lower tractor drawbar.
Various optional extras are also available. Refer to Optional Extras Lely Lotus
770 P (page 1-2).
1. Drawbar - 2. Primary PTO shaft - 3. Front safety guard - 4. Wheel wedges - 5. Hydraulic
ram - 6. Locking hook - 7. Rear safety guard - 8. Transport wheels - 9. Tine - 10. Rotor - 11.
Rotor wheel - 12. Hydraulic ram - 13. Gearbox
Figure 1. Overview of the Lely Lotus 770 P
Introduction 1-1
T-H001.1103EN

1.1 Optional Extras Lely Lotus 770 P
1.1.1 Spare Wheel Support
A spare wheel support is installed on the Lotus to carry a spare wheel.
Figure 2. Spare Wheel Support
1-2 Introduction
T-H001.1103EN

2. SAFETY
This chapter contains safety instructions you must obey when you use or do
maintenance on your Lely Lotus. It also explains the safety decals on the Lely
Lotus.
2.1 Signal Words
Note the use of the signal words DANGER, WARNING and CAUTION. The
signal word for each message uses the following guidelines:
Danger: Indicates an imminently hazardous situation that, if
not avoided, will result in death or serious injury.
Warning: Indicates a potentially hazardous situation that, if not avoided,
could result in death, serious injury or product damage, and includes
hazards that are exposed when guards are removed.
Caution: Indicates a potentially hazardous situation that, if not avoided, may
result in minor or moderate injury or damage to the product or property.
Note: This shows extra information that may help the reader.
2.2 Safety Instructions
• Use the Lotus only for the purpose for which it was designed.
• Follow all safety regulations, including those in this manual and instructions
or warnings indicated on the machine.
• Operate the Lotus in a safe manner.
• The Lotus must only be operated by authorised persons.
• Be alert and observe all safety precautions.
• Make sure all safety guards and protection devices are installed and
function correctly.
• Keep people and objects away from moving parts.
• Stop the tractor engine, the Power Take-Off (PTO) and all moving parts
before you do maintenance on the Lotus.
• Make sure no people are in the danger zone when the Lotus is in operation.
This is especially important when you work near or on areas that are
accessible to the public.
• Always use a tractor with a cab.
• Make sure there are no objects in the field that could be thrown up by the
Lotus before you operate the Lotus.
• Obey local legislation when you drive on a public road.
• Use flashing lights or other safety signs, when necessary.
• Do not stand on the Lotus.
• Only use genuine LELY parts.
DANGER
WARNING
CAUTION
Note:
Safety 2-1
T-H001.1103EN

• Depressurise the hydraulic system before you connect or disconnect
hydraulic hoses.
•Use protective clothing, gloves, safety glasses and ear protectors, if
necessary.
• Clean or replace the safety decals regularly so that they can be read at all
times.
2.3 Explanation of the Safety Decals on the Lely Lotus 770 P
Read the operator's manual carefully before you
operate the Lotus
Keep away from all moving parts unless they are
locked and cannot move.
Keep a safe distance from the Lotus when the
tractor engine is on.
Keep away from the folding area of the rotors.
Read the operating instructions for the PTO
shaft. Always use the correct safety precautions
and protection when you operate the PTO shaft.
Never operate the Lotus at a PTO speed of more
than 540 rpm
2-2 Safety
T-H001.1103EN

2.4 Position of the Safety Decals on the Lely Lotus 770 P
Figure 3. Position of the Safety Decals on the Lely Lotus 770 P
Safety 2-3
T-H001.1103EN

2-4 Safety
T-H001.1103EN

3. OPERATION
3.1 Connect the Lotus to the Tractor
1. Make sure the tractor is aligned with the Lotus.
2. If necessary, remove the parking jack from the storage support and
install it to the Lotus drawbar.
3. Turn the winding handle of the parking jack either clockwise or
counterclockwise to adjust the height of the Lotus until the towing eye
is at the same height as the tractor drawbar.
4. Install the Lotus towing eye to the tractor drawbar.
5. Install a correct linkage pin to the coupling system to connect the Lotus
to the tractor.
6. Turn the winding handle of the parking jack counterclockwise to move
the parking jack to the top position.
7. Turn the handle at rear of the parking jack counterclockwise to unlock
it.
8. Remove the parking jack from the Lotus drawbar and install it to the
storage support.
9. Turn the handle at the rear of the parking jack clockwise until it is locked.
10. Remove the wheel wedges and attach them to the support at the front
safety guard.
11. Make sure the primary PTO shaft telescopes smoothly.
The first time you connect the Lotus to each tractor, refer to the instructions
supplied with the PTO shaft and make sure the minimum and maximum
overlap of the two parts of the PTO shaft is correct.
Always connect the safety chain of the PTO shaft to a rigid part of the
tractor.
12. Make sure the Lotus PTO shaft telescopes smoothly.
13. Connect the Lotus PTO shaft to the tractor PTO shaft.
The maximum pressure of the tractor hydraulic system must not be more
than 21.0 MPa (210 bar).
14. Remove the dust caps from the two hydraulic hoses.
15. Connect the two hydraulic hoses to the double-acting hydraulic valve on
the tractor.
16. Connect the lighting electrical cable to the correct socket on the tractor.
17. Make sure all the lights on the Lotus operate correctly.
CAUTION
WARNING
WARNING
Operation 3-1
T-H001.1103EN

1.Pull eye - 2. Hose support - 3. Wheel wedges - 4. Parking jack - 5. PTO-shaft support
Figure 4. Connection Points
Figure 5. Install the Parking Jack to the Storage Support
3-2 Operation
T-H001.1103EN

3.2 Disconnect the Lotus from the Tractor
Always position the tractor on solid ground before you disconnect the
Lotus from the tractor.
Make sure there are no persons near the Lotus when you disconnect it
from the tractor.
The Lotus can be disconnected from the tractor in the transport position
and in the working position.
1. Switch off the tractor engine and release the pressure from the tractor
hydraulic system.
2. Install the wheel wedges in front of the transport wheels and behind the
transport wheels.
3. Remove the parking jack from the storage support and install it to the
Lotus drawbar.
4. Make sure the parking jack is locked.
5. Turn the winding handle of the parking jack clockwise to lower the
parking jack to the ground until the Lotus towing eye is cleared from the
tractor drawbar.
6. Disconnect the Lotus primary PTO-shaft from the tractor PTO.
7. Attach the primary PTO-shaft to the PTO support.
8. Disconnect the two hydraulic hoses from the tractor hydraulic system.
9. Install the dust caps on the hydraulic hoses.
10. Attach the hydraulic hoses to the support on the Lotus drawbar.
11. Disconnect the lighting electrical cable from the tractor.
12. Attach the lighting electrical cable to the support on the Lotus drawbar.
13. Remove the tractor from the area.
WARNING
WARNING
Note:
Operation 3-3
T-H001.1103EN

3.3 Move the Lotus from the Transport Position to the Working
Position
Make sure there are no persons in the area when you move the Lotus to
the headland position.
Make sure the safety guards are moved to the bottom position. Safety guards
in top position cause damage to the Lotus when moving from transport position
to the working position.
1. On both sides of the Lotus, move the safety guard to the bottom
position (fig. 6, page 3-4).
2. Make sure all rotor wheel assemblies are set to the same position (page
4-4).
3. Operate the tractor hydraulics system to move the two outer rotor
segments upwards until they are completely upright (A) (fig. 7, page
3-5).
4. Make sure the locking hooks have disengaged.
5. Operate the tractor hydraulic system to lower the two outer rotor
segments to the ground (B) (fig. 7, page 3-5).
6. Set the hydraulic valve in the tractor to the floating position. The rotors
move downwards (C) (fig. 7, page 3-5).
7. Move the tines of the two center rotors to position A (page 4-1).

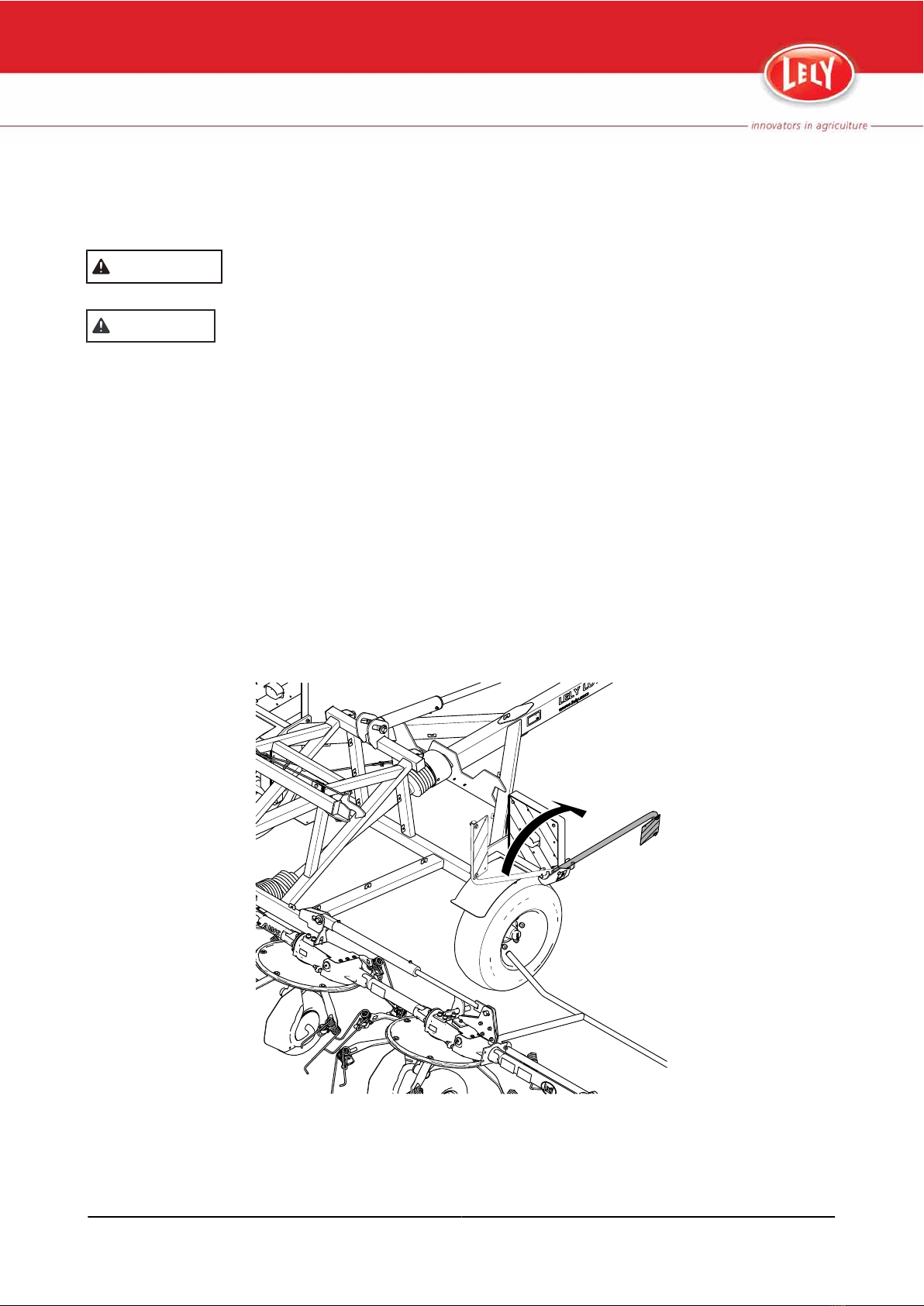

Figure 6. Move the Safety Guard to the Bottom Position
WARNING
CAUTION
3-4 Operation
T-H001.1103EN

Figure 7. Move the Lotus to the Working Position
Operation 3-5
T-H001.1103EN

3.4 Move the Lotus from the Working position to the Transport
Position
Make sure the front axle weight of the tractor is sufficient (use front
weights if necessary) and that you do not exceed the rear axle weight
when the Lotus is in the transport position.
Make sure the PTO shaft does not turn when the Lotus is in the transport
position.
Use all lights and warning signals as defined by your local road traffic
regulations.
Make sure there are no persons in the area when you move the Lotus to
the transport position.
1. Move the tines of the two center rotors to position B (page 4-1).
2. Operate the tractor hydraulic system to move the two outer rotor
segments of the Lotus upwards until the locking hooks have engaged
(A) (fig. 8, page 3-7).
3. Operate the tractor hydraulic system to move the rotor segments
forwards (B) (fig. 8, page 3-7).
4. On both sides of the Lotus, move the safety guard to the top position
(fig. 10, page 3-8).
5. Move the wheel assembly of the two center rotors to the most inner
position (page 4-4).
WARNING
WARNING
CAUTION
WARNING
3-6 Operation
T-H001.1103EN

Figure 8. Move the Lotus to the Transport Position
Operation 3-7
T-H001.1103EN

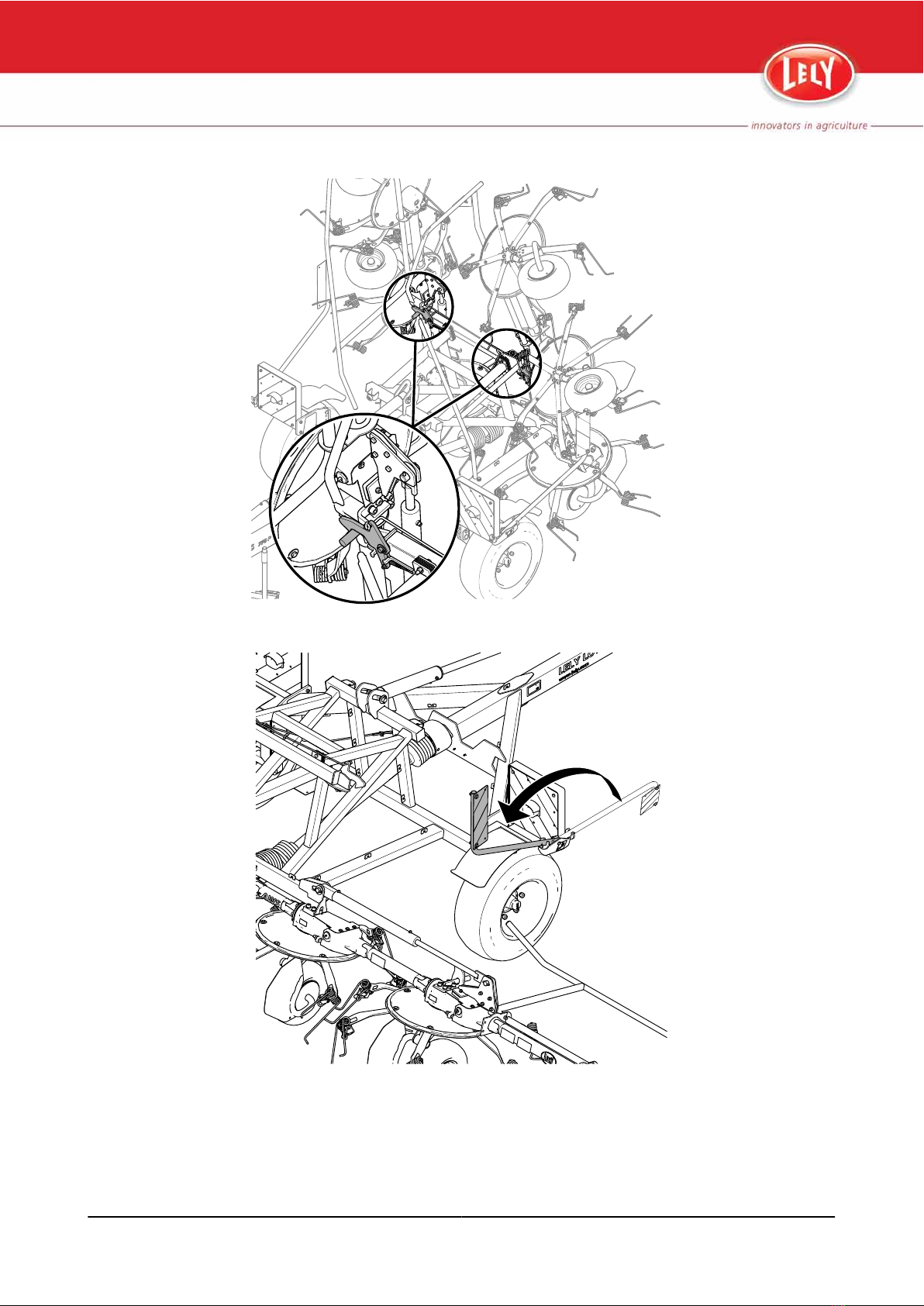

Figure 9. Make sure the Locking Hooks are Engaged
Figure 10. Move the Safety Guard to the Top Position
3-8 Operation
T-H001.1103EN
